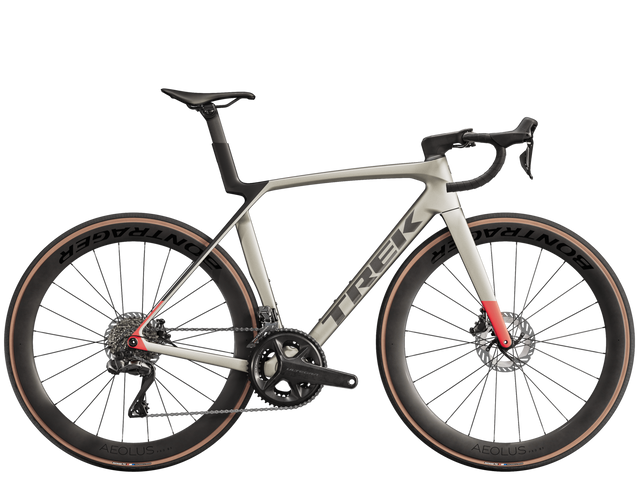

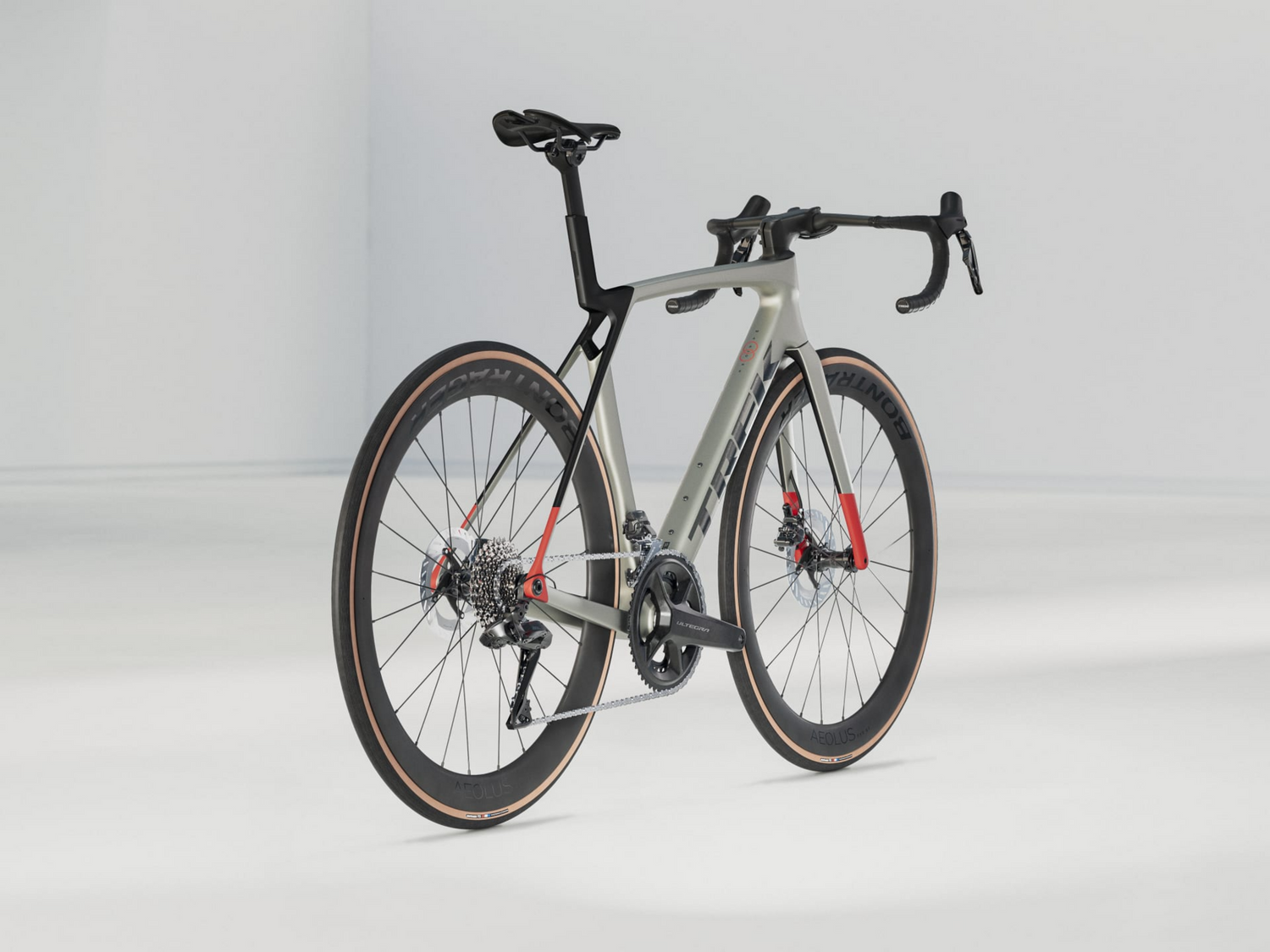

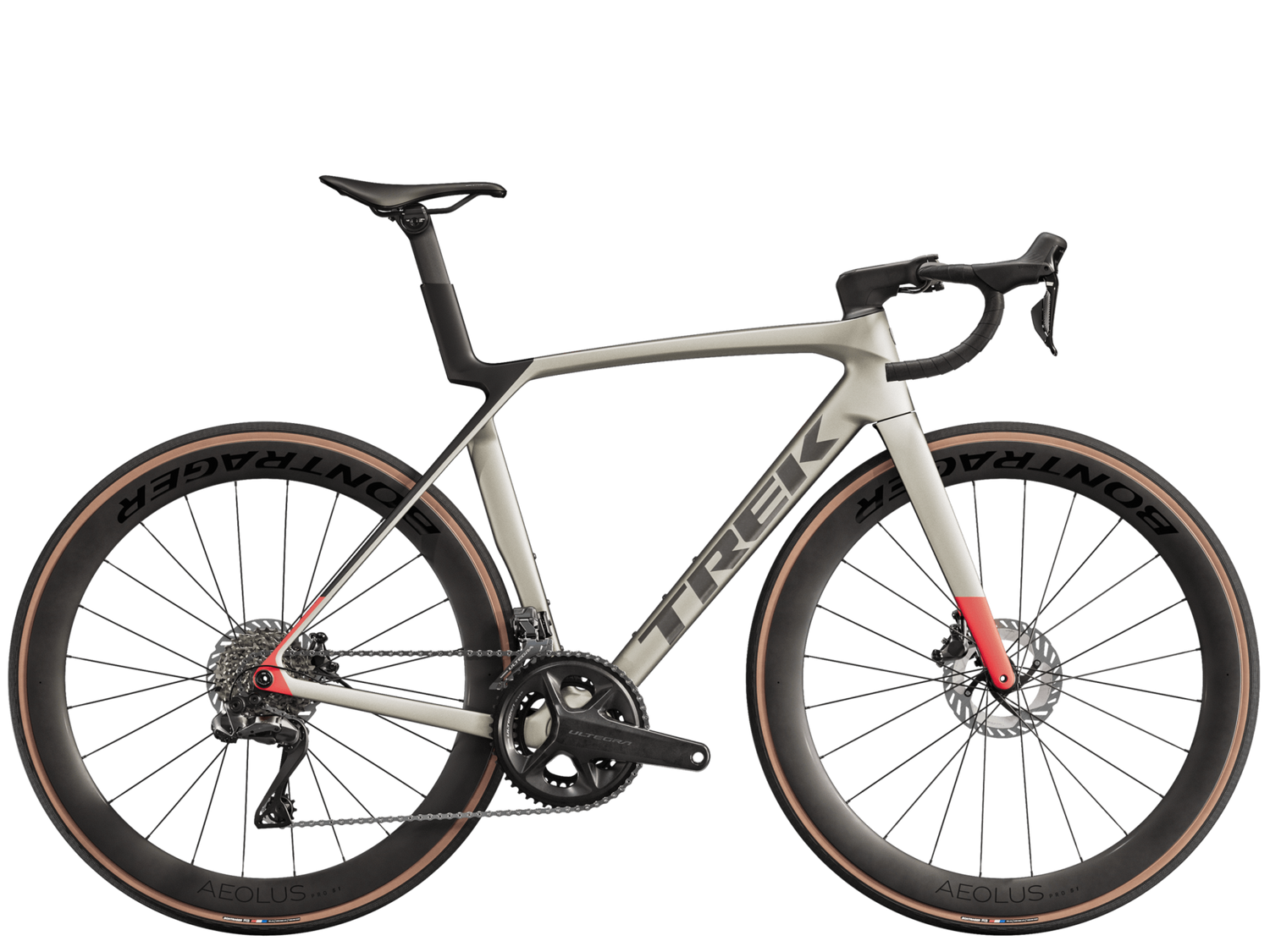

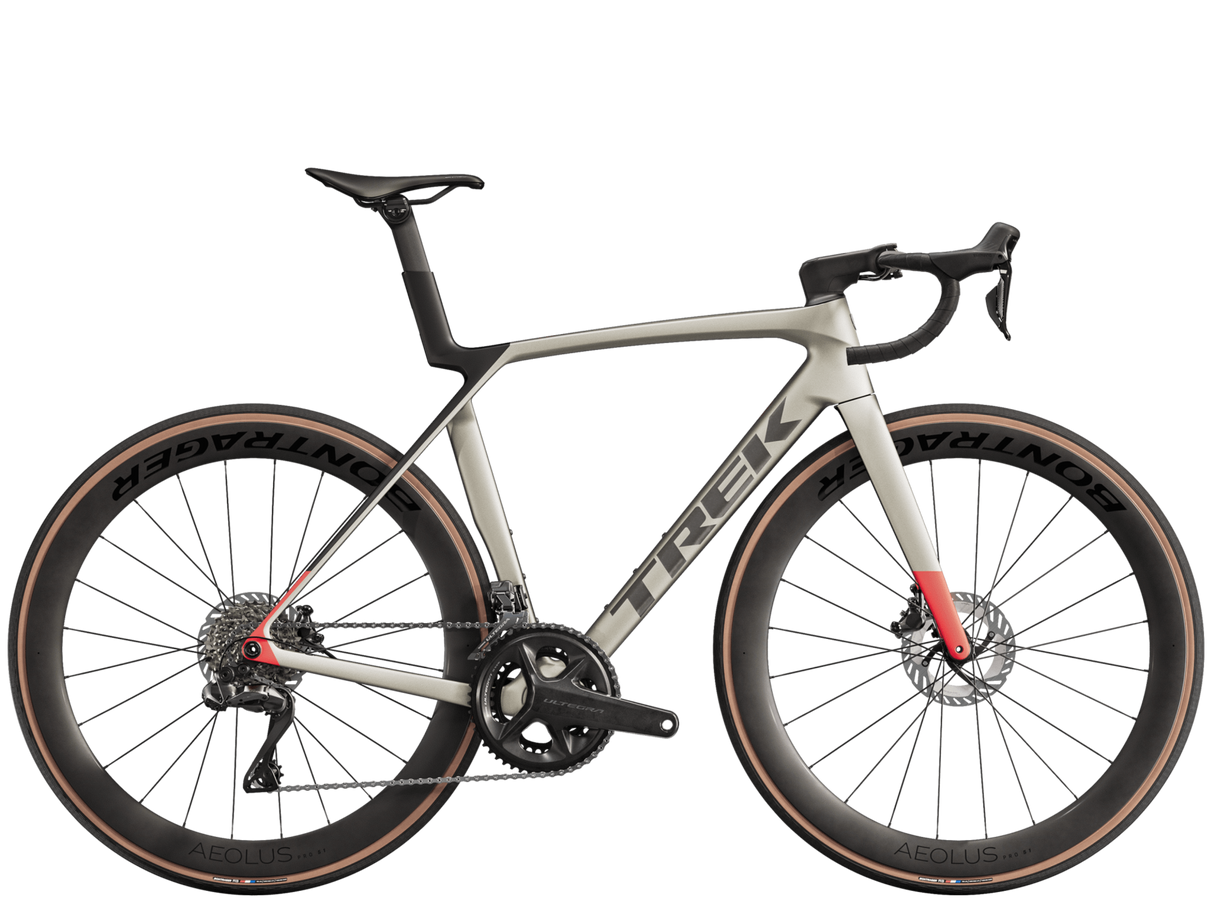

Madone SL 7 Gen 8
Overview
Overview
- Revolutionary Full System Foil aero tube shapes redefine what fast looks like and help optimize aerodynamics around the whole bike
- A more economical 500 Series OCLV Carbon frame and new tube shaping shave weight where it matters most to help you fly up climbs
- Carbon wheels keep weight down and performance up, so you can crush climbs and soar down descents
- You get lightning-fast precision shifts that are fully customizable thanks to Shimano's Ultegra Di2 drivetrain

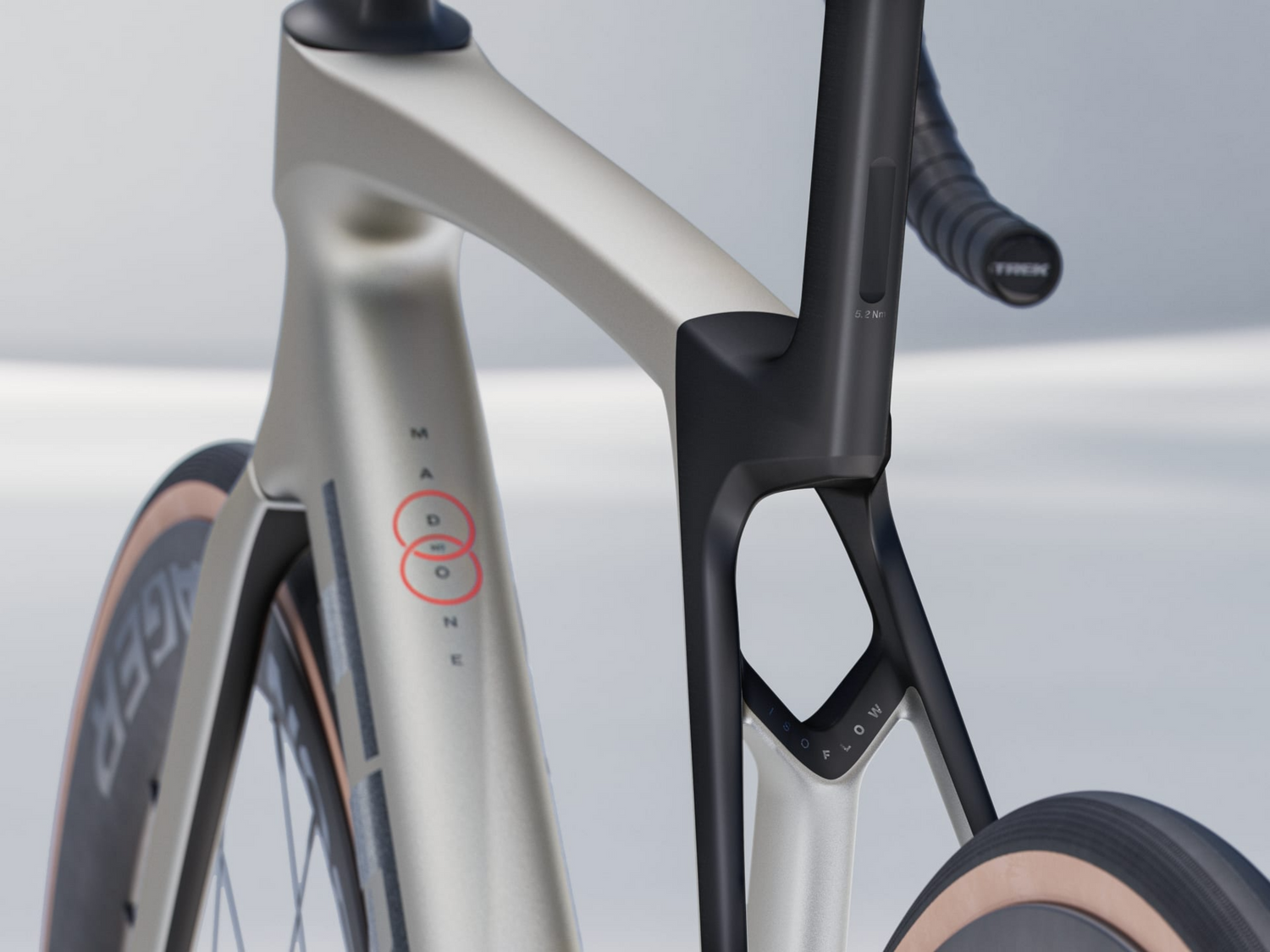

- Lightweight, race-focused IsoFlow comfort tech helps you ride stronger longer without sacrificing weight or aerodynamics
- This bike comes set up tubeless — a first in Trek performance road history
Technical Specifications
Technical Specifications
| Rims | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready |
| Stem | Trek RCS Pro, -7 degree, 110mm length |
| Chain | Shimano Ultegra/XT M8100, 12 speed |
| Frame | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle |
| Tires | Bontrager R3 Hard-Case Lite, aramid bead, 170 tpi, 700x28mm |
| Rotors | Shimano CL800, centerlock, 160mm |
| Saddle | Bontrager Aeolus Elite, austenite rails, 145mm width |
| Wheels | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle / |

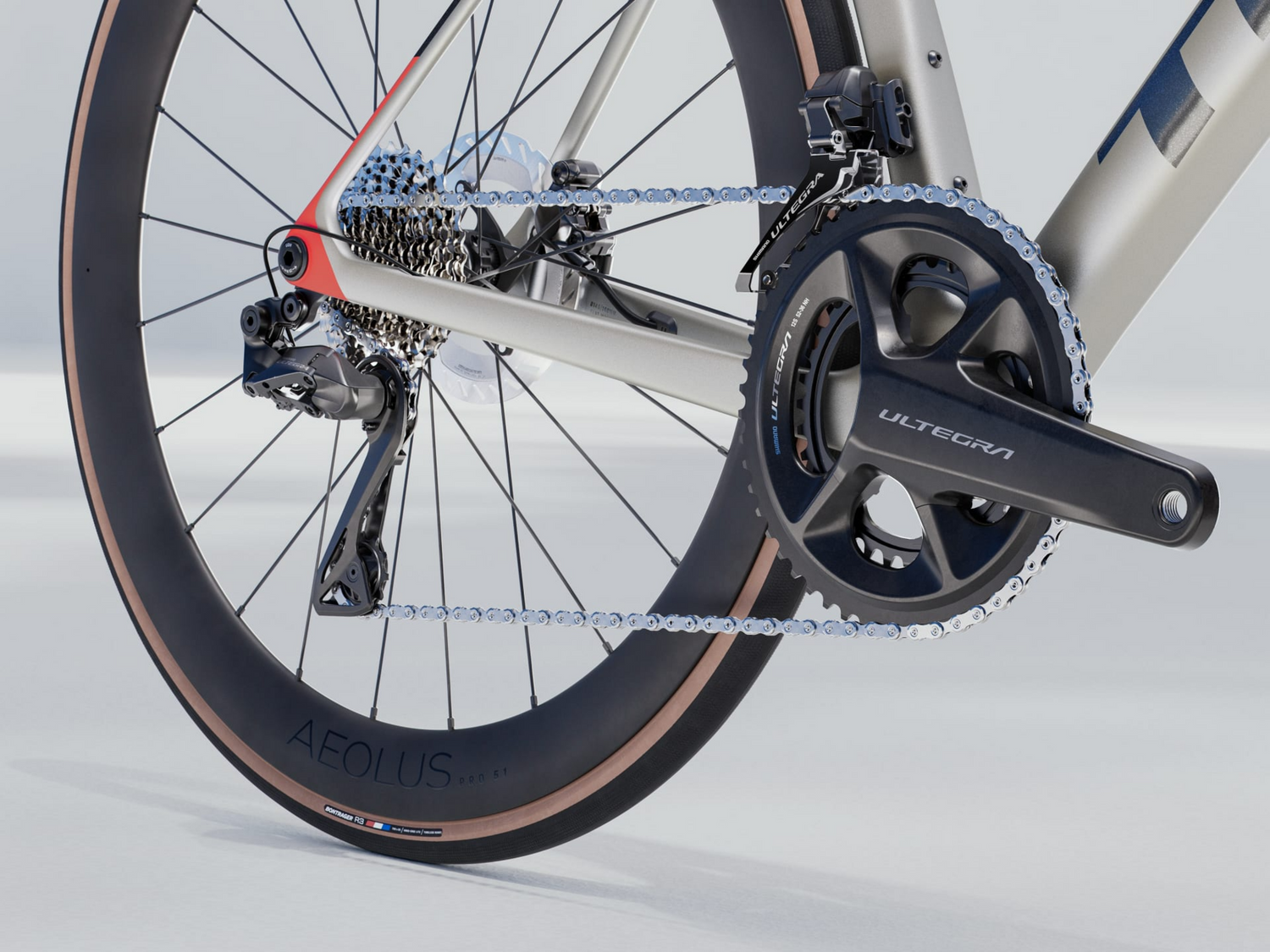

| Crankset | Shimano Ultegra R8100, 50/34, 175mm length |
| Shifters | Shimano Ultegra R8170 Di2, 12 speed |

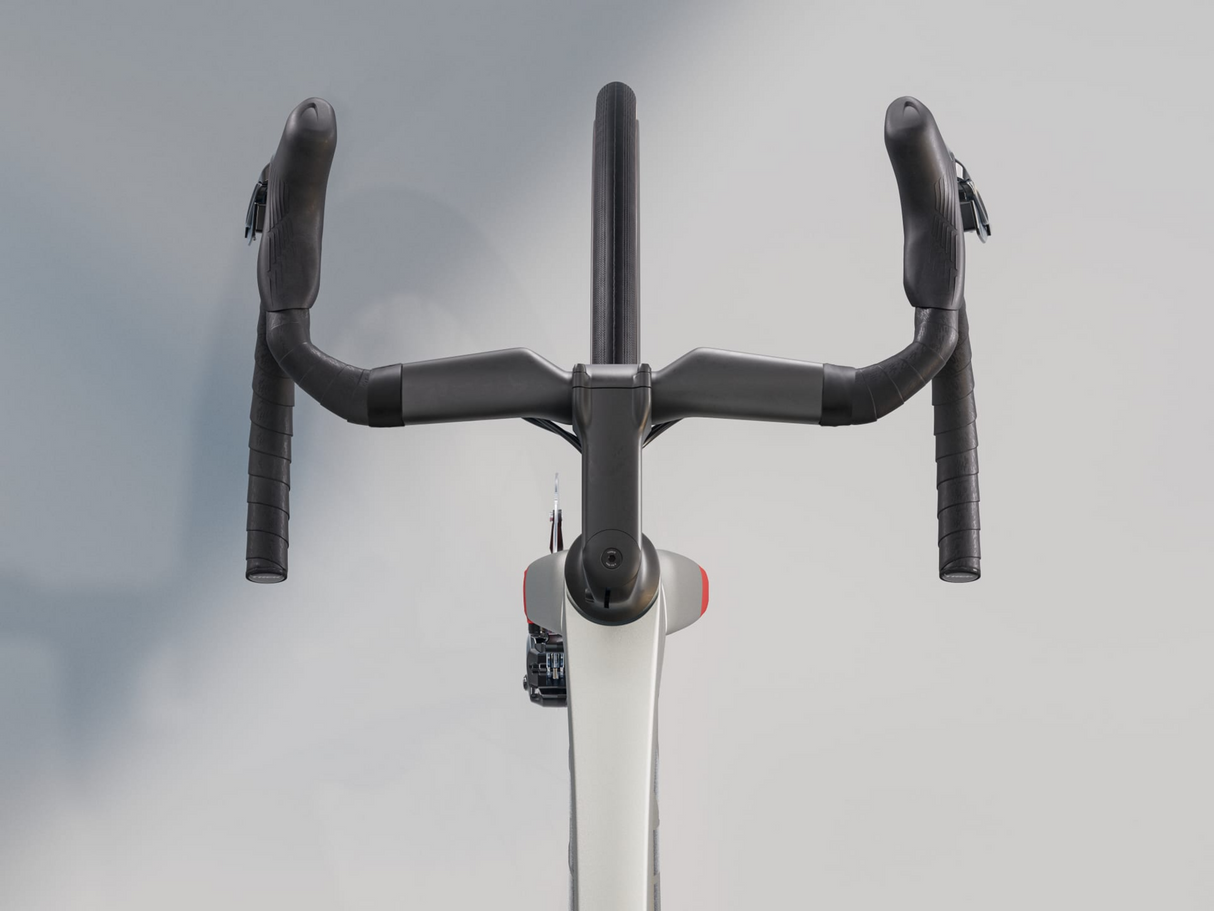

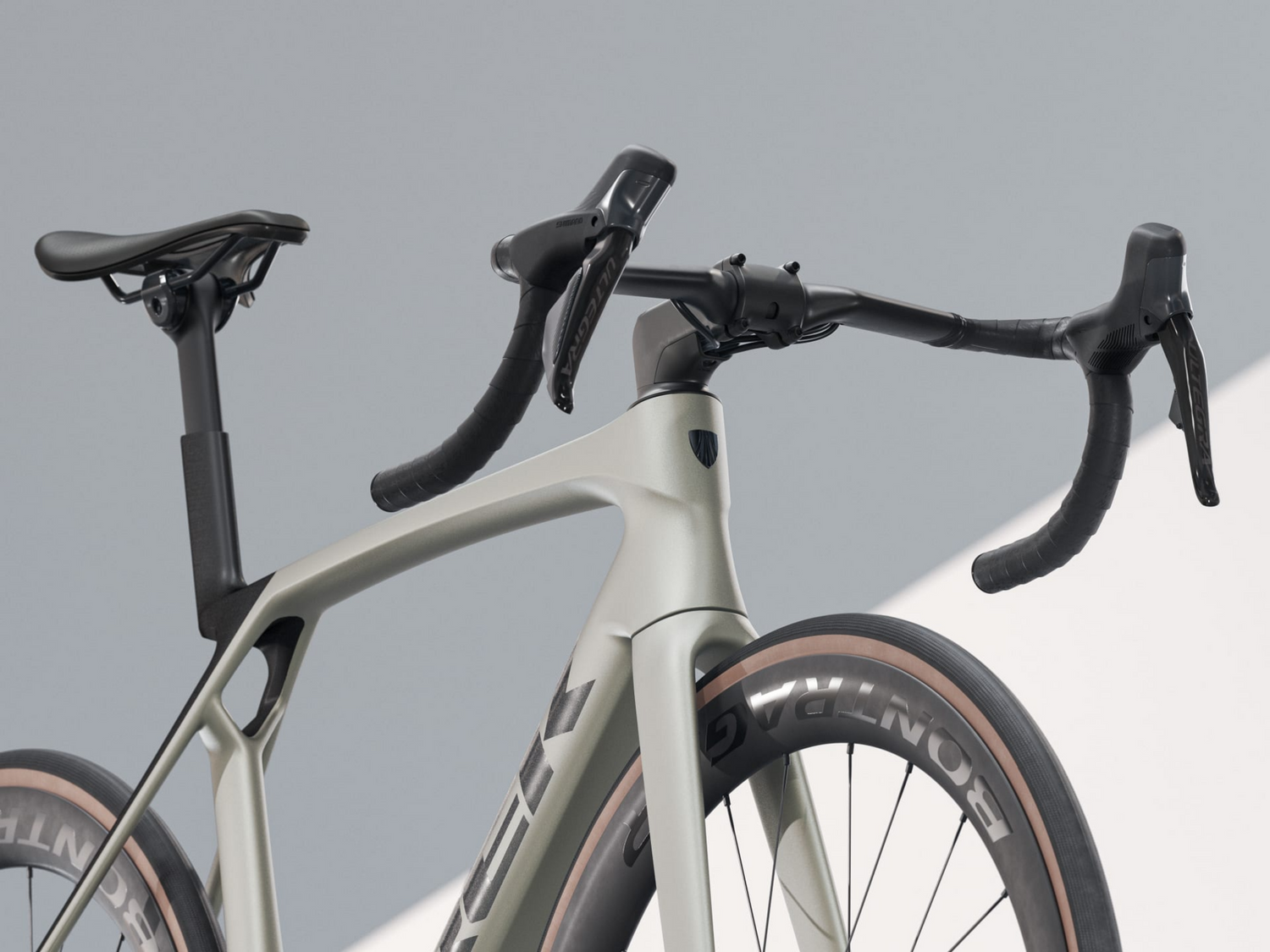

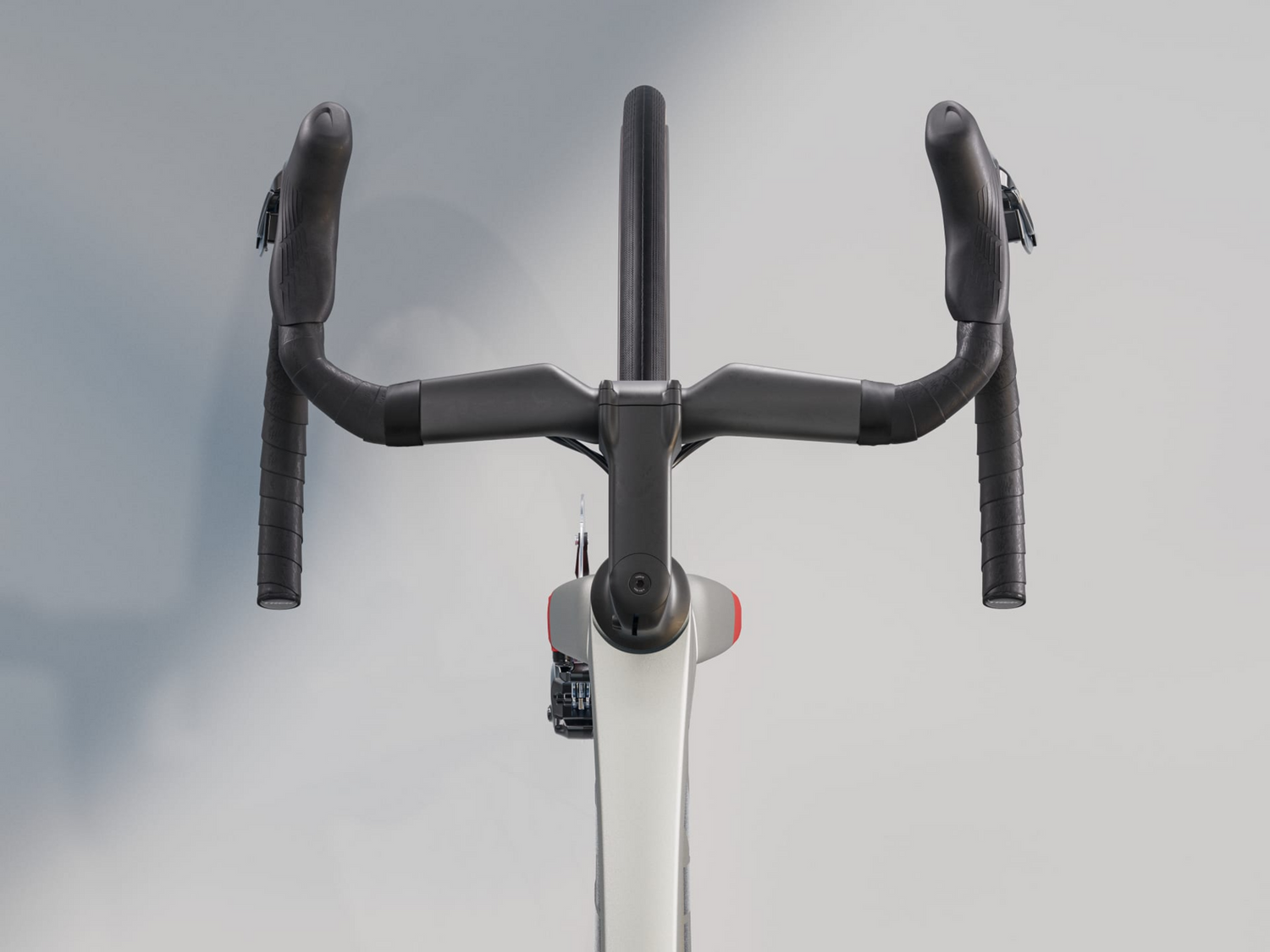

| Handlebars | Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 41cm control width, 44cm drop width |
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Front derailleur | Shimano Ultegra R8150 Di2, braze-on, down swing |
| Cassette/freewheel | Shimano Ultegra R8101, 11-34, 12 speed |
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
| Rear derailleur | Shimano Ultegra R8150 Di2, 34T max cog |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
| Frame size | XS | S | M | ML | L | XL |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube (CM) | 40.4 | 44 | 47.6 | 51.2 | 54.8 | 60.9 |
| B — Seat tube angle | 73.8 | 73.8 | 73.6 | 73.4 | 73.4 | 73.4 |
| C — Head tube length (CM) | 10 | 12.1 | 13.6 | 15 | 17.2 | 20.1 |
| D — Head angle | 71.6 | 72.2 | 72.9 | 73.5 | 73.8 | 73.9 |
| E — Effective top tube (CM) | 51.7 | 53.2 | 54.5 | 55.7 | 56.8 | 58.4 |
| G — Bottom bracket drop (CM) | 7.2 | 7.2 | 7 | 7 | 6.8 | 6.8 |
| H — Chainstay length (CM) | 41 | 41 | 41 | 41 | 41.1 | 41.2 |
| I — Offset (CM) | 5 | 4.5 | 4.5 | 4 | 4 | 4 |
| J — Trail (CM) | 6.1 | 6.2 | 5.8 | 5.9 | 5.7 | 5.7 |
| K — Wheelbase (CM) | 97.1 | 97.6 | 98.1 | 98 | 99 | 100.7 |
| L — Standover (CM) | 70.9 | 74 | 76.8 | 79.4 | 82.5 | 86.9 |
| M — Frame reach (CM) | 37 | 37.8 | 38.4 | 38.9 | 39.4 | 40.2 |
| N — Frame stack (CM) | 50.7 | 53 | 54.6 | 56.2 | 58.2 | 61 |
| Saddle rail height min (w/short mast) (CM) | 54.9 | 58.5 | 62.1 | 65.7 | 69.3 | 75.4 |
| Saddle rail height max (w/short mast) (CM) | 61.2 | 64.8 | 68.4 | 72 | 75.6 | 81.7 |
| Saddle rail height min (w/tall mast) (CM) | 59.2 | 62.8 | 66.4 | 70 | 73.6 | 79.7 |
| Saddle rail height max (w/tall mast) (CM) | 65.4 | 69 | 72.6 | 76.2 | 79.8 | 85.9 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| Rider Height | Inseam | |
| XS | 143 - 158 cm | 67 - 74 cm |
| XS | 4'8" - 5'2" | 26" - 29" |
| S | 158 - 162 cm | 74 - 76 cm |
| S | 5'2" - 5'4" | 29" - 30" |
| M | 162 - 173 cm | 76 - 81 cm |
| M | 5'4" - 5'8" | 30" - 32" |
| ML | 173 - 179 cm | 81 -84 cm |
| ML | 5'8" - 5'10" | 32" - 33" |
| L | 179 - 188 cm | 84 - 88 cm |
| L | 5'10" - 6'2" | 33" 35" |
| XL | 188 - 213 cm | 88 - 100 cm |
| XL | 6'2" - 7'0" | 35" - 39" |
Sizing to be used as a reference only. Chat with us if you have any questions.
