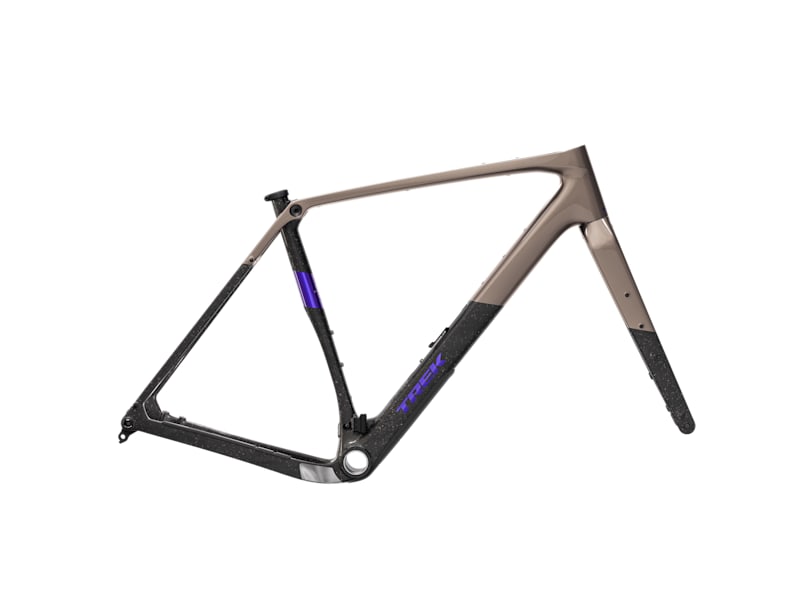

2026 Checkpoint SL Gen 3 Gravel Road Frameset
Overview
Overview
Technical Specifications
Technical Specifications
| Frame | 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle |
| Fork | Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle |
| Weight | 1385g - ML (frame-only, painted), 536g (fork-only, painted) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
| Max chainring size | 1x:44 2x: 46/30 |
| Skewer front | Bontrager Switch chamfered thru axle |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Max tire size | 50mm without fenders, 42mm with fenders (as measured, see manual for details) |
| Rotor size | Max brake rotor sizes: 180mm front & rear |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size letter | XS | S | M | ML | L | XL |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube | 44.5 | 48.0 | 50.5 | 53.0 | 55.0 | 57.5 |
| B — Seat tube angle (degrees) | 74.0° | 74.0° | 73.3° | 73.3° | 73.3° | 73.3° |
| Effective seat tube angle (degrees) | 72.7° | 73.0° | 72.8° | 72.8° | 72.8° | 72.8° |
| C — Head tube length | 8.6 | 10.6 | 13.0 | 15.1 | 17.1 | 19.1 |
| D — Head angle (degrees) | 71.0° | 71.4° | 71.6° | 72.0° | 72.1° | 72.4° |
| E — Effective top tube | 53.6 | 54.7 | 56.6 | 57.8 | 58.9 | 60.1 |
| G — Bottom bracket drop | 7.6 | 7.6 | 7.6 | 7.6 | 7.6 | 7.6 |
| H — Chainstay length | 43.0 | 43.0 | 43.0 | 43.0 | 43.0 | 43.0 |
| I — Offset | 4.9 | 4.9 | 4.9 | 4.9 | 4.9 | 4.9 |
| J — Trail | 7.1 | 6.8 | 6.8 | 6.4 | 6.4 | 6.2 |
| K — Wheelbase | 101.3 | 102.2 | 103.4 | 104.2 | 105.2 | 106.2 |
| L — Standover | 74.6 | 77.2 | 79.9 | 81.3 | 83.7 | 86.1 |
| M — Frame reach | 38.0 | 38.6 | 39.1 | 39.7 | 40.2 | 40.8 |
| N — Frame stack | 53.5 | 55.6 | 57.9 | 60.1 | 62.0 | 64.0 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| XS | 4'8" - 5'2" | 143 - 158 |
| S (49cm) | 5'2" - 5'5" | 158 - 164 |
| M (52-54cm) | 5'5" - 5'10" | 164 - 177 |
| ML (56cm) | 5'10" - 6'2" | 177 - 188 |
| L (58cm) | 6'2" - 6'4" | 188 - 194 |
| XL (61cm) | 6'4" - 6'8" | 194 - 203 |
Sizing to be used as a reference only. Chat with us if you have any questions.
