2025 Revolt 2 Gravel Road Bike
-
ALUXX Aluminum Technology
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
-
D-Fuse Technology
The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
-
Flip Chip - Dropout
Allows riders to quickly adjust the geometry and rear-wheel tire clearance with eccentric, offset two-position hardware in the rear wheel dropouts.
-
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
-
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Overview
Overview

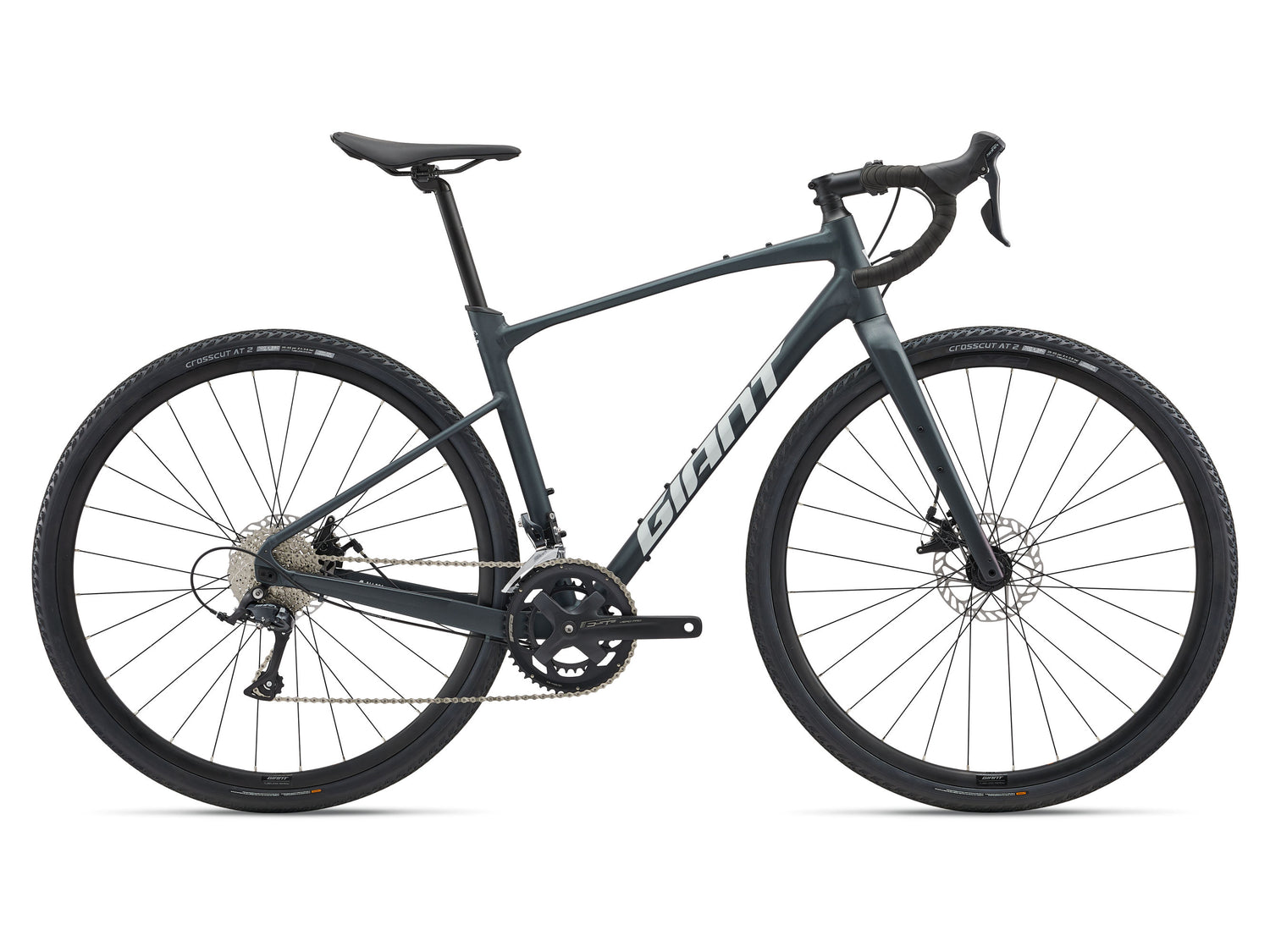

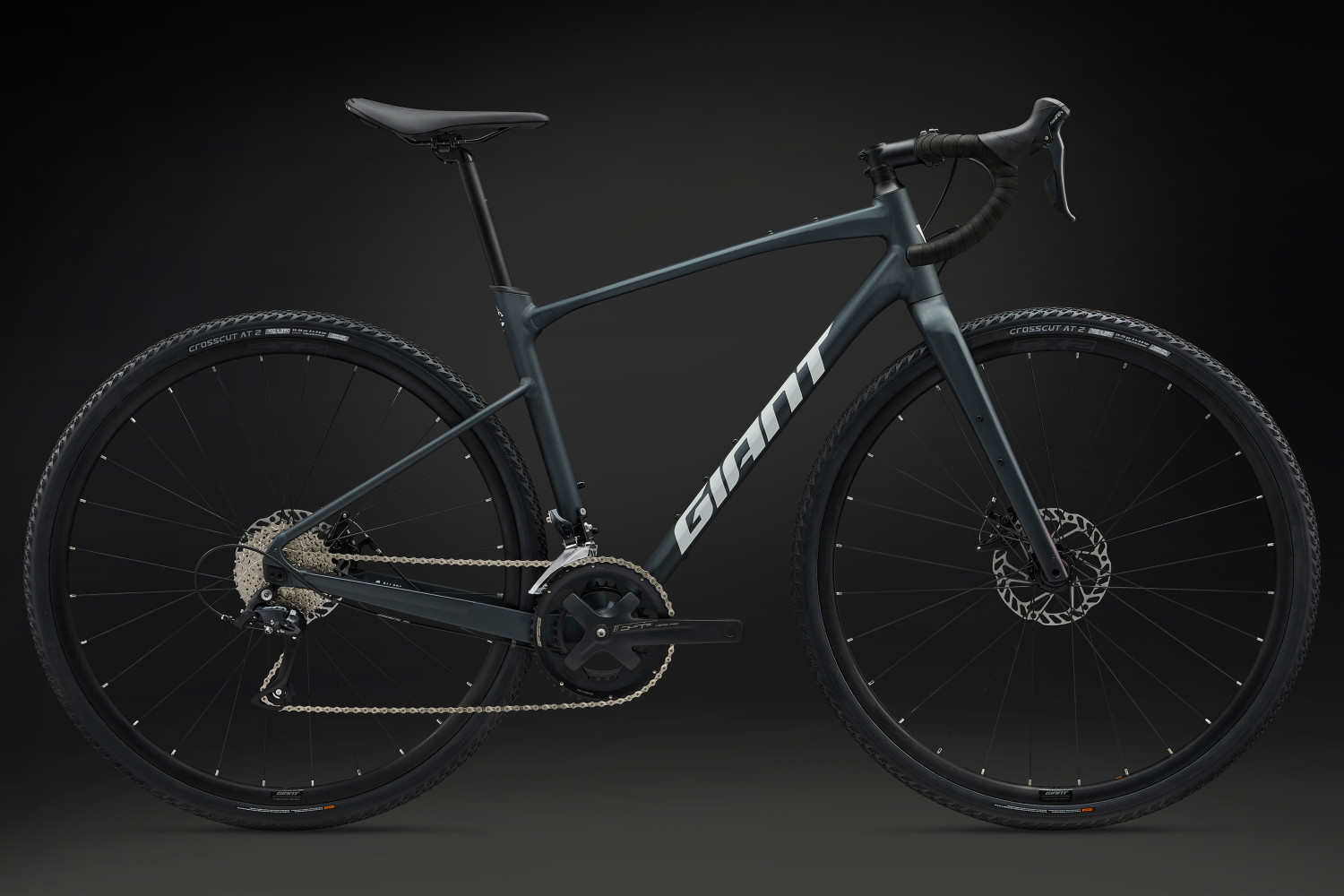

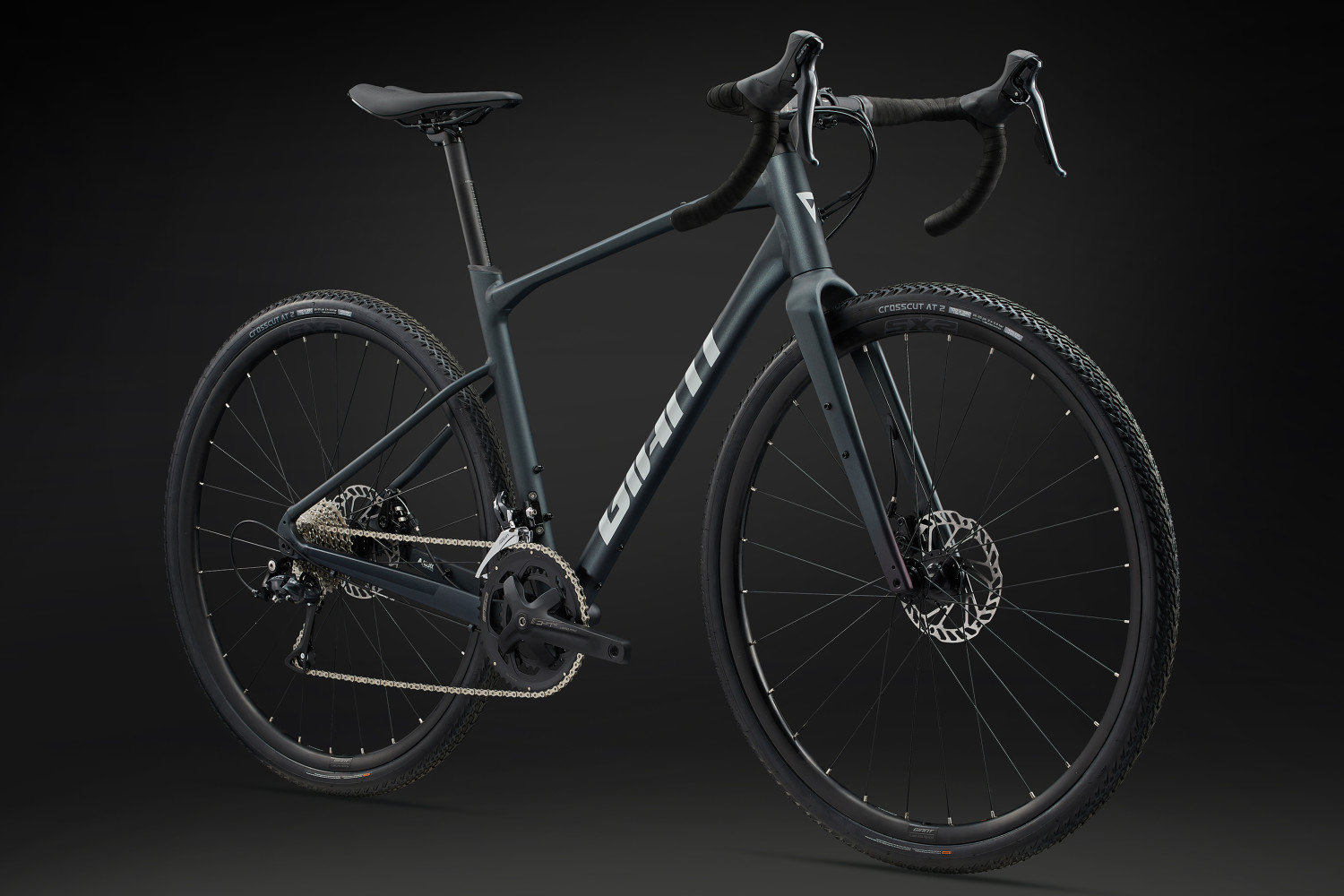

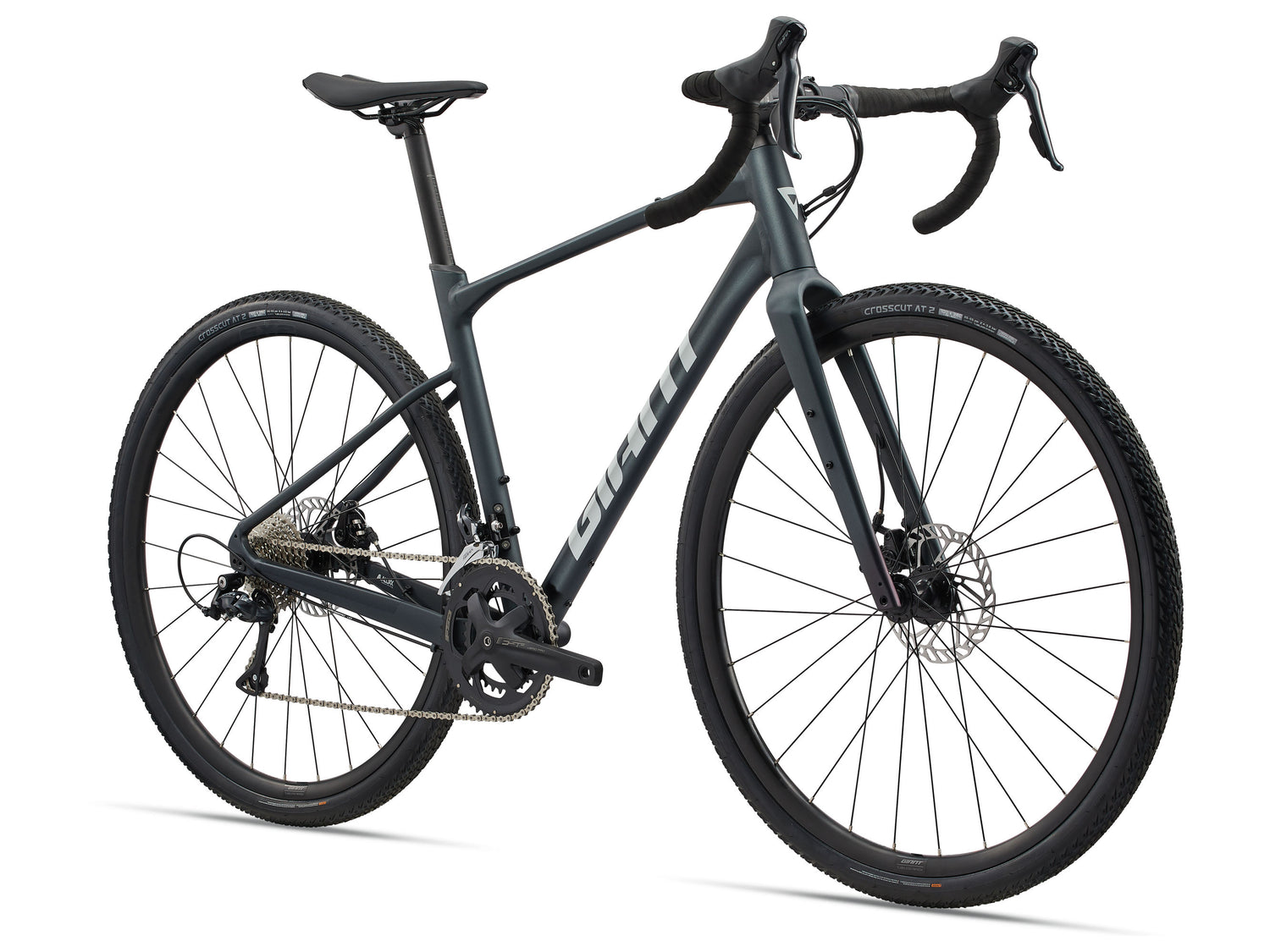

Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.
Key Performance Factors
- Confident handling: Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
- Tuned compliance: Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
- Adaptable to the terrain: A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
Technical Specifications
Technical Specifications
| Sizes | XS, S, M, M/L, L, XL |

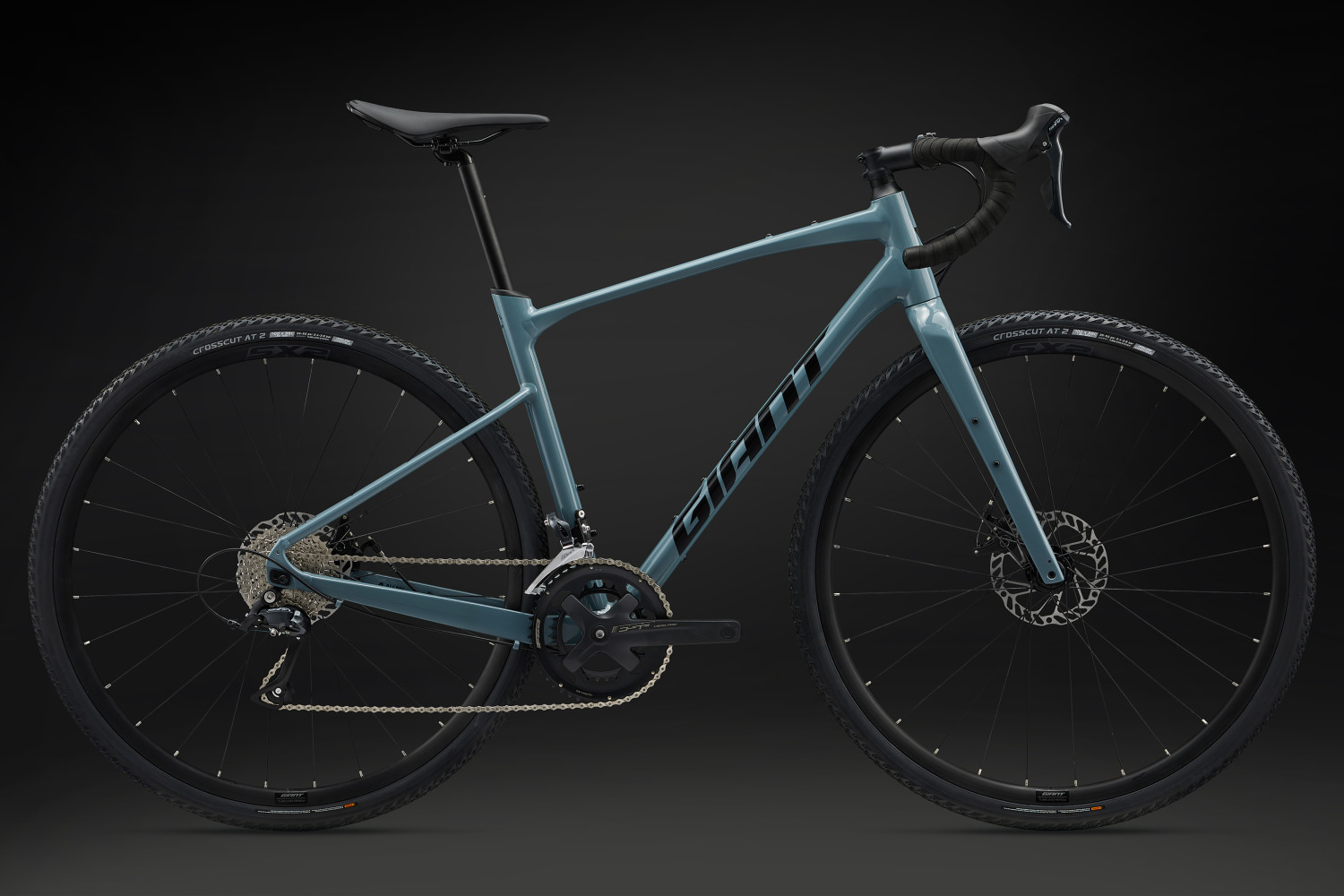

| Colors | Asphalt Green, Storm Cloud |
| Frame | ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout |

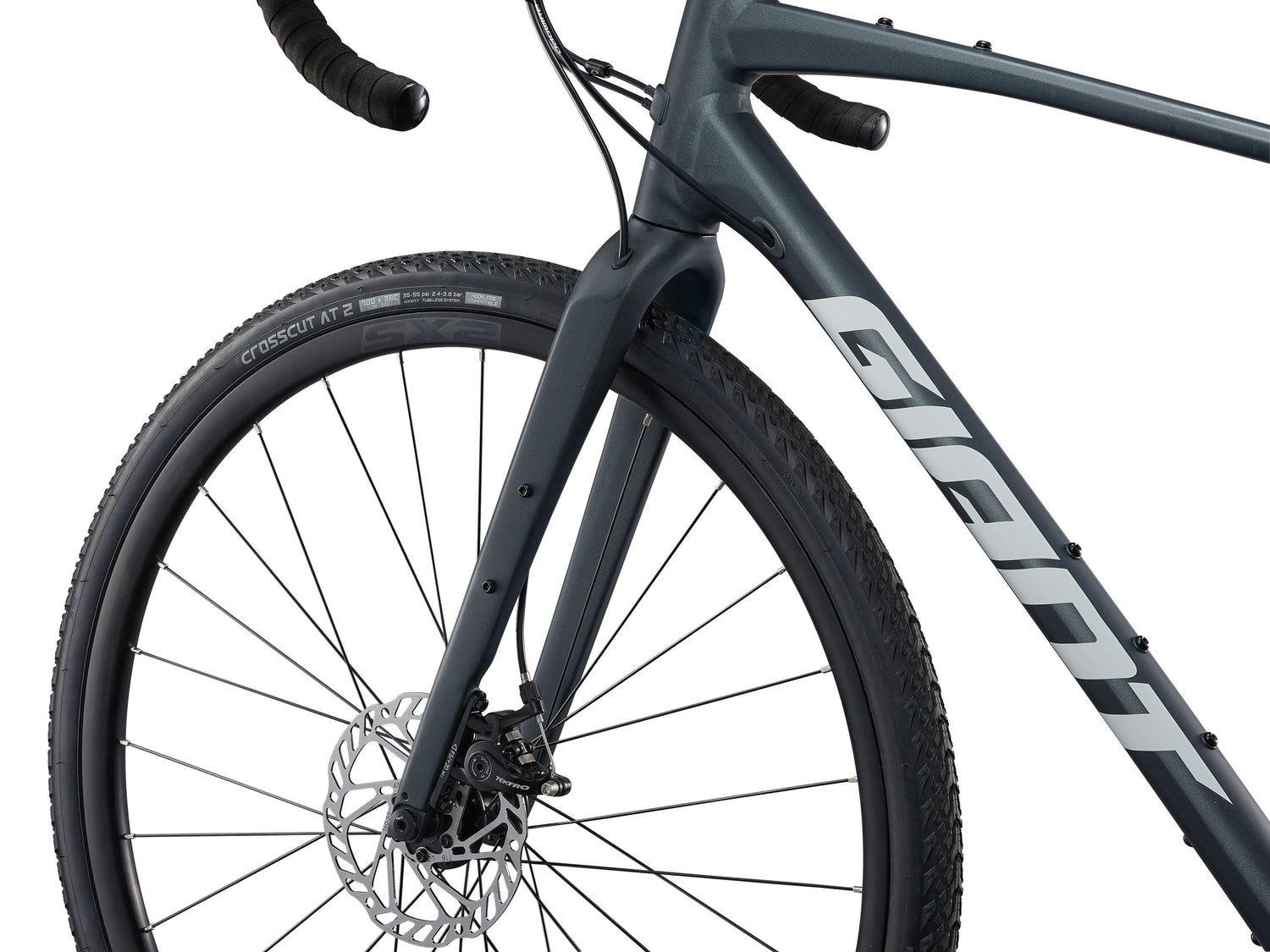

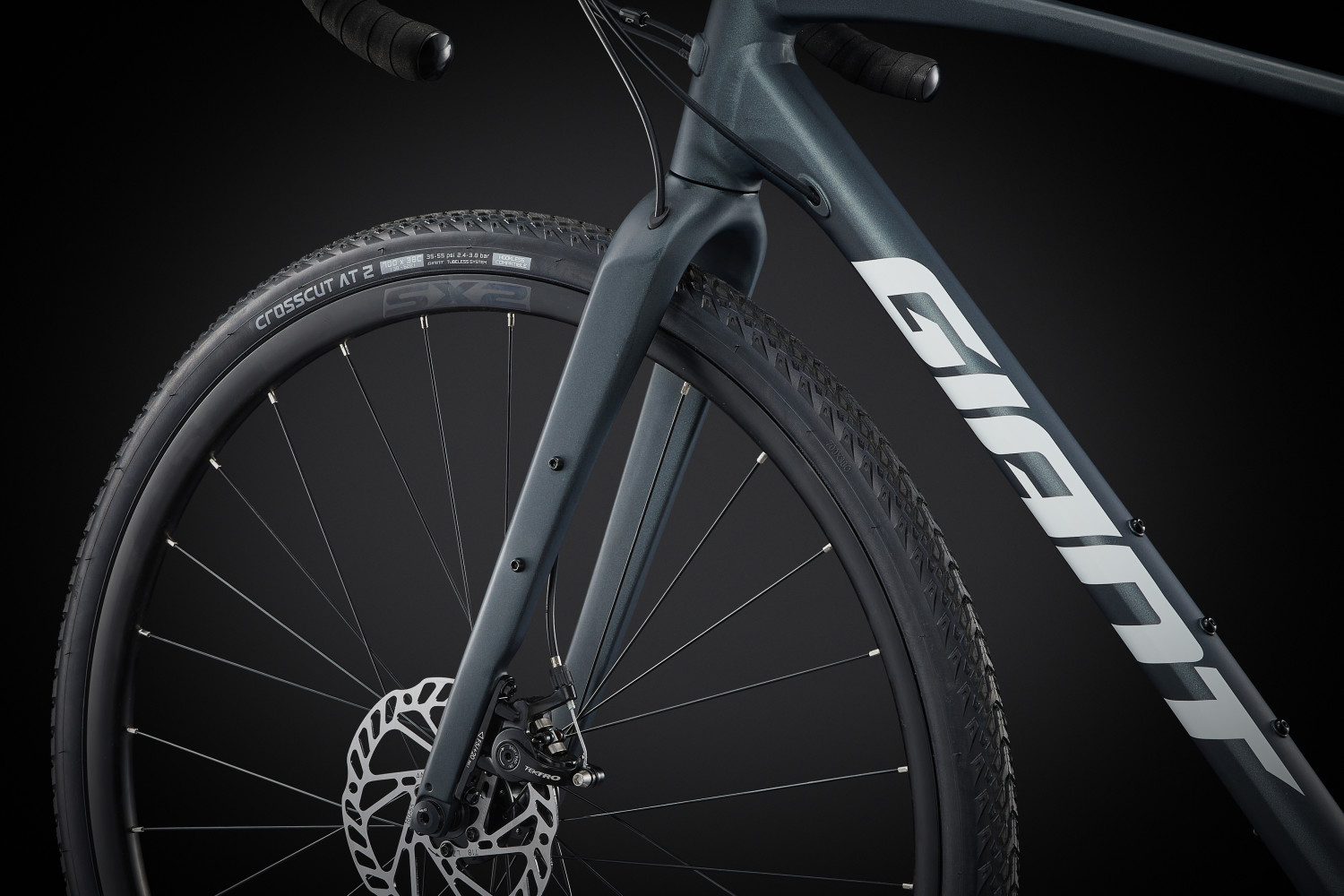

| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Handlebar | Giant Contact XR Ergo-Control, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
| Grips | cork tape with gel |
| Stem | Giant Sport, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |

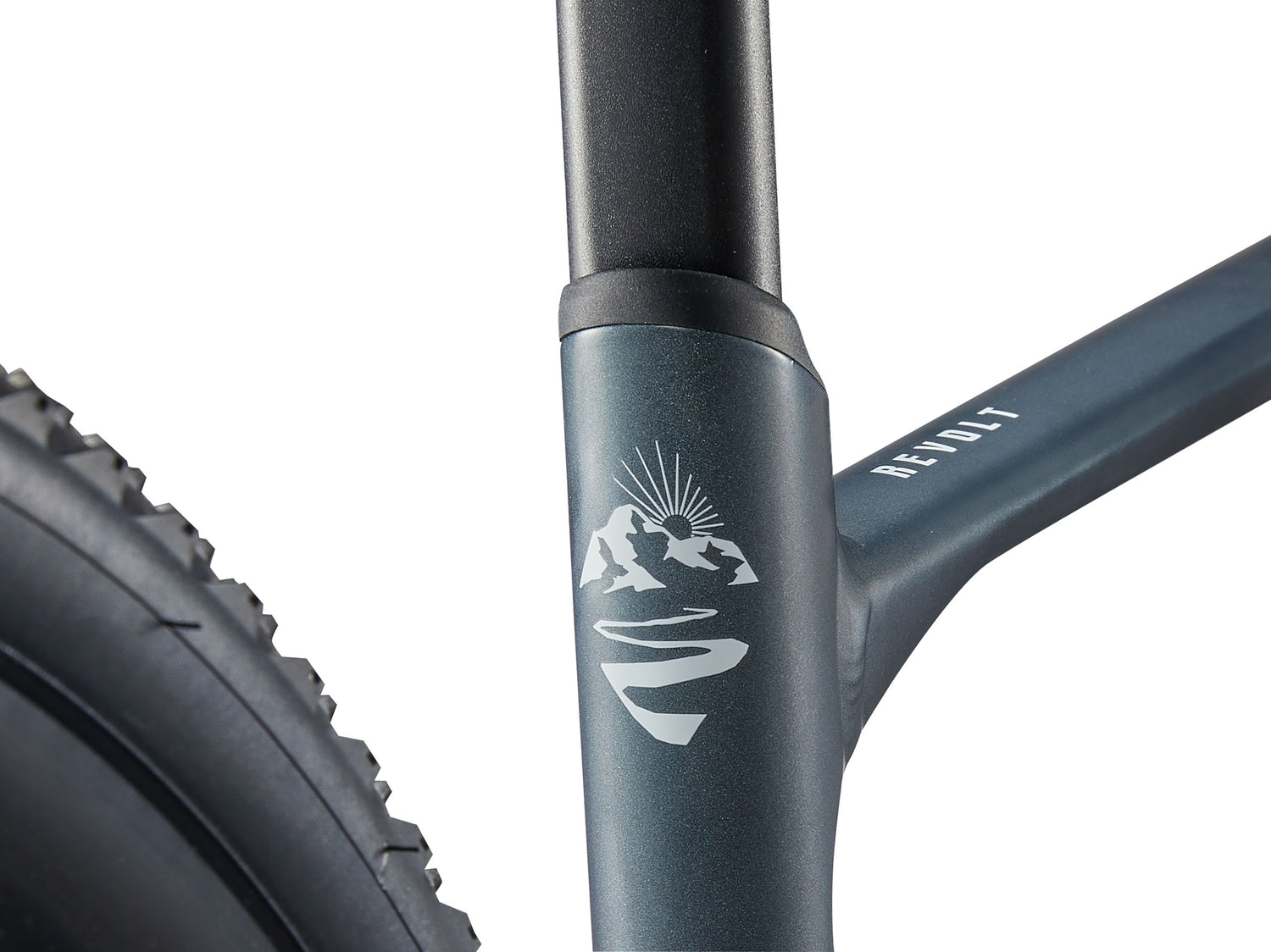

| Seatpost | Giant D-Fuse, alloy, 14mm offset |
| Saddle | Giant Approach |

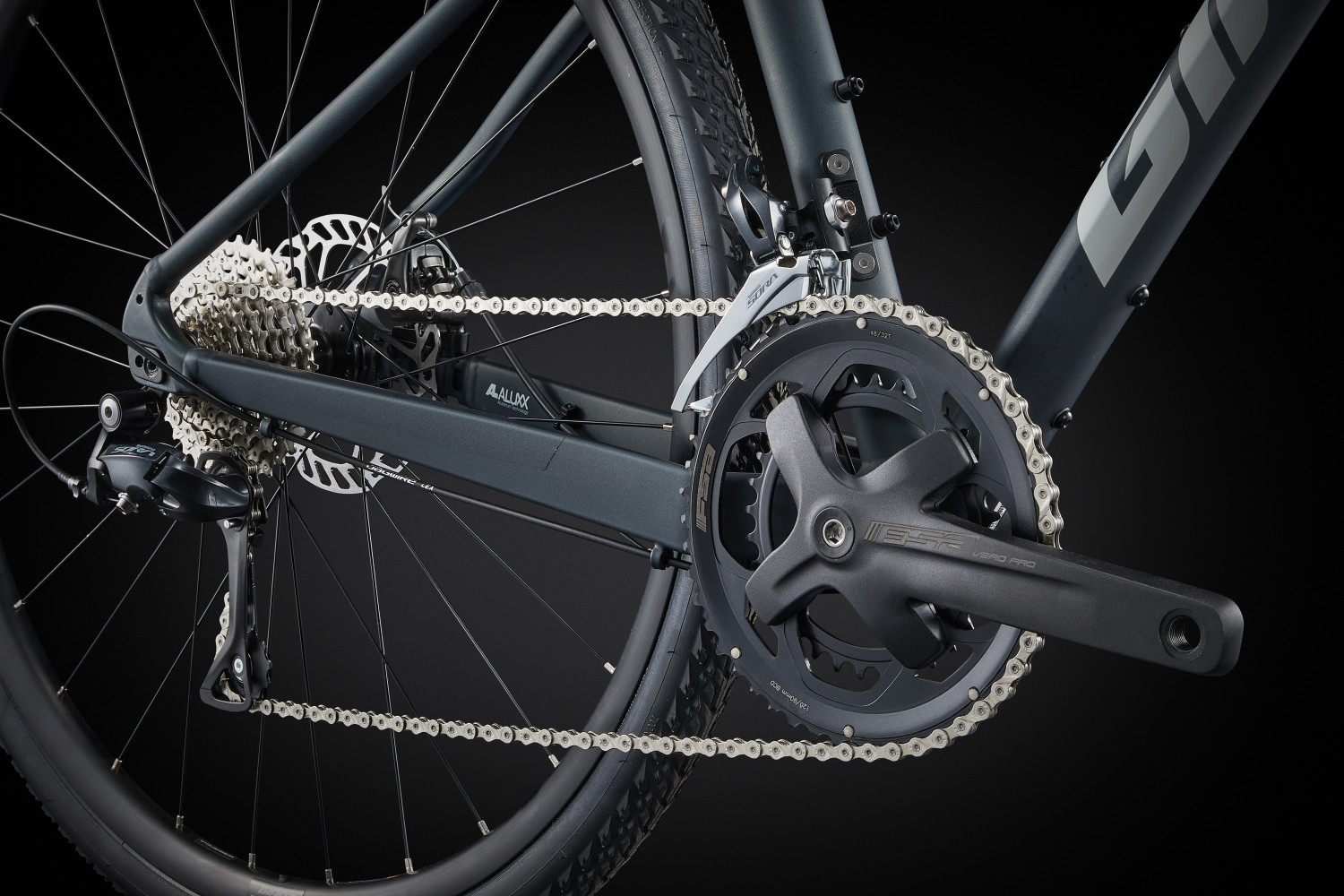

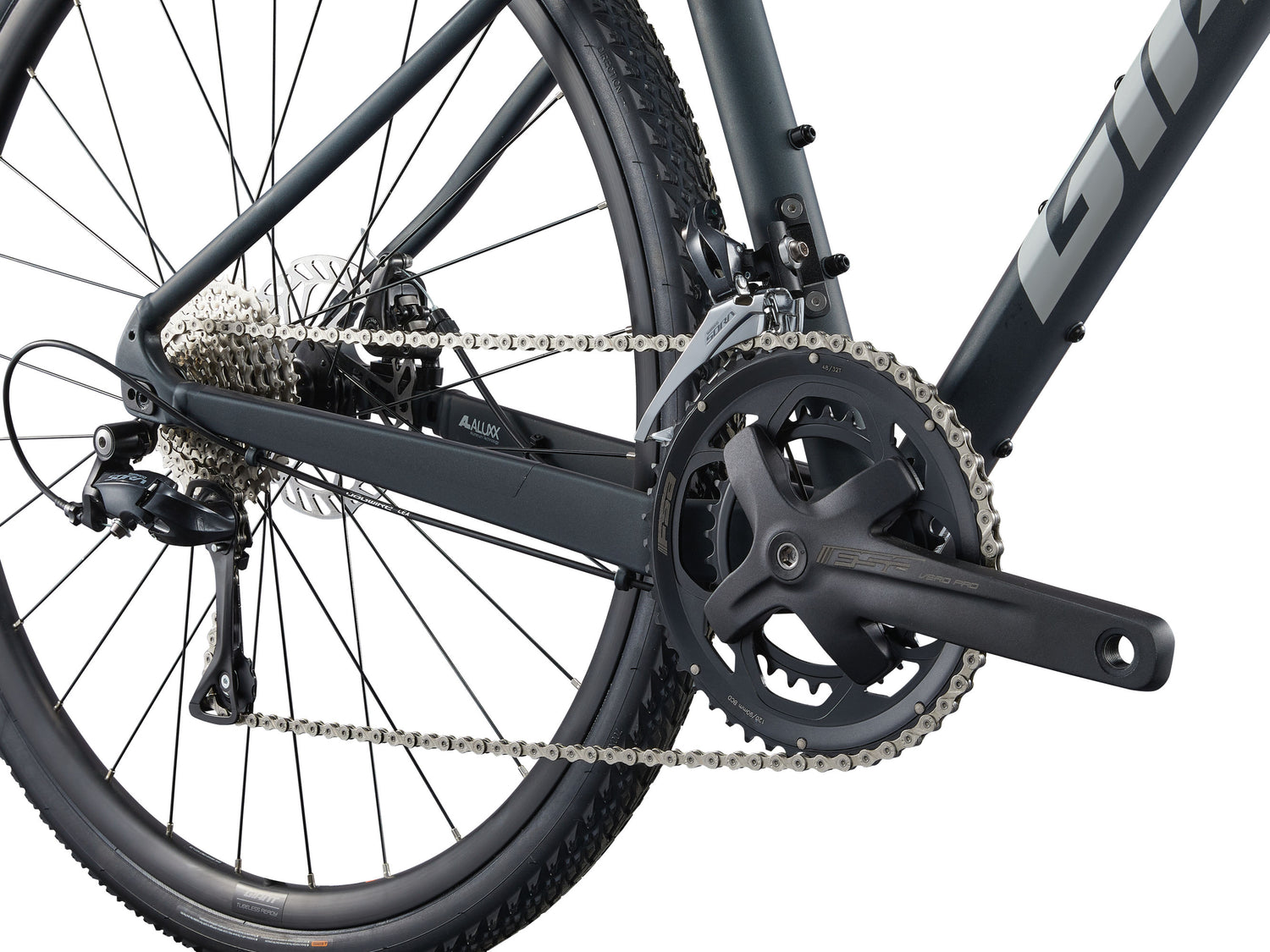

| Shifters | Shimano Sora, 2x9 |
| Front derailleur | Shimano Sora |
| Rear derailleur | Shimano Sora, long cage |
| Brakes | Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm |
| Brake levers | Shimano Sora |
| Cassette | Shimano HG400, 11x34 |
| Chain | KMC X9 with Missing Link |
| Crankset | FSA Vero Pro, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom bracket | cartridge |
| Rims | Giant S-X2 Disc wheelset, alloy |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | stainless |
| Tires | Giant CrossCut AT 2, 700x38c, tubeless |
| Extras | tubeless prepared, 53mm max tire size in \long\ flip chip position, 45mm max tire size in \short\ flip chip position |
| Max tire clearance | 53mm |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in mm unless otherwise noted.
| XS | S | M | ML | L | XL | |
| Setting (Low/High) | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG |
| ASeat Tube Length (mm) | 430 | 450 | 470 | 490 | 510 | 530 |
| BSeat Tube Angle (degrees) | 74.0° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| CTop Tube Length (mm) | 540 | 550 | 560 | 575 | 585 | 600 |
| DHead Tube Length (mm) | 125 | 135 | 150 | 165 | 180 | 195 |
| EHead Tube Angle (degrees) | 70.0° | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
| FFork Rake (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| GTrail (mm) | 78 | 82 | 72 | 75 | 68 | 72 | 65 | 68 | 65 | 68 | 65 | 68 |
| HWheelbase (mm) | 1029 | 1039 | 1025 | 1035 | 1030 | 1040 | 1035 | 1045 | 1045 | 1055 | 1061 | 1071 |
| IChain Stay Length (mm) | 430 | 440 | 430 | 440 | 430 | 440 | 430 | 440 | 430 | 440 | 430 | 440 |
| JBottom Bracket Drop (mm) | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 |
| KStack (mm) | 556 | 570 | 586 | 602 | 616 | 630 |
| LReach (mm) | 381 | 381 | 387 | 391 | 397 | 407 |
| MStand Over Height (mm) | 717 | 724 | 734 | 741 | 752 | 759 | 769 | 776 | 786 | 793 | 801 | 810 |
| NHandlebar Width (mm) | 420 | 420 | 440 | 440 | 460 | 460 |
| OStem Length (mm) | 50 | 60 | 70 | 80 | 80 | 90 |
| PCrank Length (mm) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| QWheel Size | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| XS | 5’1” - 5’5” | 155 - 166 |
| S | 5’3” - 5’7” | 159 - 171 |
| M | 5’7” - 5’11” | 169 - 181 |
| ML | 5’9” - 6’1” | 174 - 186 |
| L | 5’10” - 6’3” | 179 - 191 |
| XL | 6’2” - 6’7” | 189 - 200 |
Sizing to be used as a reference only. Chat with us if you have any questions.
