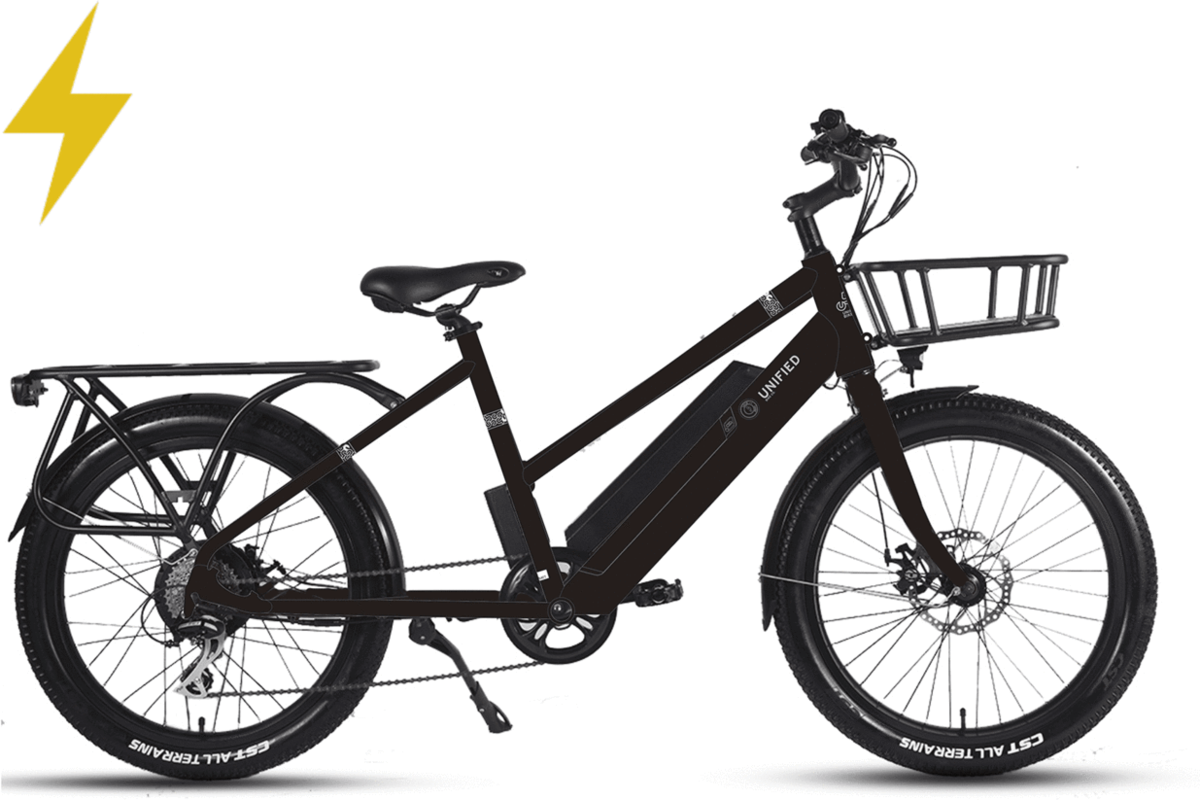

Unified Bike Co. ODYSSEY +

Electric System

Motor- 350W brushless rear motor AKM
Battery- 36V 8Ah Lithium battery
Charger- AC 100V -230V smart charger
PAS- RPM sensor, 6 magnetic points
Controller- Intelligent controller, Overload & low voltage protection
Display- LCD

Main Components

Frame- 6061 Aluminum Alloy 24’
Tires- CST 24x2.4
Rim- Double wall aluminum alloy
Front fork- Aluminum alloy rigid fork
Brake- F/R Tektro mechanical disc brake
Brake lever- Tektro series, with power cut off wire
Speed gears- Shimano Acera 8 speed, 38T chain wheel
Handlebar- Aluminum alloy, low-riser
Stem- Aluminum alloy, MTB style
Mudguard- None
Chain- KMC
Saddle- City comfort saddle, SR brand
Seat post- aluminum alloy

Performance

Max speed- 32 km/h
Driving distance- Varies
Recharging time- 4-6h
Max load- 100kg
Dimensions- 155*25*83cm
G.W./N.W.- 28KG/23KG
