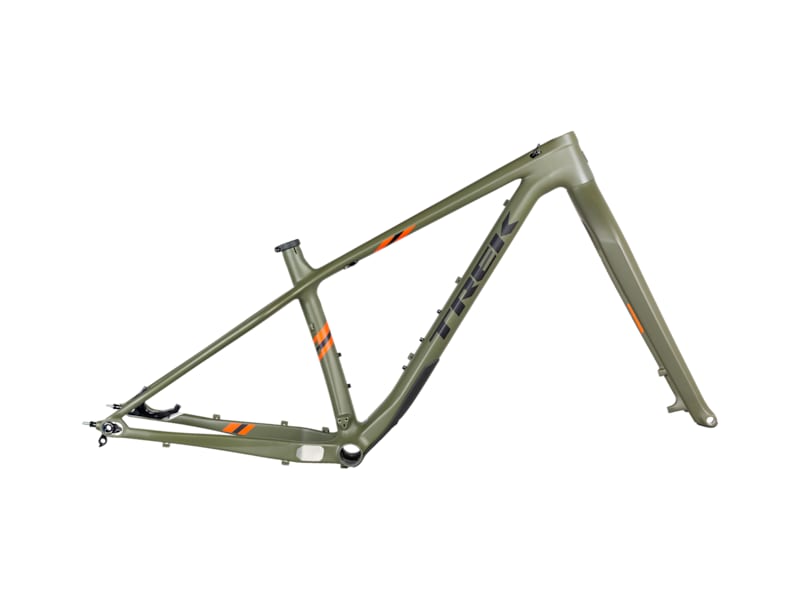

2024 Farley C Hardtail Mountain Frameset
Overview
Overview
Technical Specifications
Technical Specifications
| Frame | OCLV Mountain Carbon, tapered head tube, internal derailleur & dropper post routing, PressFit 121mm BB, 197x12mm adjustable horizontal sliding dropouts |
| Fork | Farley full carbon, tapered carbon steerer, OCLV Carbon lowers, 490mm axle-to-crown, 15x150mm thru axle |
| Skewer front | Bontrager Switch thru axle |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Max tire size | 27.5x4.50\ or 26x4.70\ |
| Max chainring size | 1x: 32T, 2x: 36/22 |
| Headset | FSA IS-2, 1-1/8'' top, 1.5'' bottom |
| Rotor size | Max brake rotor sizes - Frame: 180mm, min 160mm |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size number | 15.5" |
| Frame size letter | S |
| Wheel size | 27.5" |
| A — Seat tube | 39.4 |
| B — Seat tube angle (degrees) | 71.5° |
| Effective seat tube angle (degrees) | 73.0° |
| C — Head tube length | 10.0 |
| D — Head angle (degrees) | 69.0° |
| E — Effective top tube | 56.7 |
| F — Bottom bracket height | 32.1 |
| G — Bottom bracket drop | 6.7 |
| H — Chainstay length | 45.5 |
| I — Offset | 5.1 |
| J — Trail | 9.4 |
| K — Wheelbase | 109.2 |
| L — Standover | 76.3 |
| M — Frame reach | 38.3 |
| N — Frame stack | 60.1 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| S | 5'1" - 5'5" | 155 - 165 |
| M | 5'5" - 5'10" | 165 - 177 |
| L | 5'10" - 6'2" | 177 - 188 |
| XL | 6'2" - 6'5" | 188 - 195 |
Sizing to be used as a reference only. Chat with us if you have any questions.
