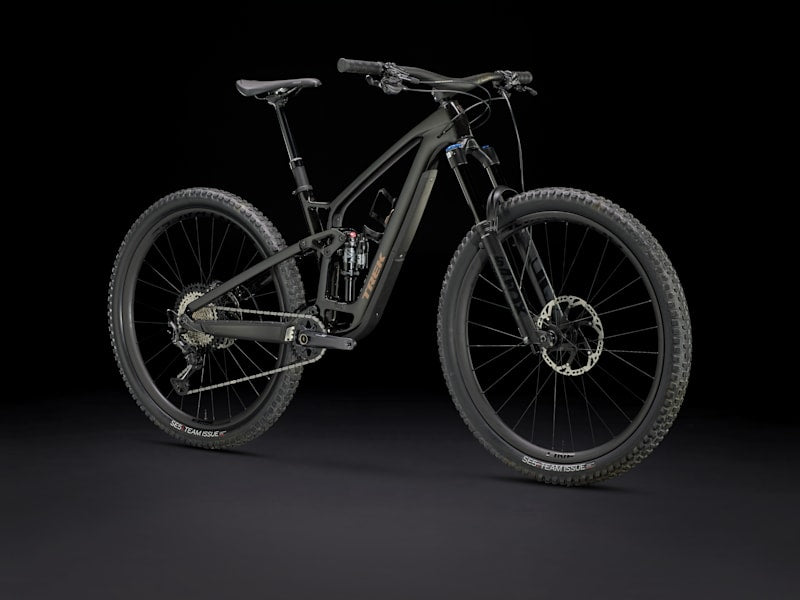

2025 Fuel EX 9.8 XT Gen 6 Full Suspension Mountain Bike
Fully assembled, tuned, and test-ridden—ready to ride at pickup from any DFW Bike Mart location.
Expected to ship within 3 days
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart—ready to ride right at your doorstep within 10 miles of any DFW location.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required. For orders that include a frameset please visit our support center to make sure you have the specialty tools and skills required.
If you decide to take your bike to a local retailer for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
2025 Fuel EX 9.8 XT Gen 6 Full Suspension Mountain Bike
Overview
Overview
Technical Specifications
Technical Specifications
| Frame | OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel |
| Fork | Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel |
| Shock | Fox Performance Float X, 2-position damper, 185mm x 55mm |
| *wheel front | Size: XS , S Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5''Size: S , M , ML , L , XL Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'' |
| *wheel rear | Size: XS , S Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle, 27.5''Size: S , M , ML , L , XL Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle, 29''Size: M , ML , L , XL Formula CL-3348M, alloy, CenterLock, Shimano Micro Spline freehub, Boost148, 12mm thru axle |
| Hub front | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Rim | Bontrager Line Elite 30, Tubeless Ready |
| *tire | Size: XS , S Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 27.5x2.50''Size: S , M , ML , L , XL Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 29x2.50'' |
| Tire part | Bontrager TLR sealant, 6oz |
| Rim strip | Bontrager TLR |
| Max tire size | Frame: 29x2.50\ (XS & S: 27.5x2.50\), Fork: See manufacturer |
| Shifter | Shimano XT M8100, 12 speed |
| Rear derailleur | Shimano XT M8100, long cage |
| Crank | Shimano XT M8120, 30T, 55mm chainline, 170mm length |
| Bottom bracket | Shimano BB-MT501 BSA |
| Cassette | Shimano XT M8100, 10-51, 12 speed |
| Chain | Shimano Ultegra/XT M8100, 12 speed |
| Max chainring size | 1x: 34T round, 32T oval, min 28T |
| *saddle | Size: XS , S , M , ML , L , XL Bontrager Arvada, austenite rails, 138mm widthSize: XS , S , M , ML , L , XL Verse Short Comp, steel rails, 145mm width |
| *seatpost | Size: XS , S Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm lengthSize: M , ML Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm lengthSize: L Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm lengthSize: XL Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width |
| *handlebar/stem (integrated) | Size: XS , S Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 35mm stem lengthSize: M , ML , L , XL Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Stem | Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 35mm length |
| Headset | Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible |
| Brake | Shimano XT M8120 4-piston hydraulic disc |
| *brake rotor | Size: XS , S , M , ML , L , XL Shimano RT86, 6-bolt, 180mmSize: M , ML , L , XL Shimano RT86, 6-bolt, 203mm |
| Rotor size | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer |
| Bag | Bontrager BITS Internal Frame Storage Bag |
| Weight | M - 14.48 kg / 31.93 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
Parts are subject to change without notice. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| XS | 4'9" - 5'1" | 145 - 155 |
| S | 5'1" - 5'5" | 155 - 165 |
| M | 5'5" - 5'10" | 165 - 177 |
| ML | 5'8" - 5'11" | 173 - 180 |
| L | 5'10" - 6'2" | 177 - 188 |
| XL | 6'2" - 6'5" | 188 - 195 |
Sizing to be used as a reference only. Chat with us if you have any questions.
