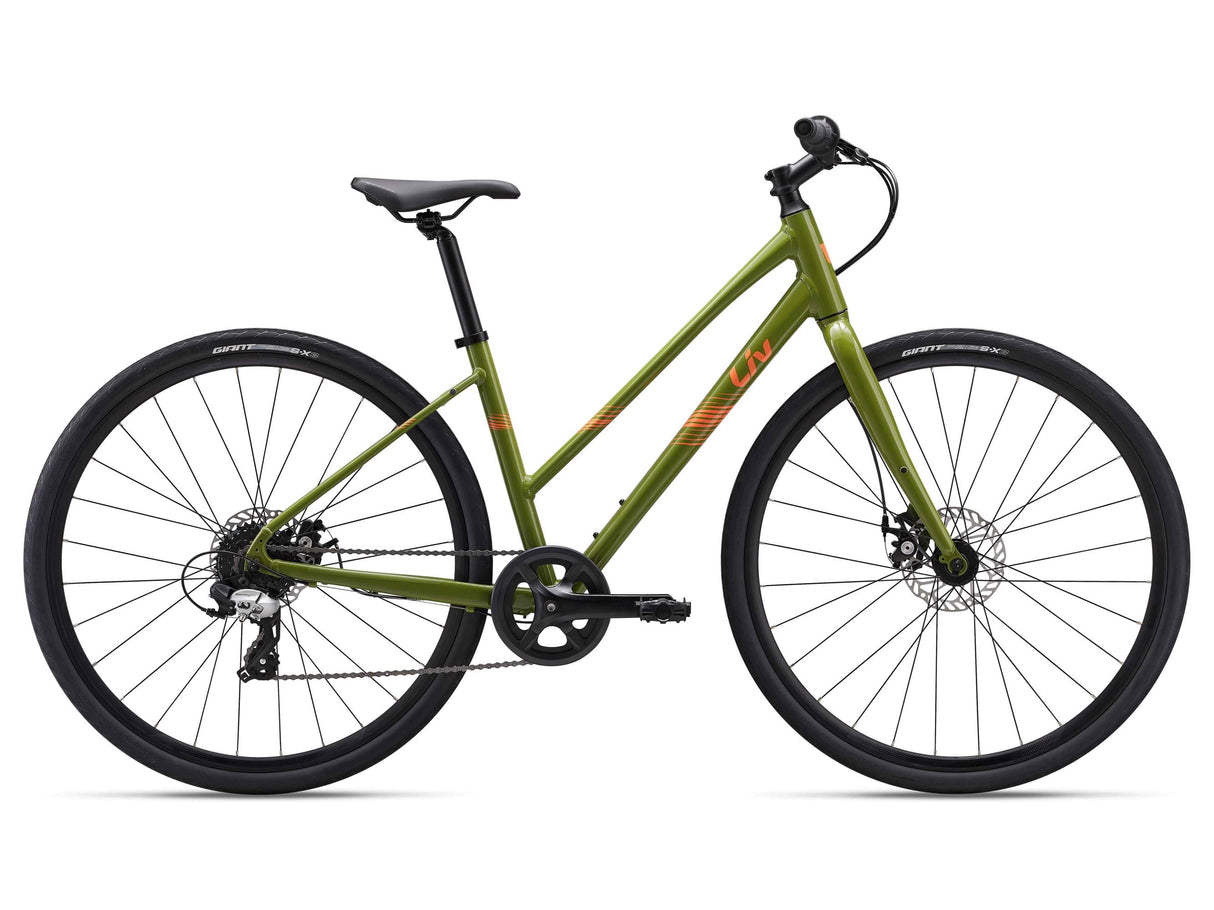

2025 Alight Stagger 4 Hybrid Bike
Overview
Overview
Pedal to work, meet friends for coffee or build up fitness on the bike path. The Alight fits right into a fun, heathy lifestyle.
Key Performance Factors
- Casual Comfort: An upright riding position and flat handlebars make commuting or a casual spin comfortable without compromising efficiency.
- Fun Fitness: The lightweight, balanced geometry of the ALUXX-grade aluminum frame provides an energizing combination of speed and stability.
- Stylish Versatility: Equipped with integrated mounts for racks, fenders or panniers, this bike blends urban style and road bike agility.
Technical Specifications
Technical Specifications
| Sizes | XS, S, M, L |
| Colors | Dried Matcha |
| Frame | ALUXX-grade aluminum, stagger, disc |
| Fork | high tensile steel, disc |
| Shock | N/A |
| Handlebar | Giant Sport flat, 25.4mm, 20mm riser XS: 600mm, S: 600mm, M: 640mm, L: 640mm |
| Grips | VLG-311-5 |
| Stem | Giant Sport, 25.4mm XS: 75mm, S: 75mm, M: 90mm, L: 90mm |
| Seatpost | Giant D-Fuse, alloy, 30.9mm XS: 300mm, S: 300mm, M: 300mm, L: 350mm |
| Saddle | Liv Sport Saddle |
| Pedals | platform |
| Shifters | Shimano Tourney, 1x8 |
| Front derailleur | N/A |
| Rear derailleur | Shimano Tourney |
| Brakes | Tektro TKB-172 mechanical [F]160mm, [R]160mm |
| Brake levers | Tektro mechanical |
| Cassette | Shimano CS-HG200-8, 12x32 |
| Chain | KMC Z8.3 |
| Crankset | Forged Alloy, 40t XS: 165mm, S: 165mm, M: 170mm, L: 170mm |
| Bottom bracket | threaded |
| Rims | Giant GX Disc wheelset |
| Hubs | Giant alloy, QR |
| Spokes | stainless |
| Tires | Giant S-X3, 700x38c |
| Extras | 42mm or 40c max tire size, fender, rack, handlebar water bottle carrier, reflective stickers |
| Max tire clearance | 42mm |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in mm unless otherwise noted.
| XS | S | M | L | |
| ASeat Tube Length (mm) | 370 | 420 | 460 | 500 |
| BSeat Tube Angle (degrees) | 73.5° | 73.5° | 73.0° | 73.0° |
| CTop Tube Length (mm) | 545 | 560 | 575 | 590 |
| DHead Tube Length (mm) | 145 | 160 | 180 | 200 |
| EHead Tube Angle (degrees) | 70.0° | 70.5° | 71.0° | 71.0° |
| FFork Rake (mm) | 50 | 50 | 50 | 50 |
| GTrail (mm) | 75.6 | 72.3 | 69 | 69.2 |
| HWheelbase (mm) | 1035 | 1046 | 1046 | 1056 |
| IChain Stay Length (mm) | 445 | 445 | 445 | 445 |
| JBottom Bracket Drop (mm) | 62 | 62 | 62 | 62 |
| KStack (mm) | 568 | 585 | 606 | 624 |
| LReach (mm) | 357 | 367 | 365 | 369 |
| MStand Over Height (mm) | 683 | 719 | 749 | 779 |
| NHandlebar Width (mm) | 600 | 600 | 640 | 640 |
| OStem Length (mm) | 80 | 80 | 90 | 100 |
| PCrank Length (mm) | 165 | 165 | 170 | 170 |
| QWheel Size | 700C | 700C | 700C | 700C |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| XS | 4’10” - 5’4” | 148 - 163 |
| S | 5’2” - 5’7” | 158 - 169 |
| M | 5’5” - 5’9” | 164 - 175 |
| L | 5’7” - 6’0” | 170 - 183 |
Sizing to be used as a reference only. Chat with us if you have any questions.
