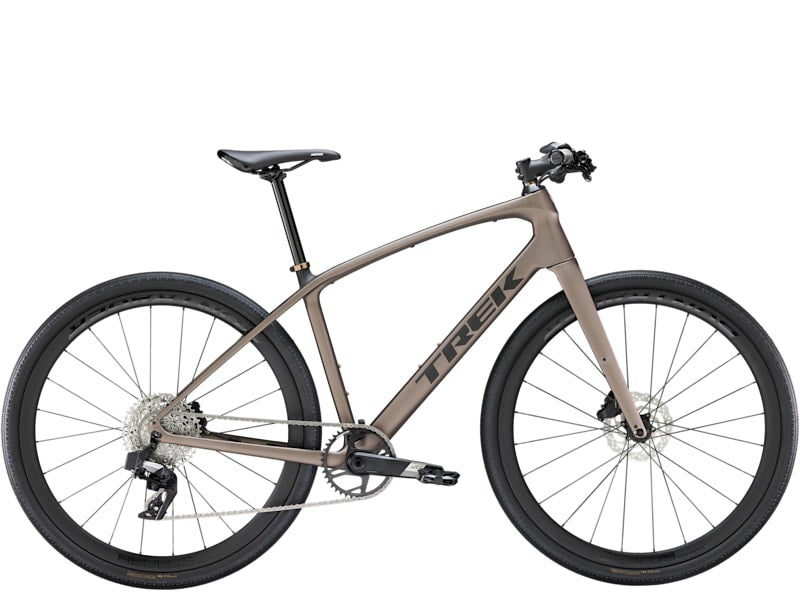

2026 FX Sport SL 6 Hybrid Bike
-

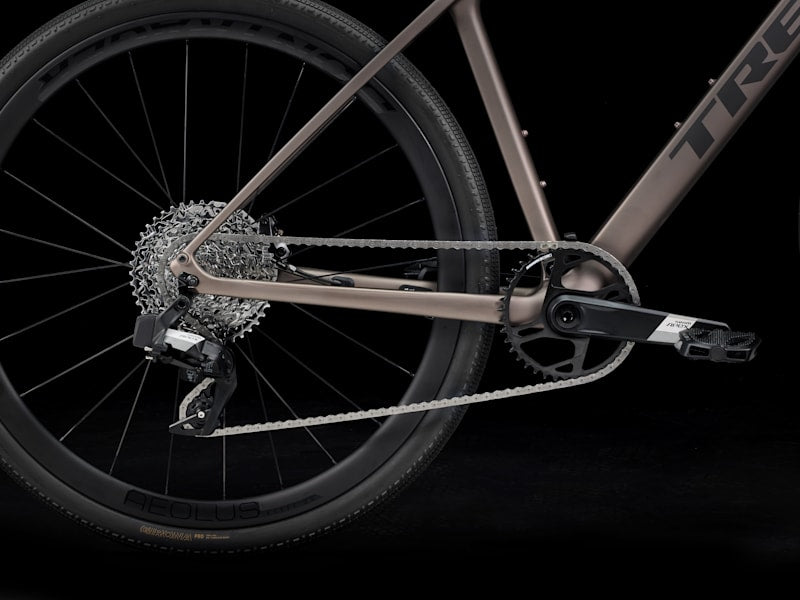

1x drivetrain
A 1x drivetrain means more versatility, simpler shifting and less things to go wrong. You still have a wide range of gears, but with lighter and more intuitive shifting. Everything you need and nothing more.
-
Just-right geometry
The all-new FX Sport has slightly less reach and slightly more stack than previous models for a more comfortable yet active and fast riding position.
-
400 Series OCLV
Ultra high performance, within reach. The areal weight range and modulus mix of 400 Series OCLV provides an exhilarating sense of acceleration and confident handling.
-
Upgrade your pedals and love your bike more
Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.
Overview
Overview
Technical Specifications
Technical Specifications
| Frame | 400 series OCLV Carbon, internal routing, 3s chain keeper, DuoTrap S compatible, fender mounts, flat mount disc, 135x5mm ThruSkew |
| Fork | Carbon, hidden fender mounts, flat mount disc, 100x5mm thru-skew |
| Weight | M - 9.50 kg / 20.95 lbs |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
| Battery | SRAM AXS battery pack (with charger) |
| Rear derailleur | SRAM Apex XPLR eTap AXS, 44T max cog |
| *crank | Size: XS, S SRAM Apex 1, 40T, DUB Wide, 170mm lengthSize: M, L, XL SRAM Apex 1, 40T, DUB Wide, 175mm length |
| Bottom bracket | SRAM DUB, 86.5mm, PressFit |
| Cassette | SRAM XPLR PG-1231, 11-44, 12 speed |
| Chain | SRAM Apex, 12 speed |
| Pedal | Bontrager City pedals |
| Max chainring size | 1x: 44T |
| Wheel front | Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 100x5mm QR |
| Wheel rear | Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, Shimano 11-speed freehub, 135x5mm skewer |
| Skewer front | 135x5mm bolt-on |
| Skewer rear | 169x5mm bolt-on |
| Tire | Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40mm |
| Max tire size | 42mm without fenders, 40mm with fenders |
| Saddle | Bontrager Montrose Comp, steel rails, 138mm width |
| Seatpost | Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length |
| *handlebar | Size: XS, S, M Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 600mm widthSize: L, XL Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 660mm width |
| Grips | Bontrager Satellite IsoZone Plus, lock-on, ergonomic |
| *stem | Size: XS Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm lengthSize: S, M Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 100mm lengthSize: L, XL Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 110mm length |
| Brake | Shimano hydraulic disc, MT201 lever, UR300 caliper |
| Brake rotor | Shimano RT10, centerlock, 160mm |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size letter | XS | S | M | L | XL |
| Wheel size | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube | 35.6 | 40.6 | 45.7 | 50.8 | 55.9 |
| B — Seat tube angle (degrees) | 75.0° | 74.5° | 74.0° | 73.5° | 72.5° |
| C — Head tube length | 11.5 | 14.0 | 16.5 | 19.0 | 21.5 |
| D — Head angle (degrees) | 70.0° | 70.5° | 71.0° | 71.5° | 72.5° |
| E — Effective top tube | 52.8 | 54.3 | 56.3 | 58.3 | 61.3 |
| F — Bottom bracket height | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 |
| G — Bottom bracket drop | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
| H — Chainstay length | 44.2 | 44.2 | 44.2 | 44.2 | 44.2 |
| I — Offset | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
| J — Trail | 7.4 | 7.1 | 6.8 | 6.4 | 5.8 |
| K — Wheelbase | 104.7 | 105.4 | 106.5 | 107.5 | 108.2 |
| L — Standover | 70.8 | 75.1 | 78.7 | 81.2 | 84.8 |
| M — Frame reach | 38.3 | 38.5 | 39.3 | 40.0 | 41.0 |
| N — Frame stack | 54.3 | 56.8 | 59.4 | 62.0 | 64.8 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| XS | 4'10" - 5'1" | 147 - 155 |
| S | 5'1" - 5'5" | 155 - 165 |
| M | 5'5" - 5'9" | 165 - 175 |
| L | 5'9" - 6'1" | 175 - 186 |
| XL | 6'1" - 6'6" | 186 - 197 |
Sizing to be used as a reference only. Chat with us if you have any questions.
