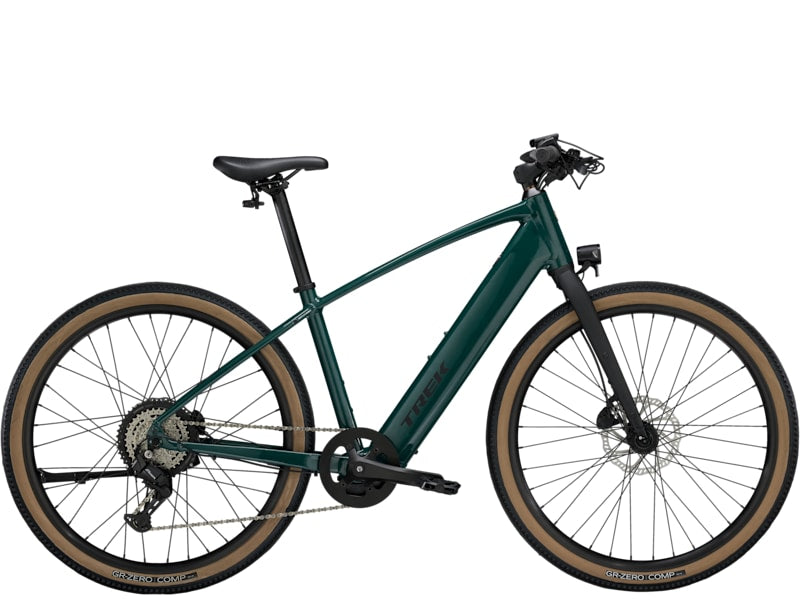

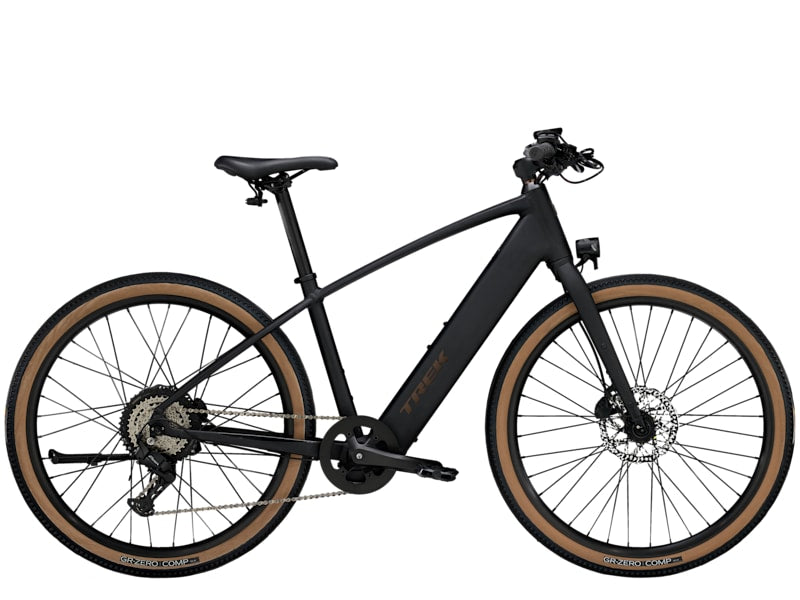

2026 FX+ 1S Electric Hybrid Bike
Every bike is fully assembled, tuned, and test-ridden before pickup at your chosen DFW Bike Mart location.
Expected to ship within 3 days
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart—ready to ride right at your doorstep within 10 miles of any DFW location.
Complete your Ride
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.

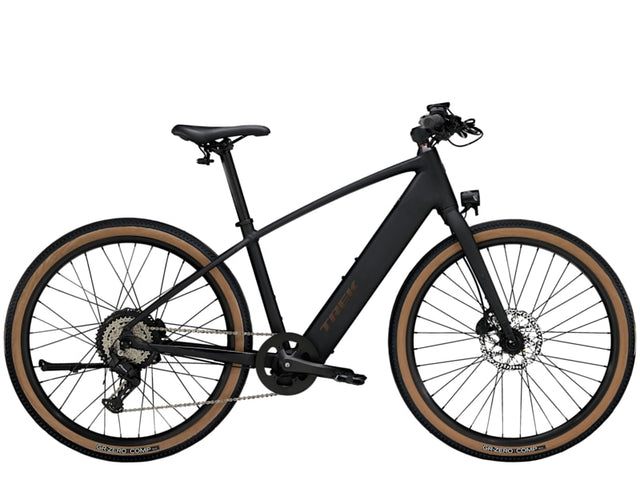

2026 FX+ 1S Electric Hybrid Bike
-
Throttle up the fun
With the push of a button, the easy-to-use throttle lets you flatten hills, ride further, and adventure longer, without breaking a sweat.
-
Send the right signals

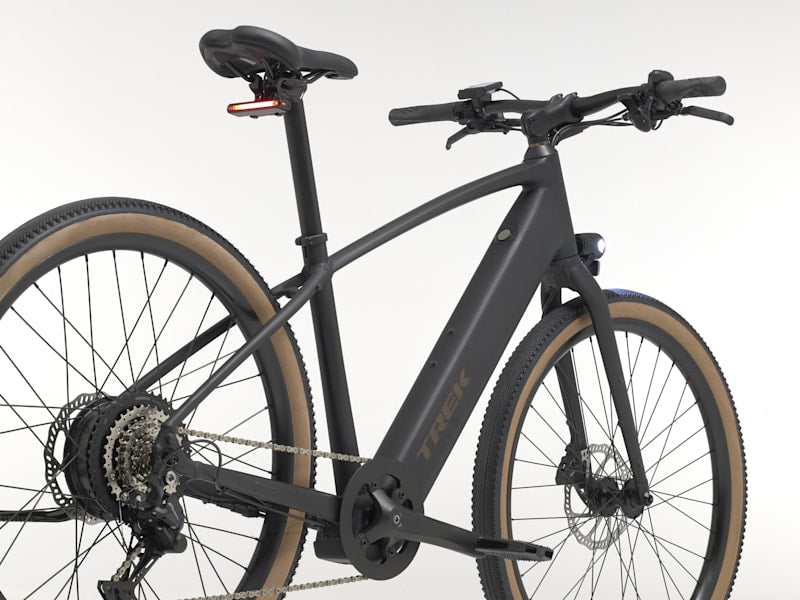

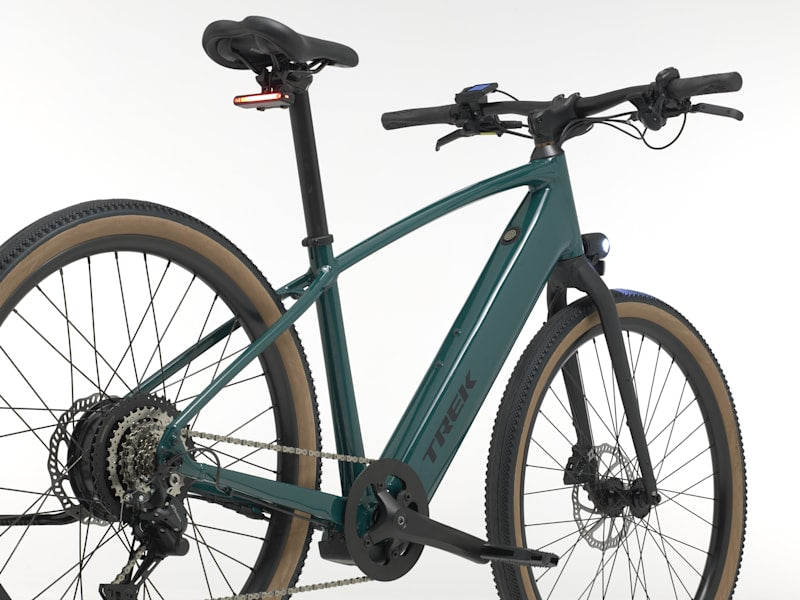

FX+ 1 comes equipped with a bright, rear taillight with an integrated brake light and turn signals for increased visibility on the road.
-
EasyMag for easy charging
Designed with a hassle-free magnetic attachment to charge, bright LED status lights, and an optional wall mount, EasyMag lets you charge at home or on the go.
-
Get connected
FX+ 1 pairs with the Trek Central app so you can easily adjust your bike's settings for longer range, map the perfect routes, track your ride stats, and so much more!
-
A better way to produce aluminum
Starting in 2024, we began removing high-emission aluminum from our manufacturing and replacing it with low-emission aluminum made with renewable energy. By October 2025, nearly every alloy bike we make - this one included - had made the switch, driving a major drop in our footprint.
-
Compliant with leading safety regulations
The e-systems on Trek and Electra e-bikes are third-party tested to meet the latest e-bike safety regulations, including the stringent UL 2849 certification — so all you have to worry about is where your e-bike will take you next.
-
Upgrade your pedals and love your bike more
Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.
Overview
Overview
Technical Specifications
Technical Specifications
| Frame | Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, flat mount disc brake, kickstand mount, 144.5mm OLD hub motor spacing |
| Fork | Alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer |
| Hub front | Alloy low-flange w/6-bolt disc, 36h, w/QR |
| Skewer front | 132x5mm QR, ThruSkew |
| Rim | Alloy double wall, 36h |
| Tire | Bontrager GR0 Comp, wire bead, 60 tpi, 650x50mm |
| Max tire size | 650x50mm |
| Battery | 520Wh, integrated in down tube |
| Charger | Trek Easy Mag charger, 2.7A, 54.9V output, 100V-240V AC input |

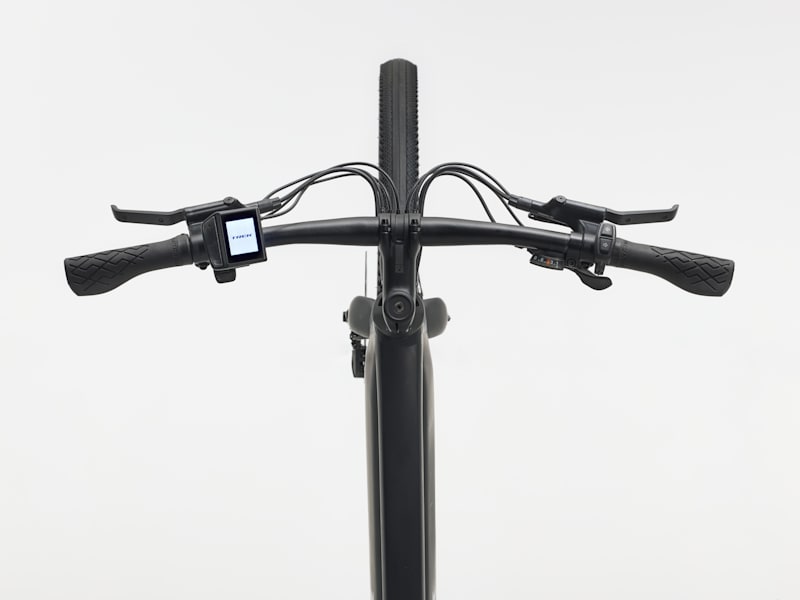

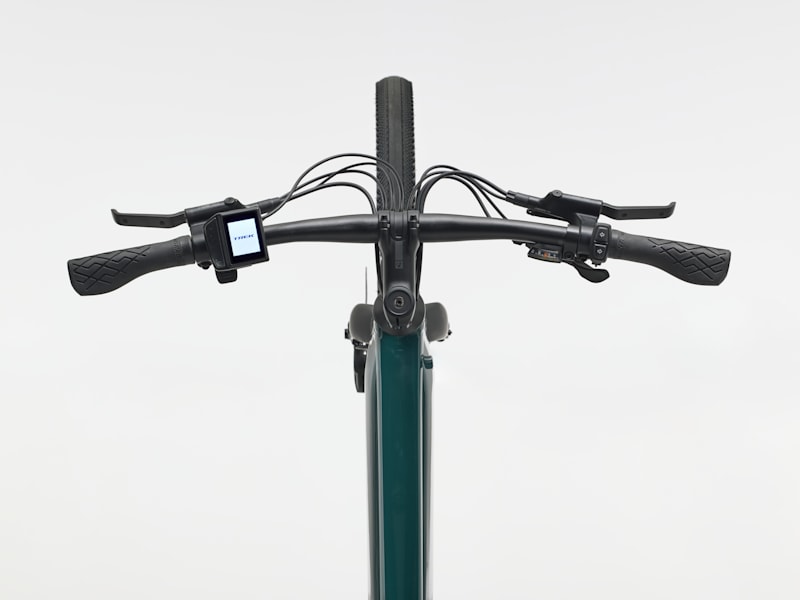

| Computer | LCD display |
| Motor | Hub drive motor, 60 Nm, 500W, 36H, black |
| E-bike classification | Class 2/3 hybrid |

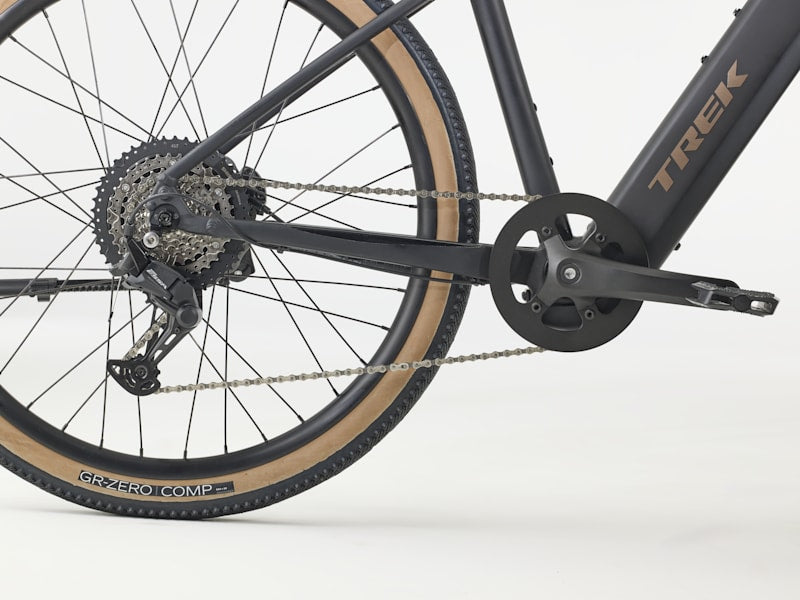

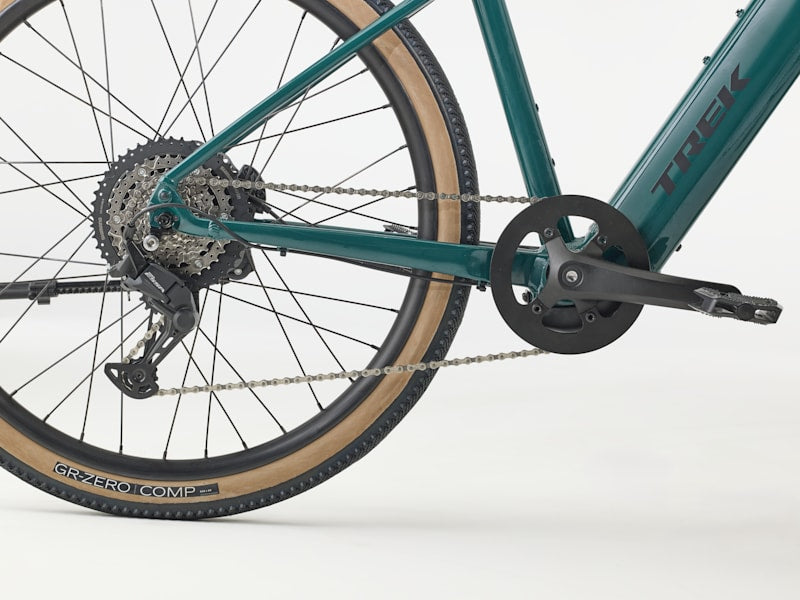

| Shifter | Shimano M315, 8 speed |
| Rear derailleur | Shimano ESSA U2000 |
| Crank | Alloy, 40T steel chainring, 170mm length |
| Cassette | Shimano HG400, 11-45, 8 speed |
| Chain | KMC Z8.3 |
| Pedal | Bontrager City pedals |
| Max chainring size | 1x: 40T |
| Saddle | Bontrager Sport |
| *seatpost | Size: S, M Bontrager alloy, 31.6mm, 12mm offset, 330mm lengthSize: L, XL Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
| *handlebar | Size: S, M Bontrager alloy, 31.8mm, 15mm rise, 690mm widthSize: L, XL Bontrager alloy, 31.8mm, 15mm rise, 720mm width |
| Grips | Bontrager XR Endurance Comp, lock-on |
| *stem | Size: S, M Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm lengthSize: L, XL Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length |
| Brake | Rush BH-286 hydraulic disc, 180mm rotor |
| Rotor size | Max brake rotor sizes: 180mm front & rear |
| *light | Size: S, M, L, XL Sate-Lite M-15 with turn signal and brake light functionSize: S, M, L, XL Herrmans MR8, 180 lumen, 60 lux, LED headlight |
| Kickstand | Adjustable length alloy kickstand |
| Weight | M - 22.10 kg / 48.73 lbs |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size number | 45cm | 50cm | 55cm | 60cm |
| Frame size letter | S | M | L | XL |
| Wheel size | 700c | 700c | 700c | 700c |
| A — Seat tube | 40.8 | 46.3 | 50.7 | 55.8 |
| B — Seat tube angle (degrees) | 73.5° | 73.0° | 73.0° | 73.0° |
| C — Head tube length | 15.5 | 17.0 | 20.0 | 22.0 |
| D — Head angle (degrees) | 70.0° | 70.5° | 71.0° | 71.5° |
| E — Effective top tube | 56.9 | 57.4 | 59.2 | 61.2 |
| F — Bottom bracket height | 28.6 | 28.6 | 28.6 | 28.6 |
| G — Bottom bracket drop | 7.0 | 7.0 | 7.0 | 7.0 |
| H — Chainstay length | 46.8 | 46.8 | 46.8 | 46.8 |
| I — Offset | 5.0 | 5.0 | 5.0 | 5.0 |
| J — Trail | 7.6 | 7.3 | 6.9 | 6.6 |
| K — Wheelbase | 109.2 | 109.5 | 110.9 | 112.3 |
| L — Standover | 73.9 | 78.0 | 82.0 | 85.7 |
| M — Frame reach | 38.2 | 38.5 | 39.3 | 40.7 |
| N — Frame stack | 60.4 | 62.0 | 65.0 | 67.2 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| S | 5'1" - 5'5" | 155 - 165 |
| M | 5'5" - 5'9" | 165 - 175 |
| L | 5'9" - 6'1" | 175 - 186 |
| XL | 6'1" - 6'6" | 186 - 197 |
Sizing to be used as a reference only. Chat with us if you have any questions.
