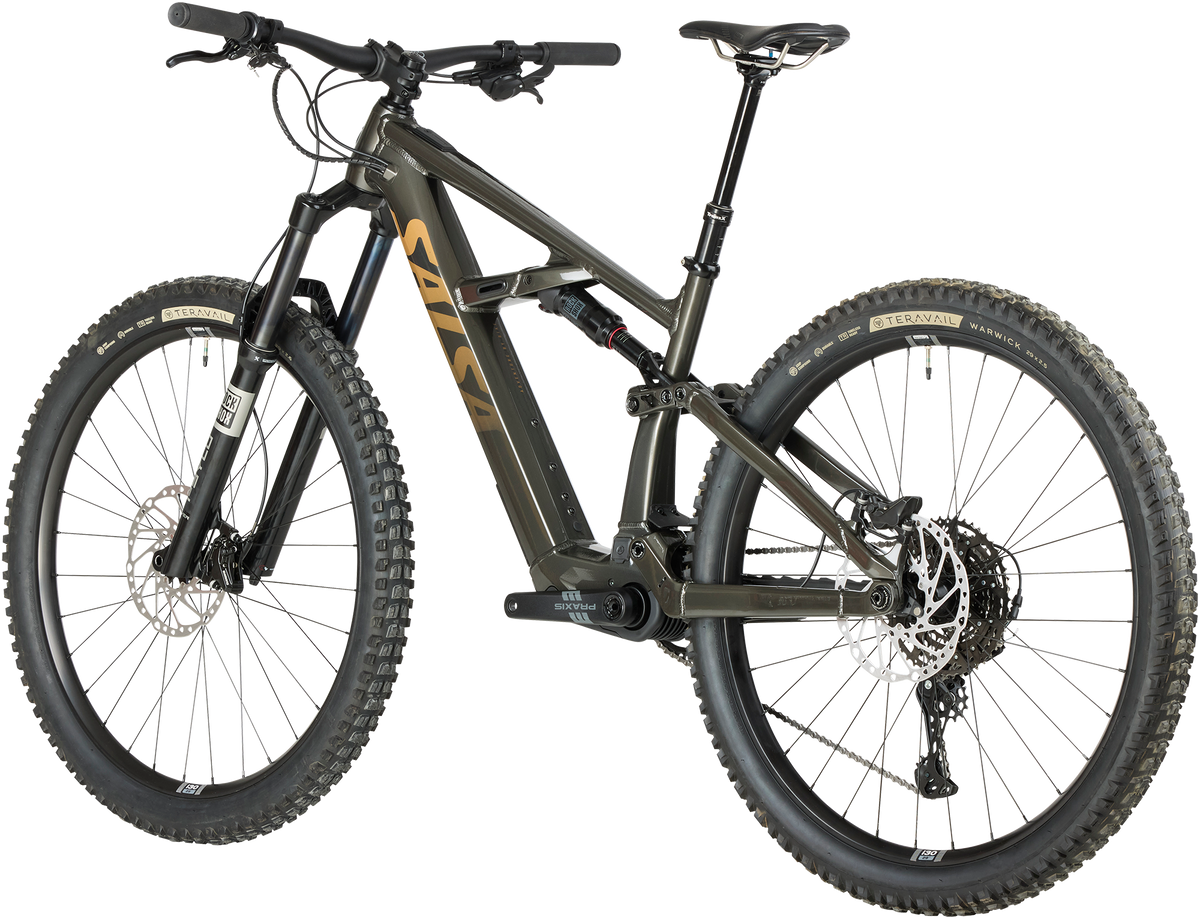

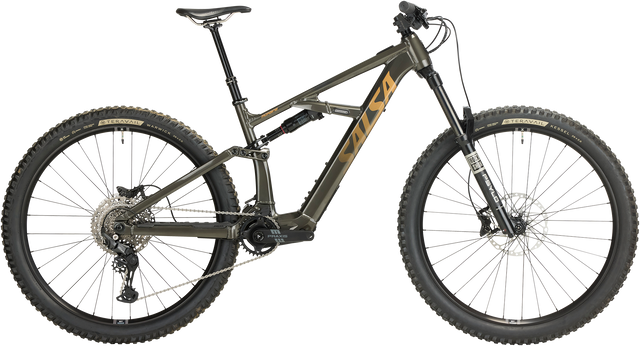

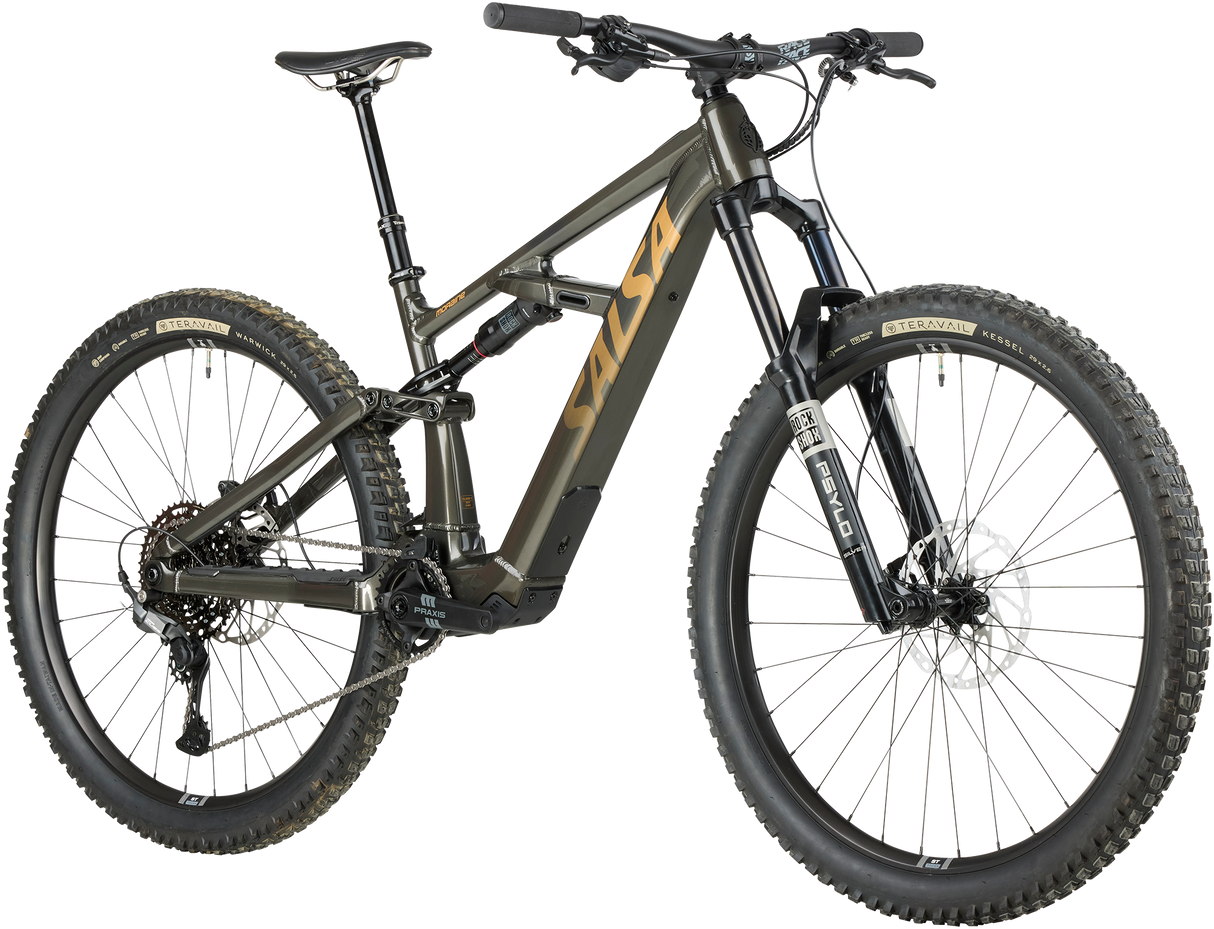

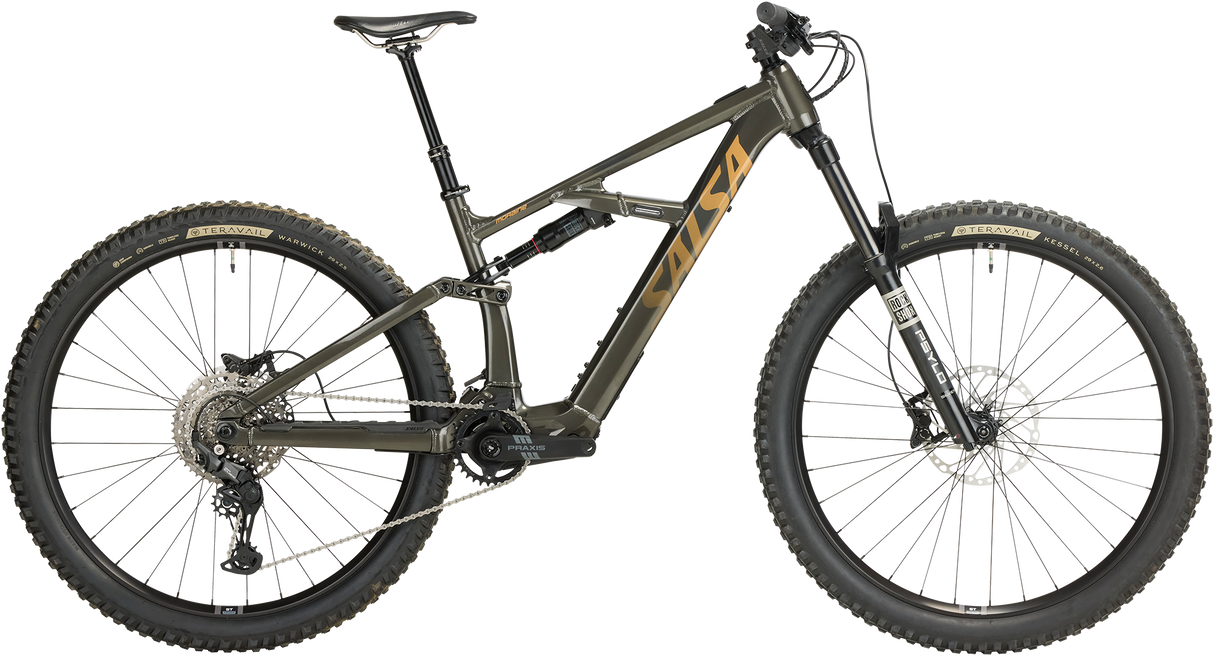

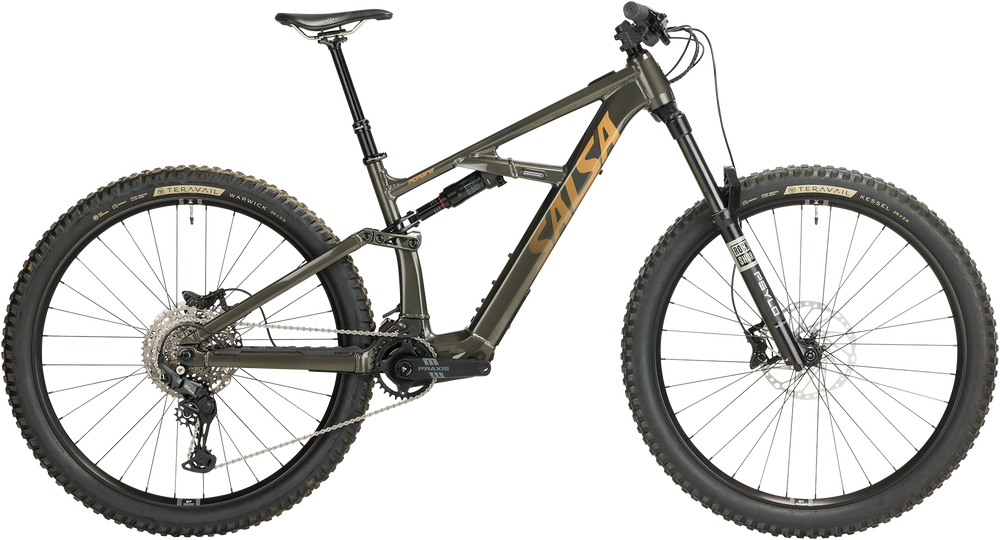

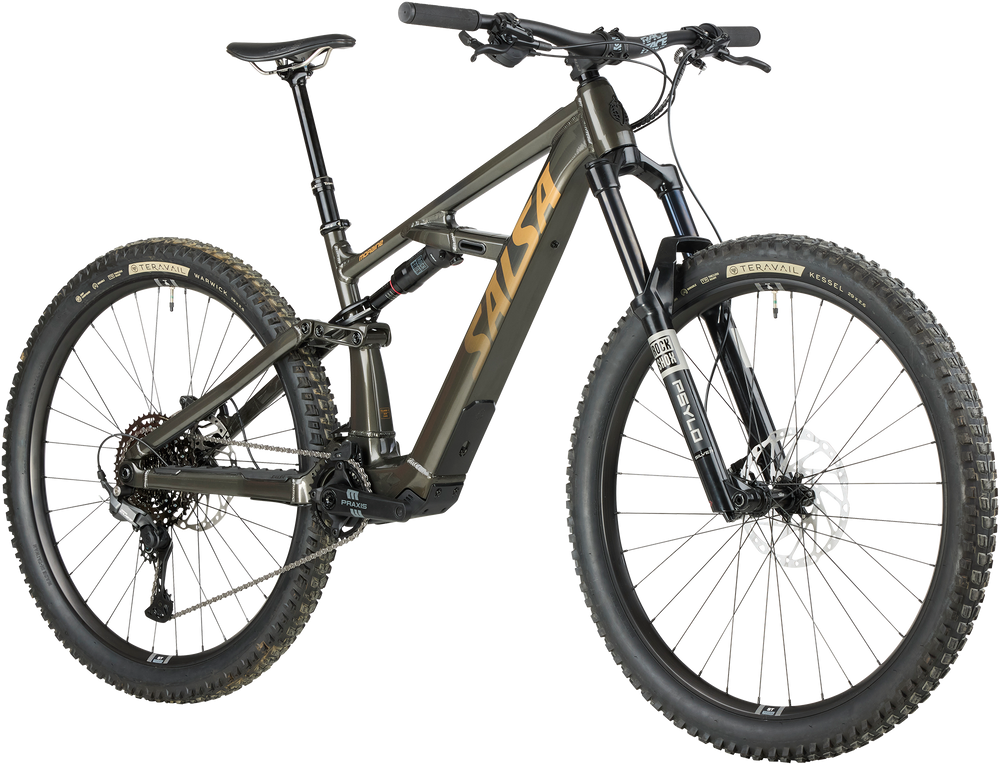

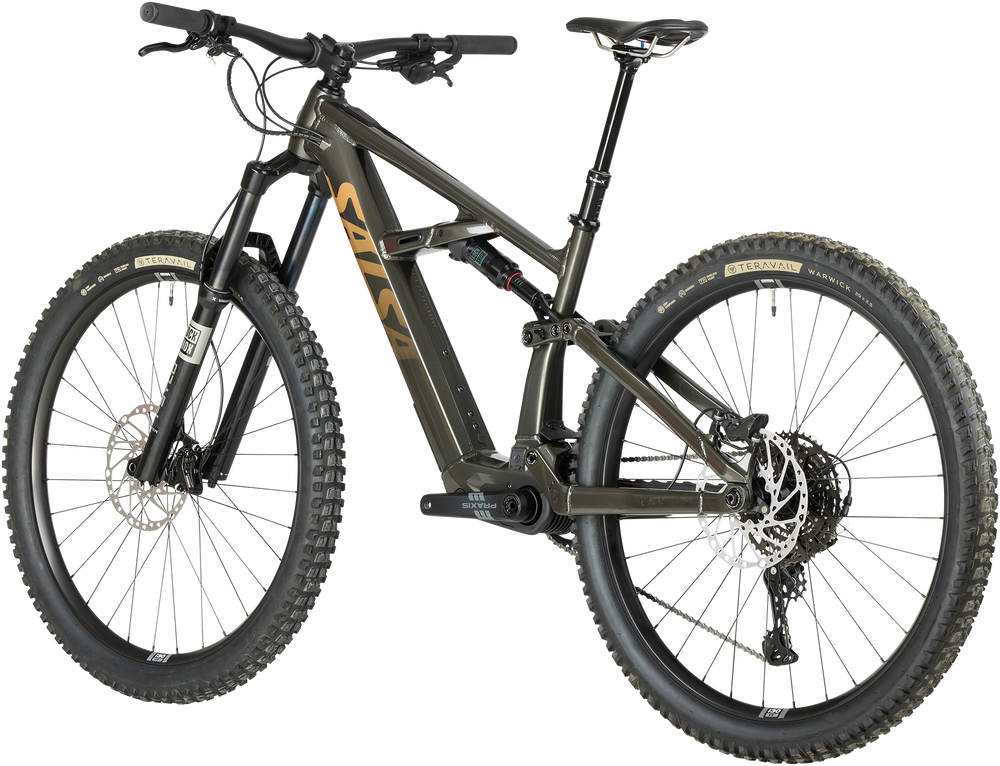

Moraine Cues 10 Full Suspension Electric Mountain Bike
Every bike is fully assembled, tuned, and test-ridden before pickup at your chosen DFW Bike Mart location.
Expected to ship within 14 days.
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart - ready to ride right at your doorstep within 10 miles of any DFW location.
Complete your Ride
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
Moraine Cues 10 Full Suspension Electric Mountain Bike
Bike Key Features
-
Electric Assist
It makes more rides possible It gives riders the confidence to extend their range It’s FUN
-
Split Pivot Suspension System
Allows us to tune the pedaling and braking forces independently Maximizes pedaling and braking performance without compromising either Results in optimal pedaling efficiency and traction when braking
-
On-Bike Storage
Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
-
Split Pivot +
Multiple travel classes in one chassis provides riders with the opportunity to adapt their bikes to various adventures
-
Frame Protection
Our products are built from experience — we’ve been there enough to know that a carbon fork can benefit from added protection just as much as the downtube on a suspension bike.
-
Flip Chip
Provides the ability to alternate wheel and tire sizes Riders can adjust for their terrain, or desired handling characteristics
Overview
Overview
Moraine CUES 10 is an all-mountain eMTB that lets you ride wherever your heart wants, without your legs and lungs disagreeing: think long days of ridgelines, rocky slopes, and perfect viewpoints. Moraine’s 6061-T6 aluminum frame and its playful geometry say “heck yes” to everything. The Fazua Ride 60 drive system encourages you further with 60Nm of torque and a 430Wh battery in a quiet, compact package. Moraine’s 145mm of Split Pivot rear suspension teams up with a 160mm fork for supportive and efficient pedaling and soaking up the terrain. Our on-bike storage keeps the essentials secured to your frame and the sweat off your back. Shimano’s CUES 10 drivetrain is a workhorse with everything you need (smooth shifting, durability, wide range) and nothing you don’t. Moraine makes big days in the mountains more fun.
- Meets UL 2849, and UL 2271 certification
Technical Specifications
Technical Specifications
| Frame | Moraine Aluminum |
| Color | Black Coffee |
| Suspension fork | Rockshox Psylo Silver RC, 160mm |
| Rear shock | Rock Shox Deluxe Select |
| Headset | FSA Orbit 1.5E ZS NO.57E |
| Seatpost | Tranz X YSP18, SM, MD: 150mm travel; LG, XL: 170mm travel |
| Stem | Salsa 35.0 Guide Trail, 40mm |
| Grips/bar tape | Salsa file tread, lock-on |
| Saddle | WTB Solano, Medium, Fusion Form, steel rail |
| Handlebar | RaceFace Chester 35.0, 20mm rise, 780mm wide |
| Lights included | No |
| Front derailleur | N/A |
| Rear derailleur | Shimano CUES U6000 Shadow Plus |
| Cassette | Shimano LG400, 11–48t, 10-speed |
| Drive type | Mid-Drive |
| Chain | Shimano LG500 |
| Crankset | FSA CK-730 Fazua Ride 60 crank arms, 55mm CL, 104 BCD Spider, MegaTooth 34t steel chainring. MRP 1x SL TR2 for Fazua Ride 60 |
| Shifter | Shimano CUES U6000 |
| Brake levers | Shimano M4100 |
| Brake calipers | Shimano MT420 |
| Assist levels | Breeze / River / Rocket / Boost |
| Rotors | Shimano Deore RT64, Center Lock (200mm front and rear) |
| Drive unit | Fazua Ride 60 |
| Ebike classification | Class 1 |
| Max assist speed | 20 mph / 32 km/h |
| Motor torque | 60Nm |
| Max motor assist | 450W (w/ Boost function) |
| Battery capacity watt hours | 430Wh |
| Battery type | Energy 430 Fix (Lithium Ion) |
| Removable battery | Removable for Service |
| Battery power volts | 43V |
| Battery capacity amp hours | 9.95Ah |
| Estimated charge time | 3.5 hours |
| Charger included | Yes |
| Range estimate | 40 miles |
| Throttle | No |
| Walk assist | Yes |
| Front tire | Teravail Kessel 29 x 2.6", Durable casing, WTB TCS Sealant included (tubes installed) |
| Rear tire | Teravail Warwick 29 x 2.5", Durable casing, WTB TCS Sealant included (tubes installed) |
| Front hub | Shimano TC500-15-B CLD |
| Rear hub | Shimano TC500-MS-B CLD |
| Spoke | 2.0mm straight gauge, black |
| Rim | WTB ST i30 Tough TCS, 32h |
| Complete bike | 50 lbs 13 oz (Medium) |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in mm unless otherwise noted; head tube angles are in degrees. Measurements based on: An unsprung bike (no sag) A 29 x 2.5" tire measuring 752 mm in diameter Standover (D) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center
| Frame size | Small | Medium | Large | X-Large |
| A. Effective Top Tube (mm) | 590.2 mm | 612.2 mm | 634.2 mm | 656.2 mm |
| B. Stand Over (mm) | 754.6 mm | 754.5 mm | 754.3 mm | 754.2 mm |
| C. Reach (mm) | 453.0 mm | 473.0 mm | 493.0 mm | 513.0 mm |
| D. Stack (mm) | 613.6 mm | 622.6 mm | 631.6 mm | 640.5 mm |
| E. Total Seat Tube Length (mm) | 405.0 mm | 430.0 mm | 455.0 mm | 480.0 mm |
| F. Headtube Length (mm) | 100.0 mm | 110.0 mm | 120.0 mm | 130.0 mm |
| G. Headtube Angle (degrees) | 63.9 | 63.9 | 63.9 | 63.9 |
| H. Seat Tube Angle (degrees) | 77.4 | 77.4 | 77.4 | 77.4 |
| I. BB Drop (mm) | 25.0 mm | 25.0 mm | 25.0 mm | 25.0 mm |
| J. BB Height (mm) | 351.0 mm | 351.0 mm | 351.0 mm | 351.0 mm |
| K. Chainstay Length (mm) | 435.3 mm | 435.3 mm | 435.3 mm | 435.3 mm |
| L. Fork Length Axle to Crown (mm) | 573.0 mm | 573.0 mm | 573.0 mm | 573.0 mm |
| M. Fork Offset (mm) | 44.0 mm | 44.0 mm | 44.0 mm | 44.0 mm |
| N. Wheelbase (mm) | 1225.0 mm | 1249.4 mm | 1273.8 mm | 1298.2 mm |
| Crank Arm Length (mm) | 165.0 mm | 165.0 mm | 165.0 mm | 165.0 mm |
| Handlebar Width (cm) | 780.0 cm | 780.0 cm | 780.0 cm | 780.0 cm |
| Recommended Rider Height (cm) | 157.0 cm - 170.0 cm | 168.0 cm - 180.0 cm | 178.0 cm - 191.0 cm | 188.0 cm |
| Stem Length (mm) | 40.0 mm | 40.0 mm | 40.0 mm | 40.0 mm |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
