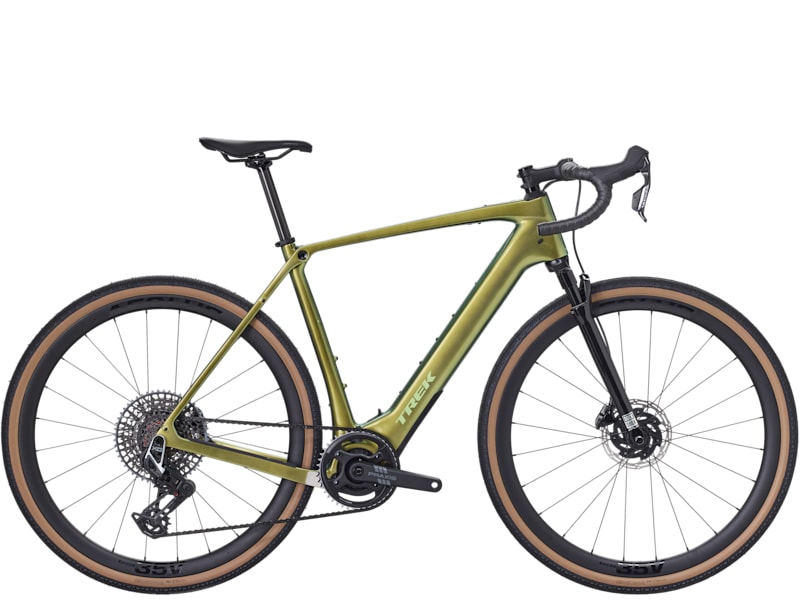

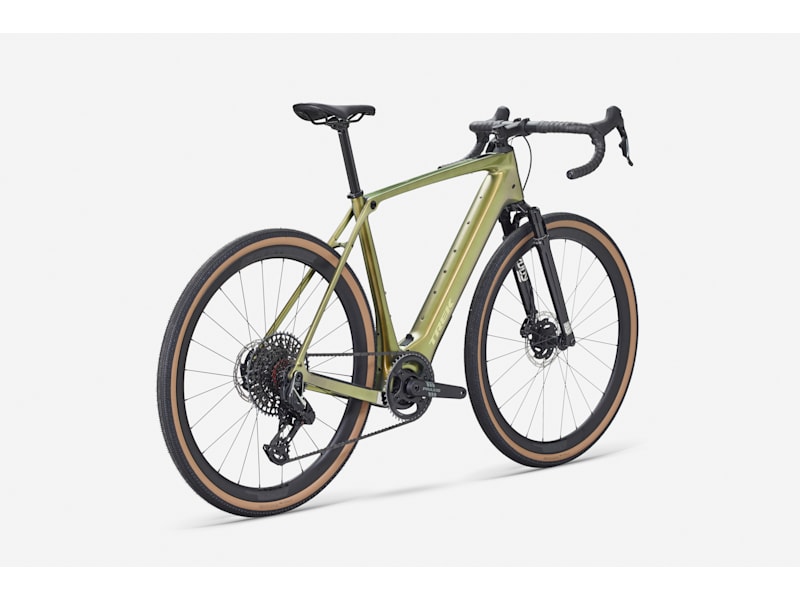

2026 Checkpoint+ SL 7 AXS Electric Road Bike
-
Powerful and discreet e-system
The industry-leading TQ HPR 60 harmonic pin ring motor is super efficient with an amazing range-to-weight-to-speed ratio. It's ultra-compact, whisper-quiet, and offers a natural-feeling assist up to 28 mph with 50 miles of range (in eco mode). Plus, choose how much boost you get and when you get it with three assist modes.
-
Optional Range Extender
Explore even farther with an optional 160Wh Range Extender that fits neatly in your bottle cage and gives you an extra 44% more range.
-
Road-smoothing IsoSpeed
IsoSpeed technology soaks up fatiguing bumps in the road so you can ride stronger longer.
-
Relaxed Gravel Endurance geometry
Confident and comfortable Gravel Endurance geometry puts you in a more relaxed upright riding position to tackle even the most epic, all-day adventures.
-
Big ol' tire clearance
Room for tires up to 50mm wide (as measured) lets you roll right over the big stuff.
-

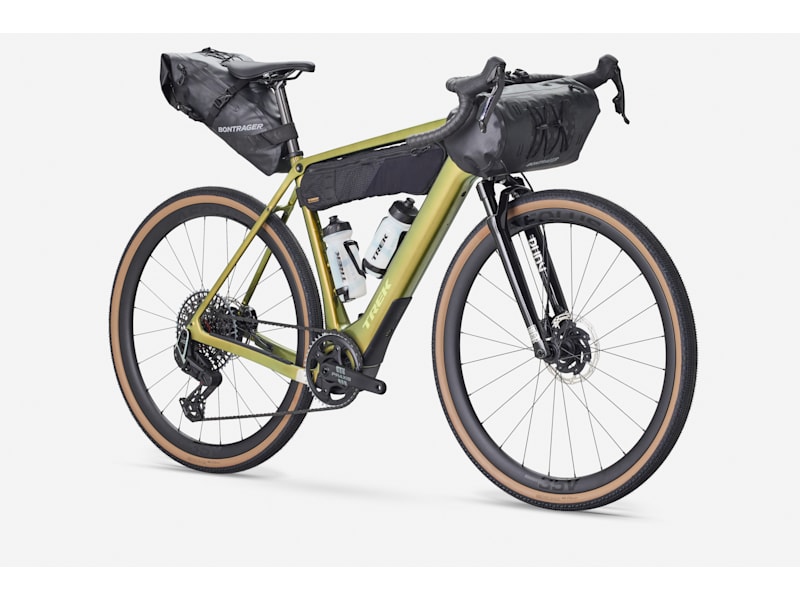

Mounts to haul it all
Carry everything you need with mounts on the frame and fork for front and rear racks, fenders, and Adventure Frame and Triangle Bags. Plus, Checkpoint+ was designed to fit extra hydration in additon to all your bags.
-
Connect and customize with the app
The Trek Central app seamlessly connects to your Checkpoint+ for real-time range calculations, activity tracking, and custom motor tuning. Plus, navigation and mapping features help you stay on course wherever you ride.
-
Compliant with leading safety regulations
The e-systems on Trek and Electra e-bikes are third-party tested to meet the latest e-bike safety regulations, including the stringent UL 2849 certification — so all you have to worry about is where your e-bike will take you next.
-
Don’t forget your pedals
This bike doesn’t come with pedals because you’ll have a better time on your new bike if you choose your own. See the pedal guide to find the best pedals for your riding style.
Overview
Overview
Technical Specifications
Technical Specifications
| Frame | 500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle |

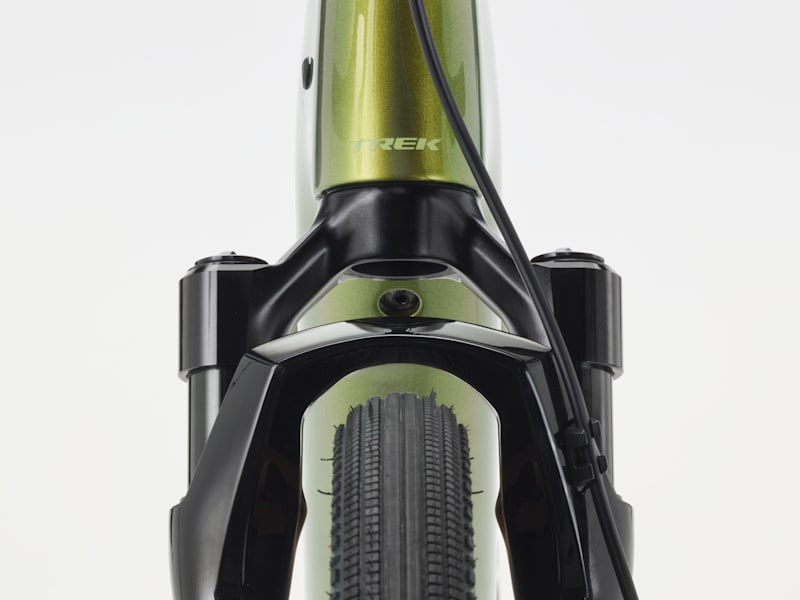

| Fork | RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45mm offset, 12x100mm thru axle, 40mm travel |
| Weight | ML - 14.05 kg / 30.98 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
| Battery | TQ 360Wh |
| Charger | TQ 4A charger |

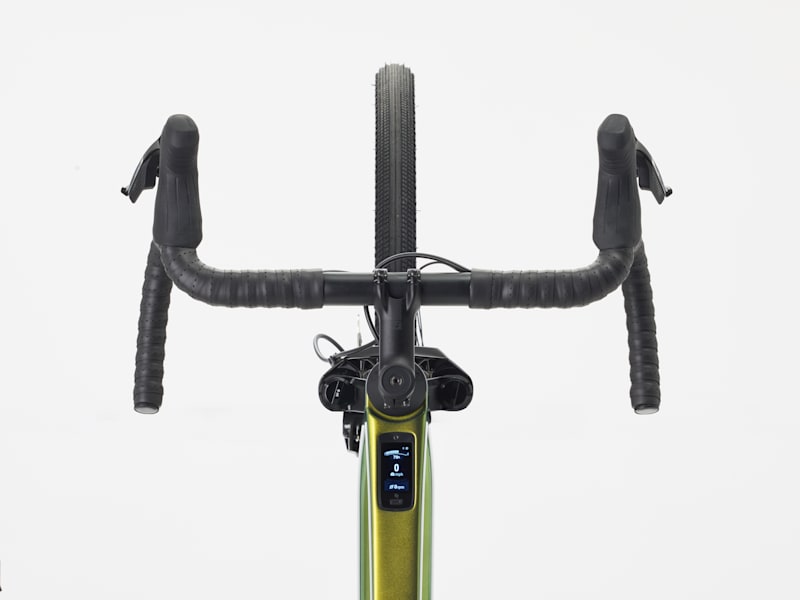

| Controller | TQ color LED display with Bluetooth & ANT+ connectivity |

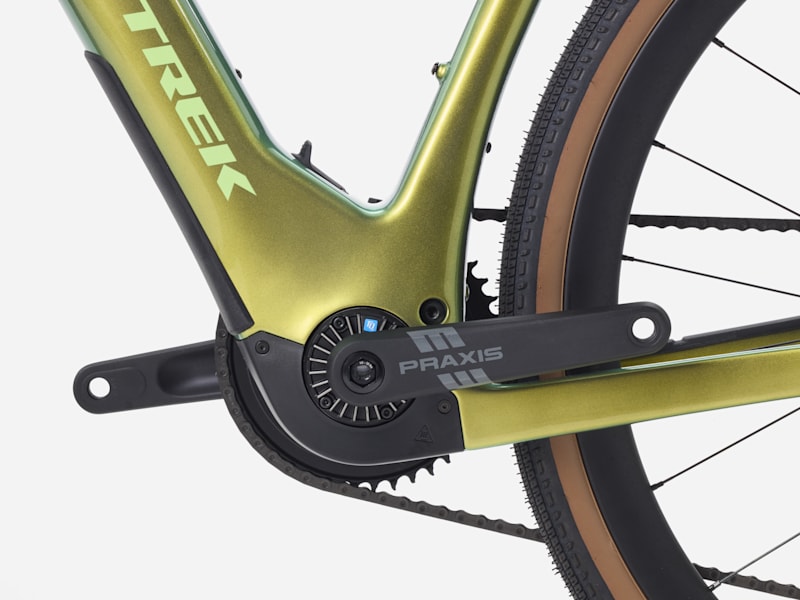

| Motor | TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power |
| E-bike classification | Class 3 |
| Shifter | SRAM Force AXS E1 |
| Rear derailleur | SRAM X0 Eagle AXS, T-Type |
| *crank | Size: S Praxis Alloy, 165mm lengthSize: M, ML Praxis Alloy, 170mm lengthSize: L, XL Praxis Alloy, 172.5mm length |
| Cassette | SRAM Eagle XS-1295, T-Type, 10-52, 12 speed |
| Chain | SRAM X0 Eagle, T-Type, 12 speed |
| Max chainring size | 1x: 44T |
| Wheel front | Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle |
| Wheel rear | Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, SRAM XDR driver, 142x12mm thru axle |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Tire | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm |
| Tire part | Bontrager TLR sealant, 6oz |
| Rim strip | Bontrager TLR |
| Max tire size | 50mm without fenders, 42mm with fenders (as measured, see manual for details) |
| Saddle | Verse Short Elite, hollow magnesium rails, 145mm width |
| Seatpost | Bontrager carbon, 27.2mm, 8mm offset, 330mm length |
| *handlebar | Size: S Bontrager Pro Gravel, 40cm widthSize: M, ML Bontrager Pro Gravel, 42cm widthSize: L Bontrager Pro Gravel, 44cm widthSize: XL Bontrager Pro Gravel, 46cm width |
| Handlebar tape | Bontrager Supertack Perf tape |
| *stem | Size: S, M Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm lengthSize: ML, L Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm lengthSize: XL Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length |
| Brake rotor | SRAM Paceline X, rounded, centerlock, 160mm |
| Rotor size | Max brake rotor sizes: 180mm front & rear |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size letter | S | M | ML | L | XL |
| Wheel size | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube | 48.0 | 50.5 | 53.0 | 55.0 | 57.5 |
| B — Seat tube angle (degrees) | 74.0° | 73.3° | 73.3° | 73.3° | 73.3° |
| Effective seat tube angle (degrees) | 73.0° | 72.8° | 72.8° | 72.8° | 72.8° |
| C — Head tube length | 10.6 | 13.0 | 15.1 | 17.1 | 19.1 |
| D — Head angle (degrees) | 71.4° | 71.6° | 72.0° | 72.1° | 72.4° |
| E — Effective top tube | 54.7 | 56.6 | 57.8 | 58.9 | 60.1 |
| G — Bottom bracket drop | 7.6 | 7.6 | 7.6 | 7.6 | 7.6 |
| H — Chainstay length | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 |
| I — Offset | 4.9 | 4.9 | 4.9 | 4.9 | 4.9 |
| J — Trail | 6.8 | 6.8 | 6.4 | 6.4 | 6.2 |
| K — Wheelbase | 103.2 | 104.4 | 105.2 | 106.3 | 107.2 |
| L — Standover | 77.2 | 79.9 | 81.3 | 83.7 | 86.1 |
| M — Frame reach | 38.6 | 39.1 | 39.7 | 40.2 | 40.8 |
| N — Frame stack | 55.6 | 57.9 | 60.1 | 62.0 | 64.0 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| XS | 4'8" - 5'2" | 143 - 158 |
| S (49cm) | 5'2" - 5'5" | 158 - 164 |
| M (52-54cm) | 5'5" - 5'10" | 164 - 177 |
| ML (56cm) | 5'10" - 6'2" | 177 - 188 |
| L (58cm) | 6'2" - 6'4" | 188 - 194 |
| XL (61cm) | 6'4" - 6'8" | 194 - 203 |
Sizing to be used as a reference only. Chat with us if you have any questions.
