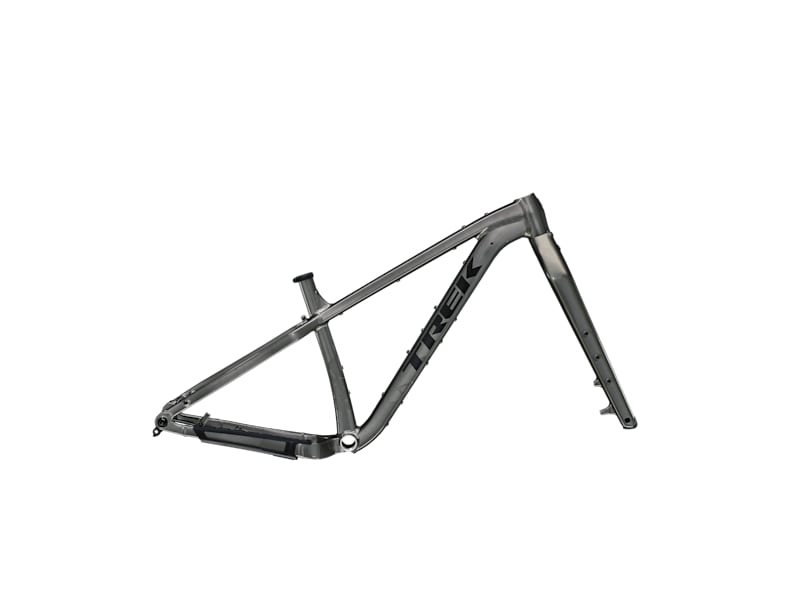

2026 Farley AL Hardtail Mountain Frameset
-

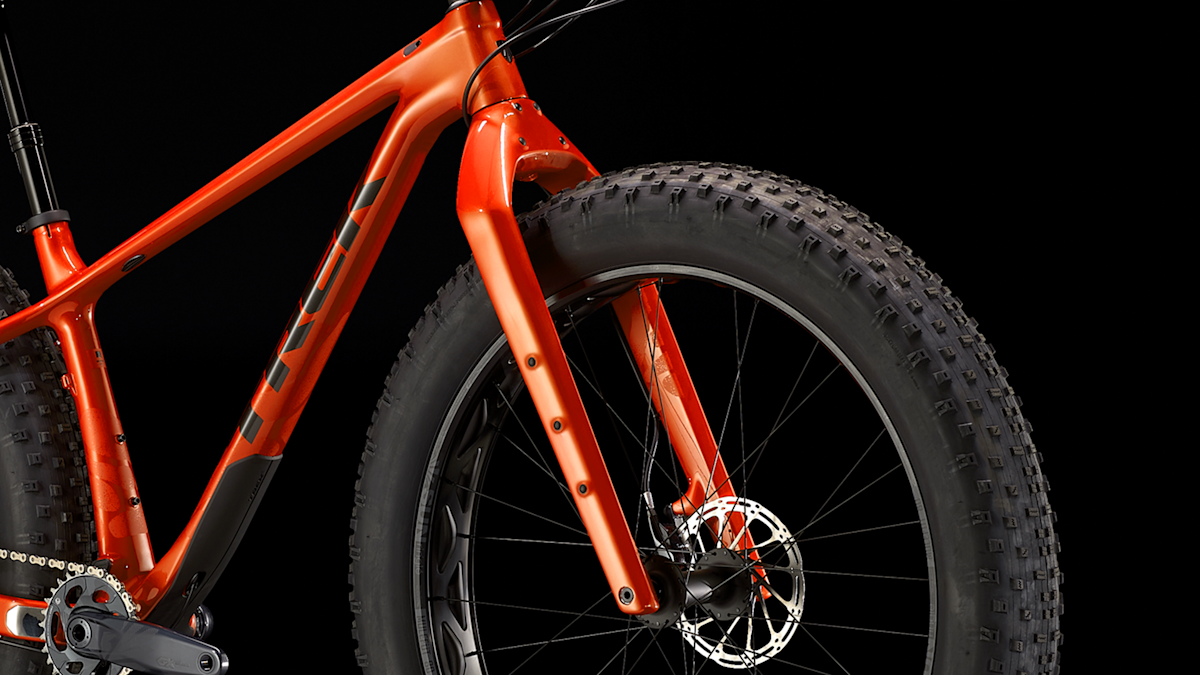

Adventure-ready fork
Farley's new, short-offset OCLV carbon fork puts you in an optimal position over the front wheel, upping traction over sketchy terrain while allowing for a shorter stem. A custom rack mount on the crown and thoughtfully positioned triple bottle bosses (64mm spacing) on the lower legs let you gear up without sacrificing handling. Protective rubber bumpers on the bottom of the fork legs keep Farley upright and manageable when the front wheel needs to come off.
-

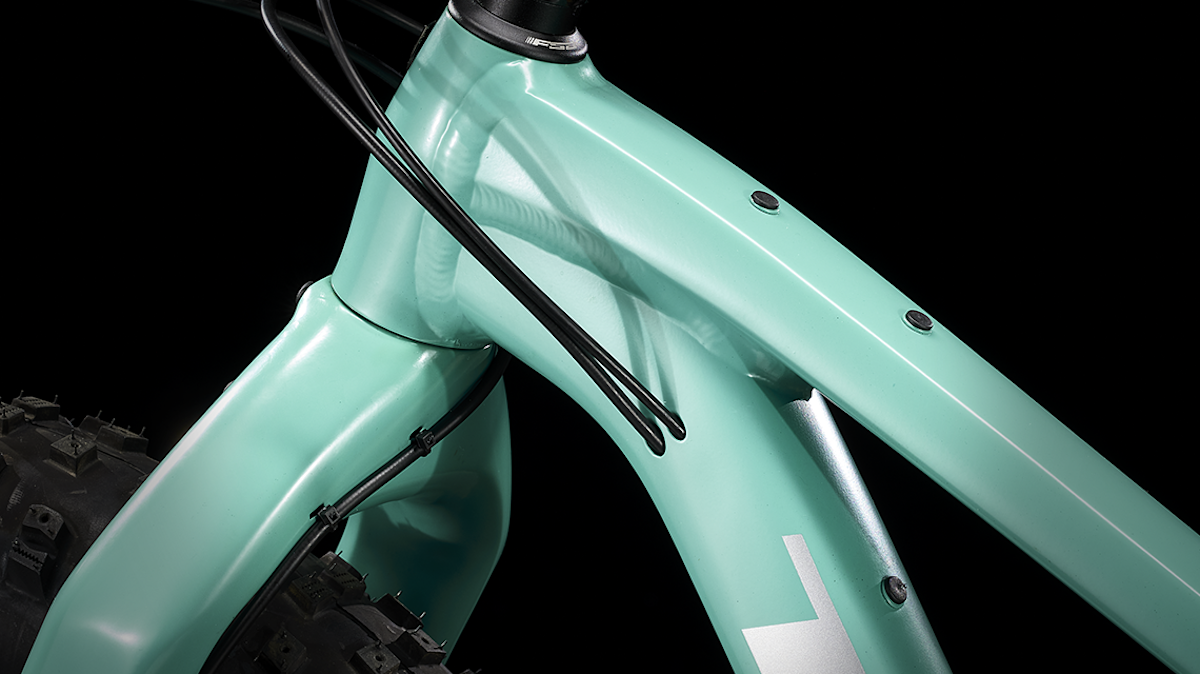

Keep it clean
Internal routing helps to protect Farley's components from the elements and makes it easy to mount gear
-

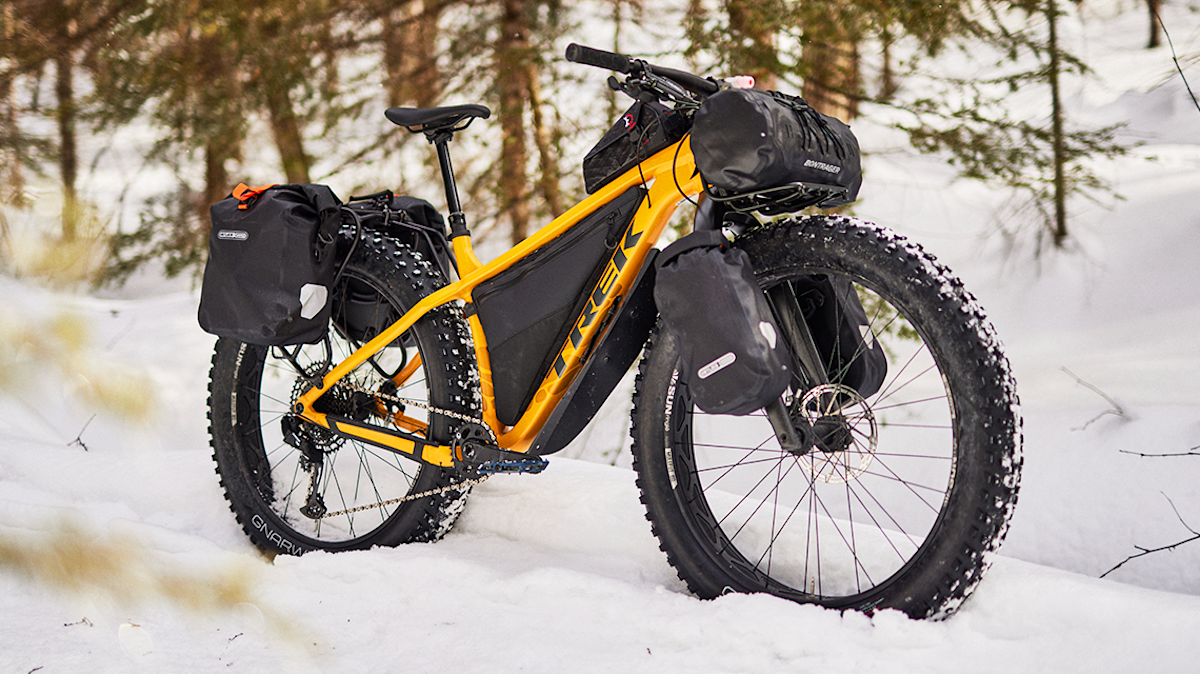

Haul of the wild
Mounts all over the frame let you carry a wide variety of gear with endless customization options. Gummy bears? Extra layers? Camping gear? Haul it all.
-
A better way to produce aluminum
Starting in 2024, we began removing high-emission aluminum from our manufacturing and replacing it with low-emission aluminum made with renewable energy. By October 2025, nearly every alloy bike we make - this one included - had made the switch, driving a major drop in our footprint.
Overview
Overview
Technical Specifications
Technical Specifications
| Frame | Alpha Platinum Aluminum, tapered head tube, top tube bag mounts, strapless full frame bag mounts, downtube fender mount, lower downtube accessory mount, seat stay rear rack mounts, internal rear derailleur & dropper post routing, 100mm threaded BB, UDH, 197x12mm |
| Fork | Farley carbon, tapered alloy steerer, crown rack mounts, lower leg cage mounts, 150x15mm thru axle |
| Skewer front | Bontrager Switch thru axle |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Max tire size | 27.5x4.50\ |
| Max chainring size | 1x: 32T |
| Headset | FSA IS-2, 1-1/8'' top, 1.5'' bottom |
| Rotor size | Max brake rotor sizes: 180mm front & rear |
| Weight | M - 3.95 kg / 8.71 lbs |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
Parts are subject to change without notice. Chat with us if you have any questions.

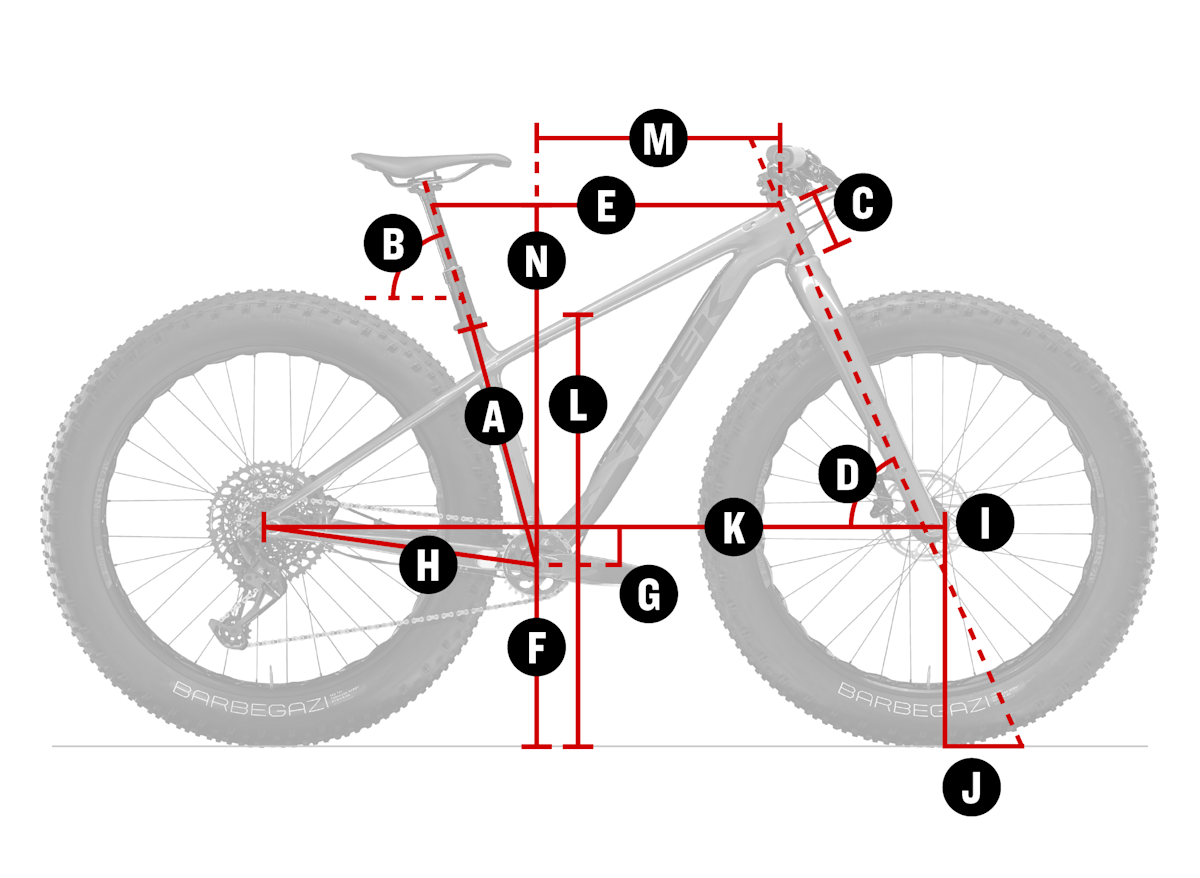

Geometry
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size letter | S | M | L | XL |
| Wheel size | 27.5" | 27.5" | 27.5" | 27.5" |
| A — Seat tube | 38.0 | 42.0 | 45.0 | 49.0 |
| B — Seat tube angle (degrees) | 72.5° | 72.5° | 72.5° | 72.5° |
| Effective seat tube angle (degrees) | 74.0° | 74.0° | 74.0° | 74.0° |
| C — Head tube length | 9.0 | 10.0 | 11.5 | 13.0 |
| D — Head angle (degrees) | 68.5° | 68.5° | 68.5° | 68.5° |
| E — Effective top tube | 56.5 | 59.8 | 63.3 | 67.2 |
| F — Bottom bracket height | 32.0 | 32.0 | 32.0 | 32.0 |
| G — Bottom bracket drop | 6.5 | 6.5 | 6.5 | 6.5 |
| H — Chainstay length | 45.0 | 45.0 | 45.0 | 45.0 |
| I — Offset | 4.2 | 4.2 | 4.2 | 4.2 |
| J — Trail | 10.7 | 10.7 | 10.7 | 10.7 |
| K — Wheelbase | 109.7 | 113.1 | 116.6 | 120.7 |
| L — Standover | 73.0 | 74.0 | 76.0 | 78.0 |
| M — Frame reach | 40.0 | 43.0 | 46.0 | 49.5 |
| N — Frame stack | 58.9 | 59.9 | 61.3 | 62.6 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| S | 5'1" - 5'5" | 155 - 165 |
| M | 5'5" - 5'10" | 165 - 177 |
| L | 5'10" - 6'2" | 177 - 188 |
| XL | 6'2" - 6'5" | 188 - 195 |
Sizing to be used as a reference only. Chat with us if you have any questions.
