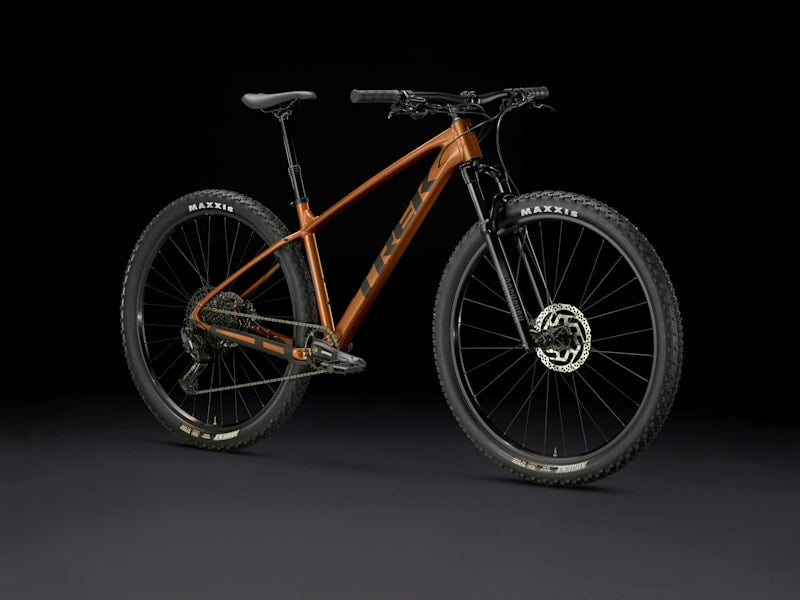

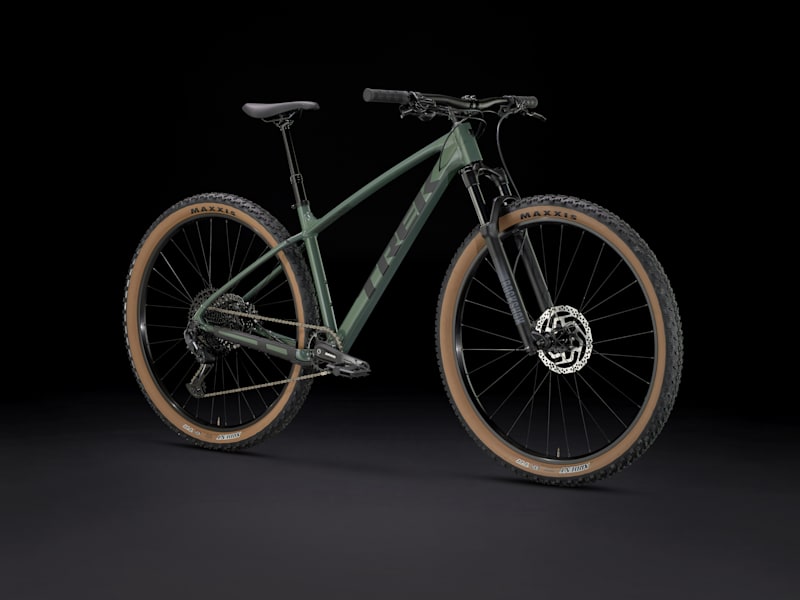

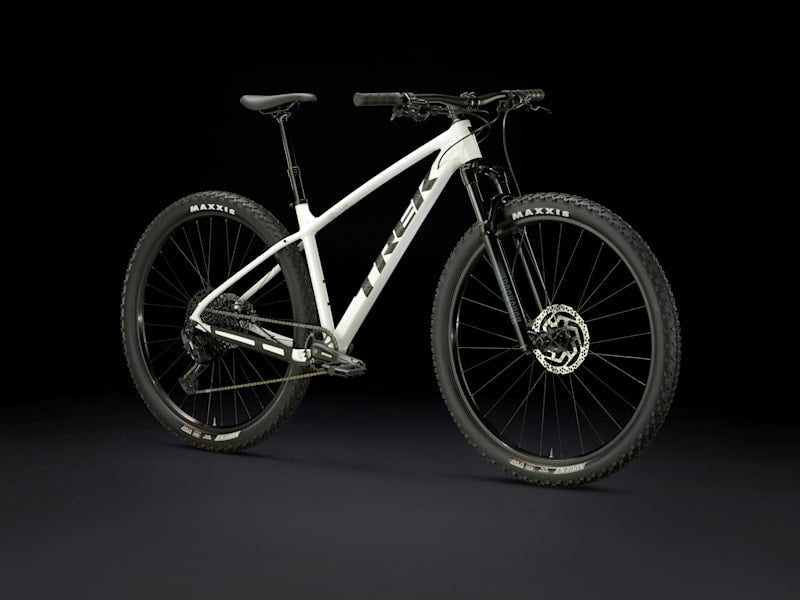

2025 Marlin 7 Gen 3 Hardtail Mountain Bike
Fully assembled, tuned, and test-ridden—ready to ride at pickup from any DFW Bike Mart location.
Expected to ship within 3 days
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart—ready to ride right at your doorstep within 10 miles of any DFW location.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required. For orders that include a frameset please visit our support center to make sure you have the specialty tools and skills required.
If you decide to take your bike to a local retailer for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.

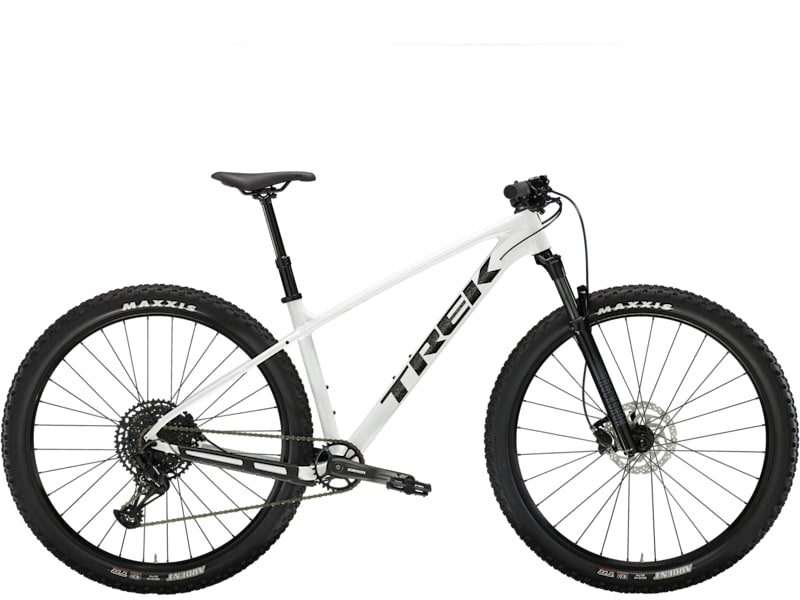

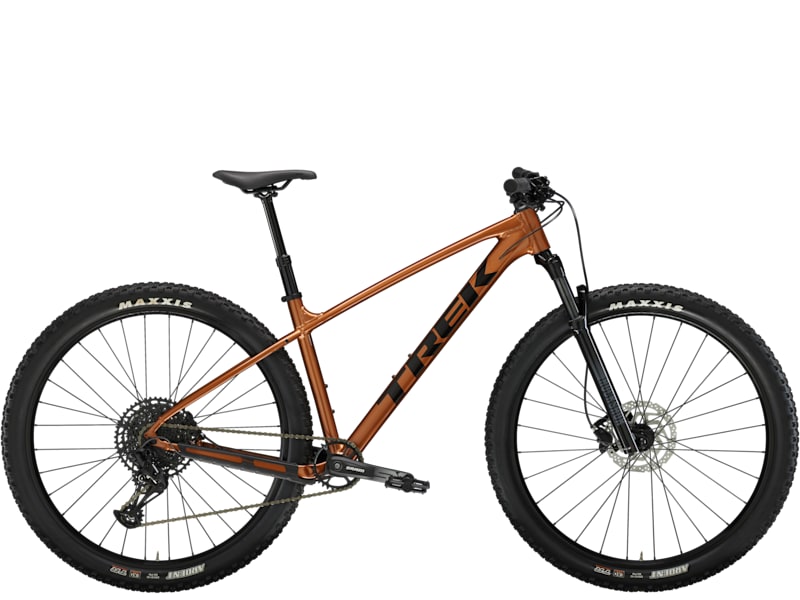

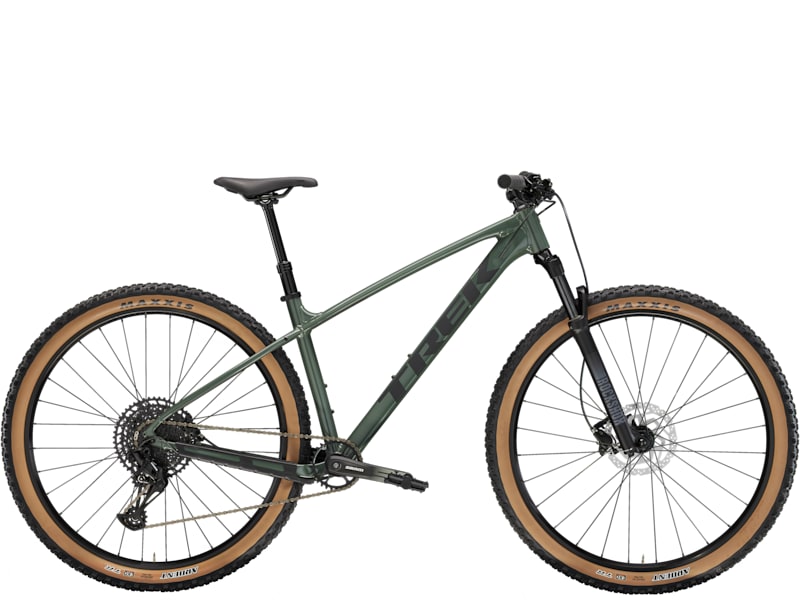

2025 Marlin 7 Gen 3 Hardtail Mountain Bike
-
Will my bike have a curved top tube?
Smaller frames have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frame sizes have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.
-
Fit for every rider
Marlin comes in seven frame sizes to suit riders of any height, and Smart Wheel Size ensures you’re on the fastest wheel that fits. The smallest sizes even come with short-reach brake levers and narrower handlebars that give smaller riders better comfort and control.
-
High tech, high value

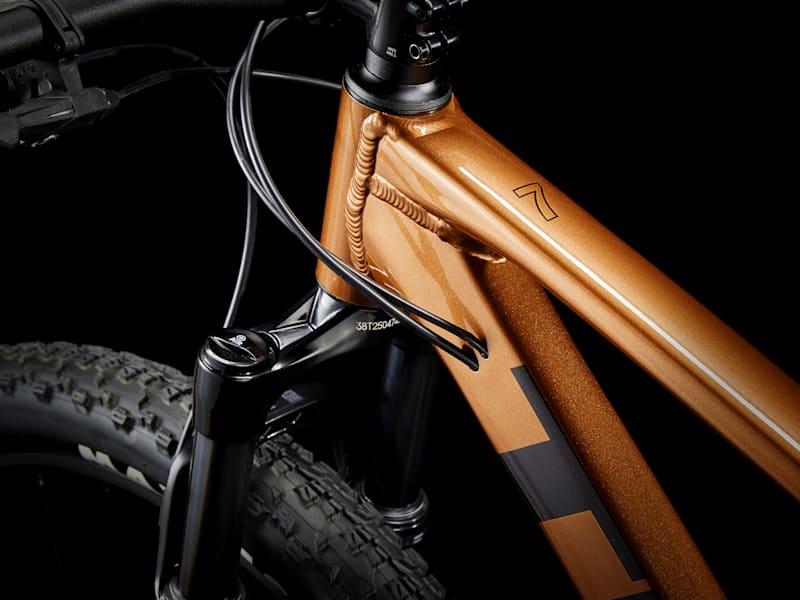

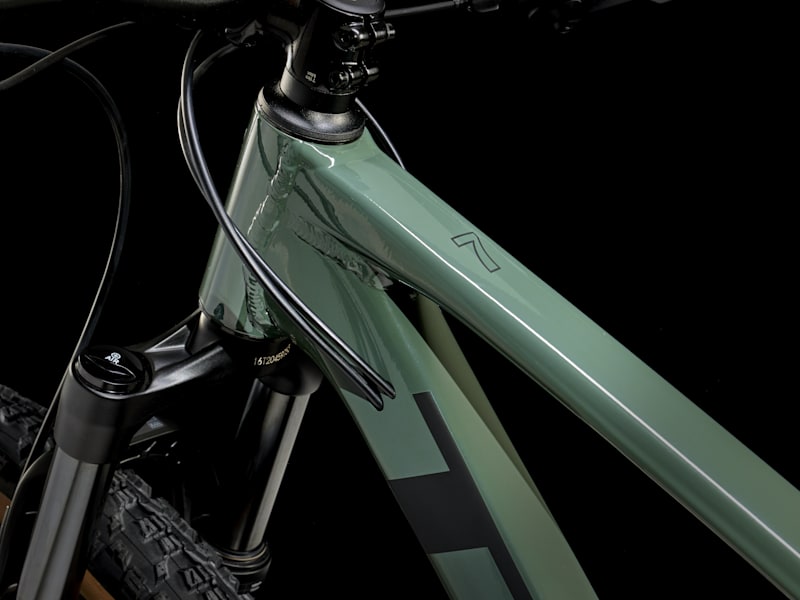

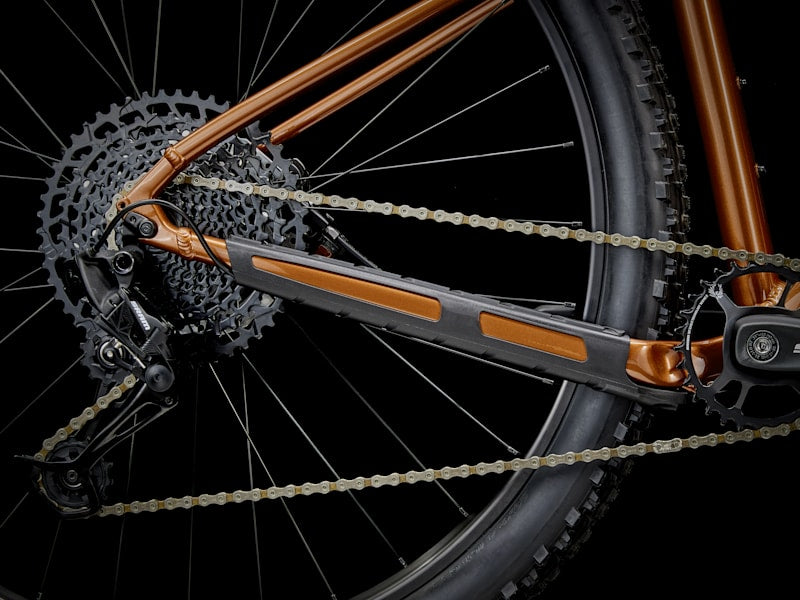

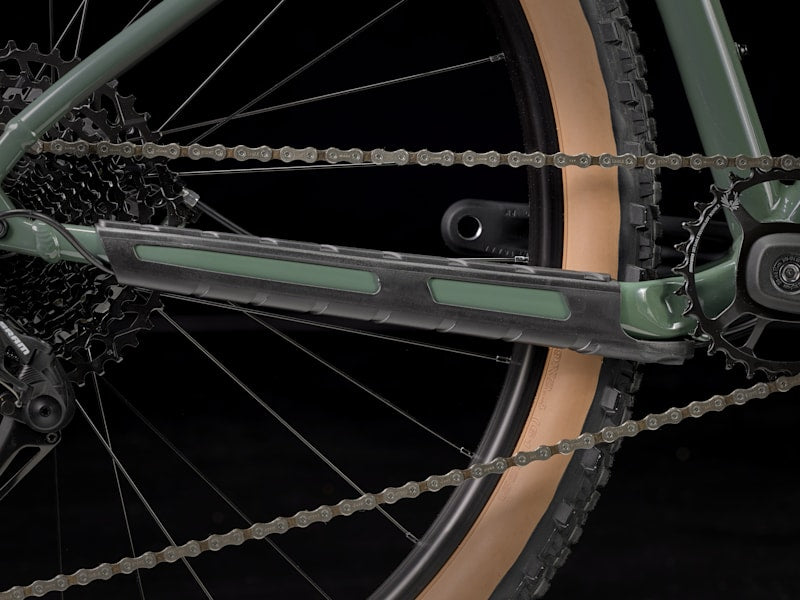

Marlin looks and feels great. It’s packed with features usually found only on more expensive bikes, like a stylish frame with internal shift cable and brake hose routing, which can help your cables last longer by protecting them from the elements.
-
Upgrade your pedals and love your bike more
Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.
Overview
Overview
Technical Specifications
Technical Specifications

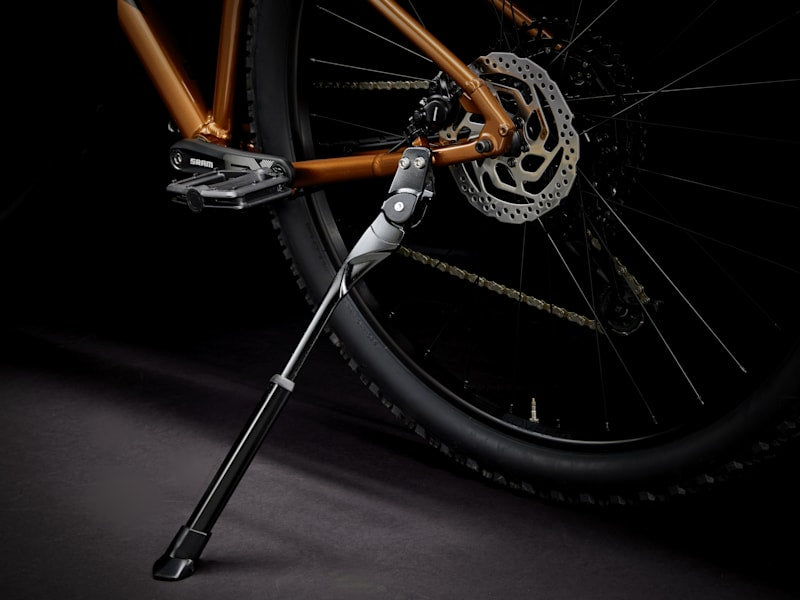

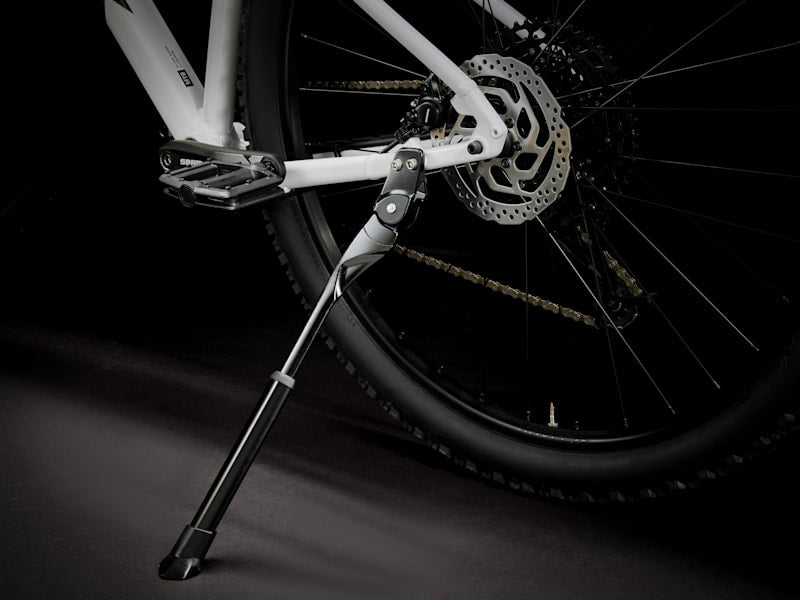

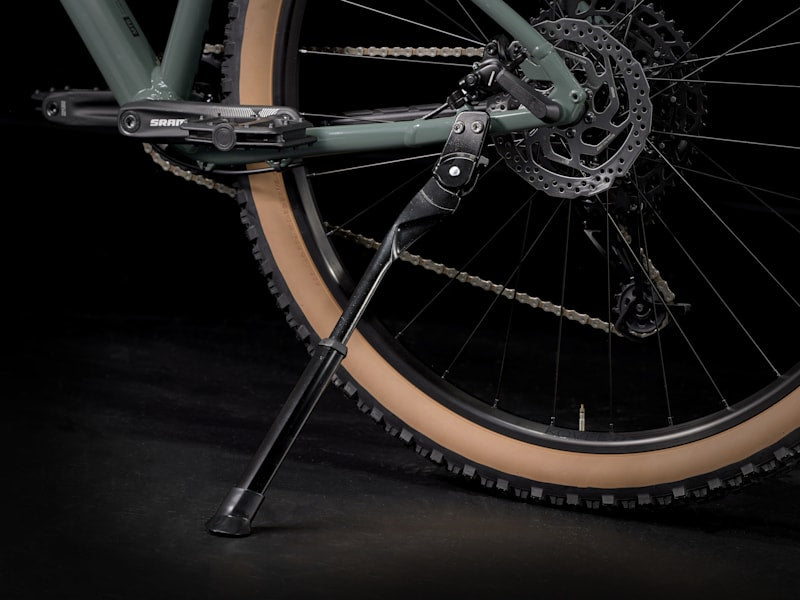

| *frame | Size: XXS , XS Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkewSize: S , M , ML , L , XL , XXL Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew |

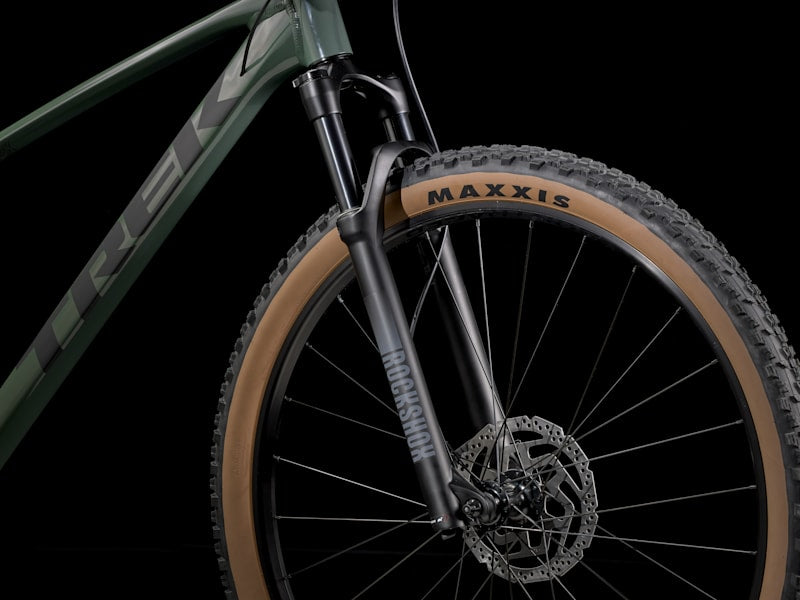

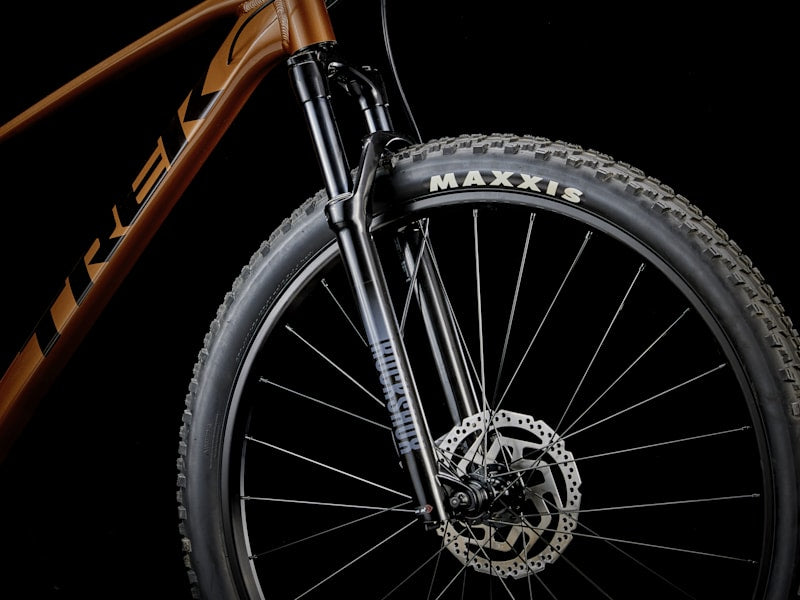

| *fork | Size: XXS RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travelSize: XS , S RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travelSize: M , ML , L , XL , XXL RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel |
| Hub front | Formula DC-20 LW, alloy, 6-bolt, 100x5mm |
| Hub rear | Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5mm |
| Skewer rear | 173x5mm QR |
| Rim | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve |

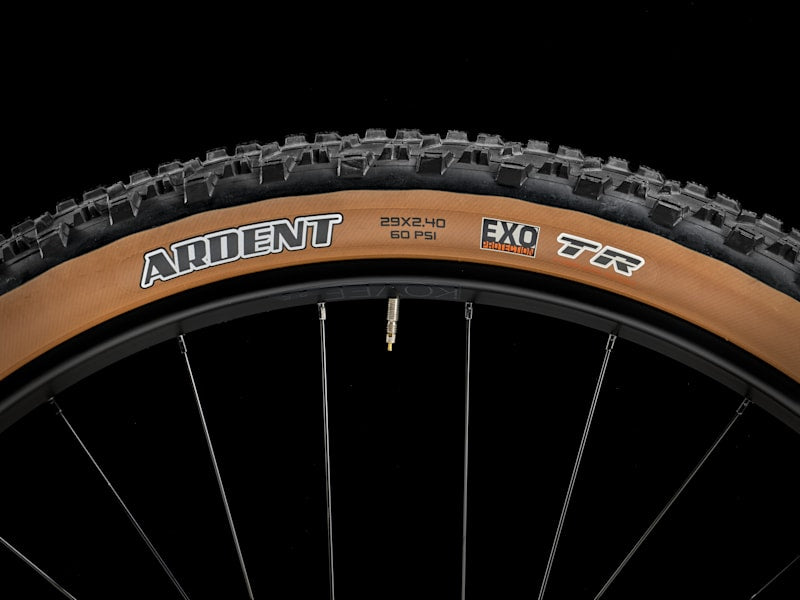

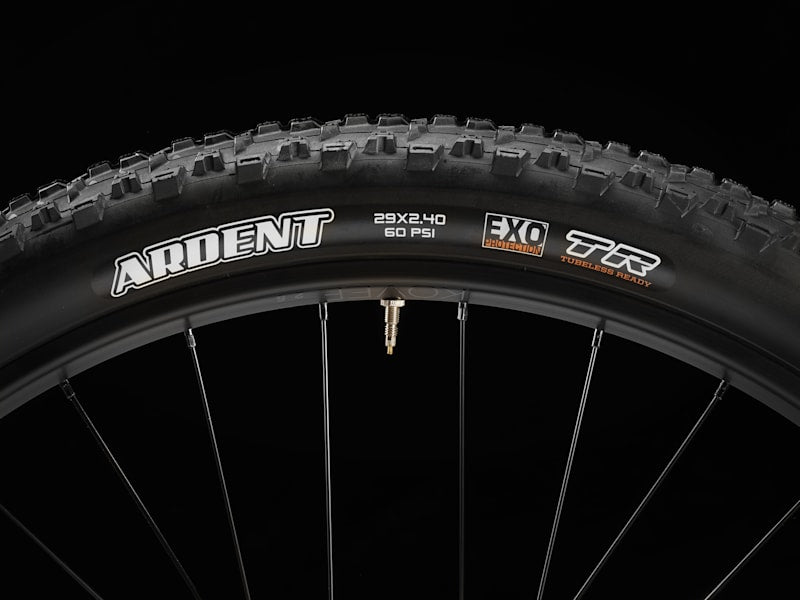

| *tire | Size: XXS Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60tpi, 26x2.40''Size: XS , S Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60tpi, 27.5x2.40''Size: M , ML , L , XL , XXL Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.40'' |
| Max tire size | Frame: 29x2.40\ (XXS: 26x2.40\, XS & S: 27.5x2.40\), Fork: See manufacturer |
| Shifter | SRAM SX Eagle, 12 speed |

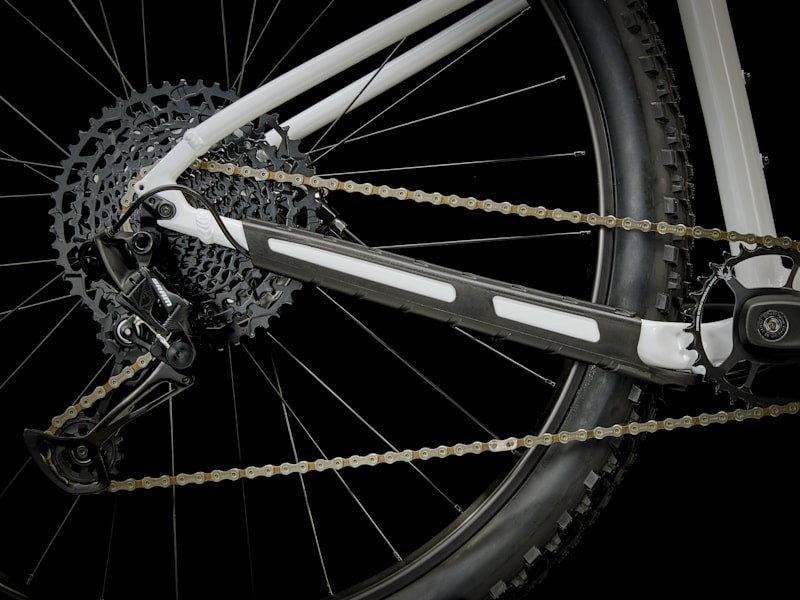

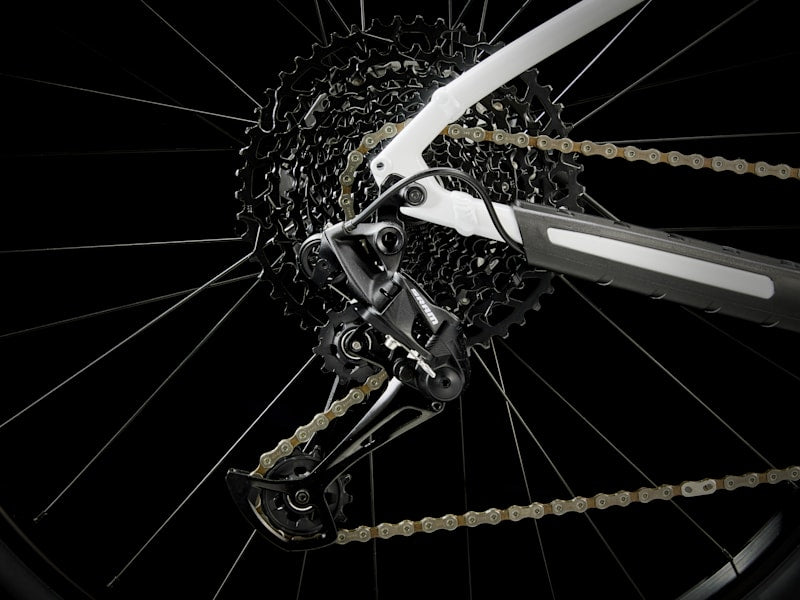

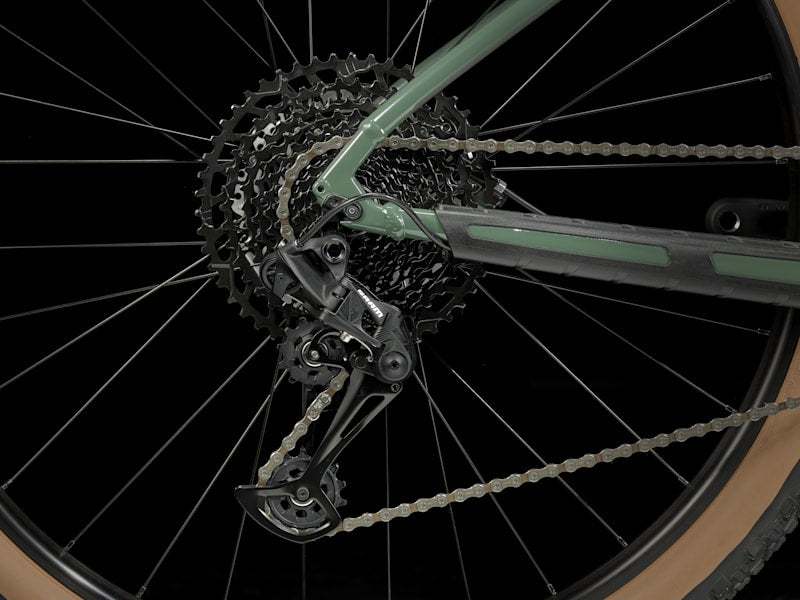

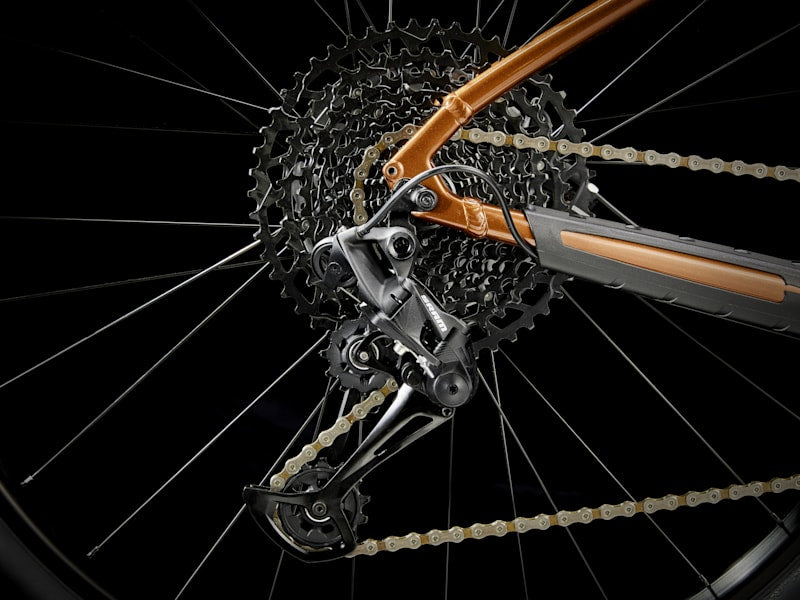

| Rear derailleur | SRAM SX Eagle, 12 speed |

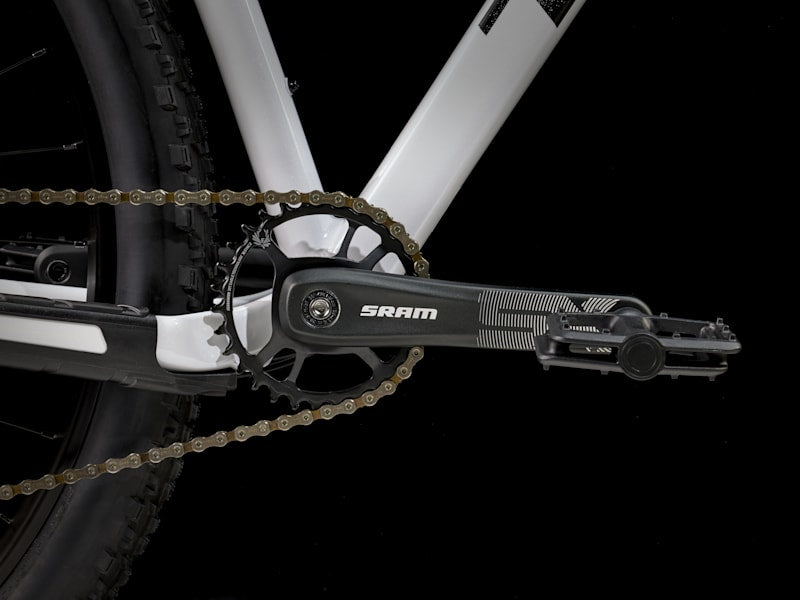

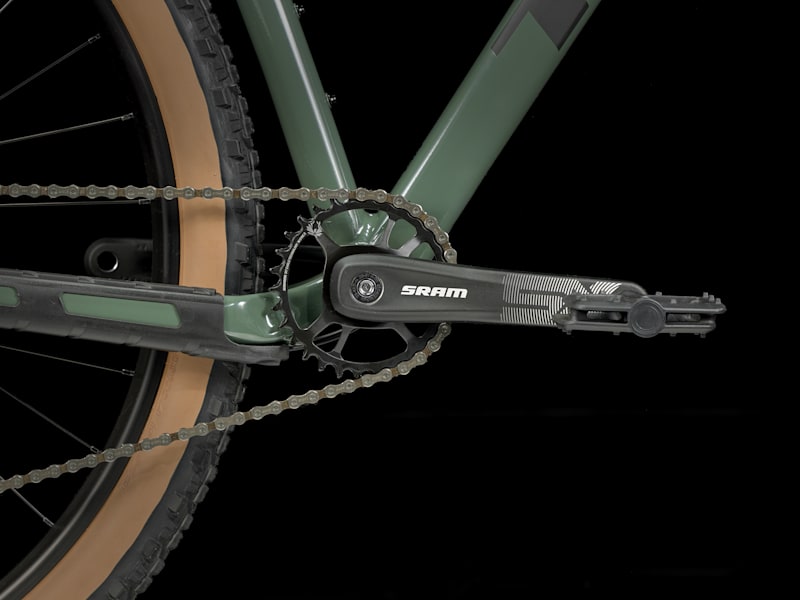

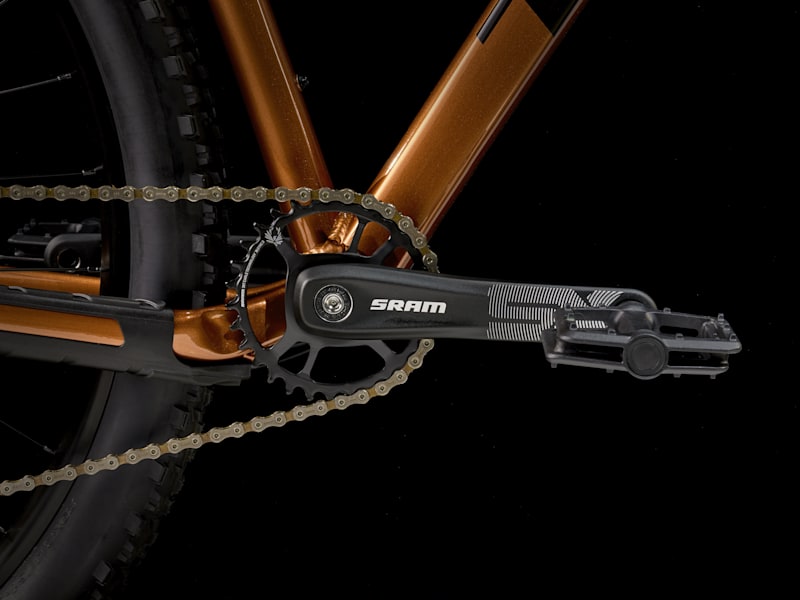

| *crank | Size: XXS SRAM SX Eagle, 30T steel ring, 49mm chainline, 155mm lengthSize: XS , S , M SRAM SX Eagle, 30T steel ring, 49mm chainline, 170mm lengthSize: ML , L , XL , XXL SRAM SX Eagle, 30T steel ring, 49mm chainline, 175mm length |
| Bottom bracket | Truvativ Powerspline, 73mm, threaded cartridge, 118mm spindle |
| Cassette | SRAM PG-1210 Eagle, 11-50, 12 speed |
| Chain | SRAM SX Eagle, 12 speed |
| Pedal | VP-536 nylon platform |
| Max chainring size | 1x: See FAQ, 2x: 36T, 3x: 42T |
| Saddle | Bontrager Verse Short, stainless steel rails |
| *seatpost | Size: XXS , XS , S TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm lengthSize: M TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm lengthSize: ML , L , XL , XXL TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length |
| *handlebar | Size: XXS , XS Bontrager alloy, 31.8mm, 5mm rise, 690mm widthSize: S Bontrager alloy, 31.8mm, 15mm rise, 720mm widthSize: M , ML , L , XL , XXL Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *stem | Size: XXS , XS , S Bontrager Comp, 31.8mm, 7 degree, 35mm lengthSize: M , ML , L Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm lengthSize: XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm lengthSize: XXL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length |
| Headset | Semi-integrated, 1-1/8'' |

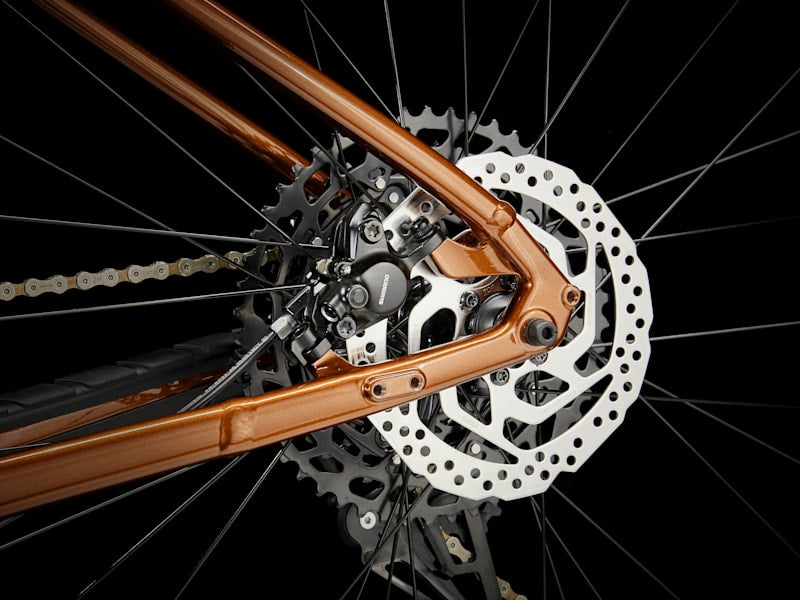

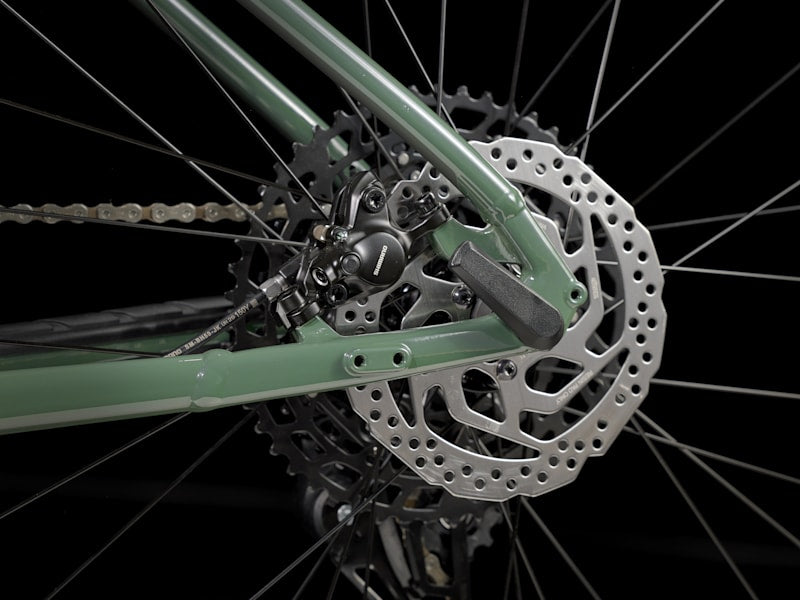

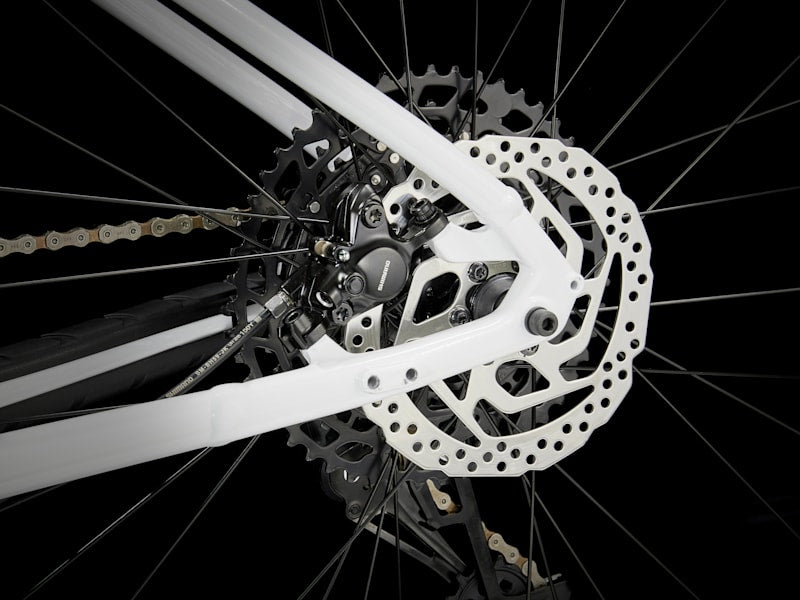

| Brake | Shimano MT200 hydraulic disc |
| *brake rotor | Size: XXS , XS , S , M , ML , L , XL , XXL Shimano RT26, 6-bolt, 160mmSize: M , ML , L , XL , XXL Shimano RT26, 6-bolt, 180mm |
| Brake set | Shimano MT200 hydraulic disc |
| Rotor size | Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
| Weight | M - 15.03 kg / 33.14 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size number | 14.5" | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
| Frame size letter | XS | S | M | ML | L | XL |
| Wheel size | 27.5" | 27.5" | 29" | 29" | 29" | 29" |
| A — Seat tube | 34.0 | 37.0 | 42.0 | 43.5 | 45.0 | 50.0 |
| B — Seat tube angle (degrees) | 73.8° | 73.8° | 73.4° | 73.4° | 73.4° | 73.4° |
| Effective seat tube angle (degrees) | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° |
| C — Head tube length | 9.0 | 10.0 | 10.5 | 11.0 | 11.5 | 13.5 |
| D — Head angle (degrees) | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
| E — Effective top tube | 55.1 | 57.9 | 61.5 | 63.1 | 64.7 | 67.8 |
| F — Bottom bracket height | 31.3 | 31.3 | 30.8 | 30.8 | 30.8 | 30.8 |
| G — Bottom bracket drop | 4.5 | 4.5 | 6.0 | 6.0 | 6.0 | 6.0 |
| H — Chainstay length | 43.3 | 43.3 | 43.8 | 43.8 | 43.8 | 43.8 |
| I — Offset | 4.2 | 4.2 | 4.6 | 4.6 | 4.6 | 4.6 |
| J — Trail | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 |
| K — Wheelbase | 109.2 | 112.1 | 116.3 | 118.0 | 119.7 | 123.0 |
| L — Standover | 65.8 | 69.2 | 74.7 | 75.9 | 77.1 | 79.1 |
| M — Frame reach | 39.0 | 41.5 | 44.0 | 45.5 | 47.0 | 49.5 |
| N — Frame stack | 56.3 | 57.2 | 60.9 | 61.4 | 61.8 | 63.7 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| 2XS | 4'5" - 4'9" | 135 - 145 |
| XS | 4'9" - 5'1" | 145 - 155 |
| S | 5'1" - 5'5" | 155 - 165 |
| M | 5'5" - 5'10" | 165 - 177 |
| ML | 5'8" - 5'11" | 173 - 180 |
| L | 5'10" - 6'2" | 177 - 188 |
| XL | 6'2" - 6'5" | 188 - 195 |
| 2XL | 6'5" - 6'8" | 195 - 203 |
Sizing to be used as a reference only. Chat with us if you have any questions.
