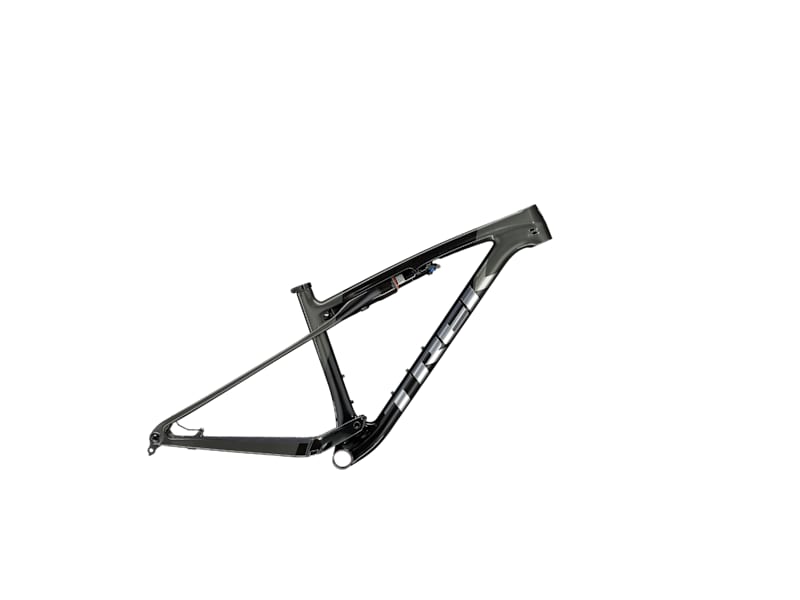

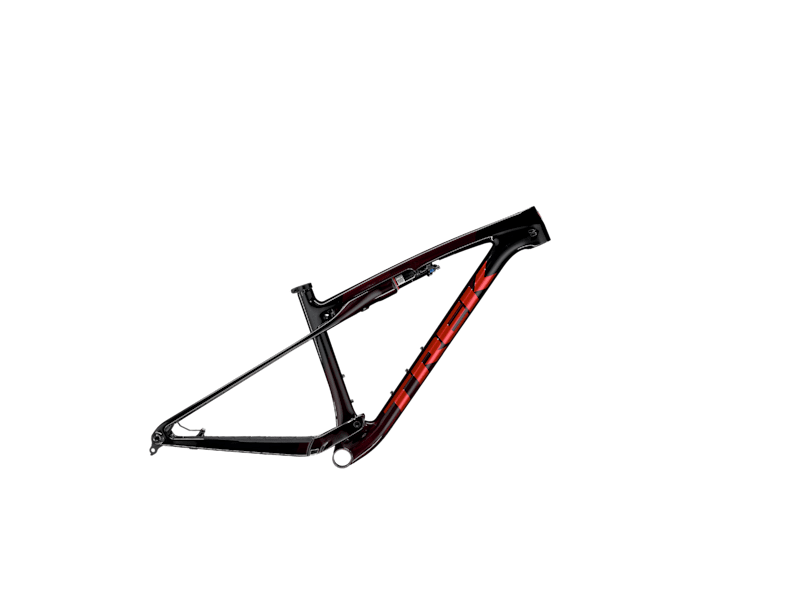

2026 Supercaliber SLR Gen 2 Hardtail Mountain Frameset
-
Nothing else like it
Supercaliber’s unique frame design ditches traditional suspension hardware so there’s less weight, less maintenance, and less lateral flex. IsoStrut connects the mainframe to the pivot-less seat stays to offer about 80mm of rear wheel travel. This design offers a unique blend of efficiency, traction, and fatigue-fighting compliance that keeps racers fresh and in control.
-
IsoStrut
IsoStrut integrated suspension gives you just enough travel to stay in control. It's fully tuneable like a standard rear shock, but without the weight penalty of a full suspension bike.
-
SLR OCLV Mountain Carbon
Supercaliber SLR is the World Cup lightweight frame. It drops grams by using a higher modulous carbon fiber layup that allows us to use less material, plus we skip internal guide tubes for cable routing, minimizing material and maximizing weight savings.
Overview
Overview
Technical Specifications
Technical Specifications
| Frame | SLR OCLV Mountain Carbon, IsoStrut, UDH, 80mm travel |
| Shock | Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Max tire size | Frame: 29x2.40\, Fork: See manufacturer |
| Max chainring size | 1x: 38T, min 30T |
| Headset | FSA IS-2, 1-1/8'' top, 1.5'' bottom |
| Rotor size | Max brake rotor sizes - Frame: 160mm |
| Weight | M - 1.95 kg / 4.3 lbs |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size letter | S | M | ML | L | XL |
| Wheel size | 29" | 29" | 29" | 29" | 29" |
| A — Seat tube | 39.5 | 42.0 | 44.0 | 46.0 | 52.5 |
| B — Seat tube angle (degrees) | 70.5° | 71.0° | 71.0° | 71.5° | 71.5° |
| Effective seat tube angle (degrees) | 74.5° | 74.5° | 74.5° | 74.5° | 74.5° |
| C — Head tube length | 9.0 | 9.0 | 9.0 | 10.0 | 12.5 |
| D — Head angle (degrees) | 67.5° | 67.5° | 67.5° | 67.5° | 67.5° |
| E — Effective top tube | 57.1 | 59.2 | 60.5 | 62.2 | 66.3 |
| F — Bottom bracket height | 32.7 | 32.7 | 32.7 | 32.7 | 32.7 |
| G — Bottom bracket drop | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 |
| H — Chainstay length | 43.5 | 43.5 | 43.5 | 43.5 | 43.5 |
| I — Offset | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 |
| J — Trail | 10.9 | 10.9 | 10.9 | 10.9 | 10.9 |
| K — Wheelbase | 111.3 | 113.8 | 115.3 | 117.2 | 121.7 |
| L — Standover | 76.0 | 77.2 | 77.2 | 77.2 | 77.2 |
| M — Frame reach | 41.0 | 43.5 | 45.0 | 46.5 | 50.0 |
| N — Frame stack | 59.0 | 59.0 | 59.0 | 59.9 | 62.2 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| S | 5'1" - 5'5" | 155 - 165 |
| M | 5'5" - 5'10" | 165 - 177 |
| ML | 5'8" - 5'11" | 173 - 180 |
| L | 5'10" - 6'2" | 177 - 188 |
| XL | 6'2" - 6'5" | 188 - 195 |
Sizing to be used as a reference only. Chat with us if you have any questions.
