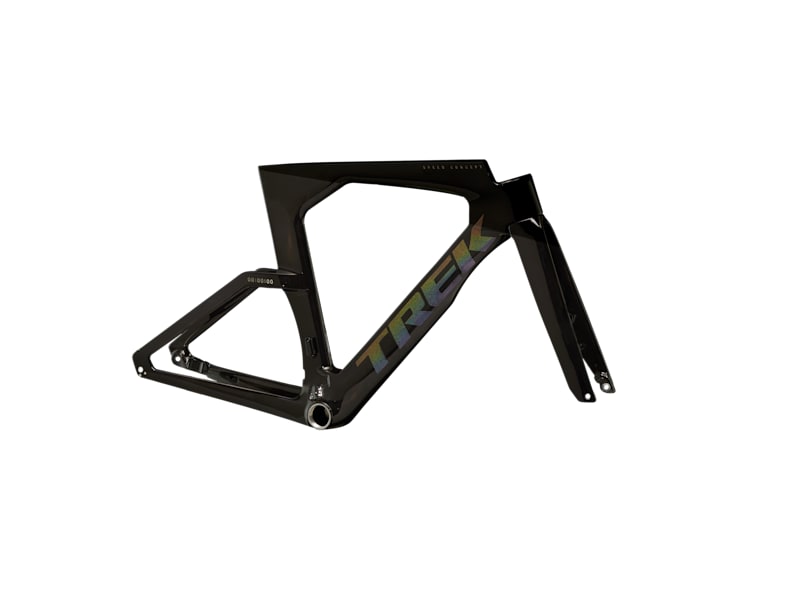

2026 Speed Concept TT Triathlon Road Frameset
Overview
Overview
Technical Specifications
Technical Specifications
| Frame | 800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, T47 BB |
| Fork | SC full foil carbon, integrated brake & stem |
| Frame fit | Triathlon |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
| Max chainring size | 1x: 58T, 2x: 55/47 |
| Skewer front | Bontrager Switch thru axle |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Max tire size | 28mm rear, 25mm front |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size letter | S | M | L |
| Wheel size | 700c | 700c | 700c |
| A — Seat tube | 49.9 | 52.5 | 54.9 |
| B — Seat tube angle (degrees) | 76.0° | 76.0° | 76.0° |
| C — Head tube length | 6.5 | 9.0 | 11.5 |
| D — Head angle (degrees) | 72.0° | 72.0° | 72.0° |
| E — Effective top tube | 51.8 | 54.4 | 56.6 |
| G — Bottom bracket drop | 7.2 | 7.2 | 7.2 |
| H — Chainstay length | 41.0 | 41.0 | 41.0 |
| I — Offset | 4.5 | 4.5 | 4.5 |
| J — Trail | 6.3 | 6.3 | 6.3 |
| K — Wheelbase | 98.2 | 101.0 | 103.4 |
| L — Standover | 75.1 | 77.6 | 80.0 |
| M — Frame reach | 39.8 | 41.7 | 43.4 |
| N — Frame stack | 48.4 | 50.9 | 53.3 |
| Saddle rail height min (w/short mast) | 55.9 | 58.0 | 60.4 |
| Saddle rail height max (w/short mast) | 66.6 | 69.2 | 71.5 |
| Saddle rail height min (w/tall mast) | 64.9 | 67.0 | 69.4 |
| Saddle rail height max (w/tall mast) | 75.6 | 78.2 | 80.5 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| S | 5'1" - 5'6" | 154 - 167 |
| M | 5'6" - 5'9" | 167 - 175 |
| L | 5'9" - 6'1" | 175 - 186 |
| XL | 6'1" - 6'6" | 186 - 198 |
Sizing to be used as a reference only. Chat with us if you have any questions.
