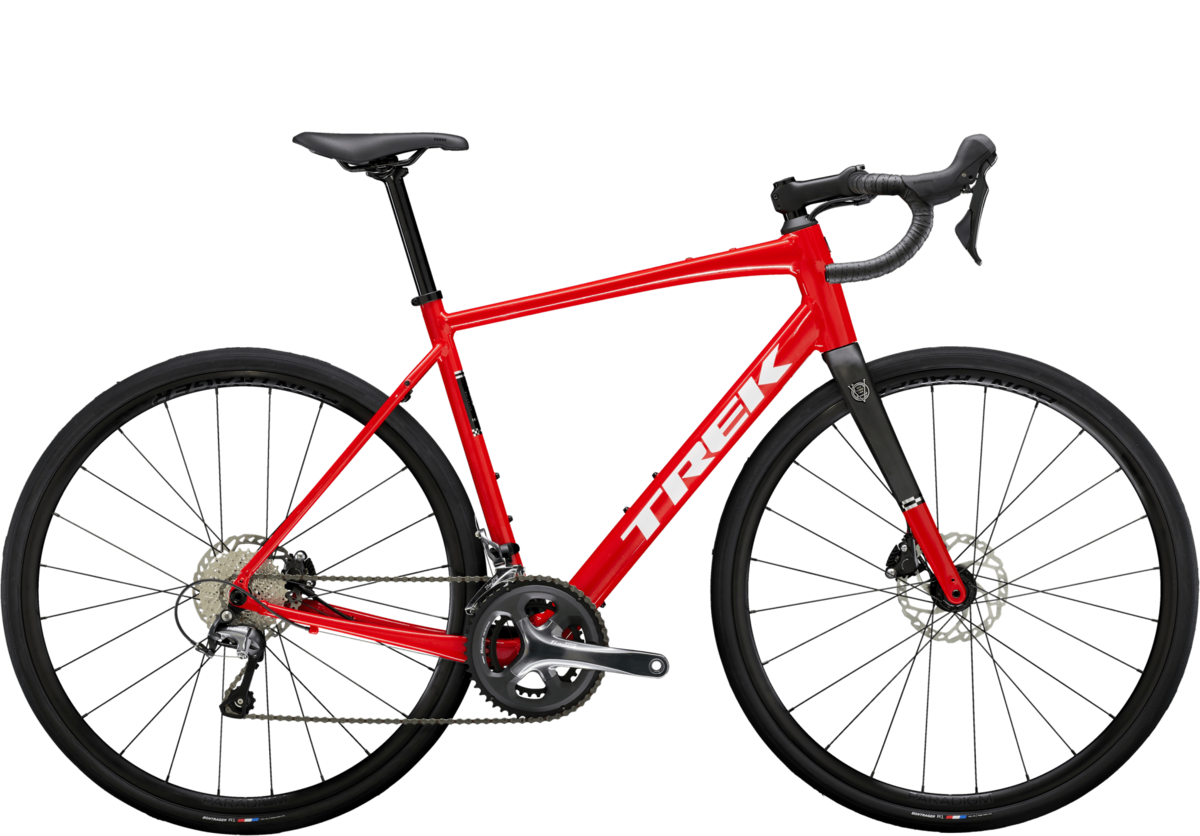

2026 Domane AL 4 Gen 4 Road Bike
-
Lightweight design
A new full carbon fork and updated frame design helps shave around half a pound from the previous generation Domane AL Disc.
-
Right for any road
Room for bigger tires let you ride everything from smooth pavement to most gravel roads in comfort.
-
Long-haul comfort
A more upright road riding position keeps you comfortable, confident, and efficient during long days in the saddle.
-
Pack it up, pack it in
Mounts for a top tube bag, rack, fenders and water bottles let you carry everything you need for day-long adventures, fast commutes, and anything in between.
-
Modern ergonomics, premium integration
A modern handlebar with 4cm of flare between the drops and hoods put you in a more comfortable position, and new hidden cable routing offers premium integration typically found on more expensive models.
-
High-value performance
Domane AL Disc is built in Trek's road race heritage, which means it's a road bike you won't outgrow as your rides get longer and faster.
-
A better way to produce aluminum
Starting in 2024, we began removing high-emission aluminum from our manufacturing and replacing it with low-emission aluminum made with renewable energy. By October 2025, nearly every alloy bike we make - this one included - had made the switch, driving a major drop in our footprint.
-
Don’t forget your pedals
This bike doesn’t come with pedals because you’ll have a better time on your new bike if you choose your own. See the pedal guide to find the best pedals for your riding style. We recommend clipless road pedals for control and efficiency.
Overview
Overview
Technical Specifications
Technical Specifications
| Frame | 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle |
| Fork | Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| Weight | 56 - 10.35 kg / 22.82 lbs |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
| Shifter | Shimano Tiagra R4720, 10 speed |
| Front derailleur | Shimano Tiagra 4700, 31.8mm clamp |
| Rear derailleur | Shimano Tiagra 4700, long cage, 34T max cog |
| *crank | Size: 44 Shimano Tiagra 4700, 50/34, 165mm lengthSize: 49, 52 Shimano Tiagra 4700, 50/34, 170mm lengthSize: 54, 56 Shimano Tiagra 4700, 50/34, 172.5mm lengthSize: 58, 61 Shimano Tiagra 4700, 50/34, 175mm length |
| Bottom bracket | Shimano RS501 BSA |
| Cassette | Shimano HG500, 11-32, 10 speed |
| Chain | Shimano Tiagra HG54, 10 speed |
| Max chainring size | 1x: 50T, 2x: 50/34 |
| Hub front | Formula RX-512 alloy, 6-bolt, 100x12mm thru axle |
| Skewer front | Bontrager Switch chamfered thru axle |
| Hub rear | Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Rim | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve |
| Spokes | 14g stainless steel, black |
| Tire | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm |
| Saddle | Verse Short, steel rails, 145mm width |
| *seatpost | Size: 44, 49 Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm lengthSize: 52, 54, 56, 58, 61 Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length |
| *handlebar | Size: 44, 49 Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm widthSize: 44 Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop widthSize: 49 Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop widthSize: 52 Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm widthSize: 52 Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop widthSize: 54, 56 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm widthSize: 54, 56 Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop widthSize: 58, 61 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm widthSize: 58, 61 Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 44cm control width, 48cm drops width |
| Handlebar tape | Bontrager Supertack Perf tape |
| *stem | Size: 44 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm lengthSize: 49 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm lengthSize: 52, 54 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm lengthSize: 56, 58 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm lengthSize: 61 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length |
| Brake | Shimano Tiagra hydraulic disc, flat mount |
| Brake rotor | Shimano RT66, 6-bolt, 160mm |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size number | 44cm | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube | 39.0 | 44.0 | 47.5 | 50.0 | 52.5 | 54.8 | 57.6 |
| B — Seat tube angle (degrees) | 74.6° | 74.6° | 74.2° | 73.7° | 73.3° | 73.0° | 72.7° |
| C — Head tube length | 9.5 | 12.3 | 14.5 | 16.0 | 17.5 | 19.5 | 23.5 |
| D — Head angle (degrees) | 70.3° | 70.8° | 71.3° | 71.3° | 71.9° | 72.0° | 72.1° |
| E — Effective top tube | 50.7 | 51.6 | 53.0 | 54.2 | 55.4 | 56.7 | 58.6 |
| G — Bottom bracket drop | 8.0 | 8.0 | 8.0 | 8.0 | 7.8 | 7.8 | 7.5 |
| H — Chainstay length | 42.0 | 42.5 | 42.0 | 42.0 | 42.0 | 42.5 | 42.5 |
| I — Offset | 5.3 | 5.3 | 5.3 | 5.3 | 4.8 | 4.8 | 4.8 |
| J — Trail | 6.6 | 6.6 | 5.9 | 5.9 | 6.1 | 6.0 | 6.3 |
| K — Wheelbase | 98.3 | 100.1 | 100.3 | 101.0 | 101.8 | 102.2 | 103.8 |
| L — Standover | 65.7 | 71.7 | 73.5 | 75.4 | 77.6 | 79.6 | 84.2 |
| M — Frame reach | 36.0 | 36.8 | 37.1 | 37.4 | 37.7 | 38.0 | 38.5 |
| N — Frame stack | 51.0 | 54.0 | 56.1 | 57.5 | 59.1 | 61.1 | 64.6 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| 44 | 4'11" - 5'0" | 150 - 153 |
| 49 | 5'1" - 5'4" | 156 - 163 |
| 52 | 5'4" - 5'6" | 163 - 168 |
| 54 | 5'6" - 5'9" | 168 - 174 |
| 56 | 5'9" - 5'11" | 174 - 180 |
| 58 | 5'11" - 6'1" | 180 - 185 |
| 61 | 6'1" - 6'3" | 185 - 191 |
Sizing to be used as a reference only. Chat with us if you have any questions.
