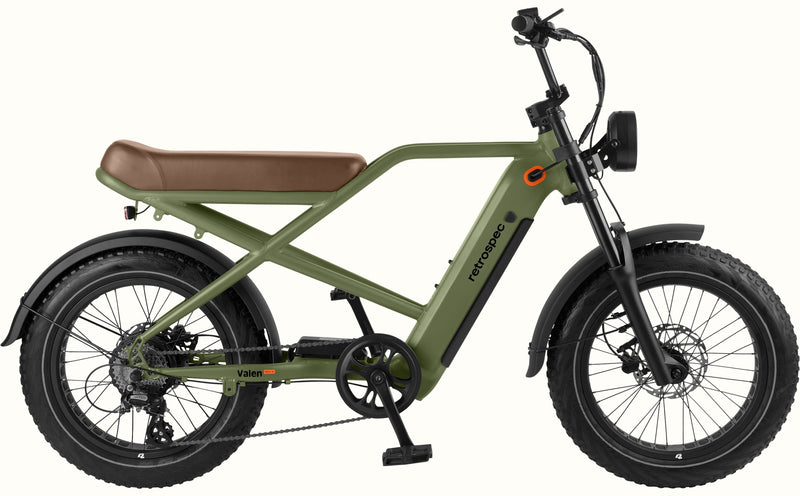

Valen Rev+
Fully assembled, tuned, and test-ridden—ready to ride at pickup from any DFW Bike Mart location.
Expected to ship within 3 days
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart—ready to ride right at your doorstep within 10 miles of any DFW location.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required. For orders that include a frameset please visit our support center to make sure you have the specialty tools and skills required.
If you decide to take your bike to a local retailer for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
Overview
Overview
Features:
- 28mph Top Assisted Speed
- Up to 68 Mile Range
- 750W Planetary Geared Hub Motor
- 48V/720Wh LG Li-ion Battery
- Tektro Hydraulic Disc Brakes
- 4” Puncture Protected Fat Tires
- 100mm Travel Suspension Fork
- 350 lbs Recommended Weight Limit
Easy Access to Controls
The handlebar-mounted button pod controls everything, from the throttle, to the lights, to walk mode, pedal assistance, & more. Keep track of it all with your eyes on the road using the easy-to-read, center-mounted color display.
Custom Comfort Saddle
The elongated moto-style saddle is comfortable, spacious, and able to accommodate riders up to 350 lbs.
On- or Off-Bike Charging
This ebike’s fully integrated battery is uniquely able to be charged both on and off the bike. It also uses LG 21700 cells to store more energy and offer up to 68 miles of range when fully charged.
Off-Road Ready
Fat 20x4.0 tires are made with heavy duty construction, full-coverage puncture protection, and a reflective safety strip, offering stable, comfortable, and smooth rides on any terrain.
Quiet, Consistent, Confident Braking
Tektro hydraulic disc brakes with ebike specific rotors offer reliable stopping power in any weather, so you can brake confidently.
Stay Seen, Stay Safe
Integrated front and rear lights illuminate your path and help keep you safe while riding in low light. The headlight’s 100 Lux illumination and the tail light’s brake indicator further improve the bike’s visibility.
Easy-Change Rear Wheel Removal System
Retrospec’s proprietary easy-change system allows you to easily remove and replace the rear wheel whenever you need to take a look under the metaphorical hood.
Tackle Inclines or Cruise Flats
With a robust, versatile Shimano 8-speed drivetrain
UL2271 & UL2849 Safety Certified
This ebike has been tested and certified to UL2271 and UL2849 standards for electric bicycles.
Technical Specifications
Technical Specifications
| Frame | Valen 6061 hydroformed aluminum with, integrated downtube battery and replacable derailleur hanger. |
| Fork | Triple Clamp with 100mm of travel |
| Rims | 20\ single-wall aluminum 36H, for disck brake with cut-outs |
| Hubs | F: Aluminum bolt-on with 17mm axle nuts. 36 hole |
| Spokes | 13G w/brass nipples |
| Tires | 20 x 4.0 Fat MTB with puncture protection and reflective sidewall |
| Bottom bracket | Sealed cartridge |
| Crankset | 3-Piece aluminum w/steel 38T chainrings with double alloy chainguard |
| Shifters | 8 speed Shimano Rapidfire Plus |
| Rear derailleur | 8 speed Shimano Altus |
| Cassette/freewheel | Shimano 8 speed 11-34T |
| Chain | KMC 8 speed |
| Brakes | Tektro Hydraulic with 180mm ebike specific rotors and semi-metallic pads |
| Handlebars | Steel BMX style |
| Tape/grips | Lock-on comfort grips. |
| Stem | BMX Die Cast Alloy 22.2mm clamp |
| Headset | Threaded, steel, 1 1/8\ (28.6mm) |
| Saddle | Retrospec Custom 2-piece Moto |
| Pedals | Alloy Platform |
| Accessories & extras | Alloy chainstay mount |
| Motor | 750W rear hub |
| Battery | 720Wh/48VLG 21700 cells; Charge on or off bike |
| Controller/display | Center mounted color LCD |
| Charger | 48V/2A |
Parts are subject to change without notice. Chat with us if you have any questions.
