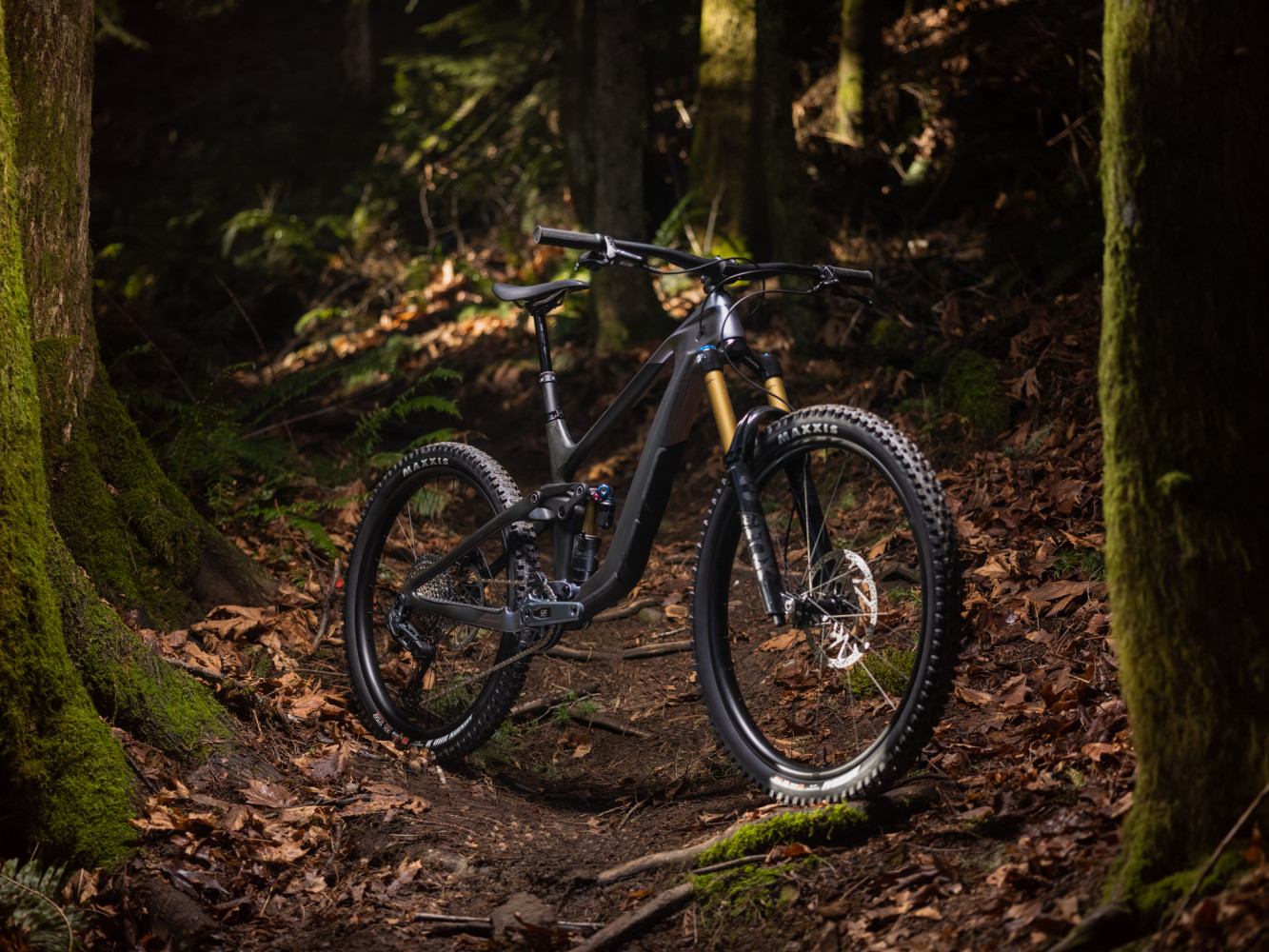

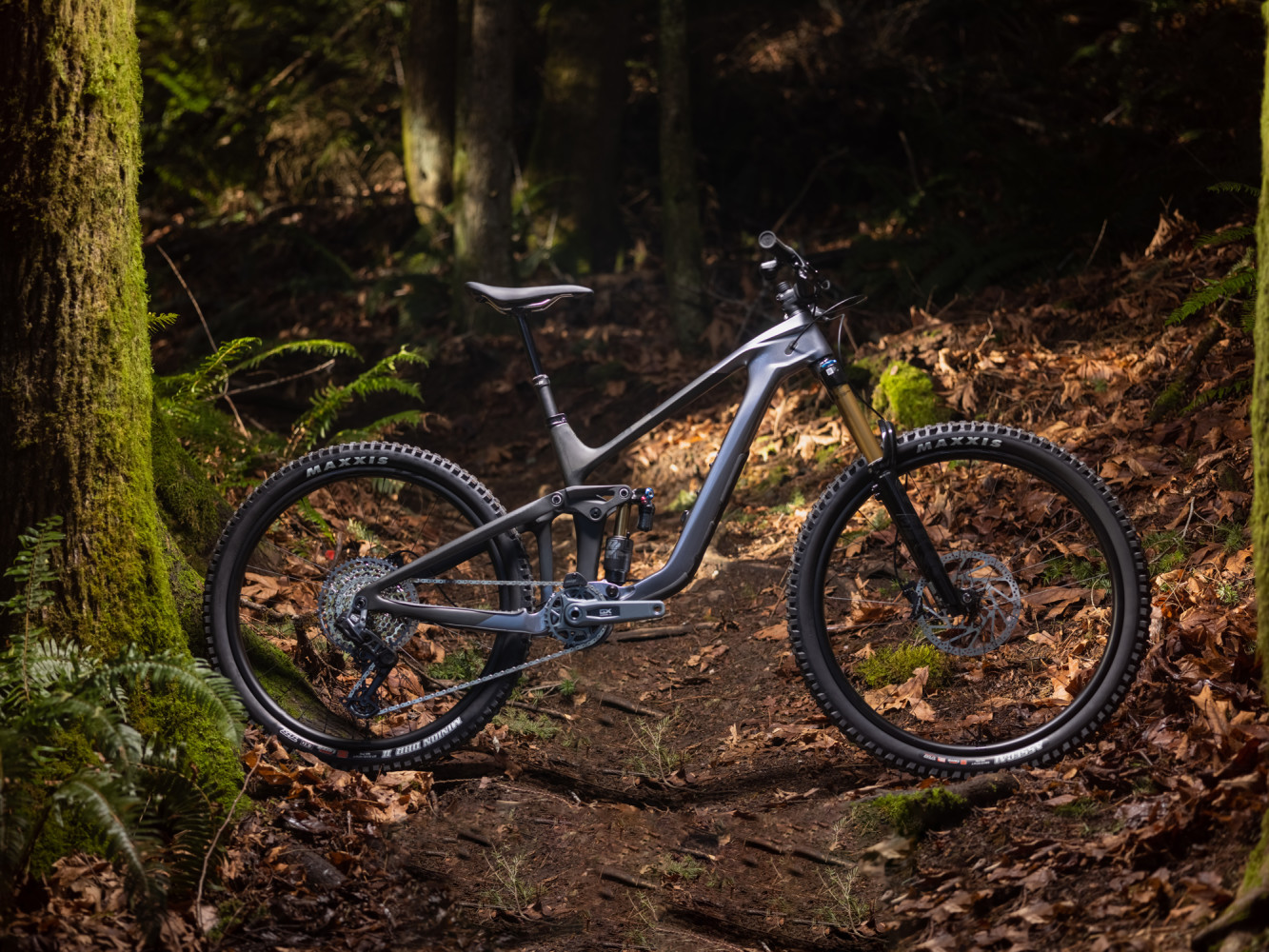

2025 Reign Advanced 1 Full Suspension Mountain Bike
-
Advanced Composite Technology
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
-
Advanced Forged Composite Technology
A state-of-the-art high-pressure molding process is used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar components made from aluminum. This technology is used in critical performance parts such as Maestro Suspension rocker links.
-

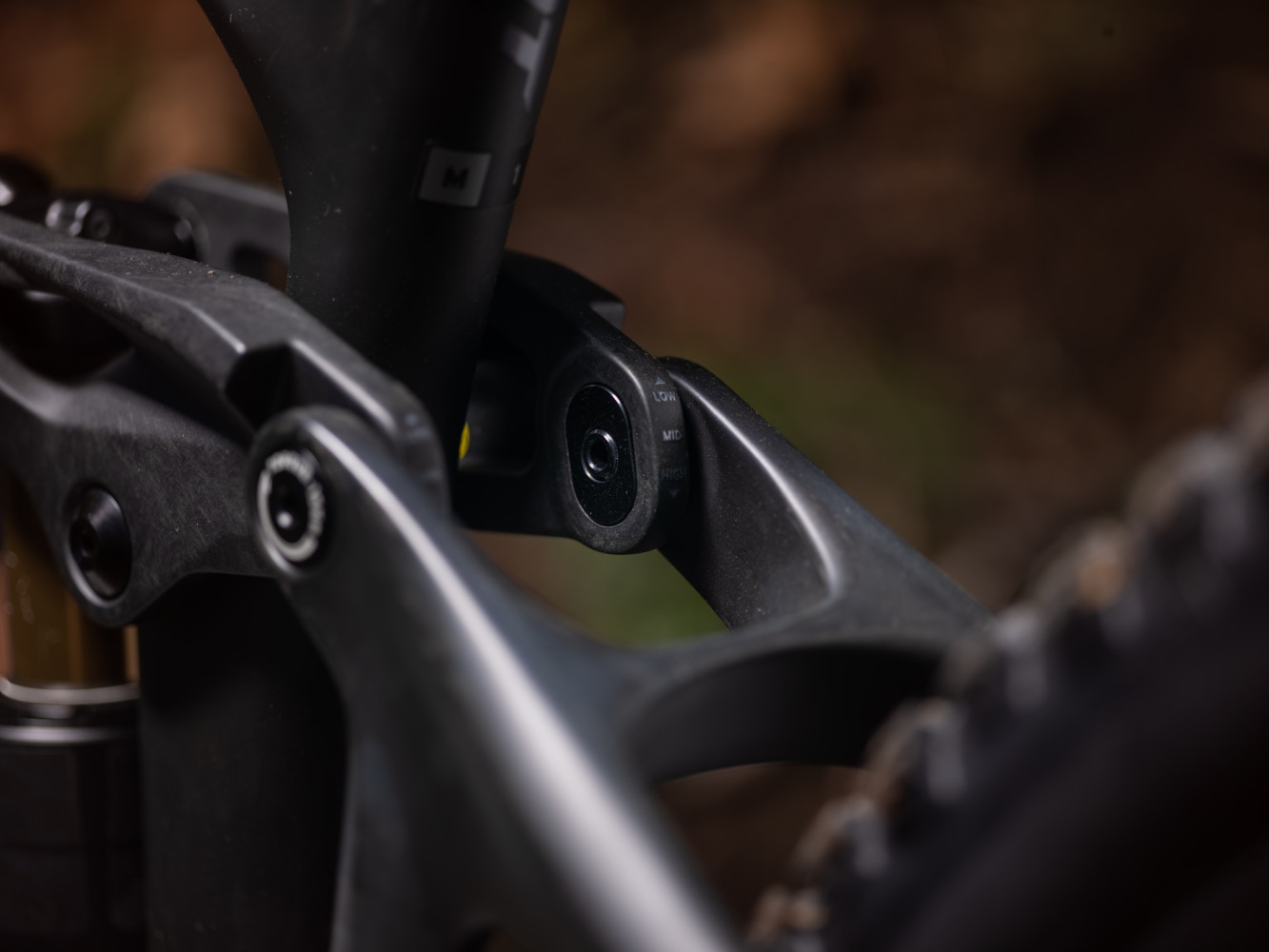

Flip Chip - Maestro 3
This all-new technology allows riders to quickly adjust the geometry and choose a rear wheel size (29-inch or 27.5-inch) for their riding style and terrain. It’s available on select Maestro-equipped mountain bikes. The adjustment affects head tube and seat tube angles, bottom bracket height, and rear-wheel size using eccentric flip chip hardware located on the upper rocker arm of the rear suspension.
-

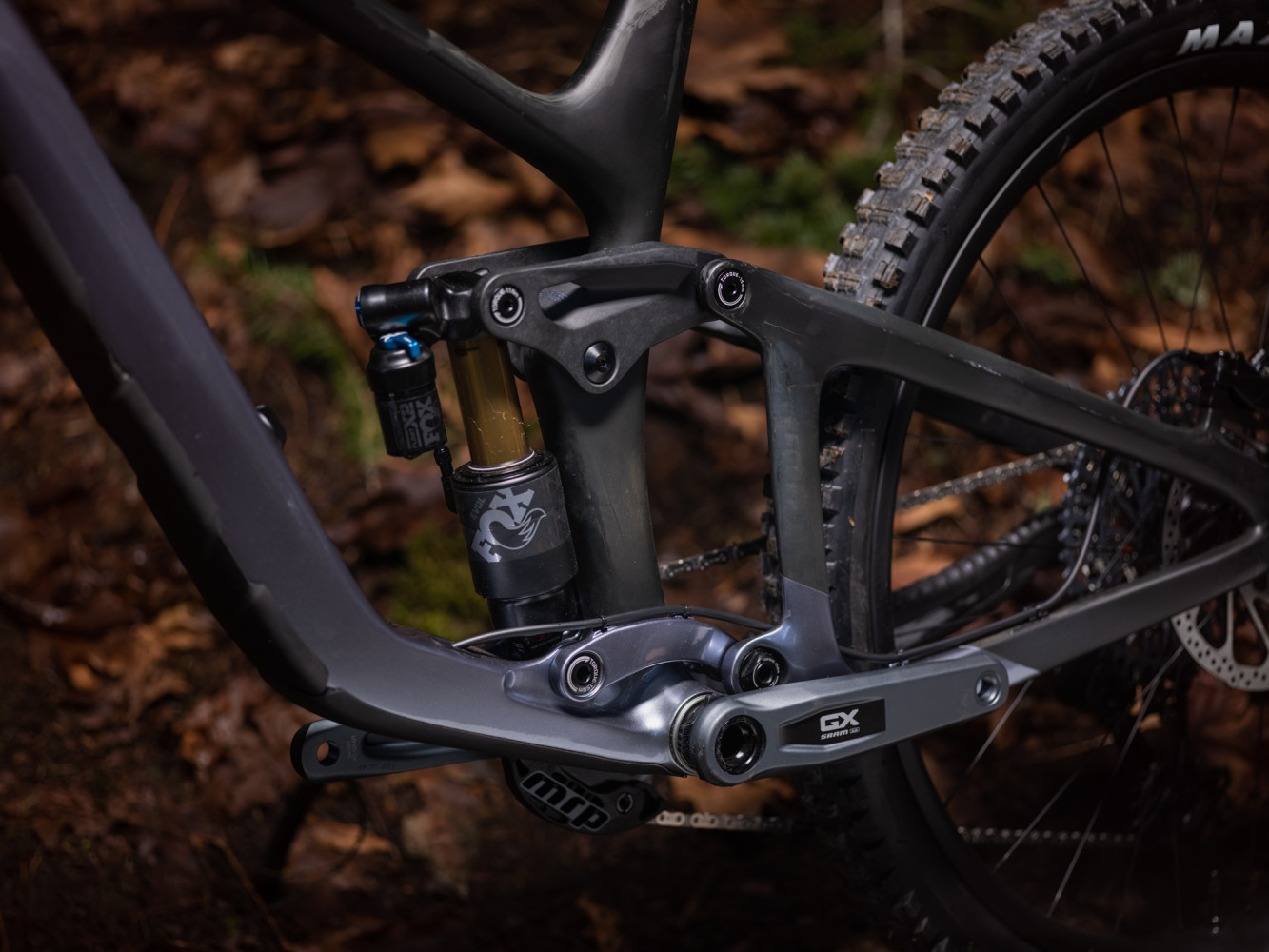

Maestro Suspension Technology
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
-
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
-
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Overview
Overview
Go fast, get rowdy and nail new lines. With a full-composite chassis, developed with Giant’s enduro racing pros, this hard-charging 29/27.5’er has 160mm of Maestro rear suspension, adjustable geometry, and the option to switch to a 29-inch rear wheel.
Key Performance Factors
- Race-bred suspension: A Maestro rear suspension system with 160mm of travel, paired with a 170mm fork, was developed and tested under the extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke (62.5mm compared to 60mm on the previous generation). And the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall weight.
- Adjustable enduro geometry: Flip chip technology lets you switch between three settings depending on the terrain. You can select a 62.47, 63.09 or 63.46- degree head angle and corresponding 77.54, 77.89 or 78.26-degree seat tube angle, resulting in a 29, 24 or 19mm bottom bracket drop (size medium) to fine- tune handling for trail conditions, riding style and rear-wheel size.
- Rear wheel options: Riders can choose either the stock 27.5-inch rear wheel or switch to 29. The larger 29-inch option improves stability and roll-over capabilities, while 27.5 delivers a more agile, snappier feel. It’s a quick and easy way to adjust the bike’s handling and feel.
Technical Specifications
Technical Specifications
| Sizes | S, M, L, XL |
| Colors | Mercury/Raw Carbon |

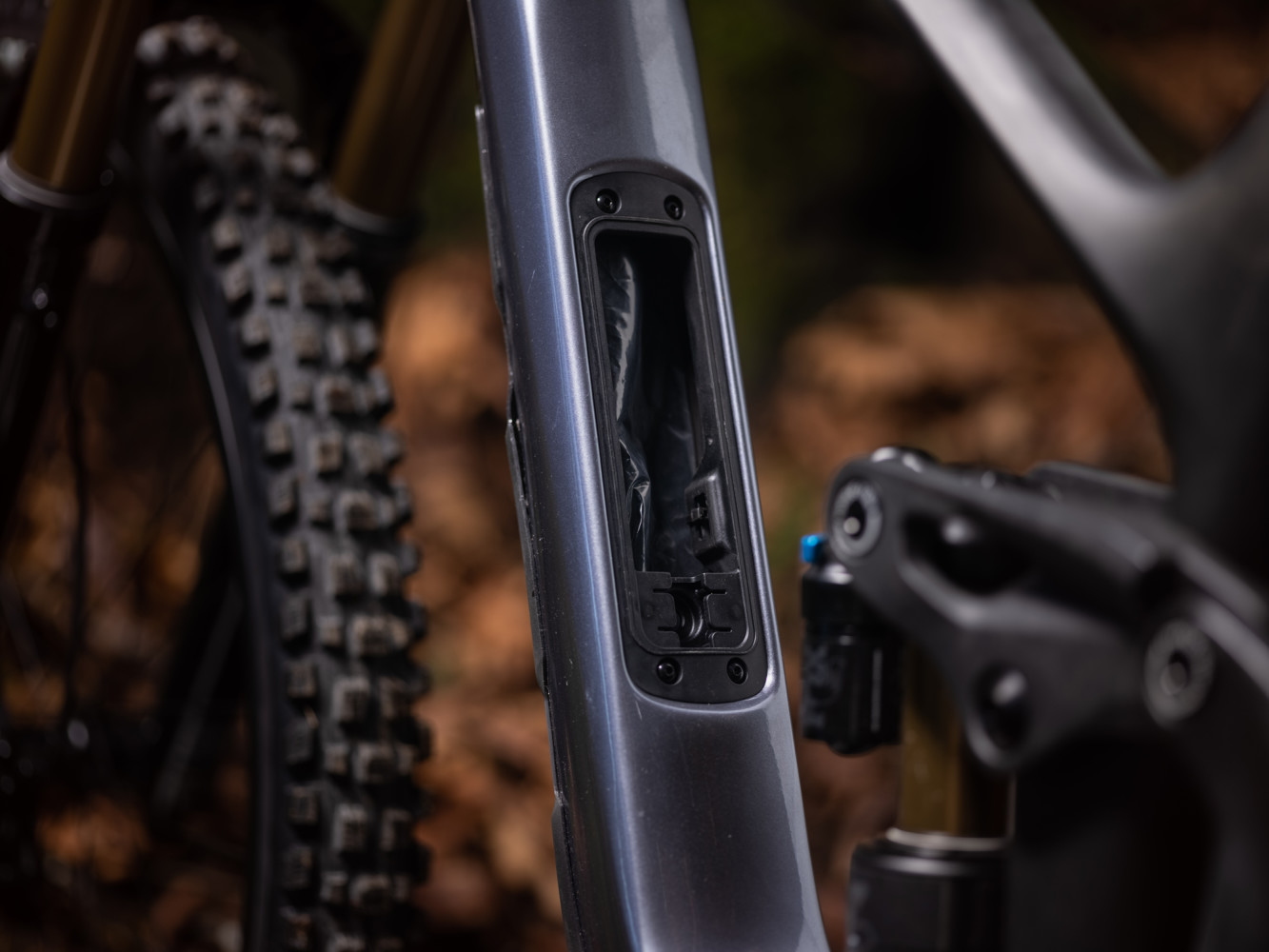

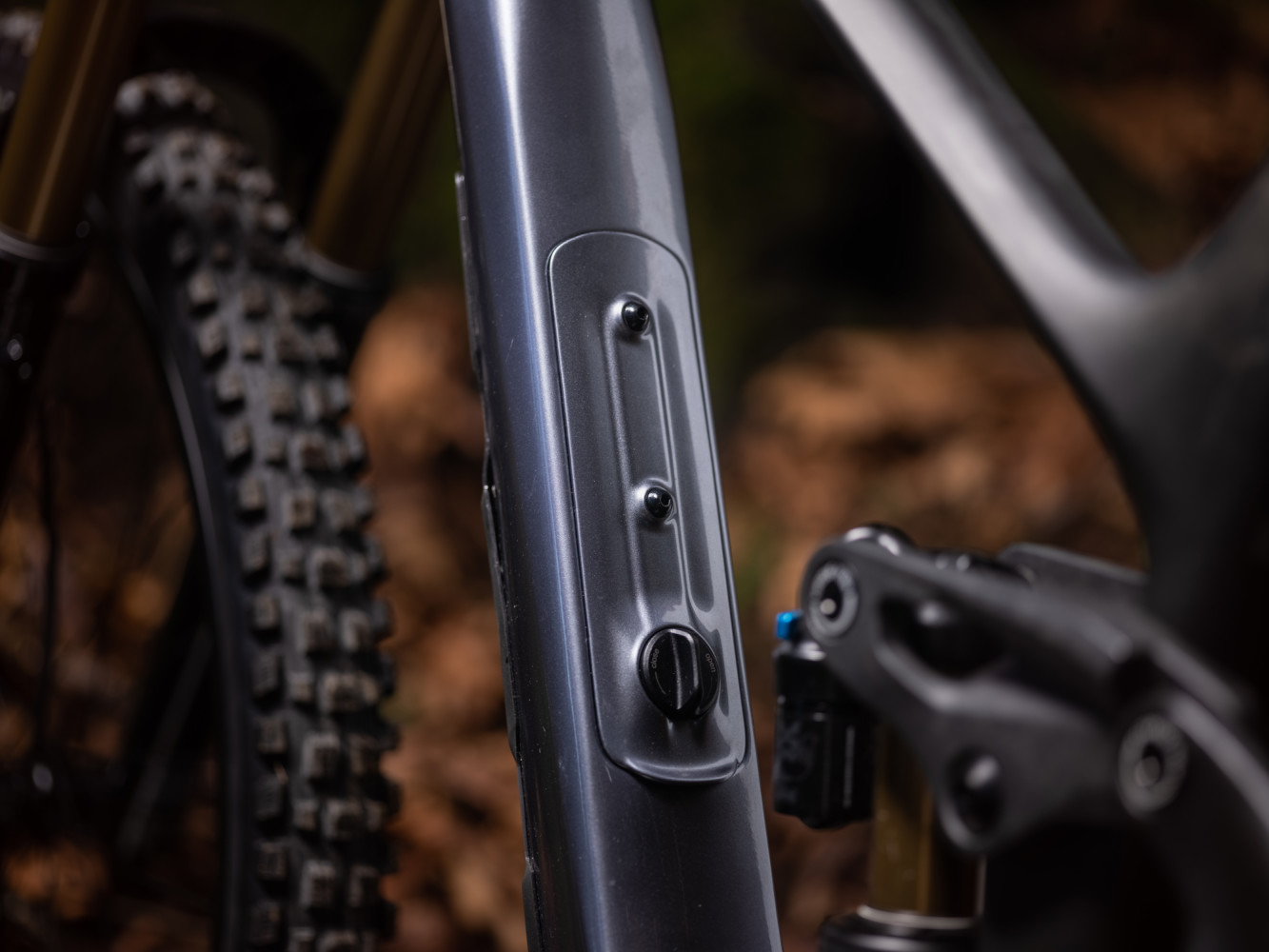

| Frame | Advanced-grade composite front and rear triangles, 160mm Maestro suspension, flip chip, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, integrated down tube storage |
| Fork | Fox 38 Factory, 170mm, GRIP X2 damper, 15x110 Kabolt X, 44mm offset |
| Shock | Fox Float X2 Factory, 205/62.5, custom tuned for Giant |
| Handlebar | Giant Contact TR35, 800x35mm, 35mm rise |
| Grips | Giant Tactal Pro Single |
| Stem | Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm |
| Seatpost | Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm |
| Saddle | Giant Romero SL |
| Shifters | SRAM AXS Pod, discrete clamp, 1x12 |
| Front derailleur | N/A |
| Rear derailleur | SRAM GX Eagle Transmission |
| Brakes | TRP EVO DH-R, hydraulic, TRP rotors [F]220mm, [R]200mm |
| Brake levers | TRP DH-R EVO, hydraulic |
| Cassette | SRAM GX Eagle Transmission, 10x52 |
| Chain | SRAM GX Eagle Transmission |
| Crankset | SRAM GX Eagle Transmission, DUB, 32t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm |
| Bottom bracket | SRAM DUB, press fit |
| Rims | Giant TRX WheelSystem, carbon, hookless, 30mm inner width, 40mm outer width, 22mm height, Wide Guard Technology |
| Hubs | [F] Giant MTB alloy, six-bolt, [R] Giant MTB alloy, 72 POE (Points of Engagement), six-bolt, XD driver body |
| Spokes | Sapim, 28, straight pull, DBL Technology |
| Tires | [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 27.5x2.4 WT, 3C MaxxTerra, DD, TR tubeless |
| Extras | tubeless prepared, 2.5\ max tire size, 36t max chainring size, MRP AMG CS chain guide, 3M tailgate protector |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in mm unless otherwise noted.
| S | M | L | XL | |
| Setting (Low/High) | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH |
| ASeat Tube Length (mm) | 400 | 425 | 450 | 475 |
| A1A1 Seat Post Insertion Depth (mm) | 262 | 287 | 312 | 337 |
| BSeat Tube Angle (degrees) | 77.5° | 77.8° | 78.2° | 77.5° | 77.8° | 78.2° | 76.5° | 76.9° | 77.2° | 76.5° | 76.9° | 77.2° |
| CTop Tube Length (mm) | 558 | 557 | 556 | 589 | 588 | 587 | 622 | 621 | 621 | 654 | 653 | 653 |
| DHead Tube Length (mm) | 100 | 105 | 115 | 120 |
| EHead Tube Angle (degrees) | 62.7° | 63.0° | 63.4° | 62.7° | 63.0° | 63.4° | 62.7° | 63.1° | 63.4° | 62.7° | 63.1° | 63.4° |
| FFork Rake (mm) | 44 | 44 | 44 | 44 |
| GTrail (mm) | 147 | 144 | 141 | 147 | 144 | 141 | 147 | 144 | 141 | 147 | 144 | 141 |
| HWheelbase (mm) | 1214 | 1213 | 1212 | 1246 | 1245 | 1244 | 1271 | 1270 | 1269 | 1304 | 1303 | 1302 |
| IChain Stay Length (mm) | 445 | 443 | 442 | 445 | 443 | 442 | 445 | 443 | 442 | 445 | 443 | 442 |
| JBottom Bracket Drop (mm) | 29 | 24 | 19 | 29 | 24 | 19 | 29 | 24 | 19 | 29 | 24 | 19 |
| KStack (mm) | 633 | 630 | 627 | 638 | 635 | 632 | 647 | 644 | 641 | 652 | 649 | 646 |
| LReach (mm) | 418 | 421 | 426 | 448 | 452 | 456 | 468 | 471 | 476 | 499 | 503 | 507 |
| MStand Over Height (mm) | 714 | 718 | 723 | 733 | 738 | 742 | 746 | 750 | 755 | 762 | 766 | 771 |
| NHandlebar Width (mm) | 800 | 800 | 800 | 800 |
| OStem Length (mm) | 40 | 40 | 40 | 40 |
| PCrank Length (mm) | 165 | 170 | 170 | 170 |
| QWheel Size | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| S | 5’4” - 5’8” | 163 - 172 |
| M | 5’7” - 5’11” | 171 - 180 |
| L | 5’10” - 6’2” | 179 - 188 |
| XL | 6’2” - 6’6” | 187 - 198 |
Sizing to be used as a reference only. Chat with us if you have any questions.
