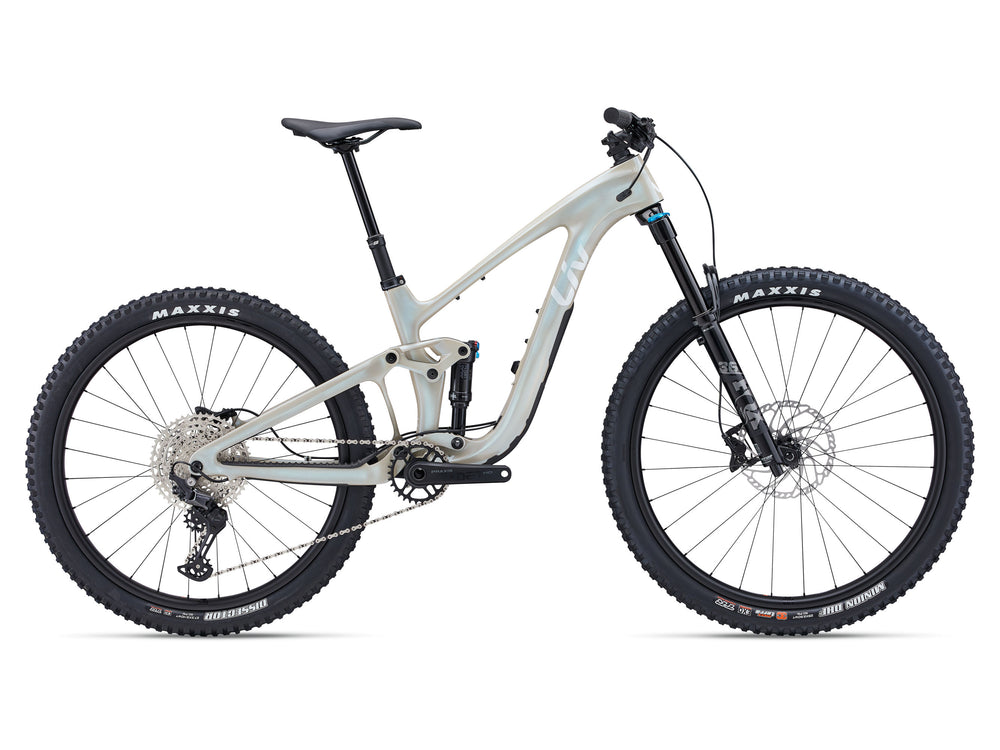

2025 Intrigue X Advanced 2 Full Suspension Mountain Bike
-
Advanced Composite Technology
Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.
-
Advanced Forged Composite Technology
A state-of-the-art, high-pressure molding process used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar aluminum components.
-

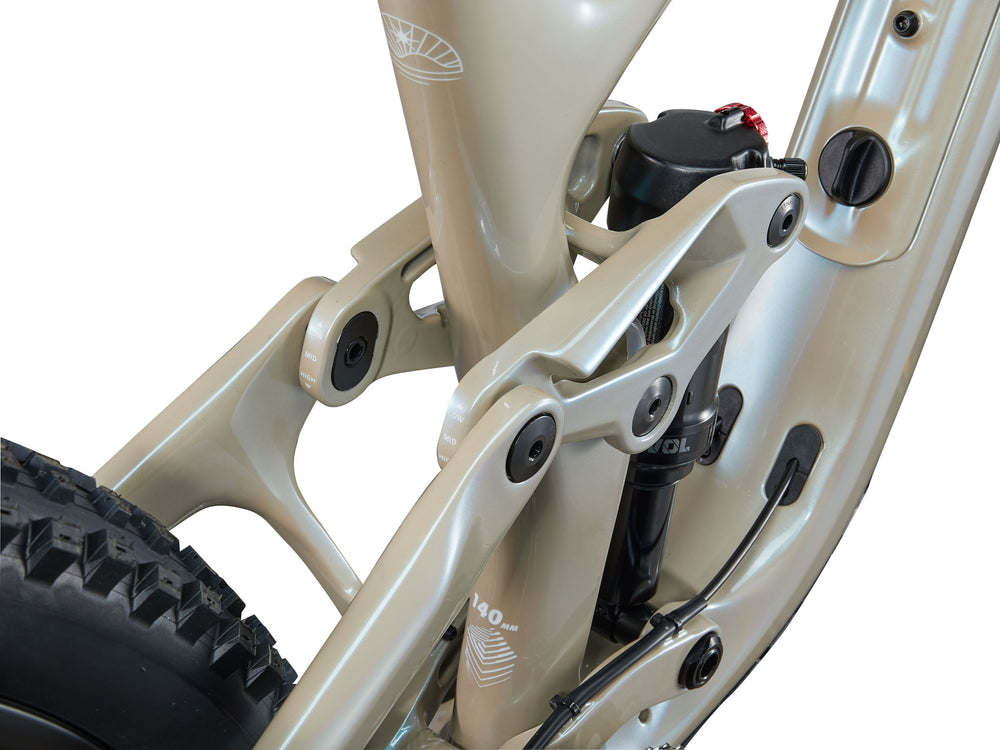

Flip Chip - Maestro 3
This all-new technology allows you to quickly adjust the geometry of your bike to better suit riding conditions and rear-wheel size choice. Using two different flip chips – a combination high/ low and a dedicated mid-position chip – riders can change the head tube angle, seat tube angle and bottom bracket height using eccentric hardware located on the upper rocker arm of the rear suspension.
-

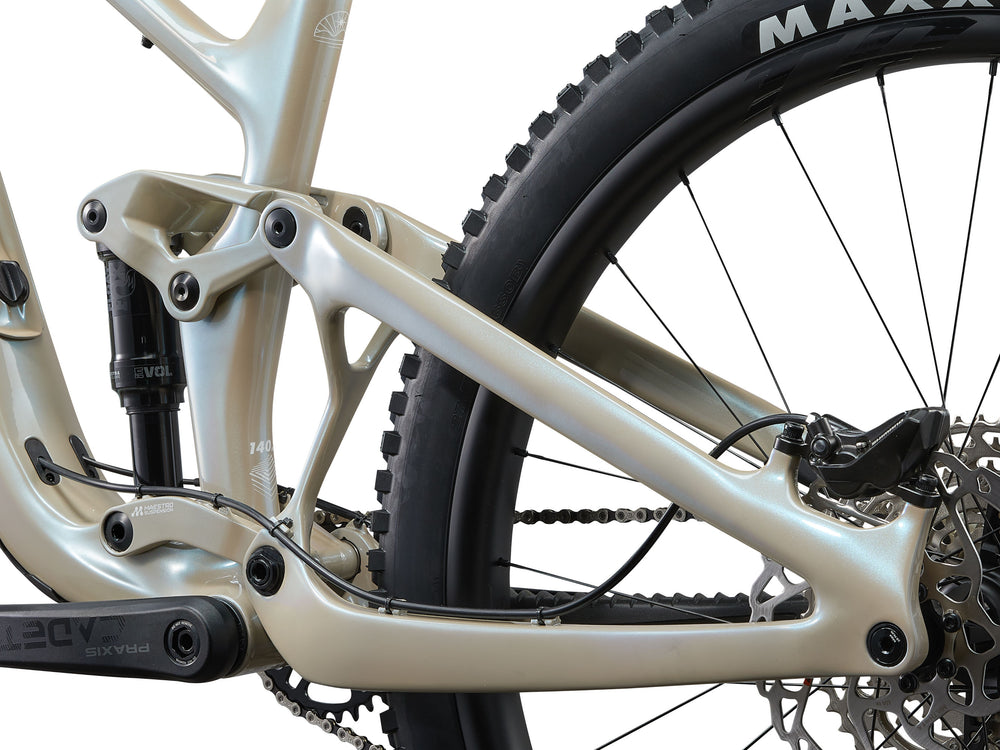

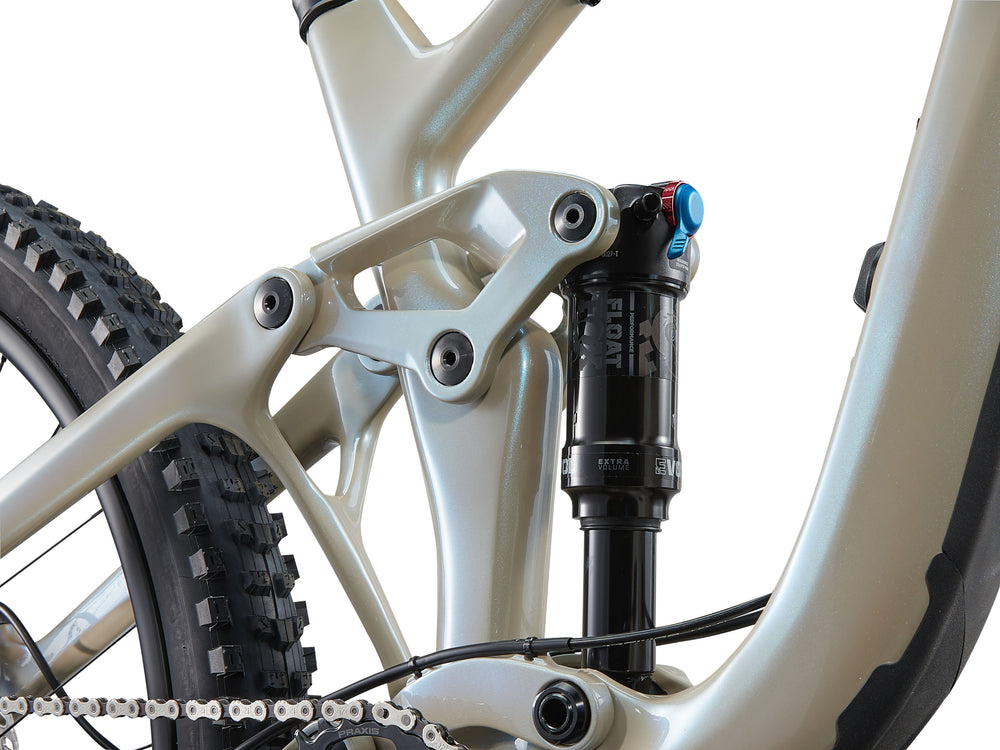

Maestro Suspension Technology
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
-
PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeterwide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
-
Tubeless System
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.
-
OverDrive
Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Overview
Overview

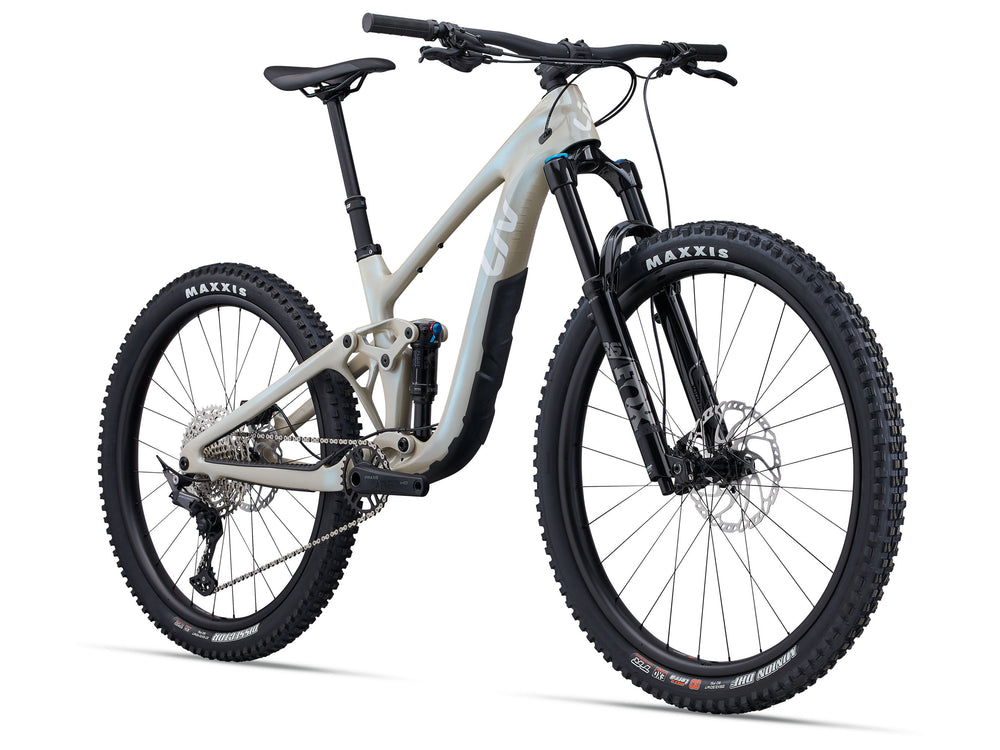

The exceptionally versatile Intrigue X Advanced was designed to expand your trail capabilities, from technical descents to nimble and efficient climbs, and all the exhilarating flowy goodness in between. Extremely customizable with adjustable geometry, frame storage, and wheel options, the Intrigue X Advanced delivers extra performance and fun.
Key Performance Factors
- Performance Mid Travel Trail: Constructed with lightweight Advanced-grade composite for an agile, responsive ride, the frame also boasts integrated down tube storage — a sleek solution for additional space to store your tools and snacks. Paired with 140mm of Maestro rear suspension and 150mm of front suspension, you’ve got the ultimate trail bike that’s efficient on the ups and shreds on the downs.
- Adjustable Frame Geometry: For ultimate adjustability, the Intrigue X Advanced features flip chip – Maestro 3 and the new flip chip – headset allowing you to customize the overall riding geometry to suit the trail, your riding preferences, and rear wheel choice*. Not only can you change the head tube angle, seat tube angle, and bottom bracket height — you can now adjust your headset position to achieve either a short, mid, or long reach. These fine-tuning adjustments optimize your riding position for better handling and stability, wherever your bike takes you. *Rear wheel size change available for M and L only
- Best of Both Wheels: Frame sizes XS and S are solely designed for an MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, allows a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear*. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customize your set up for how and where you ride. *27.5-inch wheel sold separately for frame sizes M and L
Technical Specifications
Technical Specifications
| Sizes | XS, S, M, L |
| Colors | Shoreline |

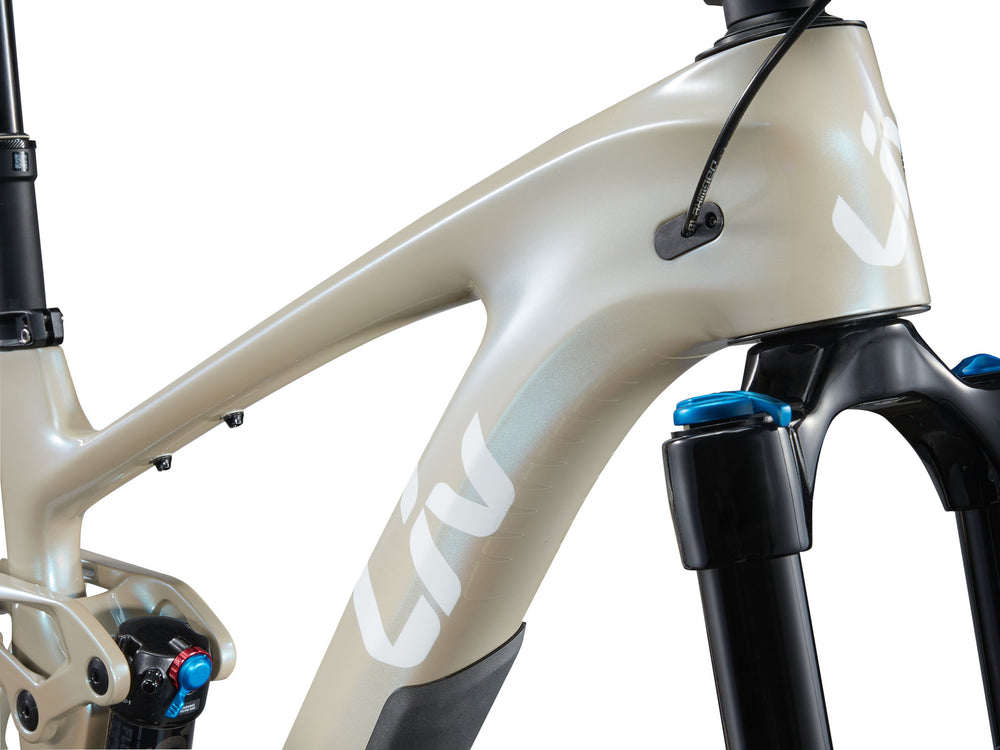

| Frame | Advanced-grade composite front and rear triangles, 140mm Maestro Suspension, 12x148mm thru-axle, flip chip – Maestro 3, flip chip – headset, integrated down tube storage, under-top tube storage mounts |

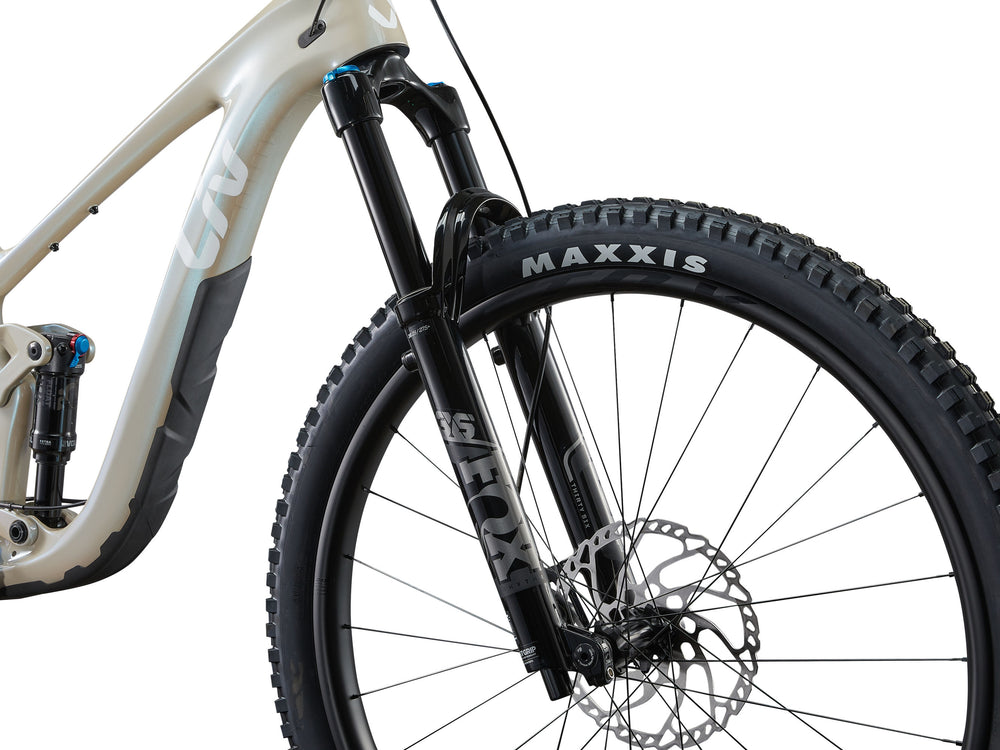

| Fork | Fox 36 Float Rhythm, 150mm, GRIP damper, Boost 15x110 Kabolt X, tapered, 44mm offset |
| Shock | Fox Float Performance, 185x52.5, custom tuned for Liv, recommended sag 30% |

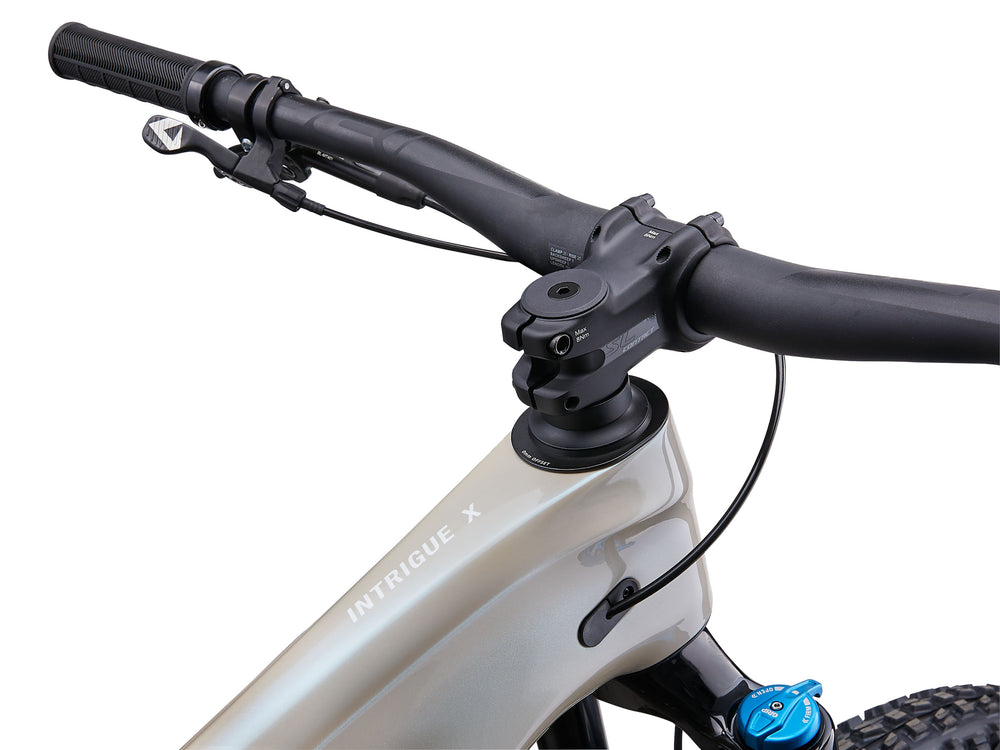

| Handlebar | Giant Contact TR35, 20mm rise, alloy XS: 760mm, S: 760mm, M: 760mm, L: 780mm |
| Grips | Liv Tactal Pro Single Lock-on XS/S: 120mm M/L: 130mm |
| Stem | Giant Contact SL, 35mm XS: 40mm, S: 50mm, M: 50mm, L: 50mm |
| Seatpost | Giant Contact Switch AT dropper, remote XS: 140-170mm travel / 30.9 x 470mm S: 140-170mm travel / 30.9 x 470mm M: 170-200mm travel / 30.9 x 530mm L: 170-200mm travel / 30.9 x 530mm |
| Saddle | Liv Sylvia |
| Pedals | N/A |
| Shifters | Shimano Deore, 1x12 |
| Front derailleur | N/A |

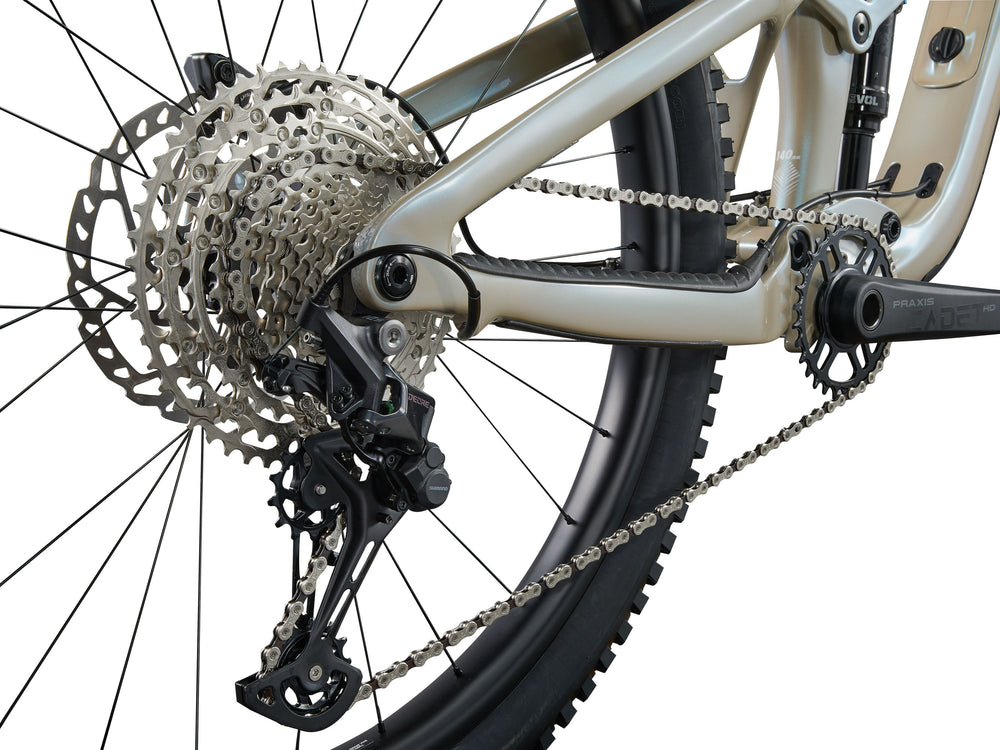

| Rear derailleur | Shimano Deore, Shadow + |
| Brakes | Shimano BR-MT420, hydraulic, Shimano RT-66 [F] 203mm, [R] 180mm |
| Brake levers | Shimano BL-MT401 |
| Cassette | Shimano Deore M6100, 10x51 |
| Chain | KMC X12 |
| Crankset | Praxis Cadet HD M24 Boost, 30t, 55mm chainline XS: 165mm, S: 170mm, M: 170mm, L: 170mm |
| Bottom bracket | Shimano, press fit |
| Rims | Giant TRX WheelSystem, carbon, 30mm rim inner width, 40mm outer width, 22mm height, Wide Guard Technology XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29 |
| Hubs | [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 72 POE (Points of Engagement), 6-bolt, MicroSpline driver body |
| Spokes | Sapim, 28, straight pull, DBL Technology |
| Tires | Size XS, S, M and L, [F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S, [R]: Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless |
| Extras | 3M tailgate protector, tubeless prepared, integrated down tube storage bag, max tire size 2.5\, max chainring size 34t |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in mm unless otherwise noted.
| XS | S | M | L | |
| Setting (Low/High) | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH |
| ASeat Tube Length (mm) | 370 | 390 | 420 | 450 |
| A1A1 Seat Post Insertion Depth (mm) | 240 | 260 | 290 | 320 |
| BSeat Tube Angle (degrees) | 76.2° | 76.6° | 76.9° | 76.2° | 76.6° | 76.9° | 76.8° | 77.2° | 77.5° | 76.8° | 77.2° | 77.5° |
| CTop Tube Length (mm) | 548 | 547 | 546 | 564 | 563 | 562 | 582 | 581 | 580 | 603 | 602 | 601 |
| DHead Tube Length (mm) | 95 | 100 | 105 | 110 |
| EHead Tube Angle (degrees) | 64.4° | 64.8° | 65.1° | 64.4° | 64.8° | 65.1° | 64.4° | 64.8° | 65.1° | 64.4° | 64.8° | 65.1° |
| FFork Rake (mm) | 44 | 44 | 44 | 44 |
| GTrail (mm) | 134.2 | 131.3 | 128.3 | 134.1 | 131.3 | 128.3 | 134.1 | 131.3 | 128.3 | 134 | 131.3 | 128.3 |
| HWheelbase (mm) | 1159 | 1159 | 1158 | 1176 | 1176 | 1175 | 1202 | 1201 | 1201 | 1224 | 1224 | 1223 |
| IChain Stay Length (mm) | 440 | 439 | 438 | 440 | 439 | 438 | 440 | 439 | 438 | 440 | 439 | 438 |
| JBottom Bracket Drop (mm) | 25 | 20 | 15 | 25 | 20 | 15 | 40 | 35 | 30 | 40 | 35 | 30 |
| KStack (mm) | 615 | 613 | 610 | 620 | 617 | 614 | 621 | 619 | 616 | 626 | 623 | 620 |
| LReach (mm) | 397 | 401 | 405 | 412 | 415 | 420 | 436 | 440 | 444 | 456 | 459 | 464 |
| MStand Over Height (mm) | 730 | 734 | 738 | 733 | 737 | 742 | 745 | 749 | 754 | 767 | 771 | 776 |
| NHandlebar Width (mm) | 760 | 760 | 760 | 780 |
| OStem Length (mm) | 40 | 50 | 50 | 50 |
| PCrank Length (mm) | 165 | 170 | 170 | 170 |
| QWheel Size | [F] 29" [R | [F] 29" [R | [F] 29" [R | [F] 29" [R |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| XS | 4’11” - 5’4” | 150 - 163 |
| S | 5’2” - 5’7” | 158 - 169 |
| M | 5’5” - 5’9” | 164 - 175 |
| L | 5’7” - 5’11” | 170 - 181 |
Sizing to be used as a reference only. Chat with us if you have any questions.
