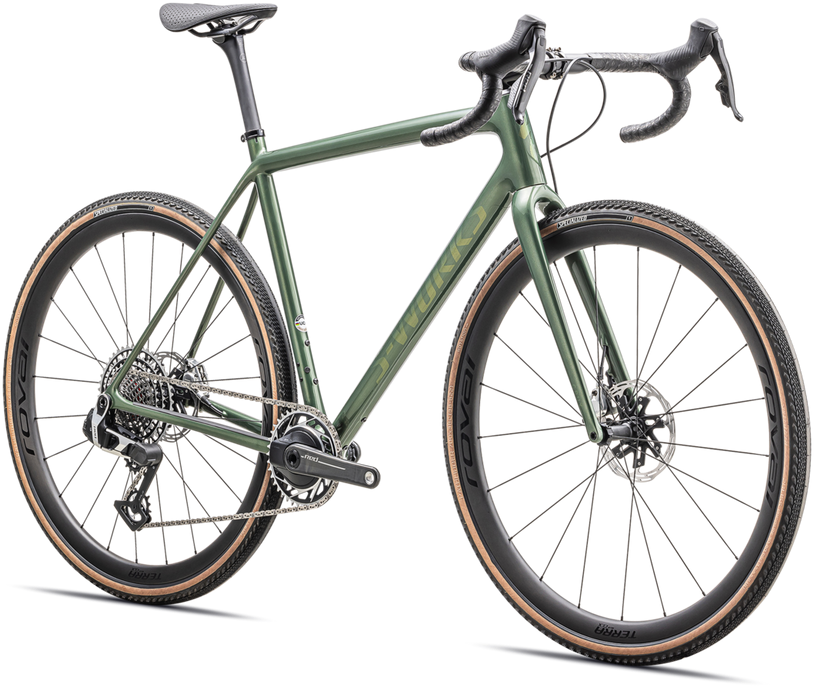

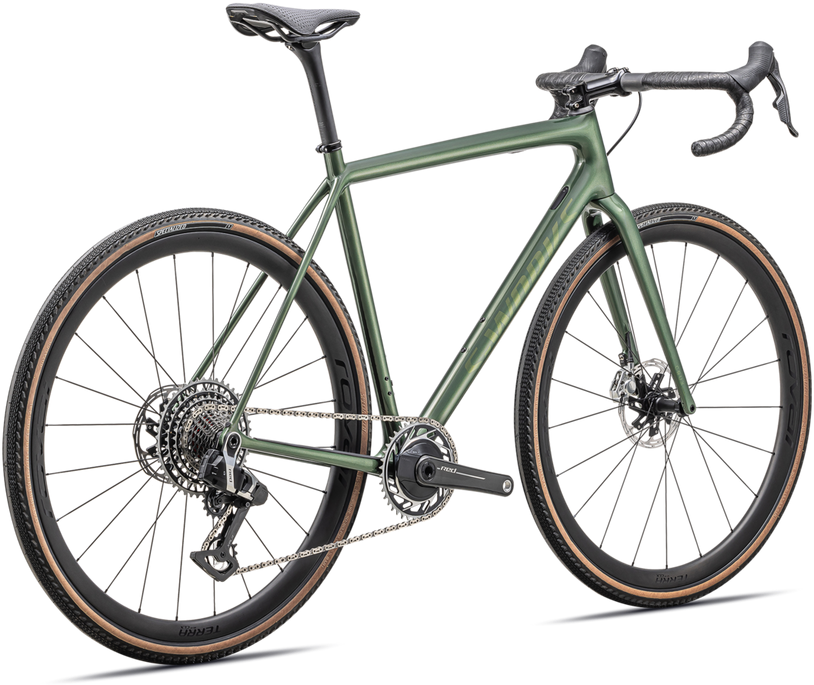

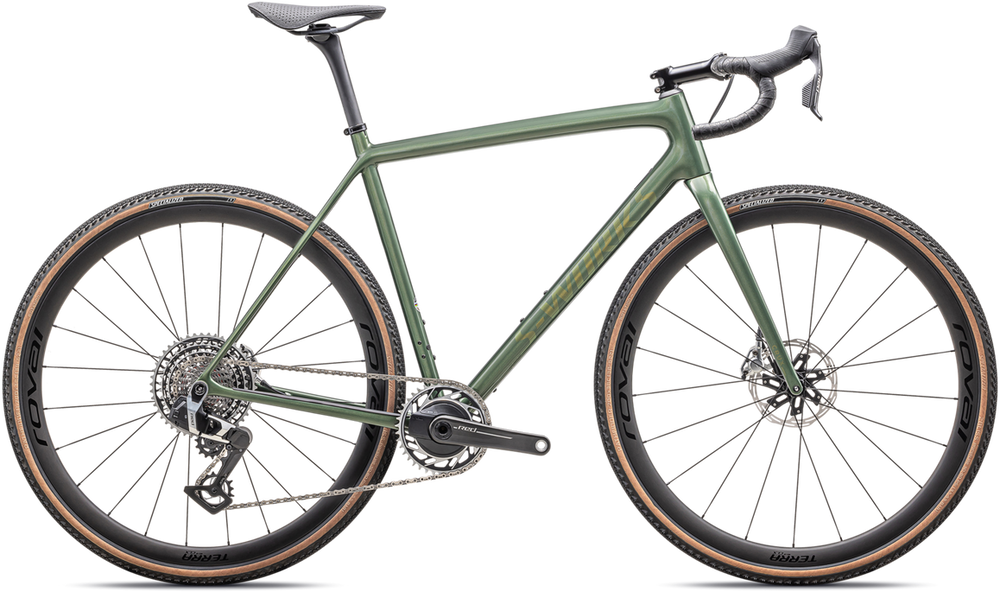

S-Works Crux - SRAM RED XPLR
Overview
Overview
With UDH and the all-new SRAM RED XPLR, the S-Works Crux drops another 102 grams. Featuring Roval Terra CLX II wheels, Terra Bars, Alpinist seat post, S-Works Power Saddle with Mirror, and Pathfinder Pro tires, the new S-Works Crux with SRAM RED XPLR is our most premium build.
- Lightest: 725g S-Works 12r frame. We took the breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
- Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine at full gas.
- Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.
- Now equipped with UDH - Universal Derailleur Hanger - and built with the new SRAM RED XPLR, it features a 13-speed 10-46 cassette, power meter, updated lever ergonomics, and brake calipers that reduce brake effort by up to 80%.
Technical Specifications
Technical Specifications
| Frame | S-Works Crux FACT 12r Carbon, UDH dropout, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc |
| Fork | S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc |
| Wheels | F: Roval Terra CLX II, 25mm internal width, Tubeless ready, 32mm depth, 21h, Roval AFD1, Centerlock, DT Swiss Aerolite spokes R: Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 24h, Roval AFD2, Centerlock, DT Swiss EXP internals, SRAM XDR, DT Swiss Aerolite spokes |
| Tires | Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c |
| Bottom bracket | SRAM DUB BSA |
| Crankset | SRAM Red AXS Power Meter |
| Chainrings | 40T |
| Shifters | SRAM Red AXS |
| Rear derailleur | SRAM Red XPLR, 13sp |
| Cassette/freewheel | SRAM Red XPLR, 13sp, 10-46t |
| Chain | SRAM Red XPLR, 13sp |
| Brakes | SRAM Red XPLR, Hydraulic Disc |

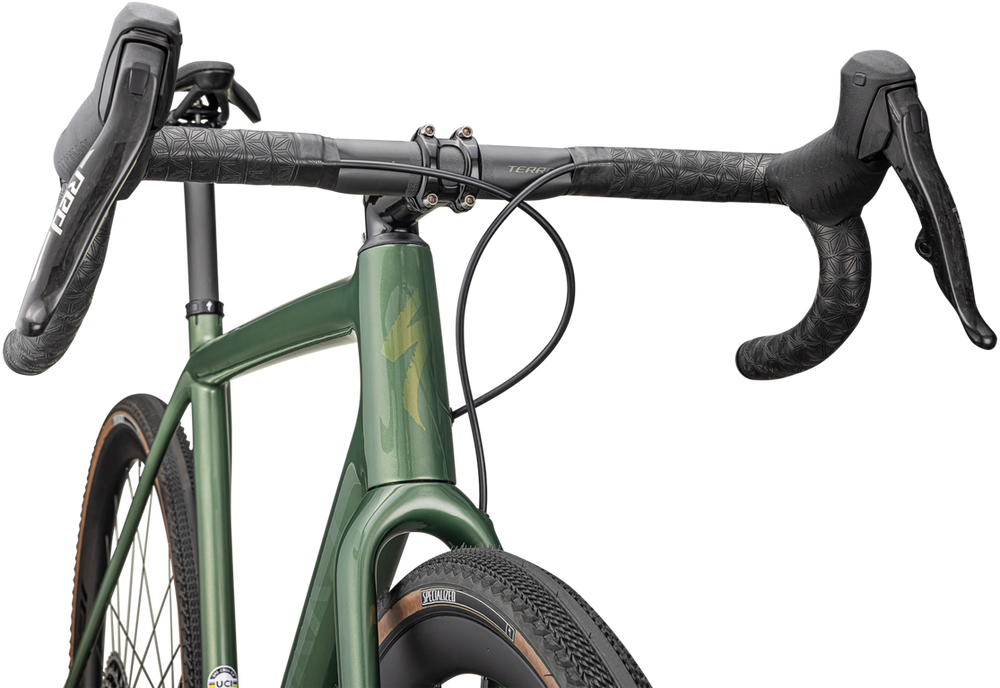

| Handlebars | Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare |
| Stem | S-Works SL, alloy, titanium bolts, 6-degree rise |
| Seatpost | Roval Alpinist Carbon Seatpost |
| Saddle | S-Works Power with Mirror |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
| Frame Size | 49 | 52 | 54 | 56 | 58 | 61 |
| Crank Length (cm) | 165 | 170 | 172.5 | 172.5 | 175 | 175 |
| Handlebar Width (cm) | 380 | 400 | 420 | 420 | 440 | 440 |
| Stem Length (cm) | 70 | 80 | 90 | 100 | 110 | 110 |
| Saddle Width (cm) | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length (cm) | 300 | 300 | 300 | 360 | 360 | 360 |
| Stack (cm) | 530 | 547 | 560 | 578 | 598 | 621 |
| Reach (cm) | 375 | 382 | 388 | 397 | 405 | 415 |
| Head Tube Length (cm) | 100 | 115 | 130 | 147 | 167 | 190 |
| Head Tube Angle (degrees) (degrees) | 70.5 | 71.25 | 71.5 | 72 | 72.25 | 72.5 |
| BB Height (cm) | 284 | 284 | 286 | 286 | 286 | 286 |
| BB Drop (cm) | 74 | 74 | 72 | 72 | 72 | 72 |
| Trail (cm) | 74 | 69 | 67 | 64 | 62 | 60 |
| Fork Length, Full (cm) | 401 | 401 | 401 | 401 | 401 | 401 |
| Fork Rake/Offset (cm) | 50 | 50 | 50 | 50 | 50 | 50 |
| Front Center (cm) | 594 | 600 | 608 | 618 | 630 | 644 |
| Chainstay Length (cm) | 425 | 425 | 425 | 425 | 425 | 425 |
| Wheelbase (cm) | 1008 | 1014 | 1023 | 1033 | 1045 | 1059 |
| Top Tube Length, Horizontal (cm) | 512 | 539 | 549 | 568 | 582 | 599 |
| Bike Standover Height (cm) | 749 | 772 | 794 | 816 | 841 | 866 |
| Seat Tube Length (cm) | 466 | 496 | 521 | 546 | 576 | 606 |
| Seat Tube Angle (degrees) (degrees) | 75.5 | 74 | 74 | 73.5 | 73.5 | 73.5 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| Frame Size | Rider Height (cm) | Rider Height (in) |
| 49 | 155 - 158 | 5'1" - 5'4" |
| 52 | 163 - 168 | 5'4" - 5'6" |
| 54 | 168 - 175 | 5'6" - 5'9" |
| 56 | 175 - 183 | 5'9" - 6'0" |
| 58 | 183 - 191 | 6'0" - 6'3" |
| 61 | 191 - 198 | 6'3" - 6'6" |
Sizing to be used as a reference only. Chat with us if you have any questions.
