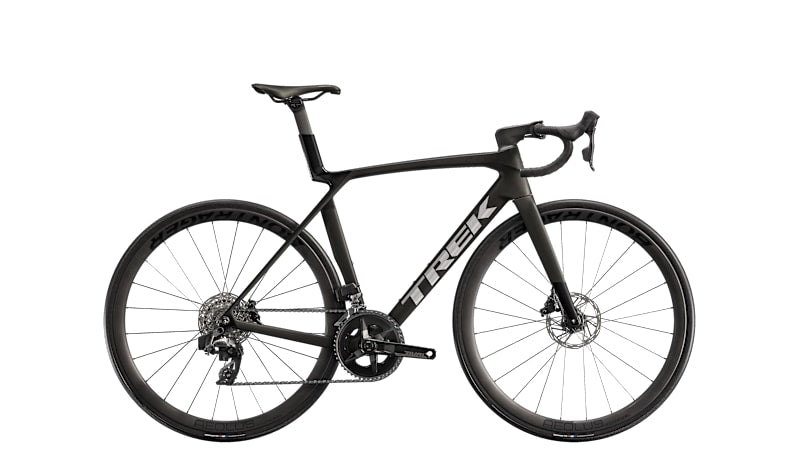

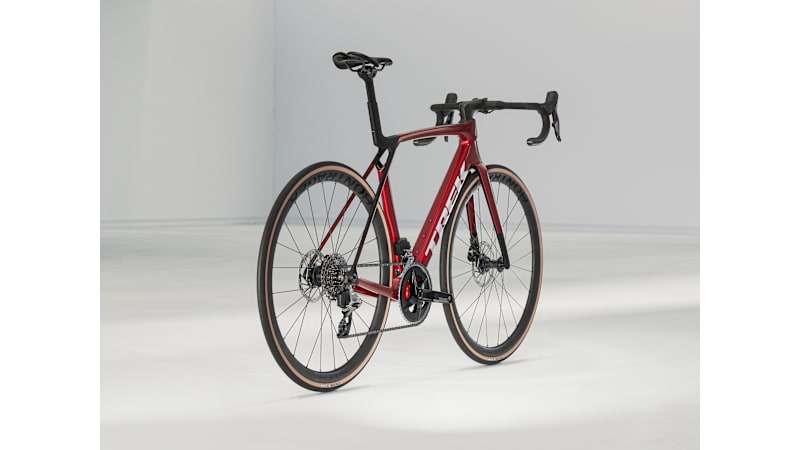

2025 Madone SL 6 AXS Gen 8 Road Bike
Every bike is fully assembled, tuned, and test-ridden before pickup at your chosen DFW Bike Mart location.
Expected to ship within 3 days
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart—ready to ride right at your doorstep within 10 miles of any DFW location.
Complete your Ride
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.

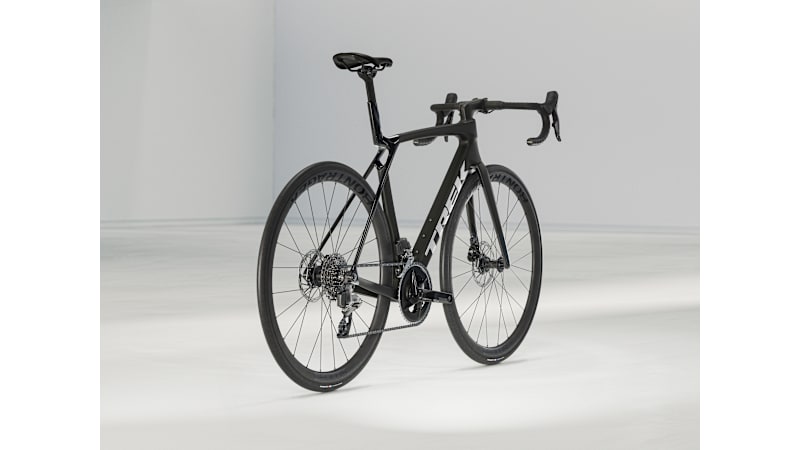

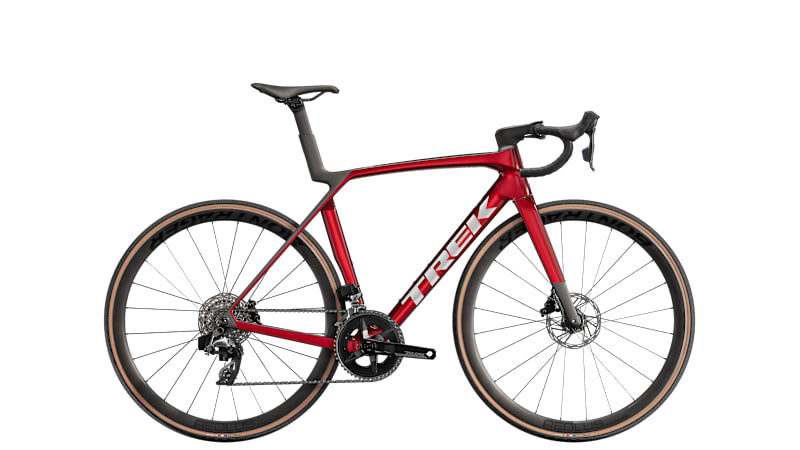

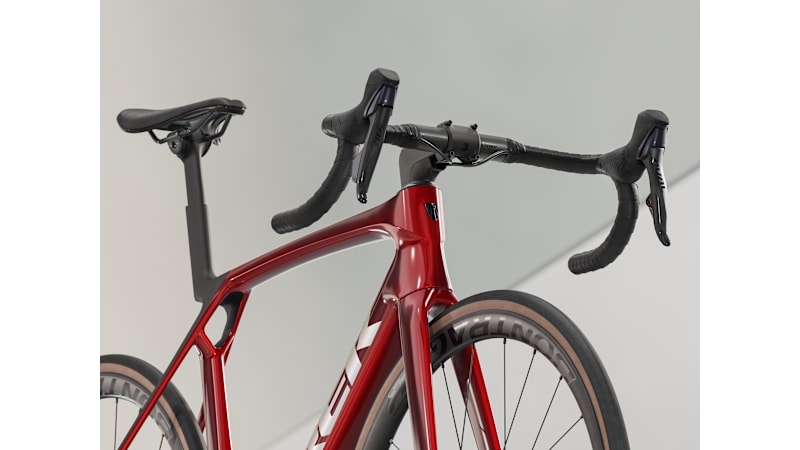

2025 Madone SL 6 AXS Gen 8 Road Bike
Overview
Overview

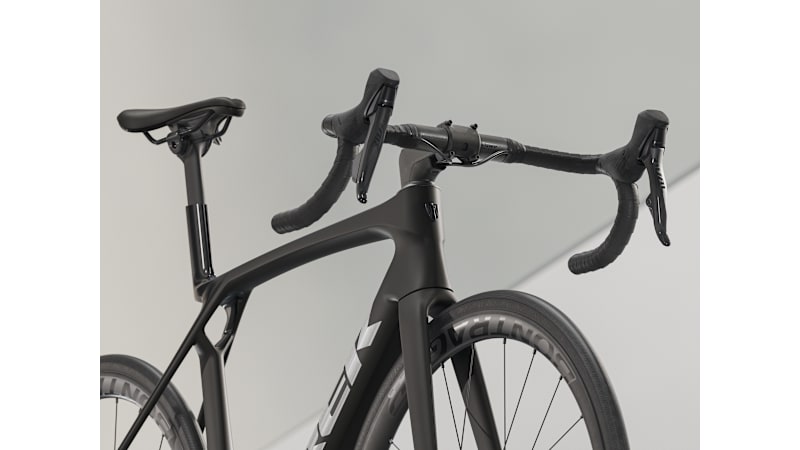

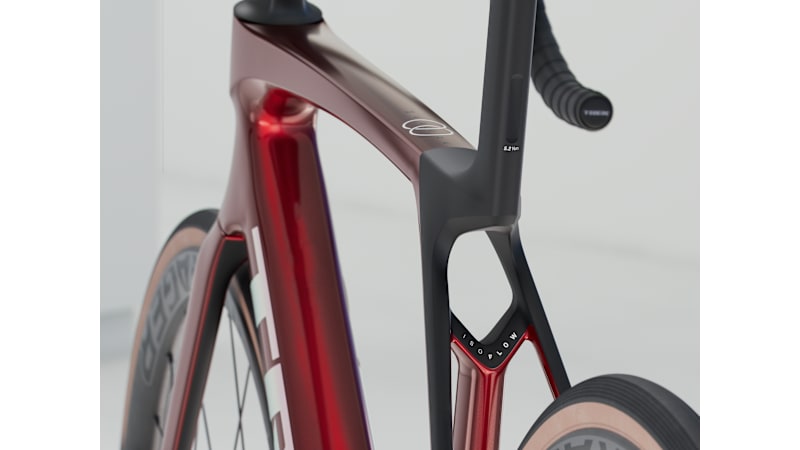

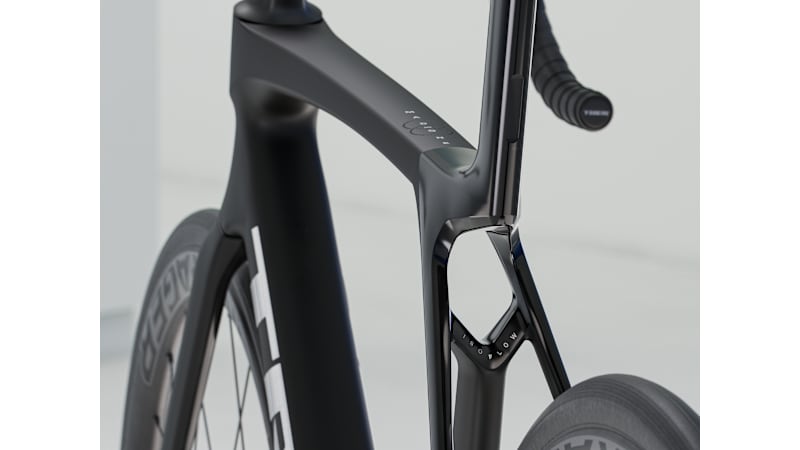

The Madone SL 6 AXS Gen 8 features Trek’s Full System Foil aerodynamic tube shaping and IsoFlow comfort technology, helping riders maintain higher speeds while reducing fatigue on rough pavement and long rides. Its updated Gen 8 design merges the lightweight feel of a climbing bike with the aerodynamic efficiency of a pure race machine, creating a fast, responsive ride that excels across varied terrain.

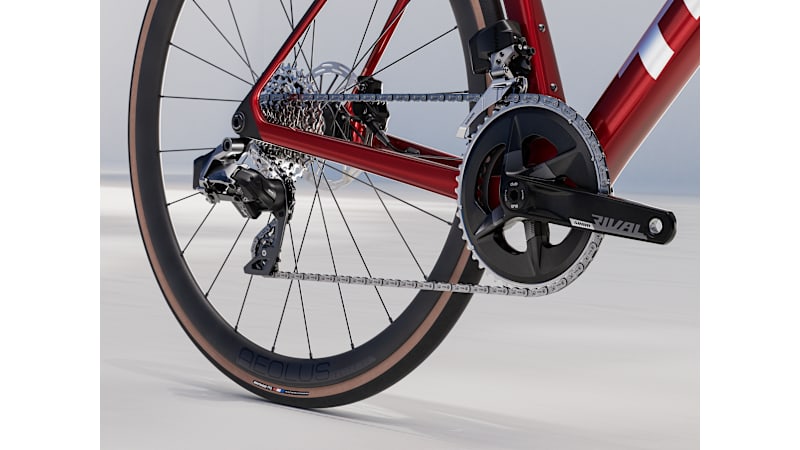

Equipped with a SRAM AXS wireless electronic drivetrain, the Madone SL 6 delivers crisp, reliable shifting with a clean cockpit setup that enhances both performance and aesthetics. Deep-section Bontrager wheels, integrated cable routing, and race-focused geometry improve acceleration, stability, and aerodynamic efficiency whether sprinting, climbing, or riding at high speed in a paceline.
The Trek Madone SL 6 AXS Gen 8 is ideal for riders looking for a premium carbon road bike that balances speed, comfort, and value. From competitive road racing to demanding training rides and endurance events, it delivers the modern performance road experience serious cyclists expect from Trek’s legendary Madone platform.
Technical Specifications
Technical Specifications
| Frame | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle |
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
| Weight | ML - 8.43 kg / 18.59 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
| Battery | SRAM AXS battery pack (with charger) |
| Shifter | SRAM Rival eTap AXS, 12 speed |
| Front derailleur | SRAM Rival D1 AXS, braze-on |
| Rear derailleur | SRAM Rival AXS |
| *crank | Size: XS, S SRAM Rival AXS w/ power meter, 48/35, DUB, 165mm lengthSize: M SRAM Rival AXS w/ power meter, 48/35, DUB, 170mm lengthSize: ML, L SRAM Rival AXS w/ power meter, 48/35, DUB, 172.5mm lengthSize: XL SRAM Rival AXS Power Meter, 48/35, DUB, 175mm length |
| Bottom bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM XG-1250, 10-36, 12 speed |
| Chain | SRAM Rival, 12 speed |
| Max chainring size | 1x: 54T, 2x: 56/43 |
| Wheel front | Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle |
| Wheel rear | Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12mm thru-axle |
| Skewer front | Bontrager Switch chamfered thru axle |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Tire | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28mm |
| Tire part | Bontrager TLR sealant, 6oz |
| Rim strip | Bontrager TLR |
| Max tire size | 32mm (as measured, see manual for details) |
| *saddle | Size: XS, S Bontrager Aeolus Comp, steel rails, 155mm widthSize: M, ML, L, XL Bontrager Aeolus Comp, steel rails, 145mm width |
| *seatpost | Size: XS, S, M, XL Madone aero carbon seatpost, 0mm offset, short lengthSize: ML, L Madone aero carbon seatpost, 0mm offset, long length |

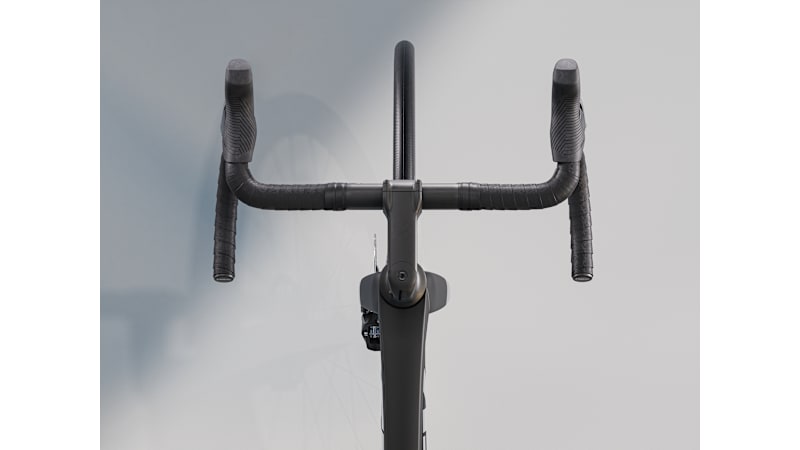

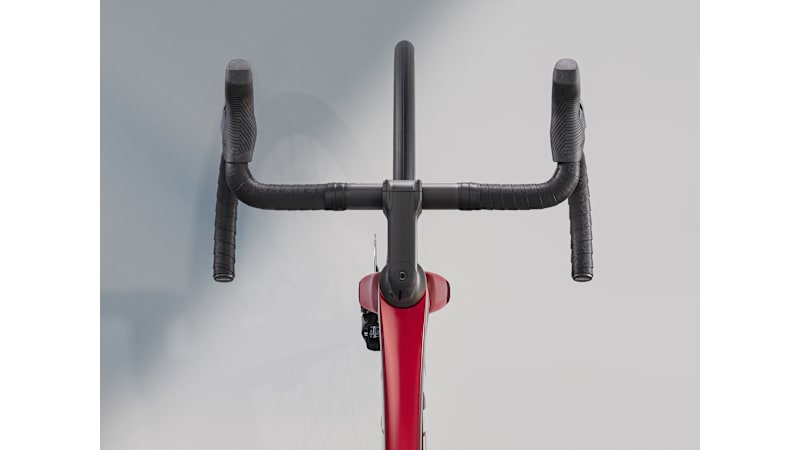

| *handlebar | Size: XS Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop widthSize: S, M Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop widthSize: ML, L Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop widthSize: XL Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width |
| Handlebar tape | Trek EcoTack, black |
| *stem | Size: XS Trek RCS Pro, -7 degree, 80mm lengthSize: S, M Trek RCS Pro, -7 degree, 90mm lengthSize: ML, L Trek RCS Pro, -7 degree, 100mm lengthSize: XL Trek RCS Pro, -7 degree, 110mm length |
| Brake rotor | SRAM Paceline, rounded, centerlock, 160mm |
| Rotor size | Max brake rotor sizes: 180mm front, 160mm rear |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size letter | XS | S | M | ML | L | XL |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube | 40.4 | 44.0 | 47.6 | 51.2 | 54.8 | 60.9 |
| B — Seat tube angle (degrees) | 73.8° | 73.8° | 73.6° | 73.4° | 73.4° | 73.4° |
| C — Head tube length | 10.0 | 12.1 | 13.6 | 15.0 | 17.2 | 20.1 |
| D — Head angle (degrees) | 71.6° | 72.2° | 72.9° | 73.5° | 73.8° | 73.9° |
| E — Effective top tube | 51.7 | 53.2 | 54.5 | 55.7 | 56.8 | 58.4 |
| G — Bottom bracket drop | 7.2 | 7.2 | 7.0 | 7.0 | 6.8 | 6.8 |
| H — Chainstay length | 41.0 | 41.0 | 41.0 | 41.0 | 41.1 | 41.2 |
| I — Offset | 5.0 | 4.5 | 4.5 | 4.0 | 4.0 | 4.0 |
| J — Trail | 6.1 | 6.2 | 5.8 | 5.9 | 5.7 | 5.7 |
| K — Wheelbase | 97.1 | 97.6 | 98.1 | 98.0 | 99.0 | 100.7 |
| L — Standover | 70.4 | 73.4 | 76.2 | 79.0 | 82.0 | 86.3 |
| M — Frame reach | 37.0 | 37.8 | 38.4 | 38.9 | 39.4 | 40.2 |
| N — Frame stack | 50.7 | 53.0 | 54.6 | 56.2 | 58.2 | 61.0 |
| Front center | 57.2 | 57.7 | 58.2 | 58.1 | 58.9 | 60.4 |
| Saddle rail height min (w/short mast) | 54.9 | 58.5 | 62.1 | 65.7 | 69.3 | 75.4 |
| Saddle rail height max (w/short mast) | 61.2 | 64.8 | 68.4 | 72.0 | 75.6 | 81.7 |
| Saddle rail height min (w/tall mast) | 59.2 | 62.8 | 66.4 | 70.0 | 73.6 | 79.7 |
| Saddle rail height max (w/tall mast) | 65.4 | 69.0 | 72.6 | 76.2 | 79.8 | 85.9 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| XS (47cm) | 4'8" - 5'2" | 143 - 158 |
| S (50cm) | 5'2" - 5'4" | 158 - 162 |
| M (52-54cm) | 5'4" - 5'8" | 162 - 173 |
| ML (56cm) | 5'8" - 5'10" | 173 - 179 |
| L (58cm) | 5'10" - 6'2" | 179 - 188 |
| XL (60-62cm) | 6'2" - 7'0" | 188 - 213 |
Sizing to be used as a reference only. Chat with us if you have any questions.
