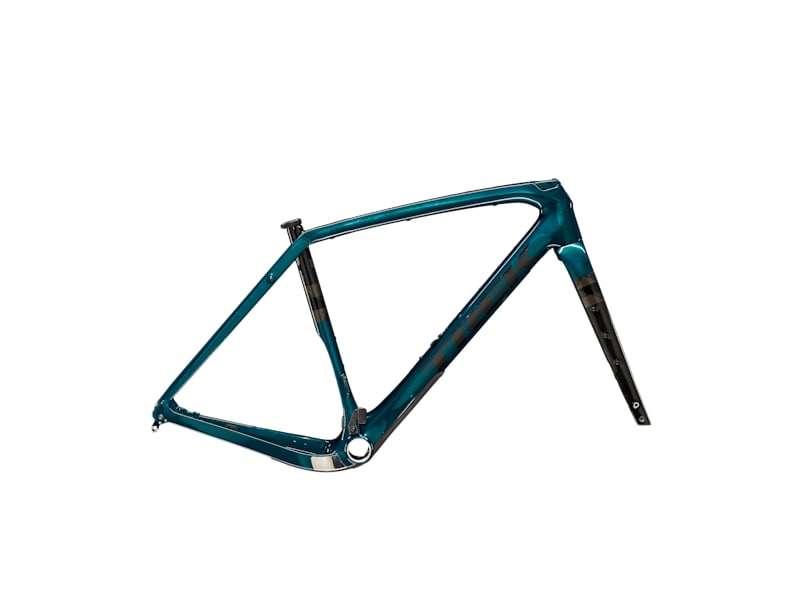

2024 Checkpoint SL Gen 2 Gravel Road Frameset
Every bike is fully assembled, tuned, and test-ridden before pickup at your chosen DFW Bike Mart location.
Expected to ship within 3 days
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart—ready to ride right at your doorstep within 10 miles of any DFW location.
Complete your Ride
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
Overview
Overview
Technical Specifications
Technical Specifications
| Frame | 500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, dropper post compatible, 142x12mm thru axle |
| Fork | Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
| Frame fit | Gravel |
| Weight | 1480g - 56cm (frame-only, painted), 501g (fork-only, painted) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
| Max chainring size | 1x: 46T, 2x: 50/37 |
| Skewer front | Bontrager Switch thru axle |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Max tire size | See service manual |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size number | 49 cm | 52 cm | 58 cm |
| Wheel size | 700c | 700c | 700c |
| A — Seat tube | 49.0 | 52.0 | 58.0 |
| B — Seat tube angle (degrees) | 74.1° | 73.7° | 72.5° |
| C — Head tube length | 9.0 | 10.5 | 16.5 |
| D — Head angle (degrees) | 71.2° | 71.6° | 72.3° |
| E — Effective top tube | 54.1 | 55.5 | 59.7 |
| G — Bottom bracket drop | 7.8 | 7.8 | 7.4 |
| H — Chainstay length | 43.5 | 43.5 | 43.5 |
| I — Offset | 4.5 | 4.5 | 4.5 |
| J — Trail | 7.4 | 7.1 | 6.6 |
| K — Wheelbase | 102.5 | 103.3 | 105.8 |
| L — Standover | 73.5 | 76.5 | 82.9 |
| M — Frame reach | 39.3 | 39.9 | 41.1 |
| N — Frame stack | 53.8 | 55.3 | 60.9 |
| Stem length | 70.0 | 80.0 | 90.0 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| 49 | 5'1" - 5'4" | 156 - 163 |
| 52 | 5'4" - 5'6" | 163 - 168 |
| 54 | 5'6" - 5'9" | 168 - 174 |
| 56 | 5'9" - 5'11" | 174 - 180 |
| 58 | 5'11" - 6'1" | 180 - 185 |
| 61 | 6'1" - 6'3" | 185 - 191 |
Sizing to be used as a reference only. Chat with us if you have any questions.
