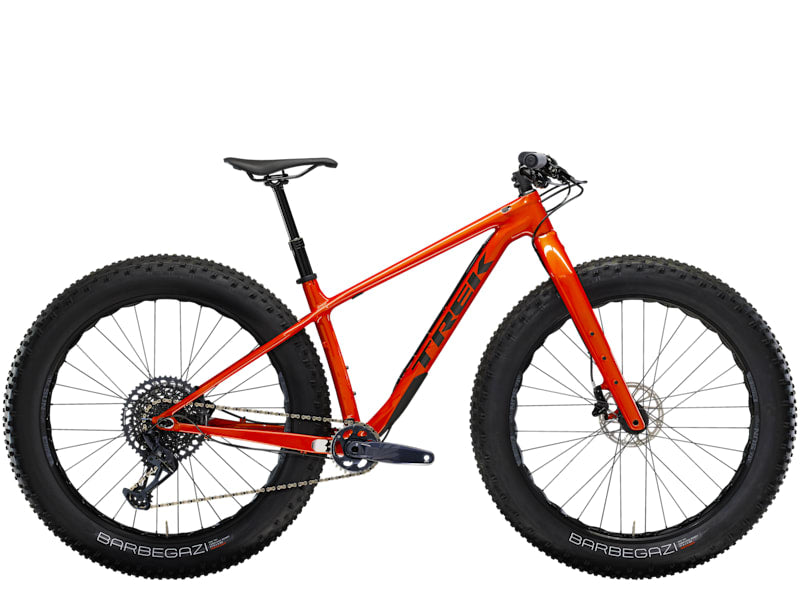

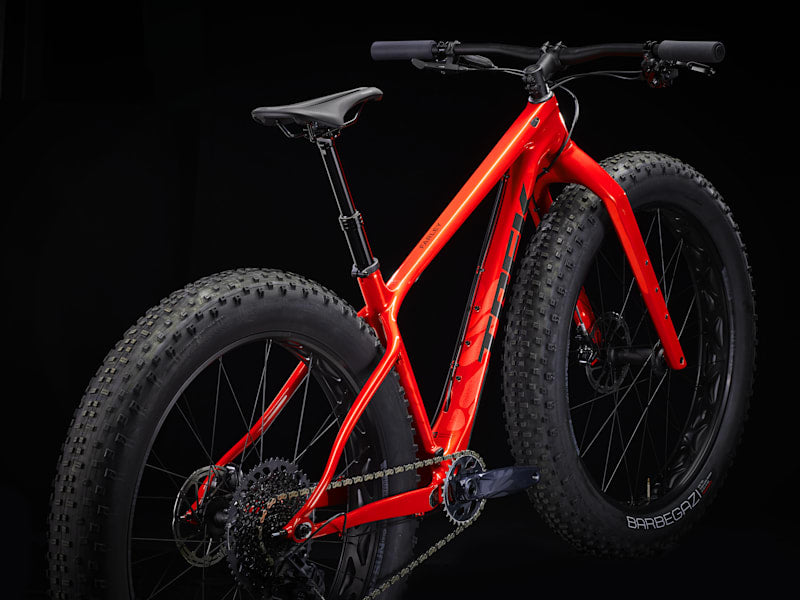

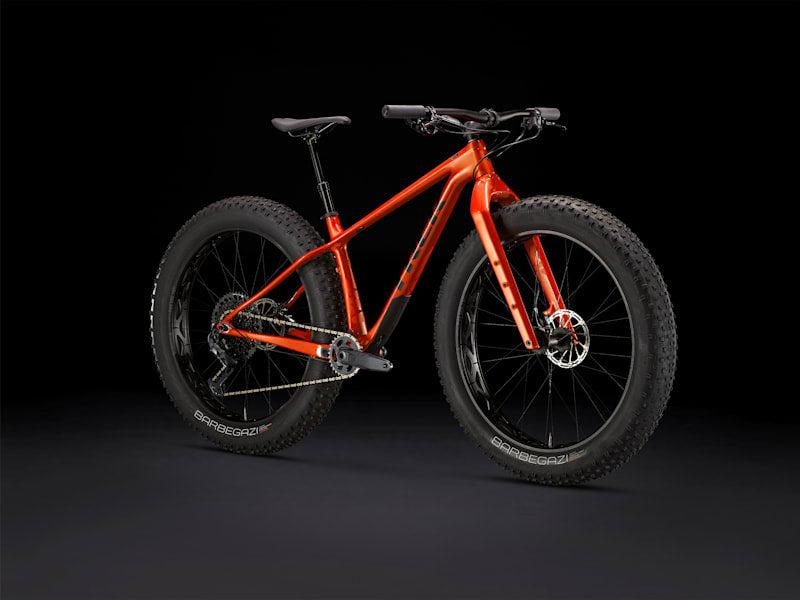

2024 Farley 9.6 Hardtail Mountain Bike
Every bike is fully assembled, tuned, and test-ridden before pickup at your chosen DFW Bike Mart location.
Expected to ship within 3 days
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart—ready to ride right at your doorstep within 10 miles of any DFW location.
Complete your Ride
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
Overview
Overview
Technical Specifications
Technical Specifications

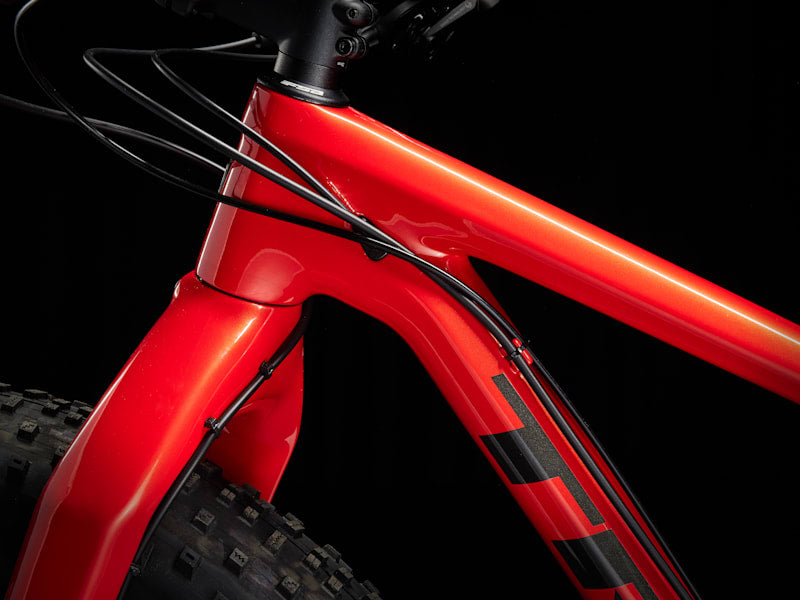

| Frame | OCLV Mountain Carbon, tapered head tube, internal derailleur & dropper post routing, PressFit 121mm BB, 197x12mm adjustable horizontal sliding dropouts |
| Fork | Farley carbon, tapered alloy steerer, crown rack mounts, lower leg cage mounts, 150x15mm thru axle |
| Hub front | Bontrager alloy, sealed bearing, 6-bolt, 15x150mm thru axle |
| Skewer front | Bontrager Switch thru axle |
| Hub rear | Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, SRAM XD driver, 197x12 mm thru axle |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Rim | SUNRingle Mulefut 80 SL, 32-hole cutout |

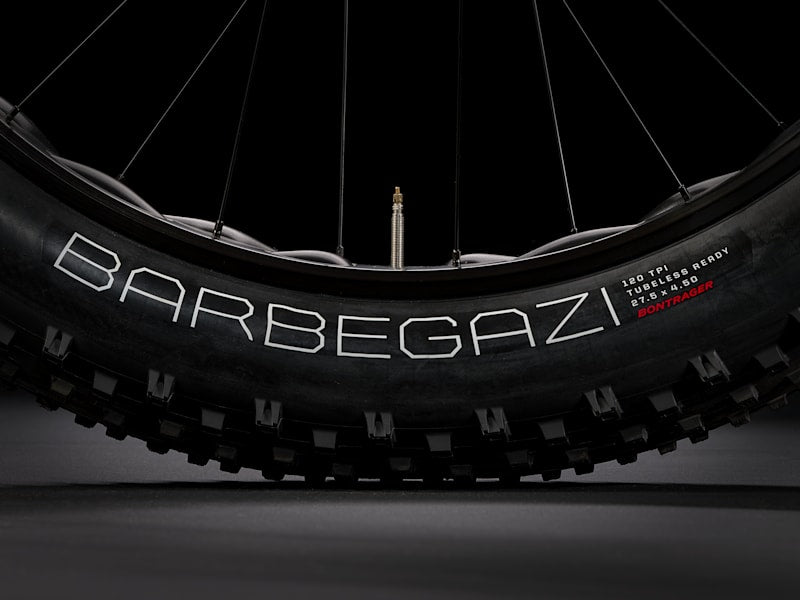

| Tire | Bontrager Barbegazi Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x4.50'' |
| Max tire size | Frame: 27.5x4.50" or 26x4.70", Fork: See manufacturer |
| Shifter | SRAM GX Eagle, 12 speed |

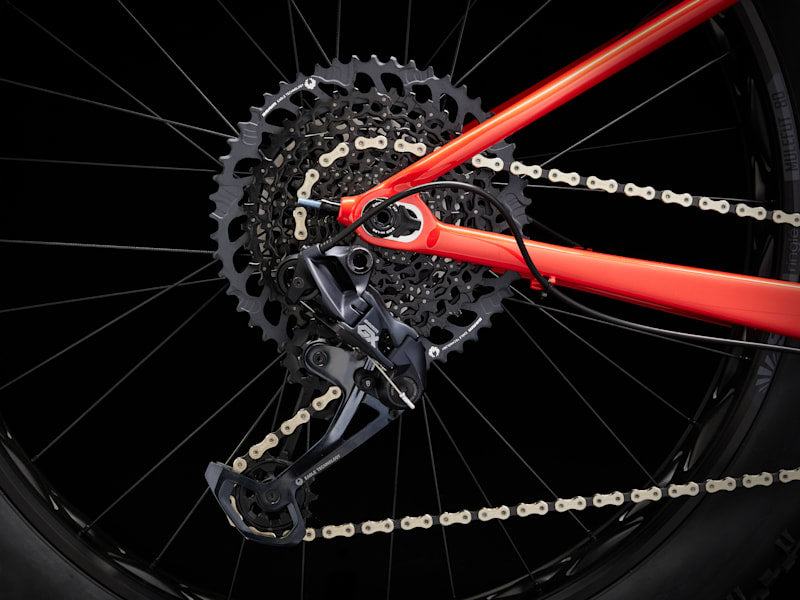

| Rear derailleur | SRAM GX Eagle |

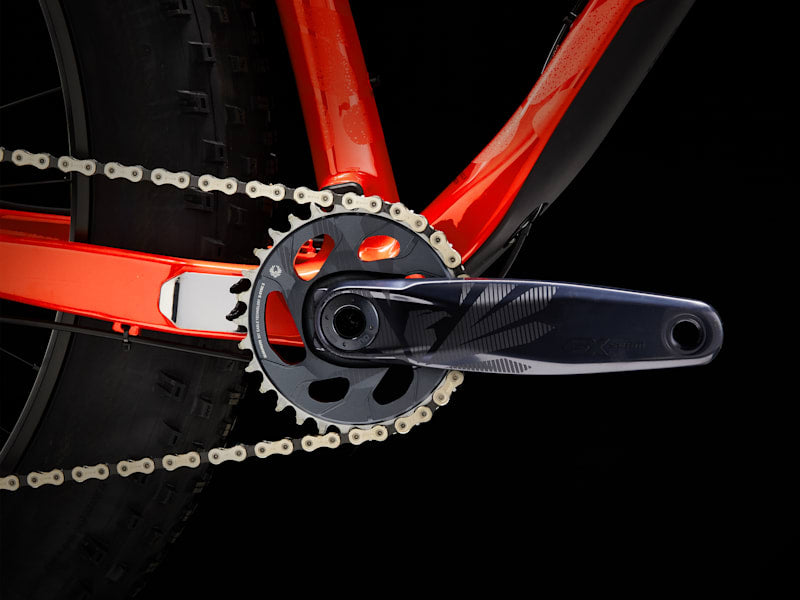

| *crank | Size: S, M SRAM GX Eagle, DUB, 30T alloy FAT 5 ring, 170mm lengthSize: L, XL SRAM GX Eagle, DUB, 30T alloy FAT 5 ring, 175mm length |

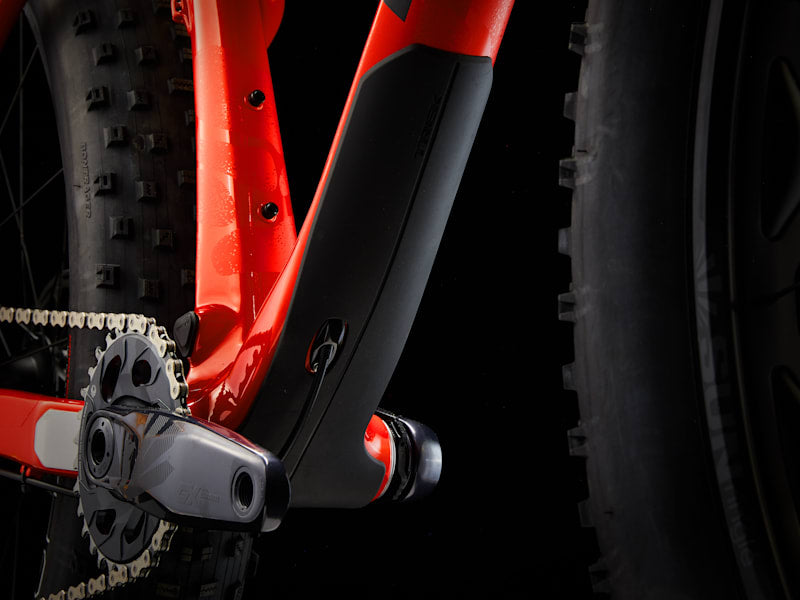

| Bottom bracket | SRAM DUB, 121mm, PressFit |
| Cassette | SRAM Eagle XG-1275, 10-52, 12 speed |
| Chain | SRAM GX Eagle, 12 speed |
| Pedal | VP-536 nylon platform |
| Max chainring size | 1x: 32T, 2x: 36/22 |
| Saddle | Bontrager Verse Elite, austenite rails, 145mm width |
| *seatpost | Size: S TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm lengthSize: M TranzX JD-YSP18, 120mm travel, internal routing, 31.6mm, 403mm lengthSize: L, XL TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length |

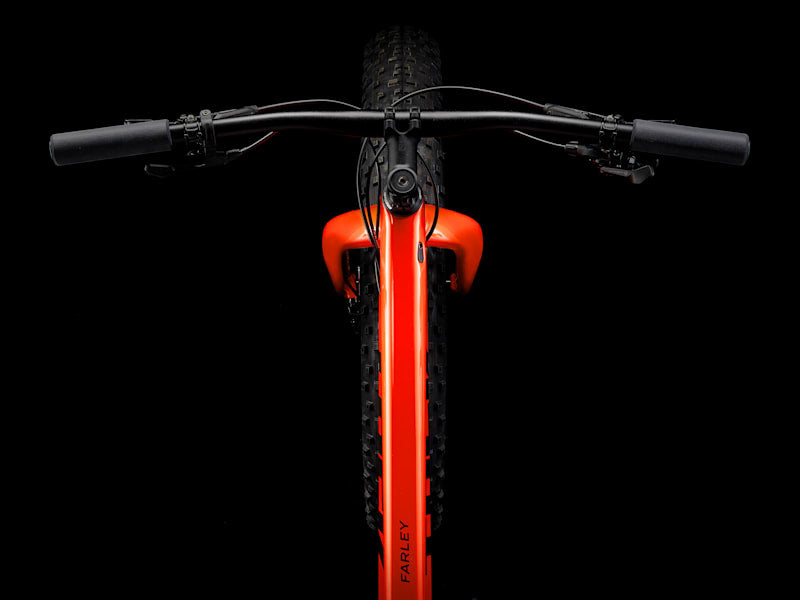

| Handlebar | Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width |
| Grips | ESI Chunky |
| *stem | Size: S Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm lengthSize: M Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm lengthSize: L Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm lengthSize: XL Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length |
| Headset | FSA IS-2, 1-1/8'' top, 1.5'' bottom |
| Brake | SRAM Level Bronze 4-piston hydraulic disc |

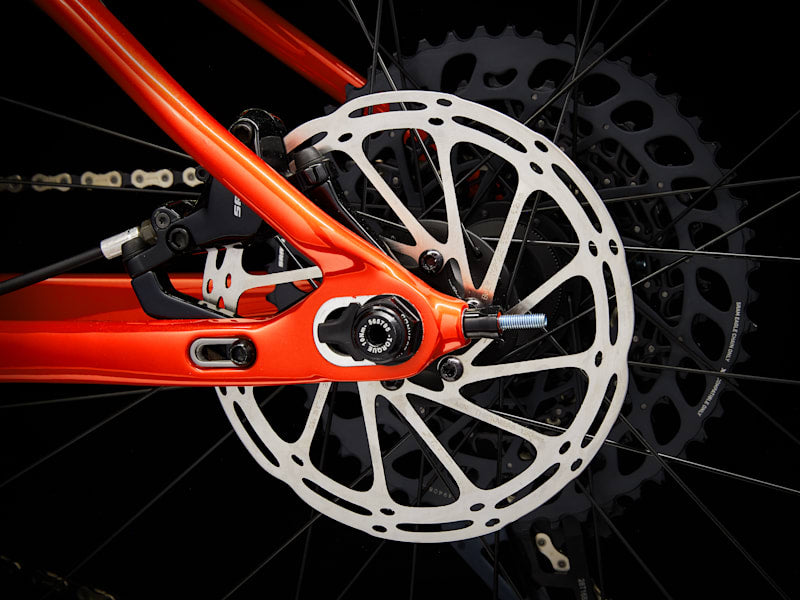

| Brake rotor | SRAM CenterLine, 6-bolt, round edge, 160mm |
| Weight | M - 13.11 kg / 28.91 lbs |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size number | 15.5" | 17.5" | 19.5" | 21.5" |
| Frame size letter | S | M | L | XL |
| Wheel size | 27.5" | 27.5" | 27.5" | 27.5" |
| A — Seat tube | 39.4 | 41.9 | 47.0 | 52.1 |
| B — Seat tube angle (degrees) | 71.5° | 71.5° | 71.5° | 71.5° |
| Effective seat tube angle (degrees) | 73.0° | 73.0° | 73.0° | 73.0° |
| C — Head tube length | 10.0 | 10.0 | 12.0 | 12.0 |
| D — Head angle (degrees) | 69.0° | 69.0° | 69.0° | 69.0° |
| E — Effective top tube | 56.7 | 59.4 | 63.1 | 64.4 |
| F — Bottom bracket height | 32.1 | 32.1 | 32.1 | 32.1 |
| G — Bottom bracket drop | 6.7 | 6.7 | 6.7 | 6.7 |
| H — Chainstay length | 45.5 | 45.5 | 45.5 | 45.5 |
| I — Offset | 5.1 | 5.1 | 5.1 | 5.1 |
| J — Trail | 9.4 | 9.4 | 9.4 | 9.4 |
| K — Wheelbase | 109.2 | 111.9 | 115.8 | 117.1 |
| L — Standover | 76.3 | 75.7 | 77.6 | 77.4 |
| M — Frame reach | 38.3 | 41.0 | 44.1 | 45.4 |
| N — Frame stack | 60.1 | 60.1 | 61.9 | 61.9 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| S | 5'1" - 5'5" | 155 - 165 |
| M | 5'5" - 5'10" | 165 - 177 |
| L | 5'10" - 6'2" | 177 - 188 |
| XL | 6'2" - 6'5" | 188 - 195 |
Sizing to be used as a reference only. Chat with us if you have any questions.
