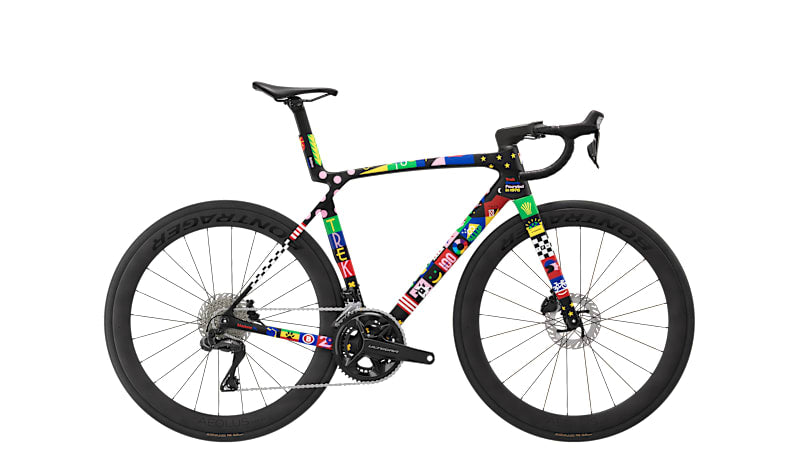

Madone SL 7 Gen 8 - The First 50 Replica Road Bike
Every bike is fully assembled, tuned, and test-ridden before pickup at your chosen DFW Bike Mart location.
Expected to ship within 3 days
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart—ready to ride right at your doorstep within 10 miles of any DFW location.
Complete your Ride
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
Overview
Overview
Technical Specifications
Technical Specifications
| Frame | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle |
| *fork | Size: XS, S, M Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axleSize: ML, L, XL Madone Gen 8 full carbon, tapered carbon steerer, internal Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axlebrake routing, flat mount disc, 12x100mm chamfered thru axle |
| Weight | ML - 7.87 kg / 17.36 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
| Shifter | Shimano Ultegra R8170 Di2, 12 speed |
| Front derailleur | Shimano Ultegra R8150 Di2, braze-on, down swing |
| Rear derailleur | Shimano Ultegra R8150 Di2, 34T max cog |
| *crank | Size: XS, S Shimano Ultegra R8100, 50/34, 160mm lengthSize: M, ML Shimano Ultegra R8100, 50/34, 165mm lengthSize: L, XL Shimano Ultegra R8100, 50/34, 170mm length |
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano Ultegra R8101, 11-34, 12 speed |
| Chain | Shimano Ultegra/XT M8100 |
| Max chainring size | 1x: 54T, 2x: 56/43 |
| Wheel front | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle |
| Wheel rear | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12mm thru axle |
| Skewer front | Bontrager Switch chamfered thru axle |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Tire | Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120tpi, 700x28mm |
| Tire part | Bontrager TLR sealant, 6oz |
| Max tire size | 32mm (as measured, see manual for details) |
| Saddle | Bontrager Aeolus Elite, austenite rails, 145mm width |
| Seatpost | Madone aero carbon seatpost, 0mm offset, short length |
| *handlebar | Size: XS Bontrager Aero Pro, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 35cm control width, 38cm widthSize: S Bontrager Aero Pro, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 37cm control width, 40cm widthSize: M, ML, L Bontrager Aero Pro, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 39cm control width, 42cm widthSize: XL Bontrager Aero Pro, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 41cm control width, 44cm width |
| Handlebar tape | Trek EcoTack |
| *stem | Size: XS Trek RCS, -7 degree, 80mm lengthSize: S, M Trek RCS, -7 degree, 90mm lengthSize: ML, L Trek RCS, -7 degree, 100mm lengthSize: XL Trek RCS, -7 degree, 110mm length |
| Brake | Shimano Ultegra hydraulic disc, flat mount |
| Brake rotor | Shimano CL800, centerlock, 160mm |
| Rotor size | Max brake rotor sizes: 180mm front, 160mm rear |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size letter | XS | S | M | ML | L | XL |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube | 40.4 | 44.0 | 47.6 | 51.2 | 54.8 | 60.9 |
| B — Seat tube angle (degrees) | 73.8° | 73.8° | 73.6° | 73.4° | 73.4° | 73.4° |
| C — Head tube length | 10.0 | 12.1 | 13.6 | 15.0 | 17.2 | 20.1 |
| D — Head angle (degrees) | 71.6° | 72.2° | 72.9° | 73.5° | 73.8° | 73.9° |
| E — Effective top tube | 51.7 | 53.2 | 54.5 | 55.7 | 56.8 | 58.4 |
| G — Bottom bracket drop | 7.2 | 7.2 | 7.0 | 7.0 | 6.8 | 6.8 |
| H — Chainstay length | 41.0 | 41.0 | 41.0 | 41.0 | 41.1 | 41.2 |
| I — Offset | 5.0 | 4.5 | 4.5 | 4.0 | 4.0 | 4.0 |
| J — Trail | 6.1 | 6.2 | 5.8 | 5.9 | 5.7 | 5.7 |
| K — Wheelbase | 97.1 | 97.6 | 98.1 | 98.0 | 99.0 | 100.7 |
| L — Standover | 70.4 | 73.4 | 76.2 | 79.0 | 82.0 | 86.3 |
| M — Frame reach | 37.0 | 37.8 | 38.4 | 38.9 | 39.4 | 40.2 |
| N — Frame stack | 50.7 | 53.0 | 54.6 | 56.2 | 58.2 | 61.0 |
| Front center | 57.2 | 57.7 | 58.2 | 58.1 | 58.9 | 60.4 |
| Saddle rail height min (w/short mast) | 54.9 | 58.5 | 62.1 | 65.7 | 69.3 | 75.4 |
| Saddle rail height max (w/short mast) | 61.2 | 64.8 | 68.4 | 72.0 | 75.6 | 81.7 |
| Saddle rail height min (w/tall mast) | 59.2 | 62.8 | 66.4 | 70.0 | 73.6 | 79.7 |
| Saddle rail height max (w/tall mast) | 65.4 | 69.0 | 72.6 | 76.2 | 79.8 | 85.9 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
