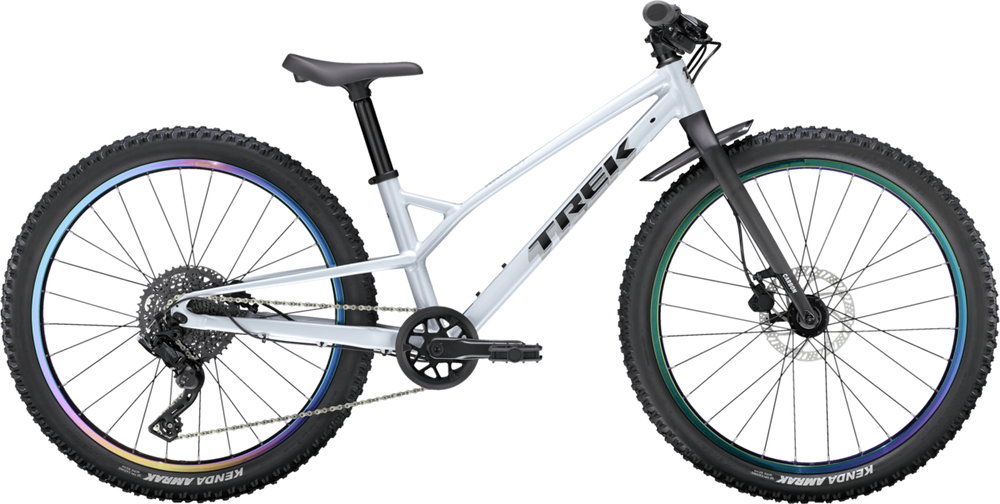

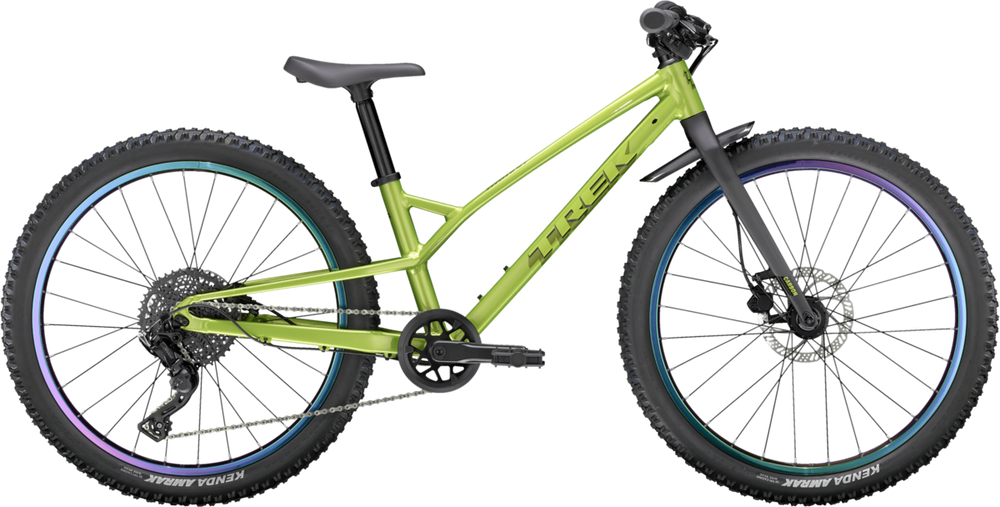

Wahoo 24 Trail
Every bike is fully assembled, tuned, and test-ridden before pickup at your chosen DFW Bike Mart location.
Expected to ship within 3 days
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart—ready to ride right at your doorstep within 10 miles of any DFW location.
Complete your Ride
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
Overview
Overview
It's right for you if...
You're ready to take your kiddo off-road and want a kids' bike that's up for the task. You want the added grip of big, knobby tires, plenty of gears to keep them spinning up hills, and the reliable stopping power of hydraulic disc brakes.
The tech you get

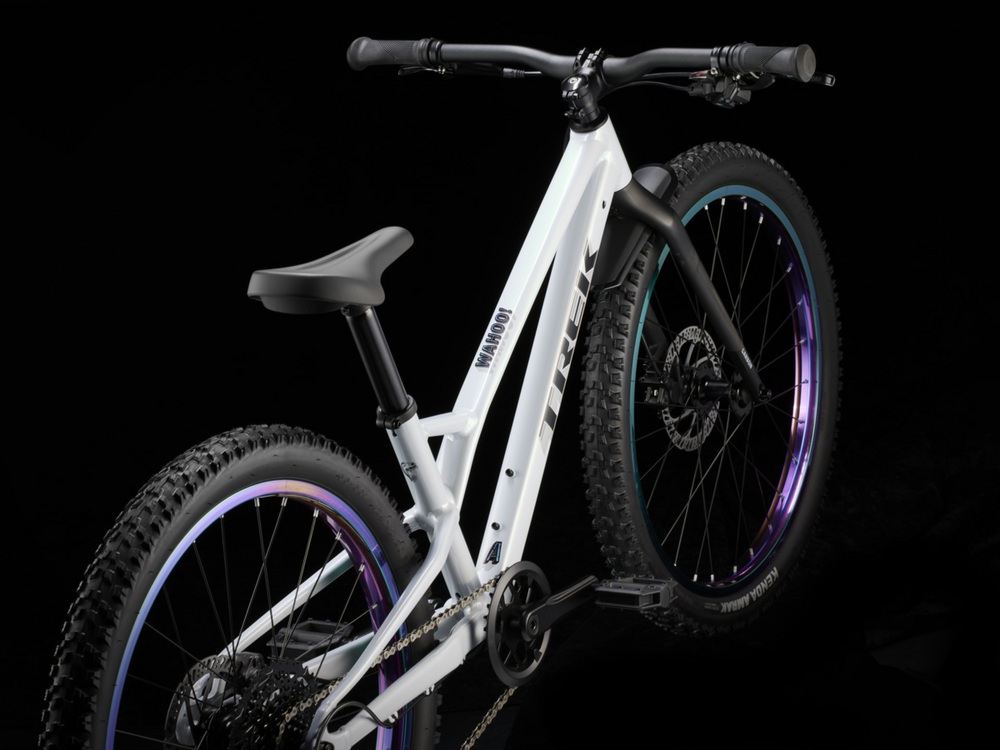

An Alpha Silver Aluminum frame with 24" wheels and wide 2.4" knobby tires that bite into dirt and give plenty of traction. Tons of gears to pick from with a 9-speed 1x microSHIFT drivetrain, and serious stopping power from hydraulic disc brakes.
The final word
Wahoo 24 Trail is a proper off-road ride in a pint-sized package. It's a kids' bike for little rippers who can't wait to cut loose and want a bike that's light, maneuverable, and darn tough, too. Its hydraulic disc brakes give your kiddo a serious advantage while they progress on the trail.
Why you'll love it
- Wahoo's aluminum frame is light enough for easy handling and tough enough to roll through the rough stuff
- Hydraulic disc brakes give them the same serious stopping power you'll find on adult mountain bikes
- A 9-speed drivetrain gives your kiddo plenty of gears to shift through, but isn't too much to handle
- Wide and knobby 2.4in tires provide heaps of traction for confidence on the trail
- Trek kids' bikes are designed and assembled by people who know bikes — and backed by a lifetime warranty
Technical Specifications
Technical Specifications
| Fork | Wahoo 24'', post mount disc brake, ThruSkew 5mm QR |
| Hubs | F: Formula DC-20, alloy, 6-bolt, 100mm ThruSkew|R: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
| Rims | Alloy 24'', 28h |
| Stem | Bontrager alloy, 31.8mm clamp, 6 degree, 45mm length |
| Chain | KMC X9 |

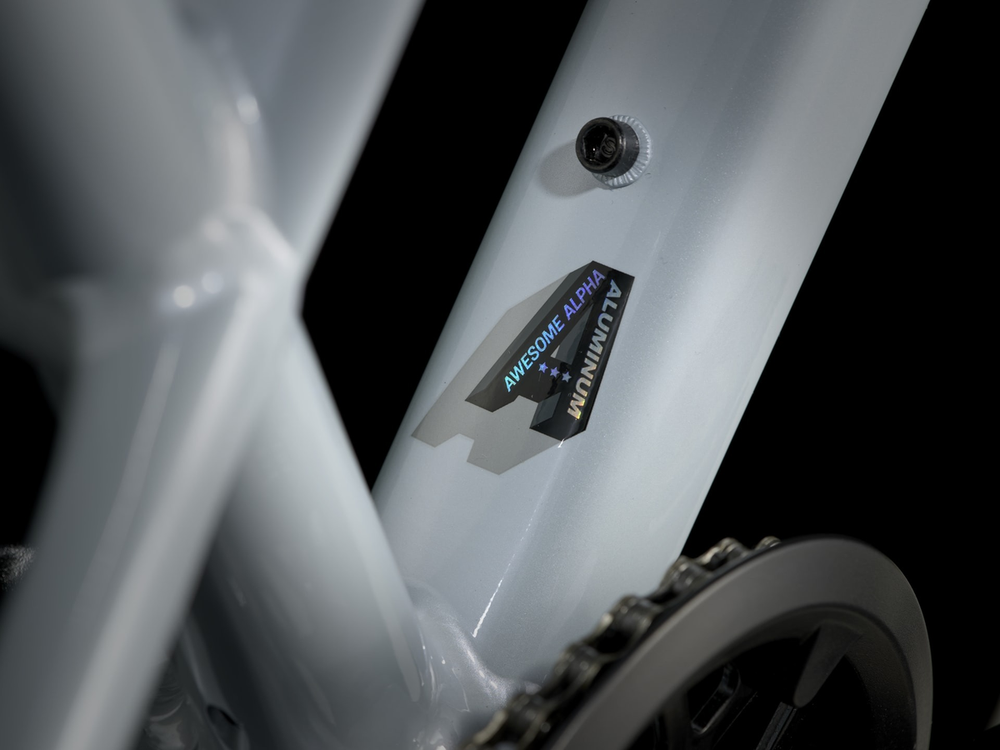

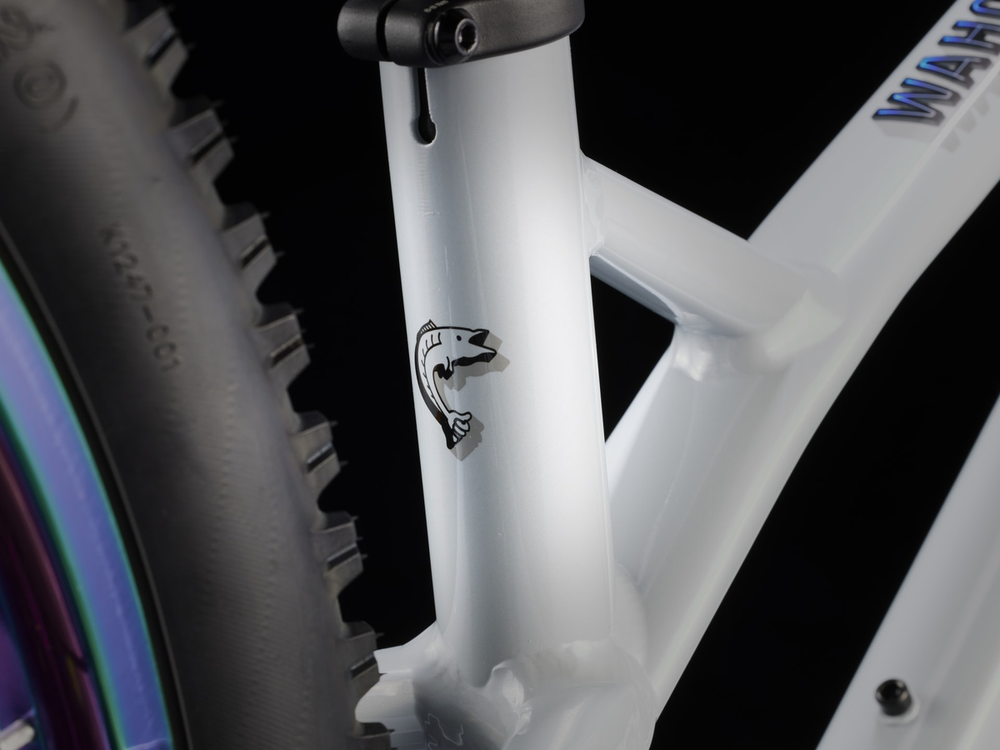

| Frame | Alpha Silver Aluminum, 24'' |

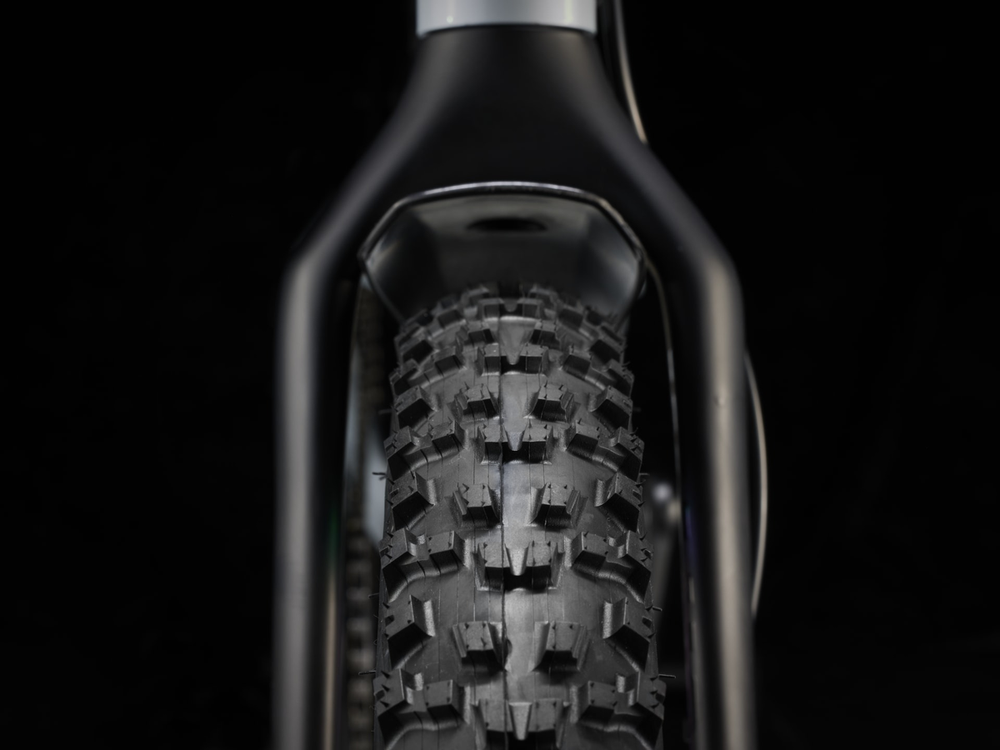

| Tires | Kenda Amrak, 30 tpi, 24x2.20'' |

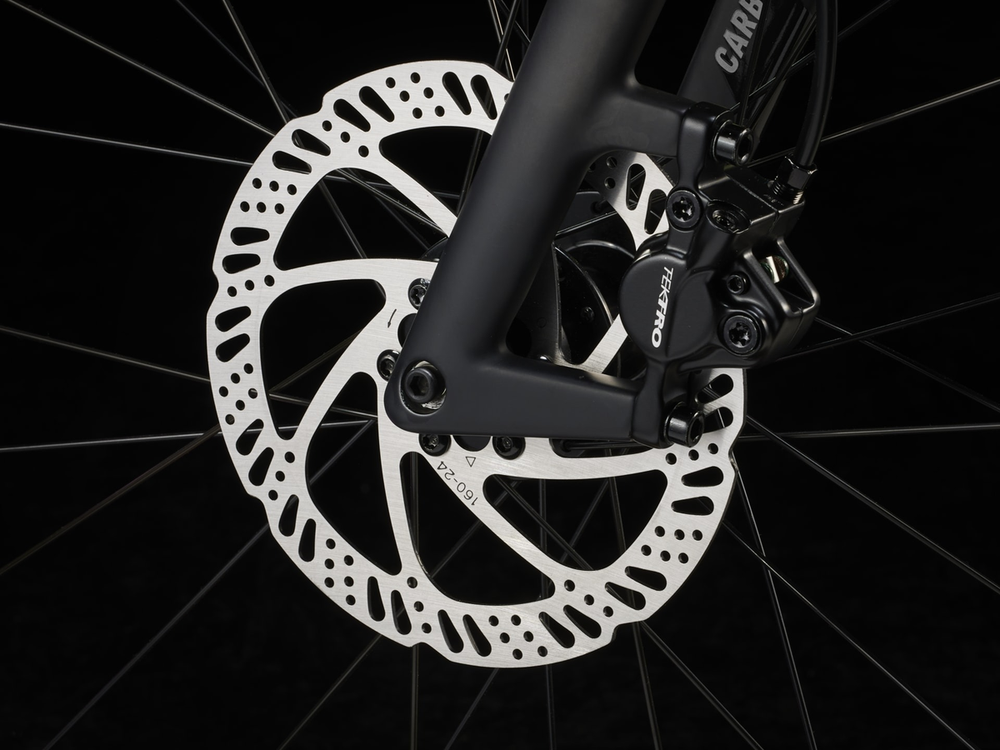

| Brakes | Tektro, 6-bolt, 160mm |
| Rotors | Tektro, 6-bolt, 160mm |

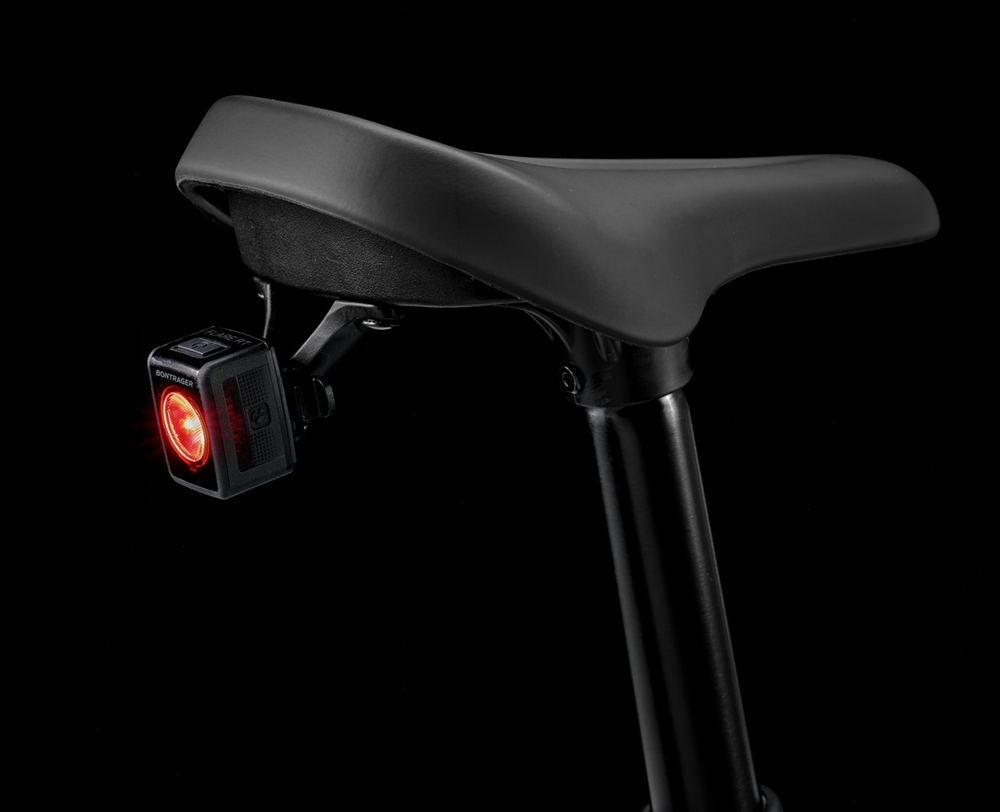

| Saddle | Kids' padded, integrated seatpost, Blendr light mount, 31.6x270mm |
| Spokes | 14g stainless steel, black |
| Headset | Integrated, sealed cartridge bearings |
| Shifters | microSHIFT Advent Quick Trigger Pro SL-M6295, 9 speed |

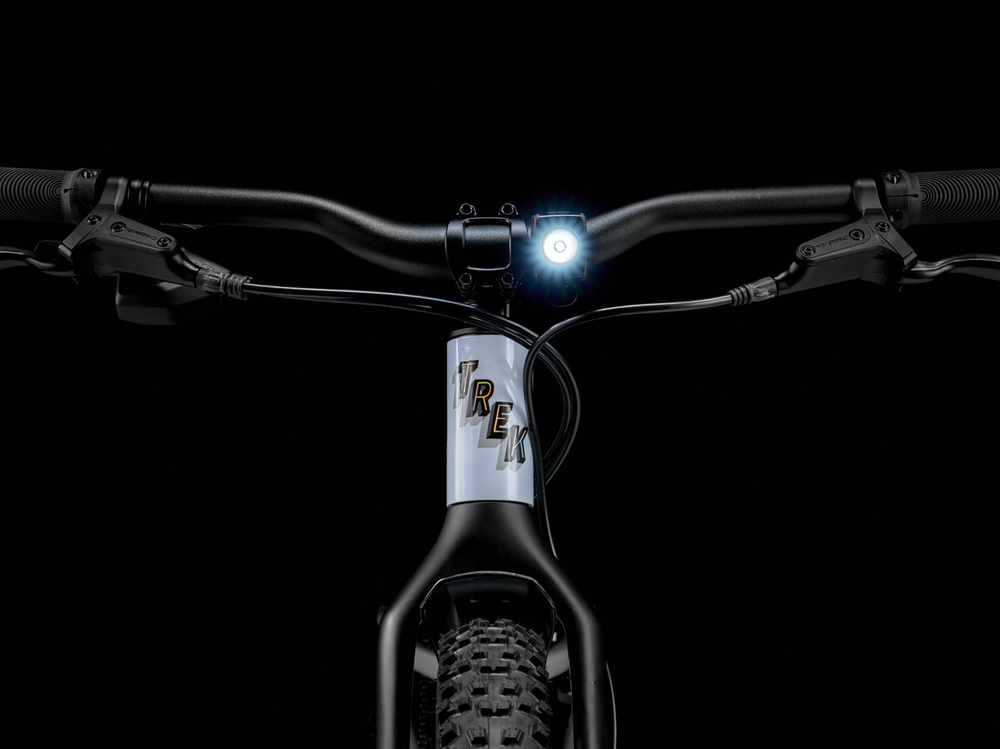

| Handlebars | Bontrager alloy, 31.8mm clamp, 20mm rise, 600mm width |
| Tape/grips | Kids' grip, 110mm width |
| Brake levers | Tektro HD-J285 hydraulic disc, short reach // Tektro HD-J285 hydraulic disc, short reach |
| Bottom bracket | Sealed cartridge, 68mm |

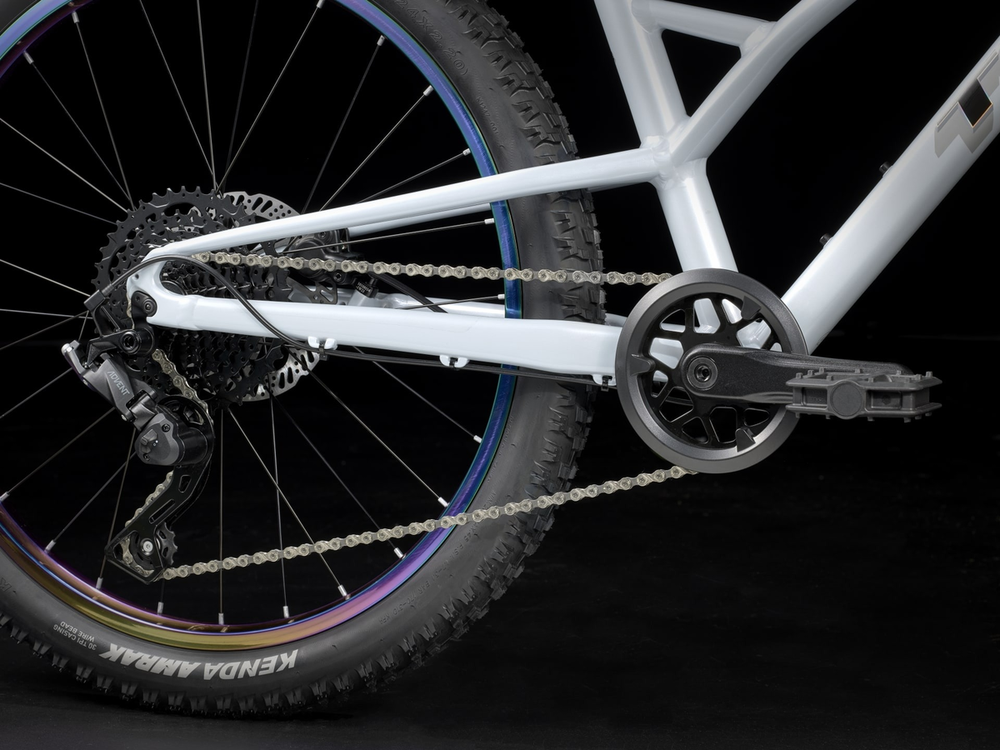

| Rear derailleur | microSHIFT Advent RD-M6195M, 40-46T max cog |

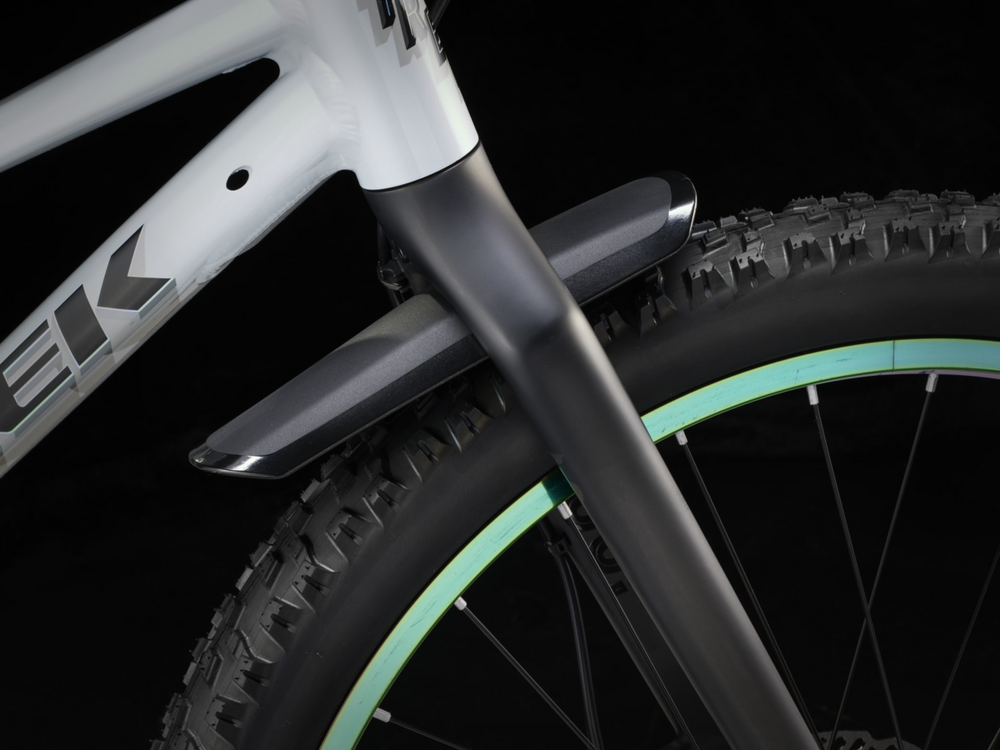

| Accessories & extras | Trek custom fender |

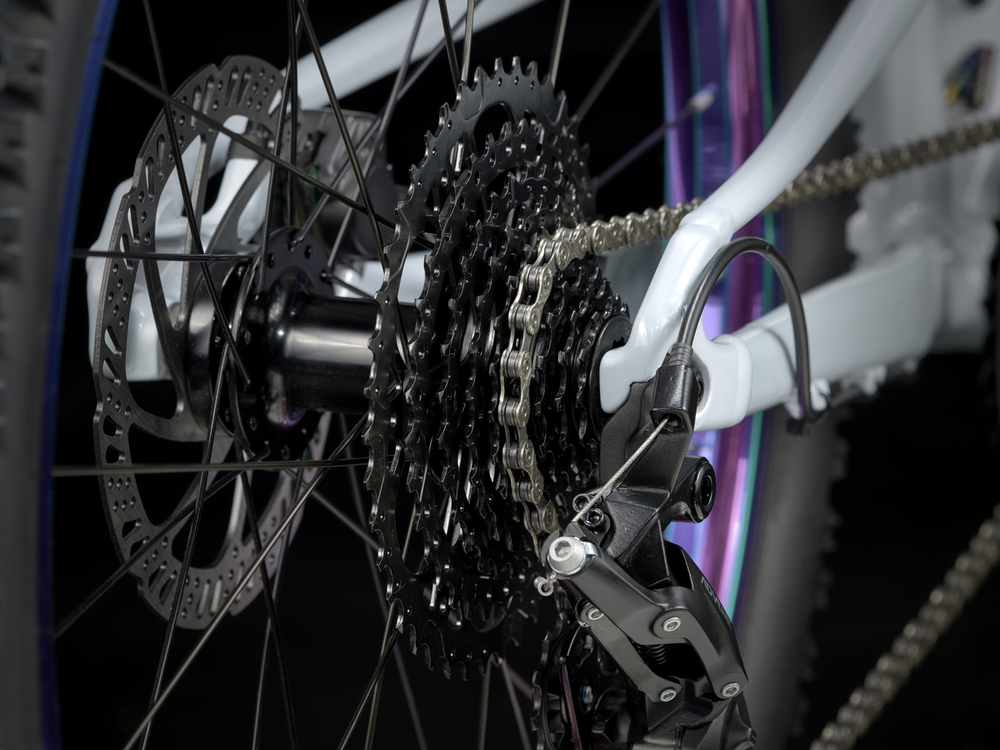

| Cassette/freewheel | microSHIFT Advent H093, 11-42, 9 speed |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
| Frame size number | 24 |
| Wheel size | 24" kids' |
| A — Seat tube (mm) (mm) | 30 |
| B — Seat tube angle(°) | 73° |
| C — Head tube length(mm) (mm) | 9 |
| D — Head angle(°) | 67° |
| E — Effective top tube(mm) (mm) | 53 |
| F — Bottom bracket height(mm) (mm) | 27.4 |
| G — Bottom bracket drop(mm) (mm) | 4.3 |
| H — Chainstay length(mm) (mm) | 42 |
| J — Trail(mm) (mm) | 8.1 |
| K — Wheelbase(mm) (mm) | 103.2 |
| L — Standover(mm) (mm) | 53 |
| M — Frame reach(mm) (mm) | 39 |
| N — Frame stack(mm) (mm) | 45.8 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| Size | Rider Height |
| 12" wheel | 86 - 102 cm |
| 16" wheel | 99 - 117 cm |
| 20" wheel | 114 - 132 cm |
| 24" wheel | 130 - 150 cm |
| 26" wheel | 146 - 160 cm |
Sizing to be used as a reference only. Chat with us if you have any questions.
