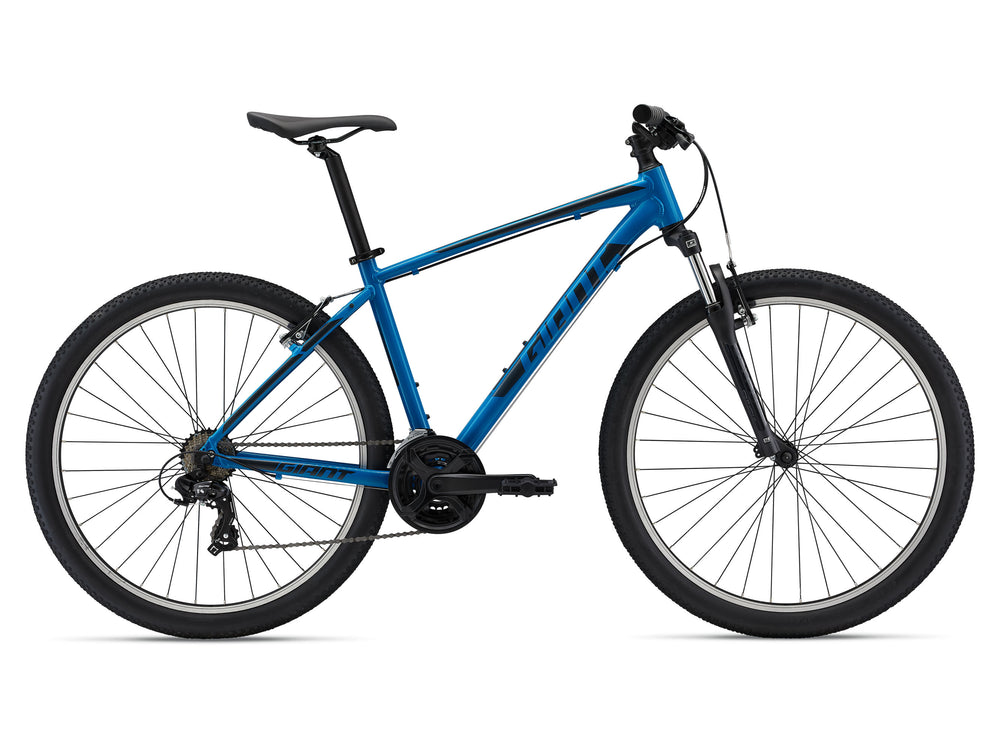

2022 ATX Hardtail Mountain Bike
Overview
Overview
From parkways to paths, paved roads or dirt, this versatile flat-bar bike can help you reach new fitness goals or add some spice to your daily commute.
Key Performance Factors
- All-terrain versatility: With a mountain bike style flat handlebar, and suspension fork you can ride road or dirt with confidence.
- Lightweight and durable: Frameset constructed with high-quality ALUXX aluminum.
- Comfort and stability: Frame geometry puts the rider in a position that balances efficiency with stability on rough roads, paths or trails.
Technical Specifications
Technical Specifications
| Sizes | 26: XXS,XS,S, 27.5: S,M,L,XL, XXL |
| Colors | Black, Satin Black, Vibrant Blue |
| Frame | ALUXX-Grade Aluminum |
| Fork | SR Suntour XCE 28, coil, preload XXS: 80mm travel (26) XS: 80mm travel (26) S: 80mm travel (26) / 80mm travel (27.5) M: 80mm travel (27.5) L: 80mm travel (27.5) XL: 80mm travel (27.5) XXL: 80mm travel (27.5) |
| Shock | N/A |
| Handlebar | Giant Sport, alloy, 25.4mm XXS: 600mm (26) XS: 600mm (26) S: 640mm (26) / 640mm (27.5) M: 680mm (27.5) L: 680mm (27.5) XL: 680mm (27.5) XXL: 680mm (27.5) |
| Grips | Giant Sole-O |
| Stem | Giant Sport, alloy, 15-degree XXS: 60mm (26) XS: 60mm (26) S: 75mm (26) / 60mm (27.5) M: 60mm (27.5) L: 75mm (27.5) XL: 75mm (27.5) XXL: 75mm (27.5) |
| Seatpost | Giant Sport, 30.9mm XXS: 300mm (26) XS: 300mm (26) S: 300mm (26) / 375mm (27.5) M: 375mm (27.5) L: 375mm (27.5) XL: 375mm (27.5) XXL: 375mm (27.5) |
| Saddle | Giant custom |
| Pedals | platform |
| Shifters | MicoShift, Trigger, 3x7 |
| Front derailleur | Shimano Tourney |
| Rear derailleur | MicoShift 26c, 7spd |
| Brakes | MTB linear pull |
| Brake levers | Tektro 3 finger, Linear pull |
| Cassette | Shunfeng Freewheel, 14x28 |
| Chain | KMC Z7 |
| Crankset | ProWheel forged, 24/34/42 XXS: 165mm (26) XS: 165mm (26) S: 170mm (26) / 170mm (27.5) M: 170mm (27.5) L: 175mm (27.5) XL: 175mm (27.5) XXL: 175mm (27.5) |
| Bottom bracket | cartridge |
| Rims | Giant alloy |
| Hubs | alloy, open-race sealed bearing |
| Spokes | stainless, 14g |
| Tires | Giant Quickcross, 27.5x2.1\ / 26x2.1\ |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in mm unless otherwise noted.
| XXS (26") | XS (26") | S (27.5") | M (27.5") | L (27.5") | XL (27.5") | |
| ASeat Tube Length (mm) | 350 | 385 | 420 | 455 | 505 | 535 |
| BSeat Tube Angle (degrees) | 73.5° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| CTop Tube Length (mm) | 555 | 565 | 575 | 590 | 610 | 630 |
| DHead Tube Length (mm) | 95 | 105 | 95 | 110 | 145 | 170 |
| EHead Tube Angle (degrees) | 68.0° | 68.0° | 68.0° | 68.0° | 68.0° | 68.0° |
| FFork Rake (mm) | 42 | 42 | 42 | 42 | 42 | 42 |
| GTrail (mm) | 92.5 | 92.5 | 92.5 | 92.5 | 92.5 | 92.5 |
| HWheelbase (mm) | 1065 | 1076 | 1080 | 1091 | 1114 | 1136 |
| IChain Stay Length (mm) | 420 | 420 | 435 | 435 | 435 | 435 |
| JBottom Bracket Drop (mm) | 35 | 35 | 50 | 50 | 50 | 50 |
| KStack (mm) | 556 | 565 | 581 | 595 | 628 | 651 |
| LReach (mm) | 390 | 398 | 403 | 408 | 418 | 431 |
| MStand Over Height (mm) | 688 | 710 | 721 | 747 | 789 | 814 |
| NHandlebar Width (mm) | 620 | 660 | 660 | 660 | 700 | 700 |
| OStem Length (mm) | 50 | 50 | 70 | 70 | 90 | 90 |
| PCrank Length (mm) | 160 | 165 | 170 | 170 | 175 | 175 |
| QWheel Size | 26" | 26" | 27.5" | 27.5" | 27.5" | 27.5" |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| XXS (26") | 5’0” - 5’2” | 152 - 157 |
| XS (26") | 5’2” - 5’4” | 157 - 162 |
| S (27.5") | 5’4” - 5’7” | 162 - 170 |
| M (27.5") | 5’7” - 5’9” | 170 - 175 |
| L (27.5") | 5’9” - 6’1” | 175 - 185 |
| XL (27.5") | 6’1” - 6’4” | 185 - 193 |
Sizing to be used as a reference only. Chat with us if you have any questions.
