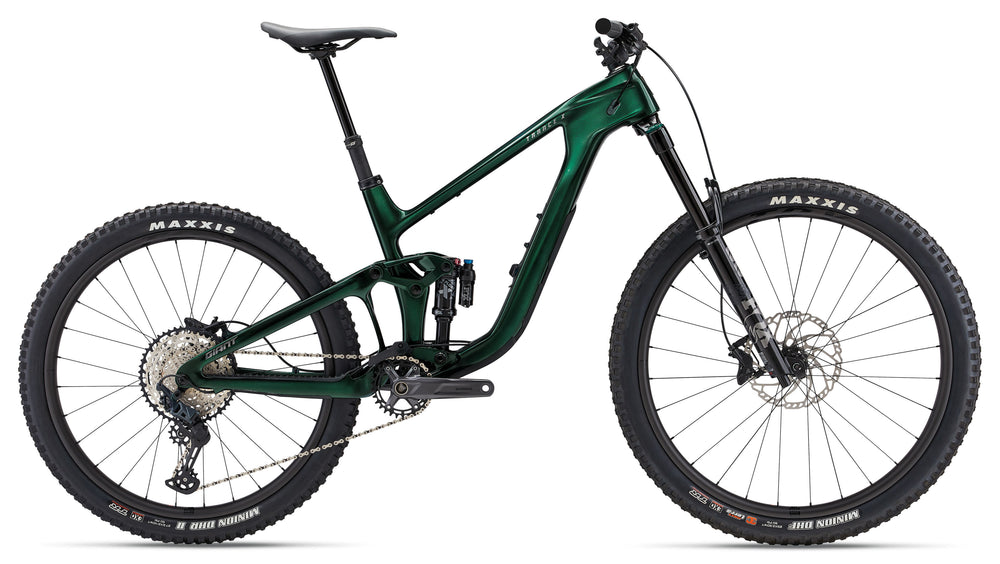

2024 Trance X Advanced SX Full Suspension Mountain Bike
Every bike is fully assembled, tuned, and test-ridden before pickup at your chosen DFW Bike Mart location.
Expected to ship within 3 days
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart—ready to ride right at your doorstep within 10 miles of any DFW location.
Complete your Ride
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
-
Advanced Composite Technology
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
-
Advanced Forged Composite Technology
A state-of-the-art high-pressure molding process is used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar components made from aluminum. This technology is used in critical performance parts such as Maestro Suspension rocker links.
-
Maestro Suspension Technology
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
-
OverDrive

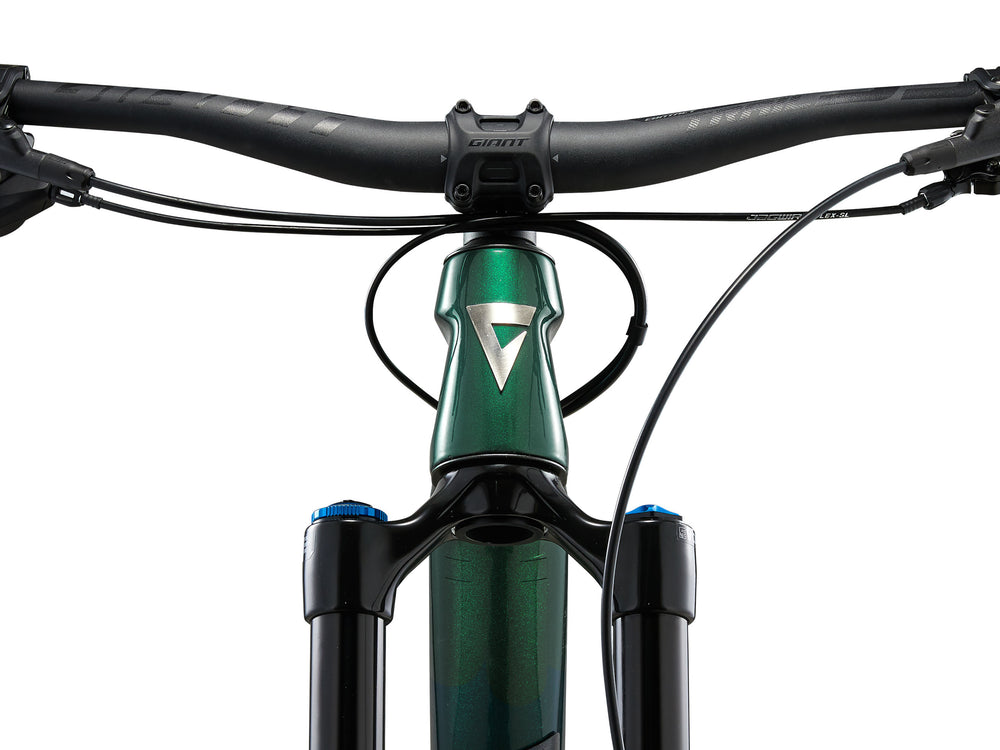

Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
-
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
-
Flip Chip - Maestro
The flip chip allows riders to quickly adjust the geometry of their Maestro-equipped mountain bike to better suit how and where they ride. It lets riders change the headtube/seattube angles and bottom bracket height via eccentric (offset, two-position) hardware located on the upper rocker arm.
Overview
Overview

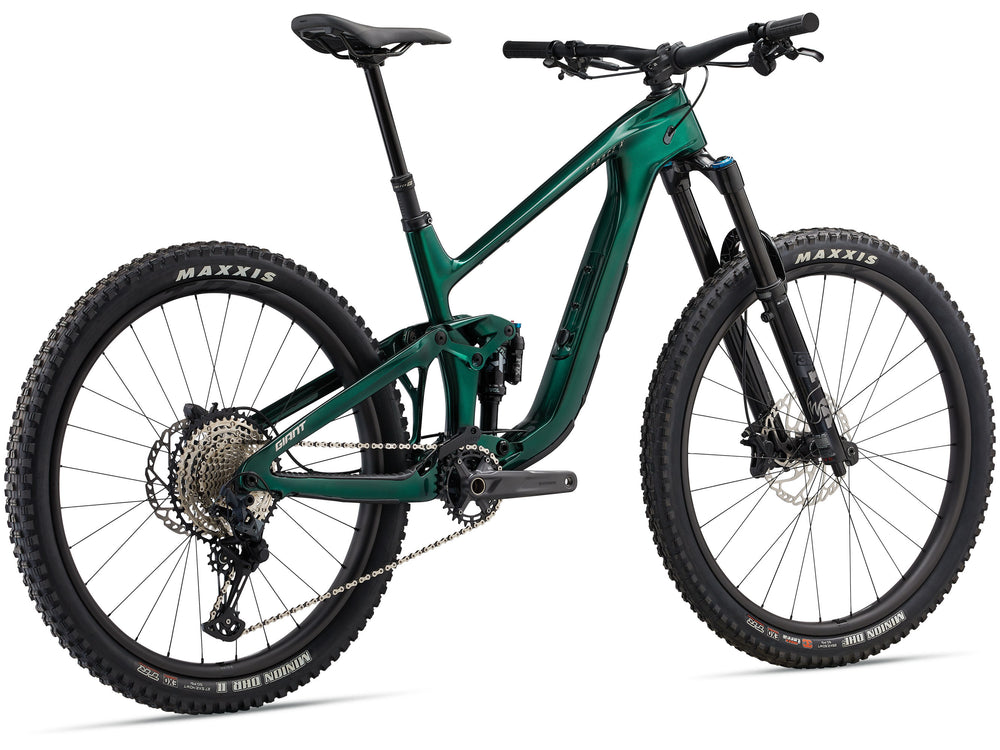

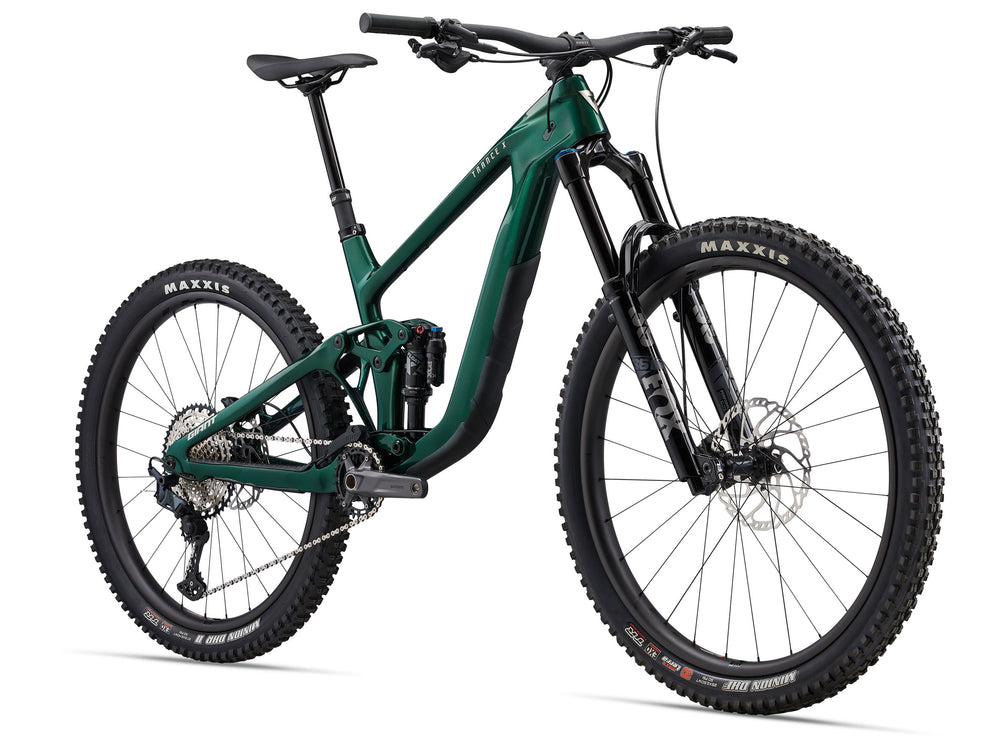

Rock rolls, sketchy drops and step-ups. This new full-composite trail machine handles it all with confidence and control. New longer travel Maestro rear suspension (145mm), adjustable geometry, and a mixed wheel setup make it a singletrack sensation.
Key Performance Factors

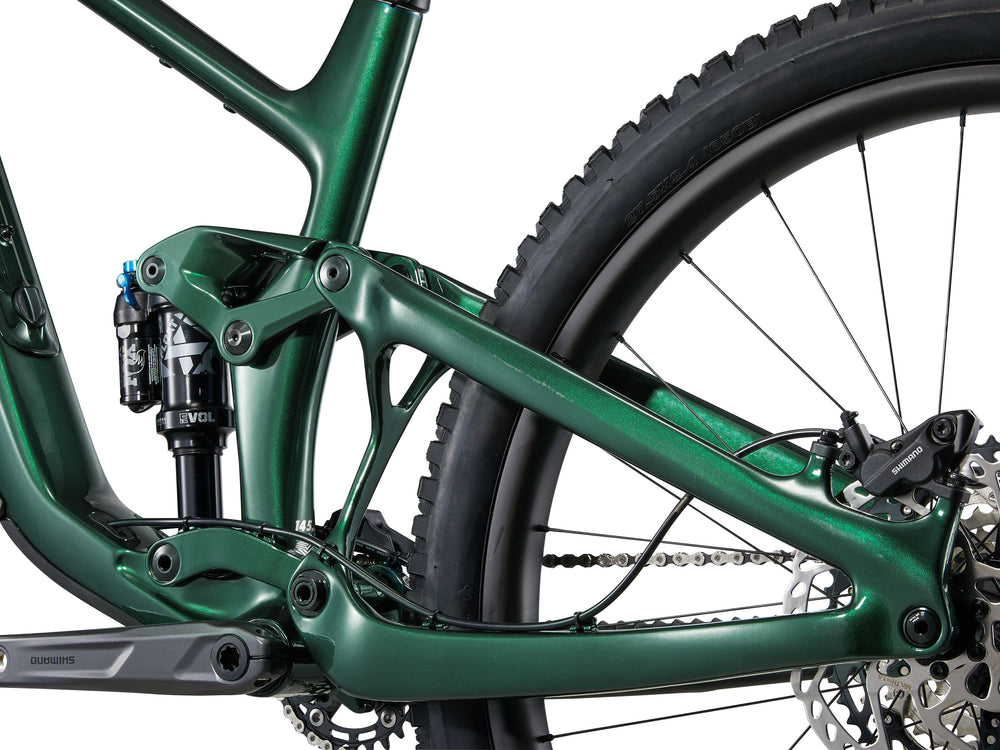

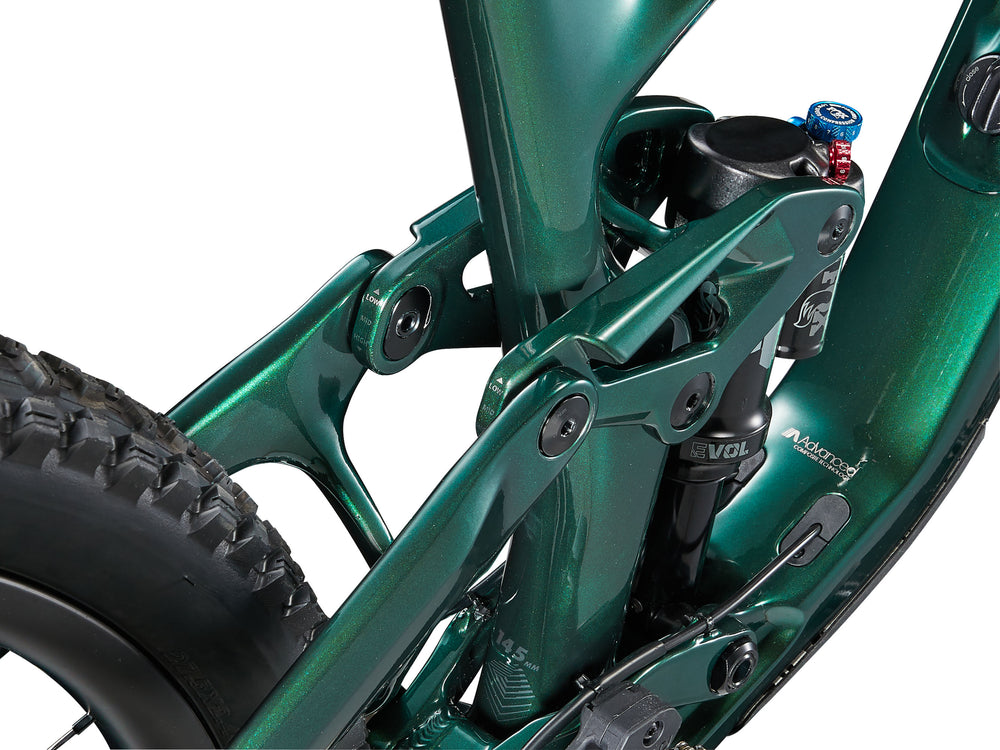

- Updated suspension: This “SX” series features an all-new Maestro rear suspension system with added travel (145mm) for technical singletrack. The trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke that has a smooth, active feel, plus greater stiffness in the chassis for improved tracking over rough terrain. The rear suspension is paired with a longer travel 160mm suspension fork, giving aggressive trail riders added confidence and control.
- Adjustable trail geometry: A three-position Maestro flip chip lets you dial in frame geometry to suit your riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical singletrack. The low setting creates a slacker head angle and lower bottom bracket for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip provides 10mm of total reach adjustment.
- Mixed wheel setup: This model comes with a 27.5-inch rear wheel. The smaller wheel diameter delivers an agile, snappy feel on the trail and more saddle-to-tire clearance in the rear. Riders typically favor this “mullet” setup for riding steep, technical terrain.
Technical Specifications
Technical Specifications
| Sizes | S, M, L, XL |
| Colors | Kelp Forest/Chrome |

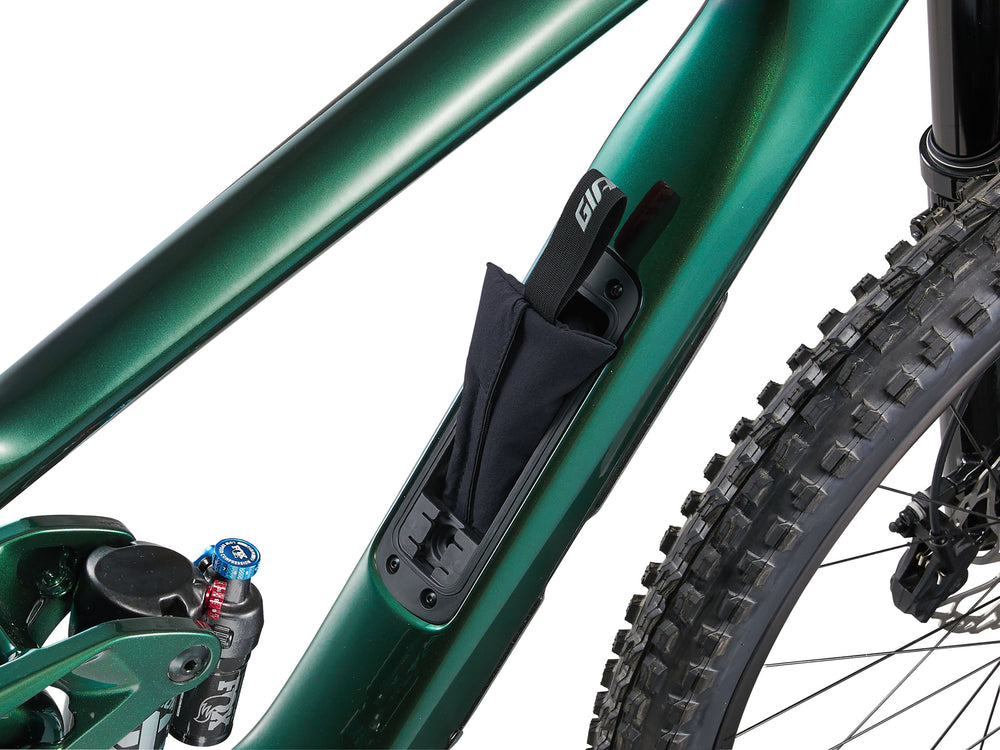

| Frame | Advanced-Grade Composite front and rear triangles, 145mm Maestro suspension, 12x148mm thru-axle, 27.5-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset, integrated down tube storage and under-top tube storage mounts |

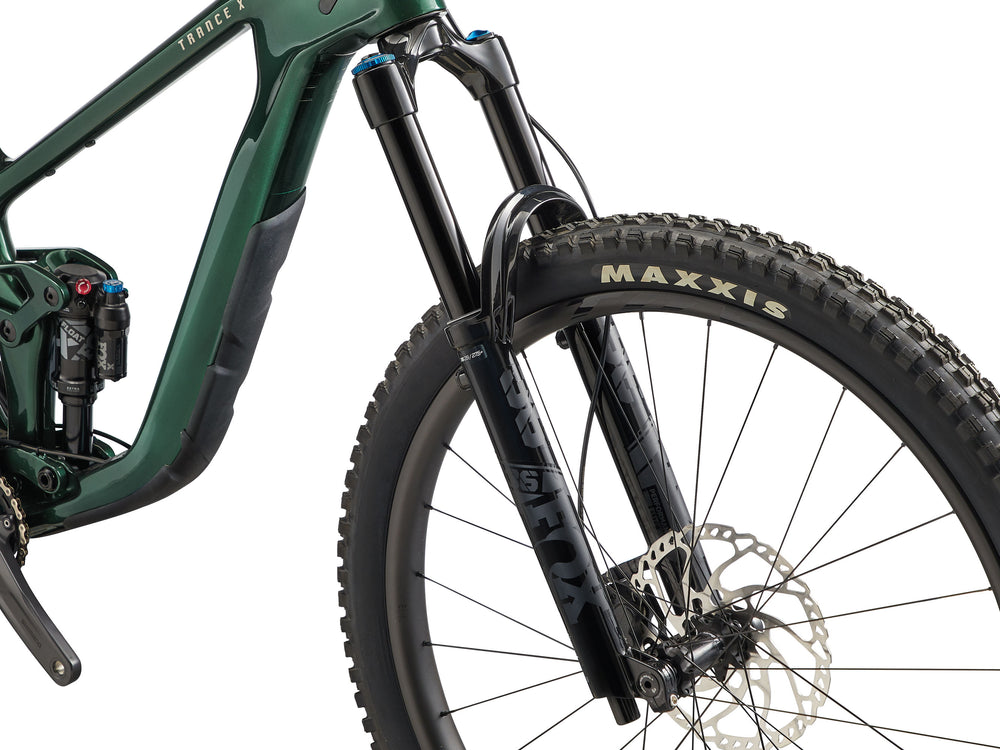

| Fork | Fox 36 Float Performance Elite, 160mm, GRIP 2 damper, 15x110 Kabolt X, 44mm offset |
| Shock | Fox Float X Performance Elite, two-position LSC adjust, 185/55, custom tuned for Giant |

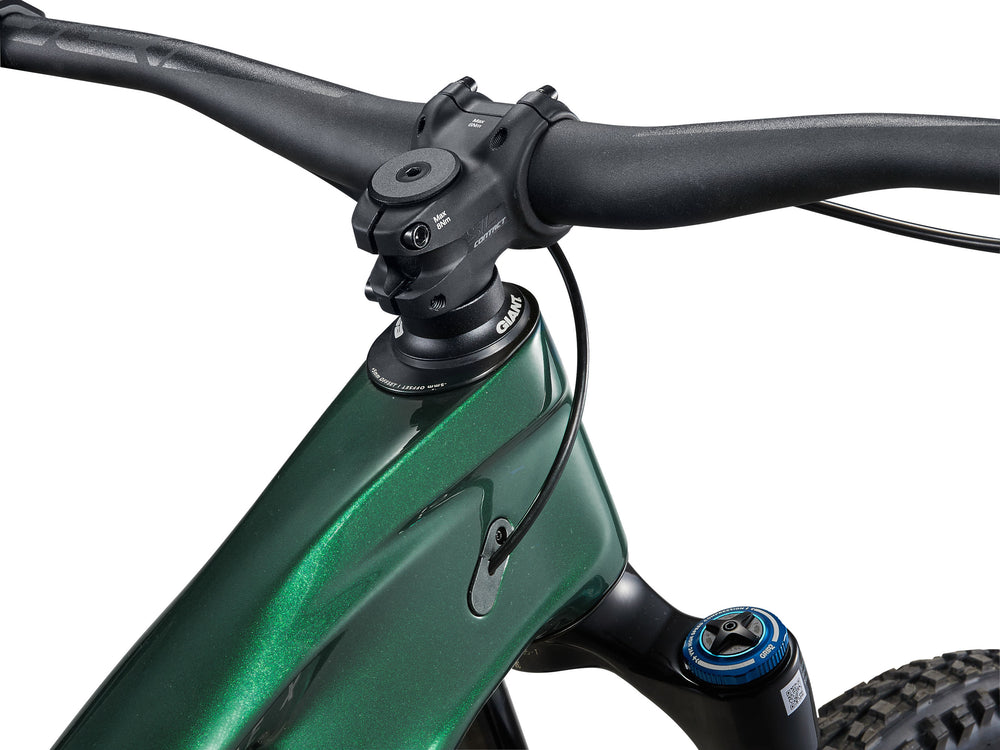

| Handlebar | Giant Contact TR35, alloy, 780x35mm, 20mm rise |
| Grips | Giant Tactal Pro Single Lock-On, 132x35mm |
| Stem | Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm |

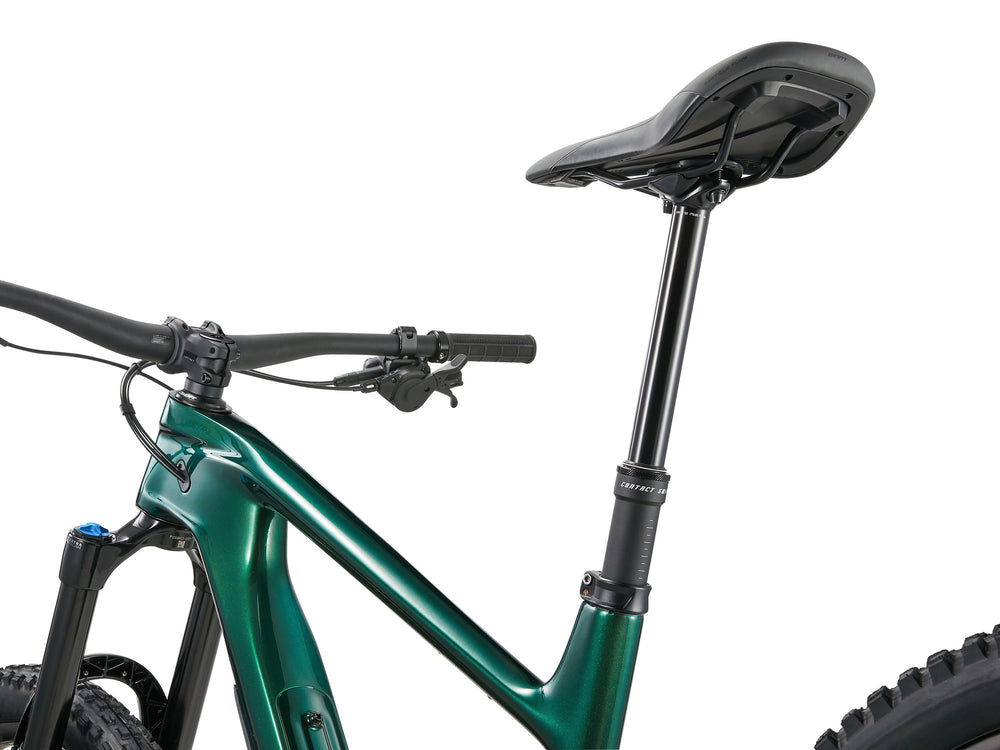

| Seatpost | Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm |
| Saddle | Giant Romero SL |
| Pedals | N/A |
| Shifters | Shimano SLX M-7100, 1x12 |
| Front derailleur | N/A |

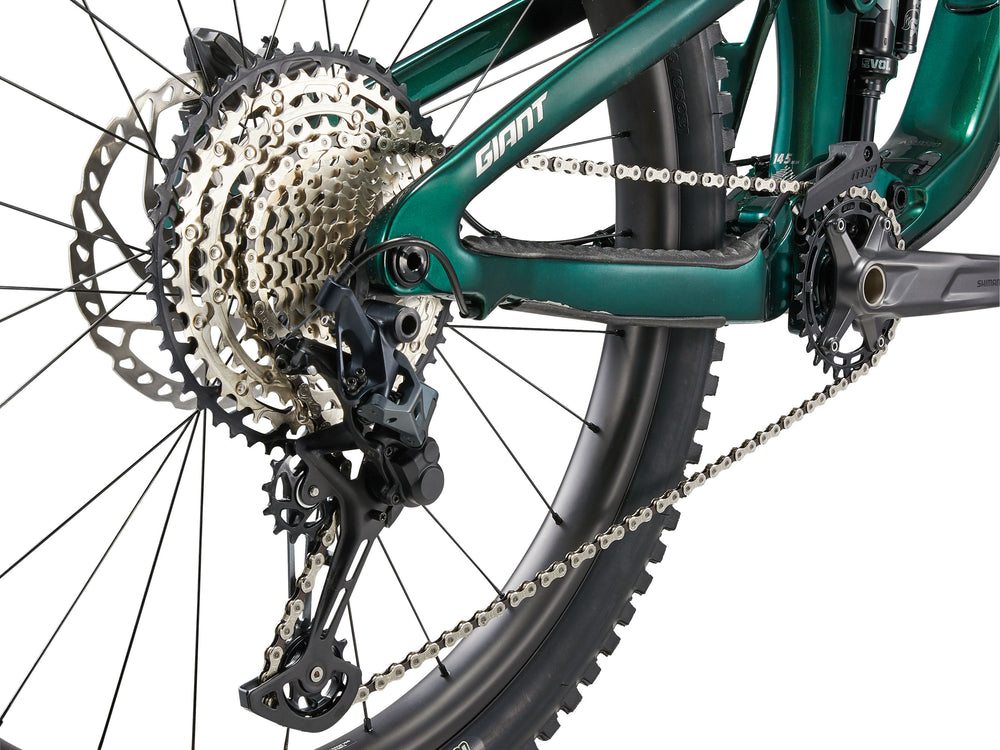

| Rear derailleur | Shimano SLX M-7100 |
| Brakes | Shimano Deore BR-M6120, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm |
| Brake levers | Shimano Deore BL-M6100 |
| Cassette | Shimano SLX M7100, 10x51 |
| Chain | KMC X-12 |
| Crankset | Shimano MT512-1, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm |
| Bottom bracket | Shimano, press fit |
| Rims | Giant TRX WheelSystem, carbon, hookless, 30mm inner width, 40mm outer width, 22mm height, Wide Guard Technology |
| Hubs | [F] Giant MTB alloy, six-bolt [R] Giant MTB alloy, 72t POE (Points of Engagement), six-bolt, MicroSpline driver body |
| Spokes | Sapim, 28, straight pull, DBL Technology |
| Tires | [F] Maxxis Minion DHF, 29x2.5 WT, 3C 60 tpi, MaxxTerra, EXO, TR [R] Maxxis Dissector 27.5x2.4 WT, 60 tpi, 3C MaxxTerra, TR, tubeless |

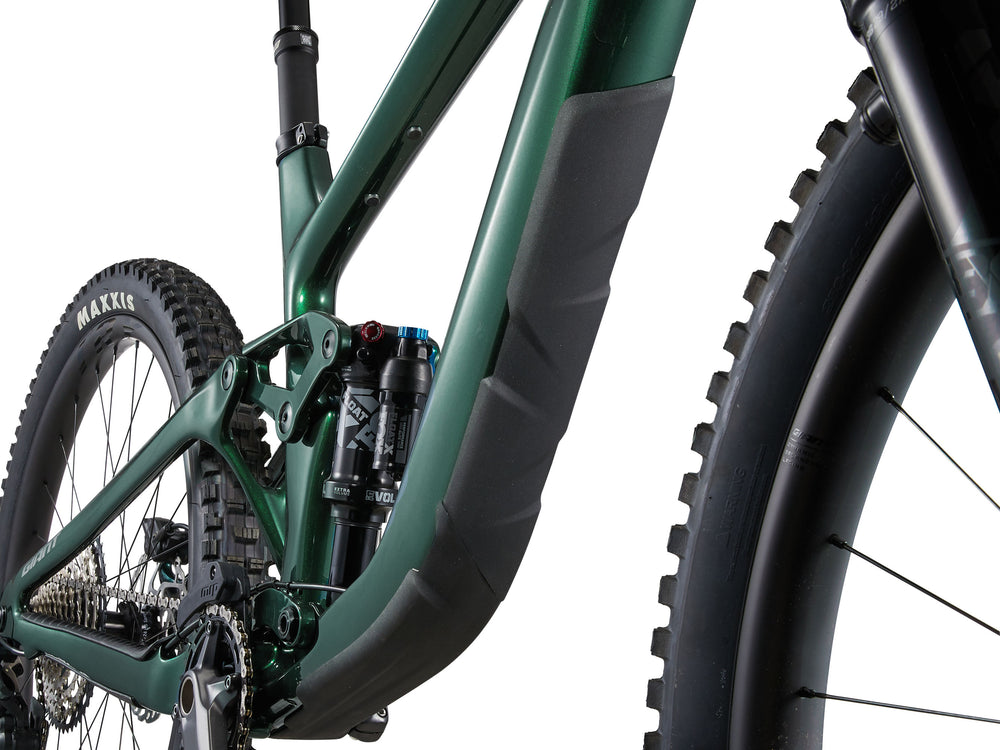

| Extras | tubeless prepared, 2.5" max tire size, 34t max chainring size, 3M tailgate protector, down tube and chainstay protection |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in mm unless otherwise noted.
| S | M | L | XL | |
| Setting (Low/High) | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH |
| ASeat Tube Length (mm) | 400 | 425 | 450 | 475 |
| A1A1 Seat Post Insertion Depth (mm) | 280 | 305 | 330 | 355 |
| BSeat Tube Angle (degrees) | 75.5° | 75.9° | 76.3° | 75.6° | 75.9° | 76.3° | 75.6° | 76.0° | 76.3° | 75.7° | 76.0° | 76.3° |
| CTop Tube Length (mm) | 574 | 573 | 572 | 605 | 604 | 603 | 627 | 626 | 626 | 660 | 659 | 658 |
| DHead Tube Length (mm) | 100 | 105 | 115 | 125 |
| EHead Tube Angle (degrees) | 63.1° | 63.5° | 63.9° | 63.2° | 63.5° | 63.9° | 63.2° | 63.6° | 63.9° | 63.3° | 63.6° | 63.9° |
| FFork Rake (mm) | 44 | 44 | 44 | 44 |
| GTrail (mm) | 143.9 | 141.1 | 138.1 | 143.6 | 140.8 | 138 | 143.3 | 140.6 | 137.8 | 143 | 140.4 | 137.7 |
| HWheelbase (mm) | 1194 | 1193 | 1193 | 1226 | 1225 | 1225 | 1250 | 1250 | 1249 | 1285 | 1284 | 1283 |
| IChain Stay Length (mm) | 440 | 439 | 438 | 440 | 439 | 438 | 440 | 439 | 438 | 440 | 439 | 438 |
| JBottom Bracket Drop (mm) | 30 | 25 | 21 | 31 | 26 | 21 | 30 | 26 | 21 | 31 | 26 | 21 |
| KStack (mm) | 626 | 623 | 621 | 631 | 628 | 625 | 640 | 638 | 635 | 650 | 647 | 644 |
| LReach (mm) | 413 | 417 | 421 | 443 | 447 | 451 | 463 | 467 | 471 | 494 | 497 | 501 |
| MStand Over Height (mm) | 727 | 731 | 735 | 730 | 734 | 739 | 754 | 751 | 756 | 744 | 749 | 754 |
| OStem Length (mm) | 40 | 40 | 50 | 50 |
| PCrank Length (mm) | 165 | 170 | 170 | 170 |
| QWheel Size | [F] 29" [R | [F] 29" [R | [F] 29" [R | [F] 29" [R |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size. Available sizes may vary from country to country.
| size | inches | cm |
|---|---|---|
| S | 5’4” - 5’8” | 163 - 172 |
| M | 5’7” - 5’11” | 171 - 180 |
| L | 5’10” - 6’2” | 179 - 188 |
| XL | 6’2” - 6’5” | 187 - 196 |
Sizing to be used as a reference only. Chat with us if you have any questions.
