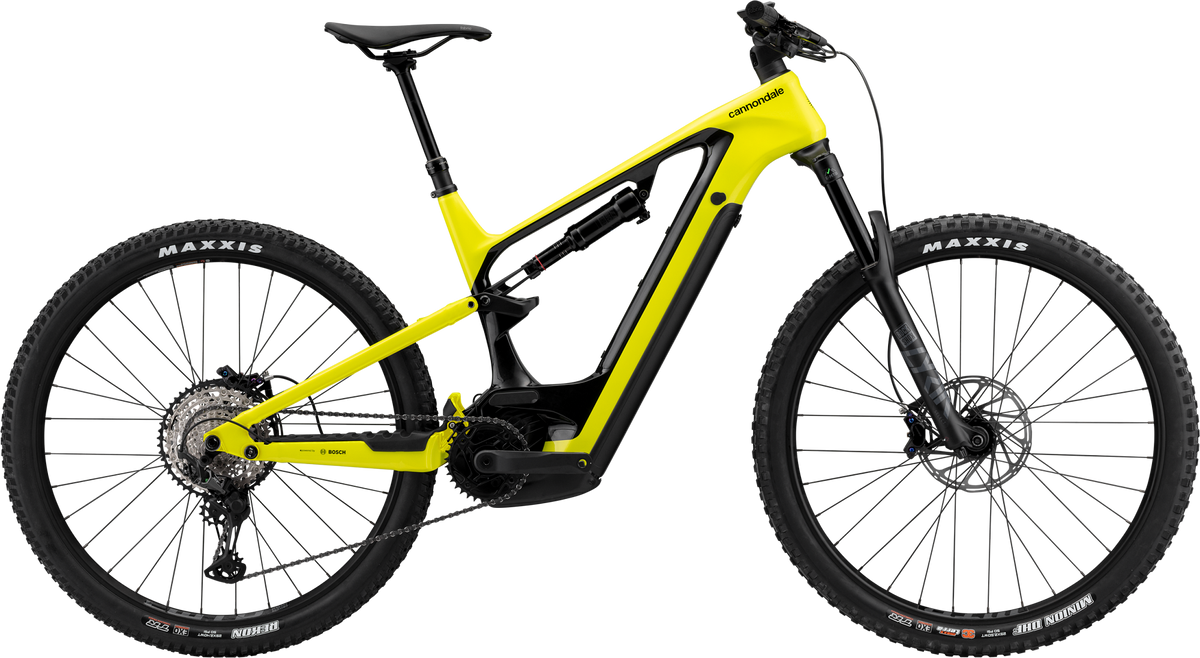

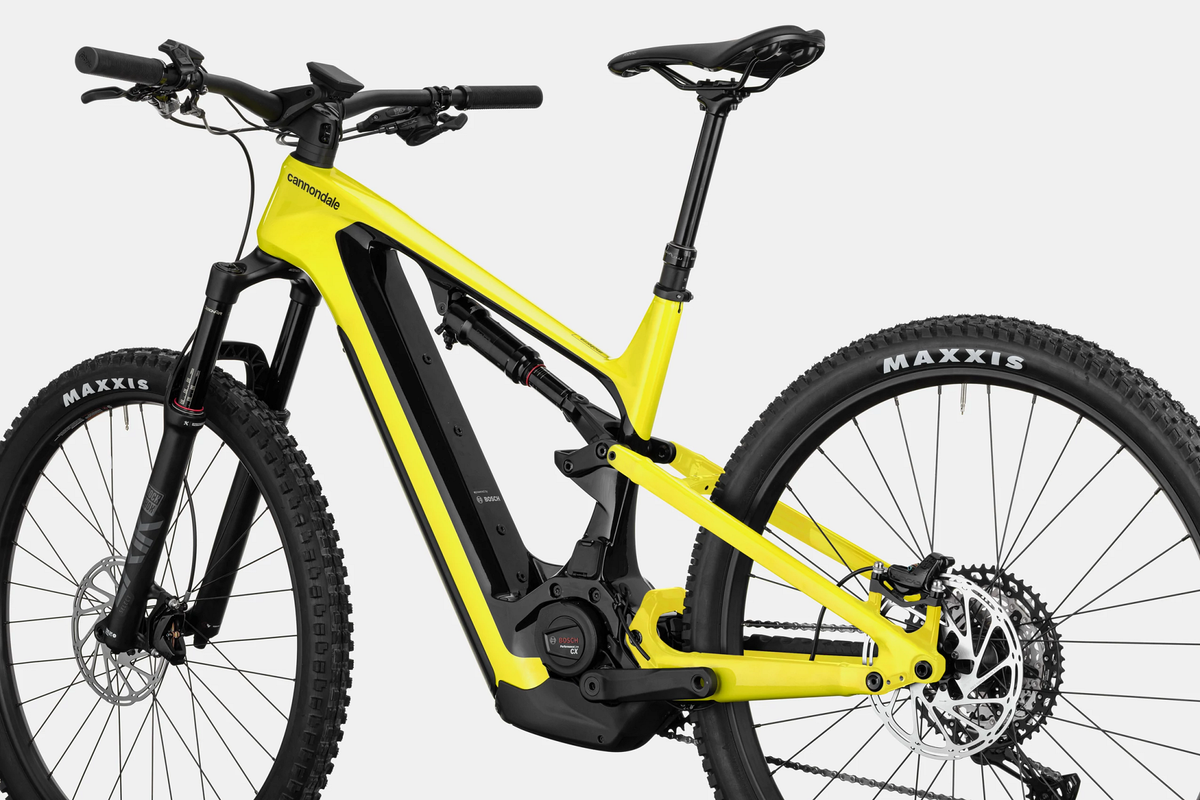

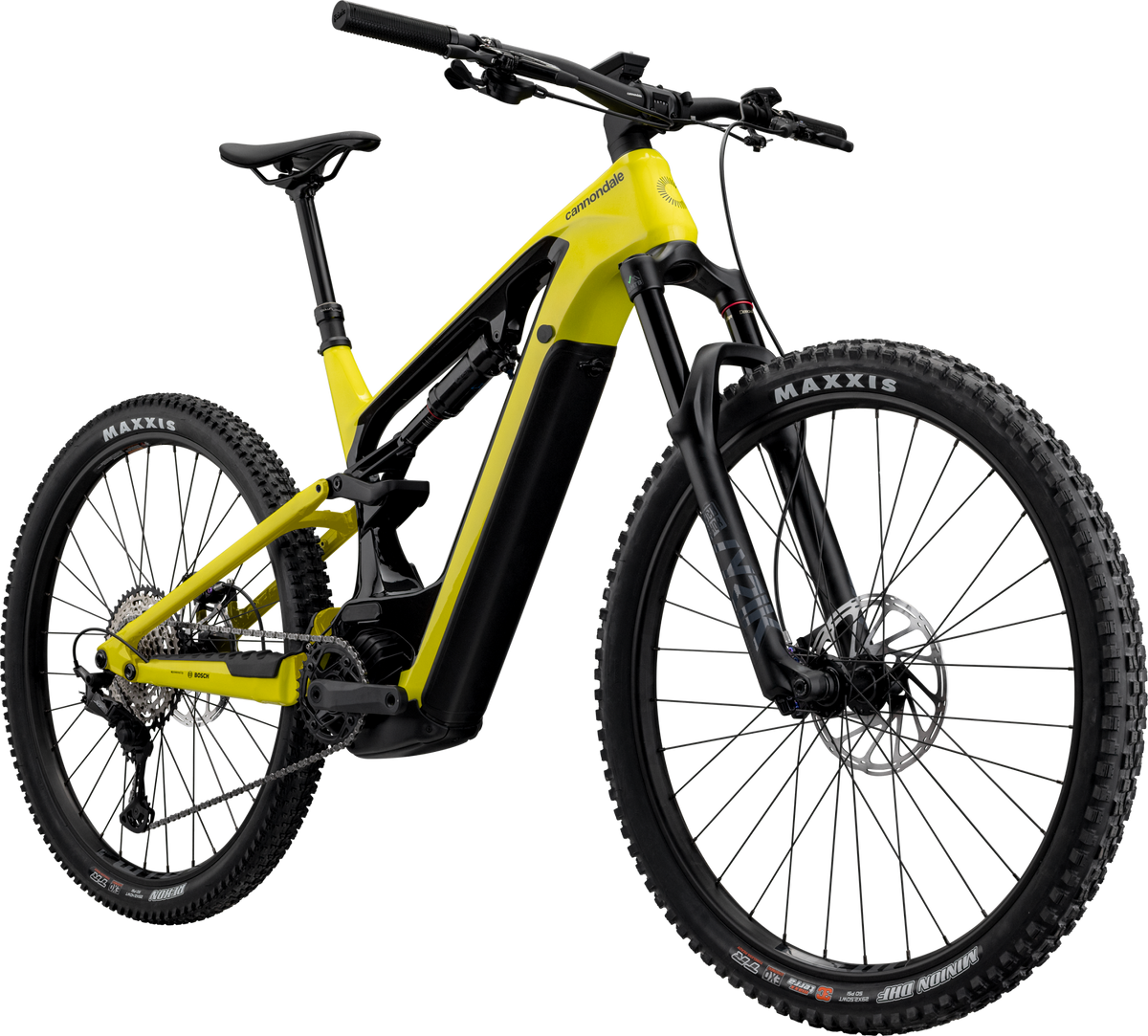

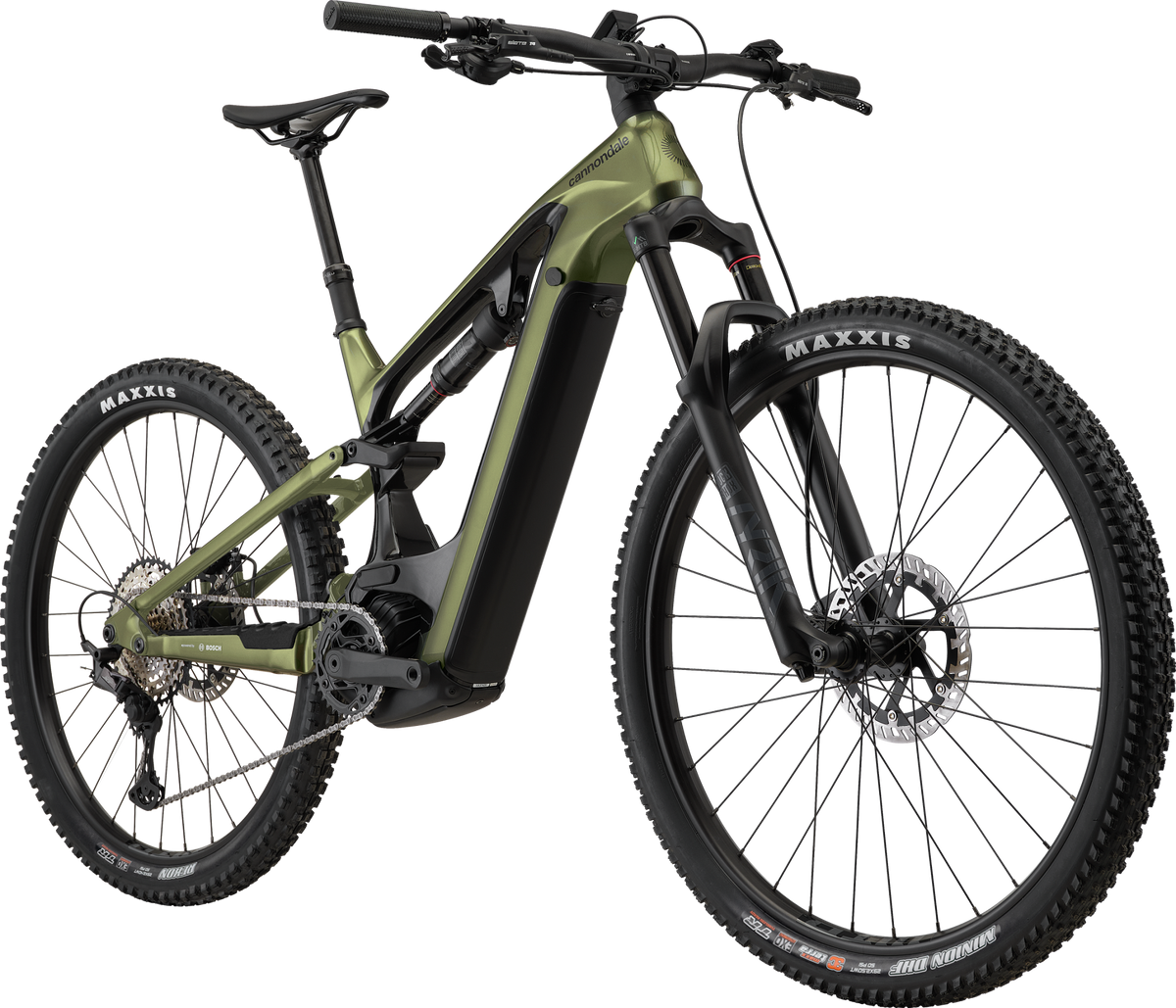

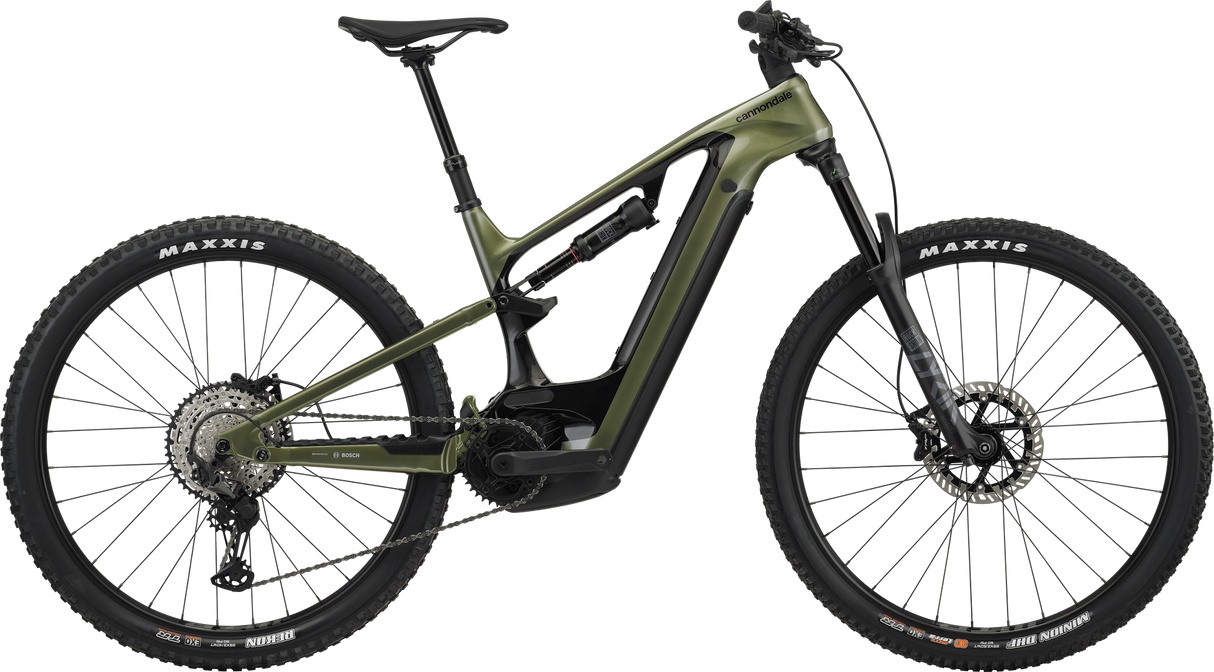

2021 Moterra Carbon 2 Full Suspension Electric Mountain Bike
Every bike is fully assembled, tuned, and test-ridden before pickup at your chosen DFW Bike Mart location.
Expected ship date: {date+3}
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart - ready to ride right at your doorstep within 10 miles of any DFW location.
Complete your Ride
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
Features
-

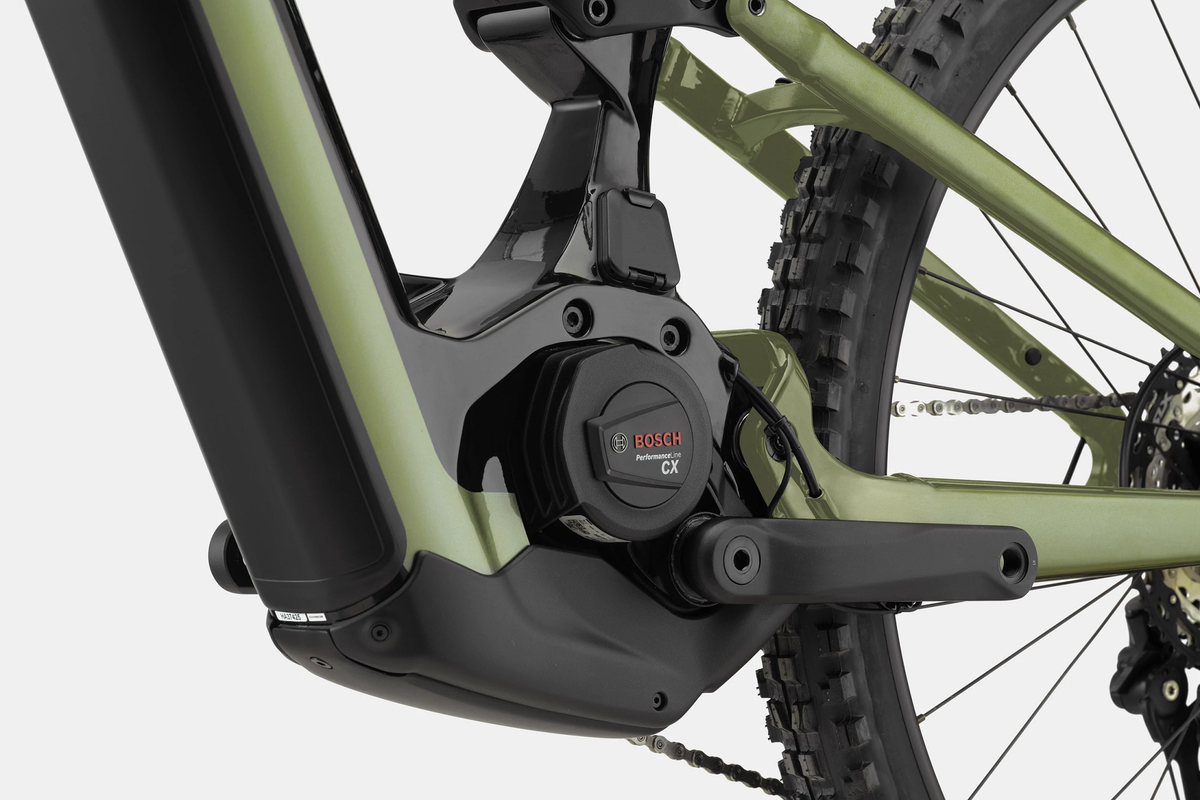

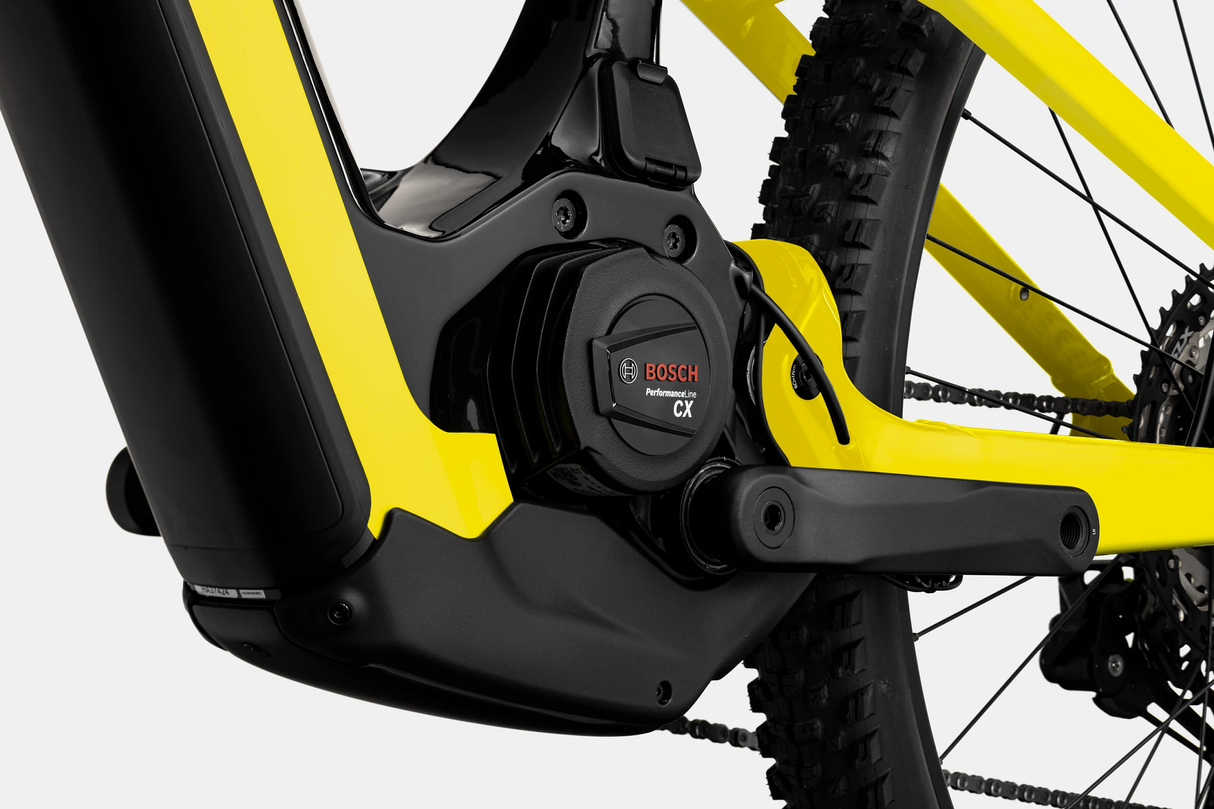

Powered By Bosch
Bosch's most powerful eMTB drive unit, the Performance Line CX, delivers an unreal riding experience. With 85Nm of available torque, it can boost your output by up to 340% in a completely natural, intuitive-feeling way. This is e-mountain bike power at its best.
-
750Wh Battery
Go longer. Do more laps. Explore the furthest peaks.With the largest battery Bosch makes, range anxiety is a thing of the past. Charge it on the bike, or remove it easily for off-bike charging.
-
Proportional Response Suspension
Riders come in all sizes, but our Proportional Response suspension is the only design that addresses this pretty obvious fact. Each size frame gets its own custom suspension kinematics - different mounting points, links and leverage ratios - for truly size-specific suspension performance. Better traction, more efficient pedaling, and more active suspension under braking for every rider.
-
Built Light, Built Tough
A sophisticated carbon fiber main frame keeps mass to a minimum. And since our engineers prioritized durability over gram-counting, confidence is built in (as is a lifetime warranty).
-
Clean Cable Management
Less clutter, more style. Moterra Neo's unique cable routing sends the shift and brake cables under the stem and through the frame for a sleek look.
-
Protection
To protect the motor and battery from damage, Moterra features a sealed battery cover and a burly, trials-style skid plate.
Overview
Overview
Breaking Boundaries
A dual-suspension e-mountain bike built to crush boundaries. With its intuitive handling & the power and range of the Bosch 750Wh system, nothing is out of reach.
Where it thrives
Challenging trails, Up and down hills, Out in the elements
What it's built for
Handling, Traction, Efficiency, Durability
Highlights
- Proportional Response Tuned carbon frame / RockShox Lyrik Select+ fork, 150mm travel
- Bosch SmartSystem - 750wh battery & Performance CX motor
- Shimano XT/SLX 12-speed drivetrain
Certifications
Technical Specifications
Technical Specifications
| Platform | Moterra Neo |
| Model name | Moterra Carbon 2 |
| Model code | C25272U |

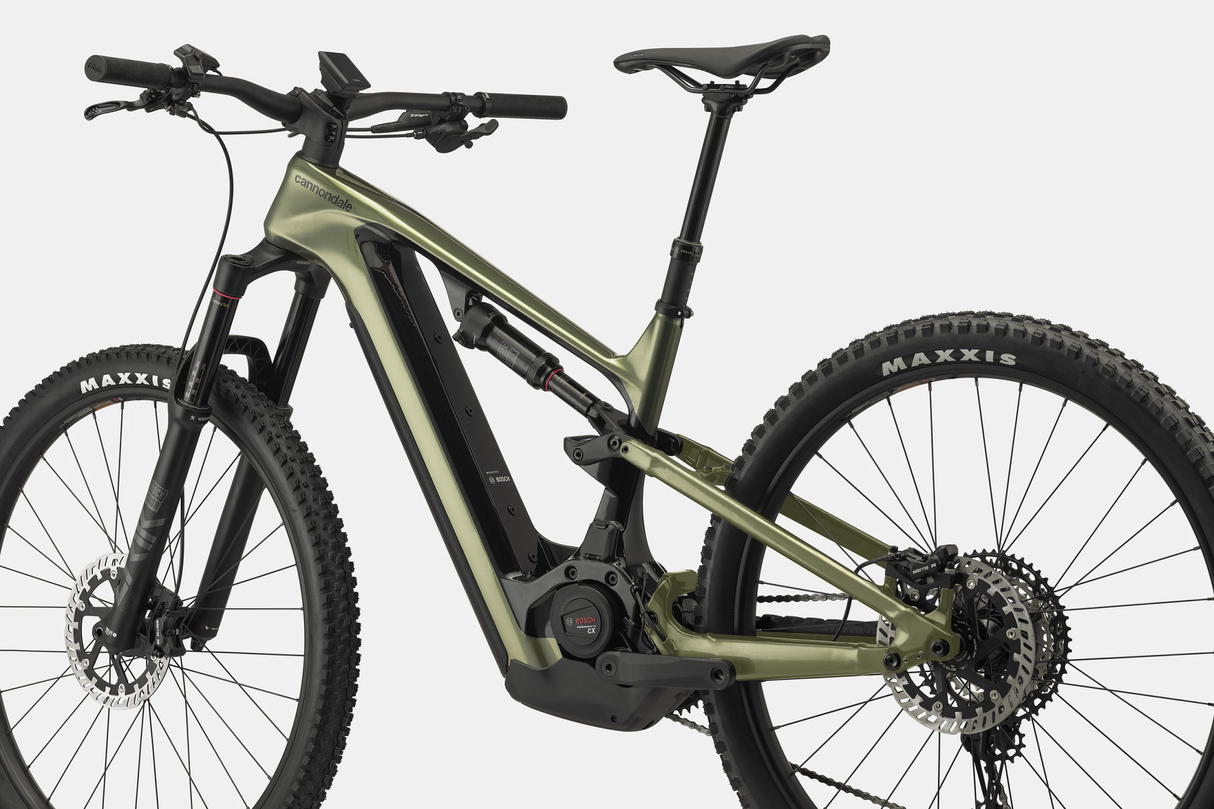

| Frame | Moterra Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount |
| Fork | RockShox Lyrik Select, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset |
| Headset | Acros integrated sealed bearing, tapered |

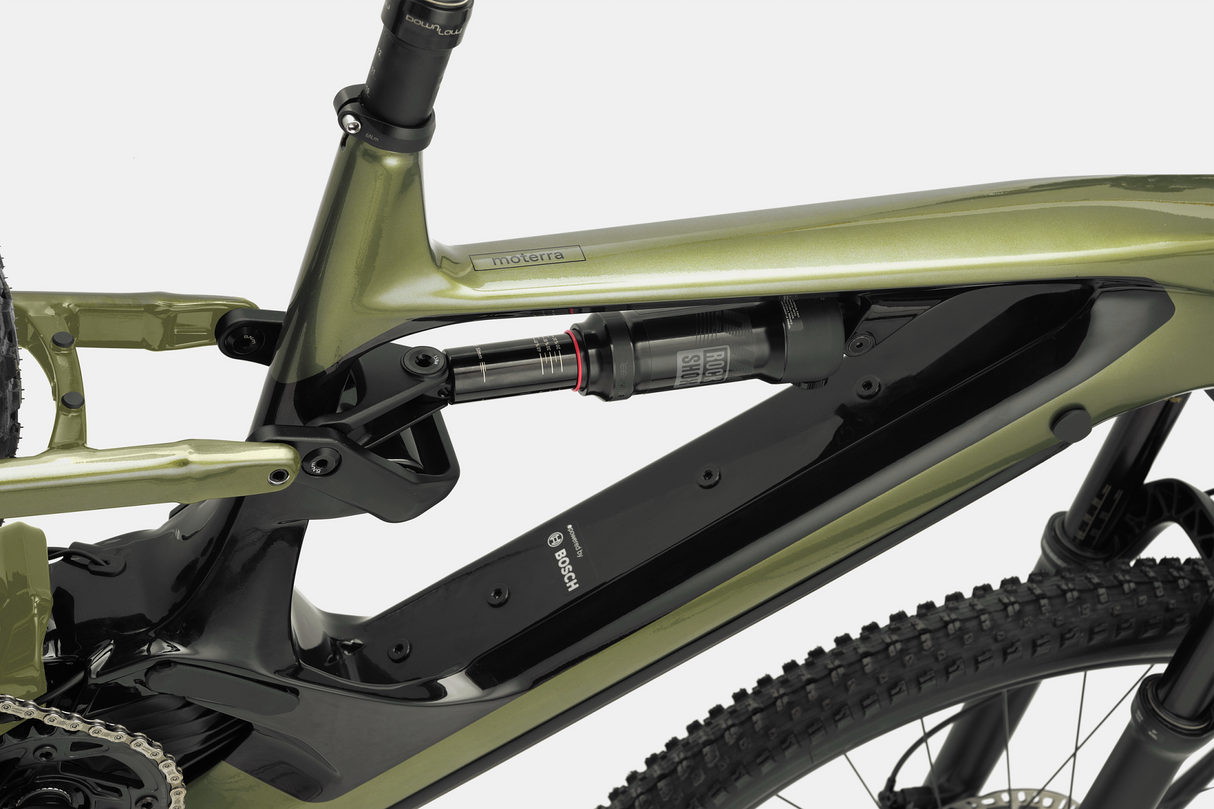

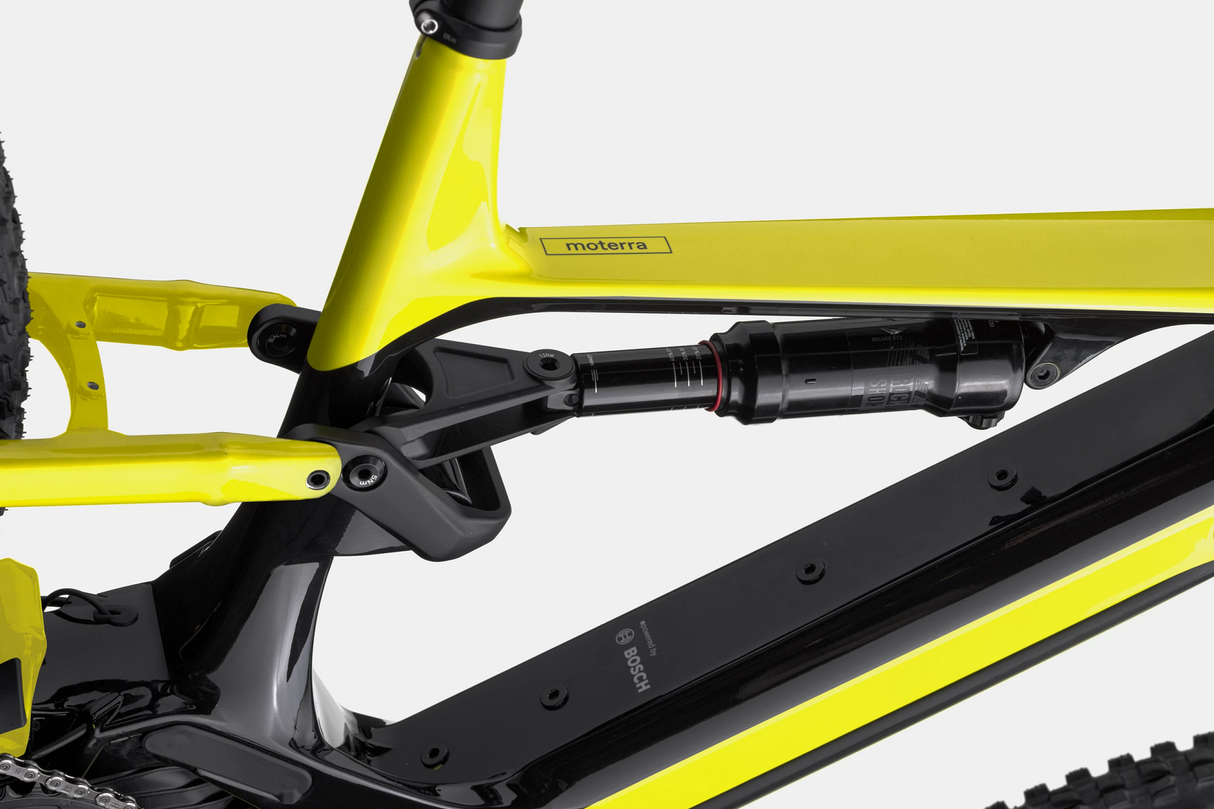

| Rear shock | RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound |
| Drive unit | Bosch Performance Line CX 250W |
| Battery | Bosch PowerTube, 750Wh |
| Charger | Bosch 4A |

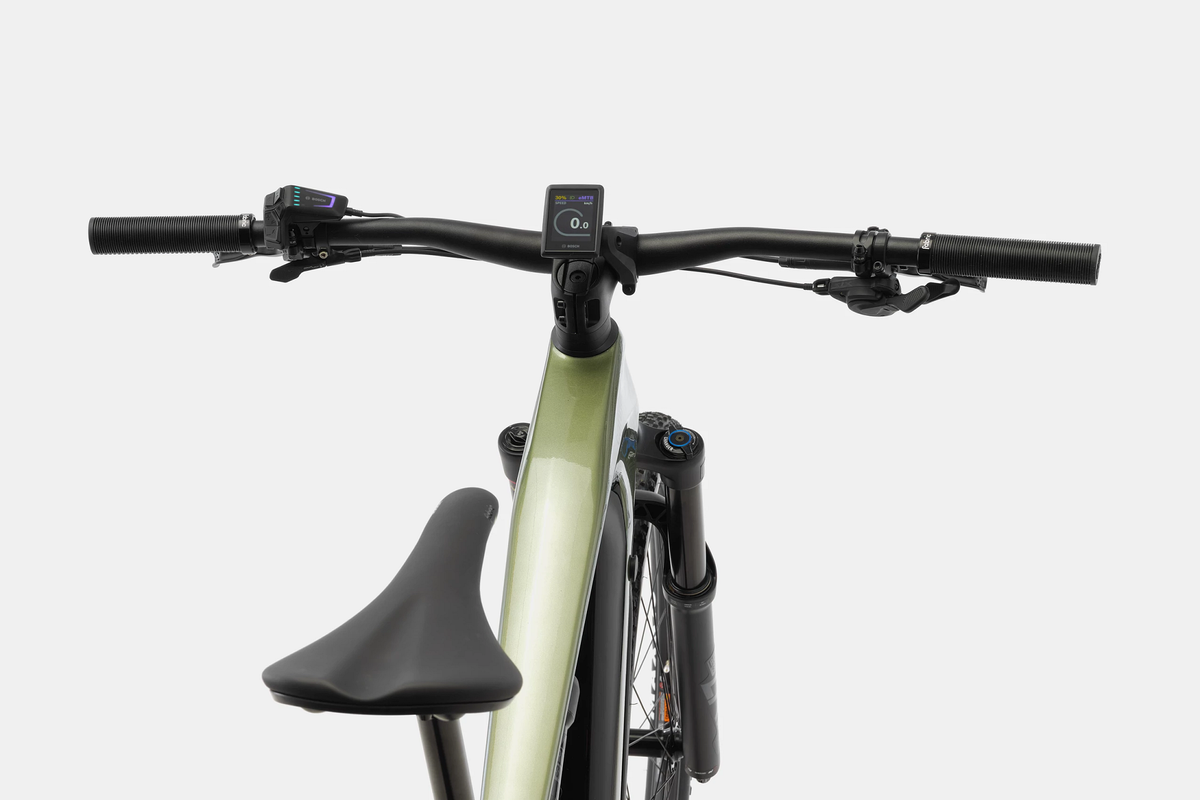

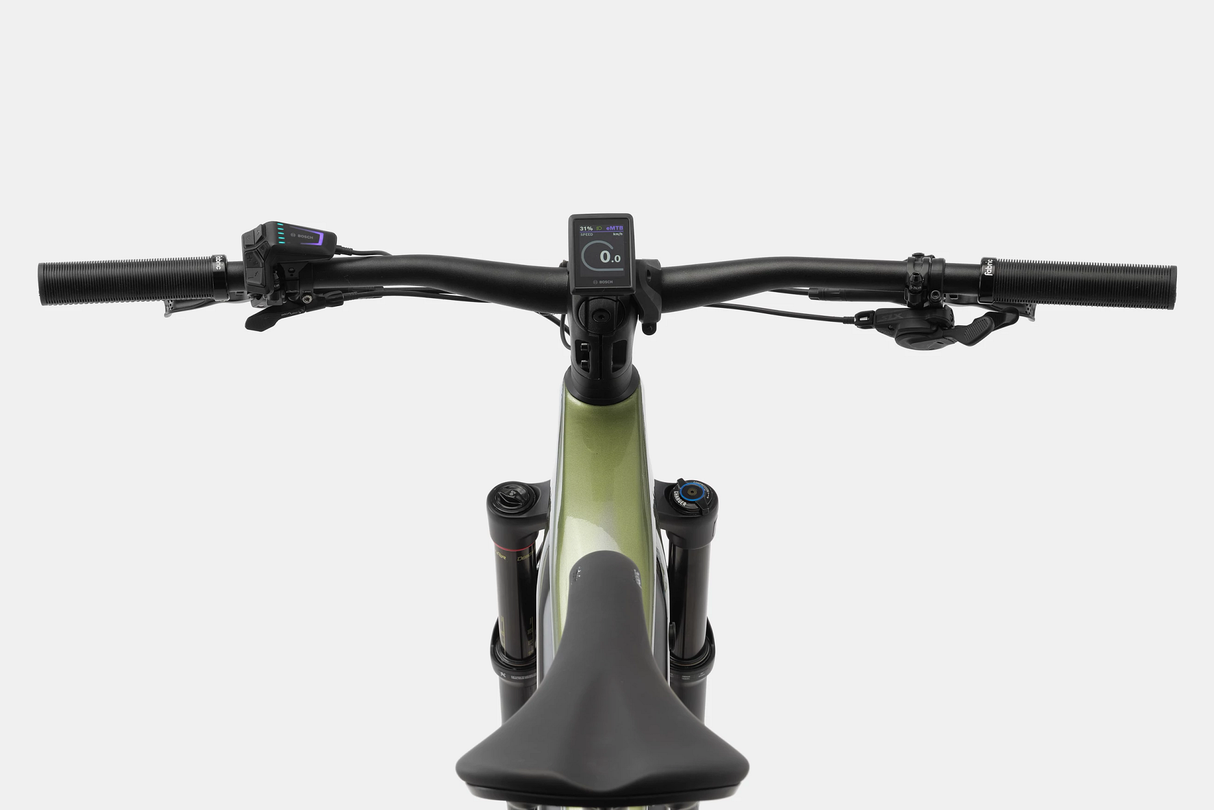

| Display | Bosch Kiox 300 w/ LED remote |
| Certifications | UL 2849 |

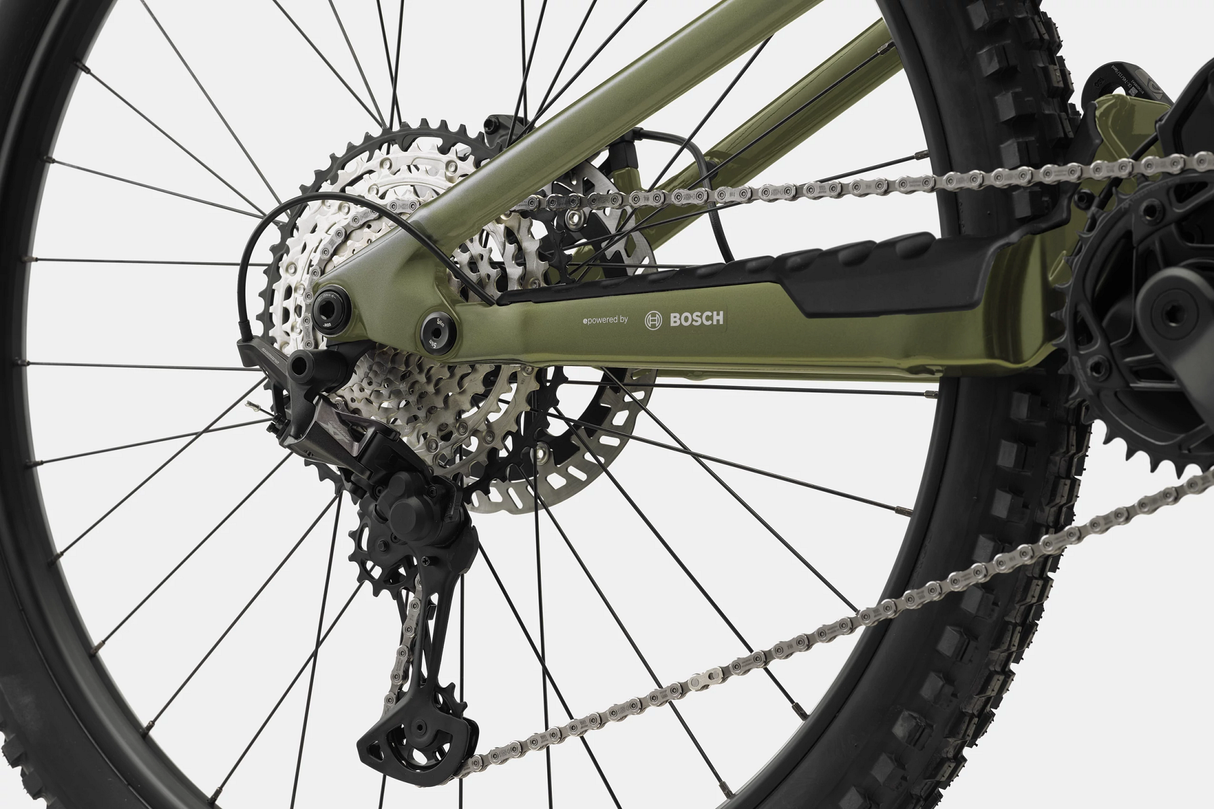

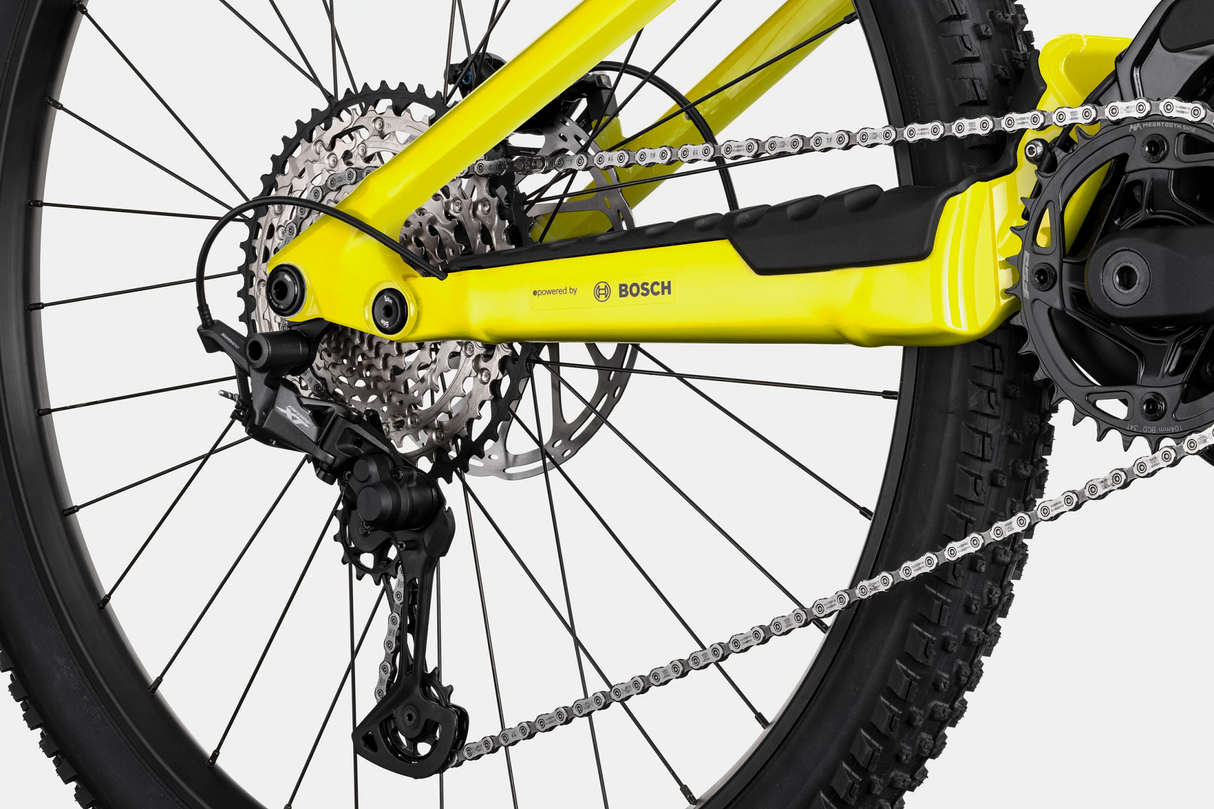

| Rear derailleur | Shimano XT |
| Shifters | Shimano SLX, 12-speed |
| Chain | Shimano SLX, 12-speed |
| Crank | FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
| Rear cogs | Shimano SLX, 10-51, 12-speed |
| Brakes | Shimano MT520 4-piston hydraulic disc, 203/203mm RT64 rotors |
| Brake levers | Shimano MT501 hydraulic disc |
| Rims | WTB ST i30 TCS, 32h, tubeless ready |
| Spokes | DT Swiss Champion |
| Tire size | 2.6 |
| Wheel size | 29 |
| Hubs | (F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle |
| Tires | (F) Maxxis Minion DHF, 29x2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready |
| Front tire | Maxxis Minion DHF, 29x2.6", EXO, tubeless ready |
| Rear tire | Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready |

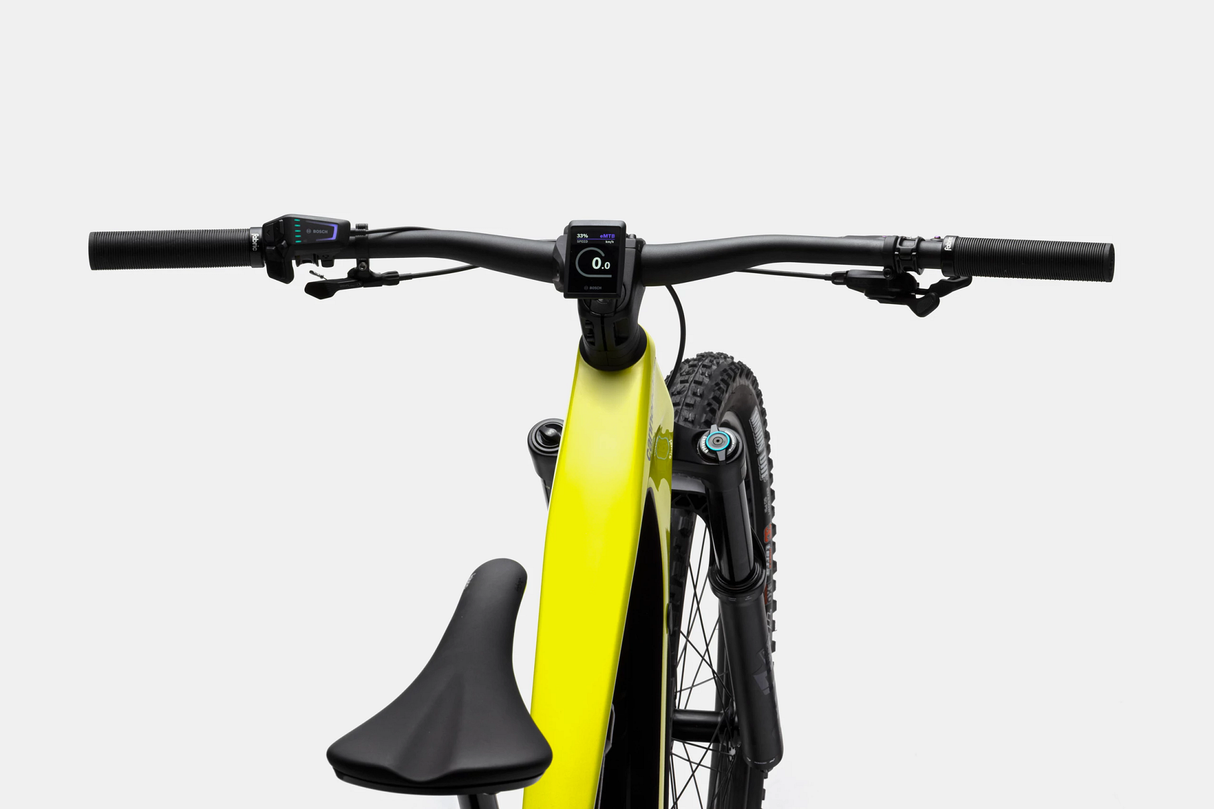

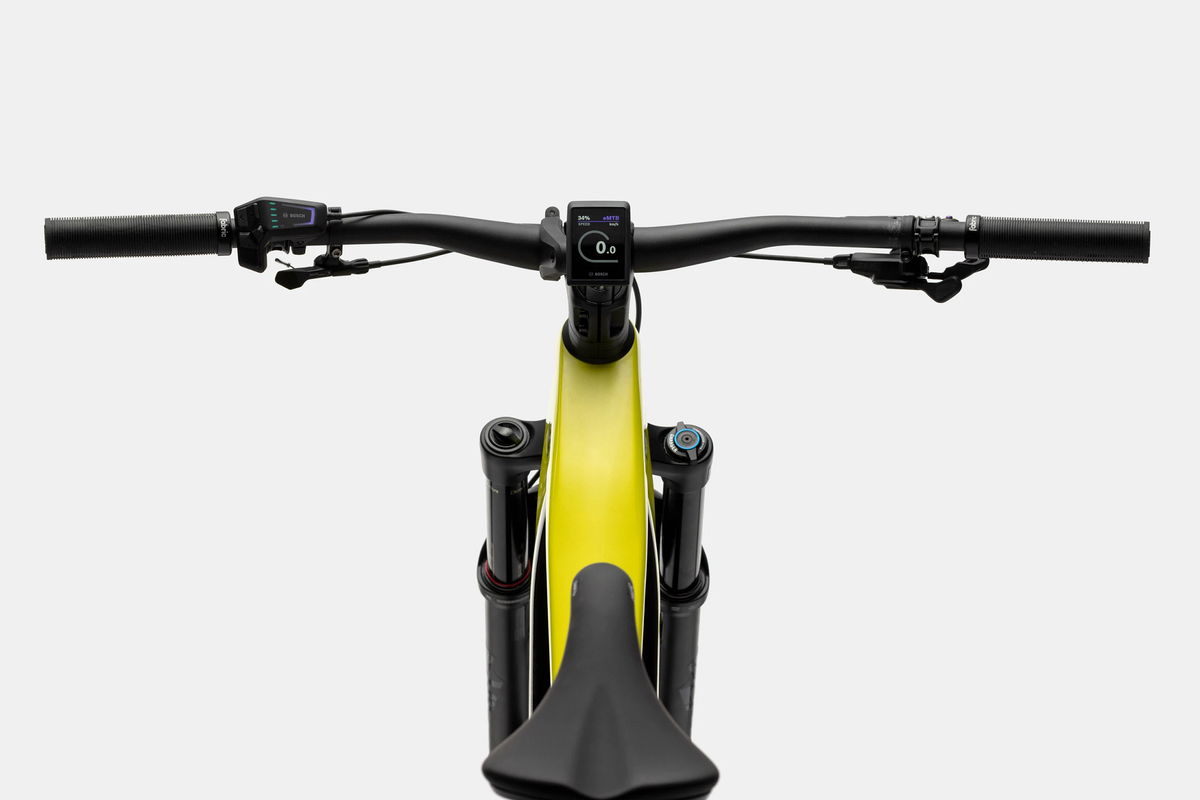

| Handlebar | Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm |
| Stem | Cannondale 2, 6061 Alloy, 35mm, 0° |
| Grips | Fabric FunGuy |
| Saddle | Fabric Scoop Shallow Sport, steel rails |
| Seatpost | Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL) |
| Extra 1 | Pre-installed light cable. (Note: this model is not compatible with Bosch Range Extender) |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
Length measurements converted to mm from Cannondale inch values. Angles in degrees.
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| SM | 5'1" - 5'5" | 155 - 165 |
| MD | 5'4" - 5'9" | 163 - 175 |
| LG | 5'8" - 6'1" | 173 - 185 |
| XL | 6'0" - 6'5" | 183 - 196 |
Sizing to be used as a reference only. Chat with us if you have any questions.
