ALUXX SL Aluminum Technology
This High-Performance level, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.
-
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
-
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Overview
Overview
Get your daily dose of singletrack. With a lightweight frame, 130mm suspension fork and 27.5 wheels with high-volume tires, this hardtail offers loads of traction, speed and fun on the trail.
Key Performance Factors
- Trail tuned design: Balanced geometry with a 75-degree seattube angle puts the rider in a powerful pedaling position on climbs, while a slacker 66-degree head angle boosts confidence and control on technical descents.
- Responsive handling: Lightweight ALUXX SL aluminum hardtail frame offers agile acceleration and maneuverability to help riders climb, corner and hammer the flats with efficiency and speed.
- Smooth control: Giant Crest 34 suspension fork with 130mm of travel absorbs roots, rocks and ruts. Grippy, high-volume tires boost traction on rugged terrain. And a dropper seatpost with handlebar remote lets you adjust saddle height on the fly for confident positioning on changing terrain.
Technical Specifications
Technical Specifications
| Sizes | S, M, L, XL |

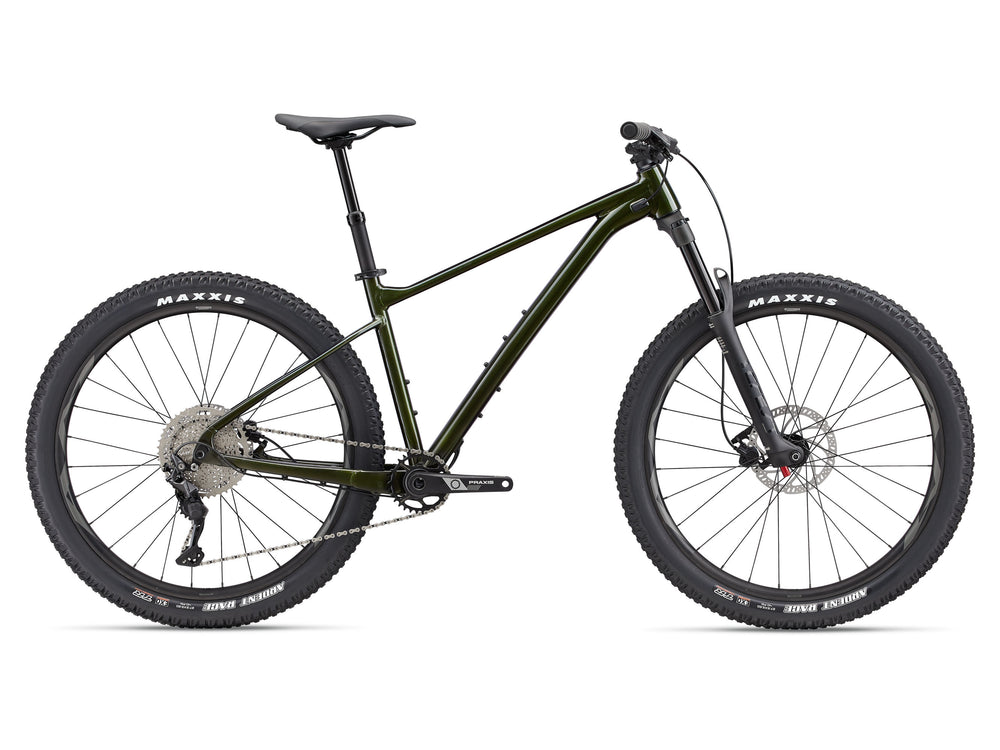

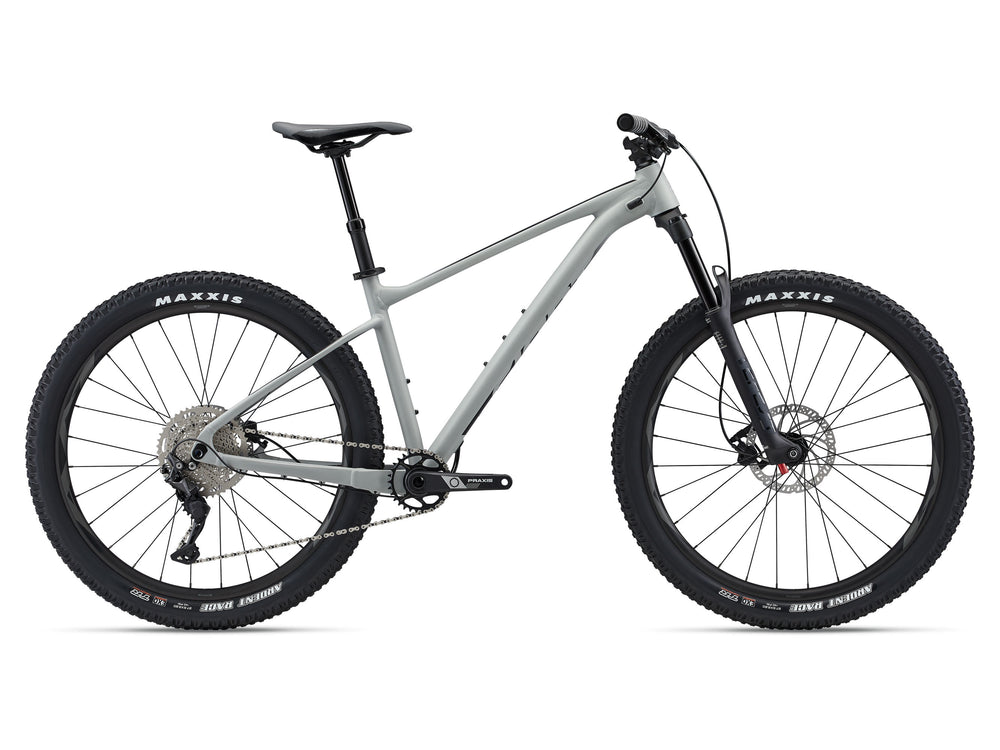

| Colors | Concrete, Phantom Green |
| Frame | ALUXX SL-Grade Aluminum |
| Fork | Giant Crest 34 RCL, 130mm, 44mm offset, Boost 15x110 |
| Shock | N/A |
| Handlebar | Giant Contact TR35, 780x35mm |
| Grips | Giant Sole-O |
| Stem | Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm |
| Seatpost | Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 125mm travel / 30.9 x 395mm L: 150mm travel / 30.9 x 440mm XL: 170mm travel / 30.9 x 450mm |
| Saddle | Giant Romero |
| Pedals | N/A |
| Shifters | Shimano Deore M-4100, 1x10 |
| Front derailleur | N/A |
| Rear derailleur | Shimano Deore M-5120 |
| Brakes | Tektro HDM 275, hydraulic, Tektro rotors [F]180mm, [R]180mm |
| Brake levers | Tektro HDM 275 |
| Cassette | Shimano Deore M4100, 11x46 |
| Chain | KMC X10 |
| Crankset | Praxis Cadet M24, 30t S:165mm, M:170mm, L:170mm, XL:170mm |
| Bottom bracket | Praxis, press fit |
| Rims | Giant AM 27.5, tubeless ready sleeve-joint rim, 30mm inner width |
| Hubs | alloy, open-race sealed bearings |
| Spokes | stainless |
| Tires | Maxxis Ardent Race 27.5x2.6, folding, TR |
| Extras | tubeless prepared, 2.6" max tire size, 32t max chainring size |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in mm unless otherwise noted.
| S | M | L | XL | |
| ASeat Tube Length (mm) | 380 | 430 | 465 | 495 |
| BSeat Tube Angle (degrees) | 75.0° | 75.0° | 75.0° | 75.0° |
| CTop Tube Length (mm) | 592 | 612 | 639 | 662 |
| DHead Tube Length (mm) | 95 | 95 | 105 | 115 |
| EHead Tube Angle (degrees) | 66.0° | 66.0° | 66.0° | 66.0° |
| FFork Rake (mm) | 44 | 44 | 44 | 44 |
| GTrail (mm) | 113 | 113 | 113 | 113 |
| HWheelbase (mm) | 1154 | 1174 | 1203 | 1227 |
| IChain Stay Length (mm) | 435 | 435 | 435 | 435 |
| JBottom Bracket Drop (mm) | 60 | 60 | 60 | 60 |
| KStack (mm) | 622 | 622 | 631 | 640 |
| LReach (mm) | 425 | 445 | 470 | 490 |
| MStand Over Height (mm) | 712 | 726 | 746 | 771 |
| NHandlebar Width (mm) | 780 | 780 | 780 | 780 |
| OStem Length (mm) | 40 | 40 | 50 | 50 |
| PCrank Length (mm) | 165 | 170 | 170 | 170 |
| QWheel Size | 27.5" | 27.5" | 27.5" | 27.5" |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size. Available sizes may vary from country to country.
| size | inches | cm |
|---|---|---|
| S | 5’4” - 5’8” | 163 - 172 |
| M | 5’7” - 5’11” | 171 - 180 |
| L | 5’10” - 6’2” | 179 - 188 |
| XL | 6’2” - 6’6” | 187 - 198 |
Sizing to be used as a reference only. Chat with us if you have any questions.
