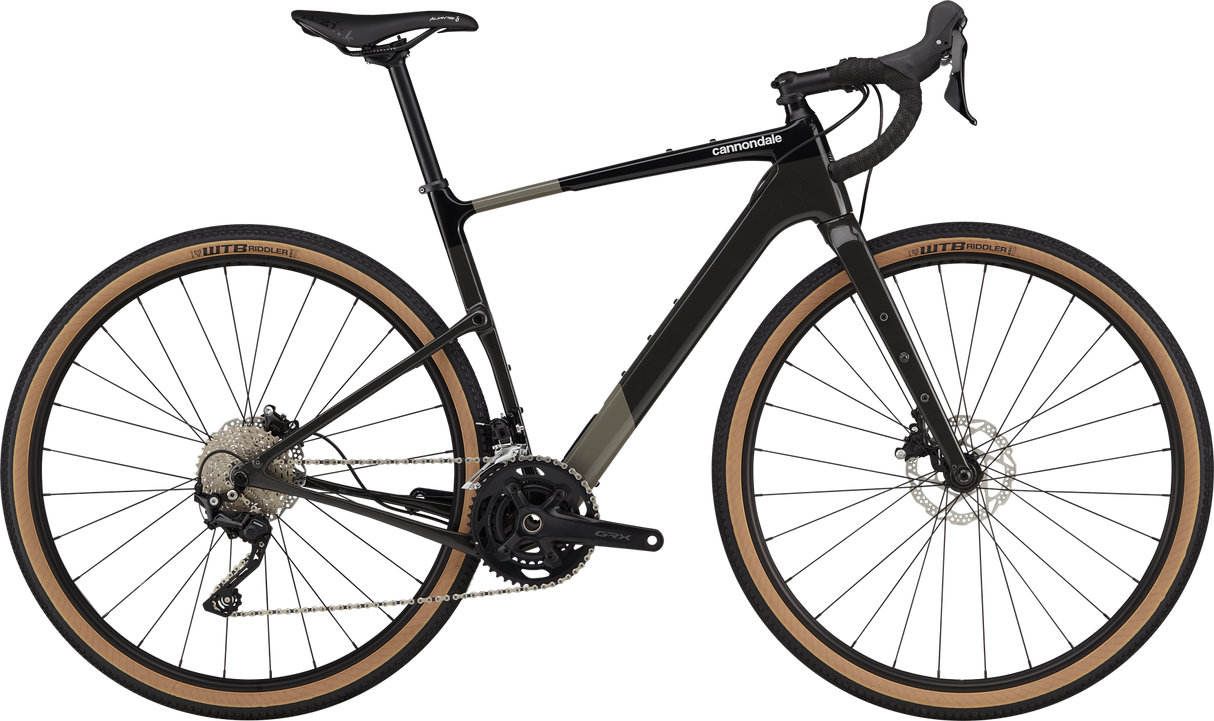

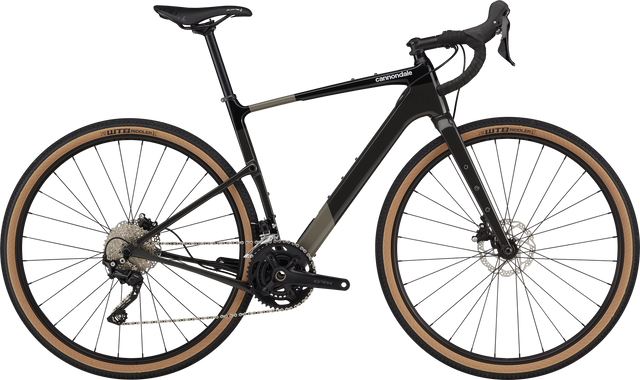

2022 Topstone Carbon 4 Gravel Road Bike
Every bike is fully assembled, tuned, and test-ridden before pickup at your chosen DFW Bike Mart location.
Expected ship date: {date+3}
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart - ready to ride right at your doorstep within 10 miles of any DFW location.
Complete your Ride
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
Features
-
Engineered Simplicity
Low-friction bushings on the Kingpin thru-axle offer smooth action, maintenance-free reliability and over 100 grams of weight savings vs conventional cartridge bearings.
-
Clearance and Compatibility
The new dropped chainstay design lets you run big volume tires (up to 700x45mm or 27.5x2.1", with 6mm of mud-shedding clearance on each side), all with a standard dish rear wheel for easy interchangeability.
-
Tuned for the Rider
Our Proportional Response size-specific construction creates optimal frame stiffness and compliance for each frame size, so that every rider has the ideal ride feel and comfort of Kingpin.
-
SmartSense Ready
Make every ride better with enhanced visibility and awareness. The SmartSense-ready frame means it's easy to upgrade to our system of intelligent running lights and rear-facing radar.
-
OutFront Steering Geometry
Confident stability meets nimble agility. An extra long fork offset paired with a slack head angle keeps the steering light and lively, yet delivers unreal confidence at speed and in the rough stuff.
-
Dropper Ready
Built to accept an internally-routed 27.2mm dropper seatpost, which shouldn't really be a surprise on a bike this off-road capable.
Nothing is Impassable
-
Kingpin Suspension
Delivering a smooth ride without the added weight and complexity of a shock and links, Kingpin is our answer for the most demanding gravel riders. Whether you need more comfort to go long, more traction to push beyond or more give to take on the tech - Kingpin is the maintenance-free, lightweight answer to your prayers.
-
Load Up. Roll Out.
With plentiful gear and waterbottle mounts on the frame and fork, Topstone Carbon is ready to load up and go long.
-
Corner like a Boss
Rail through the rough and come out smiling. Led by our OutFront steering geometry, the Topstone Carbon offers up handling that's serenely stable in the chop, and light & nimble everywhere else.
Overview
Overview
Nothing is impassable
The best gravel bike for anything from dirt roads to singletrack trails. With the grip and comfort of the Kingpin suspension, nothing is off-limits.
Where it thrives
Gravel and Dirt Roads, Rough Pavement, Trails
What it's built for
Gravel riding, back road exploring, bike packing and off-road adventures
Highlights
- Lightweight Topstone Carbon frameset with Kingpin suspension, SmartSense compatible
- Shimano GRX 400 10-speed shifting & hydraulic disc brakes
- WTB ST i23 TCS rims
Technical Specifications
Technical Specifications
| Platform | Topstone Carbon |
| Model name | Topstone Carbon 4 |
| Model code | C15402U |
| Frame | Topstone Carbon, Kingpin suspension system, SmartSense compatible, Proportional Response construction, 12x142mm thru-axle, 27.2 dropper post ready, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts |
| Fork | Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts |
| Headset | Integrated, 1-1/8" - 1.5" |
| Rear derailleur | Shimano GRX 400, Shadow RD+ |
| Front derailleur | Shimano GRX 400, braze-on |
| Shifters | Shimano GRX 400, 10-speed |
| Chain | KMC X10, 10-speed |
| Crank | Shimano GRX 600, 46/30 |
| Rear cogs | SunRace, 11-36, 10-speed |
| Bottom bracket | Shimano BSA 68 |
| Brakes | Shimano GRX 400 hydraulic disc, 160/160mm RT54 rotors |
| Brake levers | Shimano GRX 400 hydraulic disc |
| Rims | WTB ST i23 TCS, 700c, 28h, tubeless ready |
| Spokes | Stainless Steel, 14g |
| Tire size | 45 |
| Wheel size | 700c |
| Hubs | (F) Formula cartridge bearing, 12x100mm centerlock / (R) Formula cartridge bearing, 12x142mm centerlock |
| Tires | WTB Riddler Comp, 700x45c (Europe/UK - Vittoria Terreno Dry 700x40c) |
| Front tire | WTB Riddler Comp, 700x45c (Europe/UK - Vittoria Terreno Dry 700x40c) |
| Rear tire | WTB Riddler Comp, 700x45c (Europe/UK - Vittoria Terreno Dry 700x40c) |
| Handlebar | Cannondale 3, butted 6061 Alloy, 16 deg flare drop |
| Stem | Cannondale 3, 6061 Alloy, 31.8, 7° |
| Grips | Cannondale Bar Tape, 3.5mm |
| Saddle | Fizik Aliante Delta, S-alloy rails |
| Seatpost | Cannondale 3, 6061 Alloy, 27.2x350mm |
| Extra 1 | StrapRack tool/stuff holder |
| Ingestion hazard | WARNING - INGESTION HAZARD: This product contains a button cell or coin battery. DEATH or serious injury can occur if ingested. A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. KEEP new and used batteries OUT OF REACH OF CHILDREN. Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body. |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
Length measurements converted to mm from Cannondale inch values. Angles in degrees.
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| XS | 4'10" - 5'5" | 147 - 165 |
| SM | 5'3" - 5'9" | 160 - 175 |
| MD | 5'7" - 6'1" | 170 - 185 |
| LG | 5'10" - 6'4" | 178 - 193 |
| XL | 6'0" - 6'8" | 183 - 203 |
Sizing to be used as a reference only. Chat with us if you have any questions.
