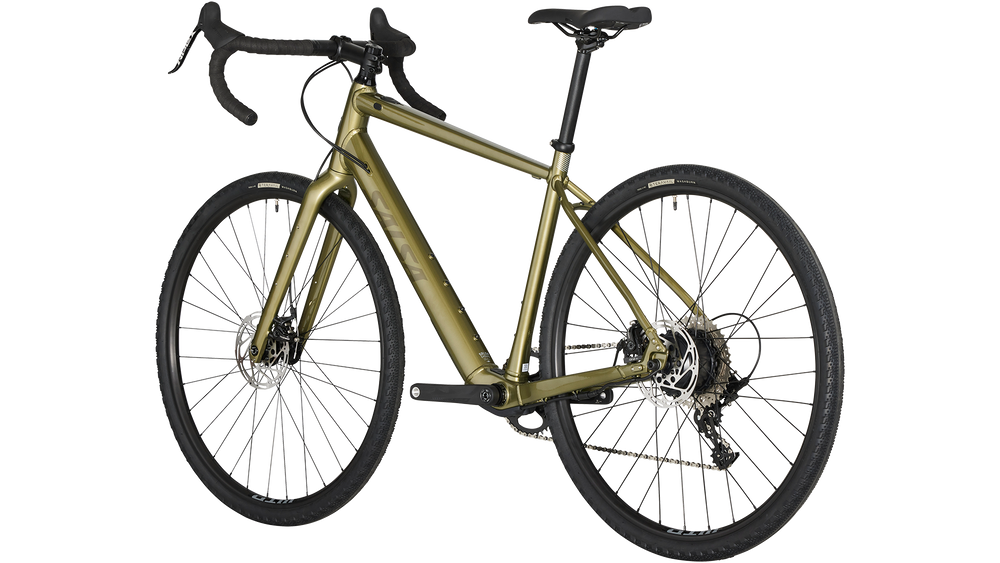

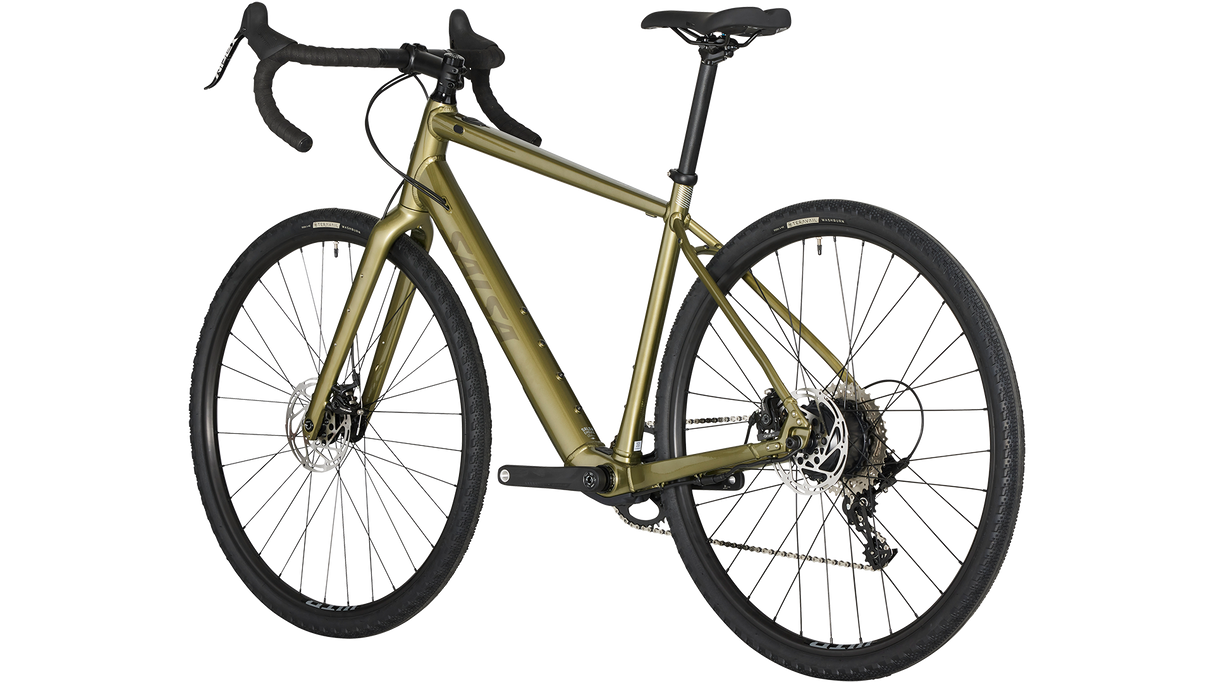

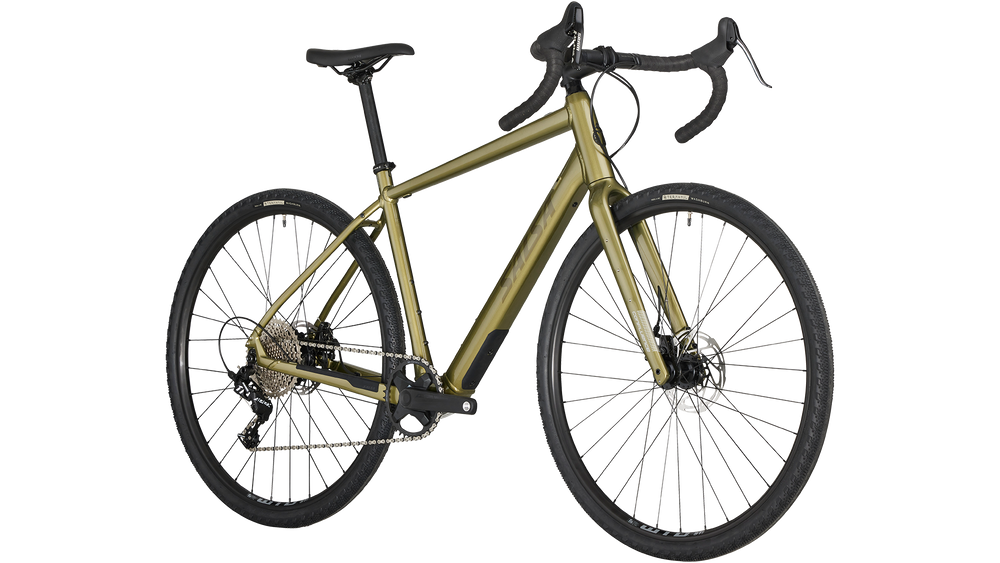

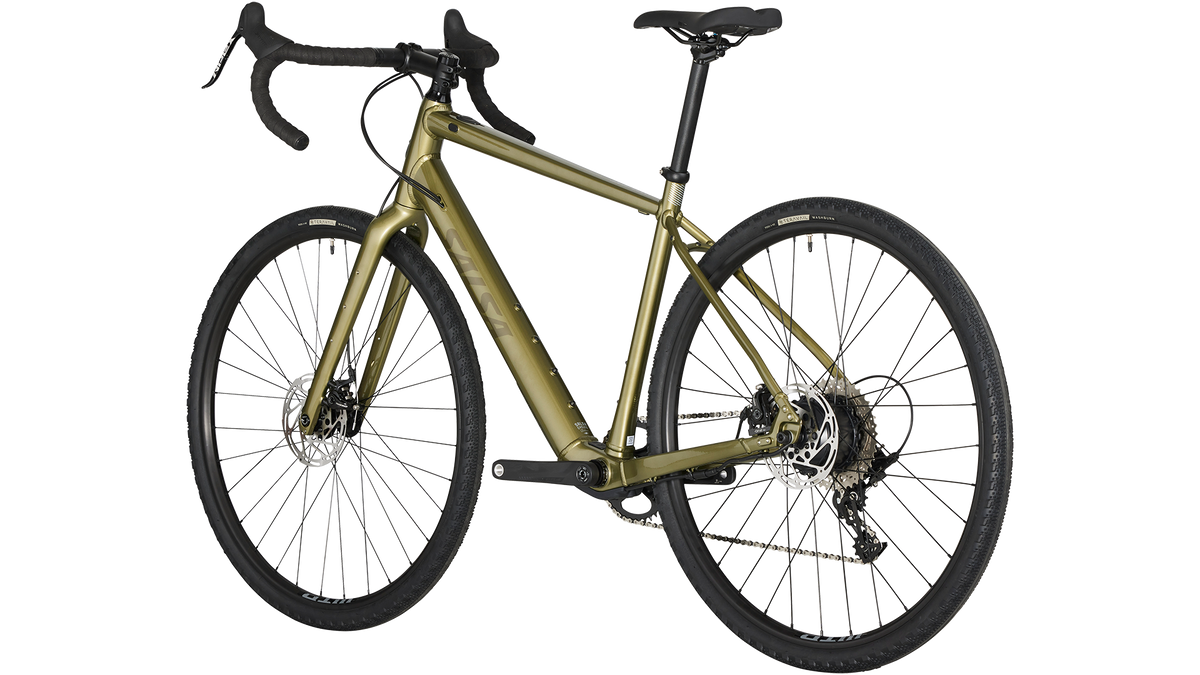

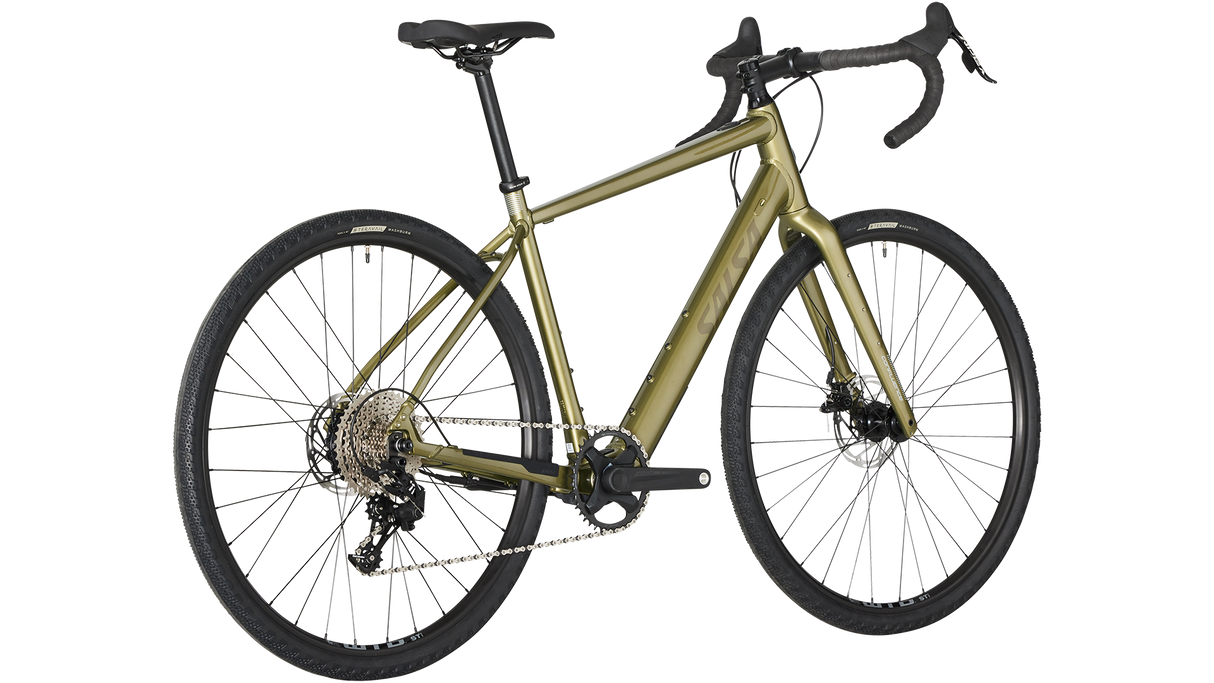

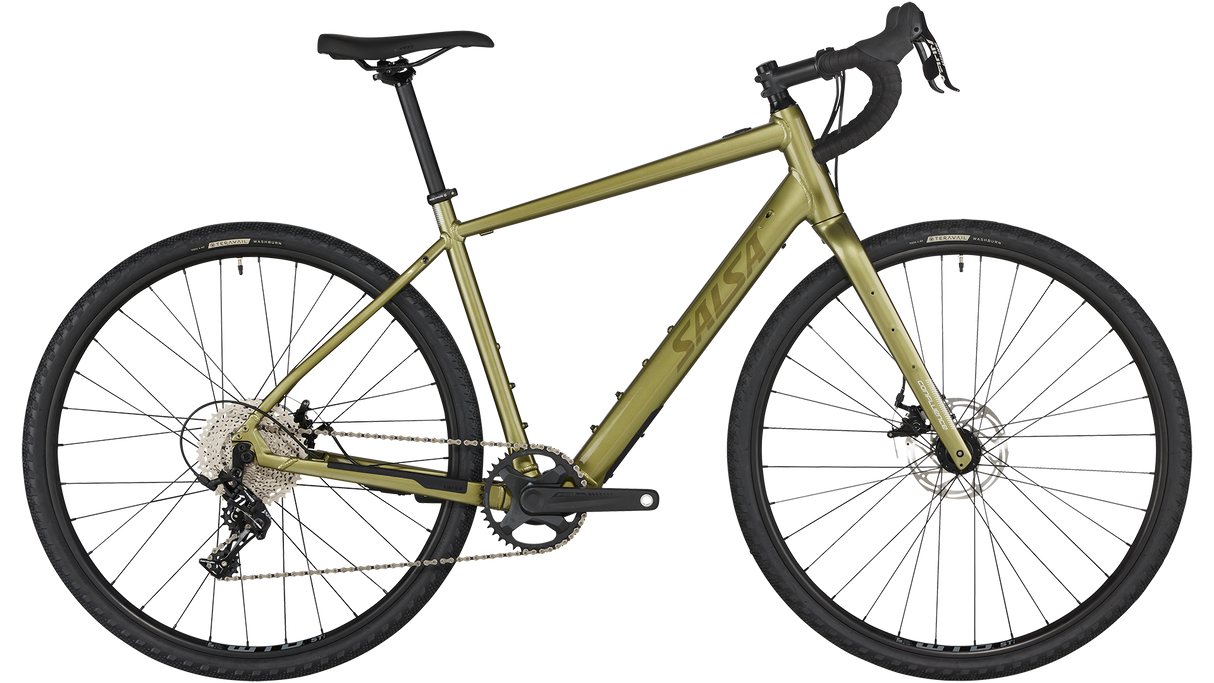

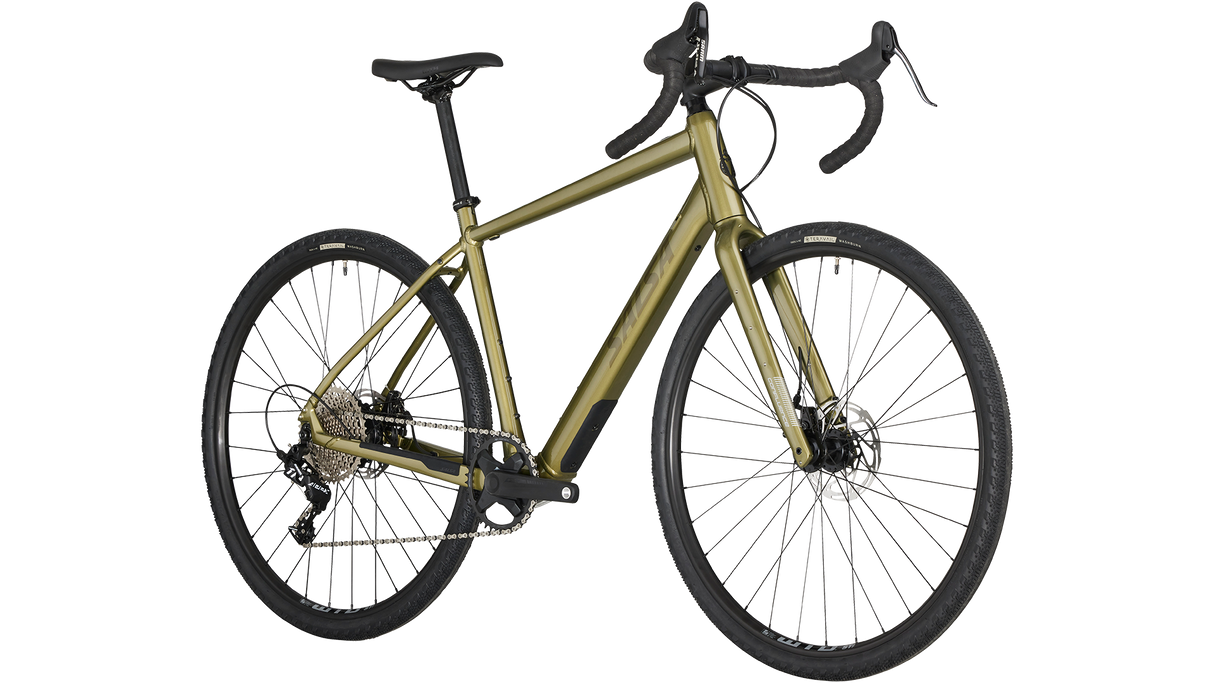

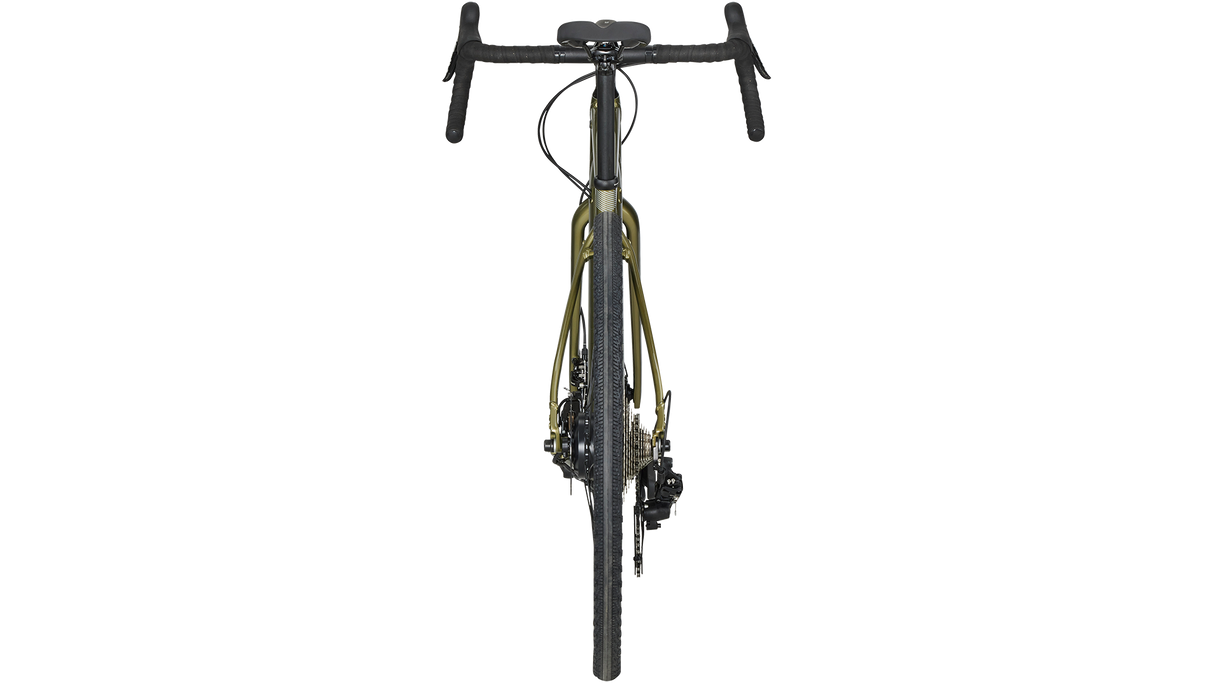

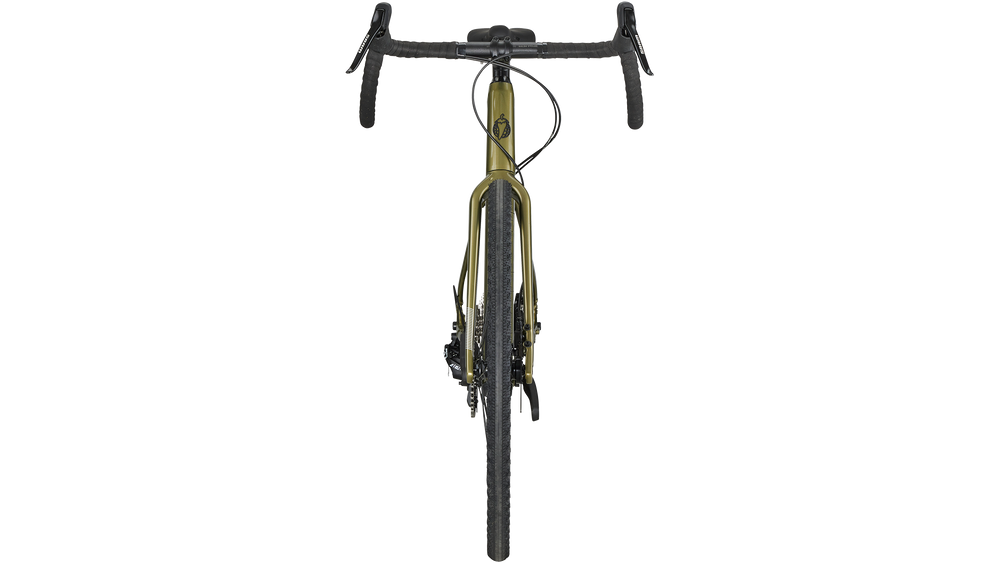

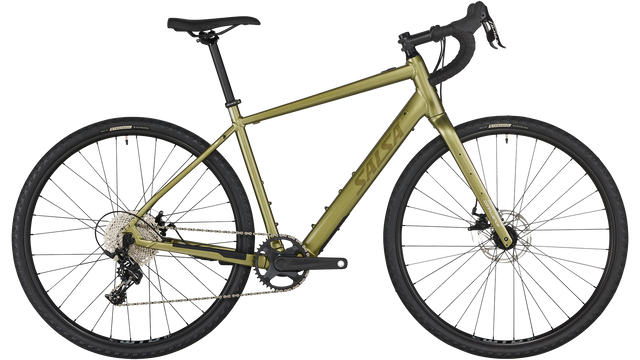

2024 Confluence Apex 1 Electric Road Bike
Every bike is fully assembled, tuned, and test-ridden before pickup at your chosen DFW Bike Mart location.
Expected ship date: {date+3}
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart - ready to ride right at your doorstep within 10 miles of any DFW location.
Complete your Ride
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
Bike Key Features
-
Bar, Stem, Seatpost
Bar, stem, and seatpost models are spec’d on bikes with the goal of making them as inclusive as possible, such as zero-rise handlebars on small flat-bar bikes to achieve proper stack height
-

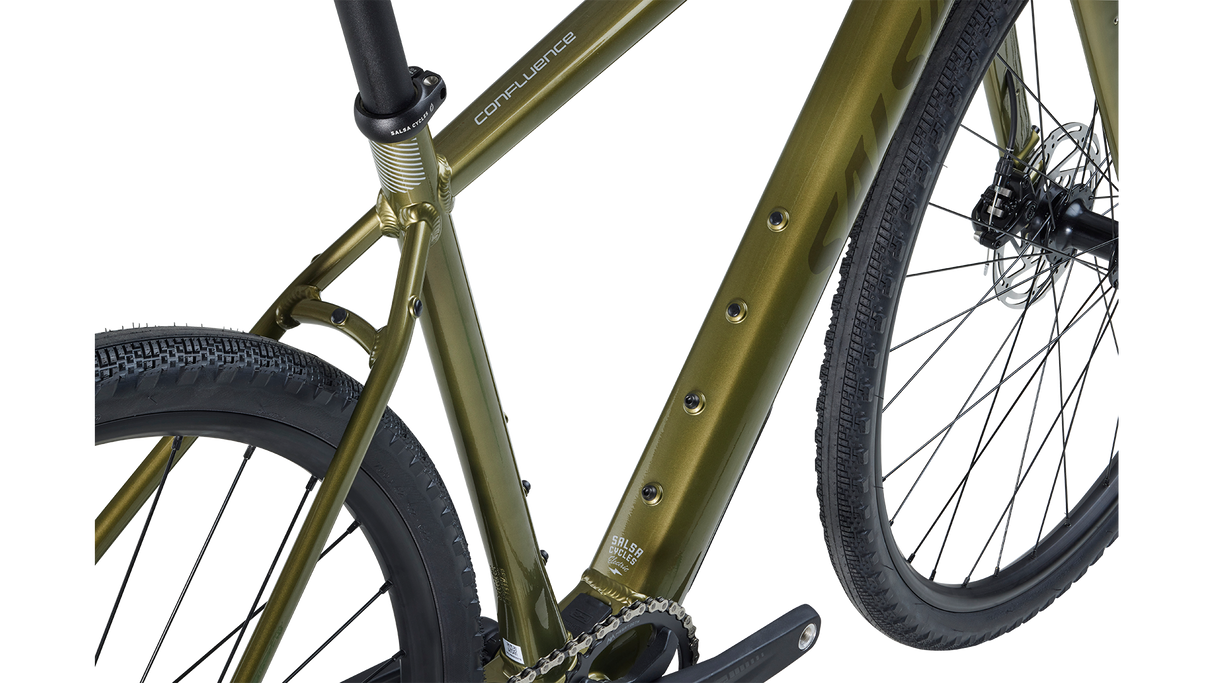

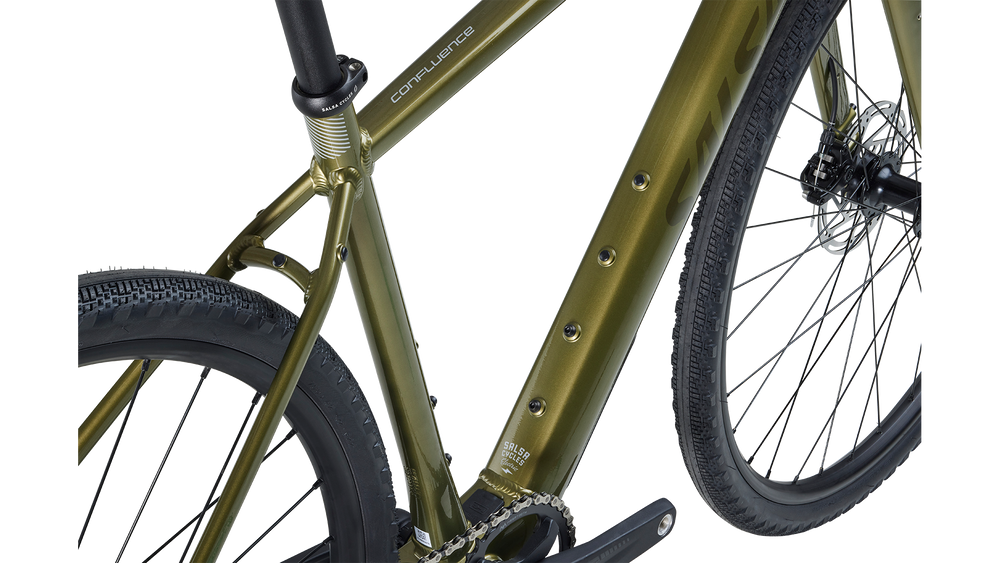

On-Bike Storage
Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
Overview
Overview
We designed the Confluence Apex 1 to be the best gravel ebike for squeezing more adventure into each day. With a lightweight MAHLE hub-drive system putting out 40Nm of torque, it’s just the boost you need to head out for that lunch ride you deserve or that extra spin when your legs are feeling weary. Confluence’s aluminum frame and carbon fork are designed around geometry that puts you in a comfortable and stable position — especially important for putting in more miles at higher average speeds. Our on-bike cargo features let you bring all you need for those extra miles, and the e-assist lets you overpack without worrying about the weight penalty. Rounding it all out is SRAM’s Apex 1 drivetrain, delivering plenty of reliable gear range for wherever you point it. Charge Your Adventure with Confluence Apex 1.
- Meets UL 2849, and UL 2271 certification
Technical Specifications
Technical Specifications
| Frame | Confluence |
| Color | Avocado Green |
| Fork | Confluence Carbon |
| Headset | FSA |
| Seatpost | Promax SP-2016 |
| Stem | Salsa Guide |
| Grips/bar tape | Black cork |
| Saddle | WTB Volt |
| Handlebar | Salsa Cowbell |
| Lights included | No |
| Front derailleur | N/A |
| Rear derailleur | SRAM Apex 1 |
| Cassette | SRAM PG-1130, 11-speed, 11–42t |
| Drive type | Hub-Drive |
| Chain | SRAM PC-1110 |

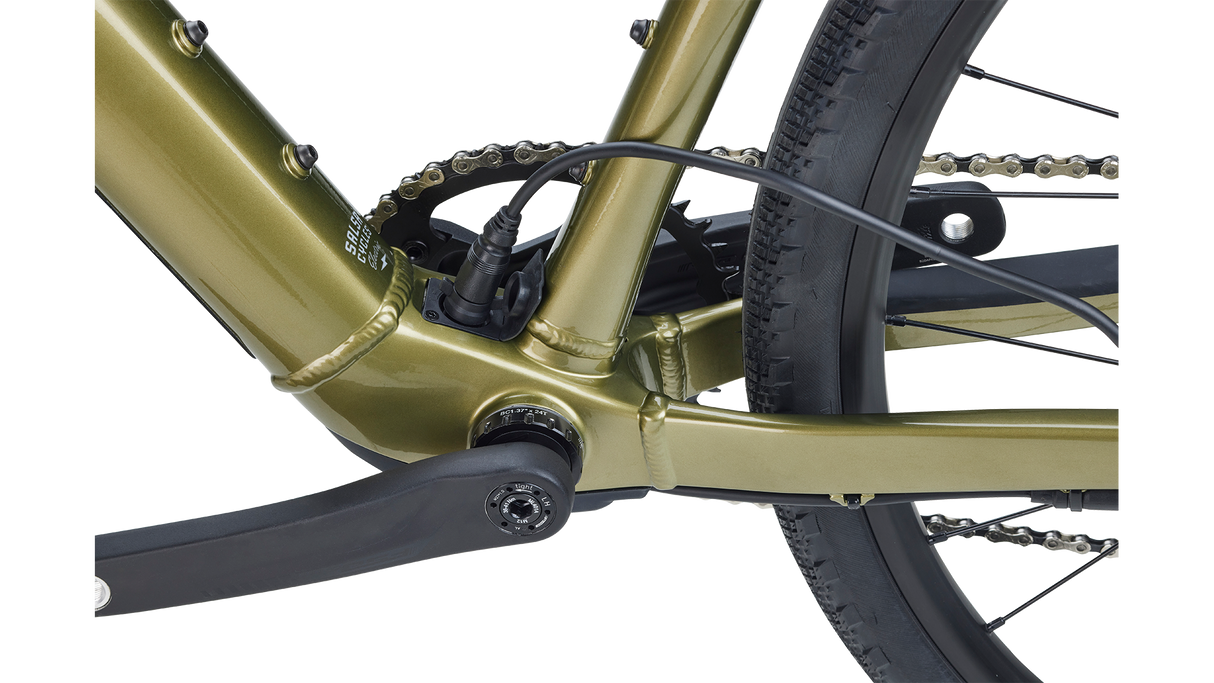

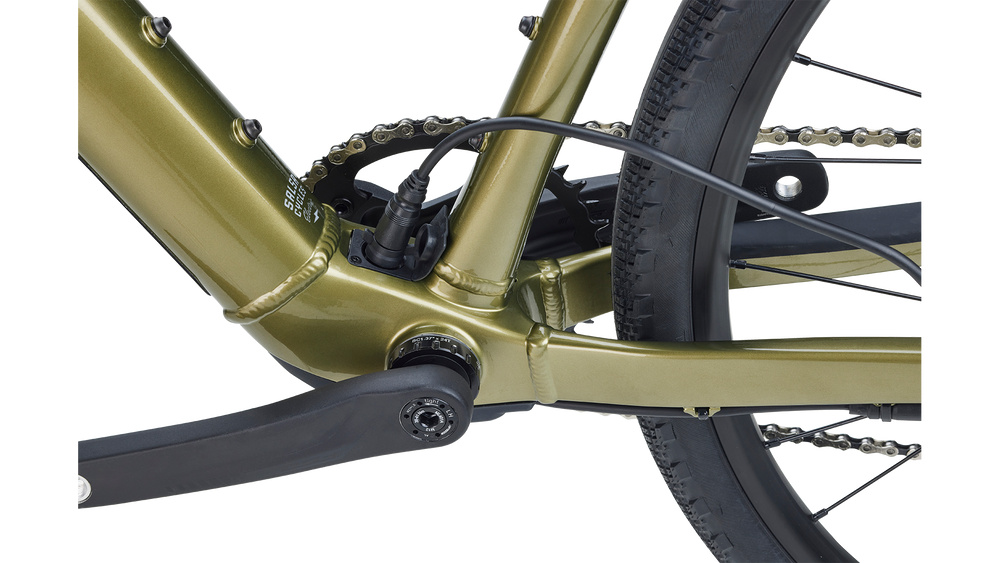

| Crankset | FSA Omega Megaexo, 40t |
| Shifter | SRAM Apex 1 x 11 |
| Brake levers | SRAM Apex |
| Brake calipers | Tektro MD-C550 |
| Assist levels | 3 |
| Bottom bracket | FSA BB-4000 |
| Rotors | Tektro R160S02M, 160mm |
| Drive unit | MAHLE X35+ |
| Ebike classification | Class 1 |
| Max assist speed | 20 mph / 32 km/h |
| Motor torque | 40Nm |
| Battery capacity watt hours | 250Wh |
| Battery type | Li-ion |
| Removable battery | Removable for service |
| Estimated charge time | 3 hours |
| Charger included | Yes |
| Range estimate | 40 miles |
| Throttle | No |
| Walk assist | No |
| Front tire | Teravail Washburn 700c x 42mm, Durable casing, wire bead |
| Rear tire | Teravail Washburn 700c x 42mm, Durable casing, wire bead |
| Front hub | WTB Serra |

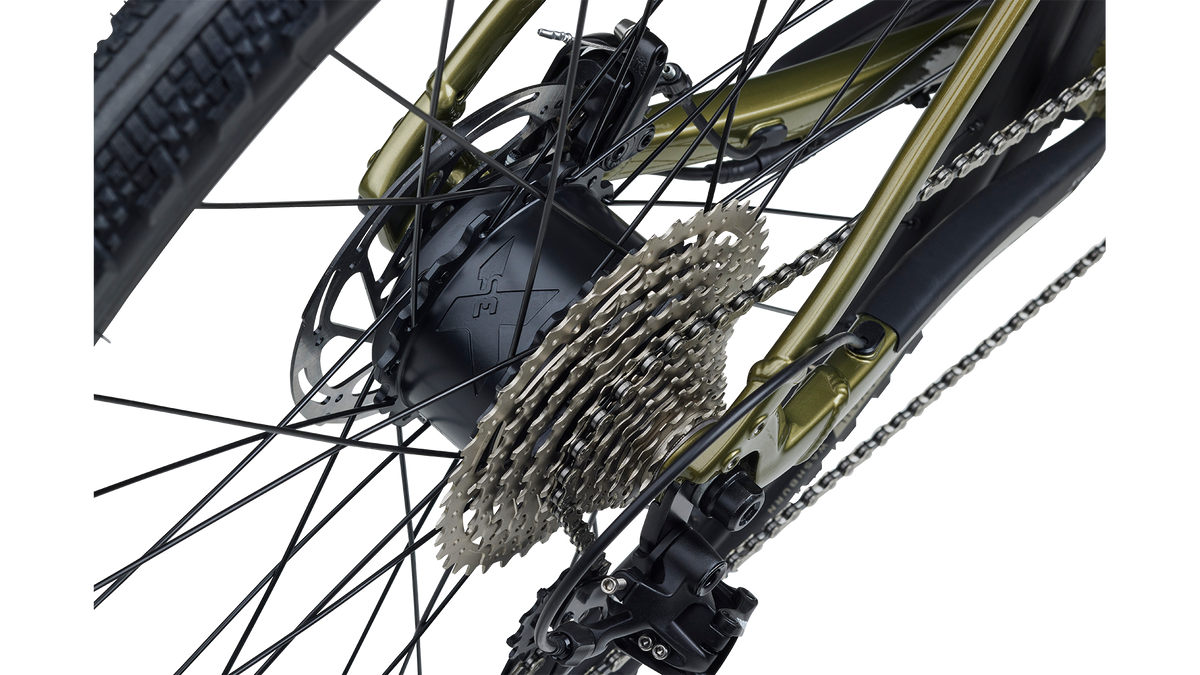

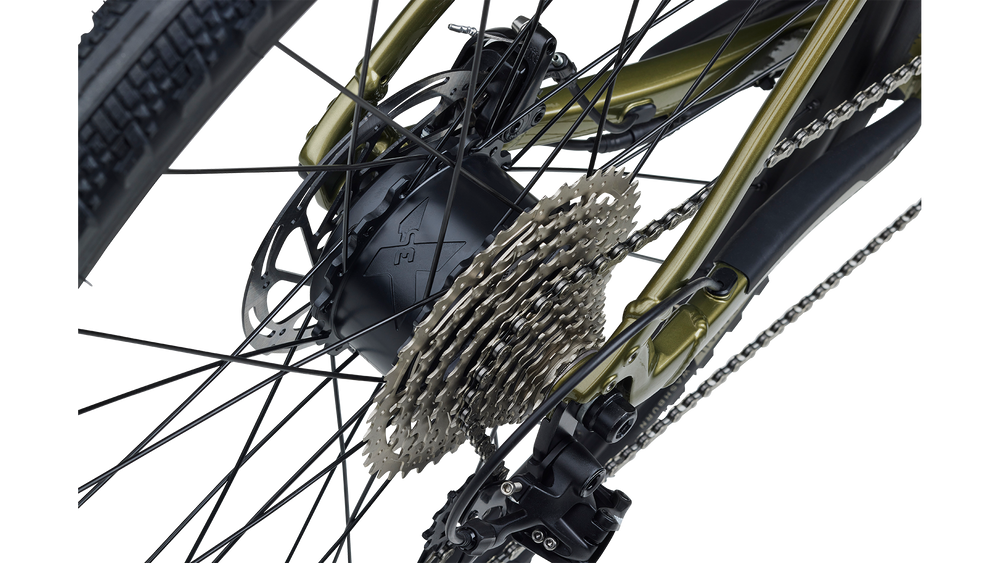

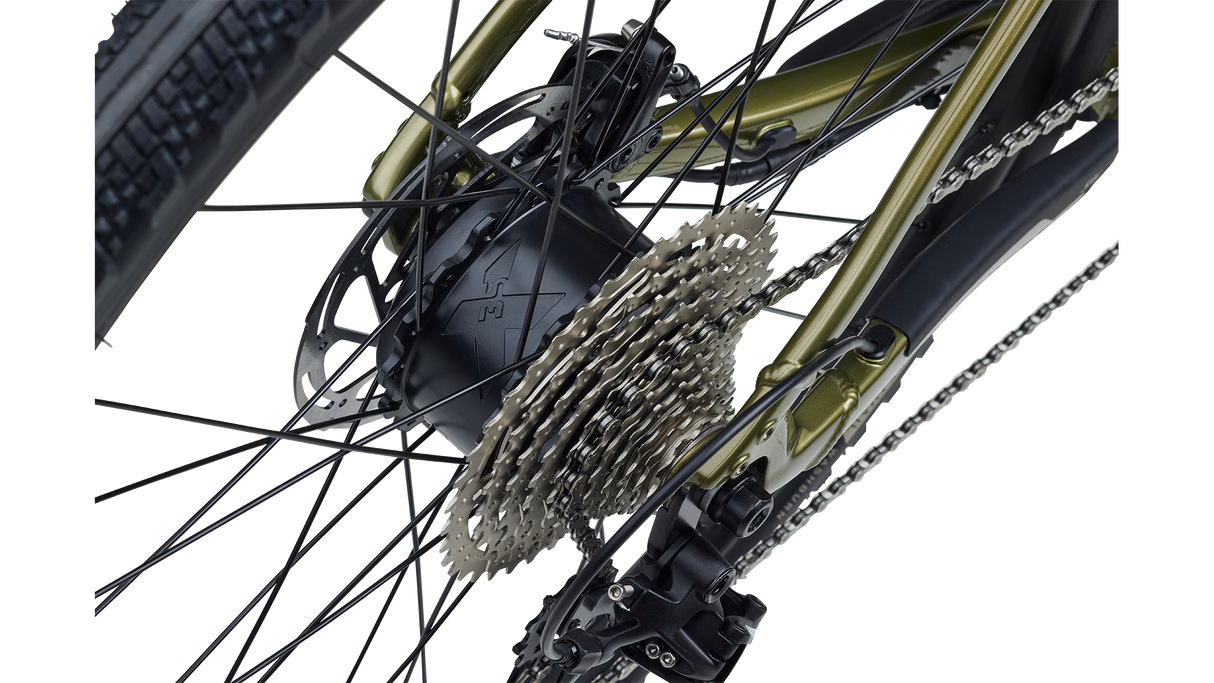

| Rear hub | MAHLE X35+ |
| Spoke | Straight gauge, black |
| Rim | WTB ST i23, 32h |
| Complete bike | 33 lb (57cm frame) |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in mm unless otherwise noted; head tube angles are in degrees. Measurements based on: An unsprung bike (no sag) A 700c x 42 mm tire measuring 710 mm in diameter Standover (B) for all sizes is measured vertically to top of toptube from a position 50 mm forward of BB center
| Frame size | 49cm | 51cm | 53cm | 55cm | 57cm | 60cm |
| A. Effective Top Tube (mm) | 493.0 mm | 510.0 mm | 530.0 mm | 550.0 mm | 570.0 mm | 600.0 mm |
| B. Stand Over (mm) | 626.0 mm | 658.0 mm | 688.0 mm | 723.0 mm | 760.0 mm | 788.0 mm |
| C. Reach (mm) | 366.0 mm | 370.0 mm | 373.0 mm | 377.0 mm | 388.0 mm | 410.0 mm |
| D. Stack (mm) | 510.0 mm | 524.0 mm | 548.0 mm | 566.0 mm | 594.0 mm | 622.0 mm |
| E. Total Seat Tube Length (mm) | 345.0 mm | 380.0 mm | 410.0 mm | 450.0 mm | 490.0 mm | 520.0 mm |
| F. Headtube Length (mm) | 90.0 mm | 105.0 mm | 130.0 mm | 150.0 mm | 180.0 mm | 210.0 mm |
| G. Headtube Angle (degrees) | 68.5 | 68.5 | 68.5 | 68.5 | 68.5 | 68.5 |
| H. Seat Tube Angle (degrees) | 76.0 | 75.0 | 74.0 | 73.0 | 73.0 | 73.0 |
| I. BB Drop (mm) | 70.0 mm | 70.0 mm | 70.0 mm | 70.0 mm | 70.0 mm | 70.0 mm |
| J. BB Height (mm) | 285.0 mm | 285.0 mm | 285.0 mm | 285.0 mm | 285.0 mm | 285.0 mm |
| K. Chainstay Length (mm) | 440.0 mm | 440.0 mm | 440.0 mm | 440.0 mm | 440.0 mm | 440.0 mm |
| L. Fork Length Axle to Crown (mm) | 402.0 mm | 402.0 mm | 402.0 mm | 402.0 mm | 402.0 mm | 402.0 mm |
| M. Fork Offset (mm) | 50.0 mm | 50.0 mm | 50.0 mm | 50.0 mm | 50.0 mm | 50.0 mm |
| N. Wheelbase (mm) | 1027.0 mm | 1037.0 mm | 1049.0 mm | 1061.0 mm | 1083.0 mm | 1115.0 mm |
| Crank Arm Length (mm) | 165.0 mm | 165.0 mm | 170.0 mm | 172.5 mm | 175.0 mm | 175.0 mm |
| Handlebar Width (cm) | 38.0 cm | 40.0 cm | 44.0 cm | 44.0 cm | 46.0 cm | 46.0 cm |
| Recommended Rider Height (cm) | 142.0 cm - 150.0 cm | 150.0 cm - 157.0 cm | 157.0 cm - 168.0 cm | 165.0 cm - 175.0 cm | 173.0 cm - 183.0 cm | 183.0 cm - 193.0 cm |
| Stem Length (mm) | 60.0 mm | 70.0 mm | 80.0 mm | 80.0 mm | 90.0 mm | 100.0 mm |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
