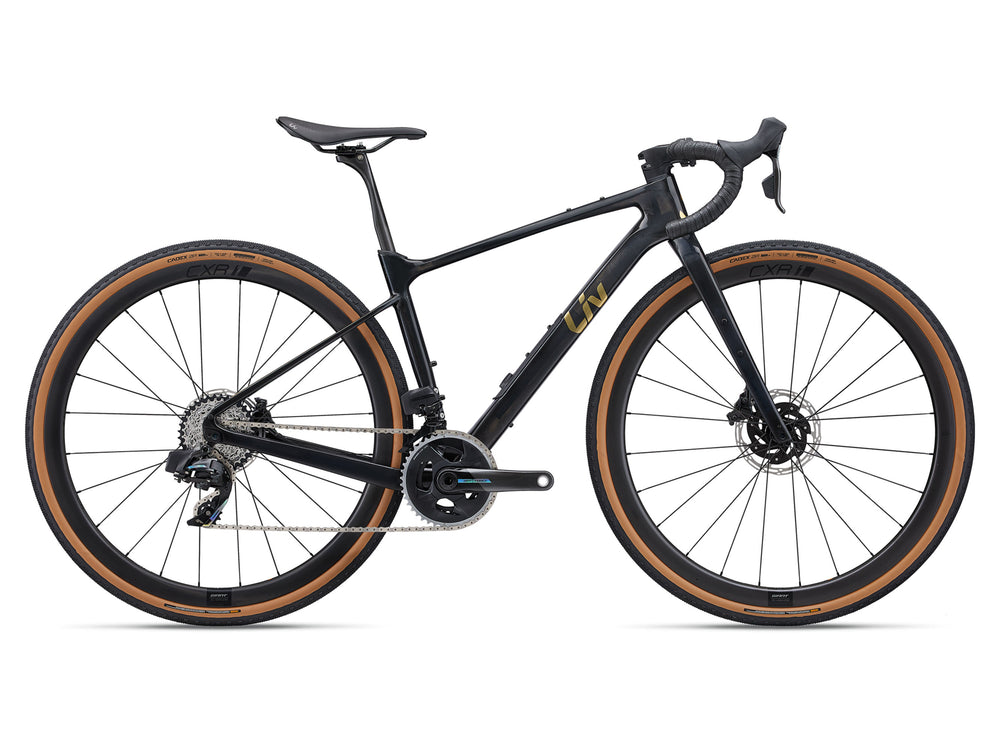

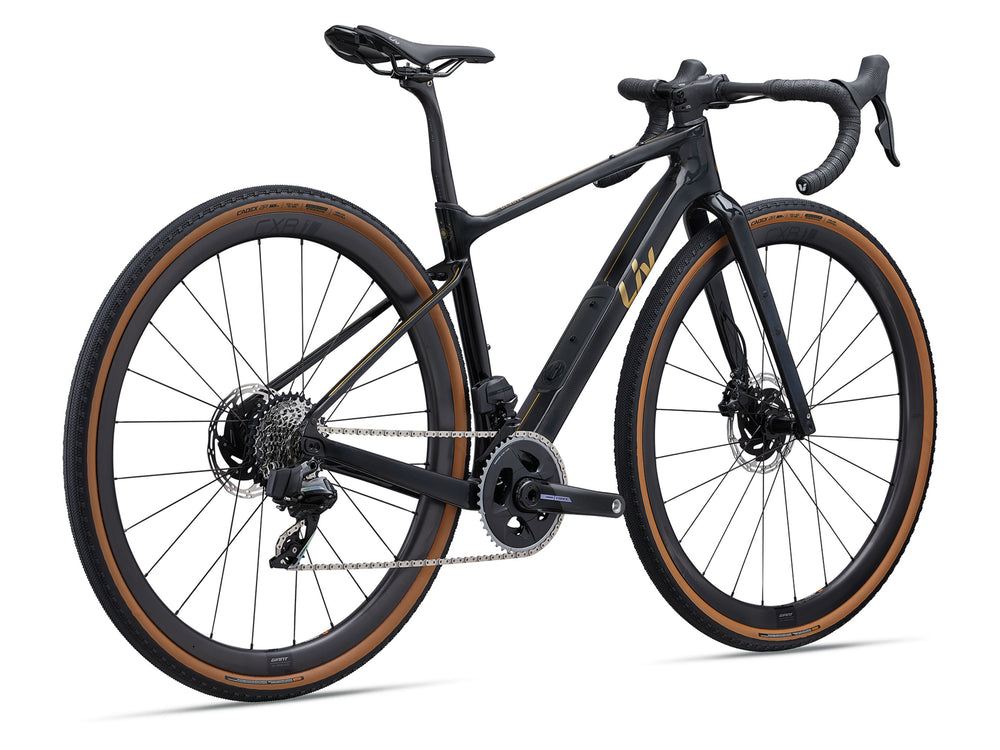

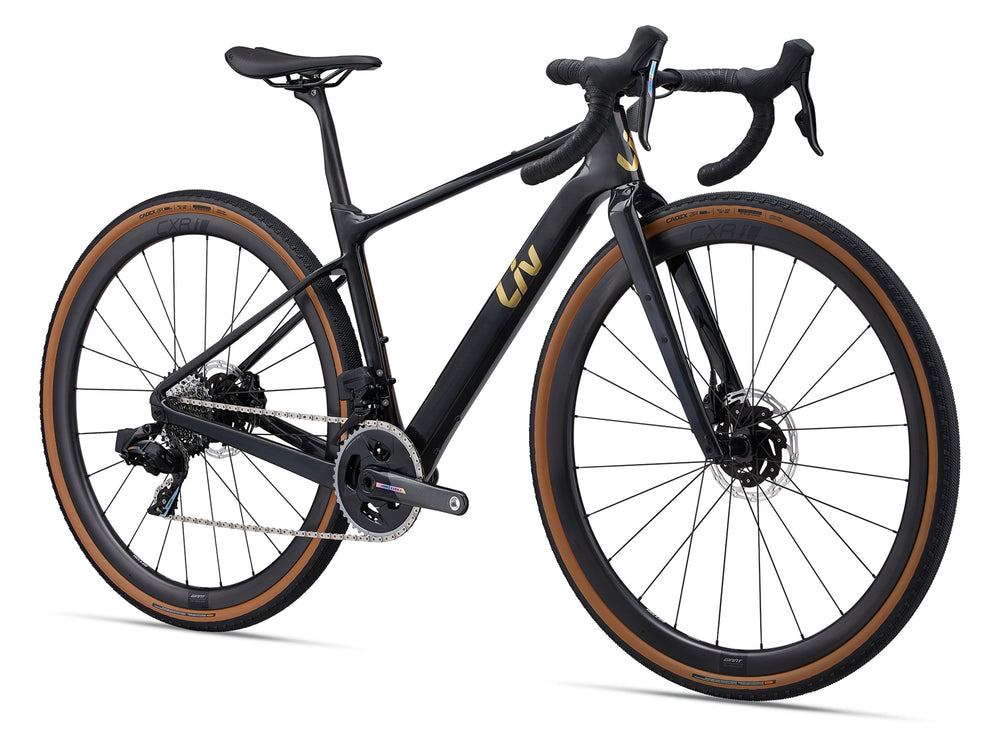

2024 Devote Advanced Pro Gravel Road Bike
-
Advanced Composite Technology
Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.
-
Advanced SL Composite Technology
Liv’s Professional Grade raw carbon material is woven in our own composite factory using our most advanced engineering and construction methods including: Continuous Fiber Technology to add strength while reducing weight; Carbon Nanotube Technology resin to improve impact resistance; and Fusion Process for lighter, stronger frame junctions.
-
OverDrive
Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
-
Tubeless System
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.
-
D-Fuse Technology
The D-Fuse seatpost and handlebar were designed to function as a system to absorb shocks and vibrations from various surfaces, ensuring a smoother and more efficient ride.
Overview
Overview
The Devote Advanced Pro was born and bred for gravel race glory. With its lightweight yet robust construction and performance-driven design, it’s ready to carry speed across county lines, above tree lines, and over finish lines.
Key Performance Factors
- Ultralight Agility: An ultralight Advanced-grade composite frame and new Advanced SL-grade composite fork make for snappy acceleration, while internal cable routing streamlines your cockpit and makes room for your must-have accessories. And the redesigned geometry puts you in a more aggressive position, increases traction and stability, and allows more control at speed and on descents.
- Superior Compliance and Control: The Contact SLR XR D-Fuse handlebar features a 5-degree back sweep and flare drop for comfortable and ergonomic grip. The Contact SLR D-Fuse seatpost can be swapped out for a 30.9mm or 27.2mm round seatpost. These proprietary D-Fuse components absorb bumps and reduce vibrations, ensuring less fatigue and more fun on those epic rides.

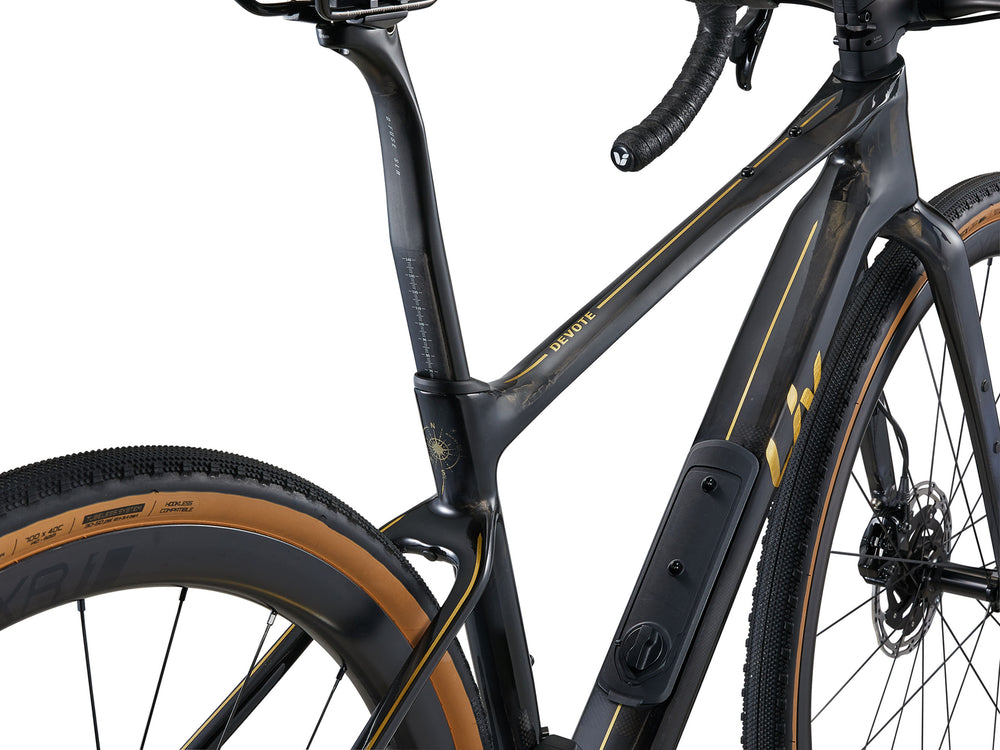

- Unmatched Versatility: Adapt to the route with the flip chip – dropout, which lets you adjust your wheelbase length and rear-wheel tire clearance. Go shorter for responsive handling and quick acceleration. Go longer for added stability plus clearance for larger tires and extra traction. Plus, the integrated down tube storage lets you stash a multi-tool or extra fuel, so nothing’s slowing you down.
Technical Specifications
Technical Specifications
| Sizes | XS, S, M, L |
| Colors | Carbon/Chrome |
| Frame | Advanced-grade composite, 12x142mm thru-axle, flat mount disc, flip chip – dropout, integrated down tube storage, integrated cable routing |
| Fork | Advanced SL-grade composite, full-composite OverDrive steerer, stainless steel bearings, 12mm thru-axle, flat mount disc |
| Shock | N/A |
| Handlebar | Giant Contact SLR XR D-Fuse, 31.8mm, 5-degree back sweep, flare drop, composite XS: 400mm, S: 400mm, M: 420mm, L: 420mm |
| Grips | Liv All Condition |
| Stem | Giant Contact AeroLight, -10 degree, alloy XS: 50mm, S: 60mm, M: 70mm, L: 80mm |
| Seatpost | Giant Contact SLR D-Fuse, composite, -5/+15mm offset |
| Saddle | Liv Approach SL |
| Pedals | N/A |
| Shifters | SRAM Force eTap AXS, 2x12 |
| Front derailleur | SRAM Force eTap AXS Wide |
| Rear derailleur | SRAM Force eTap AXS |
| Brakes | SRAM Force eTap AXS hydraulic, SRAM CenterLine rotors [F]160mm, [R]160mm |
| Brake levers | SRAM Force eTap AXS hydraulic |
| Cassette | SRAM Force, 12-speed, 10x36 |
| Chain | SRAM Force D2 |
| Crankset | SRAM Force D2 DUB, 30/43 XS: 165mm, S: 170mm, M: 172.5mm, L: 172.5mm |
| Bottom bracket | SRAM DUB, press fit |
| Rims | Giant CXR 1 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm |
| Hubs | [F] Giant AR alloy, CenterLock, 12mm thru-axle [R] Giant AR alloy, DT350 36t ratchet system, CenterLock, 12mm thru-axle |
| Spokes | Sapim CX-Ray |
| Tires | CADEX AR, 700x40c, tubeless |
| Extras | 53mm max tire size in long flip chip position, 45mm max tire size in short flip chip position, tubeless prepared, ISC clamp, integrated down tube storage bag |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in mm unless otherwise noted.
| XS | S | M | L | |
| Setting (Low/High) | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG |
| ASeat Tube Length (mm) | 390 | 420 | 465 | 500 |
| BSeat Tube Angle (degrees) | 74.5° | 74.4° | 74.5° | 74.4° | 74.5° | 74.4° | 74.5° | 74.4° |
| CTop Tube Length (mm) | 525 | 525 | 535 | 535 | 545 | 545 | 555 | 555 |
| DHead Tube Length (mm) | 90 | 110 | 140 | 160 |
| EHead Tube Angle (degrees) | 70.0° | 69.9° | 70.5° | 70.4° | 71.0° | 70.9° | 71.0° | 70.9° |
| FFork Rake (mm) | 50 | 50 | 50 | 50 |
| GTrail (mm) | 78.4 | 82 | 75 | 78.5 | 71.6 | 75.1 | 71.6 | 75 |
| HWheelbase (mm) | 1012 | 1022 | 1019 | 1029 | 1026 | 1036 | 1043 | 1052 |
| IChain Stay Length (mm) | 425 | 435 | 425 | 435 | 425 | 435 | 430 | 440 |
| JBottom Bracket Drop (mm) | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 |
| KStack (mm) | 523 | 524 | 544 | 545 | 574 | 575 | 593 | 594 |
| LReach (mm) | 380 | 379 | 384 | 383 | 386 | 385 | 391 | 389 |
| MStand Over Height (mm) | 681 | 688 | 708 | 715 | 748 | 755 | 779 | 786 |
| NHandlebar Width (mm) | 400 | 400 | 420 | 420 |
| OStem Length (mm) | 50 | 60 | 70 | 80 |
| PCrank Length (mm) | 165 | 170 | 172.5 | 172.5 |
| QWheel Size | 700 | 700 | 700 | 700 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| XS | 4’11” - 5’4” | 150 - 163 |
| S | 5’2” - 5’7” | 158 - 169 |
| M | 5’5” - 5’9” | 164 - 175 |
| L | 5’7” - 5’11” | 170 - 181 |
Sizing to be used as a reference only. Chat with us if you have any questions.
