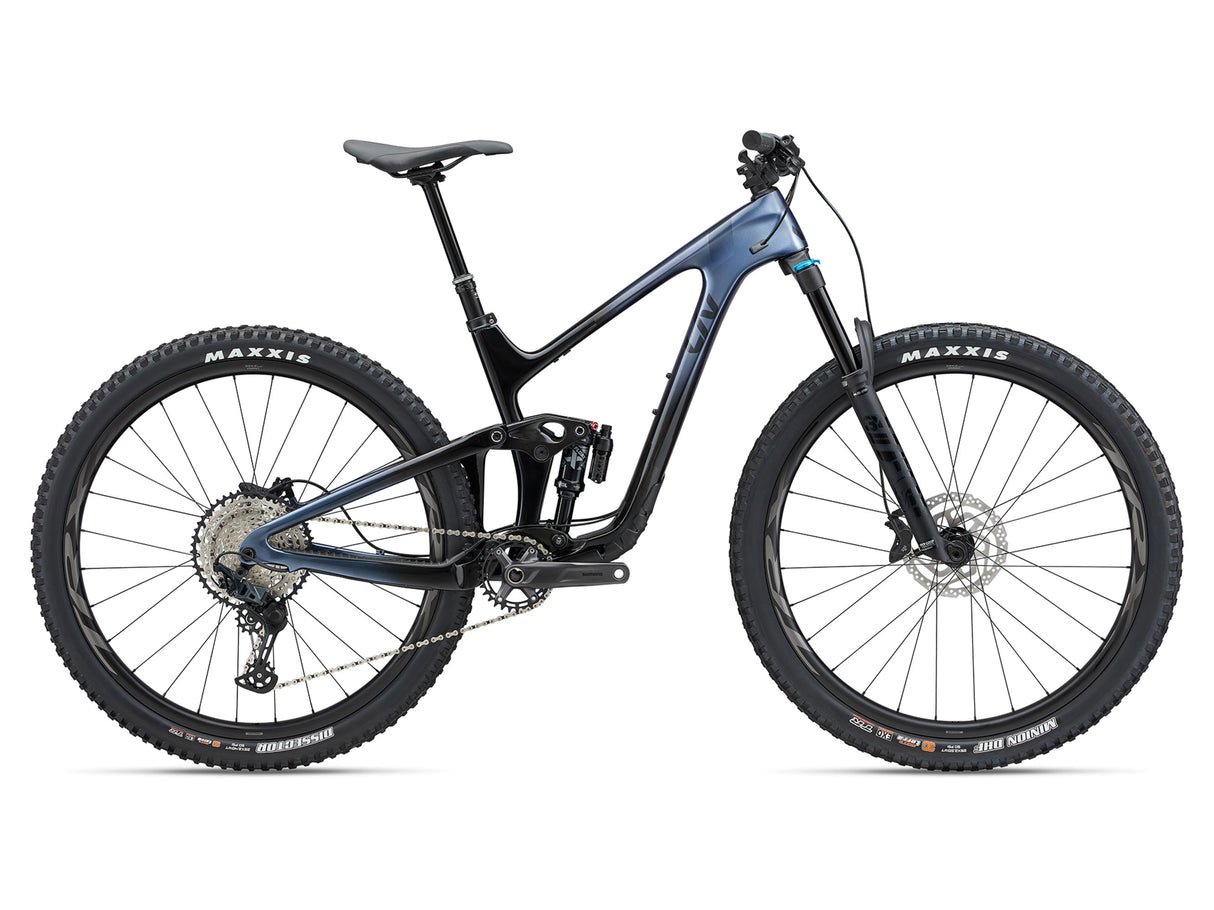

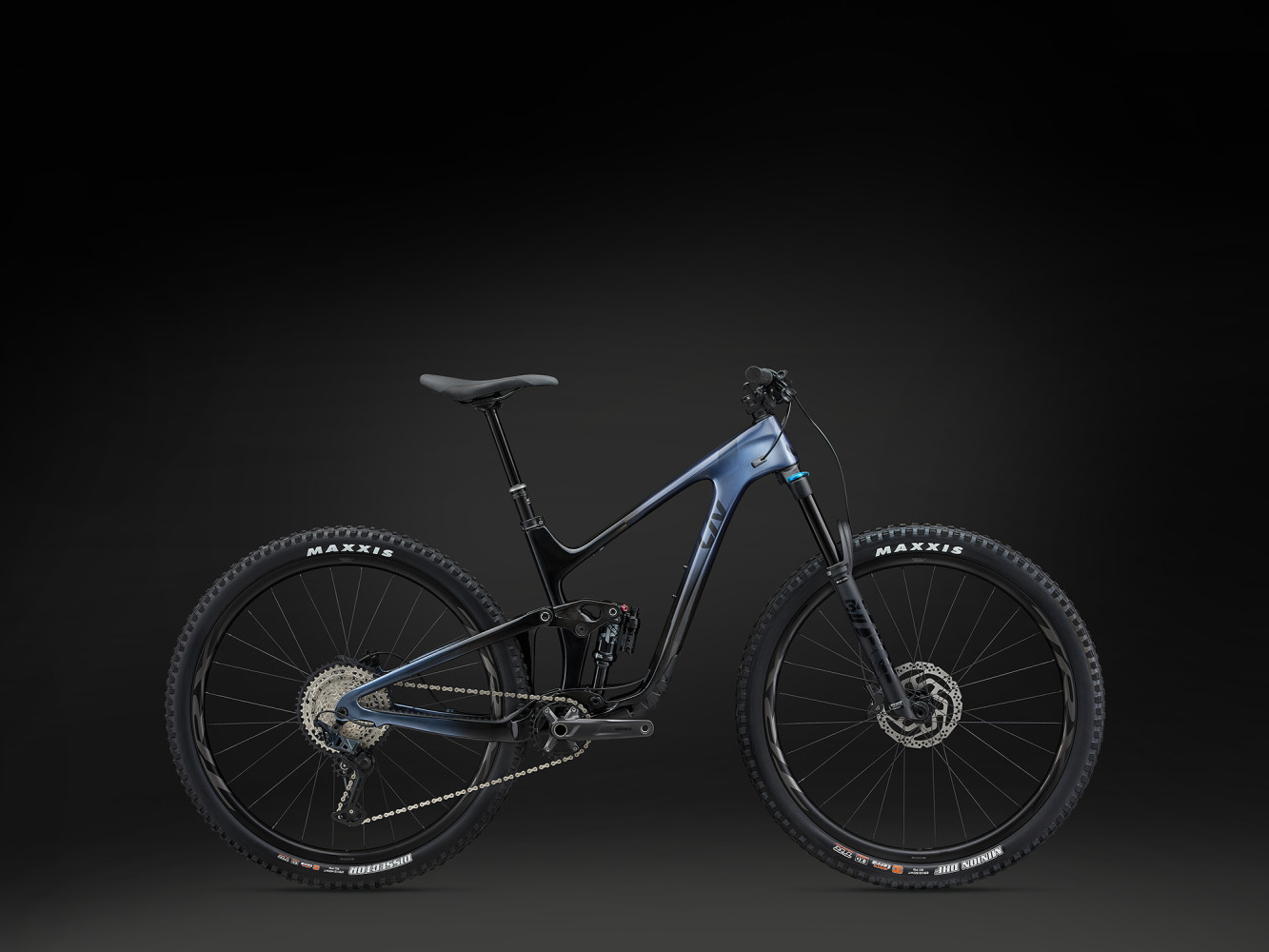

2024 Intrigue Advanced 29 1 Full Suspension Mountain Bike
Every bike is fully assembled, tuned, and test-ridden before pickup at your chosen DFW Bike Mart location.
Expected ship date: {date+3}
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart - ready to ride right at your doorstep within 10 miles of any DFW location.
Complete your Ride
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
-
Advanced Composite Technology
Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.
-
Advanced Forged Composite Technology
A state-of-the-art, high-pressure molding process used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar aluminum components.
-
Maestro Suspension Technology
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
-
OverDrive
Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
-
PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeterwide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
-
Tubeless System
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.
-
Flip Chip - Maestro 3
This all-new technology allows you to quickly adjust the geometry of your bike to better suit riding conditions and rear-wheel size choice. Using two different flip chips – a combination high/ low and a dedicated mid-position chip – riders can change the head tube angle, seat tube angle and bottom bracket height using eccentric hardware located on the upper rocker arm of the rear suspension.
Overview
Overview
Built to cover ground, mow over techy singletrack, and charge down aggressive terrain, the Intrigue Advanced 29 prefers the rowdy side of life.
Key Performance Factors
- Top Performance Trail: Advanced-grade composite frame, carbon wheelset, Maestro Suspension and flip chip adjustable frame geometry equip you with a lightweight, versatile trail bike.
- Balanced Agility: Obstacle-eating 29-inch wheels offer smooth handling and roll easily over small roots and rocks.
- Custom Tuned Suspension: The 125 mm of Maestro Suspension has been custom tuned by women, for women to provide optimal performance for the rider and the bike’s intended use, resulting in improved traction and control.
Technical Specifications
Technical Specifications
| Sizes | S, M, L |
| Colors | Ice Age |
| Frame | Advanced-grade composite front and rear triangles, 125mm Maestro Suspension, flip chip – Maestro |
| Fork | Fox 34 Performance, 140mm, Grip 2 damper, Boost, 15x110, Kabolt, tapered, 44mm offset |
| Shock | Fox Float X Performance 185x50, custom tuned for Liv |
| Handlebar | Giant Contact TR35, alloy, 35mm, 20mm rise S: 760mm, M: 760mm, L: 780mm |
| Grips | Liv Tactal Pro Single Lock-On S: 120mm, M/L: 130mm |
| Stem | Giant Contact SL, 35mm S: 50mm, M: 50mm, L: 50mm |
| Seatpost | TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 140-170mm travel / 30.9 x 499mm |
| Saddle | Liv Sylvia |
| Pedals | platform |
| Shifters | Shimano SLX M7100, 1x12 |
| Front derailleur | N/A |
| Rear derailleur | Shimano SLX M7100, Shadow + |
| Brakes | Shimano M6120, hydraulic, Shimano RT-26 rotors [F]180mm, [R]180mm |
| Brake levers | Shimano Deore BL-M6100 |
| Cassette | Shimano SLX, 10x51 |
| Chain | KMC X12 |
| Crankset | Shimano MT512-1, 30t, 52mm chainline S: 170mm, M: 170mm, L: 170mm |
| Bottom bracket | Shimano, press fit |
| Rims | Giant TRX 2 29 Carbon WheelSystem, 30mm inner width |
| Hubs | [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt |
| Spokes | Sapim |
| Tires | [F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [R] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless |
| Extras | tubeless prepared, max tire size 2.5", max chainring size 32t |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in mm unless otherwise noted.
| S | M | L | |
| Setting (Low/High) | LOW | HIGH | LOW | HIGH | LOW | HIGH |
| ASeat Tube Length (mm) | 425 | 435 | 460 |
| A1A1 Seat Post Insertion Depth (mm) | 295 | 305 | 330 |
| BSeat Tube Angle (degrees) | 77.0° | 77.8° | 77.0° | 77.8° | 77.0° | 77.8° |
| CTop Tube Length (mm) | 558 | 557 | 574 | 573 | 599 | 597 |
| DHead Tube Length (mm) | 105 | 110 | 125 |
| EHead Tube Angle (degrees) | 65.8° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° |
| FFork Rake (mm) | 44 | 44 | 44 |
| GTrail (mm) | 122 | 117 | 122 | 117 | 122 | 117 |
| HWheelbase (mm) | 1160 | 1160 | 1177 | 1176 | 1205 | 1204 |
| IChain Stay Length (mm) | 438 | 435 | 438 | 435 | 438 | 435 |
| JBottom Bracket Drop (mm) | 40 | 30 | 40 | 30 | 40 | 30 |
| KStack (mm) | 620 | 614 | 625 | 618 | 639 | 632 |
| LReach (mm) | 415 | 424 | 430 | 438 | 451 | 460 |
| MStand Over Height (mm) | 742 | 751 | 732 | 741 | 751 | 759 |
| NHandlebar Width (mm) | 760 | 760 | 780 |
| OStem Length (mm) | 50 | 50 | 50 |
| PCrank Length (mm) | 170 | 170 | 175 |
| QWheel Size | [F] 29" [R | [F] 29" [R | [F] 29" [R |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size. Available sizes may vary from country to country.
| size | inches | cm |
|---|---|---|
| S | 5’2” - 5’7” | 158 - 169 |
| M | 5’5” - 5’9” | 164 - 175 |
| L | 5’7” - 5’11” | 170 - 181 |
Sizing to be used as a reference only. Chat with us if you have any questions.
