2024 Moterra SL LAB71 Full Suspension Electric Mountain Bike
Features
-
FlexPivot
These carbon flex points are something we pioneered years ago, and they’re like a cheat code in frame engineering. They reduce weight, eliminate maintenance, and they allow us to use a sophisticated four-bar suspension design, increasing your traction and control on the trail.
-
Designed for You
With our Proportional Response design, everything from the suspension layout to the geometry — even the length of the chain stays — is completely customized for each bike’s size. It’s performance, built just for you.
-
Flip It Your Way
The Flip Chip means you can choose between keeping Moterra Neo SL as a “mullet” bike, with the 29-inch-front/27.5-inch-rear wheel setup for agility and playfulness, or ir switching to 29-inchers at both ends, for maximum traction and rolling efficiency.
-
Get Your Head Set
Adjustable headset cups give you a 1.2-degree range of angle adjustment at the front. Dial it back if you want more stability at speed, set it steeper if you want more agility on technical terrain.
-
Shimano EP801 Drive Unit
Shimano’s top-shelf e-MTB system: lightweight, reliable, and powerful. 85Nm of torque and 600+ watts of max power, delivered via custom-engineered ride modes for full-power fun.
-
Custom-tuned Ride Modes
Specially designed assist modes for the perfect ride : ECO - max range for all-day exploits. TRAIL 1 – mid-power, great for riding with friends on lightweight e-bikes. TRAIL 2 - ramps up the assist for ripping with full-power e-bikes. And BOOST – full power, all the time. Have it your way.
-
Custom 601Wh Battery
Using special cells that store more power per kilo than ever before, we created an incredibly compact battery that packs a full 601 watt-hours into just 3.1 kg (including wiring harness!). All of the power, less of the weight.
-
Don't Be Bashful
Like a helmet for your motor, an integrated bashguard protects it from harsh impacts on the trail. You may not need it much, but when you do, you’re happy it’s there.
What's all this SL about then?
-
Full Boost
Power comes from a custom-tuned version of Shimano’s EP801 drive unit – the lightest motor capable of the big power we were looking for. With 85Nm of torque and 600+ watts of max output, it brings big-time boost to the lightweight party.
-
Power a la Mode
We developed custom ride modes for Moterra SL, specially tuned for the kind of high-speed sessions this rig encourages. Four different levels of boost, easily adjustable on the fly, help you choose between maximum range, monstrous power, or your ideal blend of both. Whether mild or wild, your ride will be whatever you want it to be, no more and no less.
-
Heavenly Handling
At a glance, it looks kinda crazy – an adjustable head angle slack enough for a DH bike, the long reach and steep seat angle of a modern trail bike, suspension layout and geometry fully customized by size – but when it all comes together, it absolutely rips.
Overview
Overview
In It to Pin It
Just call it the “sweet spot” – the best of both worlds. Big-bike power and ride time, with lightweight-bike agility and handling. In other words, exactly what e-mtb riders everywhere have been waiting for. Moterra SL might just be the most fun mountain bike we’ve ever made.
Model Description
An eMTB to rule them all. Built for ultimate command of any trail, with top-of-the-line Fox Factory 36 fork and shock, the remarkable DT Swiss XMC 1501 carbon wheels, a Reverb AXS wireless dropper, the slick shifting of SRAM’s XX wireless electronic group, and the lightweight OneUp handlebar and stem. The LAB71 Moterra SL is simply the ultimate electric trail bike.
What it's for
Fast, fluid, ridiculously fun trail riding on everything from the steep and techy to the fast and flowy.
Highlights
- LAB71, full carbon, 150mm travel FlexPivot frame with Proportional Response suspension kinematics and geometry
- Top-of-the-line Fox Factory suspension – 160mm Factory Float 36 fork & Factory Float X rear shock
- Ultralight and tough DT Swiss XMC 1501 carbon, tubeless-ready, all-mountain wheelset
- SRAM’s top e-MTB group - XX AXS wireless 12-speed shifting & Code Ultimate Stealth 4-piston hydraulic disc brakes, plus e*thirteen Race Carbon cranks
- RockShox’s wireless remote Reverb AXS dropper post, and a OneUp stem and Carbon Ebar
- Cannondale-tuned Shimano EP801 motor & custom, high-energy-density 601Wh internal battery
Technical Specifications
Technical Specifications
| Platform | Moterra SL |
| Model name | Moterra SL LAB71 |
| Model code | C65114U |
| Frame | LAB71 Moterra SL Carbon, 150mm travel, Proportional Response Tuned Suspension, FlexPivot Chainstay, direct mount internal battery, engineered plastic skid plate, 55mm chainline, internal cable routing, 29” FlipChip, 148x12mm Maxle thru-axle, UDH hanger, 200mm native post mount brake, angle adjust headset |
| Fork | Fox Float Factory 36, 160mm travel, Grip2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset |
| Headset | Acros Adjustable Angle (1.2°) |

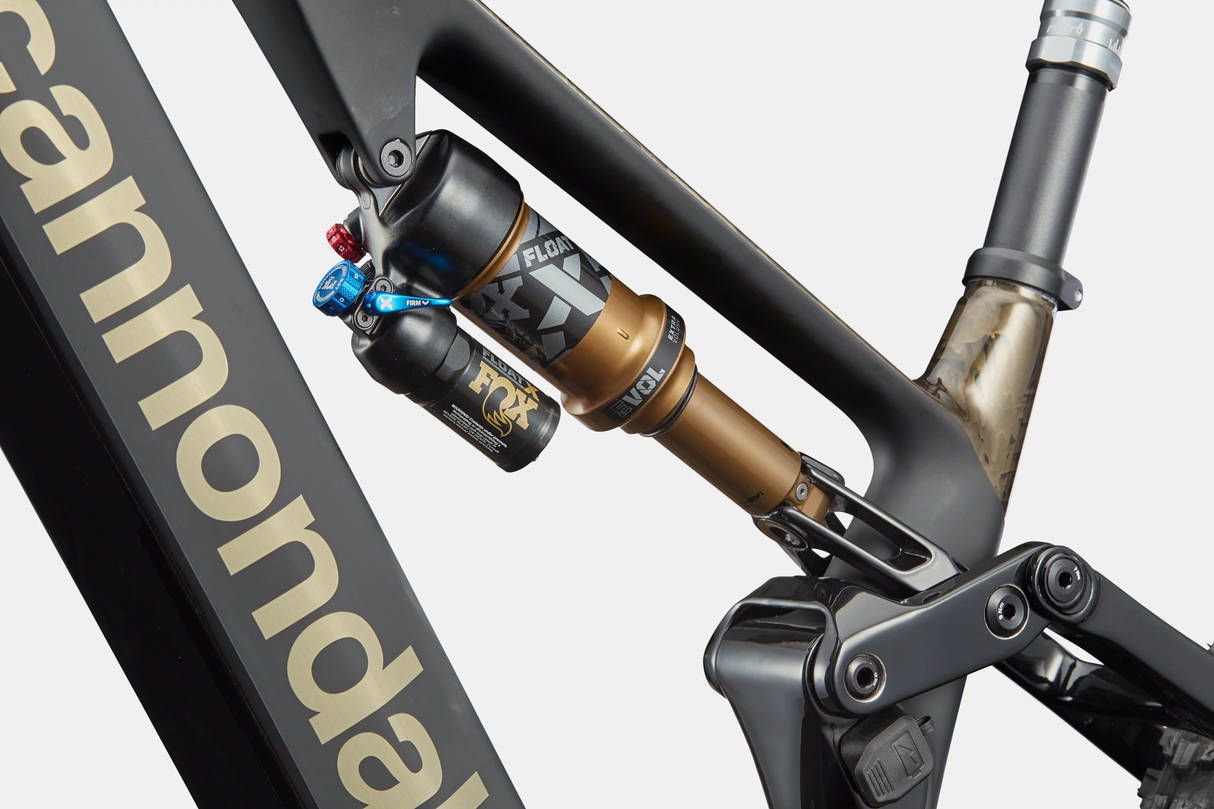

| Rear shock | Fox Float X Factory, 2 pos adj, EVOL LV, 210x55mm |
| Drive unit | Shimano EP801, 85Nm, Custom Tuned, Eco, Trail 1, Trail 2, Boost Modes |
| Battery | Custom 601Wh battery |
| Charger | Custom 4A |
| Display | Shimano SC-EM800 Cycle Computer, Bluetooth LE Compatible |
| Certifications | UL 2849 |

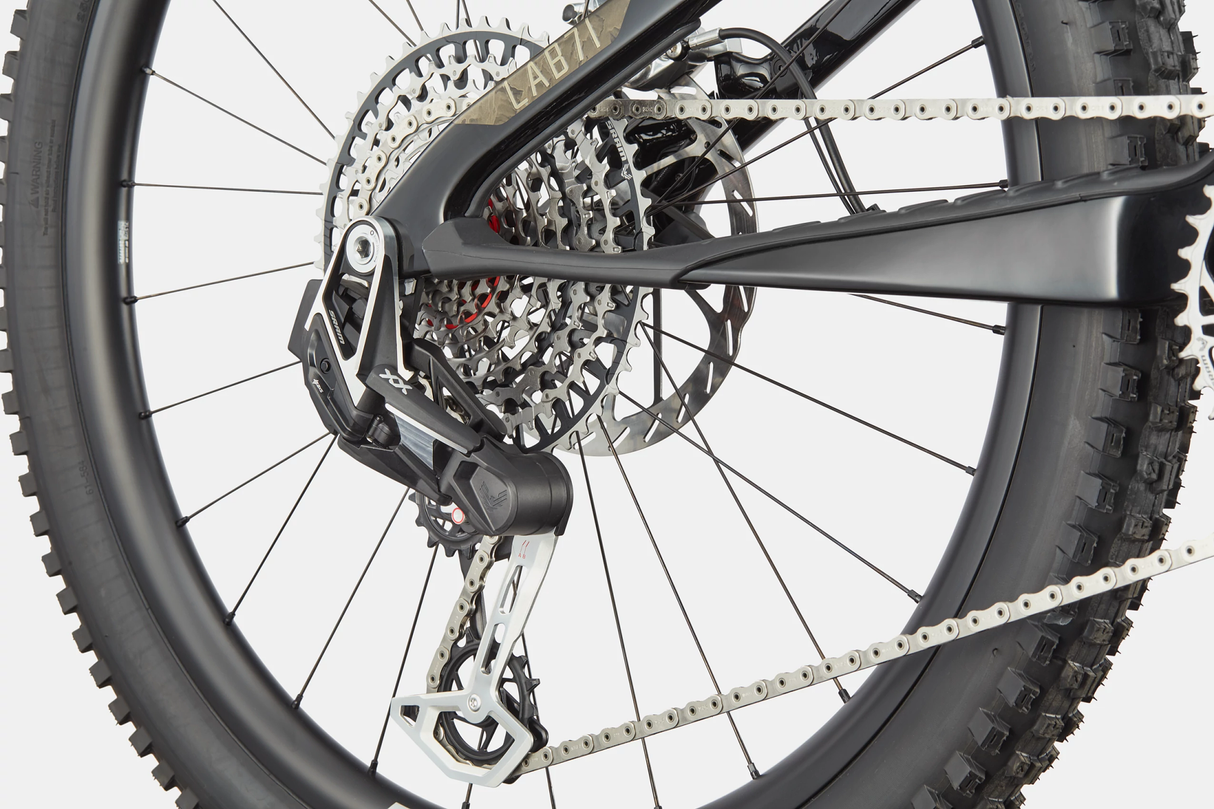

| Rear derailleur | SRAM XX Eagle AXS, T-Type |
| Shifters | SRAM Eagle AXS T-Type Ultimate Pod Controller |
| Chain | SRAM XX Eagle, T-Type, Flattop |

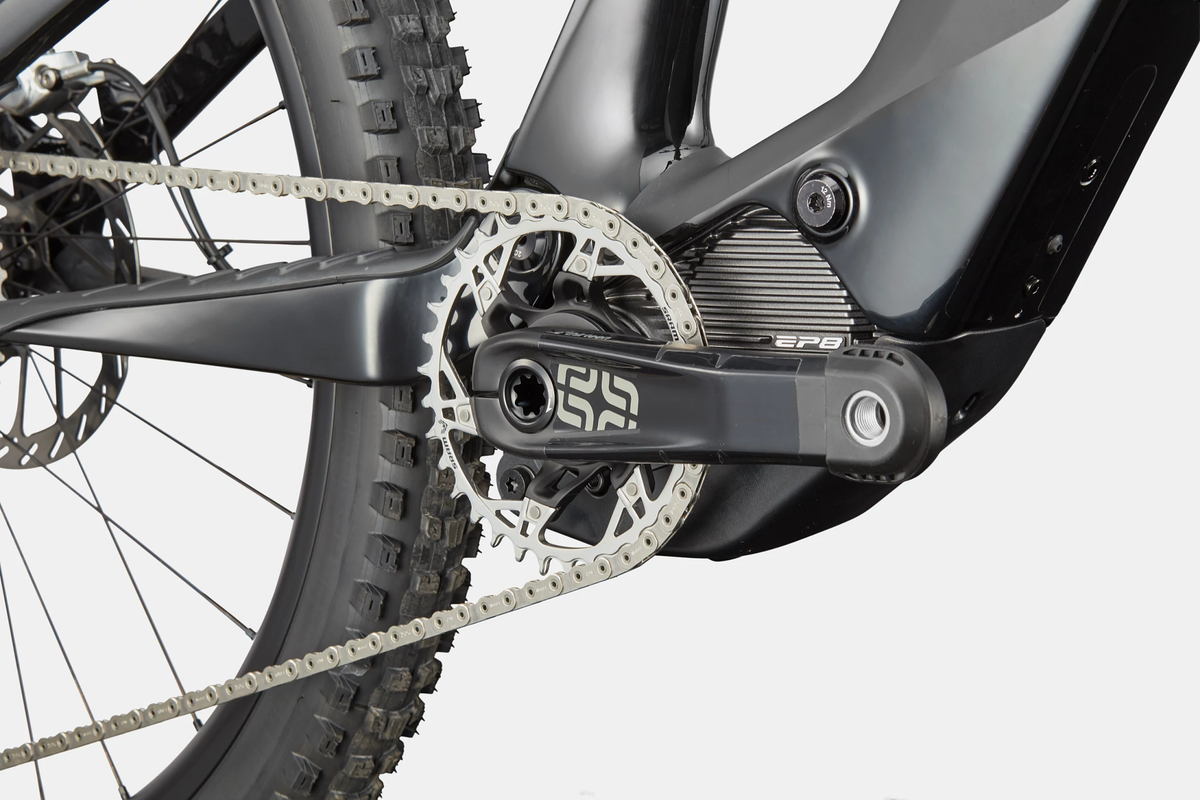

| Crank | e*thirteen e*spec Race Carbon - Gen 4, 165mm, 34T |
| Rear cogs | SRAM XX Eagle, T-Type, 10-52, 12-speed |
| Brakes | SRAM Code Ultimate Stealth, 4-piston hydraulic disc, 200mm HS2 rotors |
| Brake levers | SRAM Code Ultimate Stealth |
| Rims | DT Swiss XMC 1501, carbon, 30mm inner width, hookless, TSS tubeless ready |
| Spokes | DT Swiss Competition Race |
| Tire size | 2.5 |
| Wheel size | 29 |
| Hubs | (F) DT Swiss 240, 15x110mm / (R) DT Swiss 240 Ratchet EXP 36, 12x148mm |
| Tires | (F) Maxxis DHF, 29x2.5 ", 3C, EXO+, tubeless ready / (R) Maxxis Dissector , 27.5x2.4", 3C, EXO+, tubeless ready |

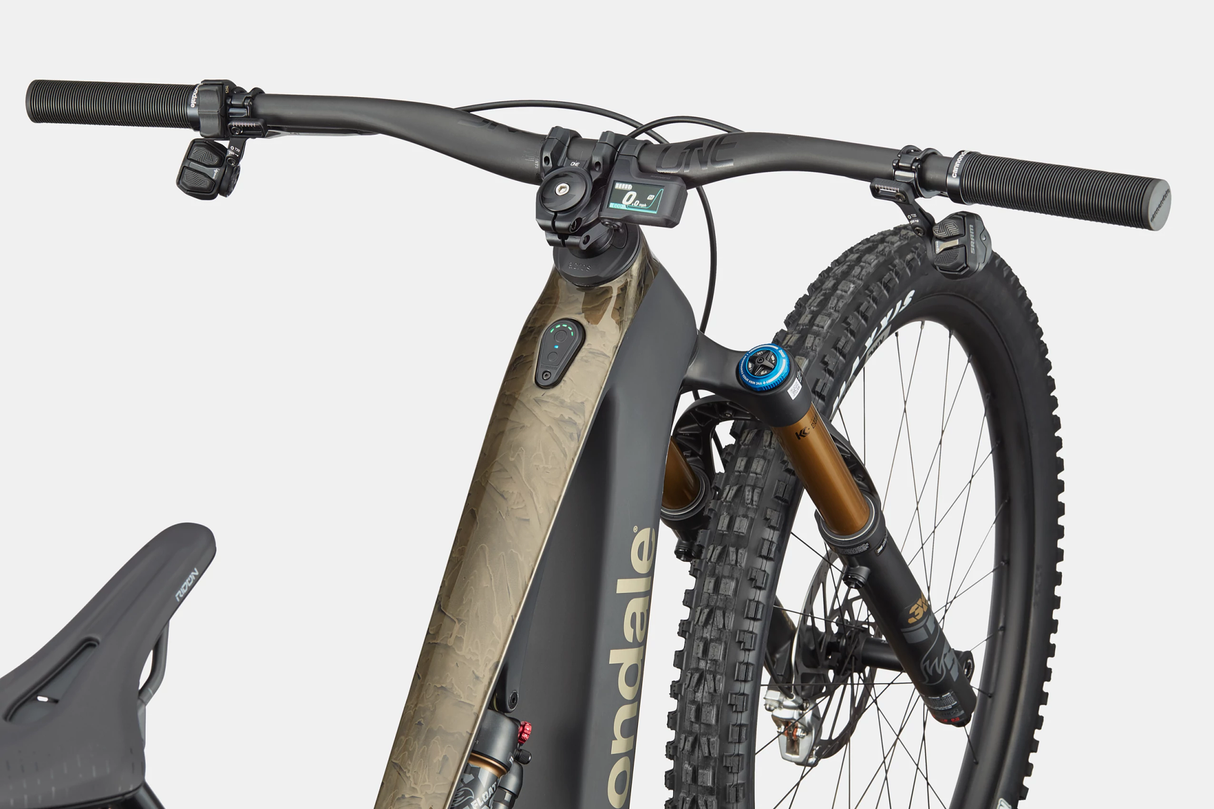

| Handlebar | OneUp Carbon Ebar, 35mm clamp, 35mm Rise, 8° sweep, 5° rise, 780mm |
| Stem | OneUp Stem, 6061 Alloy, 1-1/8", 35mm, 0° |
| Grips | Cannondale TaperRidge |
| Saddle | Fizik Terra Ridon X1, 145mm, Wingflex, Carbon Mobius rail 7x10mm |
| Seatpost | RockShox Reverb AXS, 31.6, 150mm (S), 170mm (M-XL) |
| Extra 1 | Tubeless valves, SRAM AXS charger |
| Ingestion hazard | WARNING - INGESTION HAZARD: This product contains a button cell or coin battery. DEATH or serious injury can occur if ingested. A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. KEEP new and used batteries OUT OF REACH OF CHILDREN. Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body. |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
Length measurements converted to mm from Cannondale inch values. Angles in degrees.
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| SM | 5'1" - 5'5" | 155 - 165 |
| MD | 5'4" - 5'9" | 163 - 175 |
| LG | 5'8" - 6'1" | 173 - 185 |
| XL | 6'0" - 6'5" | 183 - 196 |
Sizing to be used as a reference only. Chat with us if you have any questions.
