2024 Trance X Advanced 1 Full Suspension Mountain Bike
Fully assembled, tuned, and test-ridden—ready to ride at pickup from any DFW Bike Mart location.
Expected to ship within 3 days
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart—ready to ride right at your doorstep within 10 miles of any DFW location.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required. For orders that include a frameset please visit our support center to make sure you have the specialty tools and skills required.
If you decide to take your bike to a local retailer for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.

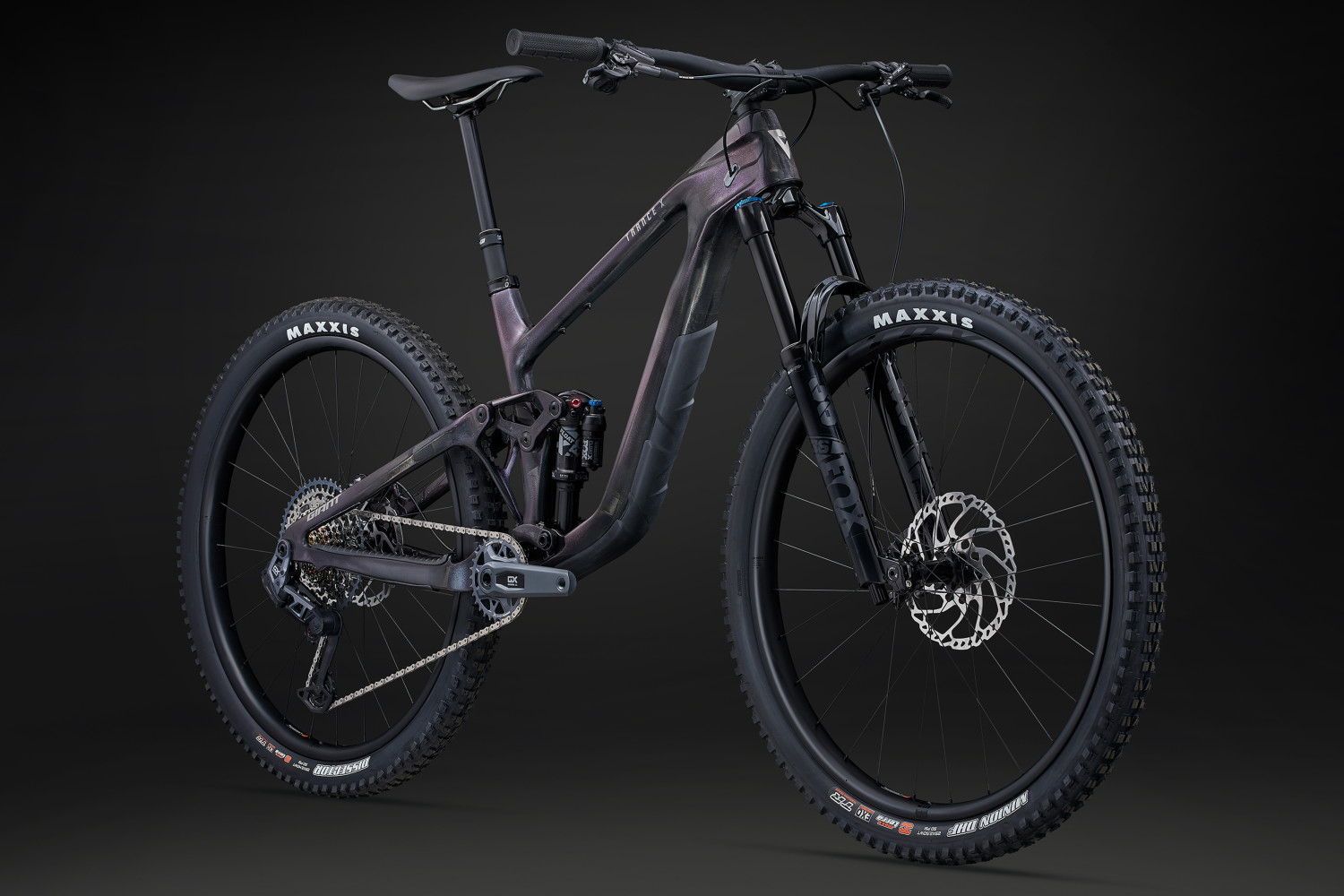

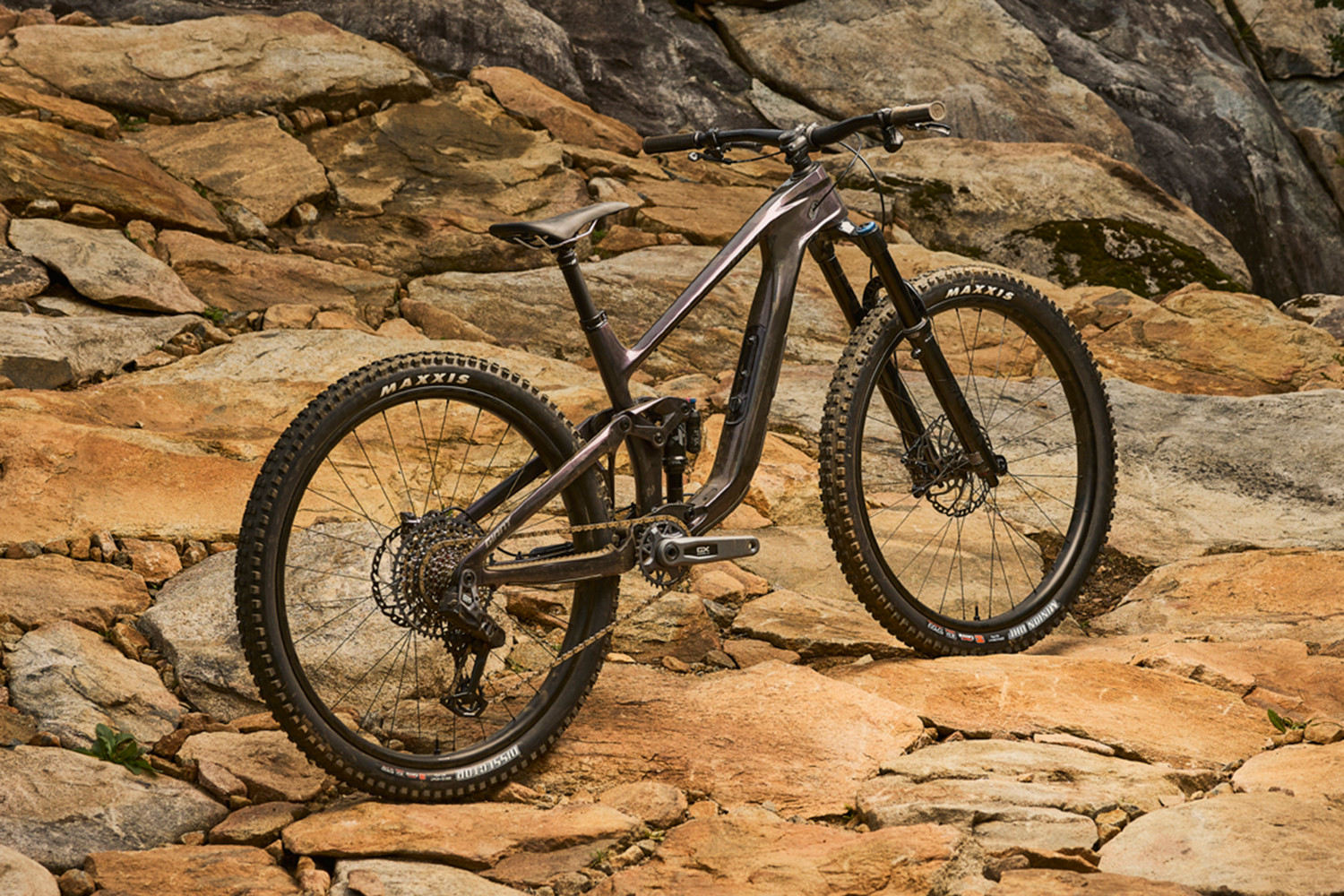

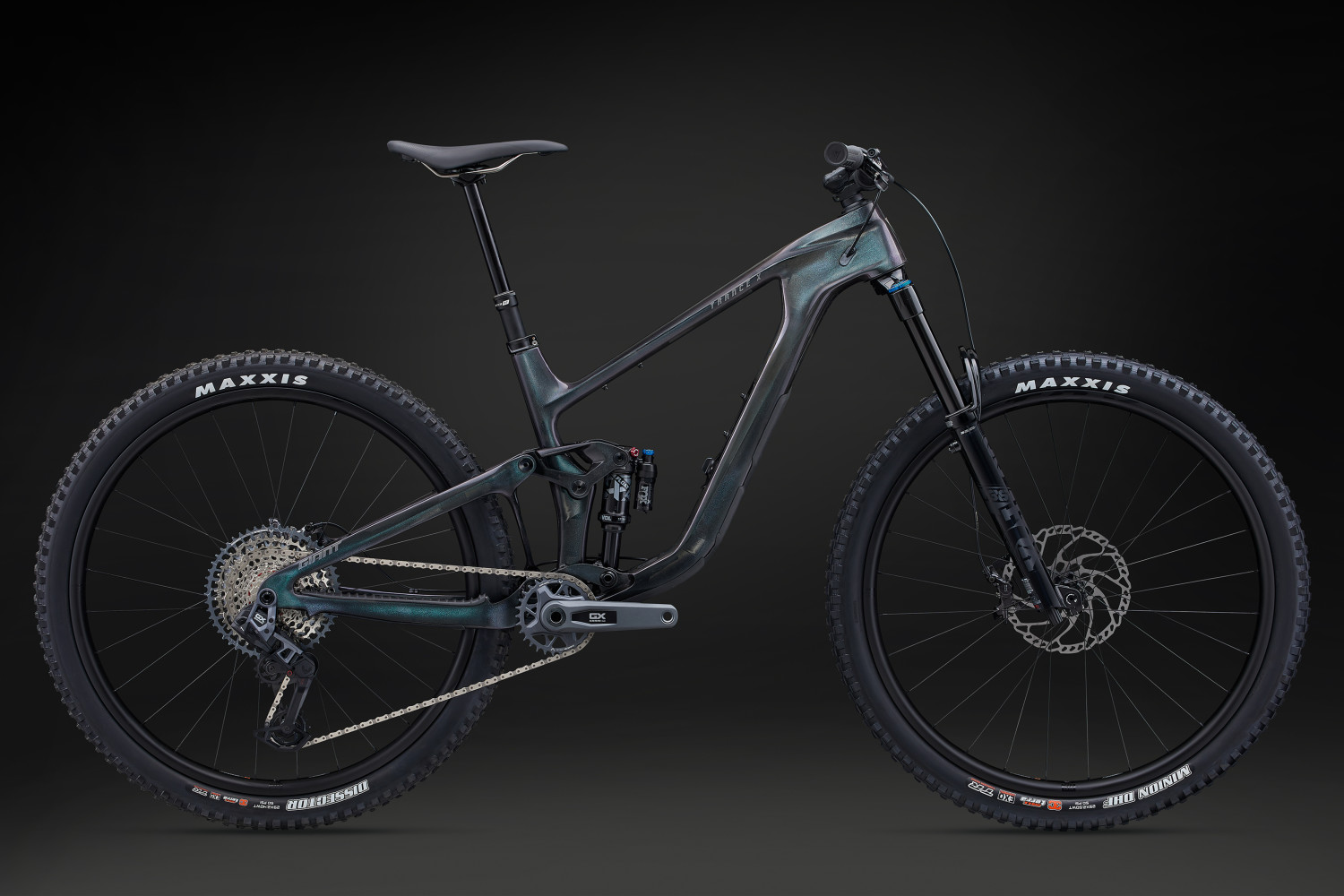

2024 Trance X Advanced 1 Full Suspension Mountain Bike
-
Advanced Composite Technology
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
-
Advanced Forged Composite Technology
A state-of-the-art high-pressure molding process is used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar components made from aluminum. This technology is used in critical performance parts such as Maestro Suspension rocker links.
-

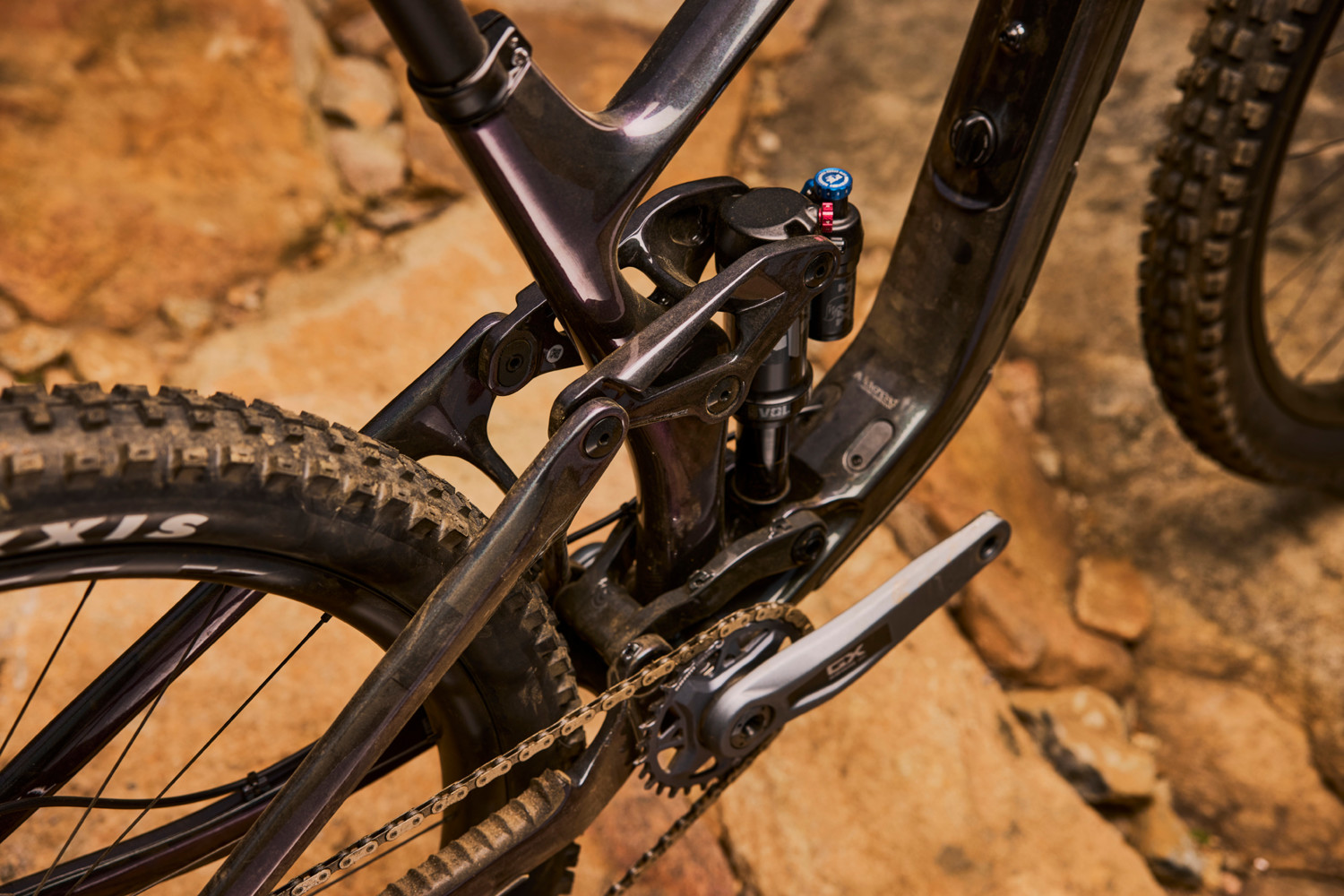

Maestro Suspension Technology
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
-
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
-
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Overview
Overview

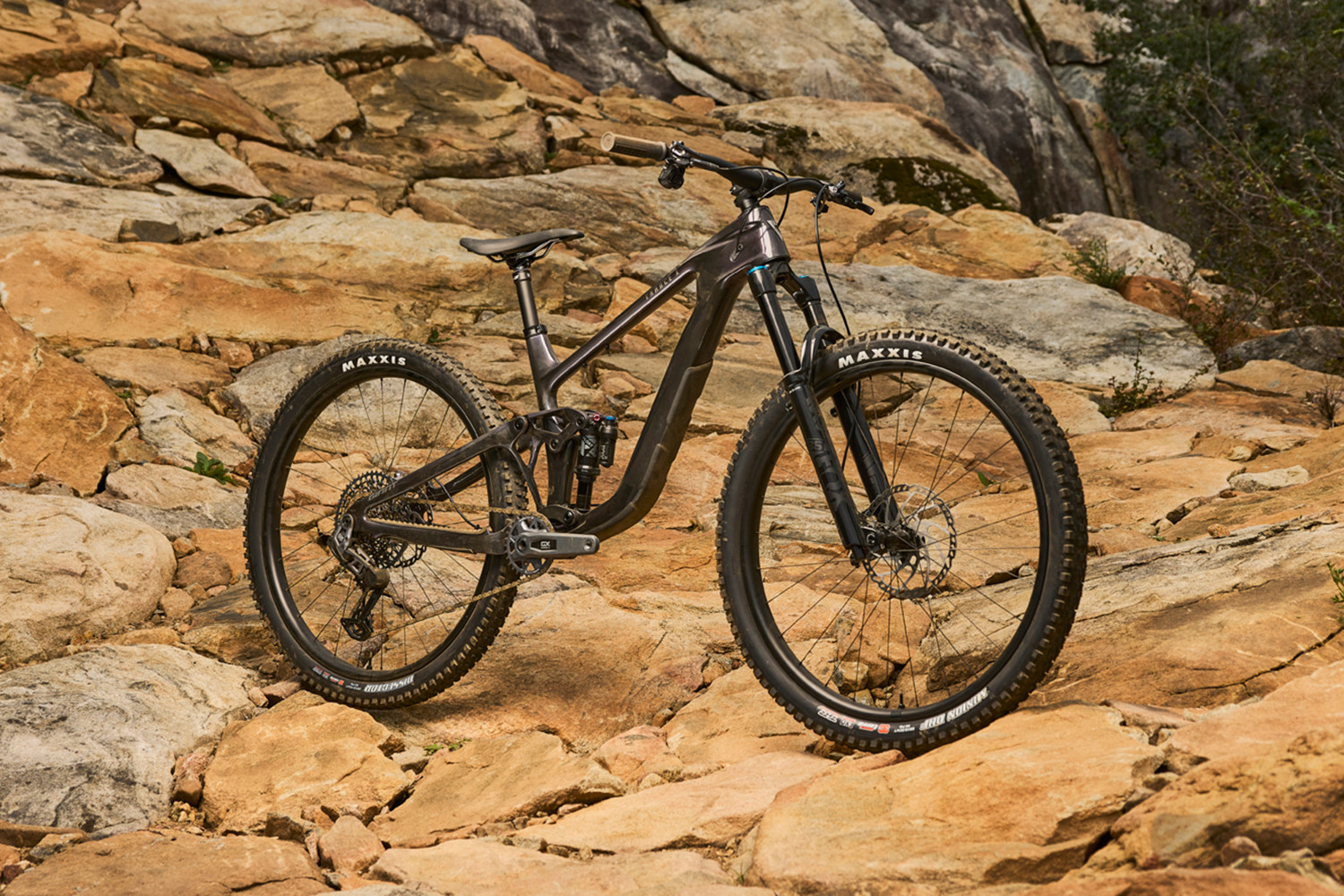

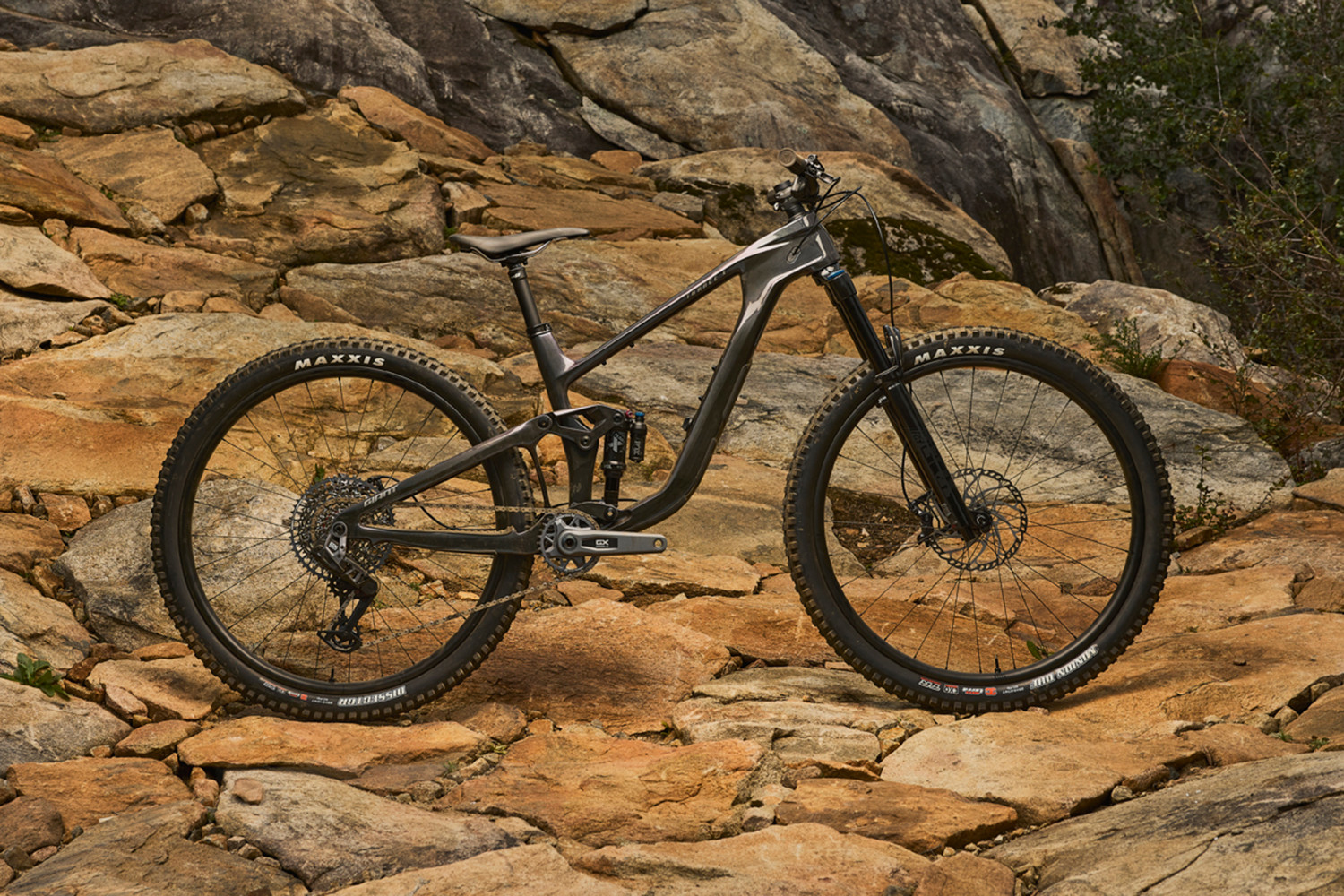

Float up technical climbs and sail down chunky descents. This all-new, full-composite trail bike gives you 140mm of smooth Maestro rear suspension and all sorts of adjustability. You can dial in frame geometry and switch the rear wheel size for the terrain.
Key Performance Factors
- More Travel: New Maestro rear suspension adds 5mm of travel over previous generation, going from 135mm to 140mm. A trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke with a smooth, active feel. Rear suspension is paired with a 150mm travel fork for superior confidence and control on technical singletrack terrain.
- Adjustable trail geometry: A three-position Maestro flip chip lets you dial in frame geometry for your riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. The low setting creates a slacker head angle and lower bottom bracket for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip provides 10mm of reach adjustment.
- Rear wheel options: All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock setup optimizes stability and roll-over speed, while a 27.5 rear wheel delivers a snappier feel and more saddle-to-tire clearance. Some riders favor this “mullet” setup for riding steep, technical terrain.
Technical Specifications
Technical Specifications
| Sizes | S, M, L, XL |
| Colors | Arctic Light/Chrome |

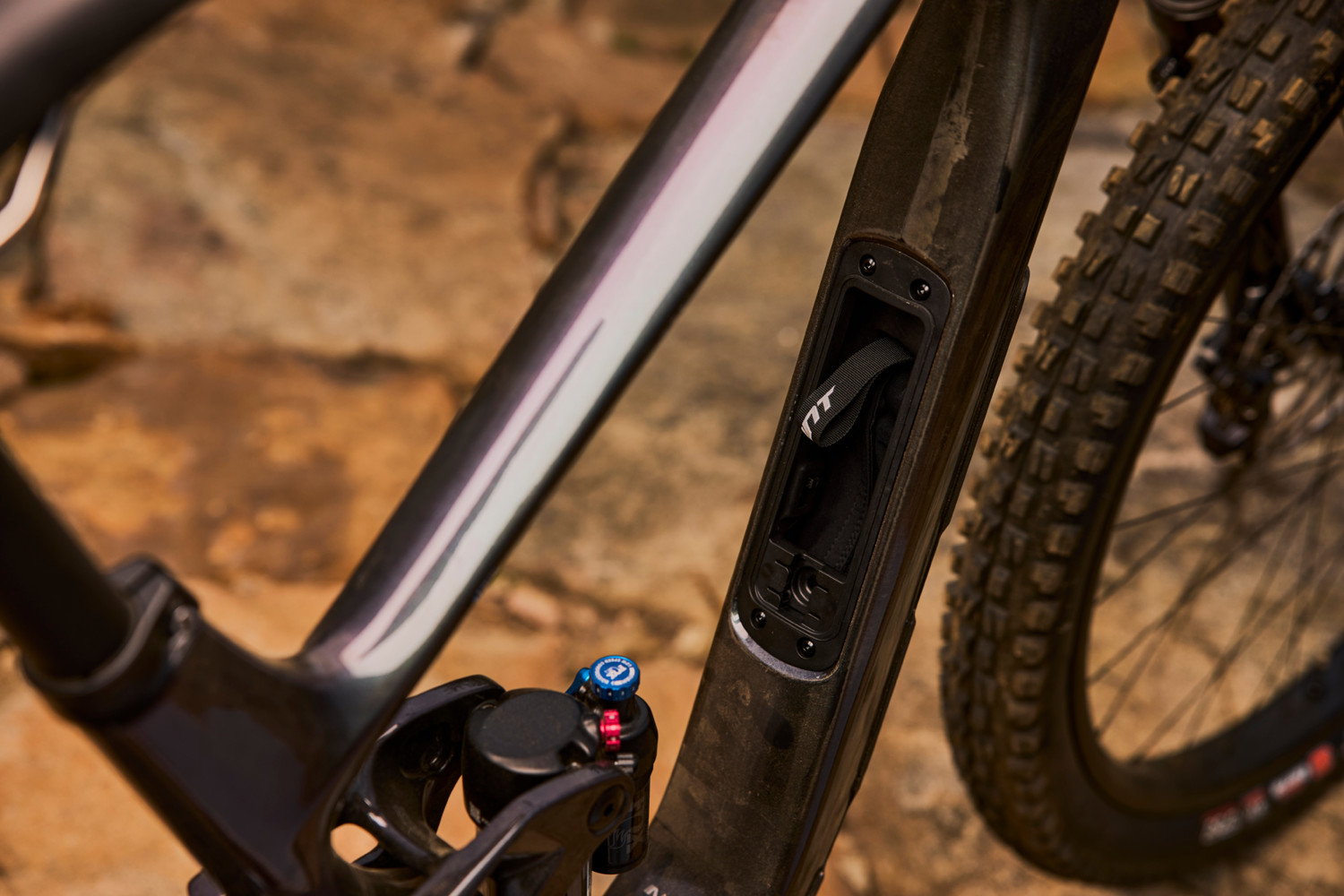

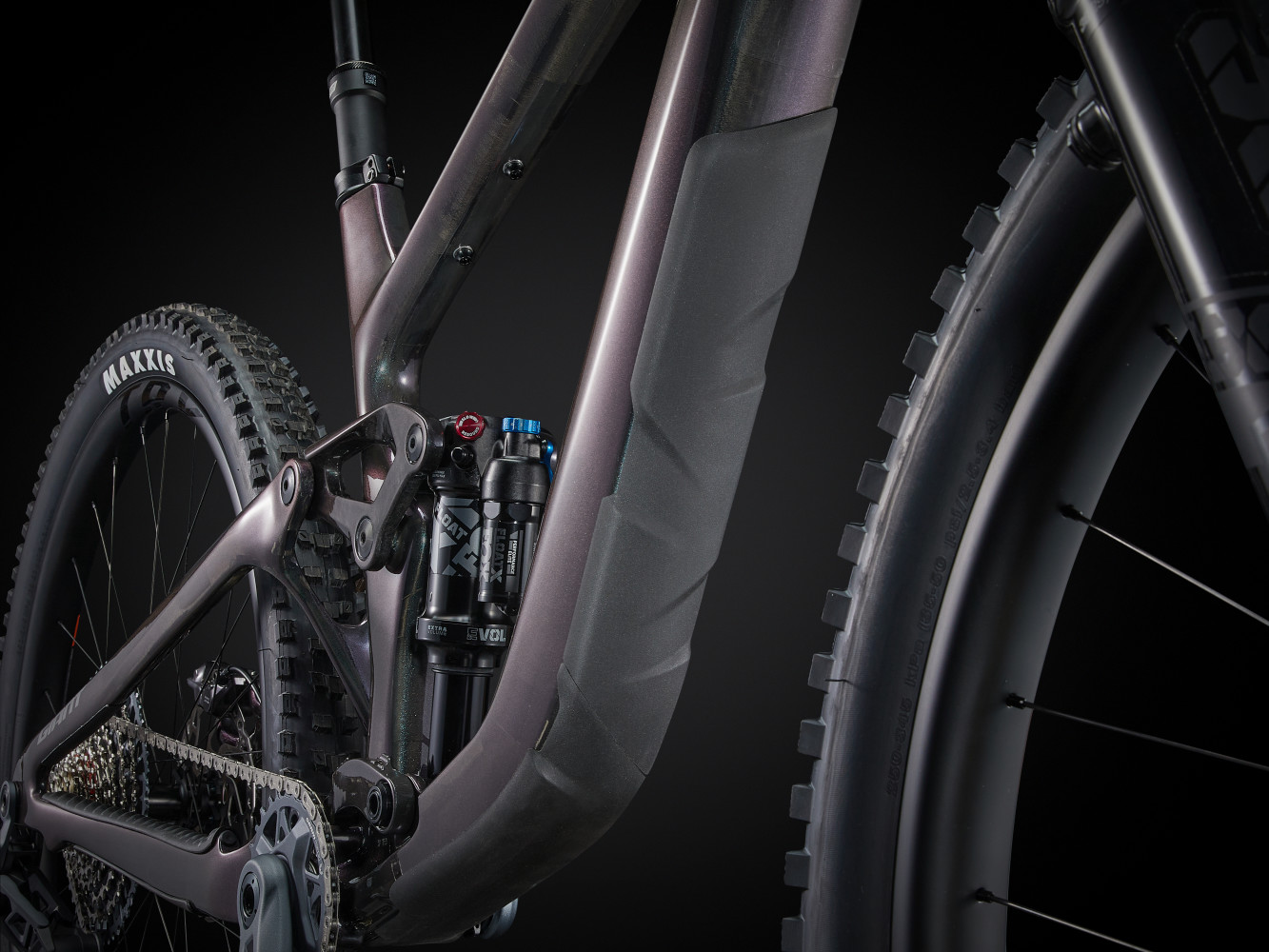

| Frame | Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset, integrated down tube storage and under-top tube storage mounts |

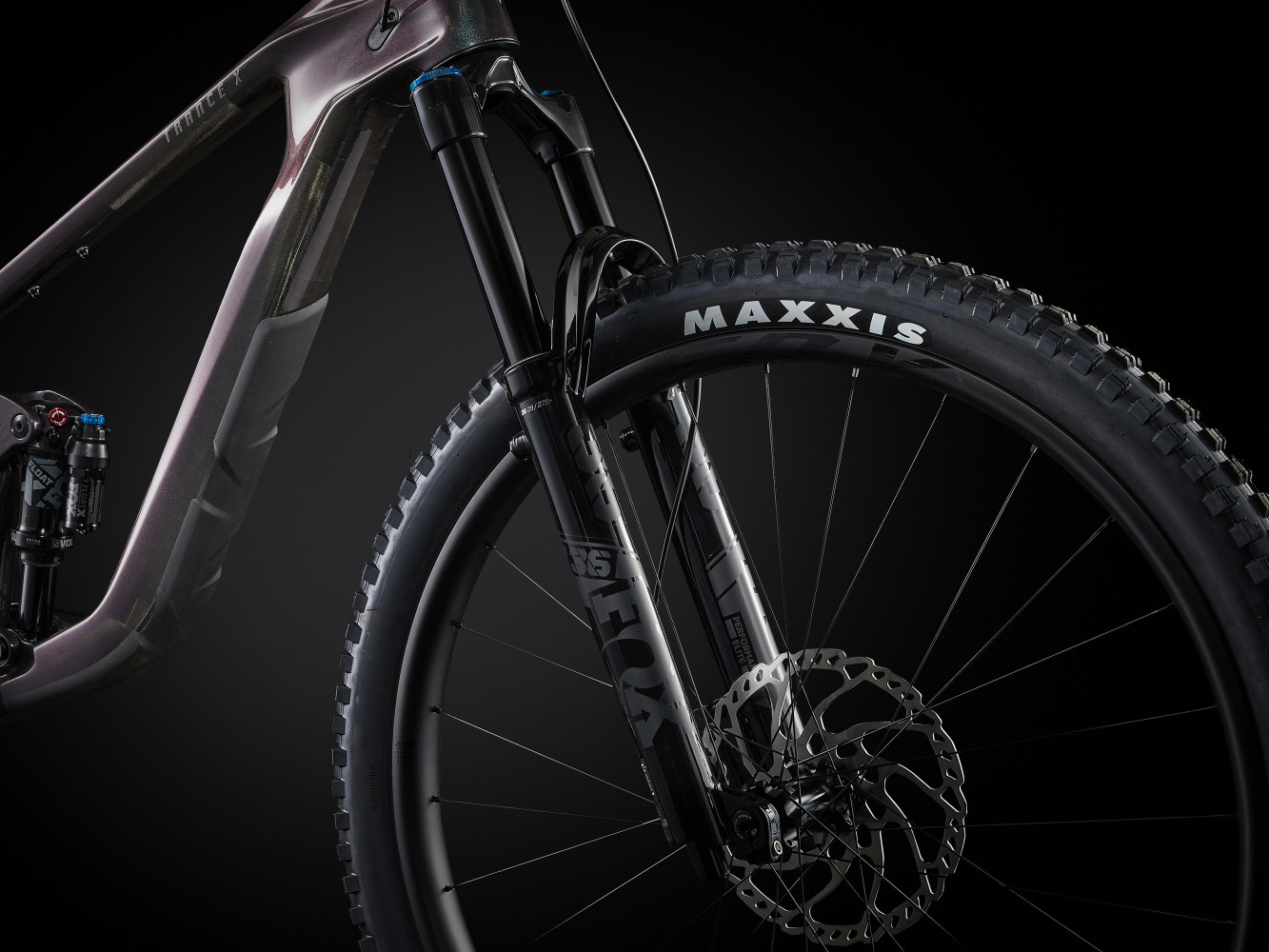

| Fork | Fox 36 Performance Elite, 150mm, GRIP 2 damper, 15x110 Kabolt X, 44mm offset |

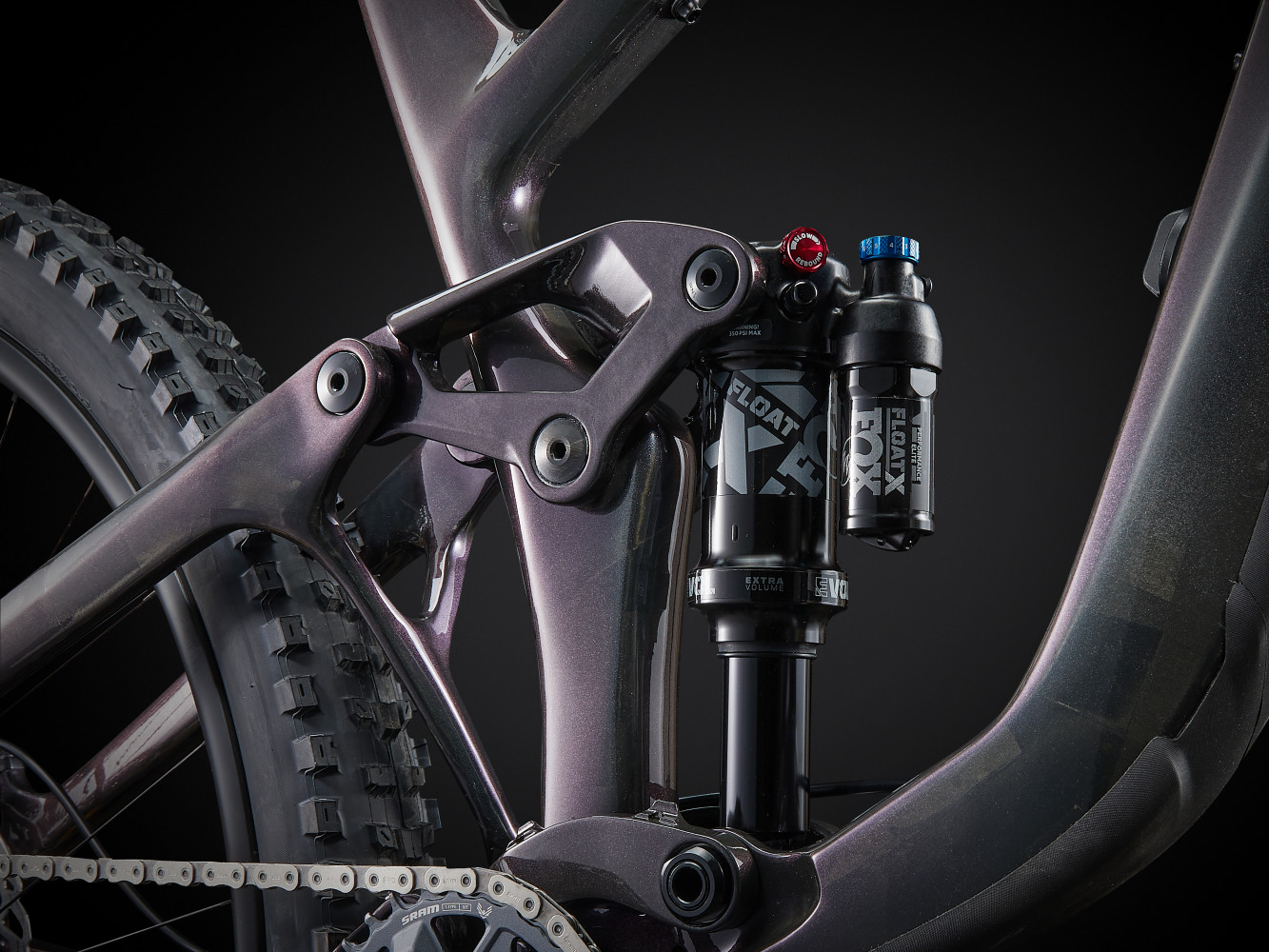

| Shock | Fox Float X Performance Elite, two-position LSC adjust, 185/52.5, custom tuned for Giant |

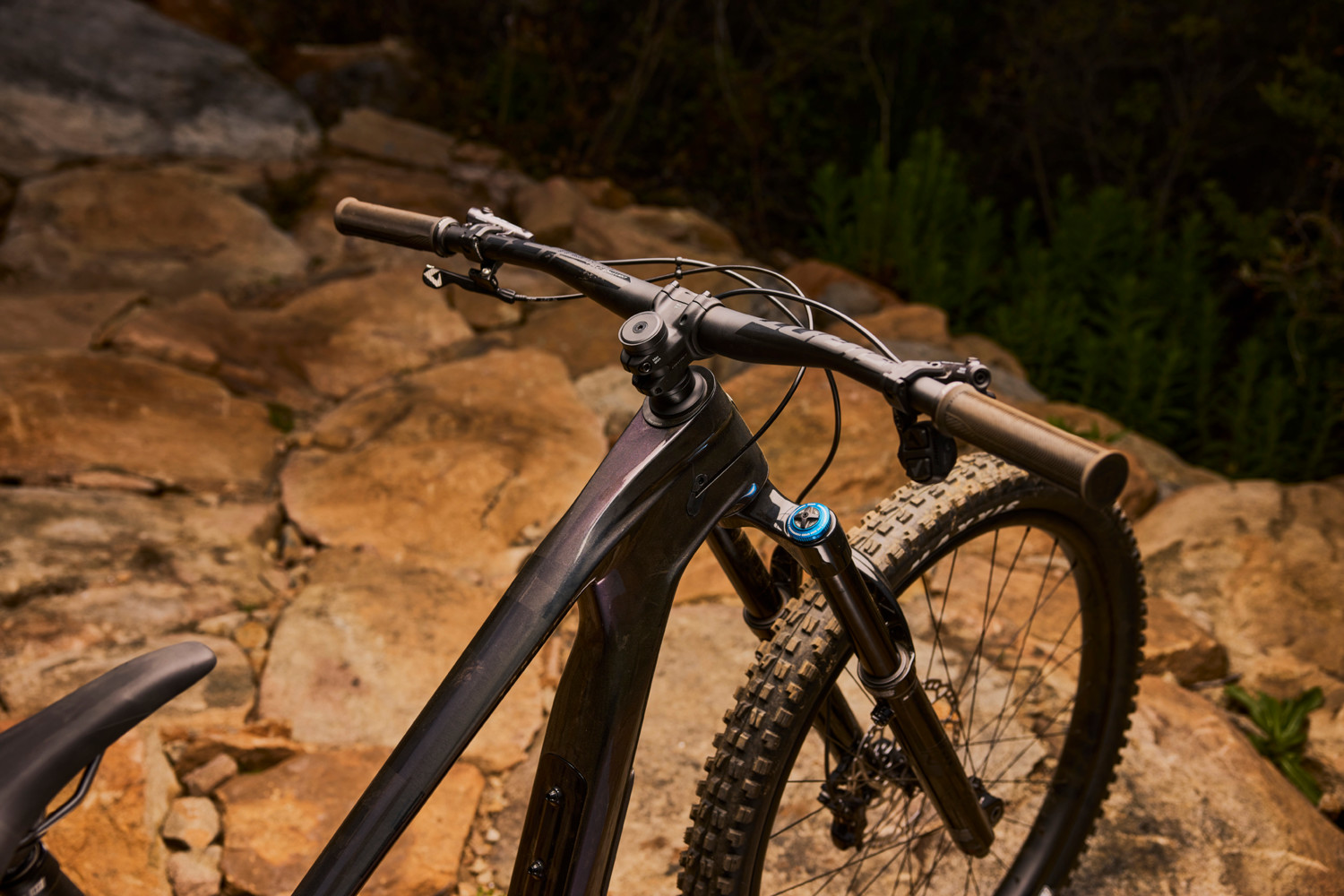

| Handlebar | Giant Contact SL TR35, alloy, 780x35mm, 20mm rise |
| Grips | Giant Tactal Pro Single Lock-On, 132x35mm |
| Stem | Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm |
| Seatpost | Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm |
| Saddle | Giant Romero SL |
| Pedals | N/A |
| Shifters | SRAM AXS Pod, 1x12 |
| Front derailleur | N/A |

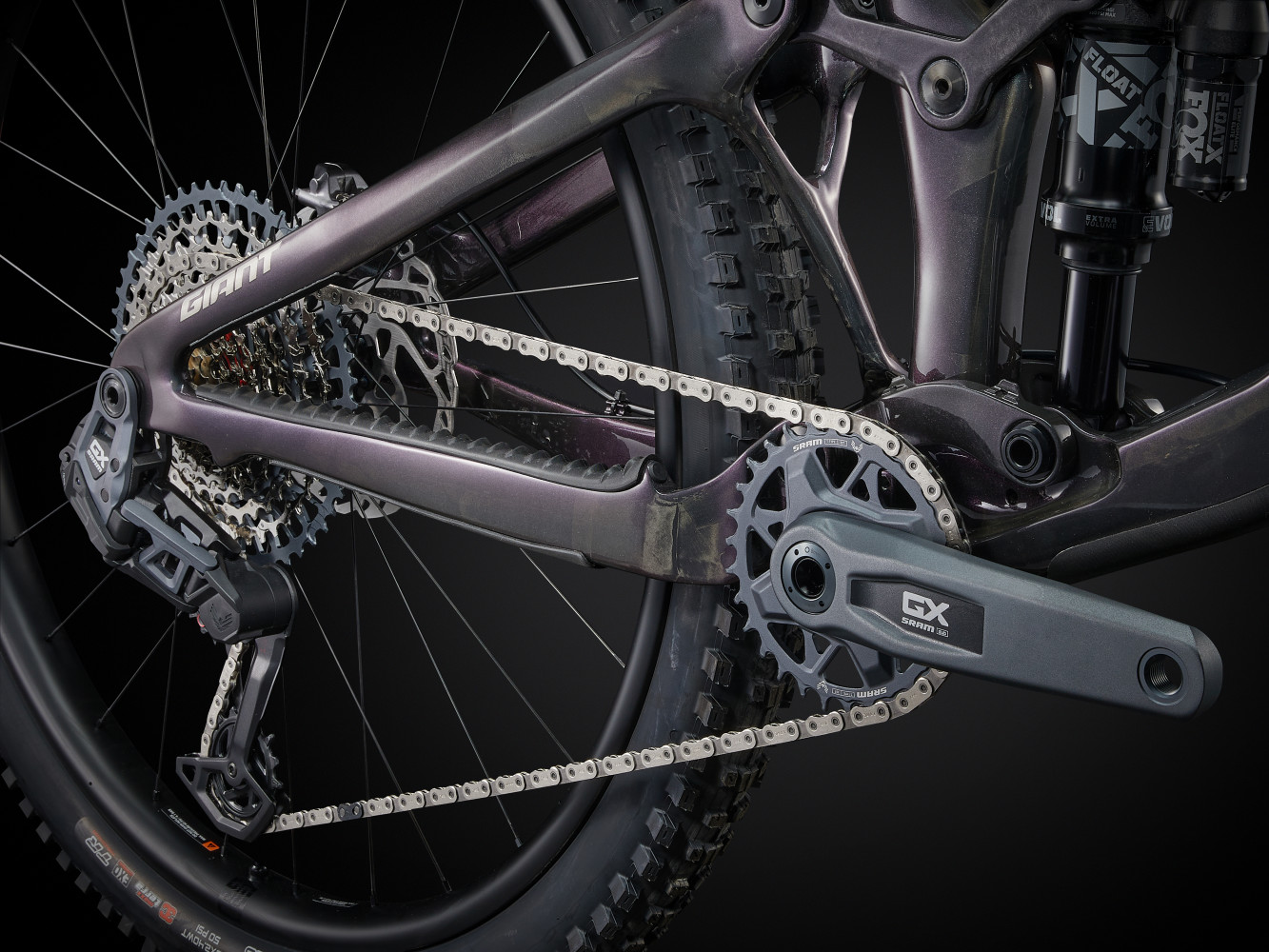

| Rear derailleur | SRAM GX Eagle AXS, T-Type |
| Brakes | Shimano Deore XT BR-M8120, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm |
| Brake levers | Shimano Deore XT BL-M8100 |
| Cassette | SRAM GX, T-Type, 10x52 |
| Chain | SRAM GX, T-Type |
| Crankset | SRAM GX, T-Type, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm |
| Bottom bracket | SRAM DUB, Press Fit |
| Rims | Giant TRX WheelSystem, carbon, hookless, 30mm inner width, 40mm outer width, 22mm height, Wide Guard Technology |
| Hubs | Giant TRX 29 Carbon WheelSystem |
| Spokes | Sapim, 28, straight pull, DBL Technology |
| Tires | [F] Maxxis Minion DHF, 29x2.5 WT, 3C 60 tpi, MaxxTerra, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, 3C MaxxTerra, TR, tubeless |
| Extras | tubeless prepared, 2.5\ max tire size, 34t max chainring size, 3M tailgate protector, down tube and chainstay protection |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in mm unless otherwise noted.
| S | M | L | XL | |
| Setting (Low/High) | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH |
| ASeat Tube Length (mm) | 400 | 425 | 450 | 475 |
| A1A1 Seat Post Insertion Depth (mm) | 280 | 305 | 330 | 355 |
| BSeat Tube Angle (degrees) | 76.8° | 77.2° | 77.5° | 76.8° | 77.2° | 77.5° | 76.8° | 77.2° | 77.5° | 76.8° | 77.2° | 77.5° |
| CTop Tube Length (mm) | 571 | 570 | 569 | 602 | 601 | 600 | 624 | 623 | 622 | 657 | 656 | 655 |
| DHead Tube Length (mm) | 100 | 105 | 115 | 125 |
| EHead Tube Angle (degrees) | 64.4° | 64.8° | 65.1° | 64.4° | 64.8° | 65.1° | 64.4° | 64.8° | 65.1° | 64.4° | 64.8° | 65.1° |
| FFork Rake (mm) | 44 | 44 | 44 | 44 |
| GTrail (mm) | 134.1 | 131.3 | 128.4 | 134 | 131.3 | 128.5 | 133.9 | 131.3 | 128.5 | 133.9 | 131.3 | 128.6 |
| HWheelbase (mm) | 1190 | 1190 | 1189 | 1222 | 1222 | 1221 | 1246 | 1246 | 1245 | 1281 | 1280 | 1280 |
| IChain Stay Length (mm) | 440 | 439 | 438 | 440 | 439 | 438 | 440 | 439 | 438 | 440 | 439 | 438 |
| JBottom Bracket Drop (mm) | 40 | 35 | 30 | 40 | 35 | 30 | 40 | 35 | 30 | 40 | 35 | 30 |
| KStack (mm) | 617 | 614 | 611 | 621 | 619 | 616 | 631 | 628 | 625 | 640 | 637 | 634 |
| LReach (mm) | 426 | 430 | 434 | 456 | 460 | 464 | 476 | 480 | 484 | 507 | 510 | 514 |
| MStand Over Height (mm) | 733 | 737 | 742 | 737 | 741 | 746 | 754 | 759 | 763 | 752 | 757 | 762 |
| NHandlebar Width (mm) | 800 | 800 | 800 | 800 |
| OStem Length (mm) | 40 | 40 | 50 | 50 |
| PCrank Length (mm) | 165 | 170 | 170 | 170 |
| QWheel Size | [F] 29" [R | [F] 29" [R | [F] 29" [R | [F] 29" [R |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| S | 5’4” - 5’8” | 163 - 172 |
| M | 5’7” - 5’11” | 171 - 180 |
| L | 5’10” - 6’2” | 179 - 188 |
| XL | 6’2” - 6’5” | 187 - 196 |
Sizing to be used as a reference only. Chat with us if you have any questions.
