Powerful drive system
A lightweight and powerful 40Nm rear hub drive offers confident handling and uninterrupted power.
-

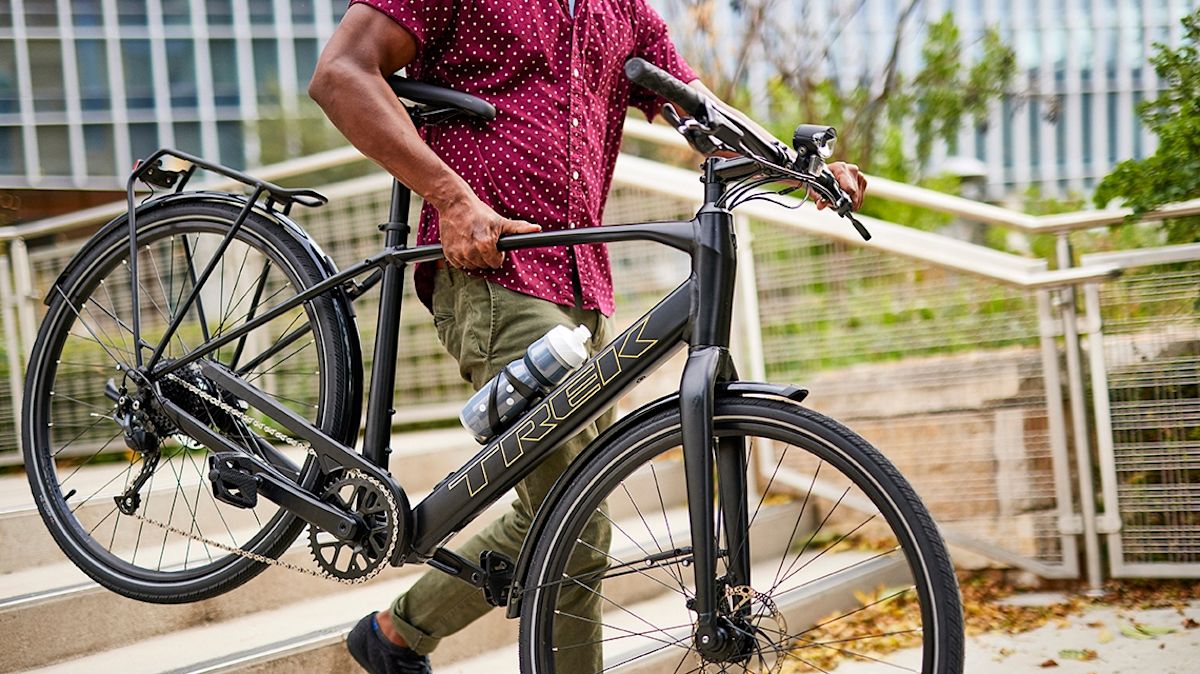

Ultra-light design
Weighing in at just 40 pounds, FX+ is one of our lightest e-bikes ever.
-

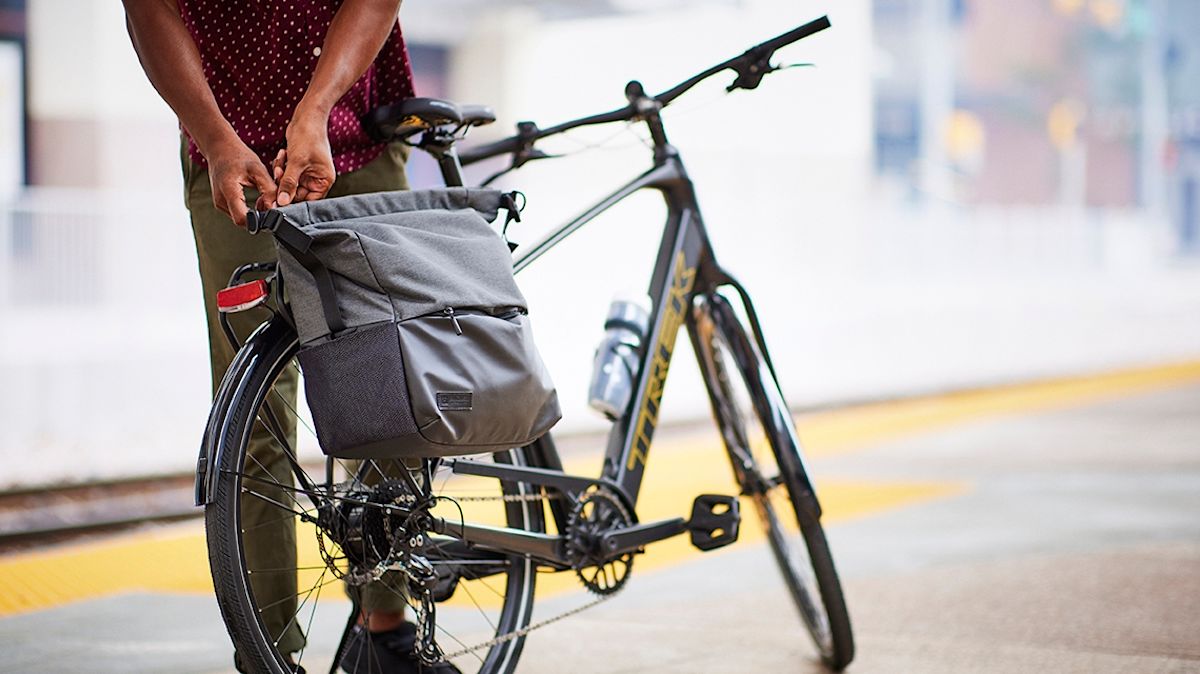

Fully equipped frame
Integrated lights, fenders, and a rear rack mean you're always ready to ride and run errands.
-
Compliant with leading safety regulations
The e-systems on Trek and Electra e-bikes are third-party tested to meet the latest e-bike safety regulations, including the stringent UL 2849 certification — so all you have to worry about is where your e-bike will take you next.
-
Upgrade your pedals and love your bike more
Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.
Overview
Overview
Technical Specifications
Technical Specifications
| Frame | Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, post mount disc, kickstand mount, 144.5mm OLD hub motor spacing |
| Fork | FX+ alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer |
| Hub front | Formula DC-20, alloy, 6-bolt, 100x5mm |
| Skewer front | 132x5mm QR |
| Hub rear | Hyena hub drive motor, 40Nm, 250W |
| Rim | Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve |
| Spokes | 14g stainless steel, black |
| Tire | Bontrager H2 Comp, reflective strip, wire bead, 30 tpi, 700x40mm |
| Max tire size | 50mm without fenders, 45mm with fenders |
| Battery | 250Wh, integrated in down tube |
| Charger | 2A, 42V output, 100V-240V AC input |
| Computer | LED display |
| E-bike classification | Class 1 |
| Shifter | Shimano M315, 8 speed |
| Rear derailleur | Shimano Acera M3020-8, 40T max cog |
| *crank | Size: S, M ProWheel Pro alloy, 42T narrow-wide steel ring, 170mm lengthSize: L ProWheel Pro alloy, 42T narrow-wide steel ring, 175mm length |
| Bottom bracket | Torque sensor, threaded, 122.5mm spindle |
| Cassette | Shimano HG400, 11-40, 8 speed |
| Chain | KMC Z8.3 |
| Pedal | Bontrager City pedals |
| Max chainring size | 1x: 44T |
| Saddle | Bontrager Sport Women's |
| *seatpost | Size: S, M Bontrager alloy, 31.6mm, 12mm offset, 330mm lengthSize: L Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
| *handlebar | Size: S, M Bontrager alloy, 31.8mm, 15mm rise, 660mm widthSize: L Bontrager alloy, 31.8mm, 15mm rise, 690mm width |
| Grips | Bontrager XR Endurance Comp, lock-on |
| *stem | Size: S, M Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 90mm lengthSize: L Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 100mm length |
| Brake | Shimano hydraulic disc, MT200 lever, UR300 caliper |
| Brake rotor | Shimano RT26, 6-bolt, 160mm |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
| *light | Size: S, M, L Spanninga Solo, taillightSize: S, M, L Herrmans MR4, 120 lumen, 40 lux, LED, headlight |
| Kickstand | Adjustable length alloy kickstand |
| *cargo rack | Size: S, M, L MIK-compatible alloy rear rack, maximum load 25 kg / 55 lbsSize: S, M, L MIK-compatible alloy rear rack |
| *fender | Size: S, M, L SKS plastic, rearSize: S, M, L SKS plastic, front |
| Weight | M - 17.65 kg / 38.92 lbs |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
Parts are subject to change without notice. Chat with us if you have any questions.

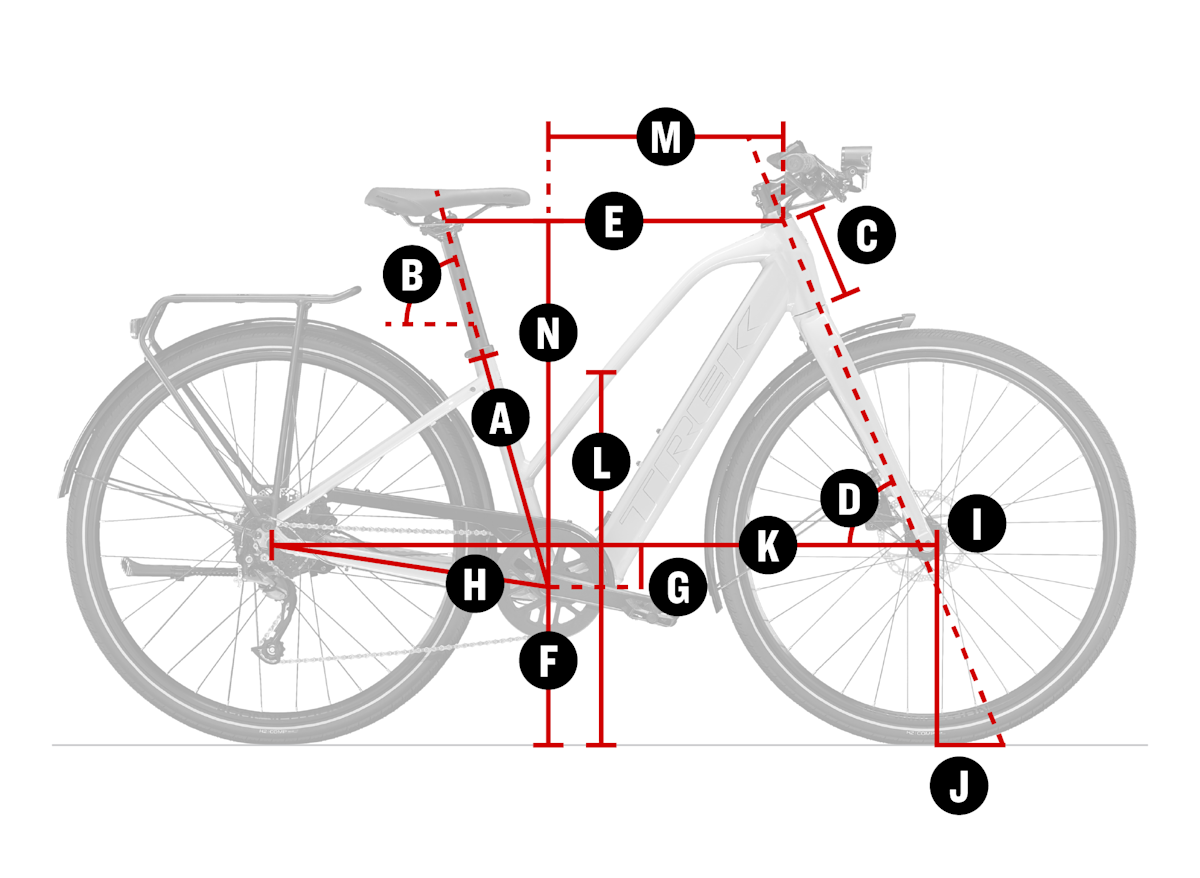

Geometry
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size number | 45cm | 50cm | 55cm |
| Frame size letter | S | M | L |
| Wheel size | 700c | 700c | 700c |
| A — Seat tube | 40.8 | 46.3 | 50.7 |
| B — Seat tube angle (degrees) | 73.5° | 73.0° | 73.0° |
| C — Head tube length | 15.5 | 17.0 | 20.0 |
| D — Head angle (degrees) | 70.0° | 70.5° | 71.0° |
| E — Effective top tube | 56.9 | 57.4 | 59.2 |
| F — Bottom bracket height | 28.6 | 28.6 | 28.6 |
| G — Bottom bracket drop | 7.0 | 7.0 | 7.0 |
| H — Chainstay length | 46.8 | 46.8 | 46.8 |
| I — Offset | 5.0 | 5.0 | 5.0 |
| J — Trail | 7.6 | 7.3 | 6.9 |
| K — Wheelbase | 109.2 | 109.5 | 110.9 |
| L — Standover | 65.5 | 67.2 | 69.3 |
| M — Frame reach | 38.2 | 38.5 | 39.3 |
| N — Frame stack | 60.4 | 62.0 | 65.0 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| S | 5'1" - 5'5" | 155 - 165 |
| M | 5'5" - 5'9" | 165 - 175 |
| L | 5'9" - 6'1" | 175 - 186 |
Sizing to be used as a reference only. Chat with us if you have any questions.
