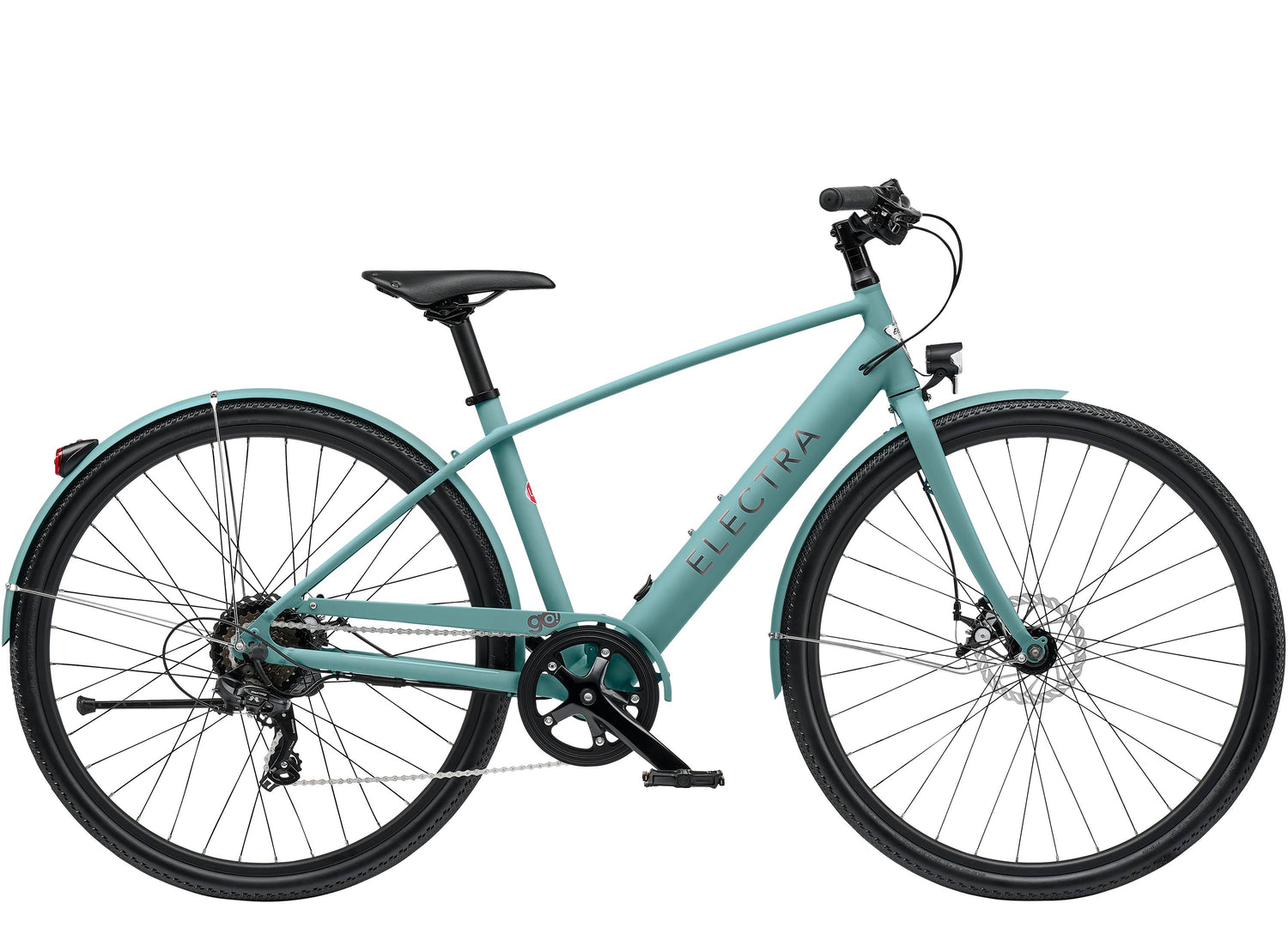

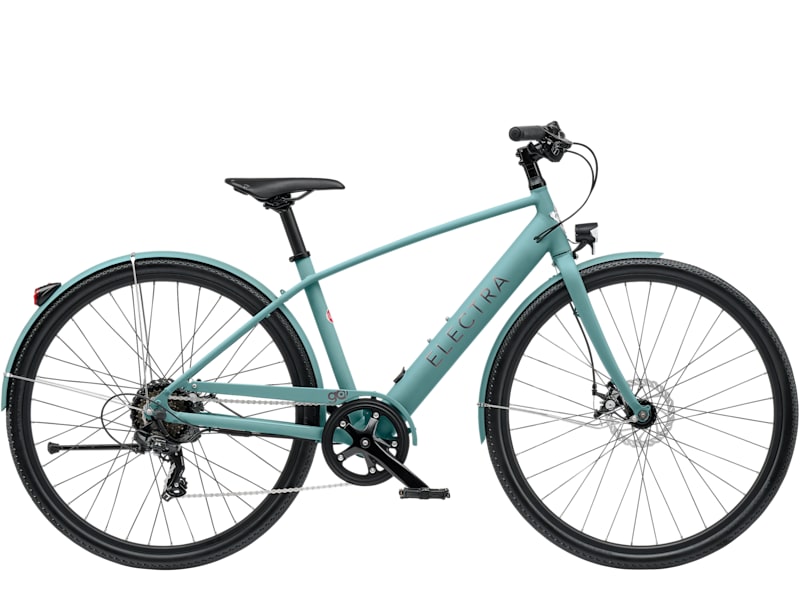

Loft Go! 7D Step Over US L Matte Cadet Blue
Fully assembled, tuned, and test-ridden—ready to ride at pickup from any DFW Bike Mart location.
Expected to ship within 3 days
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart—ready to ride right at your doorstep within 10 miles of any DFW location.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required. For orders that include a frameset please visit our support center to make sure you have the specialty tools and skills required.
If you decide to take your bike to a local retailer for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.

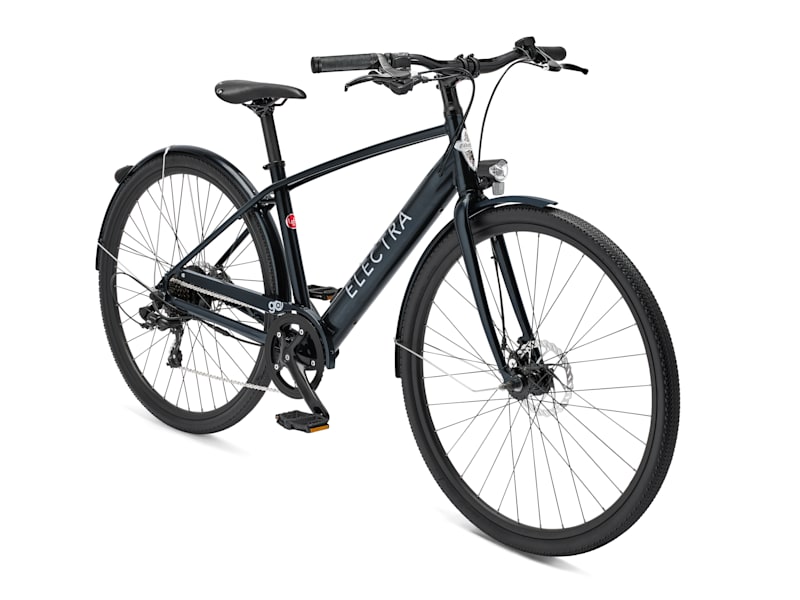

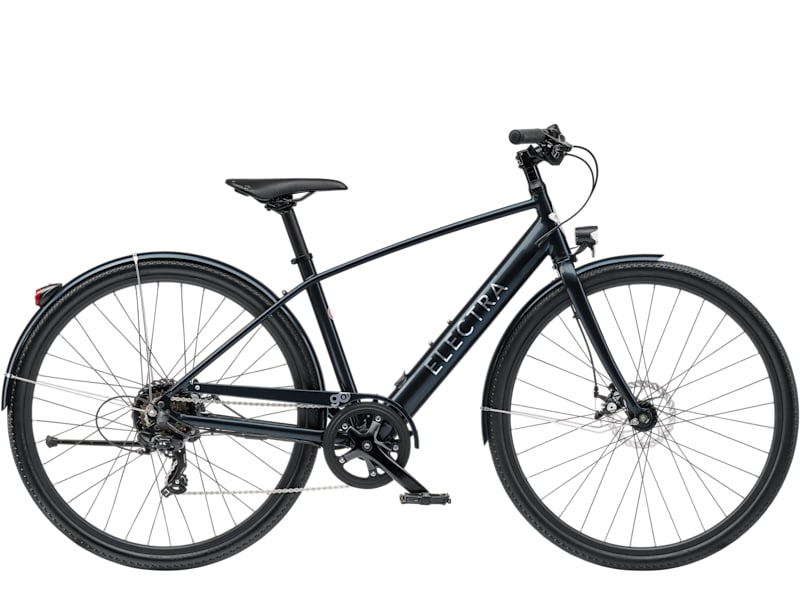

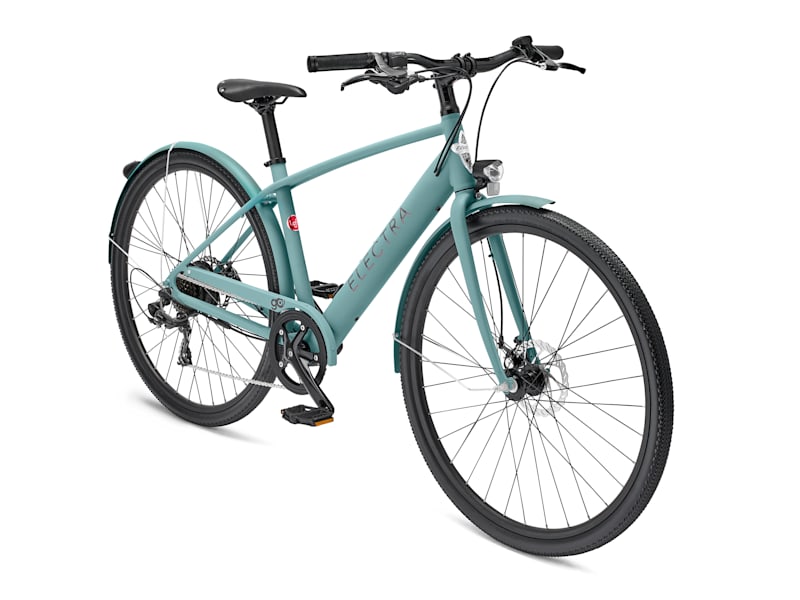

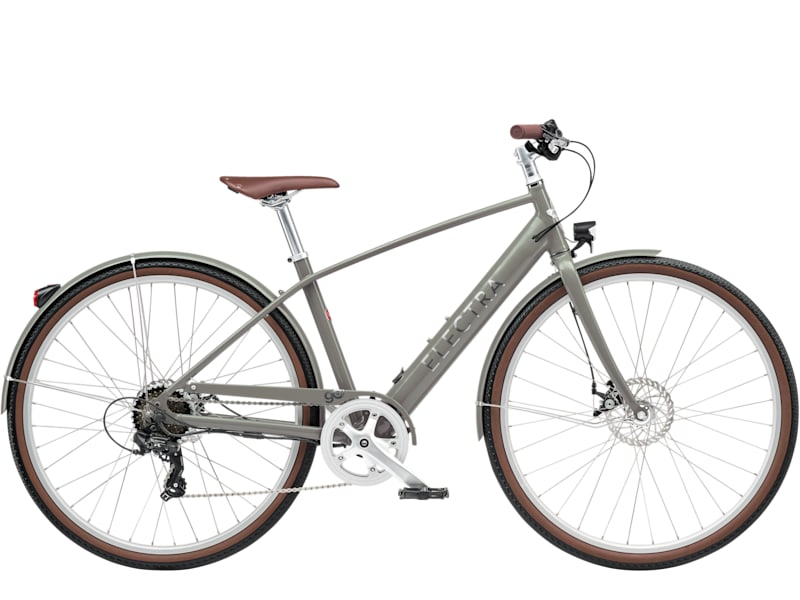

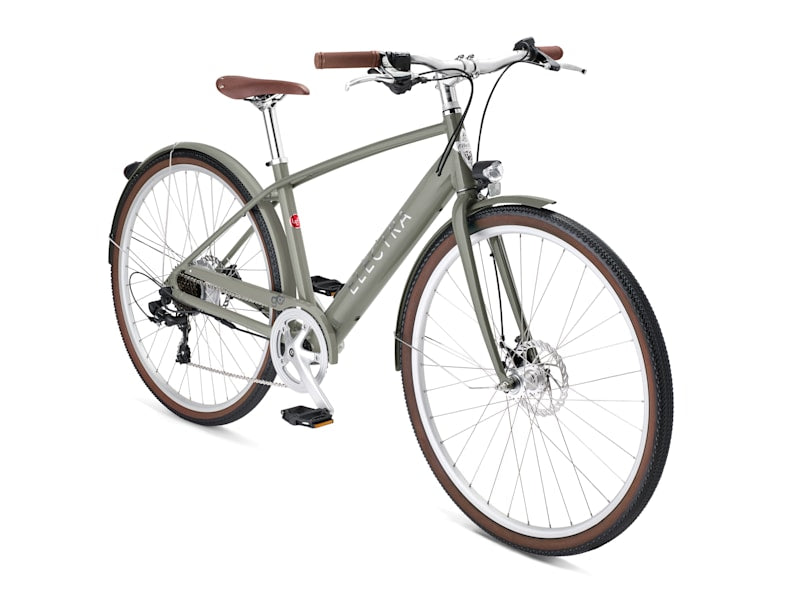

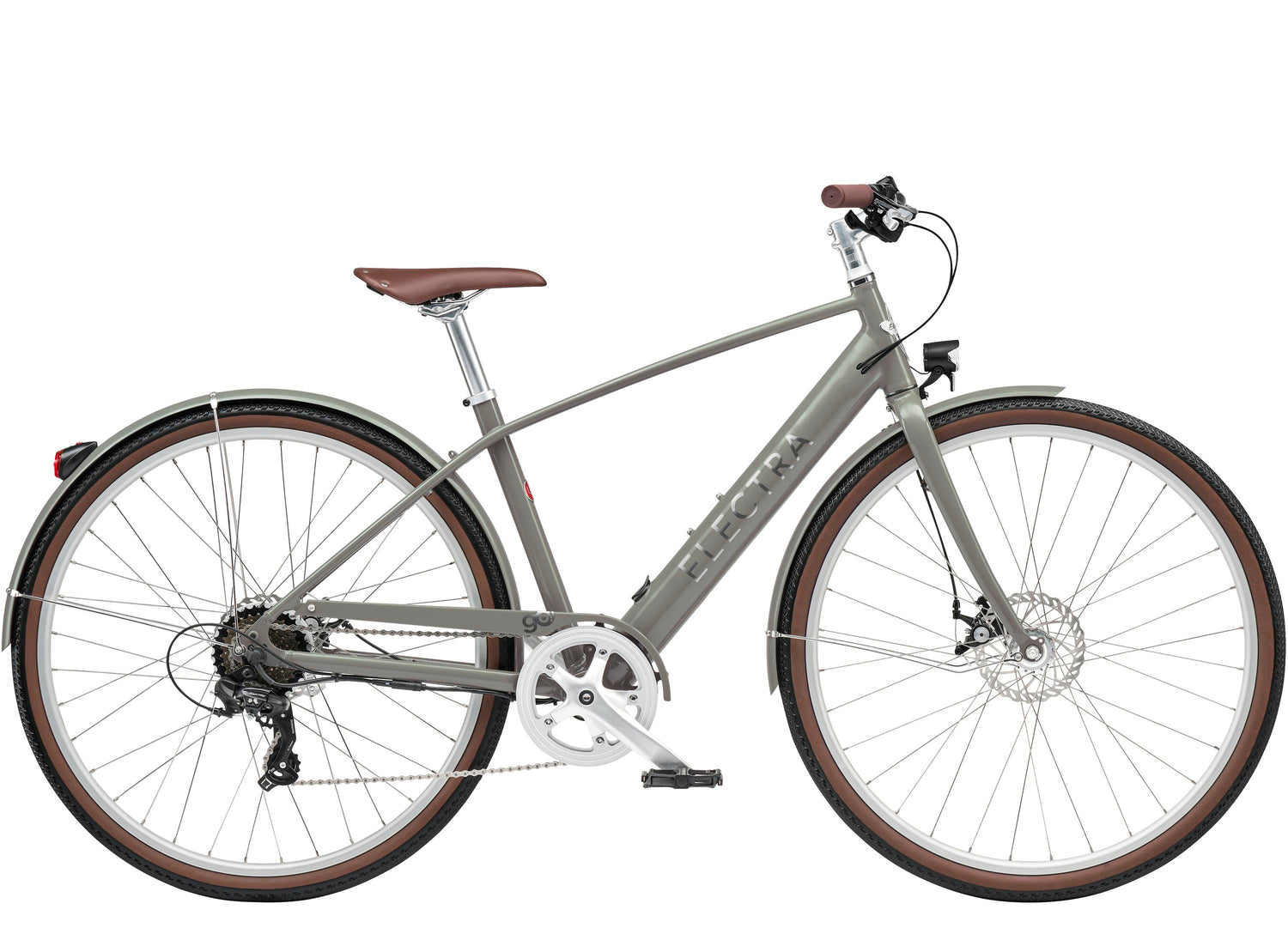

Loft Go! 7D Step Over US L Matte Cadet Blue
-
Artist Series: Loft Go! Dusk and Dawn
First light sheds bright shades of pinks and oranges across the sky. Loft Go! Dawn embodies that scene with a coral fade frame accented by cream touchpoints. In contrast to the morning hours, Loft Go! Dusk appeals to a different crowd with its deep indigo frame. Hand drawn illustrations depict eclectic streets spanning decades of architectural design to create a unique skyline. Featuring a step-thru frame, these e-bikes have the universal appeal of an urban ride that speaks to all.
-
Build Your Bike
Did your dream bike just arrive at your doorstep? Ready to add the finishing touches? If so, you came to the right place. Please read your Quick Assembly Guide and click here to watch additional step-by-step instructions.
-
Compliant with leading safety regulations
The e-systems on Trek and Electra e-bikes are third-party tested to meet the latest e-bike safety regulations, including the stringent UL 2849 certification — so all you have to worry about is where your e-bike will take you next.
Overview
Overview
Technical Specifications
Technical Specifications

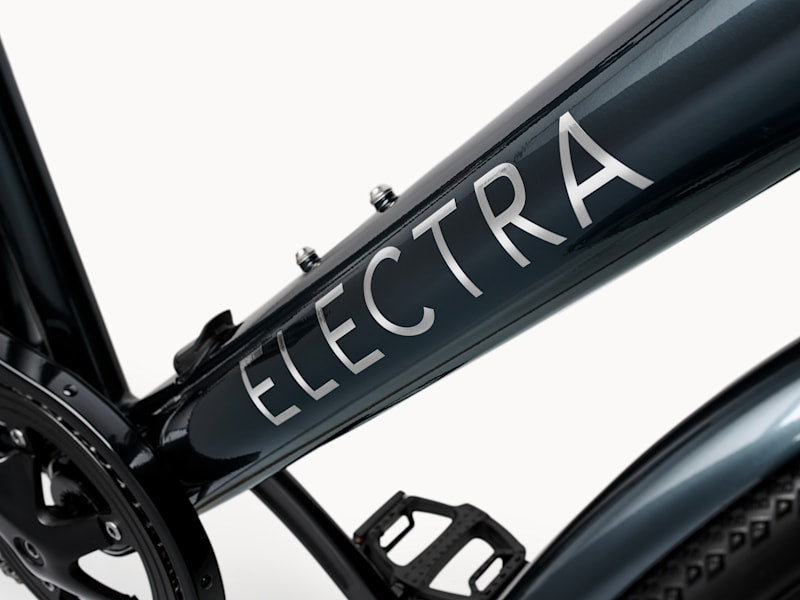

| Frame | 6061-T6 aluminum |
| Fork | Hi-ten steel unicrown, straight/tapered leg |
| Hub front | Alloy low-flange w/6-bolt disc, 32h, nutted |

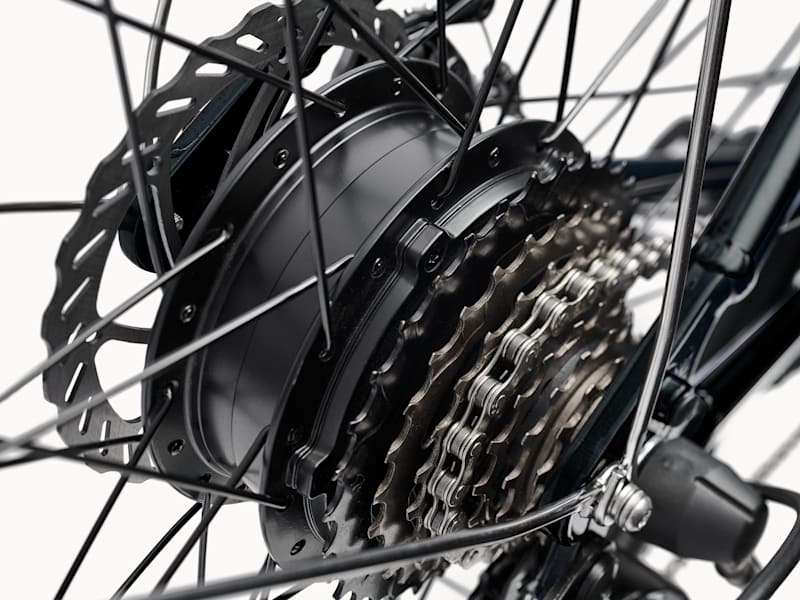

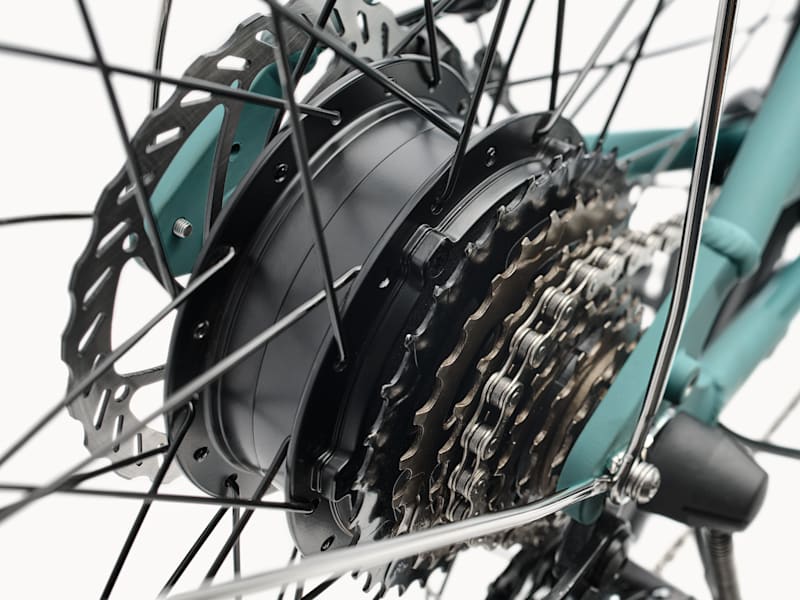

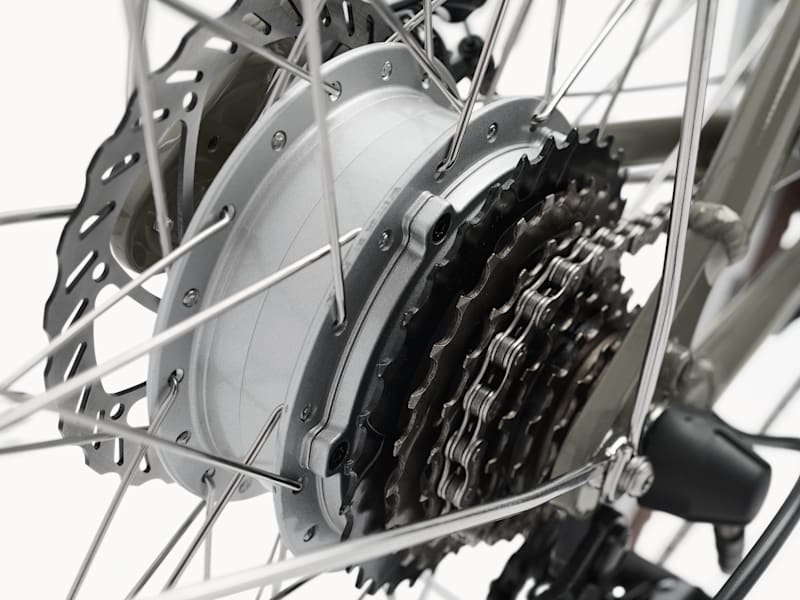

| Hub rear | Hyena hub drive motor, 250W |
| *rim | Size: M, L Alloy double walled 700x32hSize: M, L Alloy double walled 700x36h |
| Spokes | 14g stainless steel, black |
| Tire | Kenda Piedmont 700x40mm |
| Battery | 250Wh, integrated in down tube |

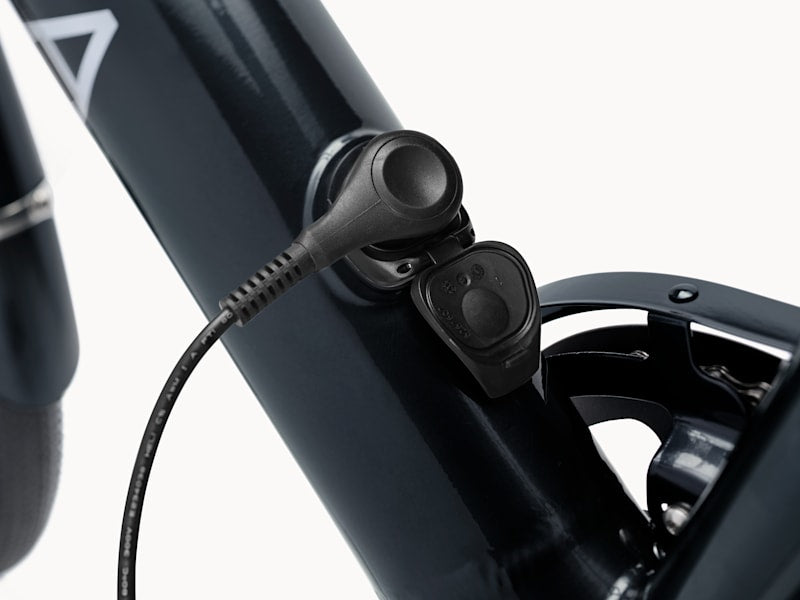

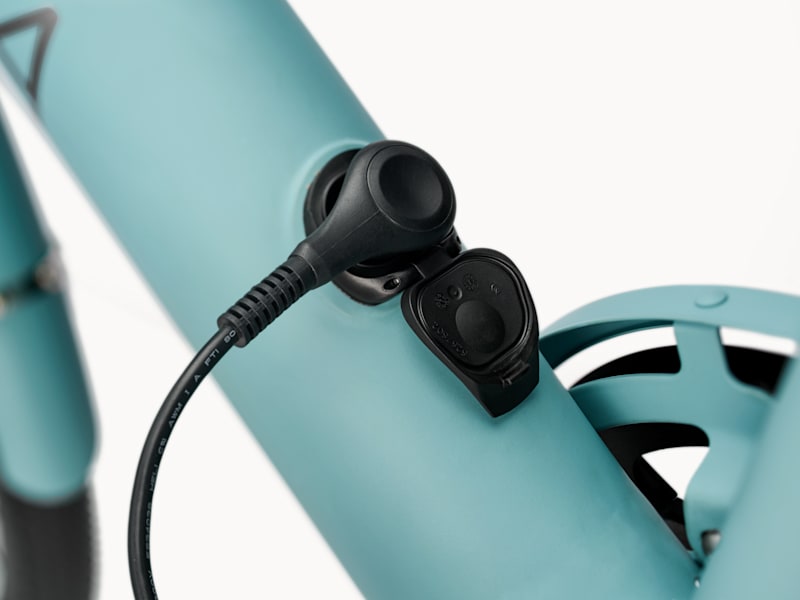

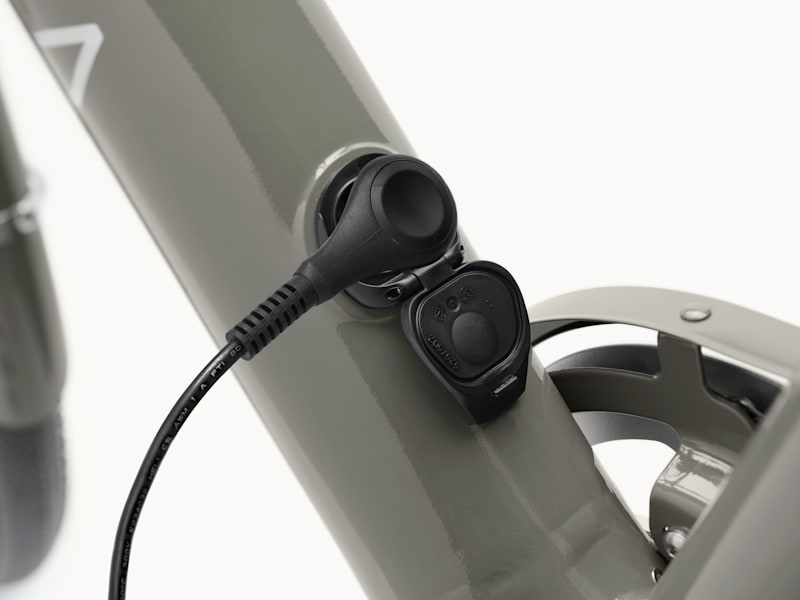

| Charger | 2A, 42V output, 100V-240V AC input |
| Computer | LED display |
| Motor | Hyena hub drive motor, 250W |
| Shifter | Microshift TS39-7 Thumb Tap shifter |
| Rear derailleur | Shimano Tourney TY300 |

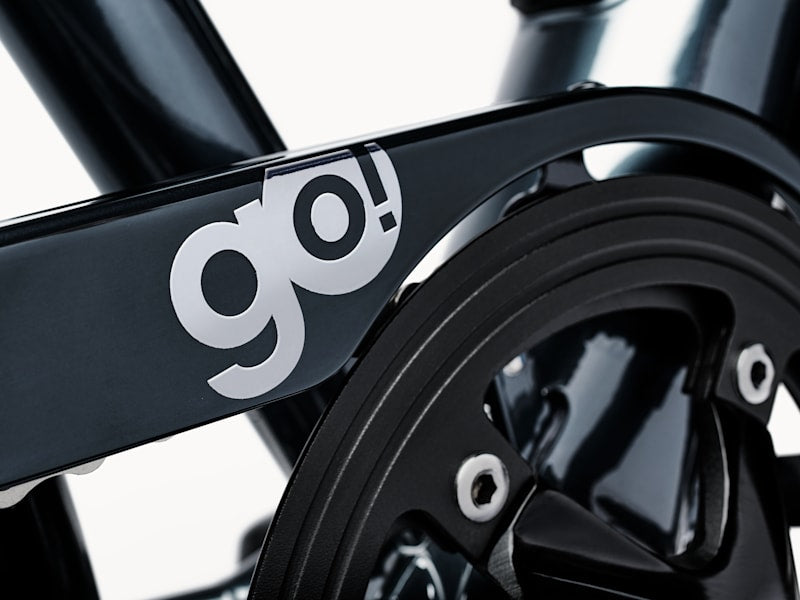

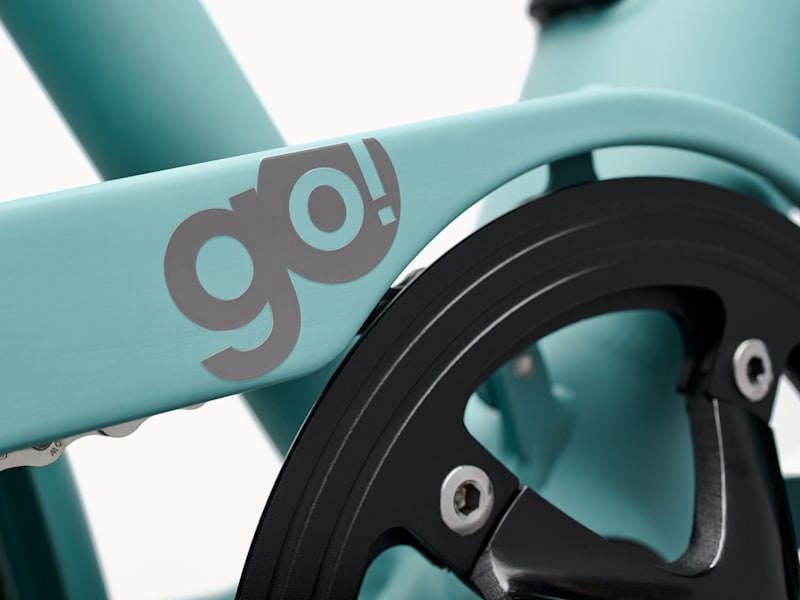

| Chainring | Forged alloy 170mm, 44t chainring |
| Bottom bracket | Torque sensor, threaded, 122.5mm spindle |
| Cassette | 14-34, 7 speed freewheel |
| Chain | KMC Z7, 7 speed |
| Pedal | Resin platform |

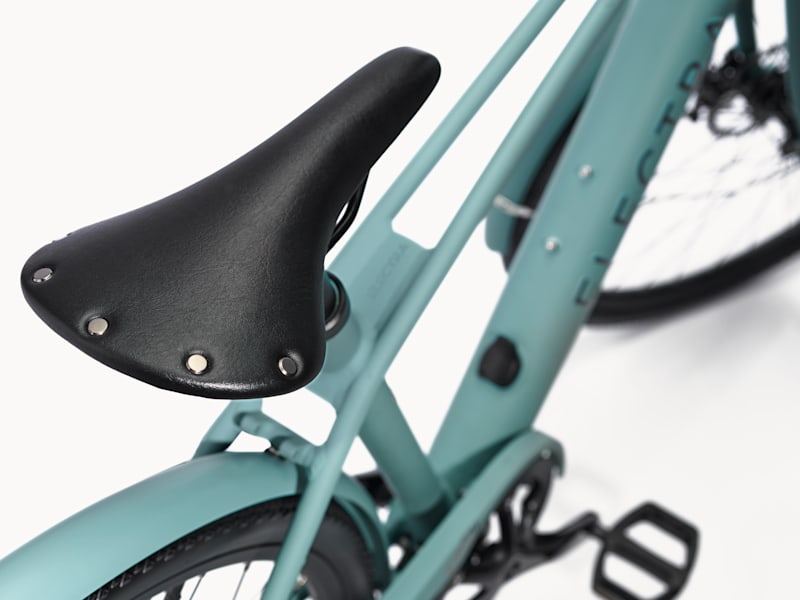

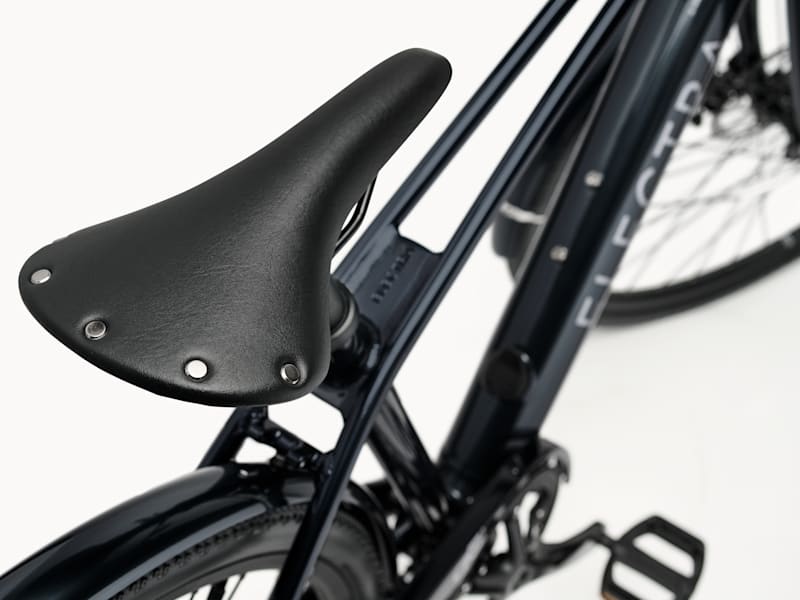

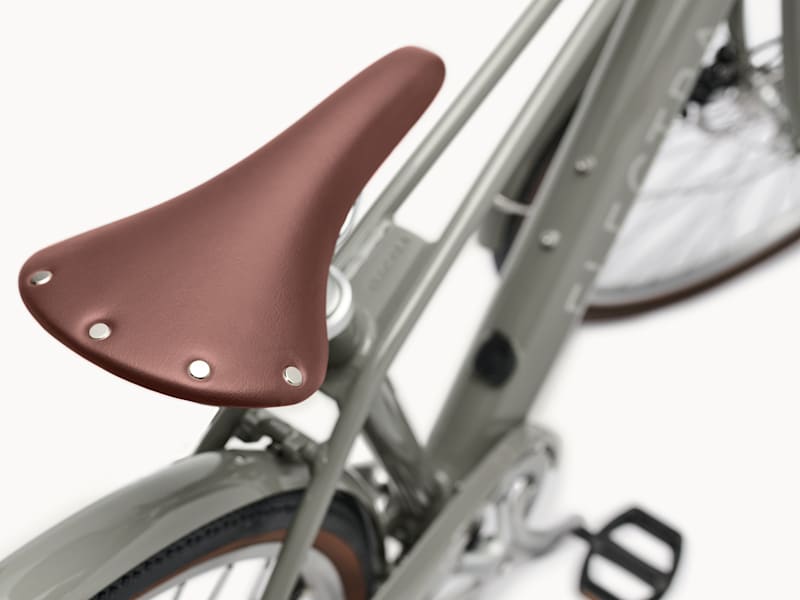

| Saddle | Retro leatherette sport saddle w/rivets |
| Seatpost | Alloy micro-adjust 31.6x400mm |
| *handlebar | Size: M Alloy custom, 31.8mm, 650mm width, 18.5 degree sweepSize: L Alloy custom, 31.8mm, 700mm width, 18.5 degree sweep |
| Grips | Comfort kraton |
| Stem | Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length |
| Headset | 1 1/8'' steel threadless |

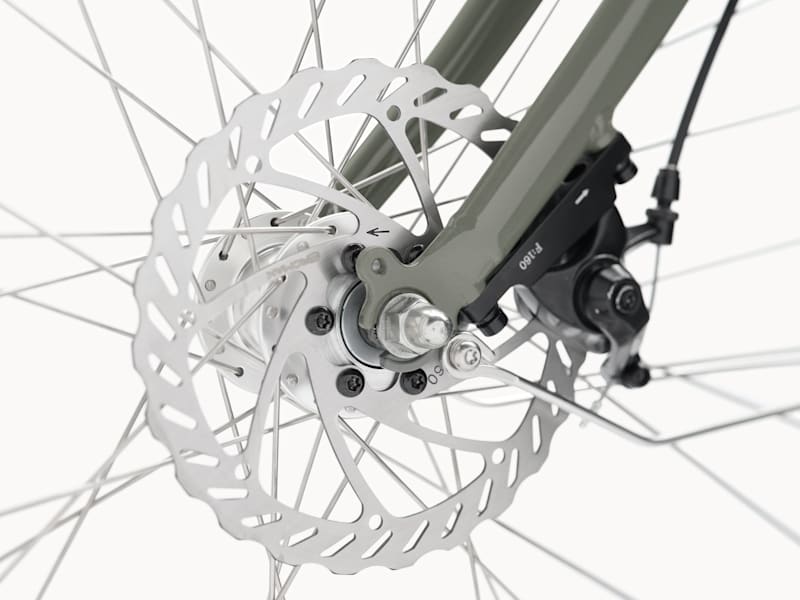

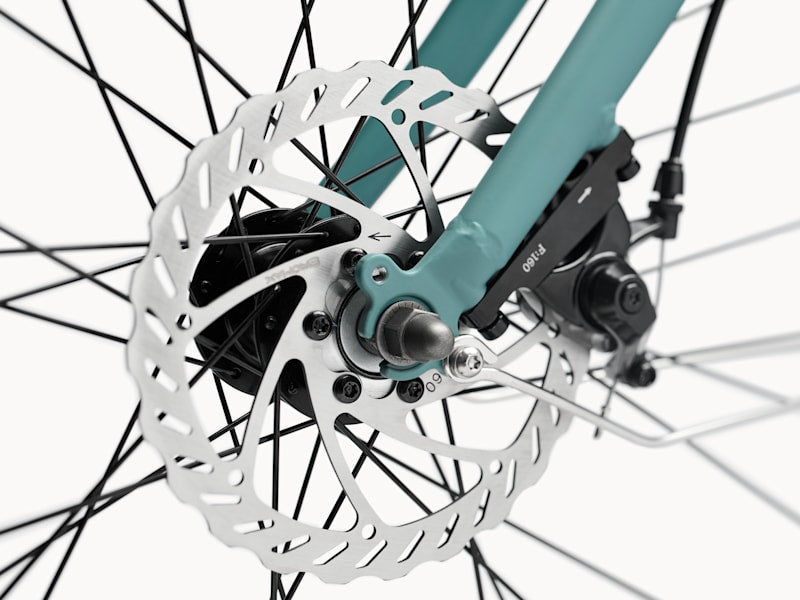

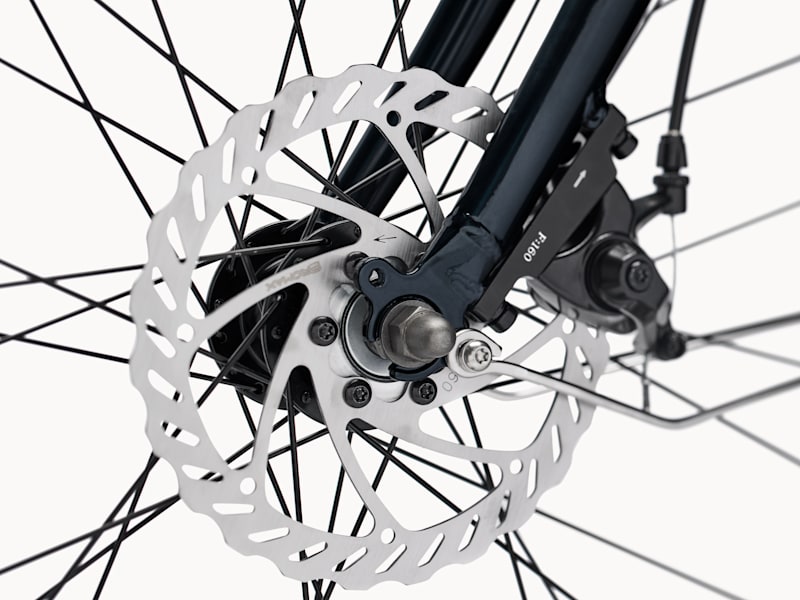

| Brake | Mechanical disc, 160mm rotor, flat-mount |
| Brake lever | Alloy, 3-finger |

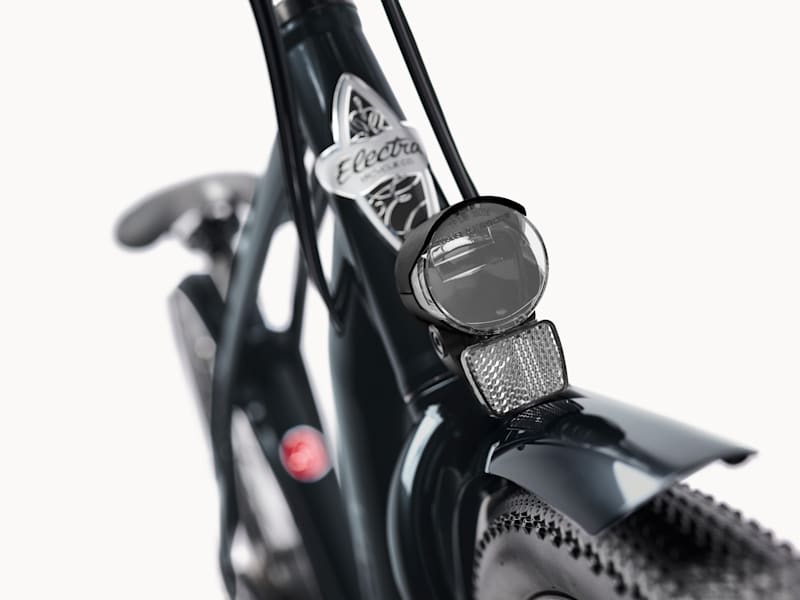

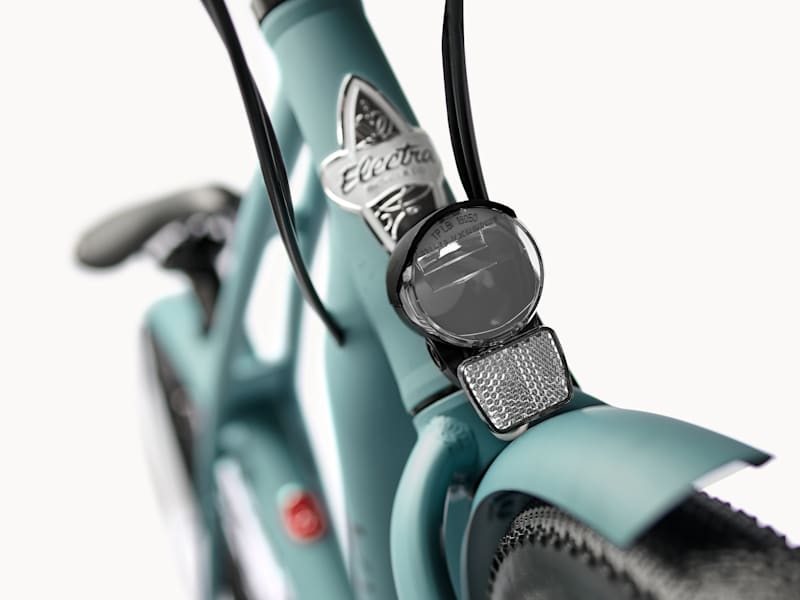

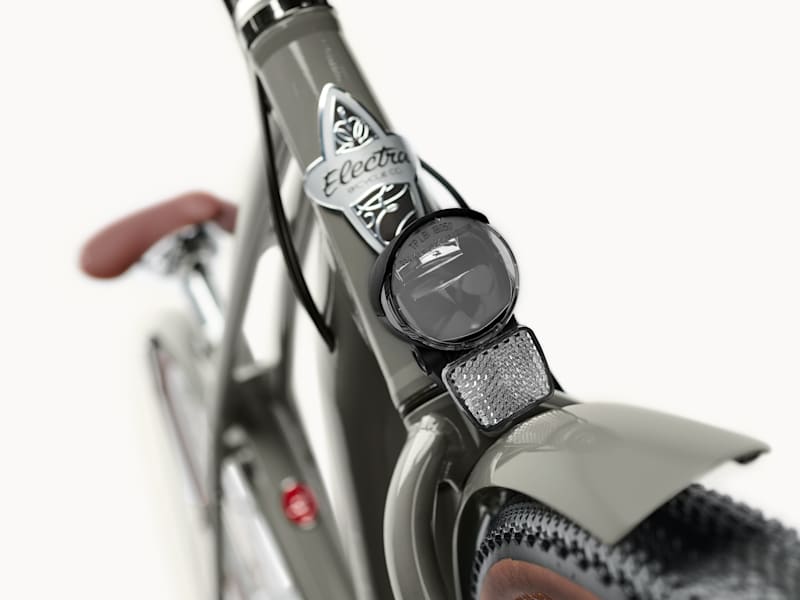

| *light | Size: M, L Herrmans H-Black MR4-E, 120 lumen, 40 lux, LED, headlightSize: M, L Spanninga, LED, taillight |
| Kickstand | Alloy, rear mount |
| Weight | 21.00 kg / 46.3 lbs |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
Parts are subject to change without notice. Chat with us if you have any questions.

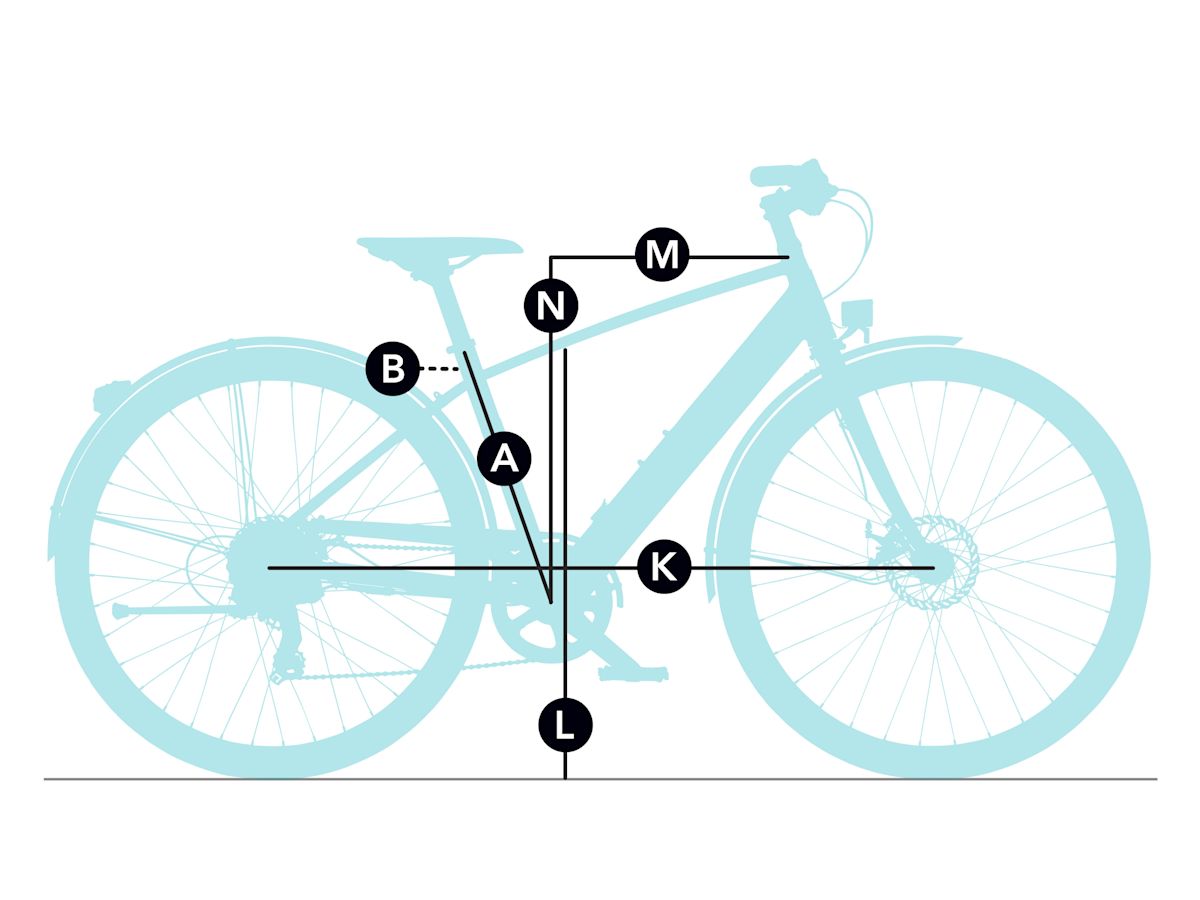

Geometry
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size letter | M | L |
| Wheel size | 700c | 700c |
| A — Seat tube | 45.0 | 50.0 |
| B — Seat tube angle (degrees) | 71.0° | 71.0° |
| C — Head tube length | 14.7 | 17.0 |
| D — Head angle (degrees) | 70.5° | 70.5° |
| K — Wheelbase | 107.9 | 112.5 |
| L — Standover | 74.0 | 78.0 |
| M — Frame reach | 38.9 | 42.8 |
| N — Frame stack | 57.5 | 59.6 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| M | 5'4" - 6'0" | 163 - 183 |
| L | 5'8" - 6'4" | 173 - 193 |
Sizing to be used as a reference only. Chat with us if you have any questions.
