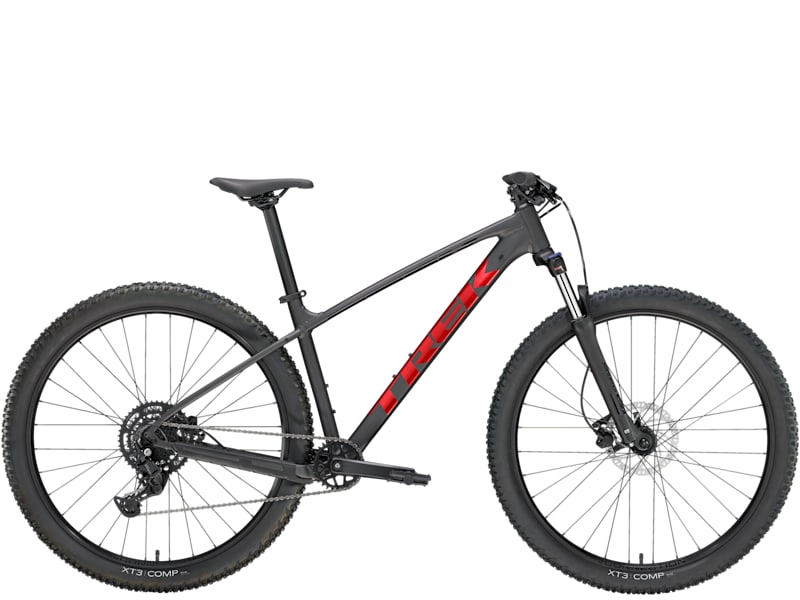

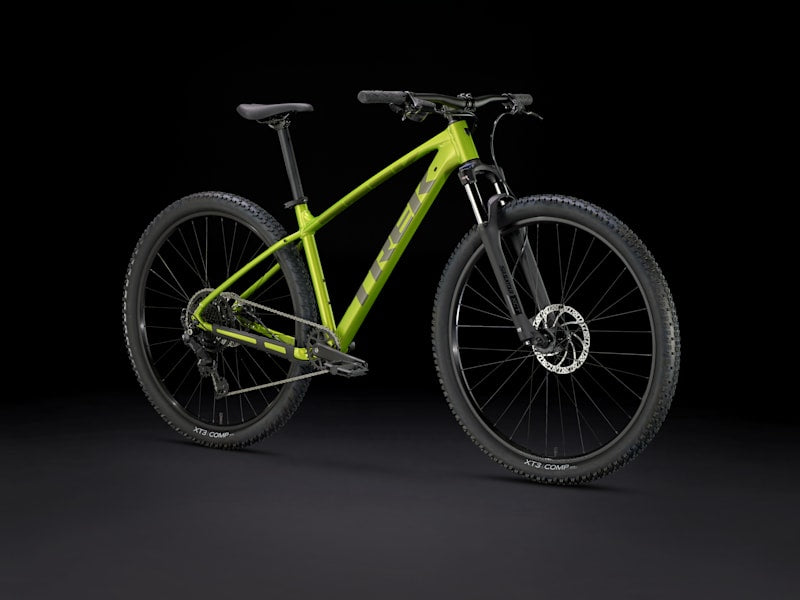

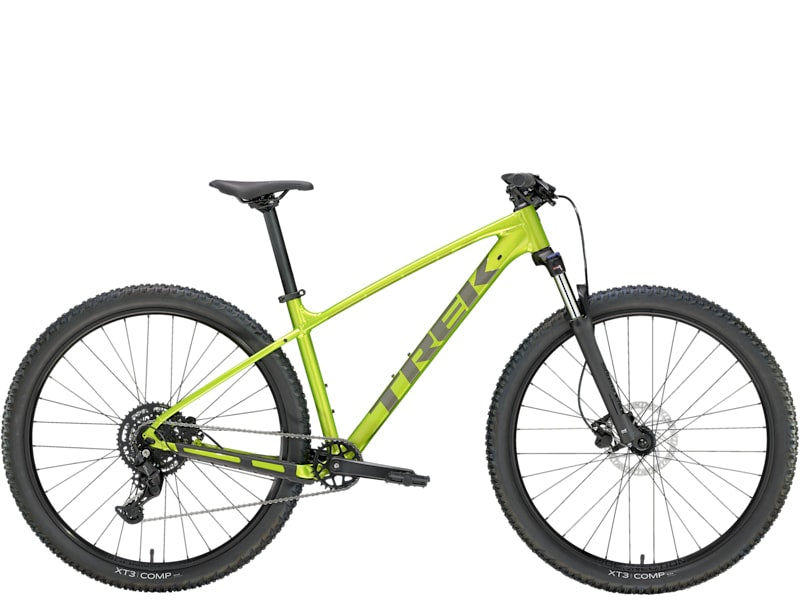

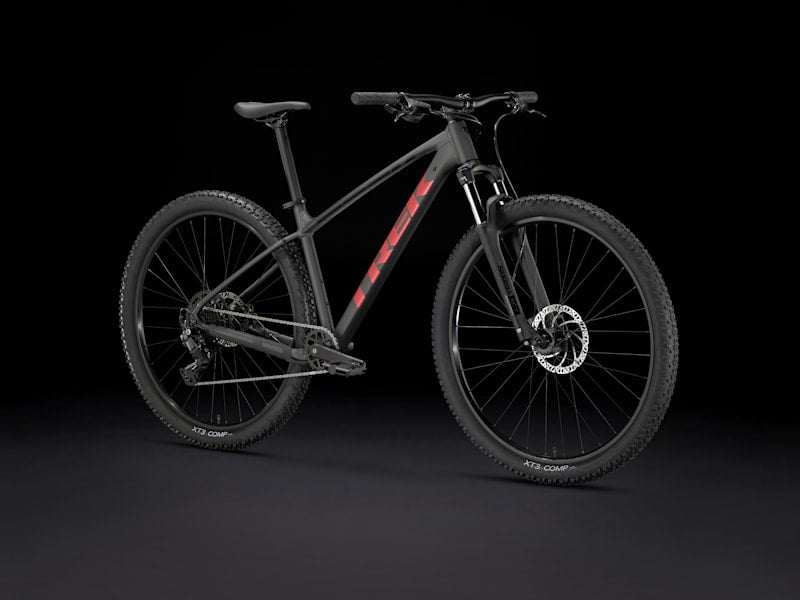

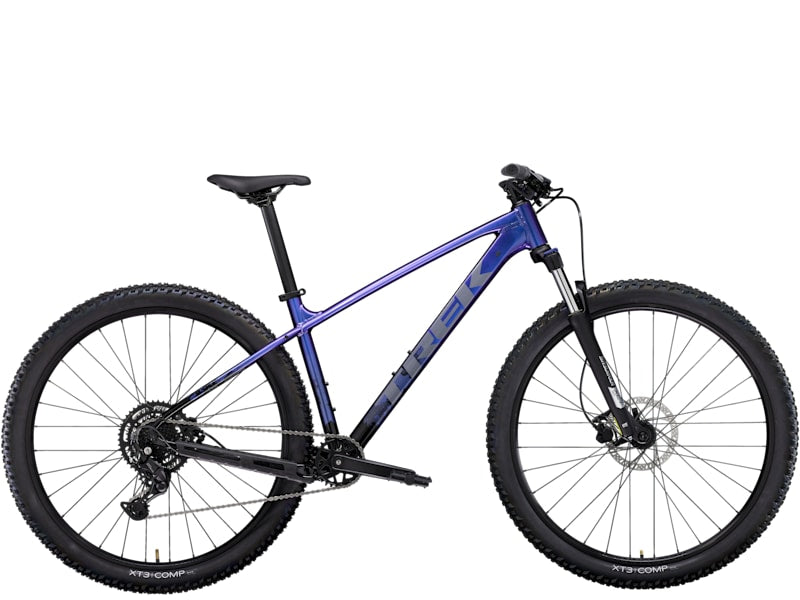

2025 Marlin 5 Gen 3 Hardtail Mountain Bike
Fully assembled, tuned, and test-ridden—ready to ride at pickup from any DFW Bike Mart location.
Expected to ship within 3 days
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart—ready to ride right at your doorstep within 10 miles of any DFW location.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required. For orders that include a frameset please visit our support center to make sure you have the specialty tools and skills required.
If you decide to take your bike to a local retailer for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
2025 Marlin 5 Gen 3 Hardtail Mountain Bike
-
Will my bike have a curved top tube?
Smaller frames have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frame sizes have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.
-
Fit for every rider
Marlin comes in seven frame sizes to suit riders of any height, and Smart Wheel Size ensures you’re on the fastest wheel that fits. The smallest sizes even come with short-reach brake levers and narrower handlebars that give smaller riders better comfort and control.
-
High tech, high value

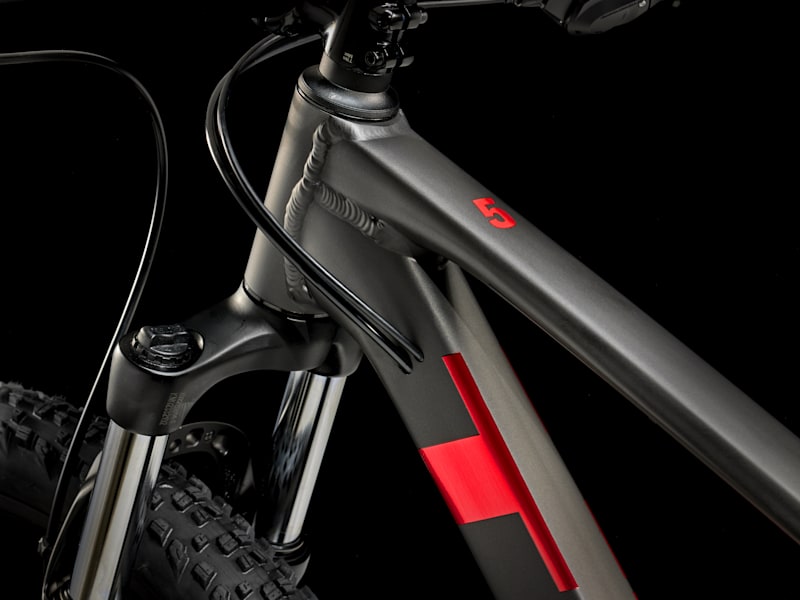

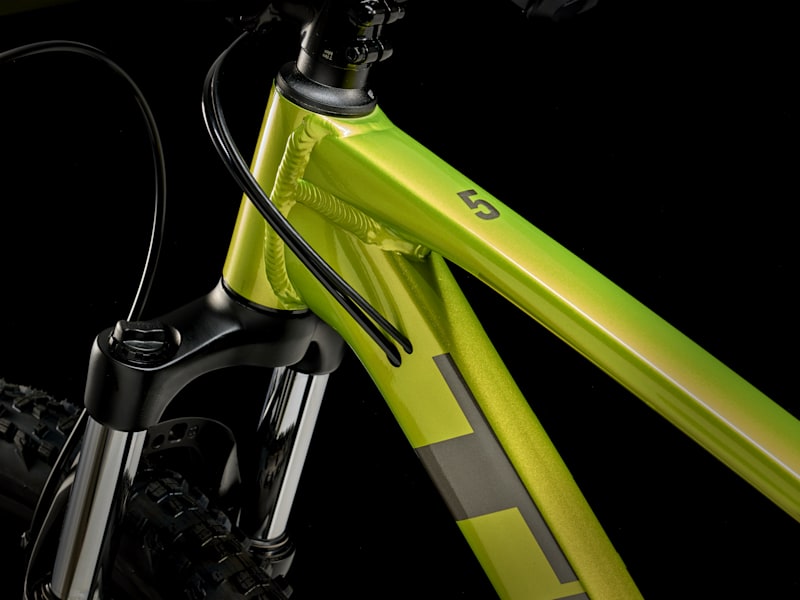

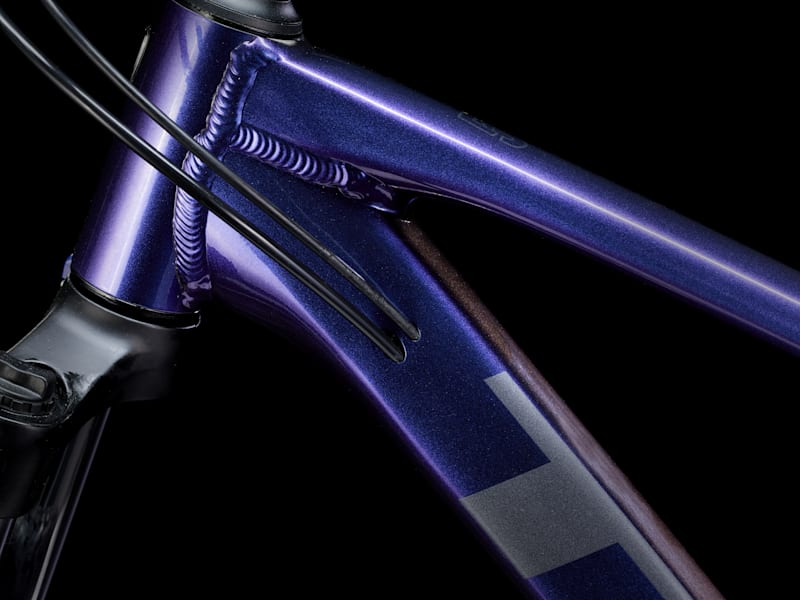

Marlin looks and feels great. It’s packed with features usually found only on more expensive bikes, like a stylish frame with internal shift cable and brake hose routing, which can help your cables last longer by protecting them from the elements.
-

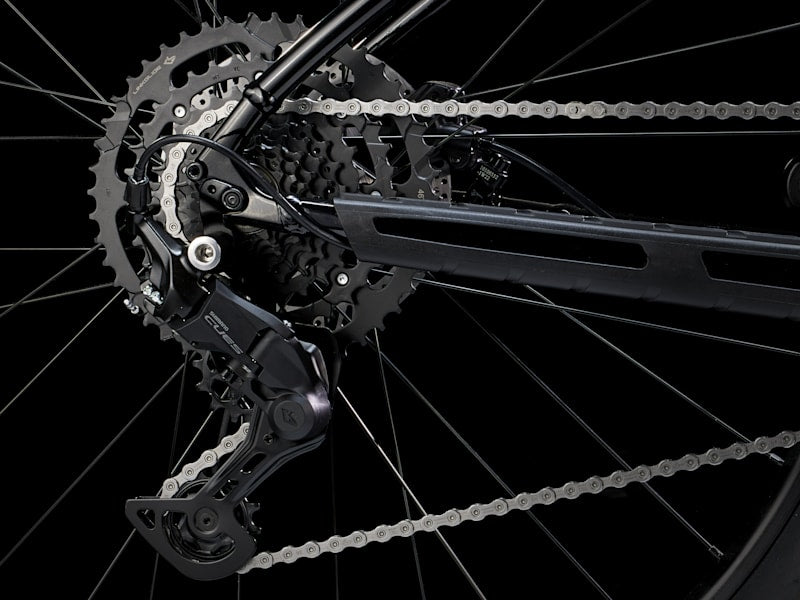

Shimano CUES
Inspired by rider demand for trouble-free drivetrain longevity and performance, Shimano CUES offers a new foundation for versatility and durability across a range of both electric and standard bikes. CUES features Shimano’s new LINKGLIDE drivetrain technology for significantly increased life on wear items like chain, cassette, and chainrings.
-
Shimano LINKGLIDE
LINKGLIDE technology has been specifically engineered for incredible durability while still delivering smooth and decisive shifting – along with a great pedalling experience. Available exclusively on Shimano CUES drivetrains.
-
Upgrade your pedals and love your bike more
Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.
Overview
Overview
Technical Specifications
Technical Specifications

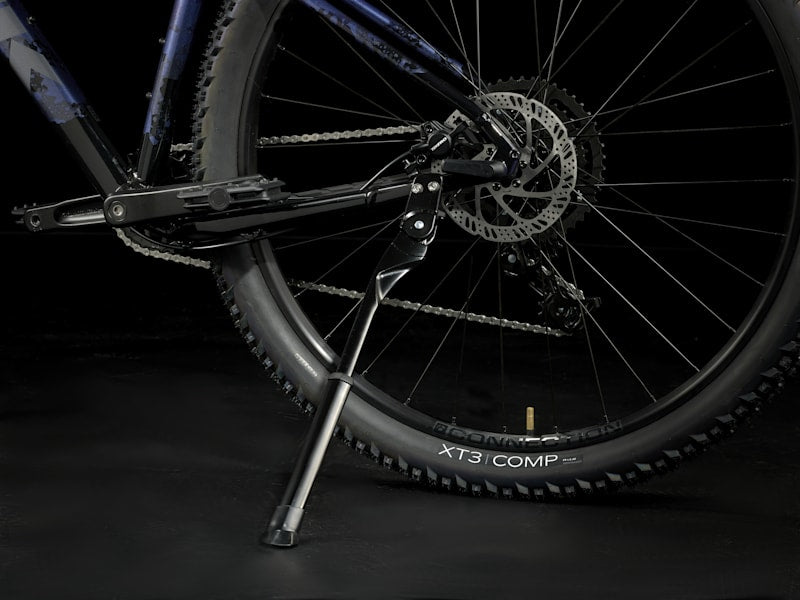

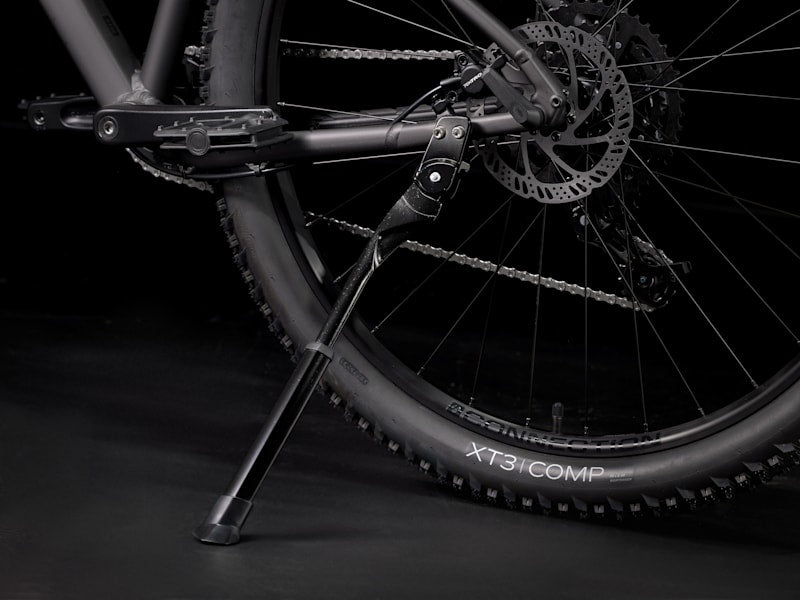

| *frame | Size: XS Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkewSize: S , M , ML , L , XL Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew |

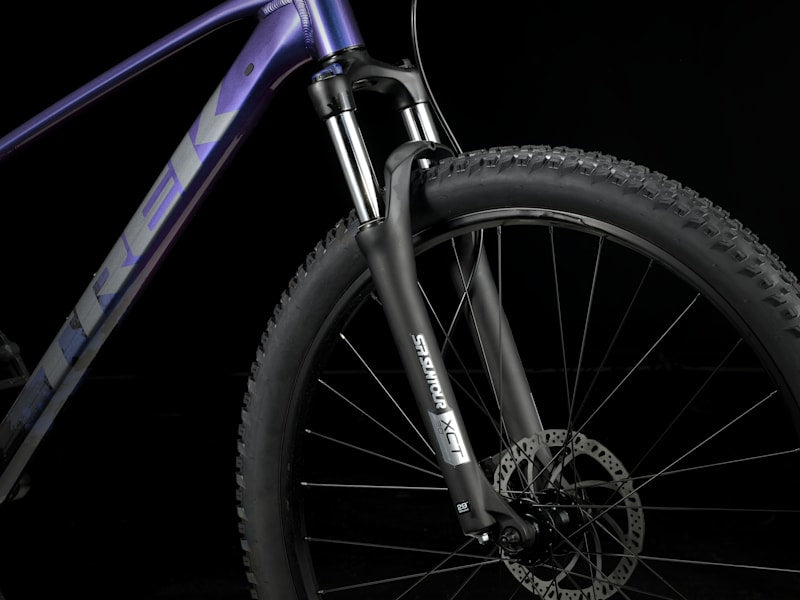

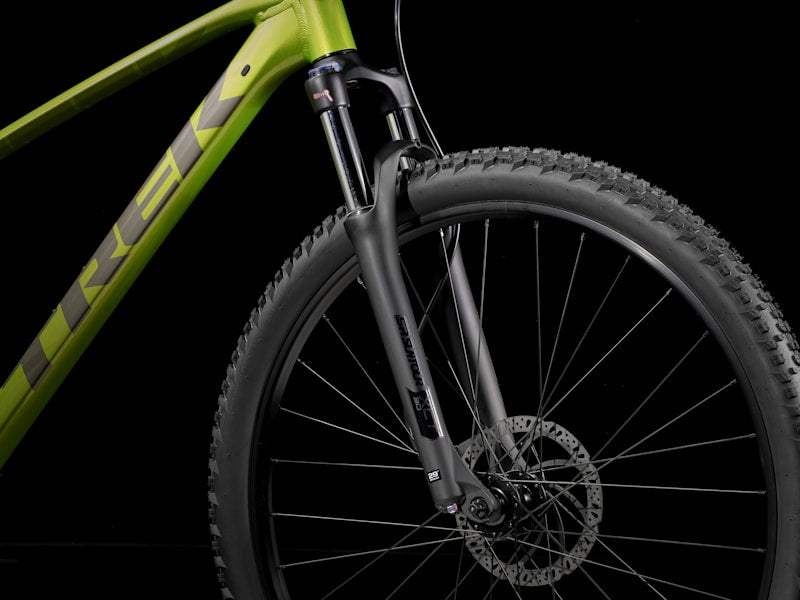

| *fork | Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travelSize: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travelSize: M , ML , L , XL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel |
| Hub front | Formula DC-20, alloy, 6-bolt, 100x5mm |
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm |
| Skewer rear | 173x5mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve |
| Spokes | 14g stainless steel, black |

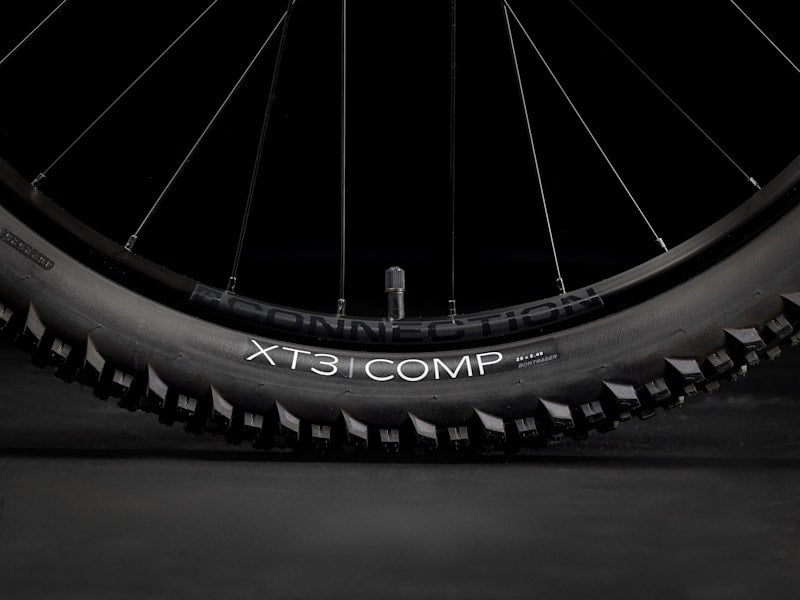

| *tire | Size: XS , S Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40''Size: M , ML , L , XL Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40'' |
| Max tire size | Frame: 29x2.40\ (XXS: 26x2.40\, XS & S: 27.5x2.40\), Fork: See manufacturer |
| Shifter | Shimano U4000, 9 speed |

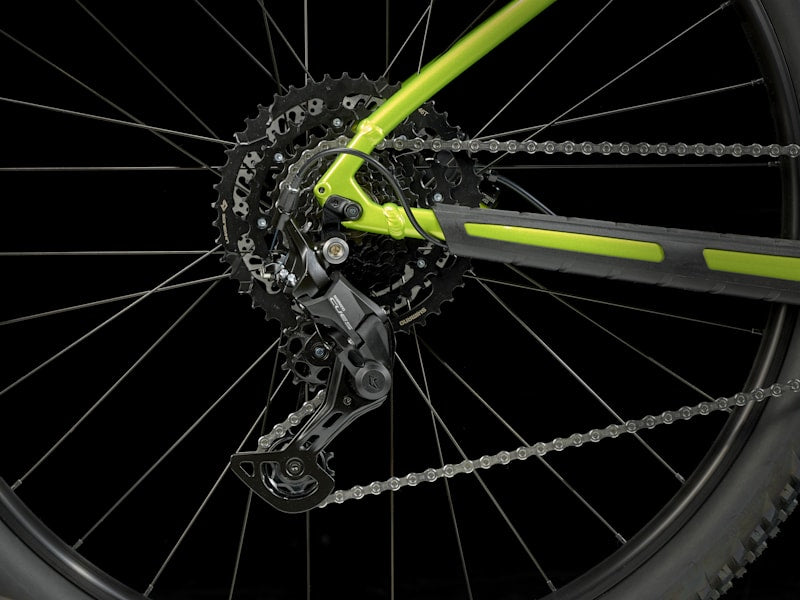

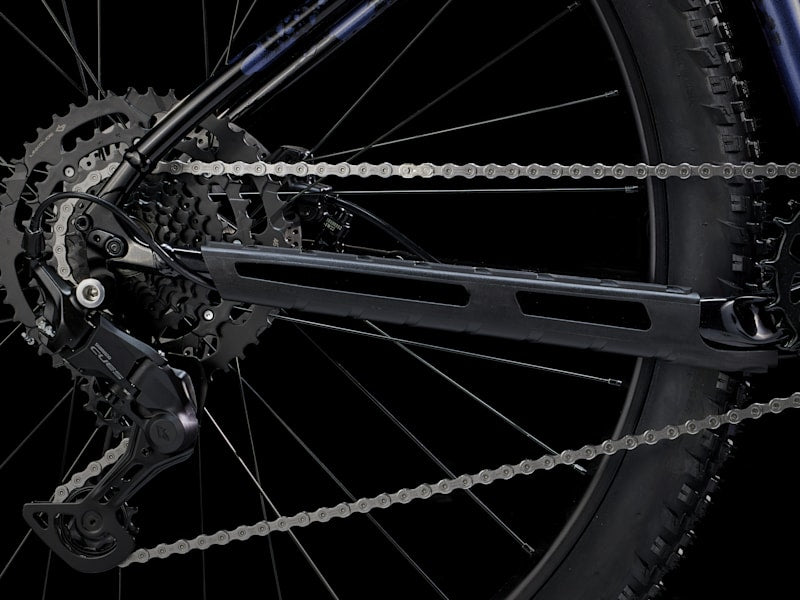

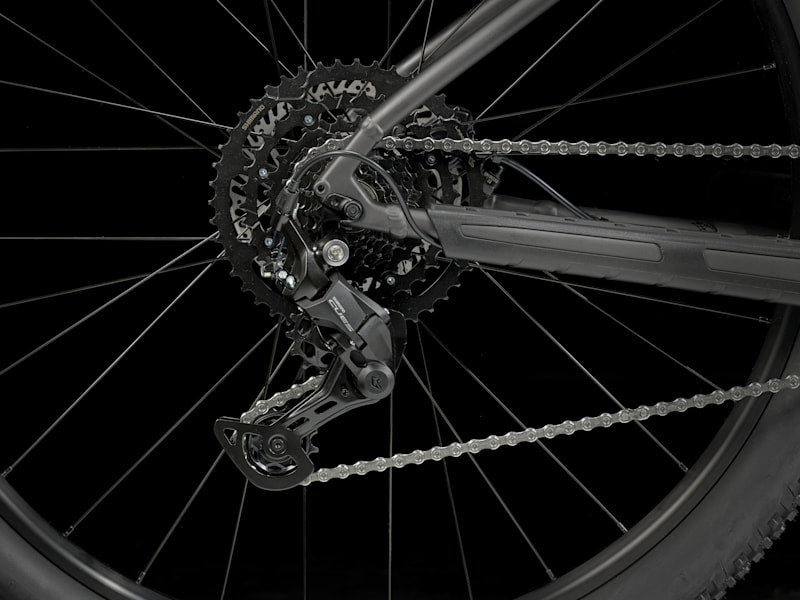

| Rear derailleur | Shimano CUES U4000 |

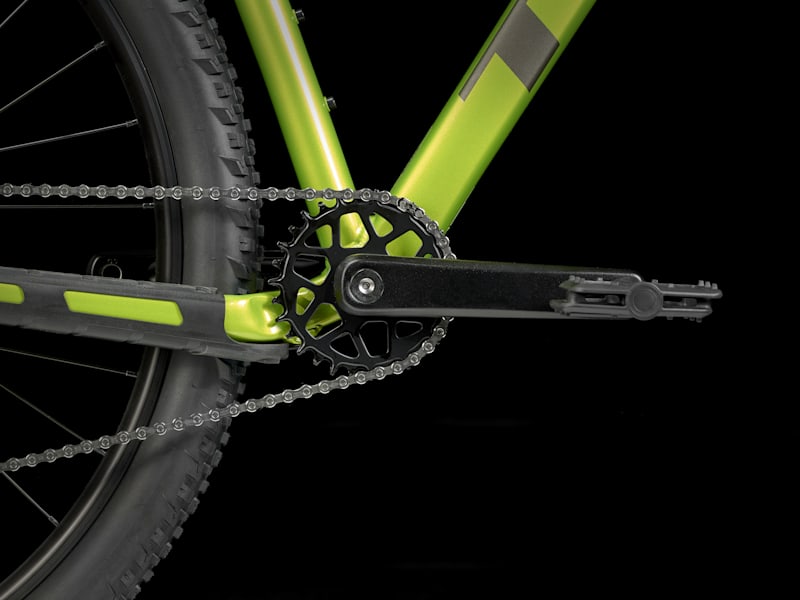

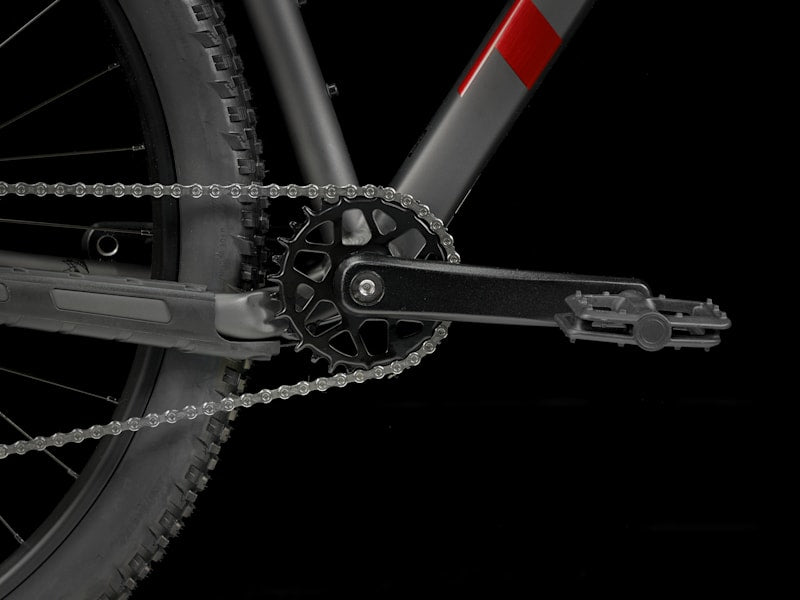

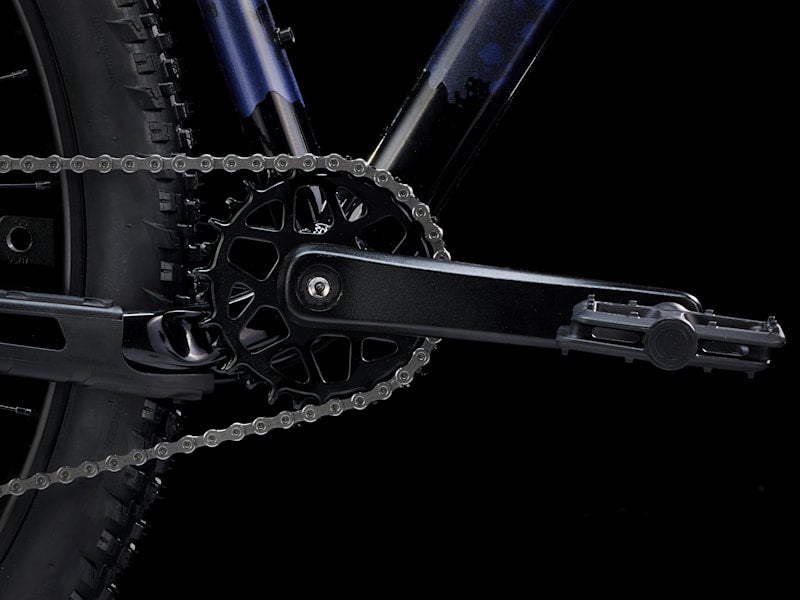

| *crank | Size: XS Prowheel C10Y-NW, 30T steel narrow-wide ring, 160mm lengthSize: S , M , ML Prowheel C10Y-NW, 30T steel narrow-wide ring, 170mm lengthSize: L , XL Prowheel C10Y-NW, 30T steel narrow-wide ring, 175mm length |
| Bottom bracket | VP BC73, 73mm, threaded cartridge |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9 speed |
| Chain | Shimano LG500, 9/10/11 speed |
| Pedal | VP-536 nylon platform |
| Max chainring size | 1x: See FAQ, 2x: 36T, 3x: 42T |
| *seatpost | Size: XS , S , M Bontrager alloy, 31.6mm, 12mm offset, 330mm lengthSize: ML , L , XL Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
| *handlebar | Size: XS Bontrager alloy, 31.8mm, 5mm rise, 690mm widthSize: S Bontrager alloy, 31.8mm, 15mm rise, 720mm widthSize: M , ML , L , XL Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *stem | Size: XS , S Bontrager Comp, 31.8mm, 7 degree, 35mm lengthSize: M , ML , L Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm lengthSize: XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length |
| Headset | Semi-integrated, 1-1/8'' |

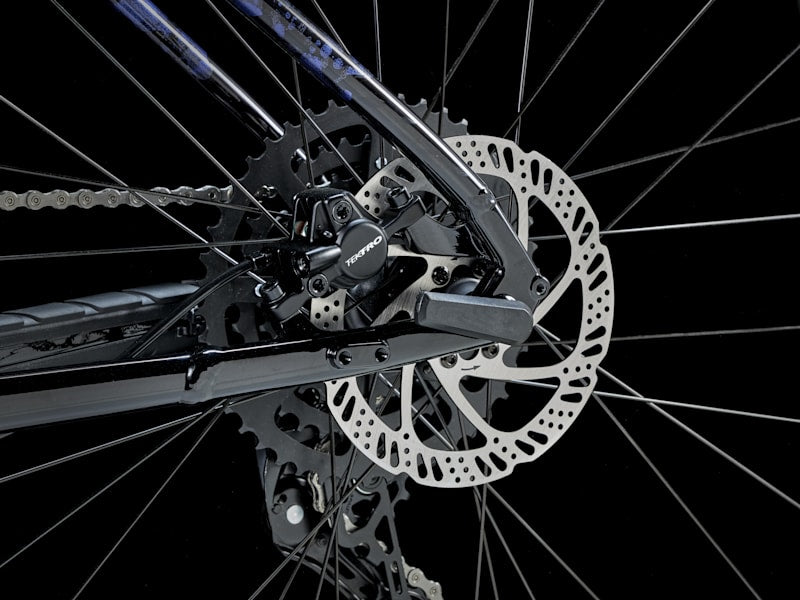

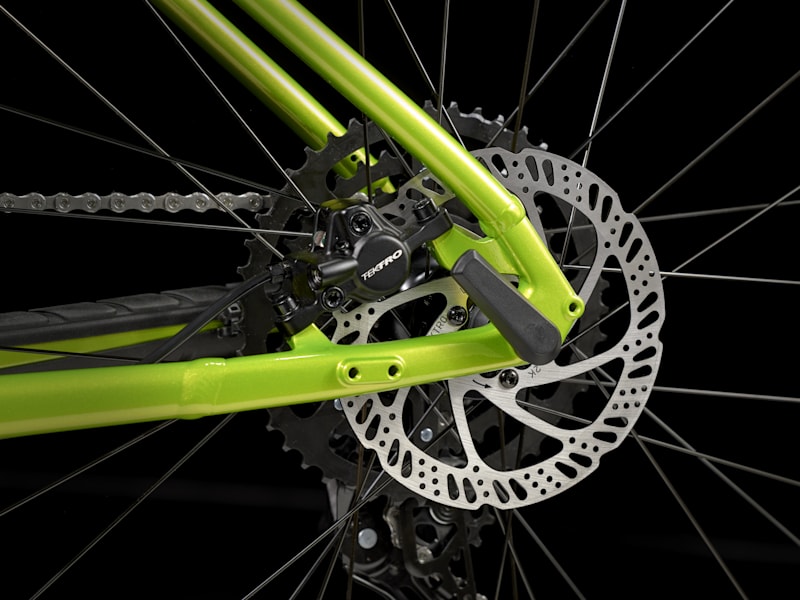

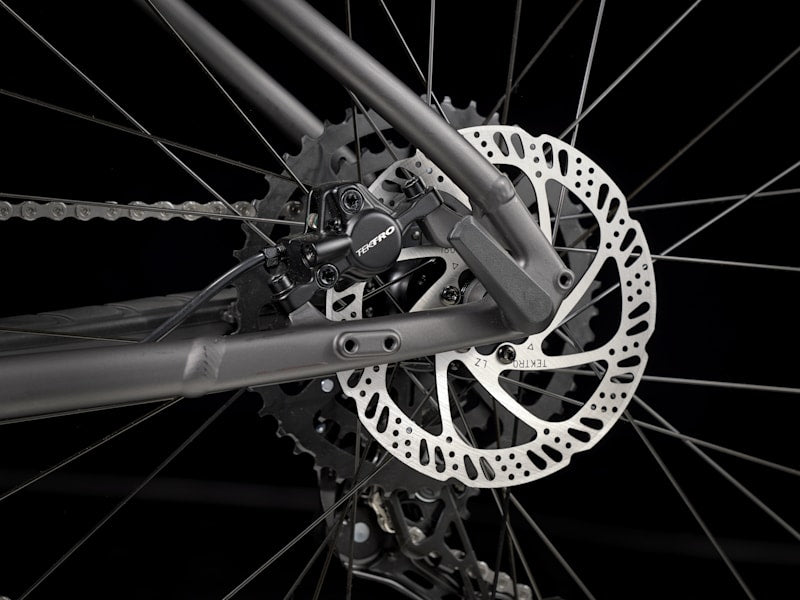

| Brake rotor | Tektro, 6-bolt, 160mm |
| *brake set | Size: XS , S Tektro HD-M276 hydraulic disc, short reachSize: M , ML , L , XL Tektro HD-M275 hydraulic disc |
| Rotor size | Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
| Weight | M - 15.10 kg / 33.29 lbs (with tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size number | 14.5" | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
| Frame size letter | XS | S | M | ML | L | XL |
| Wheel size | 27.5" | 27.5" | 29" | 29" | 29" | 29" |
| A — Seat tube | 34.0 | 37.0 | 42.0 | 43.5 | 45.0 | 50.0 |
| B — Seat tube angle (degrees) | 73.8° | 73.8° | 73.4° | 73.4° | 73.4° | 73.4° |
| Effective seat tube angle (degrees) | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° |
| C — Head tube length | 9.0 | 10.0 | 10.5 | 11.0 | 11.5 | 13.5 |
| D — Head angle (degrees) | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
| E — Effective top tube | 55.1 | 57.9 | 61.5 | 63.1 | 64.7 | 67.8 |
| F — Bottom bracket height | 31.3 | 31.3 | 30.8 | 30.8 | 30.8 | 30.8 |
| G — Bottom bracket drop | 4.5 | 4.5 | 6.0 | 6.0 | 6.0 | 6.0 |
| H — Chainstay length | 43.3 | 43.3 | 43.8 | 43.8 | 43.8 | 43.8 |
| I — Offset | 4.2 | 4.2 | 4.6 | 4.6 | 4.6 | 4.6 |
| J — Trail | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 |
| K — Wheelbase | 109.2 | 112.1 | 116.3 | 118.0 | 119.7 | 123.0 |
| L — Standover | 65.8 | 69.2 | 74.7 | 75.9 | 77.1 | 79.1 |
| M — Frame reach | 39.0 | 41.5 | 44.0 | 45.5 | 47.0 | 49.5 |
| N — Frame stack | 56.3 | 57.2 | 60.9 | 61.4 | 61.8 | 63.7 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| 2XS | 4'5" - 4'9" | 135 - 145 |
| XS | 4'9" - 5'1" | 145 - 155 |
| S | 5'1" - 5'5" | 155 - 165 |
| M | 5'5" - 5'10" | 165 - 177 |
| ML | 5'8" - 5'11" | 173 - 180 |
| L | 5'10" - 6'2" | 177 - 188 |
| XL | 6'2" - 6'5" | 188 - 195 |
| 2XL | 6'5" - 6'8" | 195 - 203 |
Sizing to be used as a reference only. Chat with us if you have any questions.
