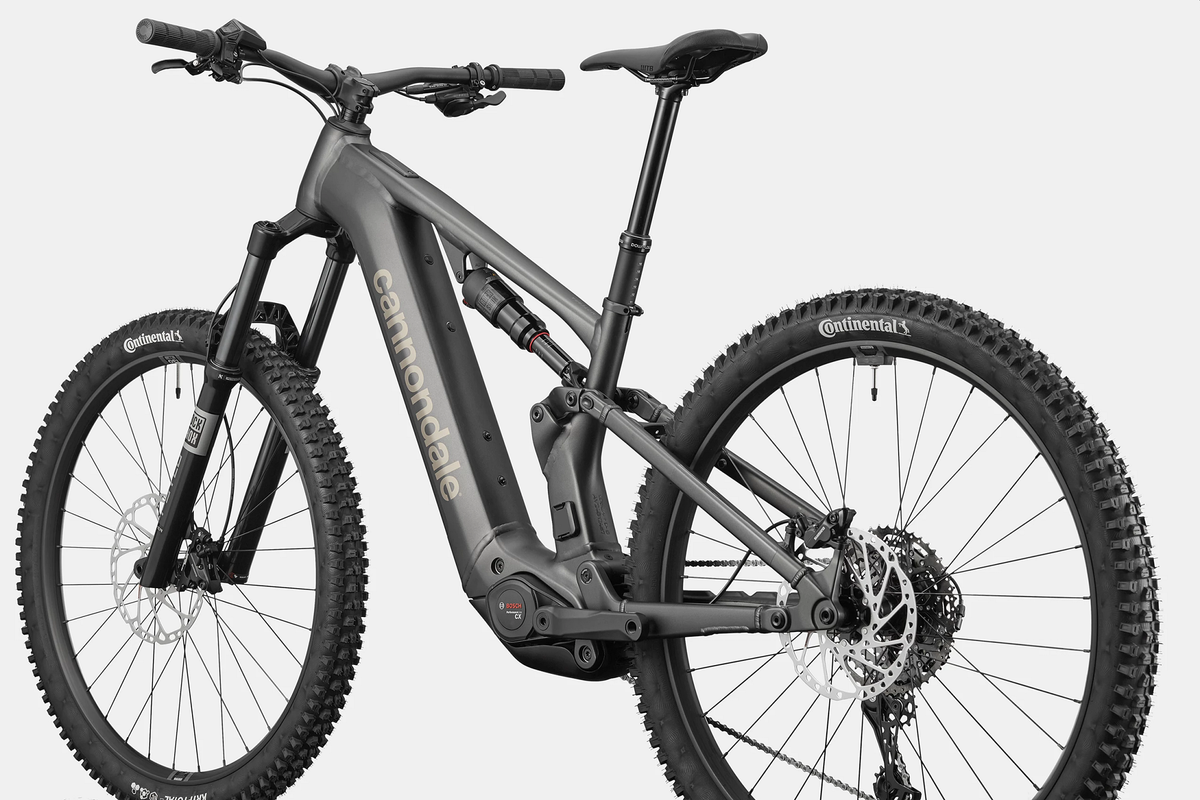

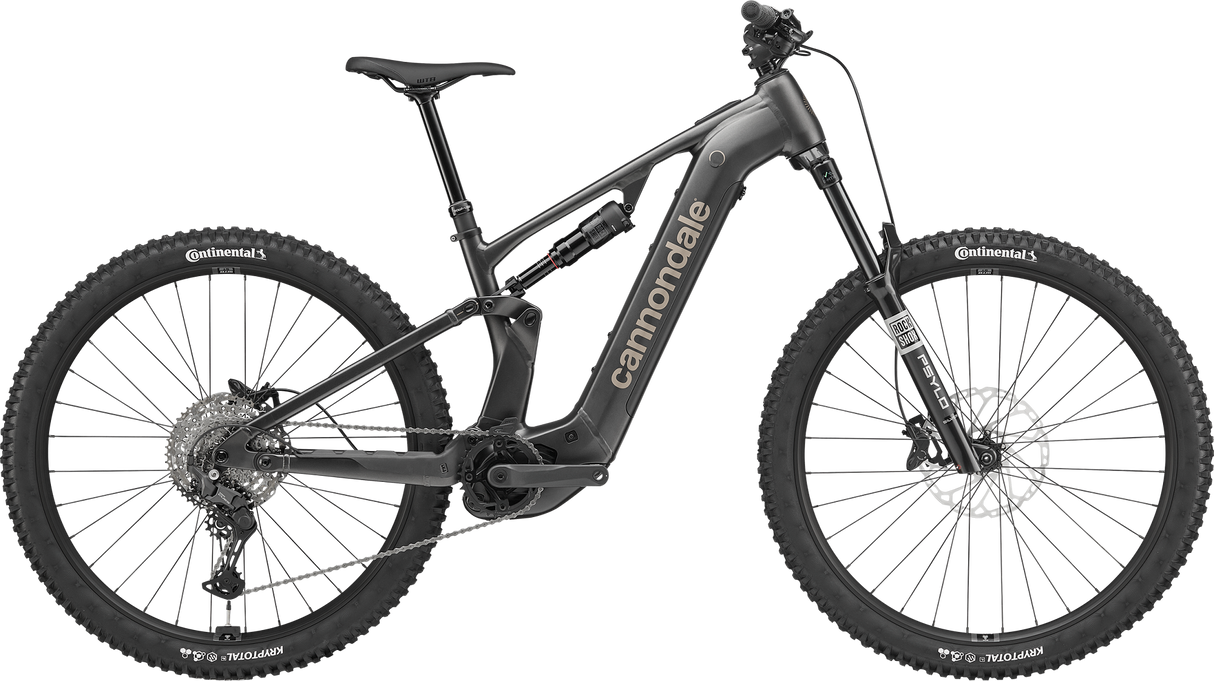

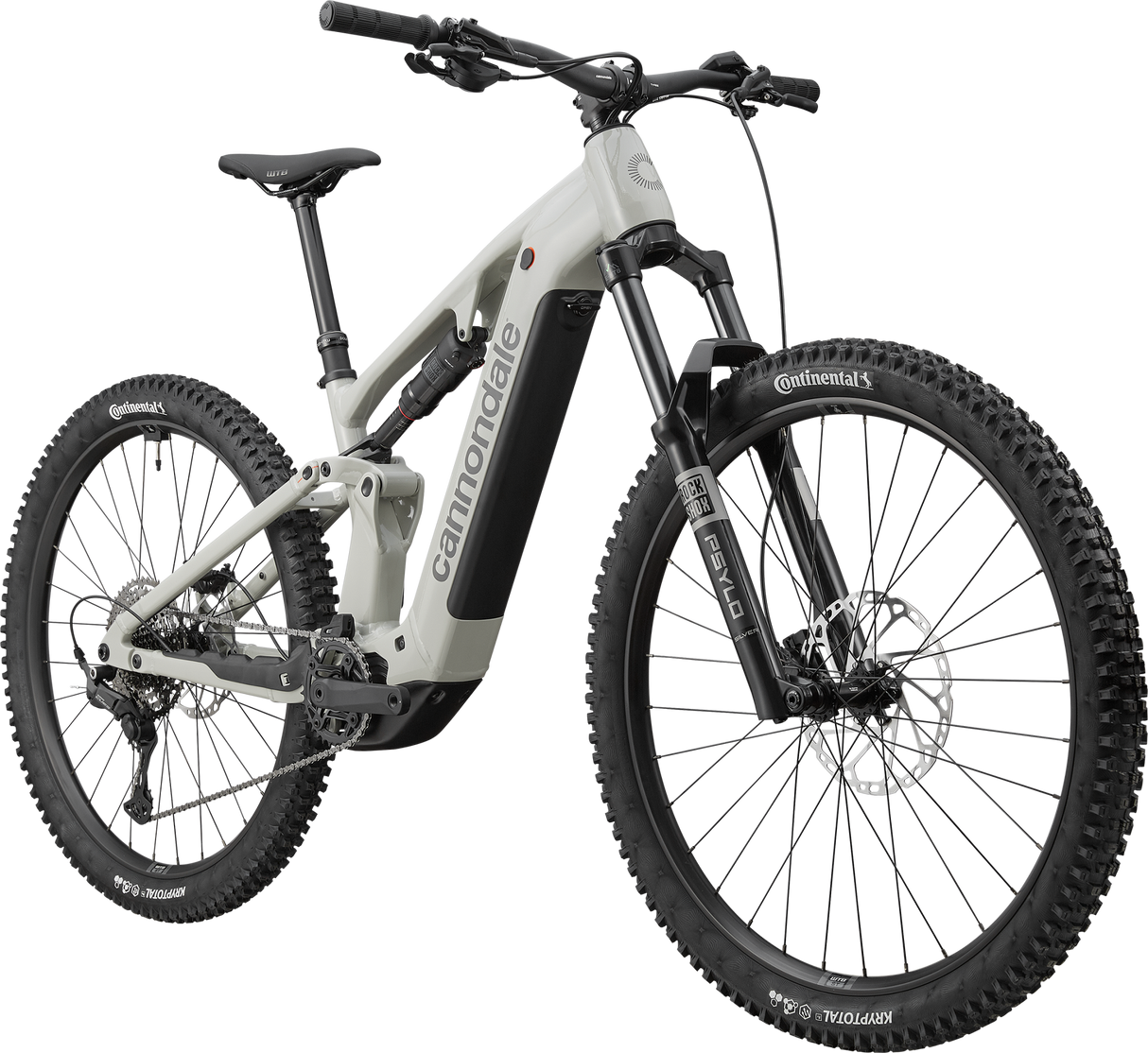

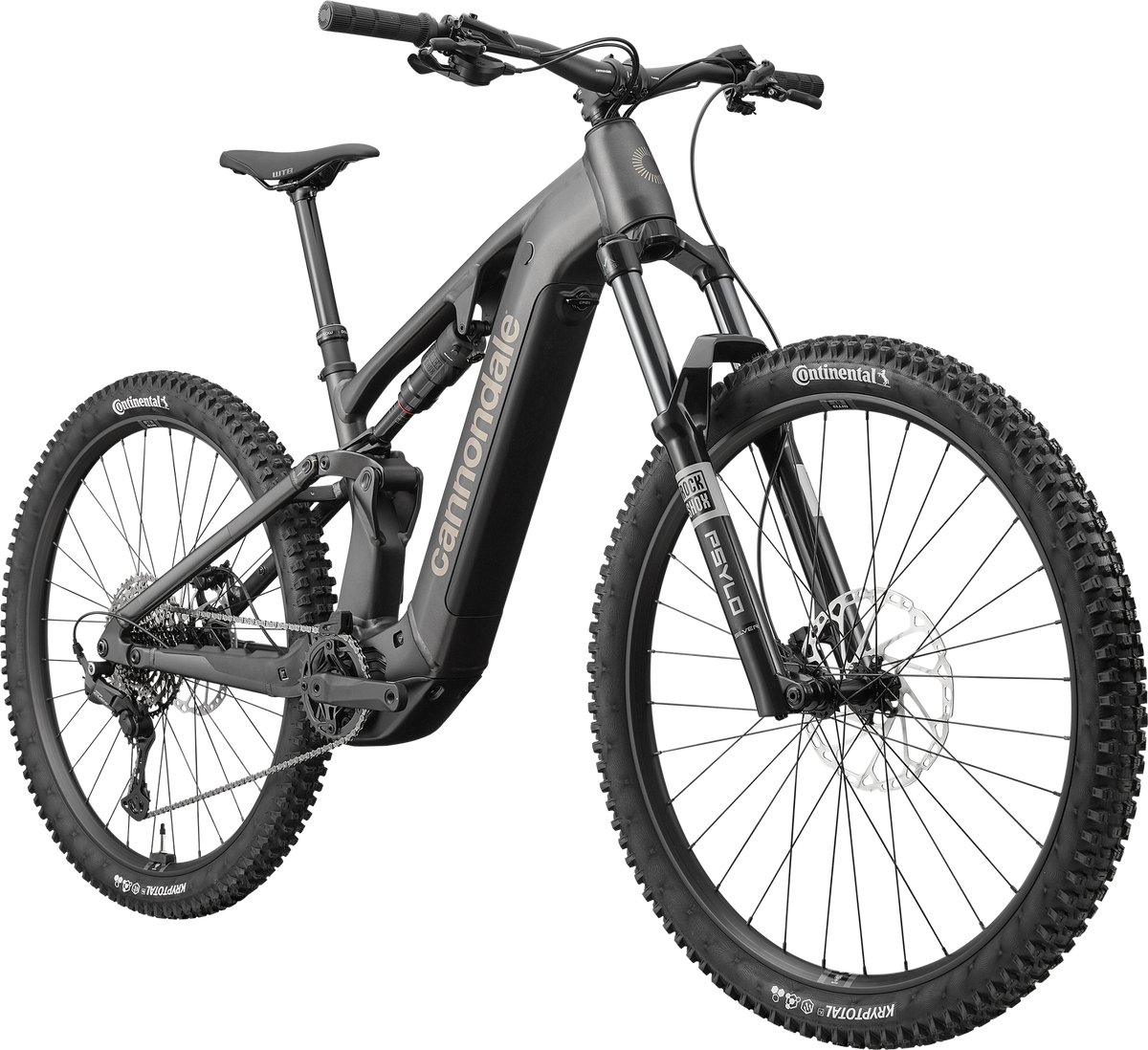

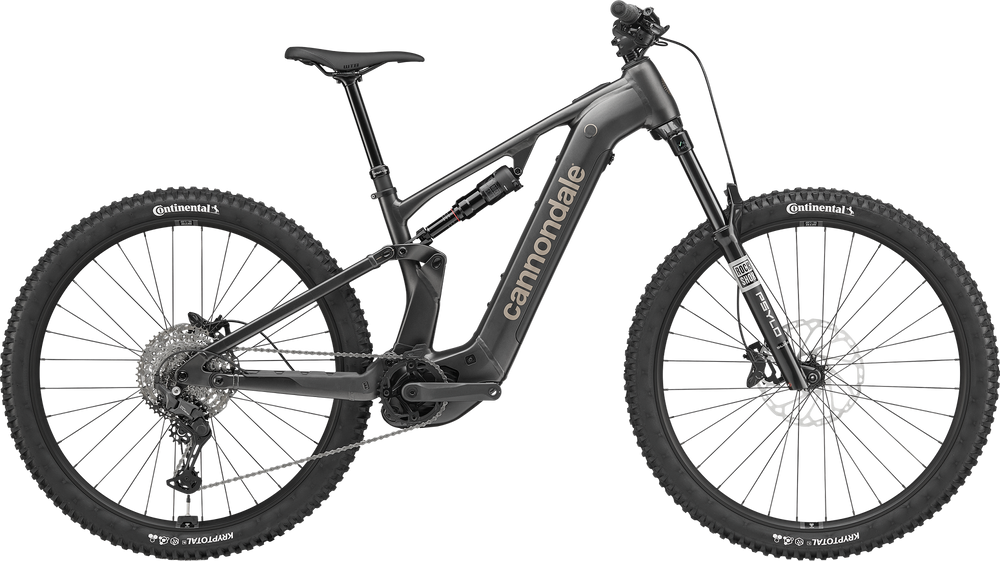

2025 Moterra 3 Full Suspension Electric Mountain Bike
Every bike is fully assembled, tuned, and test-ridden before pickup at your chosen DFW Bike Mart location.
Expected to ship within 14 days.
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart - ready to ride right at your doorstep within 10 miles of any DFW location.
Complete your Ride
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
2025 Moterra 3 Full Suspension Electric Mountain Bike
Features
-
The Art of Alchemy
Cannondale’s premium SmartForm alloy frameset offers a cocktail of robust resilience and playful trail performance. Strong, sleek, ready to send it—because polished doesn’t have to mean precious.
-
Big Power, Bigger Days
Bosch’s big 800Wh PowerTube fuels marathon rides and ambitious routes. More distance, more dirt, more bragging rights—extended range for adventures that refuse to quit.
-
Big Wheels, Big Fun
29-inch wheels roll fast, grip harder, and float over obstacles that others dodge. Roots and rocks become ramps, trails become playgrounds. All thrills, zero frills.
-
Stealthy Support
Integrated stealth kickstand mount means extra convenience, minus clunky visuals. Need it? Bolt one on. Don’t? You’ll never know it’s there—clean, clever, Cannondale.
-
Armor Up

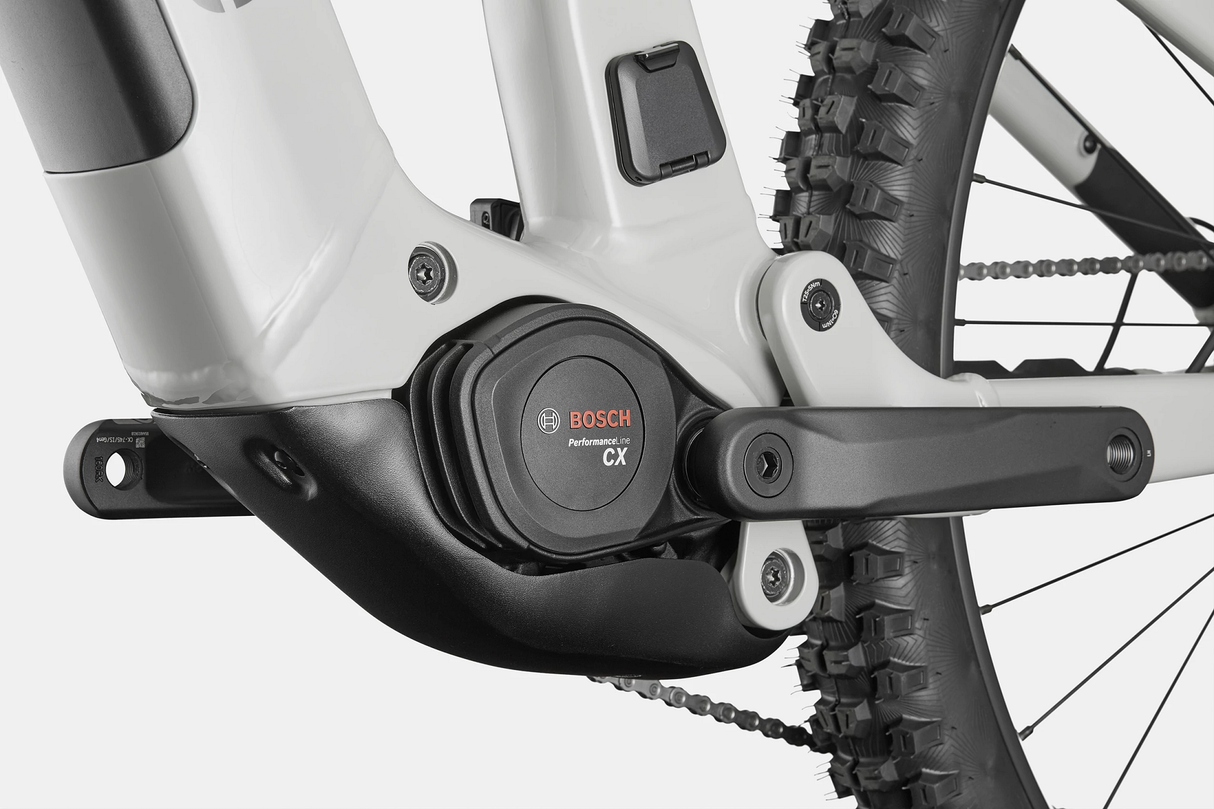

An integrated skid plate keeps your motor and battery safe from sneaky roots and angry rocks. Silent guardian, rugged protector, always battle-ready—because dirt happens.
-
Wait, There's More
Bosch's PowerMore 250 range extender is compact, lightweight, and takes up the same downtube space as an average water bottle— but carries 250Wh of extra juice. Available as an aftermarket upgrade, it gives you more time to roam, climb, and push further into your ride—because sometimes, a longer day on the trail beats any seat at the pub.
More Juice, No Excuse
-
Alloy Done Right
Cannondale’s been bending aluminum into awesomeness for decades. Forged with a SmartForm alloy frame, Moterra 3 and 4 deliver a blend of trail-hungry toughness and lively handling. 150mm rear suspension, 160mm at the front, rolling on sturdy 29ers—it’s snappy in switchbacks, poised on sketchy descents, and alway game for roughin’ it.
-
Play With Power
Cranking out up to 120Nm of torque via Bosch’s Performance Line CX, this rig will make you grin on the climbs and laugh on the descents. Fueled by 800Wh or 600Wh PowerTube battery options, you’ve got enough juice to taunt gravity all day. Power delivery so smooth, immediate, and satisfying—you’ll swear it’s reading your intentions before you’ve even touched the pedals.
-
See Electric Mountain Bikes
Electrify your commute to get there faster and do more.
Overview
Overview
More Juice, No Excuse
The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.
Model Description

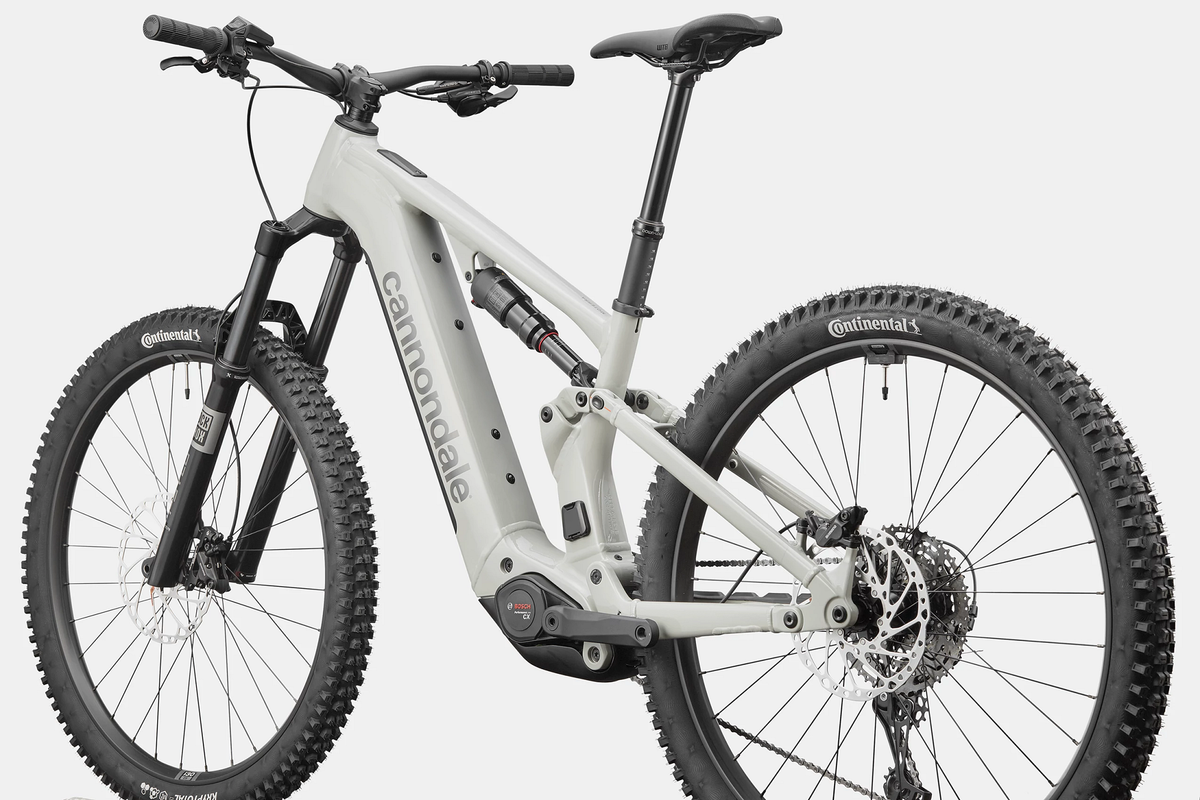

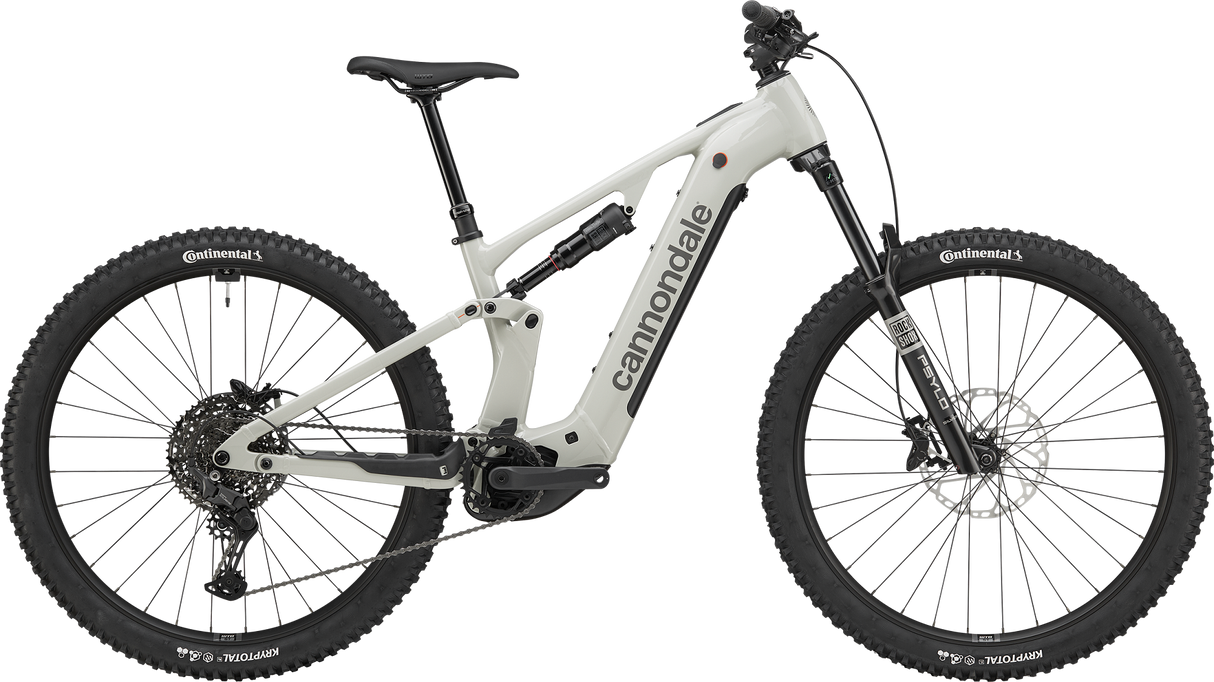

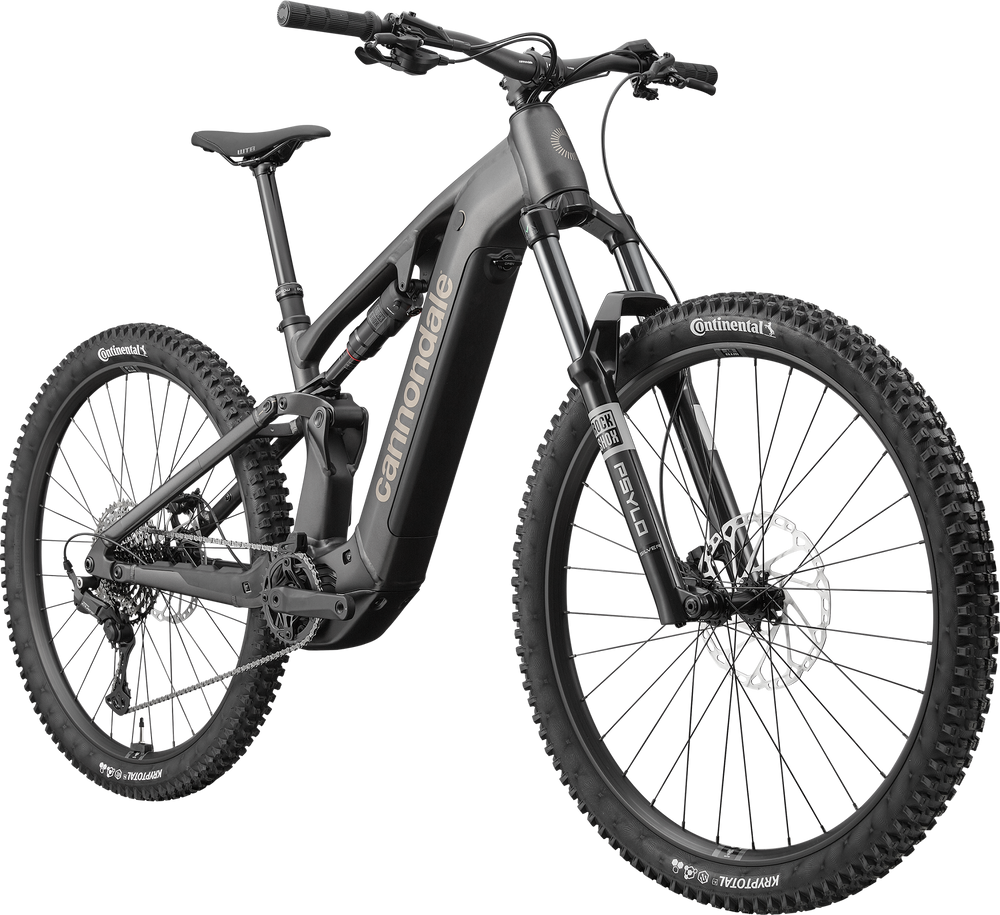

Rugged, responsive, and ready for anything—Moterra 3 has everything needed to tackle big days on the trail. The 150mm travel SmartForm C1 Alloy frame, huge 800Wh battery, and Bosch’s most powerful CX motor make short work of long climbs. A 160mm RockShox Psylo Silver RC fork and Deluxe Select shock ensure a controlled, responsive ride, while Shimano CUES U6000 shifting and MT520 4-piston brakes provide reliability you can count on. Ready to roll with WTB/Shimano wheels, it’s a no-nonsense trail companion.
What it's for
Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild
Highlights
- A premium SmartForm C1 Alloy frame - light, stiff, and guaranteed for life
- Bosch's most powerful system – Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
- RockShox’s workhorse all-mountain suspension – 160mm Psylo Silver RC fork and Deluxe Select air shock
- Reliable WTB ST i30 rims, 30mm inner width, with Shimano hubs and Continental Kryptotal tires
- Precise shifting from Shimano’s CUES U6000 LinkGlide 11-speed drivetrain
- Shimano MT520 4-piston hydraulic disc brakes with 203mm rotors deliver strong, consistent braking power
Technical Specifications
Technical Specifications
| Platform | Moterra Neo |
| Model name | Moterra 3 |
| Model code | C65224U |
| Frame | Moterra, SmartForm C1 Alloy, 29" wheels, 150mm travel, Cannondale Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible |
| Fork | RockShox Psylo Silver RC, 160mm, Motion Control, SoloAir, 15x110mm Maxle, tapered steerer, 44mm offset |
| Headset | Acros ICR, 1.5" to 1.8", sealed bearings |
| Rear shock | RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm |

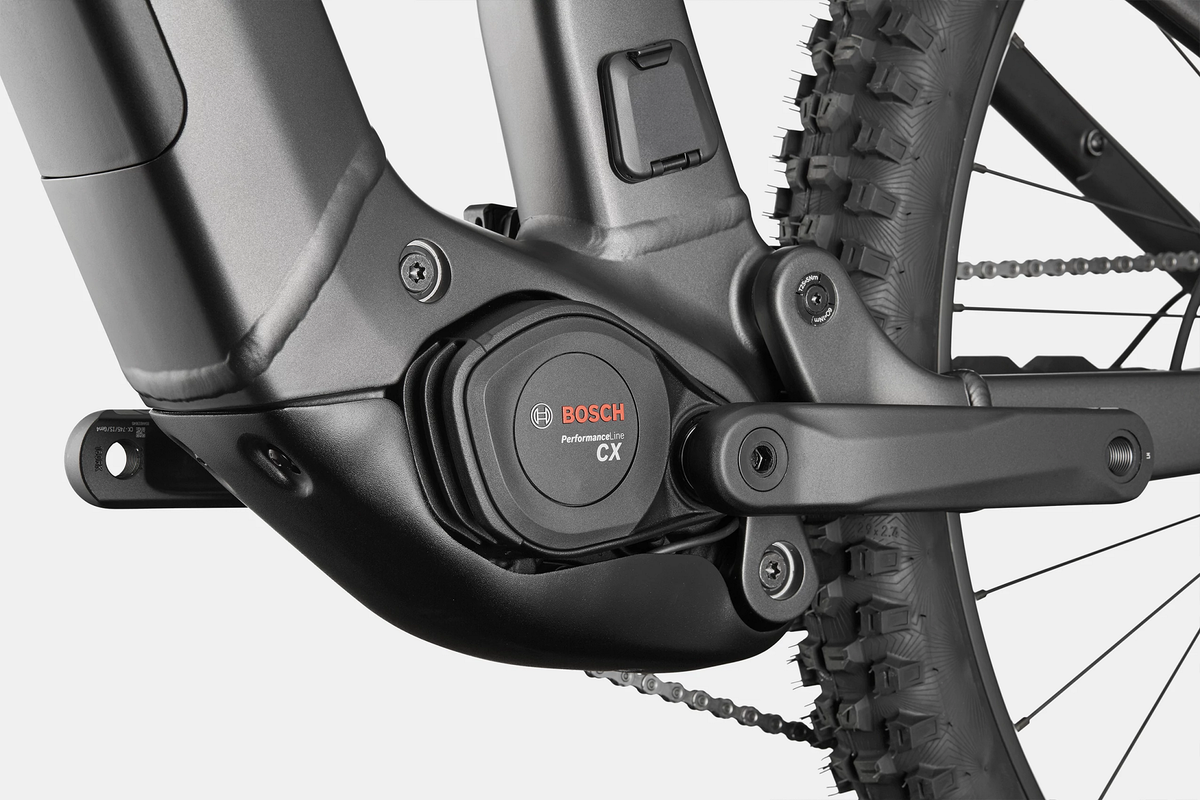

| Drive unit | Bosch Performance Line CX |
| Battery | Bosch PowerTube, 800Wh |
| Charger | Bosch 4A |

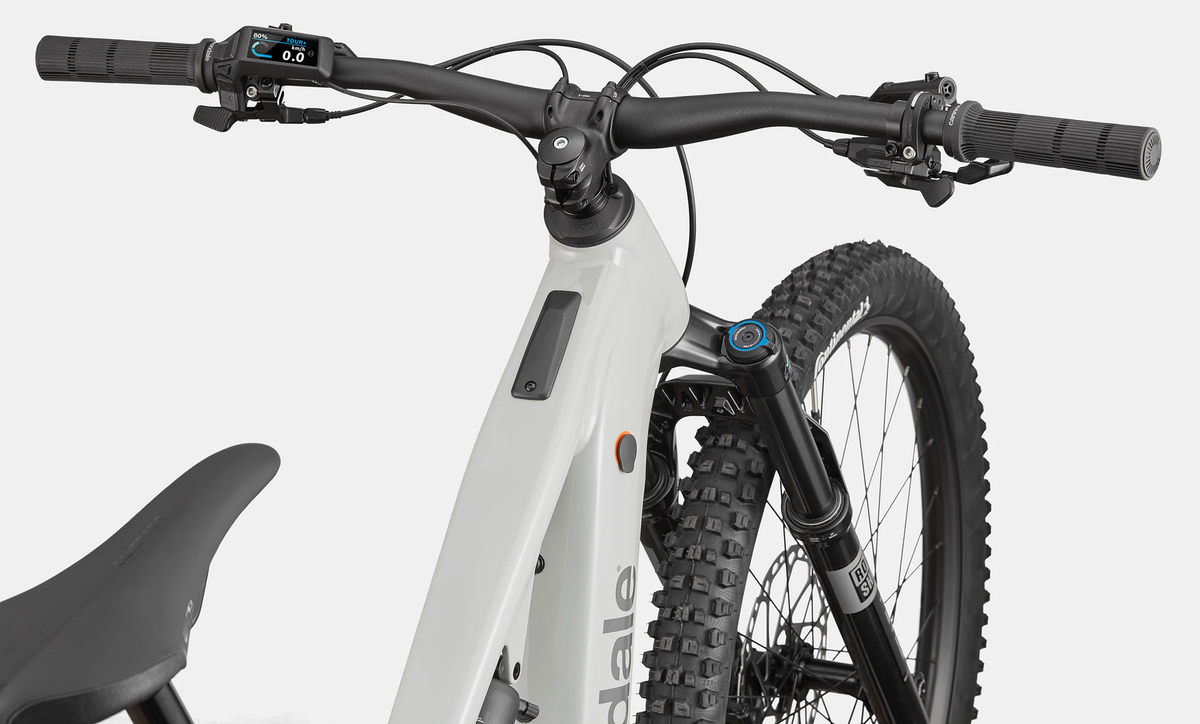

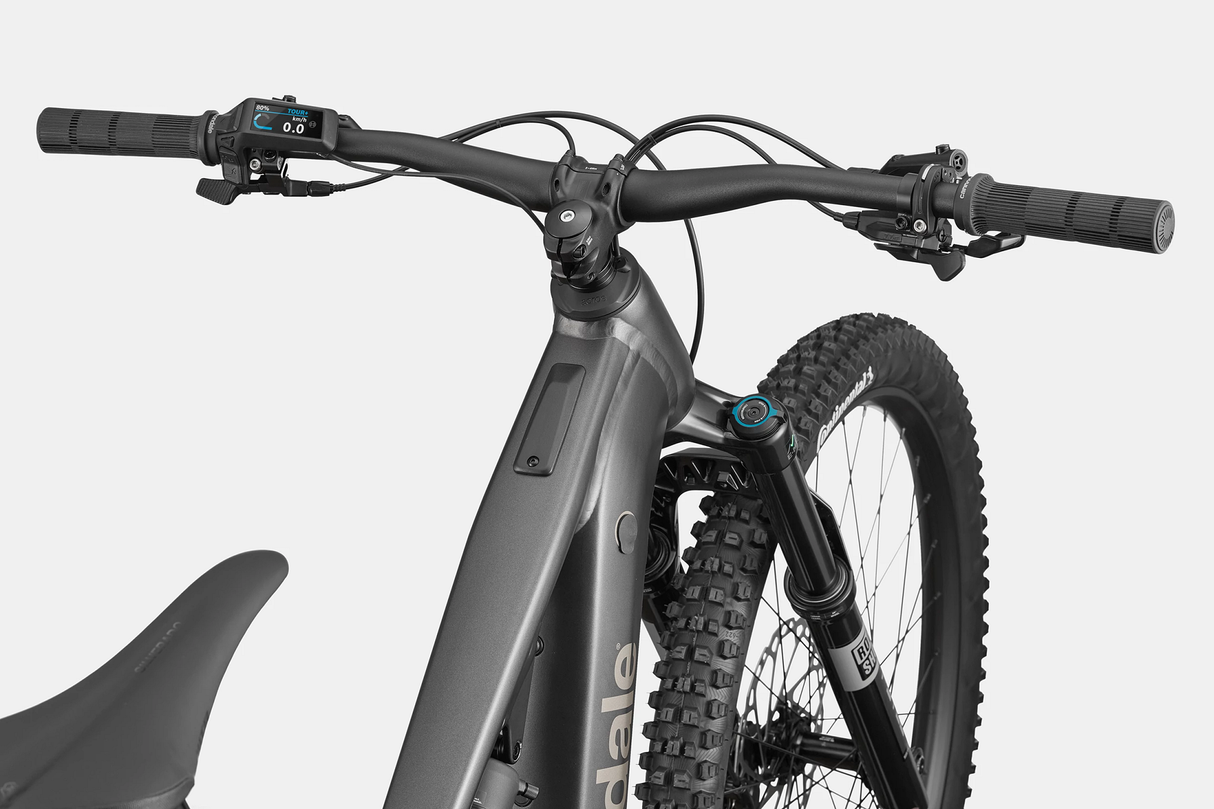

| Display | Bosch Purion 200 |
| Certifications | UL 2849 |

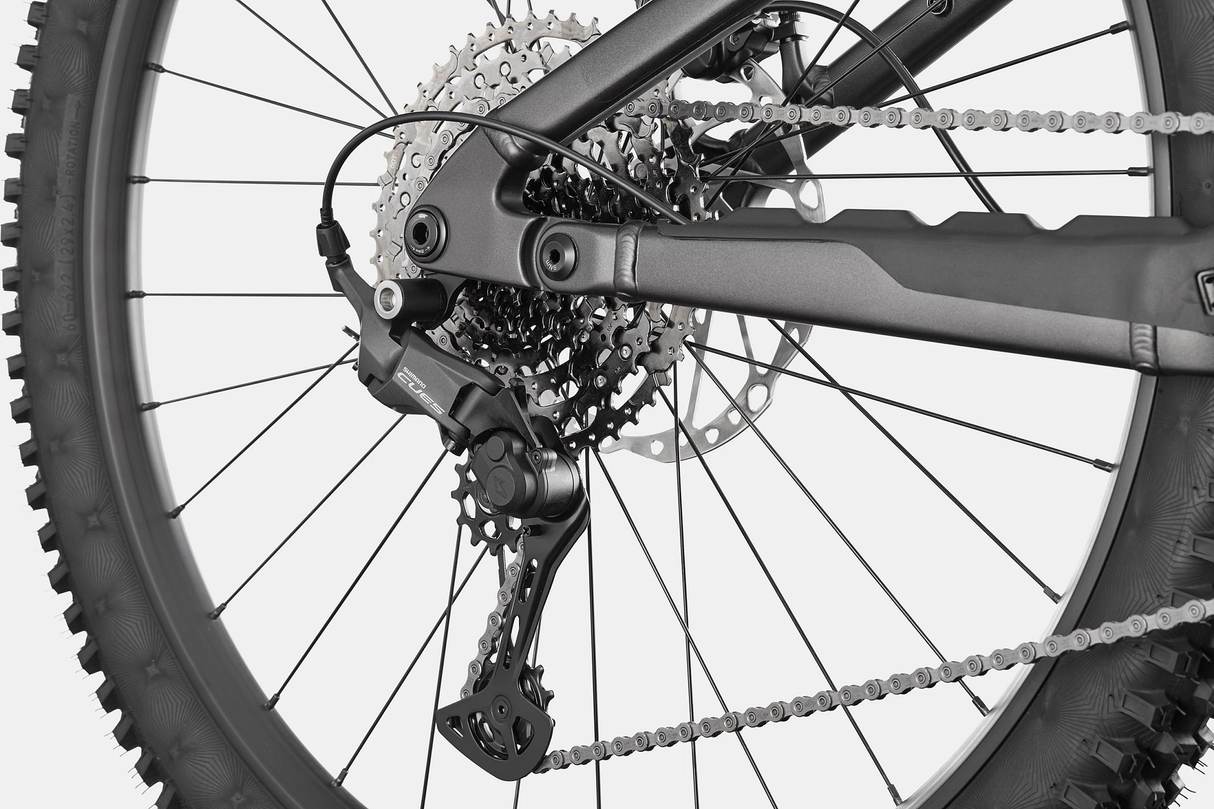

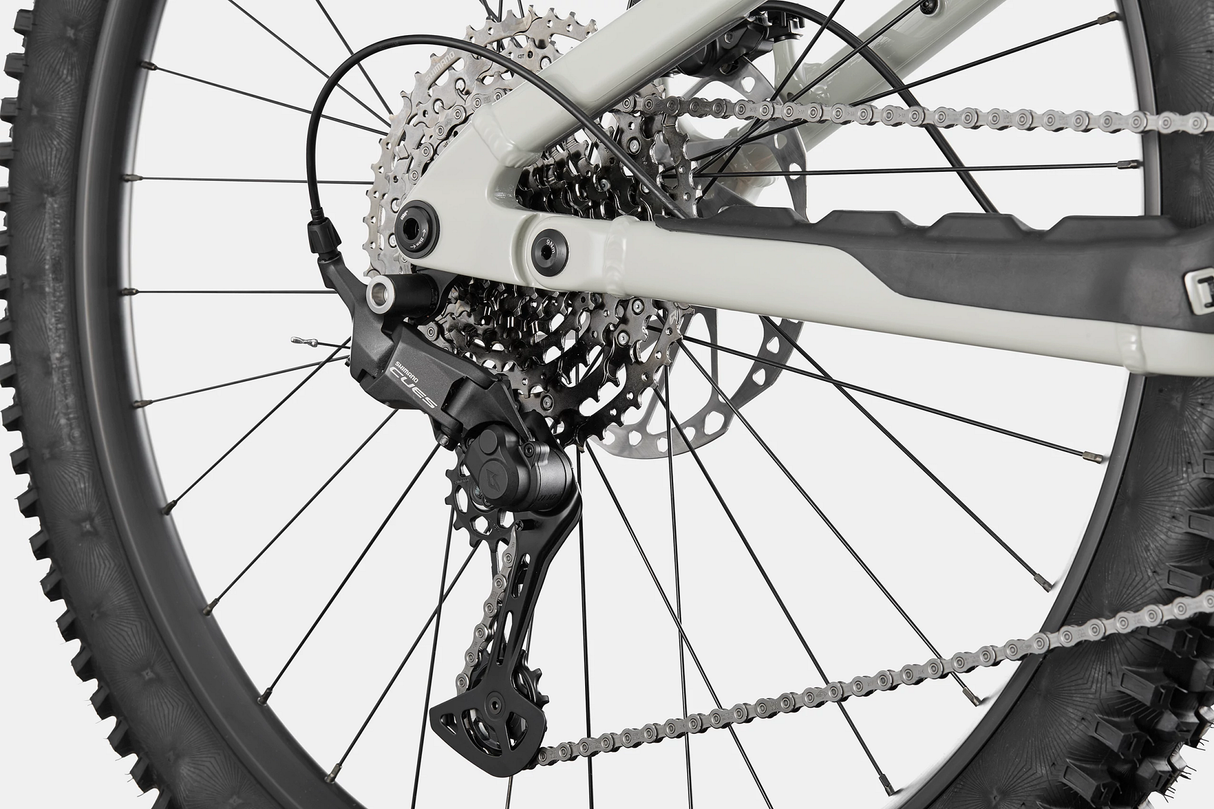

| Rear derailleur | Shimano CUES U6000, LinkGlide |
| Shifters | Shimano CUES U6000, 11-speed, LinkGlide |
| Chain | Shimano LG500, LinkGlide, 11-speed |
| Crank | FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
| Rear cogs | Shimano CUES LG400, LinkGlide, 11-50, 11-speed |
| Brakes | Shimano MT520 4-piston hydraulic disc, 203mm RT64 rotors |
| Brake levers | Shimano MT501 hydraulic disc |
| Rims | WTB ST i30 TCS, 30mm inner width, 32h, tubeless compatible |
| Spokes | DT Swiss Champion 2.0 |
| Tire size | 2.4 |
| Wheel size | 29 |
| Hubs | (F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC600, 12x148mm thru-axle, centerlock |
| Tires | (F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable |
| Handlebar | Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm |
| Stem | Cannondale 1, 6061 Alloy, 35.0, 40mm, 0° |
| Grips | Cannondale TaperRidge |
| Saddle | WTB Silverado Medium |
| Seatpost | Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL) |
| Extra 1 | Bosch PowerMore range extender compatible |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
Length measurements converted to mm from Cannondale inch values. Angles in degrees.
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| SM | 5'1" - 5'5" | 155 - 165 |
| MD | 5'4" - 5'9" | 163 - 175 |
| LG | 5'8" - 6'1" | 173 - 185 |
| XL | 6'0" - 6'5" | 183 - 196 |
Sizing to be used as a reference only. Chat with us if you have any questions.
