2025 SuperX 3 Gravel Road Bike
Every bike is fully assembled, tuned, and test-ridden before pickup at your chosen DFW Bike Mart location.
Expected to ship within 14 days.
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart - ready to ride right at your doorstep within 10 miles of any DFW location.
Complete your Ride
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
2025 SuperX 3 Gravel Road Bike
Features
-
Rolling Fatties
Courses vary, terrain varies, weather varies. The SuperX fits tires up to 48mm for the frame and 51mm for the fork, with at least 4mm clearance on each side, ready for whatever tire the day demands.
-
D-Lightful
The D-shaped design of SuperX’s seatpost enhances aerodynamics and boosts vertical compliance, reducing muscle fatigue so you stay fresh and fast for the final sprint.
-
OutFront Geometry
OutFront pairs a slack head angle with a longer-than-normal 55mm fork offset, increasing stability and control on the steep and loose – while maintaining the snappy handling you need for quick line changes and last-second corrections.
-
Delta Steerer
The Delta Steerer design is great for gravel racing. It allows for clean cable integration from the cockpit into the frame, and a reduced frontal area for increased aero efficiency.
-
The Cover up
A slick cover hides SuperX’s top tube bag mount. It's there when you want it, invisible when you don’t.
All In to Go All Out
-
Fast & Light
Our KOM-winning road tech meets Unbound-winning engineering. SuperX is super aero and light to stay ahead of the pack in this rapidly -evolving era of high-speed, elbow-to-elbow gravel racing. With gravel race speeds averaging well over 35 km/h, SuperX brings a whole lotta free speed over any distance.
-
Gravel Glider, Not Grinder
SuperX’s sophisticated carbon construction smooths out the rough, floating above the gravel to keep you cranking. Specially constructed flex zones in the seat tube, rear triangle, and top tube work as a system with the D-shaped seatpost to absorb shock and vibration, keeping your mind and body fresher longer.
-
Handle It
Take the faster line. Pass on the inside. Lay off the brakes and let 'er fly. With its race-proven geometry, OutFront steering design, and finely calibrated frame stiffness, the SuperX’s handling blends stability and precision in a way that takes the drama out of clutch moments, letting you hold your line while staying on the gas.
-
Built to Take It. Tuned for You.
SuperX’s Proportional Response carbon construction is tailor made for gravel racing and for you. Fully customized by size, precisely oriented layers of different types and moduli of carbon fibers deliver an ideal balance of weight, stiffness and durability for every rider. All backed by our lifetime guarantee.
-
Get ‘Crossed Up
Is cyclocross your thing? SuperX has you covered. Throw on some 33c tires and hit it. With its straight-line speed, planted handling, and massive mud clearance, SuperX loves to battle it out between the tape. Oh, and the flat top tube is pretty nice on the shoulders too.
Overview
Overview
All In to Go All Out
A pure gravel race machine focused on one thing: taking the lead and staying there. Ok, two things…
Model Description

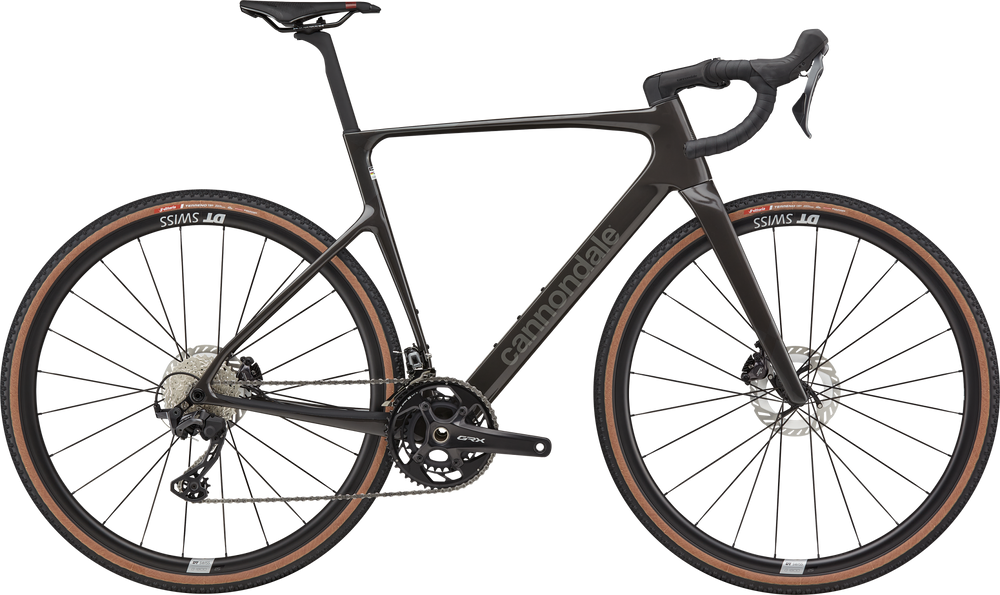

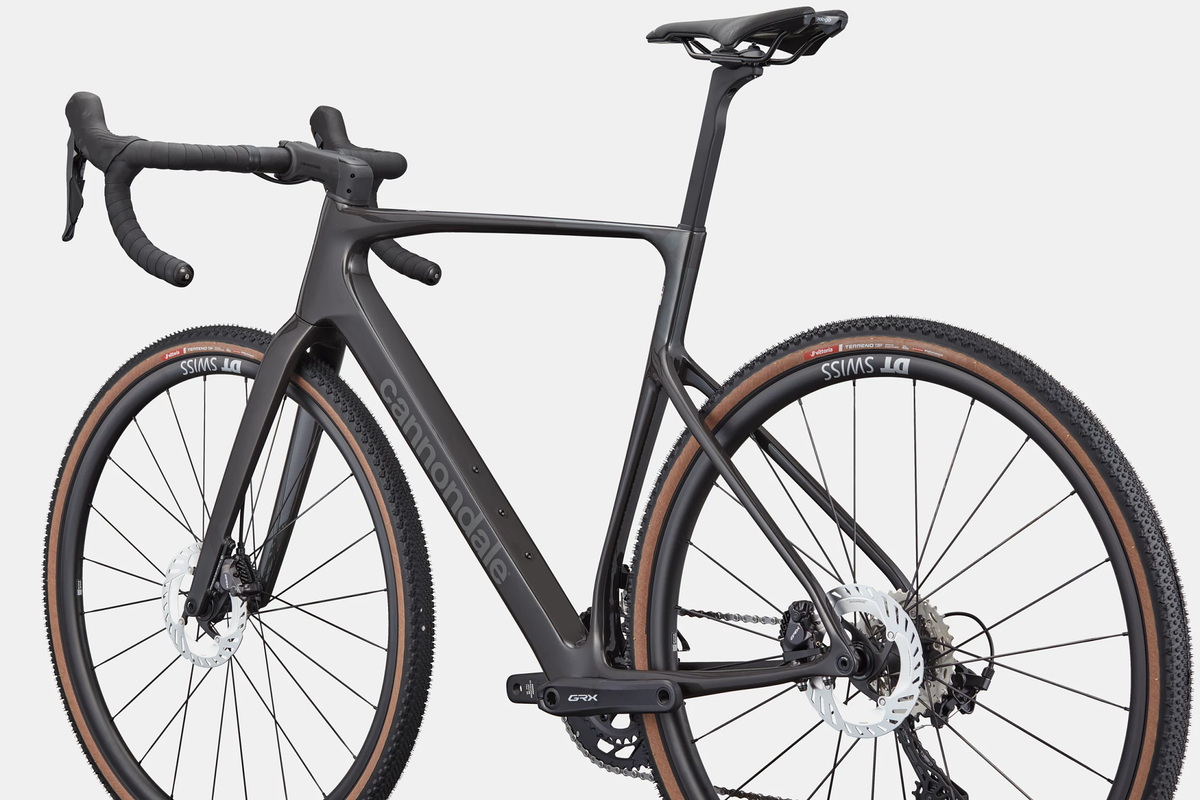

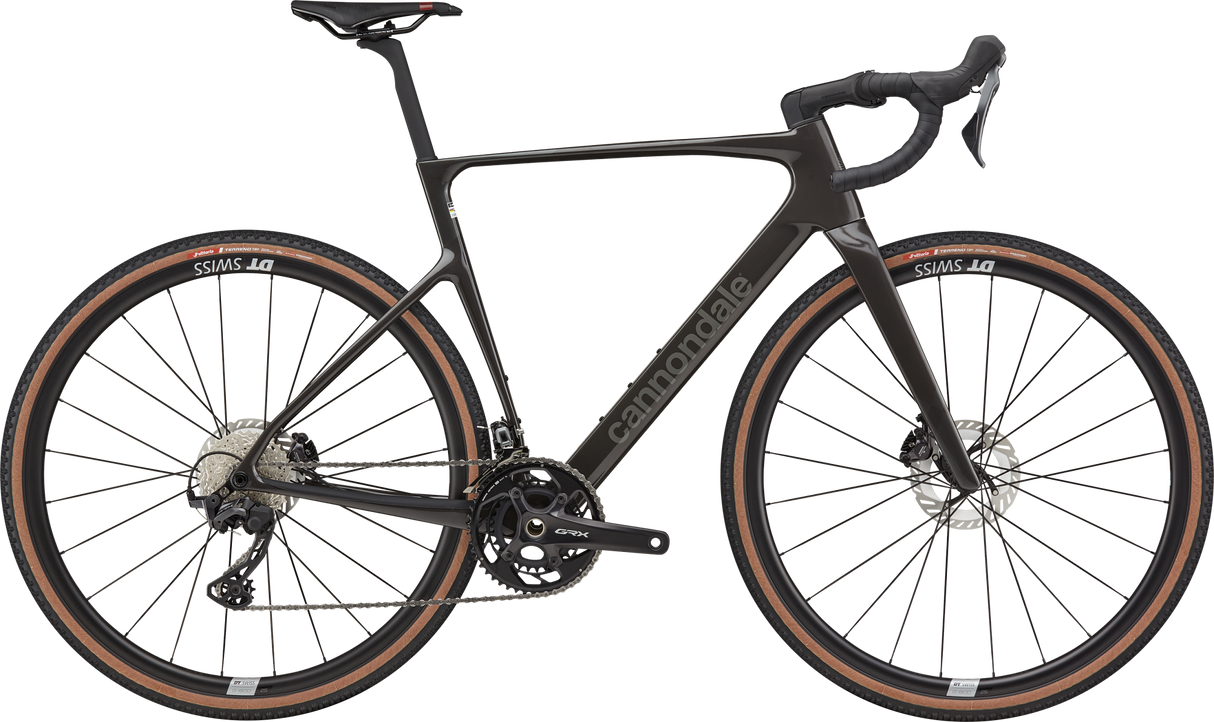

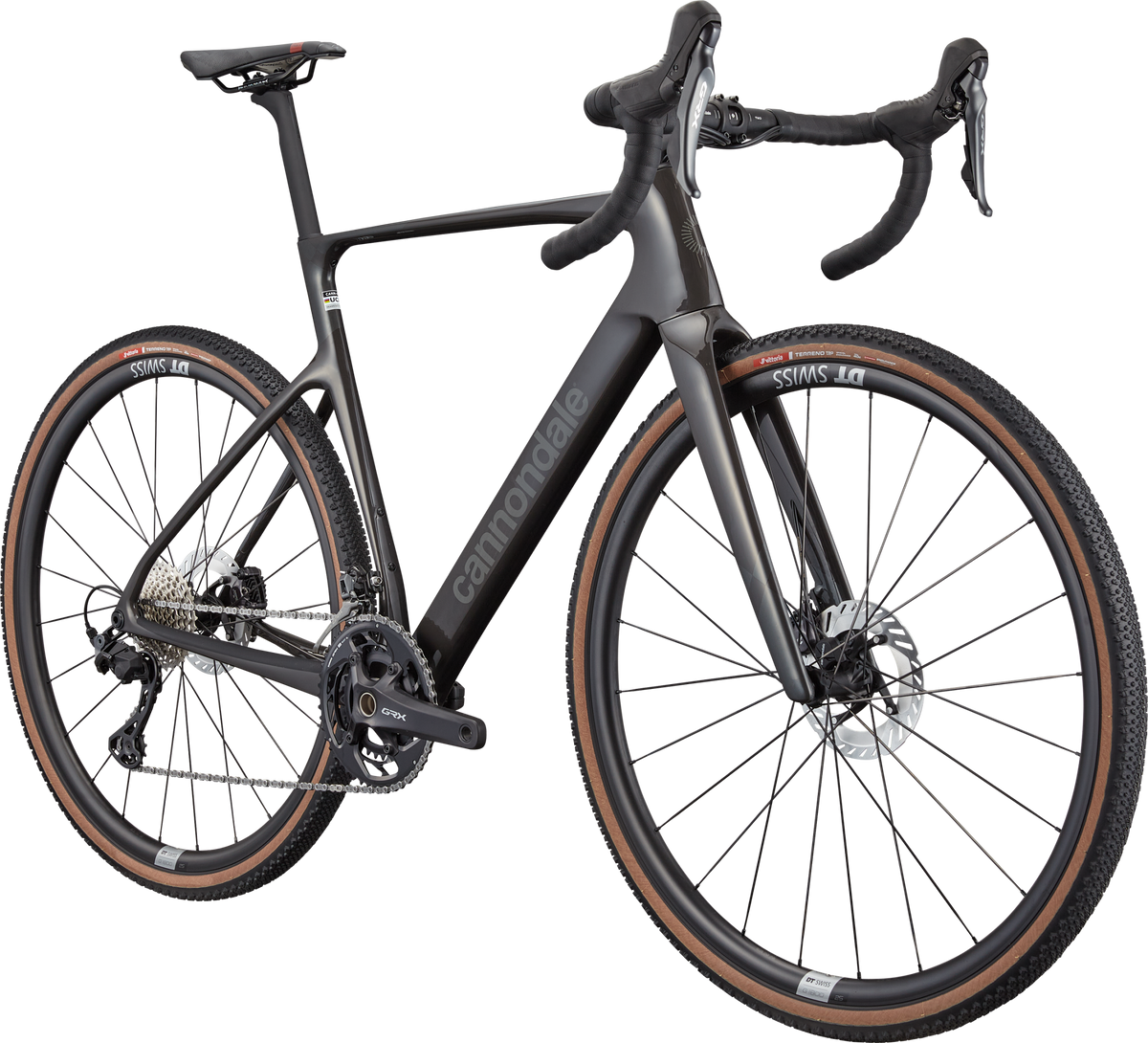

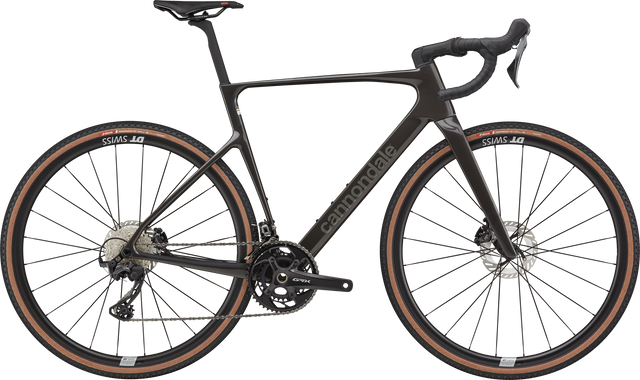

Ready, Set, Thrash. SuperX 3 channels Cannondale’s racing pedigree, turning every stretch of gravel into a proving ground. The carbon frame is as light as it is tough, paired with DT Swiss GR1800 wheels and Vittoria Terreno tries to make short work of gravel and dirt. Shimano GRX 820 delivers crisp, consistent shifting, and flat-mount hydraulic brakes ensure steady control. Vittoria Terreno tires bite into loose terrain, keeping you fast and focused from start to finish. SuperX 3 turns every race into an opportunity to leave your mark.
What it's for
Elite gravel racing, KOM hunting, Going like hell
Highlights
- Super light, low-drag, SuperX carbon frameset, backed by our Lifetime Warranty
- Crisp, reliable shifting from Shimano’s GRX 820 gravel groupset
- Powerful, controlled braking from Shimano GRX 820 hydraulic disc brakes with CL800 rotors
- DT Swiss G1800 Spline wheels with DT 370 hubs offer precise handling and ride-anywhere durability
- Our sleek Conceal stem works with our Delta Steerer to route cables cleanly through the headtube
- Vittoria Terreno T50, 700x40c, tubeless ready tires offer unparalleled speed and capability across a wide range of surfaces
Technical Specifications
Technical Specifications
| Platform | SuperX |
| Model name | SuperX 3 |
| Model code | C17045U |
| Frame | SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH BSA 68mm threaded BB, flat mount disc, integrated seatpost binder |
| Fork | SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset |
| Headset | Integrated, 1-1/8" - 1.5" |

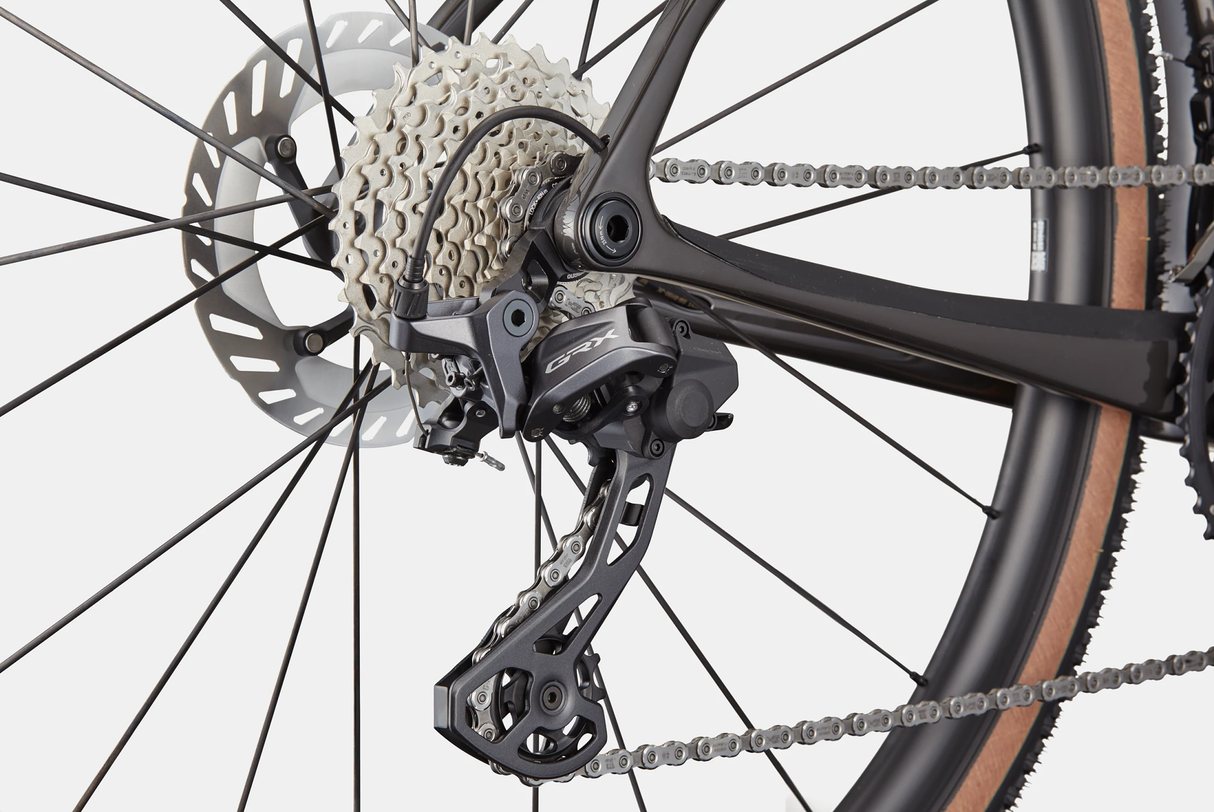

| Rear derailleur | Shimano GRX 820, Shadow RD+ |
| Front derailleur | Shimano GRX 820, braze-on |
| Shifters | Shimano GRX 820, 12-speed |
| Chain | Shimano M8100, 12-speed |

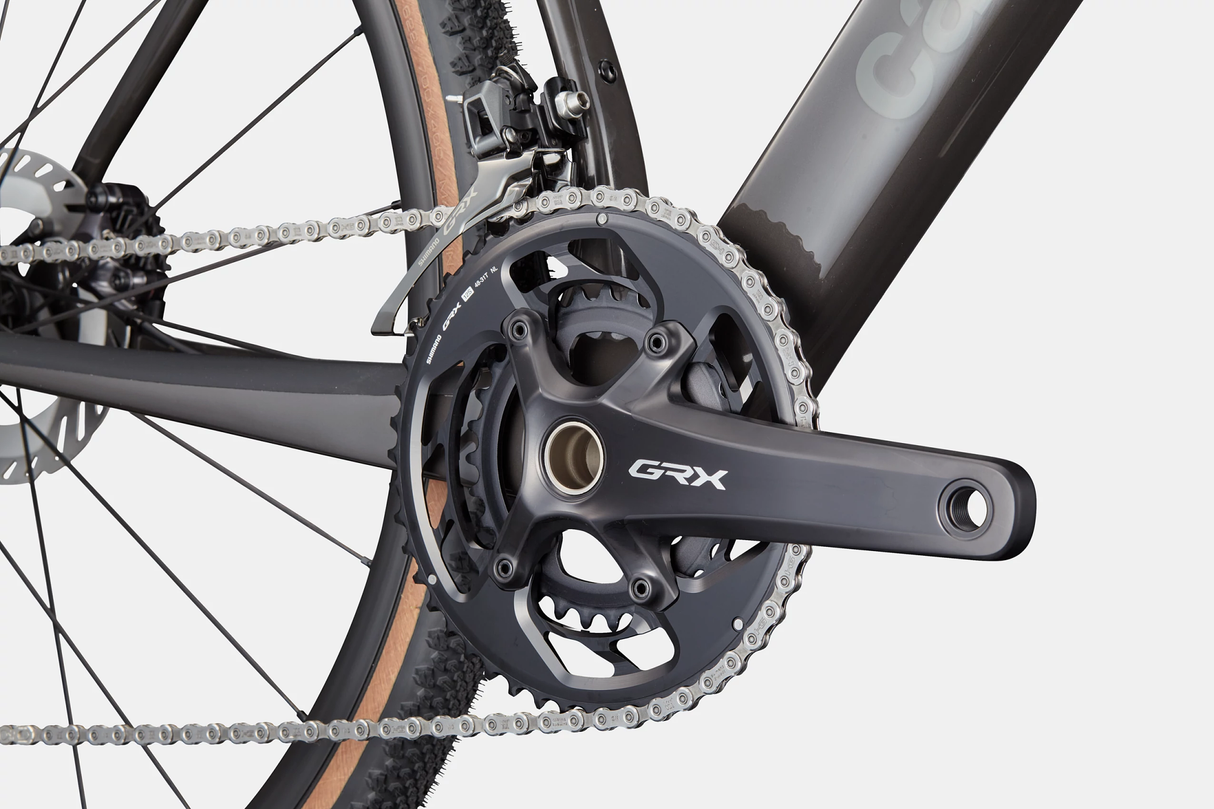

| Crank | Shimano GRX RX820, 48/31: 170mm (51cm), 172.5 (54-56cm), 175mm (58-61) / Note: size 46cm gets 165mm GRX RX610 cranks, 46/30 |
| Rear cogs | Shimano 105 7100, 11-36, 12-speed |
| Bottom bracket | Shimano BSA 68 |
| Brakes | Shimano GRX 820, 160/160mm CL800 rotors |
| Brake levers | Shimano GRX RX820 hydraulic disc |
| Rims | DT Swiss G1800 Spline 24mm inner width, 25mm depth, 24h, tubeless ready |
| Spokes | DT Swiss Aero Comp |
| Tire size | 40 |
| Wheel size | 700c |
| Hubs | (F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370 LN Ratchet System, 12x142mm centerlock |
| Tires | Vittoria Terreno T50, 700x40c, tubeless ready |
| Front tire | Vittoria Terreno T50, 700x40c |
| Rear tire | Vittoria Terreno T50, 700x40c |

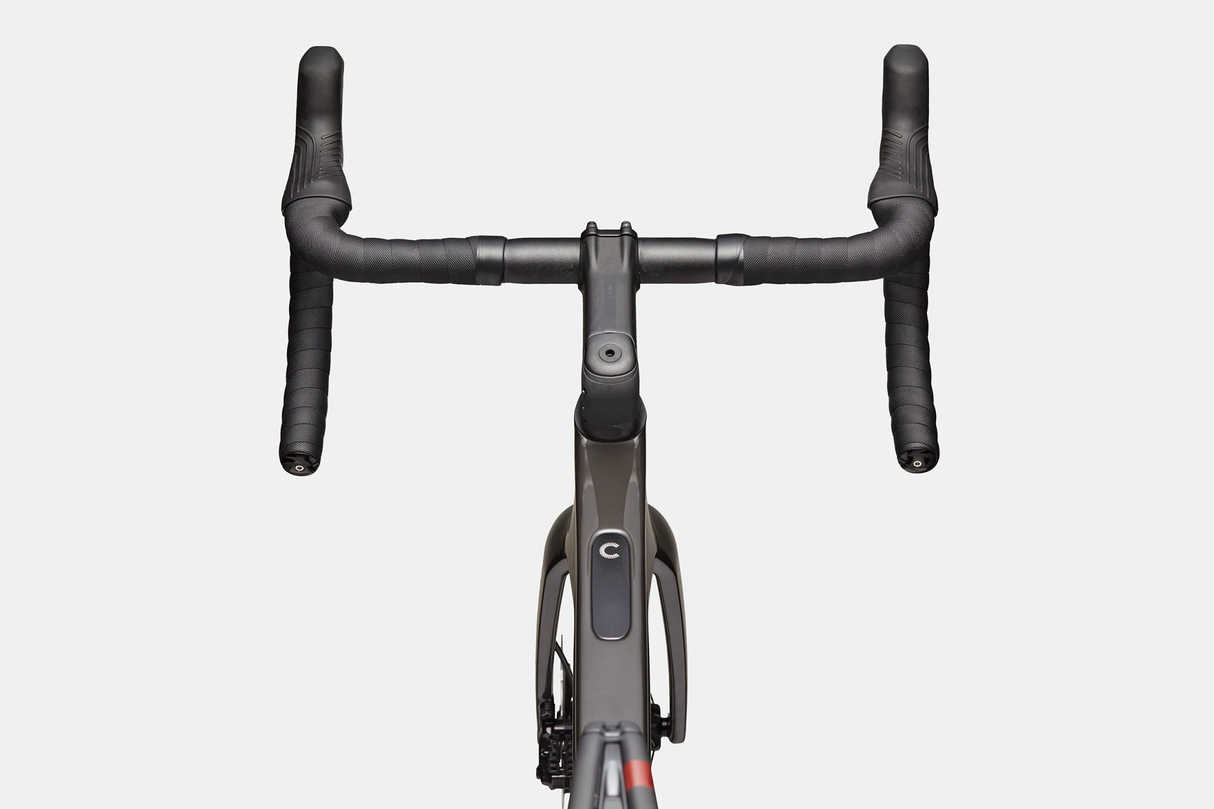

| Handlebar | Cannondale C2, 7050 Alloy, Compact: 400mm (46-51cm), 420mm (54-61cm) |
| Stem | Cannondale C1 Conceal, Alloy, 31.8, -6°: 90mm (46-51m), 100mm (54-56cm), 110mm (58-61cm) |
| Grips | Cannondale Bar Tape, 3.5mm |
| Saddle | Prologo Dimension AGX STN |
| Seatpost | Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 15mm offset (51-61cm) |
| Extra 1 | Tubeless valves, Conceal Stem accessory/computer mount (Garmin/Wahoo) |
| Ingestion hazard | WARNING - INGESTION HAZARD: This product contains a button cell or coin battery. DEATH or serious injury can occur if ingested. A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. KEEP new and used batteries OUT OF REACH OF CHILDREN. Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body. |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
Length measurements converted to mm from Cannondale inch values. Angles in degrees.
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| 46 | 5'0" - 5'4" | 152 - 163 |
| 51 | 5'5" - 5'9" | 165 - 175 |
| 54 | 5'7" - 5'11" | 170 - 180 |
| 56 | 5'10" - 6'1" | 178 - 185 |
| 58 | 6'0" - 6'4" | 183 - 193 |
| 61 | 6'3" - 6'7" | 191 - 201 |
Sizing to be used as a reference only. Chat with us if you have any questions.
