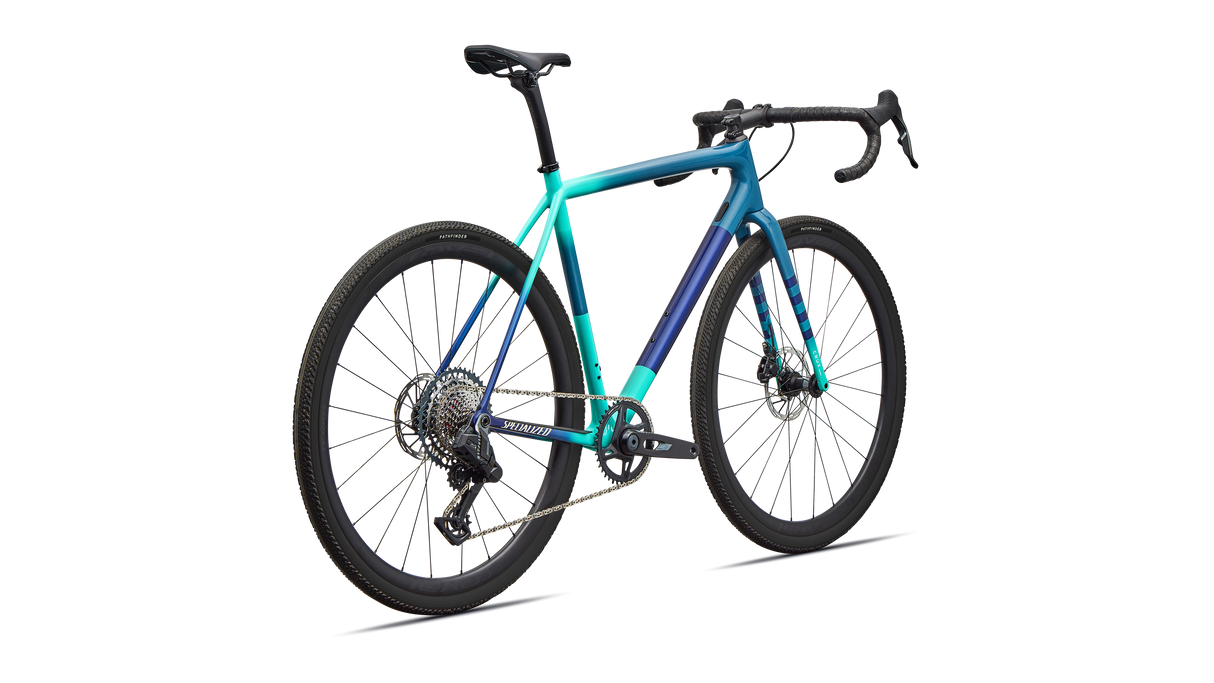

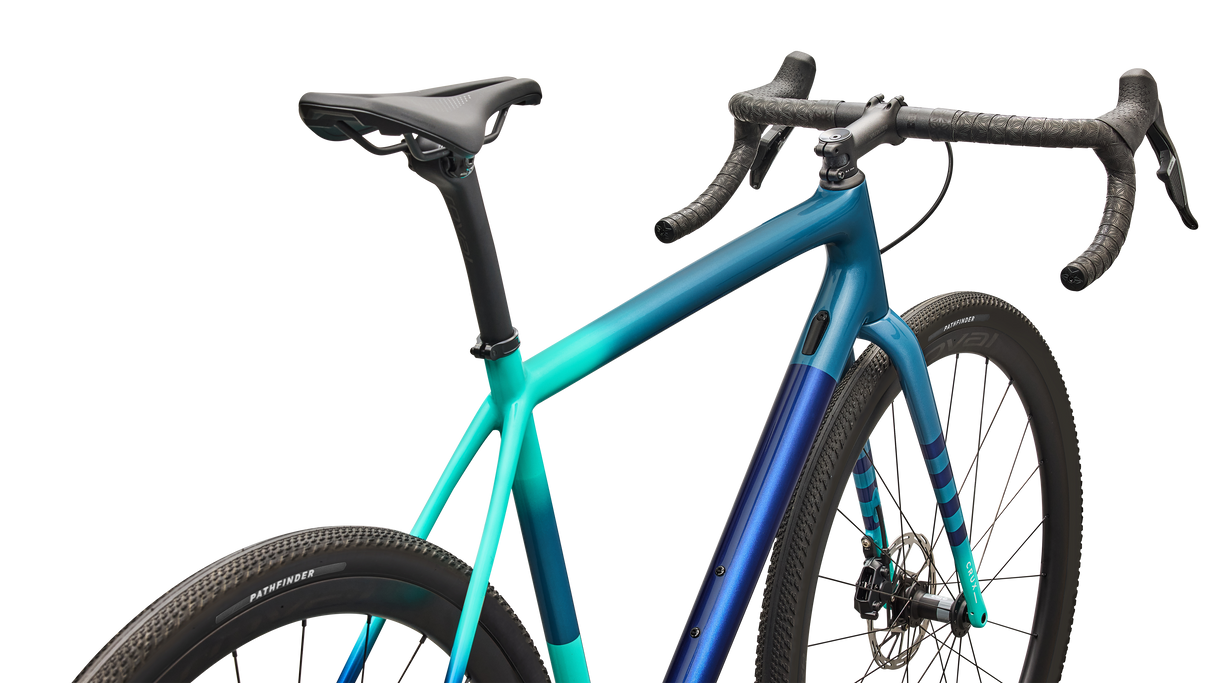

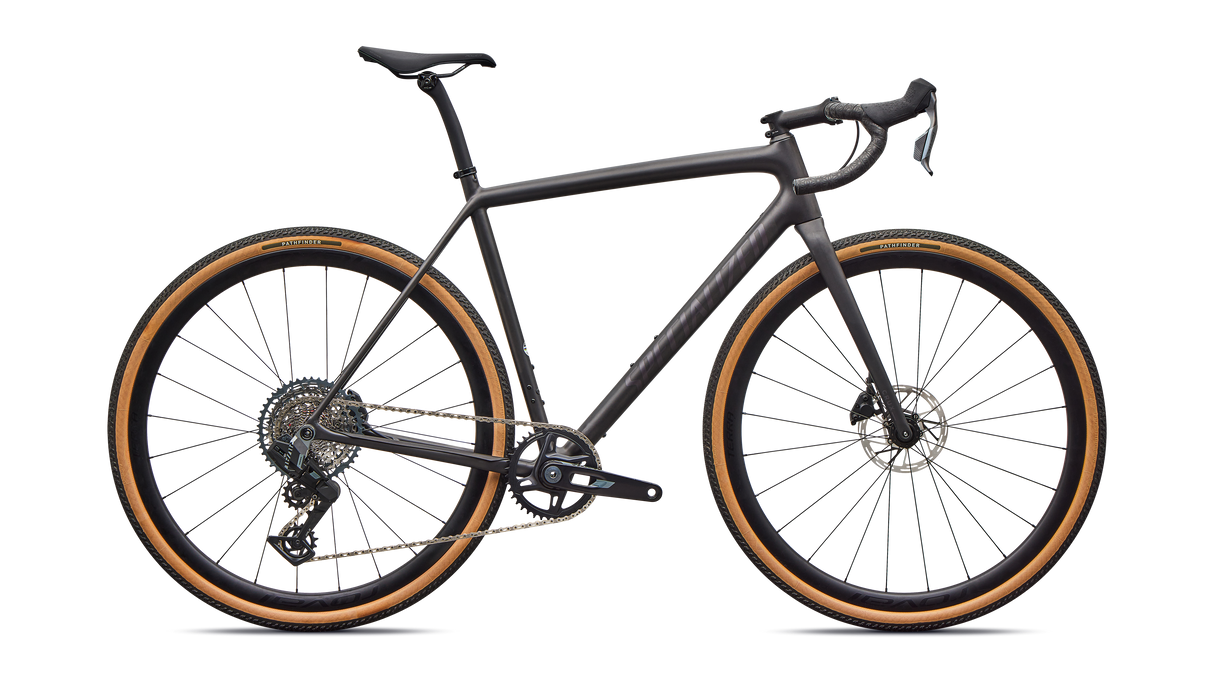

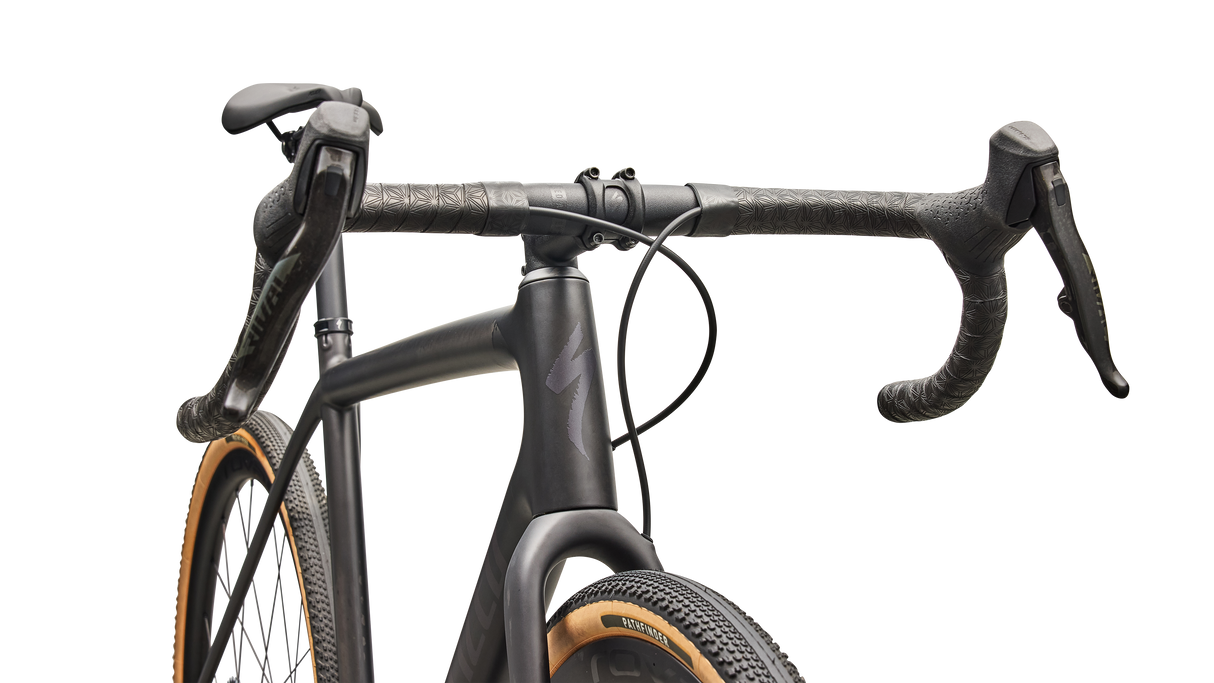

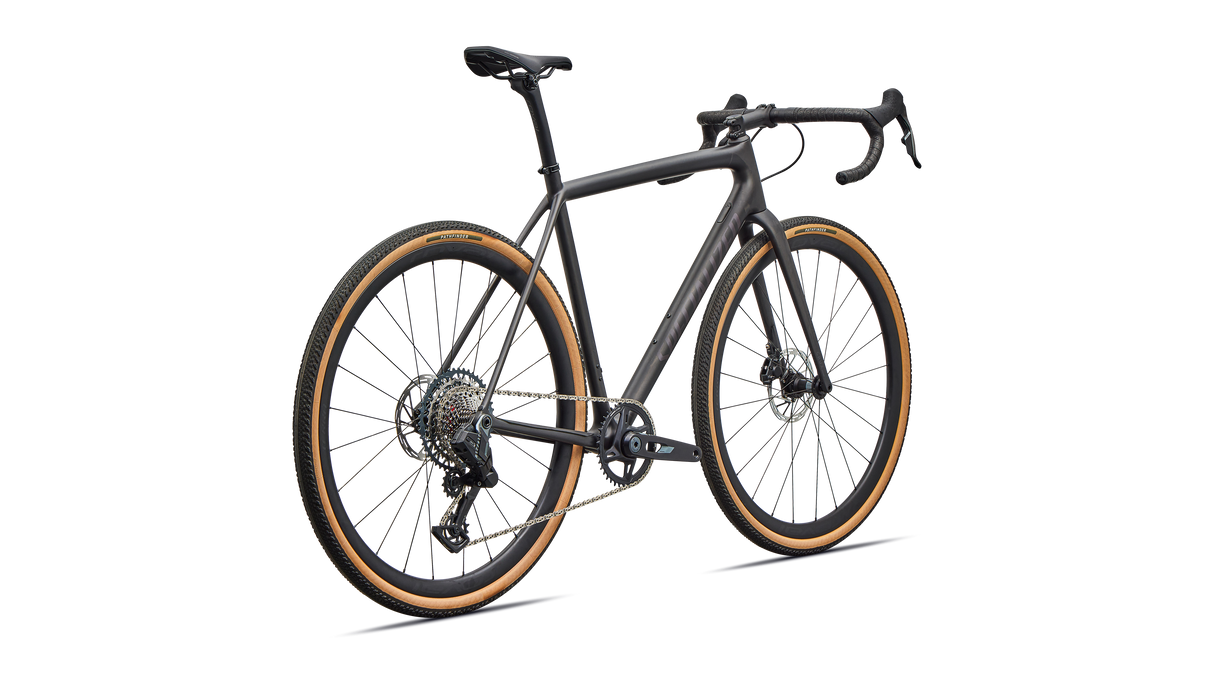

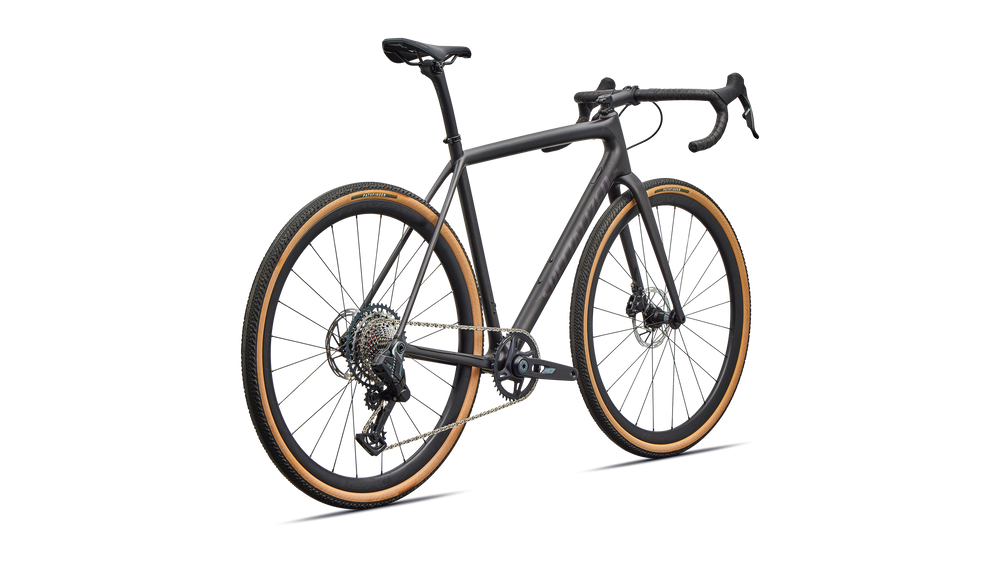

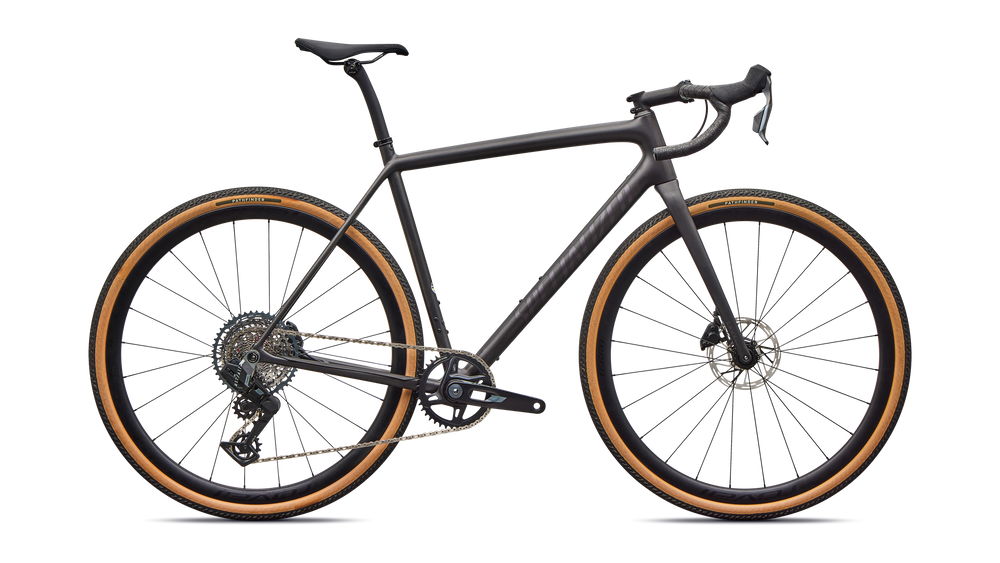

2026 Crux Expert Gravel Road Bike
Every bike is fully assembled, tuned, and test-ridden before pickup at your chosen DFW Bike Mart location.
Expected ship date: {date+3}
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart - ready to ride right at your doorstep within 10 miles of any DFW location.
Complete your Ride
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
Overview
Overview

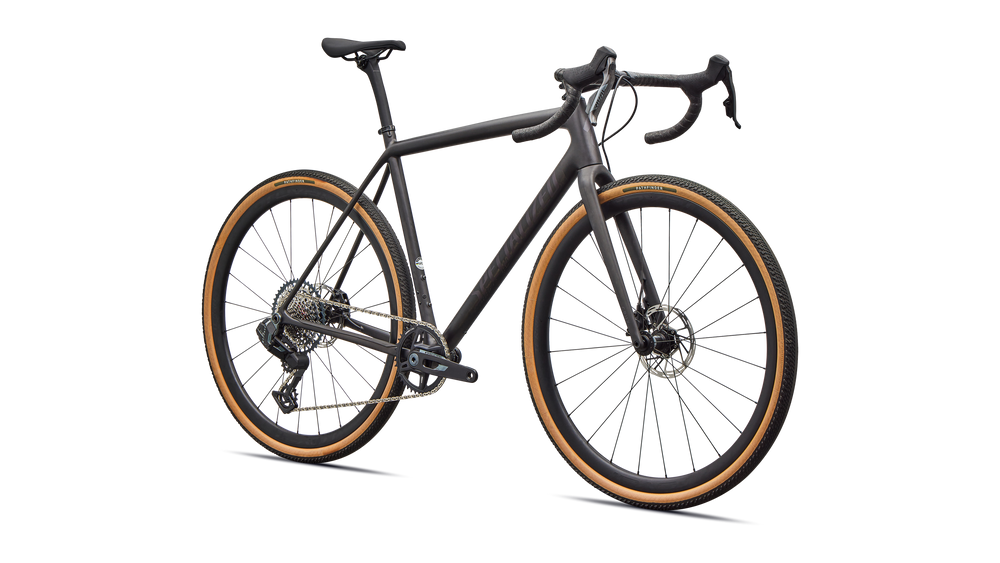

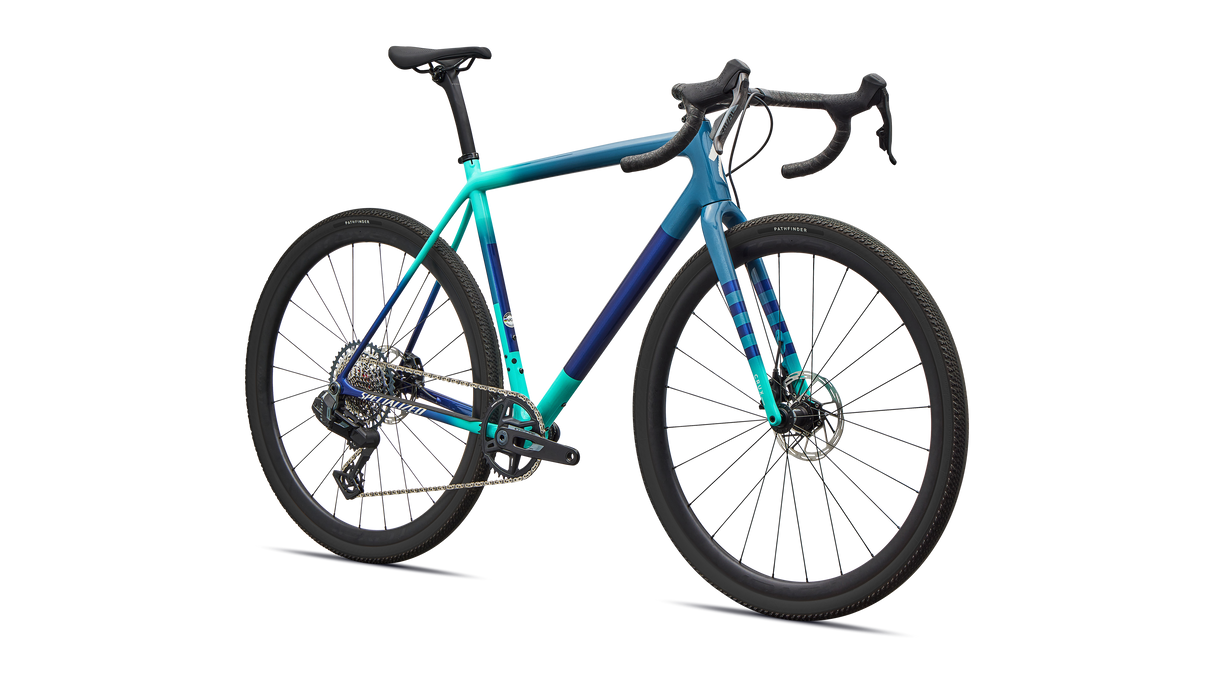

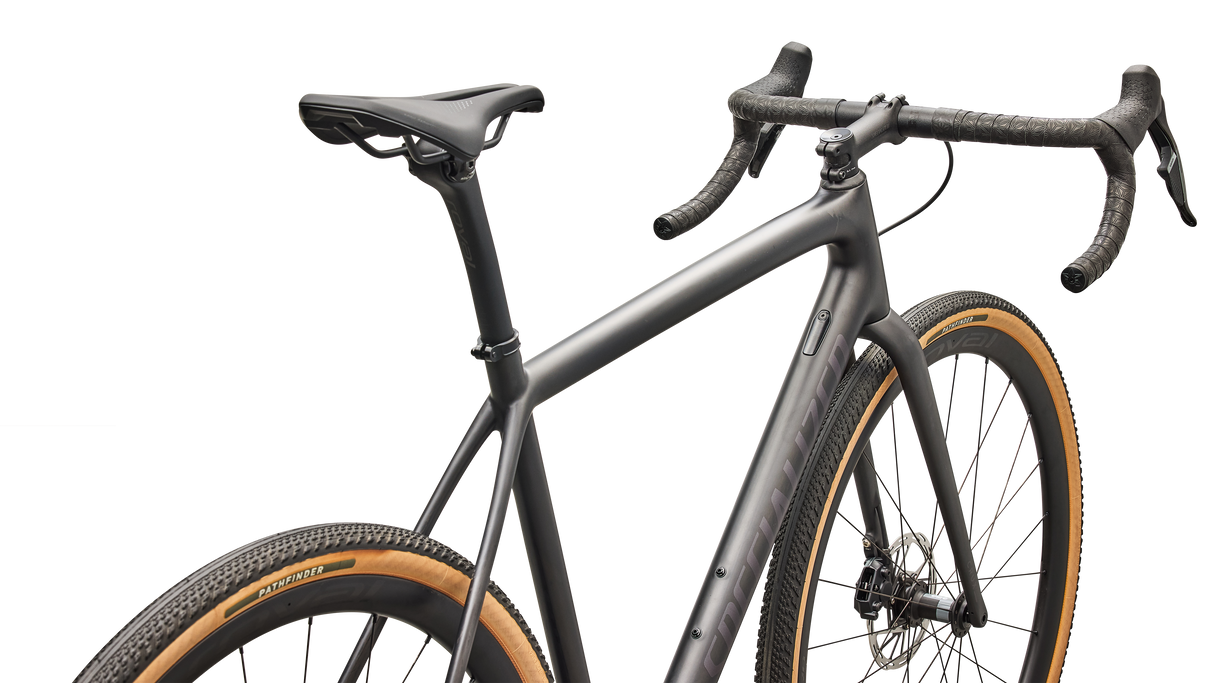

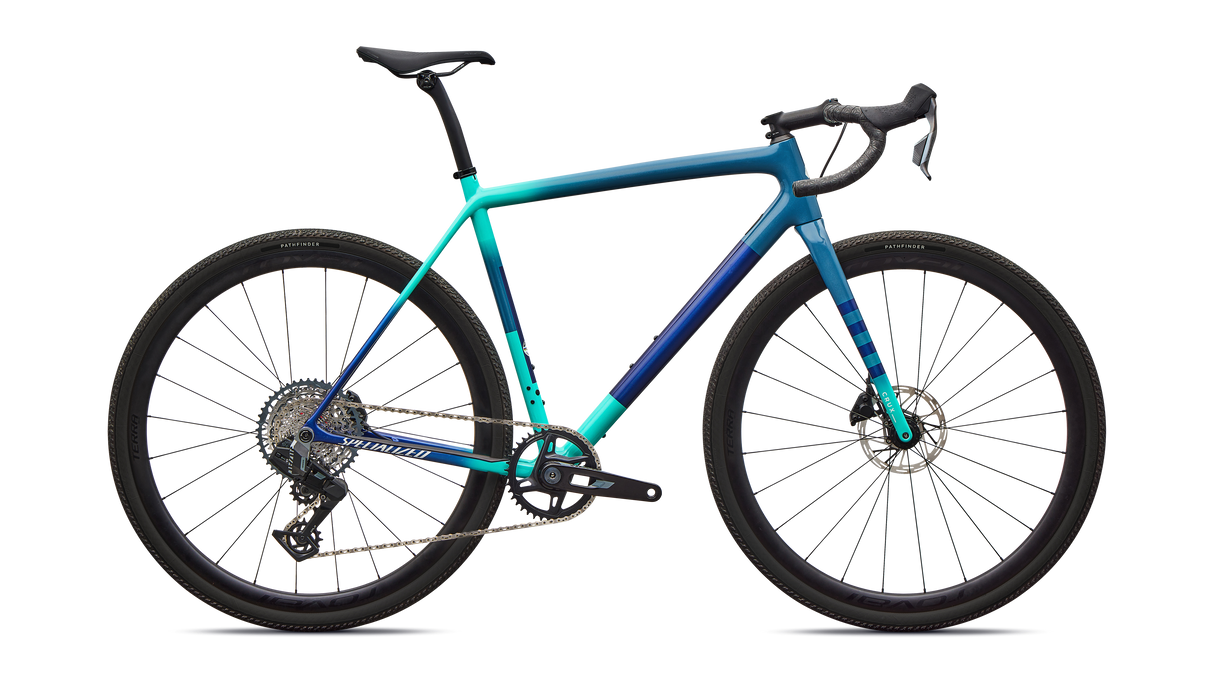

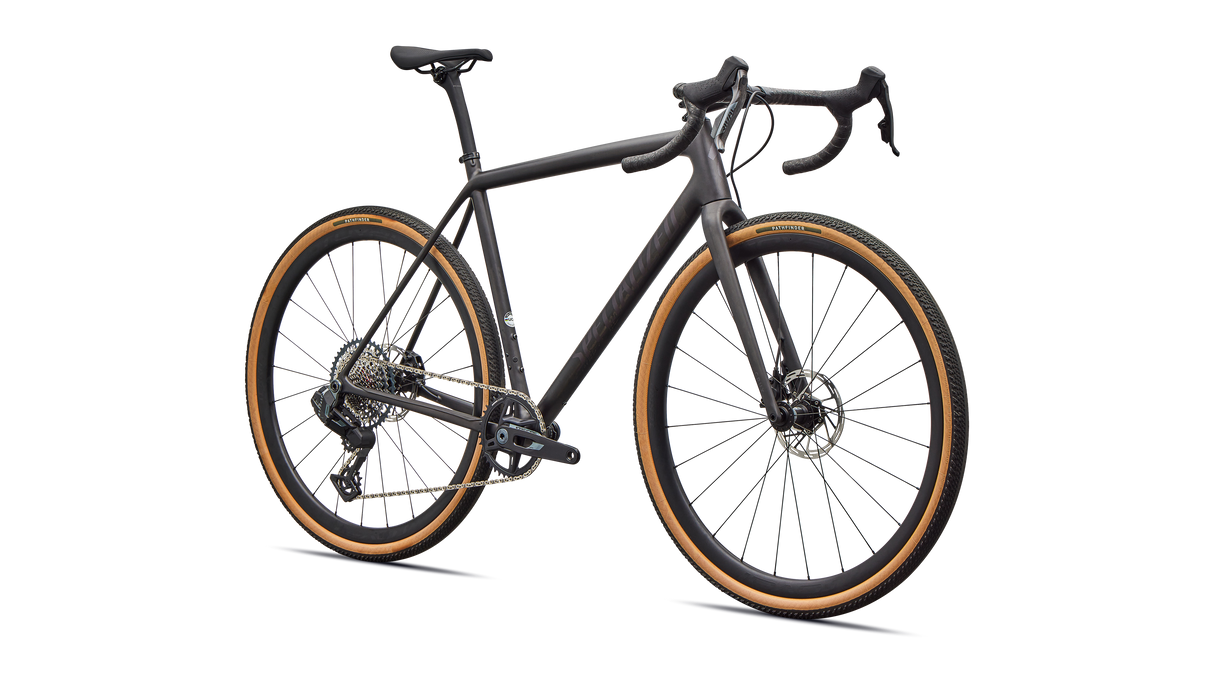

The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.
This Crux Expert comes spec'd with all-new SRAM Rival XPLR AXS for effortless braking, lighter weight, with massive 13 speed gear range, lightweight and durable Roval Terra C Disc wheels, and 2Bliss Ready, 700x40mm Pathfinder tires that hookup over nasty terrain.
- Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
- Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
- Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.
Technical Specifications
Technical Specifications

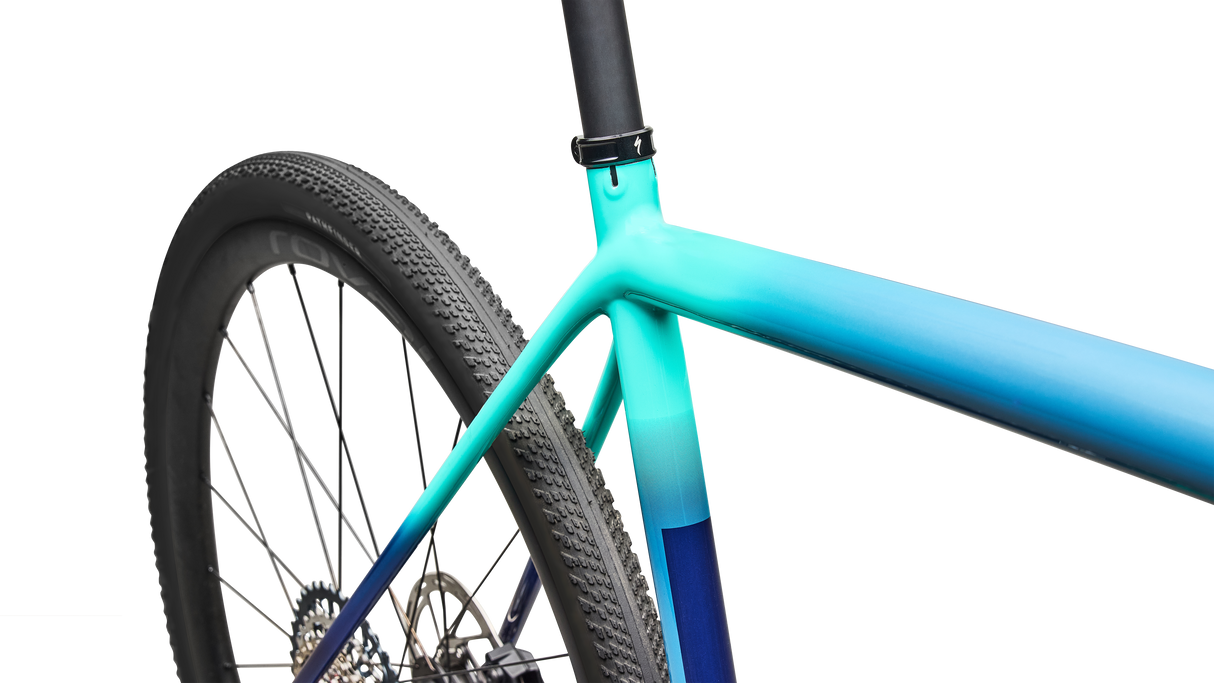

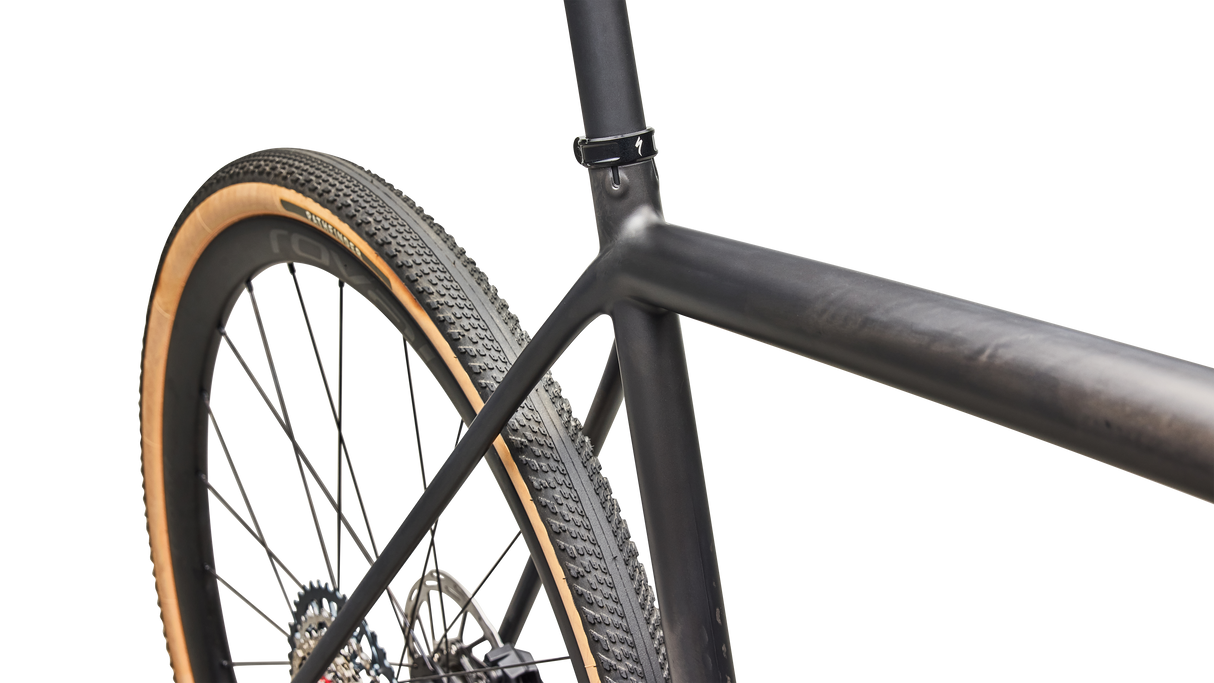

| Frame | Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout |
| Fork | S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc |
| Front brake | NEW SRAM Rival AXS E1, hydraulic disc 160mm rotor |
| Rear brake | NEW SRAM Rival AXS E1, hydraulic disc 160mm rotor |
| Shift levers | NEW SRAM Rival AXS E1 HRD |
| Rear derailleur | NEW SRAM Rival XPLR AXS E1 |
| Cassette | NEW SRAM Rival XPLR XG-1351, 13sp, 10-46t |
| Chain | NEW SRAM Rival E1 |
| Crankset | NEW SRAM Rival XPLR E1 |
| Chainrings | 40T, INCLUDED W/CRANK SET |
| Bottom bracket | SRAM DUB BSA |
| Front tire | Pathfinder 700x40, Tubeless Ready |
| Front wheel | Roval Terra C, 25mm inner width carbon rim, 32mm depth, DT 370 hub, 24h, DT Swiss Comp Race spokes |
| Rear tire | Pathfinder 700x40, Tubeless Ready |
| Rear wheel | Roval Terra C, 25mm inner width carbon rim, 32mm depth, DT 370 hub, 24h, DT Swiss Comp Race spokes |
| Inner tubes | 700x32-50mm, 40mm Presta valve |
| Stem | Specialized Pro SL, alloy, 4-bolt |

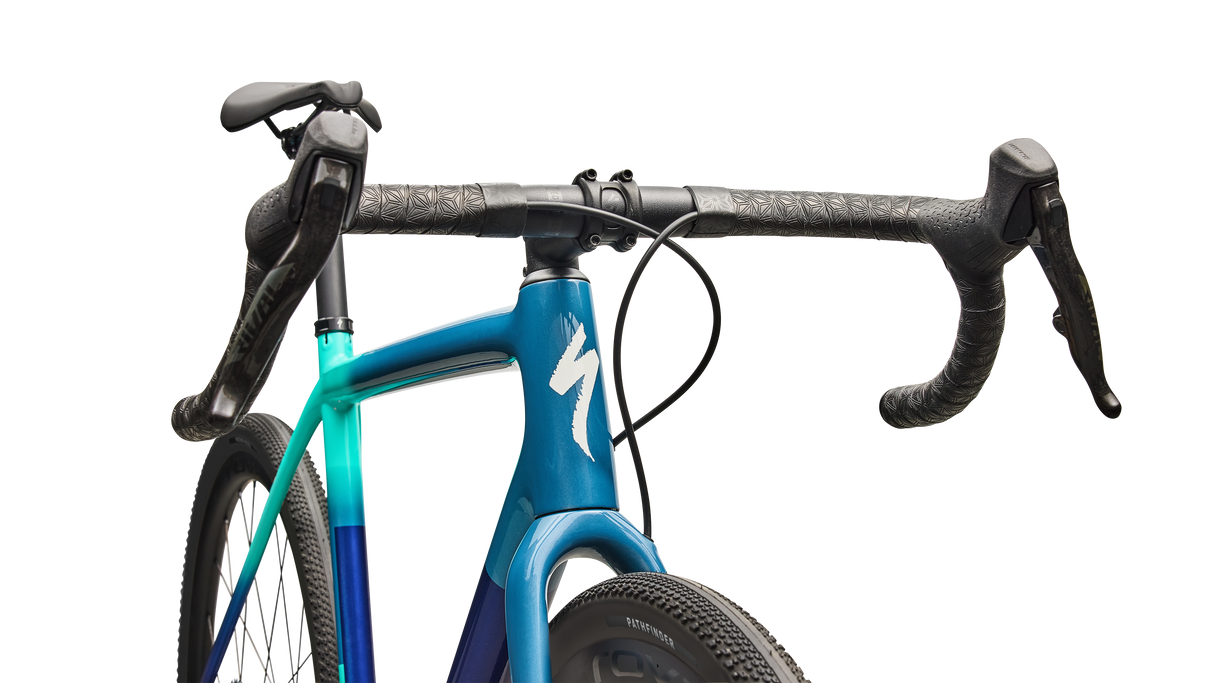

| Handlebars | Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare |
| Tape | Supacaz Super Sticky Kush |
| Saddle | Body Geometry Power Expert |
| Seatpost | Roval Terra Carbon Seat Post, 20mm Offset |
| Seat binder | Specialized Alloy, 30mm |
| Product id | 223489 |
| Weight | 8.1 kg (17 lb, 13.7 oz) |
| Weight size | 56 |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in mm unless otherwise noted.
| Frame size | 49 | 52 | 54 | 56 | 58 | 61 |
| Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Handlebar Width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Stem Length | 70mm | 80mm | 90mm | 100mm | 110mm | 110mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 330mm | 330mm | 330mm | 380mm | 380mm | 380mm |
| Stack | 530mm | 547mm | 560mm | 578mm | 598mm | 621mm |
| Reach | 375mm | 382mm | 388mm | 397mm | 405mm | 415mm |
| Head Tube Length | 100mm | 115mm | 130mm | 147mm | 167mm | 190mm |
| Head Tube Angle (degrees) | 70.5° | 71.25° | 71.5° | 72° | 72.25° | 72.5° |
| BB Height | 284mm | 284mm | 286mm | 286mm | 286mm | 286mm |
| BB Drop | 74mm | 74mm | 72mm | 72mm | 72mm | 72mm |
| Trail | 74mm | 69mm | 67mm | 64mm | 62mm | 60mm |
| Fork Length, Full | 401mm | 401mm | 401mm | 401mm | 401mm | 401mm |
| Fork Rake/Offset | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm |
| Front Center | 594mm | 600mm | 608mm | 618mm | 630mm | 644mm |
| Chainstay Length | 425mm | 425mm | 425mm | 425mm | 425mm | 425mm |
| Wheelbase | 1008mm | 1014mm | 1023mm | 1033mm | 1045mm | 1059mm |
| Top Tube Length, Horizontal | 512mm | 539mm | 549mm | 568mm | 582mm | 599mm |
| Bike Standover Height | 749mm | 772mm | 794mm | 816mm | 841mm | 866mm |
| Seat Tube Length | 466mm | 496mm | 521mm | 546mm | 576mm | 606mm |
| Seat Tube Angle (degrees) | 75.5° | 74° | 74° | 73.5° | 73.5° | 73.5° |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| Height (in) | size |
|---|---|
| 61-64 | 49 |
| 64-66 | 52 |
| 66-69 | 54 |
| 69-72 | 56 |
| 72-75 | 58 |
| 75-78 | 61 |
| height (cm) | size |
|---|---|
| 155-158 | 49 |
| 163-168 | 52 |
| 168-175 | 54 |
| 175-183 | 56 |
| 183-191 | 58 |
| 191-198 | 61 |
Sizing to be used as a reference only. Chat with us if you have any questions.
