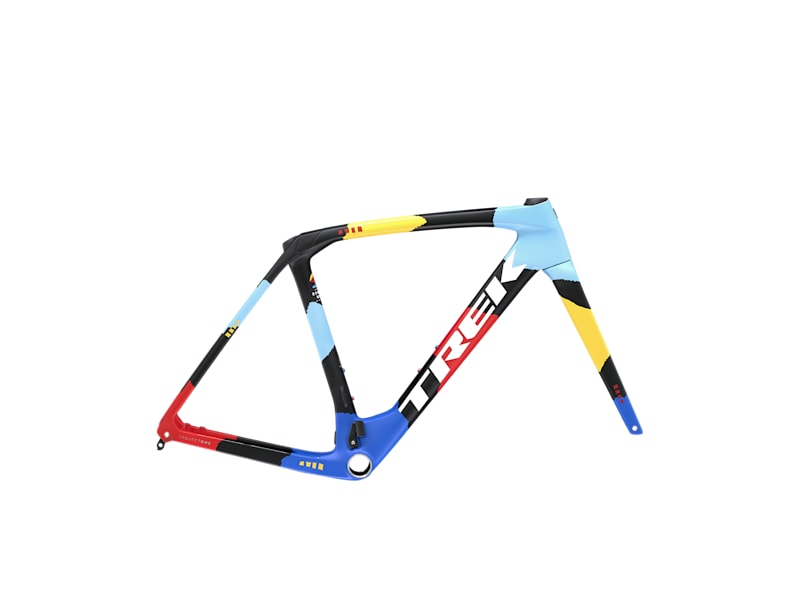

2026 Domane RSL Gen 4 Road Frameset
Overview
Overview
Technical Specifications
Technical Specifications
| Frame | 800 Series OCLV Carbon, IsoSpeed, tapered head tube, internal cable routing, 3S chain keeper, flat mount disc, 142x12mm thru axle |
| Fork | Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle |
| Weight | 1057g - 56cm (frame-only, painted), 401g (fork-only, painted) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
| Max chainring size | 1x: 54T, 2x: 54/40 |
| Skewer front | Bontrager Switch thru axle |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Max tire size | 35mm |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size number | 52cm | 54cm | 56cm | 58cm | 60cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube | 48.3 | 50.1 | 52.5 | 55.3 | 57.3 |
| B — Seat tube angle (degrees) | 74.2° | 73.7° | 73.3° | 73.0° | 72.8° |
| C — Head tube length | 9.5 | 10.4 | 12.9 | 14.8 | 17.1 |
| D — Head angle (degrees) | 72.6° | 72.6° | 72.8° | 72.8° | 72.8° |
| E — Effective top tube | 53.4 | 54.4 | 56.0 | 57.3 | 58.5 |
| G — Bottom bracket drop | 8.0 | 8.0 | 7.8 | 7.8 | 7.5 |
| H — Chainstay length | 42.0 | 42.0 | 42.0 | 42.5 | 42.5 |
| I — Offset | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 |
| J — Trail | 5.2 | 5.2 | 5.1 | 5.1 | 5.1 |
| K — Wheelbase | 99.3 | 99.8 | 101.0 | 102.5 | 103.6 |
| L — Standover | 72.7 | 74.0 | 76.4 | 78.7 | 80.7 |
| M — Frame reach | 38.8 | 39.0 | 39.5 | 40.0 | 40.4 |
| N — Frame stack | 51.8 | 52.7 | 54.8 | 56.7 | 58.6 |
| Saddle rail height min (w/short mast) | 61.5 | 64.0 | 67.0 | 69.0 | 71.0 |
| Saddle rail height max (w/short mast) | 68.0 | 70.5 | 73.5 | 75.5 | 77.5 |
| Saddle rail height min (w/tall mast) | 64.5 | 67.0 | 70.0 | 72.0 | 74.0 |
| Saddle rail height max (w/tall mast) | 71.0 | 73.5 | 76.5 | 78.5 | 80.5 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| 52 | 5'4" - 5'6" | 163 - 168 |
| 54 | 5'6" - 5'9" | 168 - 174 |
| 56 | 5'9" - 5'11" | 174 - 180 |
| 58 | 5'11" - 6'1" | 180 - 185 |
| 60 | 6'1" - 6'3" | 185 - 190 |
Sizing to be used as a reference only. Chat with us if you have any questions.
