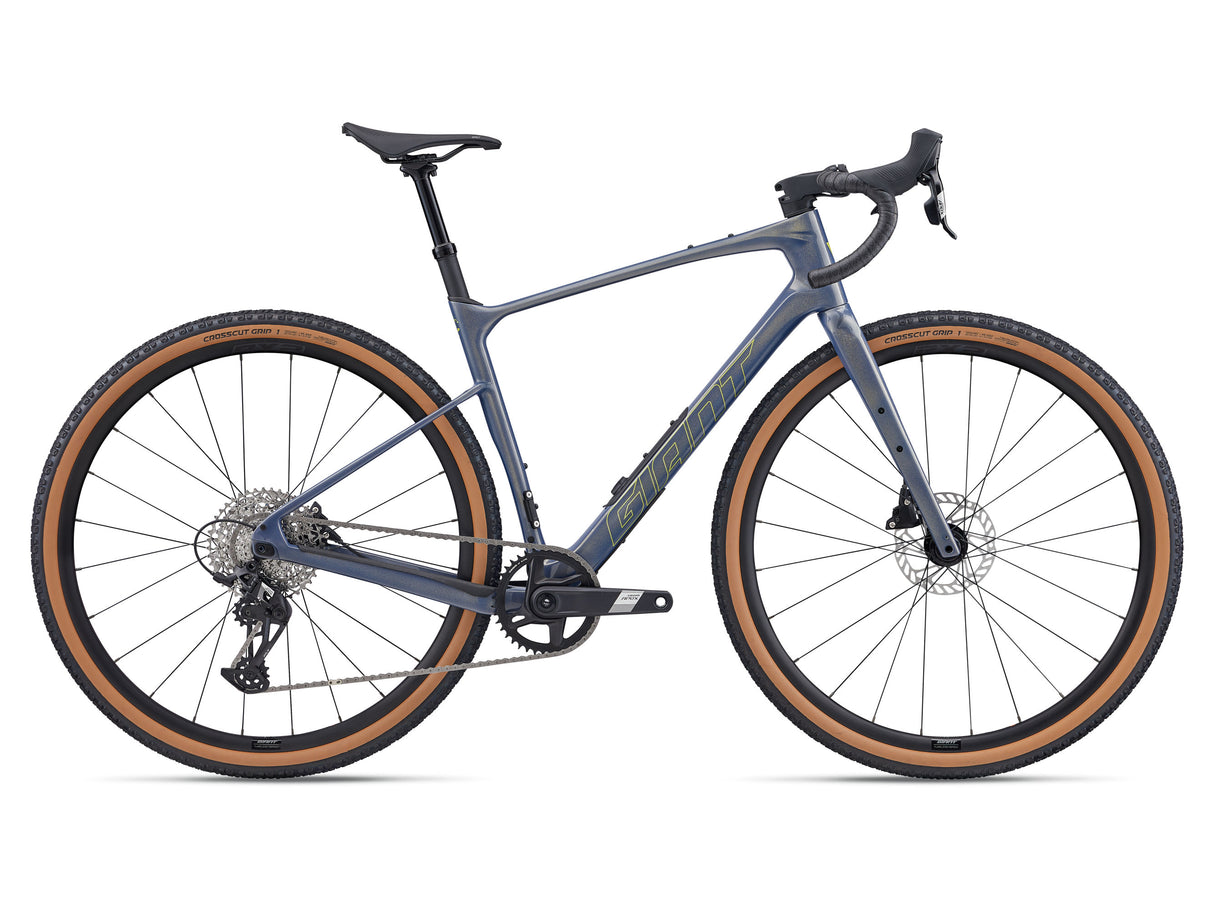

2026 Revolt Advanced 1 Gravel Road Bike
-

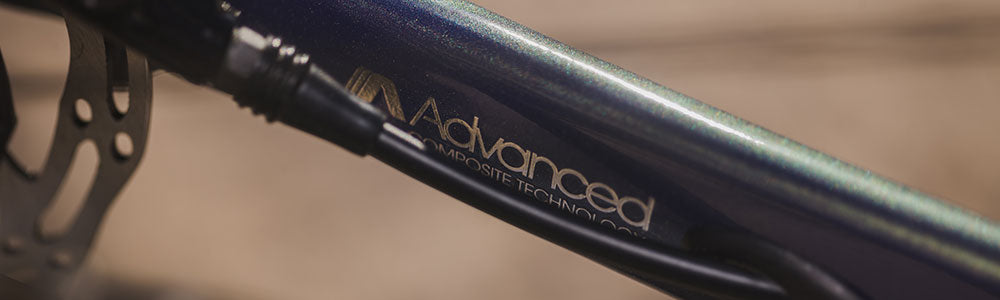

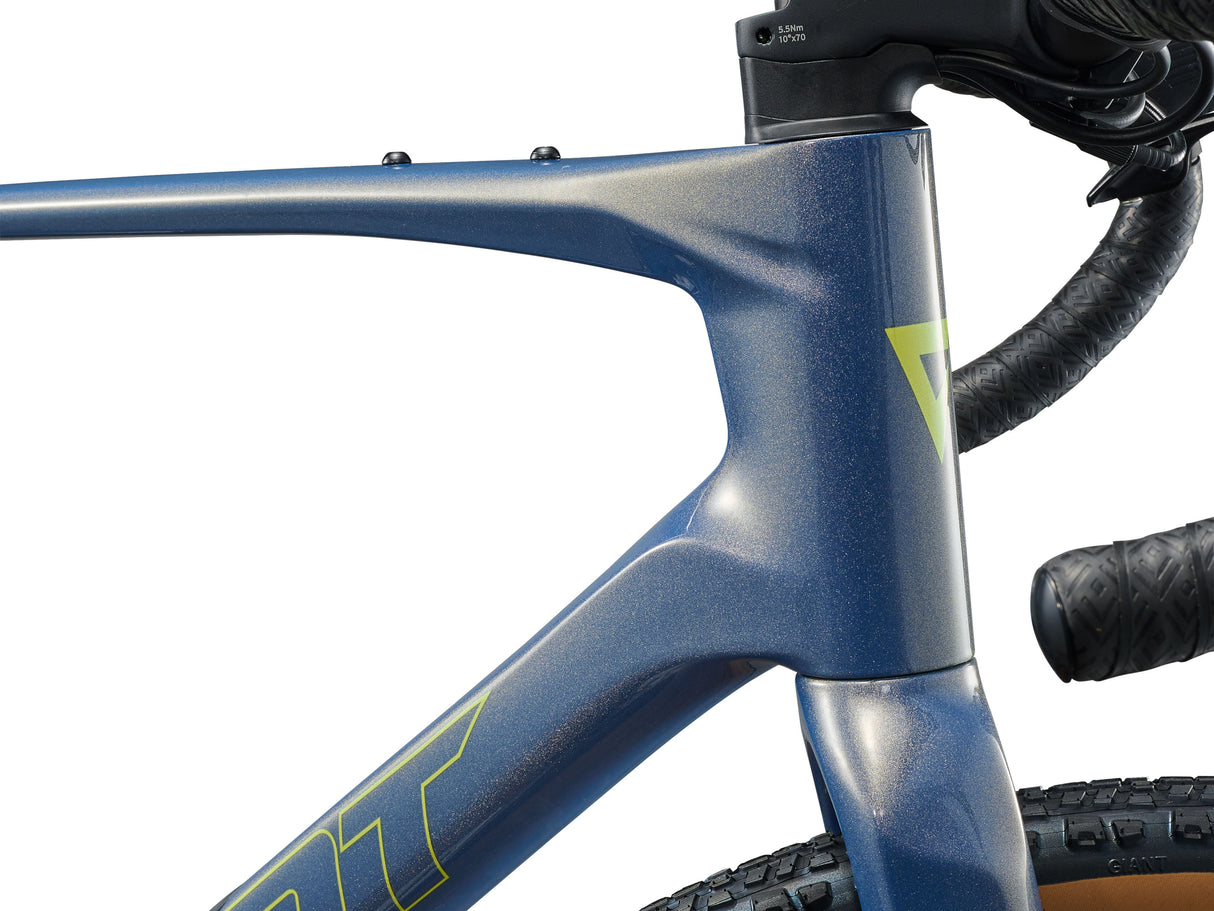

Advanced Composite Technology
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
-

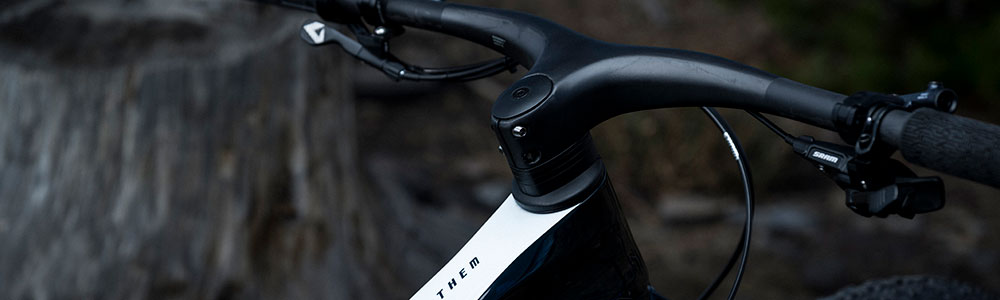

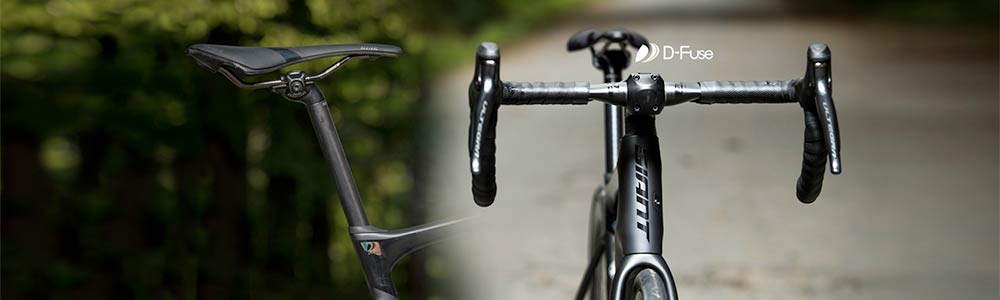

D-Fuse Technology
The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
-
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
-

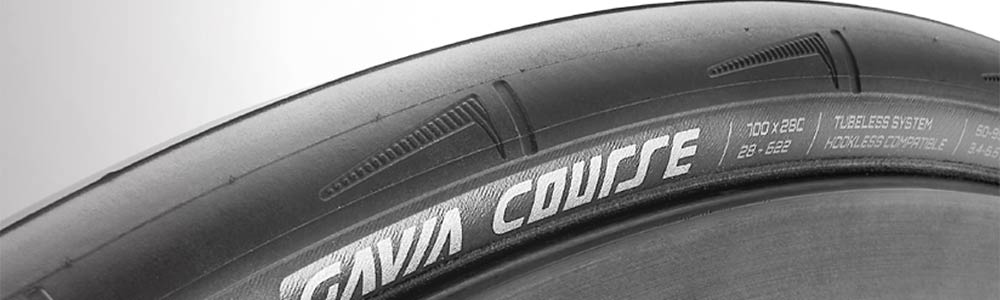

Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Overview
Overview
Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.
Key Performance Factors
- Fast and light: Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.
- Tuned compliance: Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
- Adaptable to the terrain: A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
Technical Specifications
Technical Specifications
| Sizes | XS, S, M, M/L, L, XL |
| Colors | Midnight Moon |
| Frame | Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage |
| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Handlebar | Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
| Grips | Stratus Lite 3.0 |
| Stem | Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Seatpost | Post Moderne, dropper, 30.9mm, 30mm suspension XS:295mm, S:345mm, M:345mm, M/L:345mm, L:395mm, XL:395mm |
| Saddle | Giant Grit |
| Shifters | SRAM Apex 1, 1x12 |
| Front derailleur | N/A |
| Rear derailleur | SRAM Apex XPLR |
| Brakes | SRAM Apex hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
| Brake levers | SRAM Apex 1, left lever dropper switch |
| Cassette | SRAM PG-1231, 12-speed, 11x44 |
| Chain | SRAM Apex D1 |
| Crankset | SRAM Apex 1 Wide DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom bracket | SRAM DUB, press fit |
| Rims | Giant P-X2 , alloy |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | Sapim |
| Tires | Crosscut Grip 45c |
| Extras | Giant 1x chain guide, tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, in-frame storage bag |
| Max tire clearance | 53mm |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in mm unless otherwise noted.
| XS | S | M | ML | L | XL | |
| Setting (Low/High) | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG |
| ASeat Tube Length (mm) | 430 | 450 | 470 | 490 | 510 | 530 |
| BSeat Tube Angle (degrees) | 74.0° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| CTop Tube Length (mm) | 540 | 550 | 560 | 575 | 585 | 600 |
| DHead Tube Length (mm) | 125 | 135 | 150 | 165 | 180 | 195 |
| EHead Tube Angle (degrees) | 70.0° | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
| FFork Rake (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| GTrail (mm) | 78 | 82 | 72 | 75 | 68 | 72 | 65 | 68 | 65 | 68 | 65 | 68 |
| HWheelbase (mm) | 1024 | 1034 | 1020 | 1030 | 1026 | 1036 | 1031 | 1041 | 1041 | 1051 | 1056 | 1066 |
| IChain Stay Length (mm) | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 |
| JBottom Bracket Drop (mm) | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 |
| KStack (mm) | 556 | 570 | 586 | 602 | 616 | 630 |
| LReach (mm) | 381 | 381 | 387 | 391 | 397 | 407 |
| MStand Over Height (mm) | 724 | 731 | 740 | 747 | 757 | 764 | 774 | 780 | 791 | 797 | 807 | 814 |
| NHandlebar Width (mm) | 420 | 420 | 440 | 440 | 460 | 460 |
| OStem Length (mm) | 50 | 60 | 70 | 80 | 80 | 90 |
| PCrank Length (mm) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size. Available sizes may vary from country to country.
| size | inches | cm |
|---|---|---|
| XS | 5’1” - 5’5” | 155 - 166 |
| S | 5’3” - 5’7” | 159 - 171 |
| M | 5’7” - 5’11” | 169 - 181 |
| ML | 5’9” - 6’1” | 174 - 186 |
| L | 5’10” - 6’3” | 179 - 191 |
| XL | 6’2” - 6’7” | 189 - 200 |
Sizing to be used as a reference only. Chat with us if you have any questions.
