2026 SuperSix EVO 5 Road Bike
Every bike is fully assembled, tuned, and test-ridden before pickup at your chosen DFW Bike Mart location.
Expected to ship within 14 days.
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart - ready to ride right at your doorstep within 10 miles of any DFW location.
Complete your Ride
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
2026 SuperSix EVO 5 Road Bike
Features
-
Proportional Response
Size-specific engineering gives every SuperSix EVO its edge. With custom carbon layups and geometry for each frame size, you get consistent performance and handling — perfectly matched to you.
-
Fly Delta
The unique-to-Cannondale, Delta Steerer keeps your cockpit tidy and cables routed internally. While the reduced frontal area brings aero gains to the party, as well as sleeker good looks.
-
Tire Clearance
With a measured max tire width of 32mm – with at least 4mm of extra clearance on each side – SuperSix EVO can race to the finish line in comfort, while taking advantage of reduced rolling resistance and enhanced speed.
Explore
-
Aerodynamic Performance
Gen 4 of SuperSix EVO proved a lightweight race bike could match aero specialists. Gen 5 goes further, reducing drag across the yaw spectrum and redefining what a race bike can achieve.
-
Tubes Fit for Purpose
Every tube is uniquely shaped based on individual structural and aerodynamic requirements.
-
Refined for Racers
Our commitment to racing performance led us to refine the frame geometry to better meet the needs of racers. Compared to Gen 4, we’ve lowered the stack by 10 mm across all sizes and replaced the former size 51 with new 50 and 52 options for tighter steps between smaller frame sizes.
-
Like What You See?
Check out more of our SuperSix EVO’s here:
Overview
Overview
Faster Everywhere
No matter who you are or how you ride, SuperSix EVO inspires the most combative riders to go faster - everywhere.
Model Description

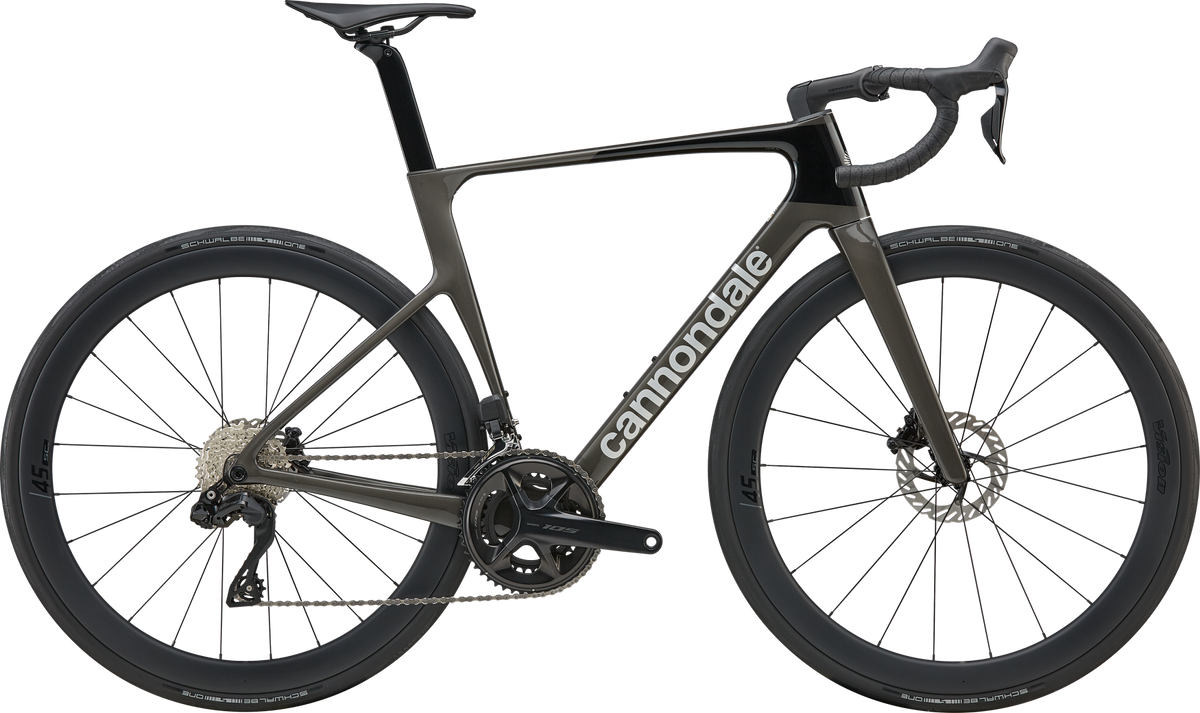

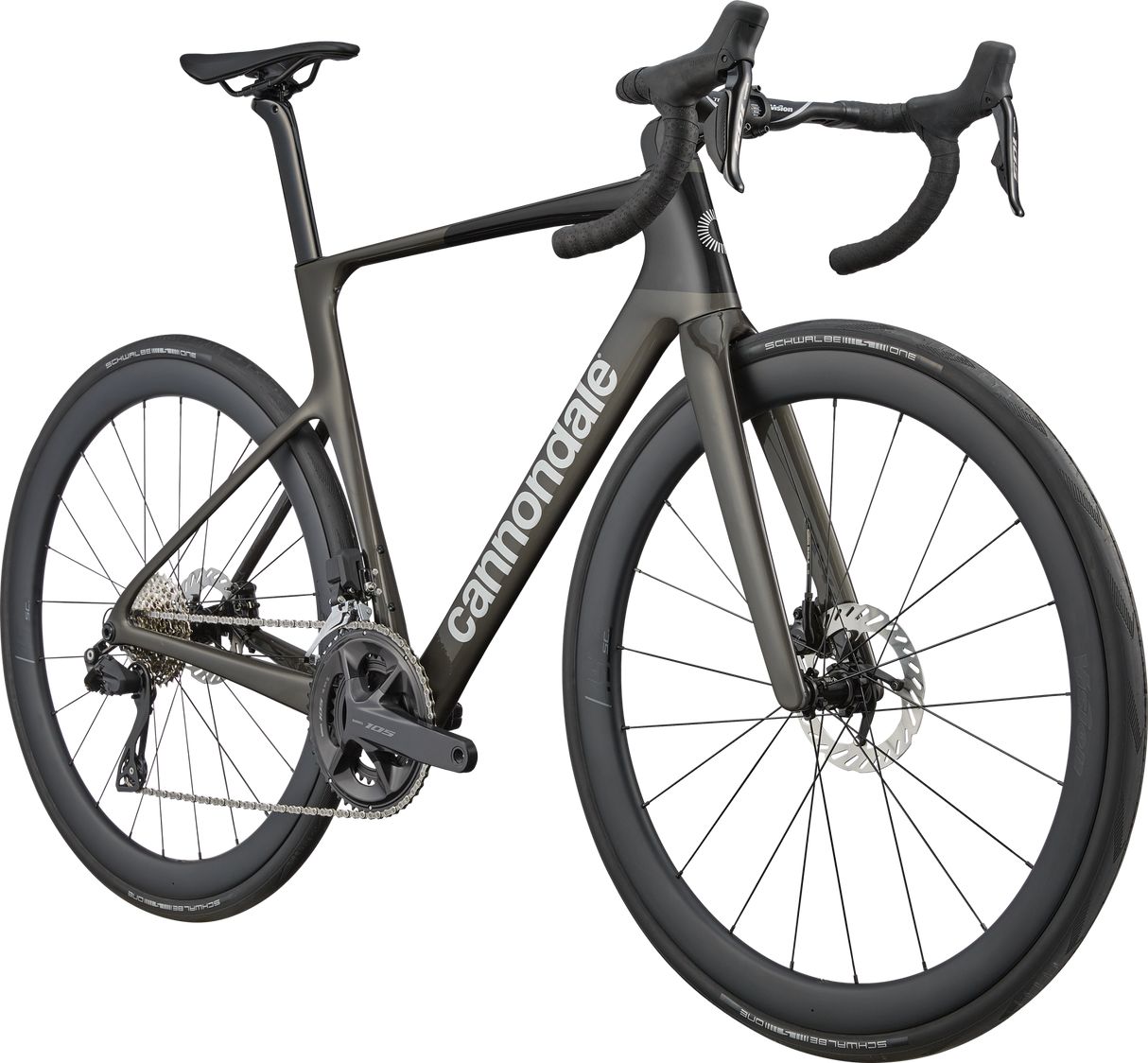

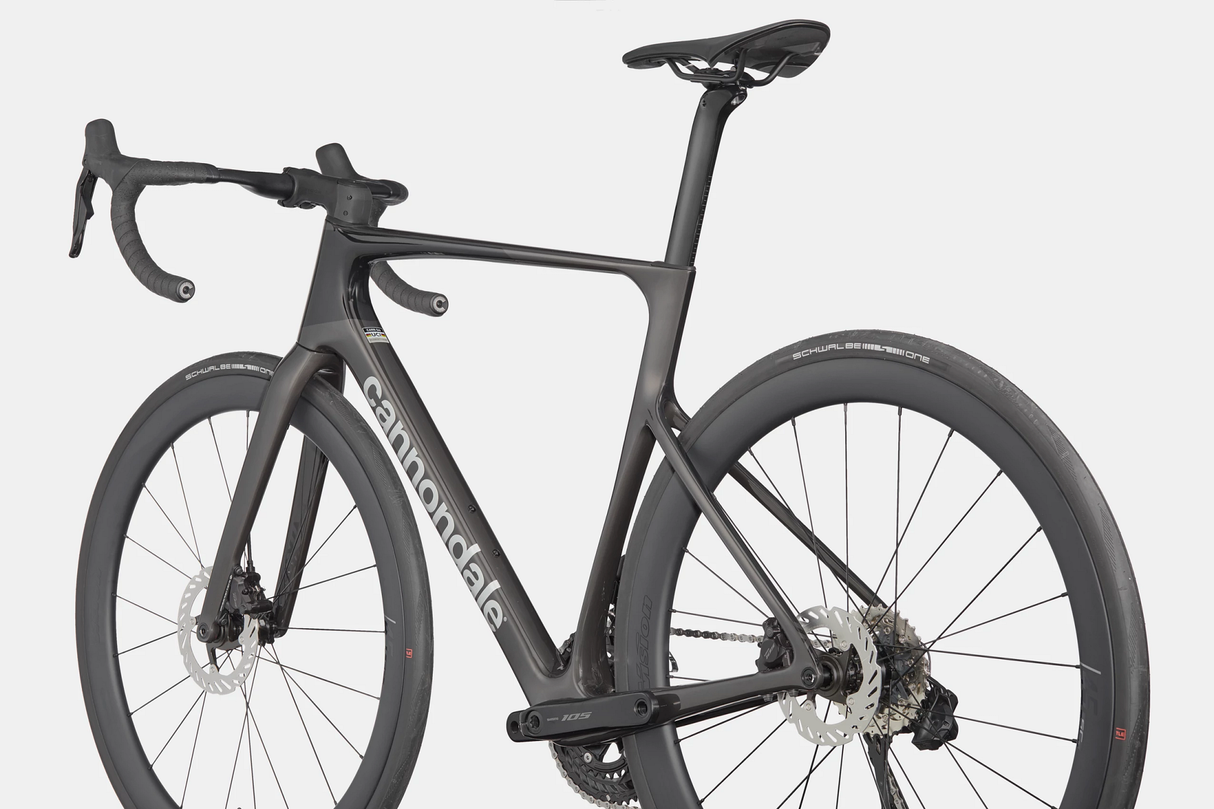

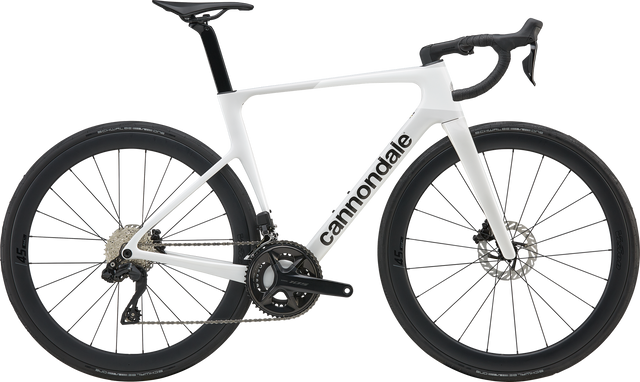

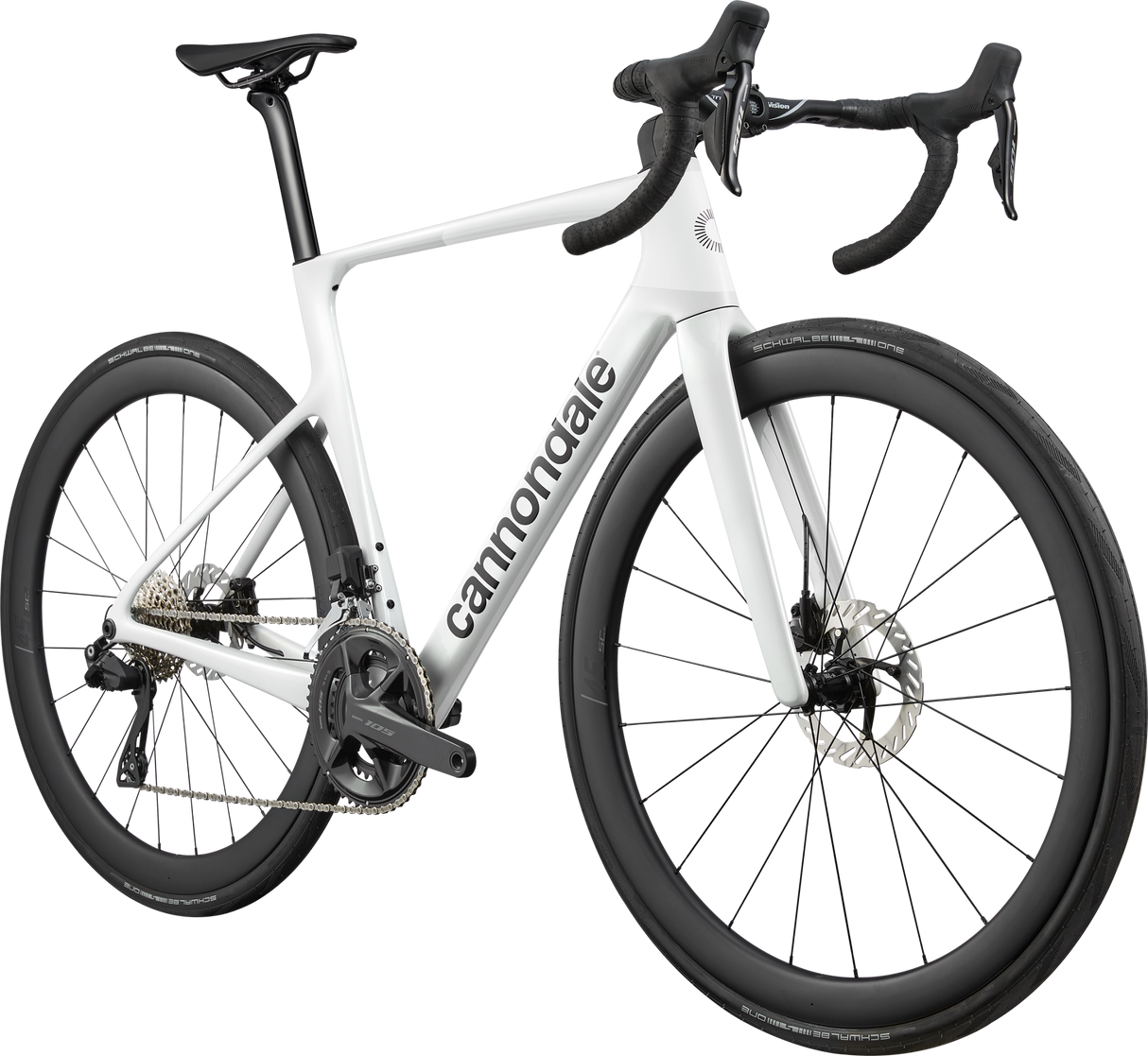

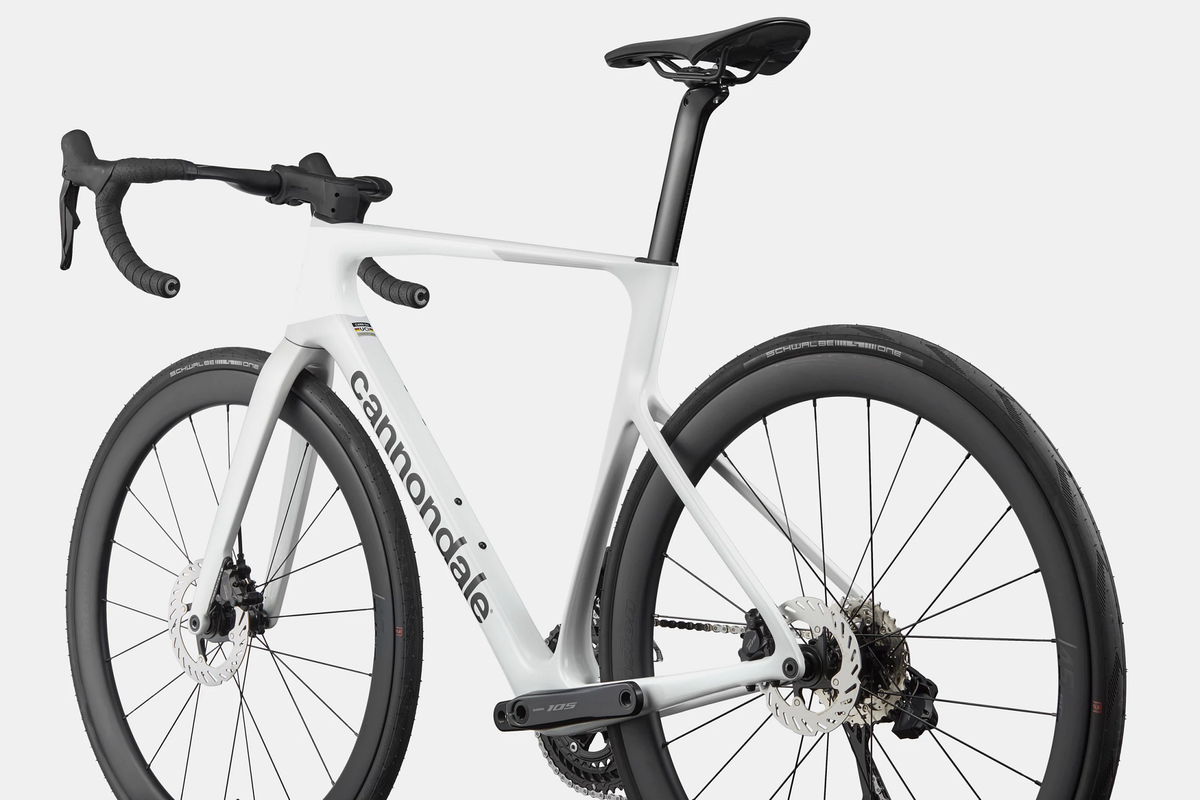

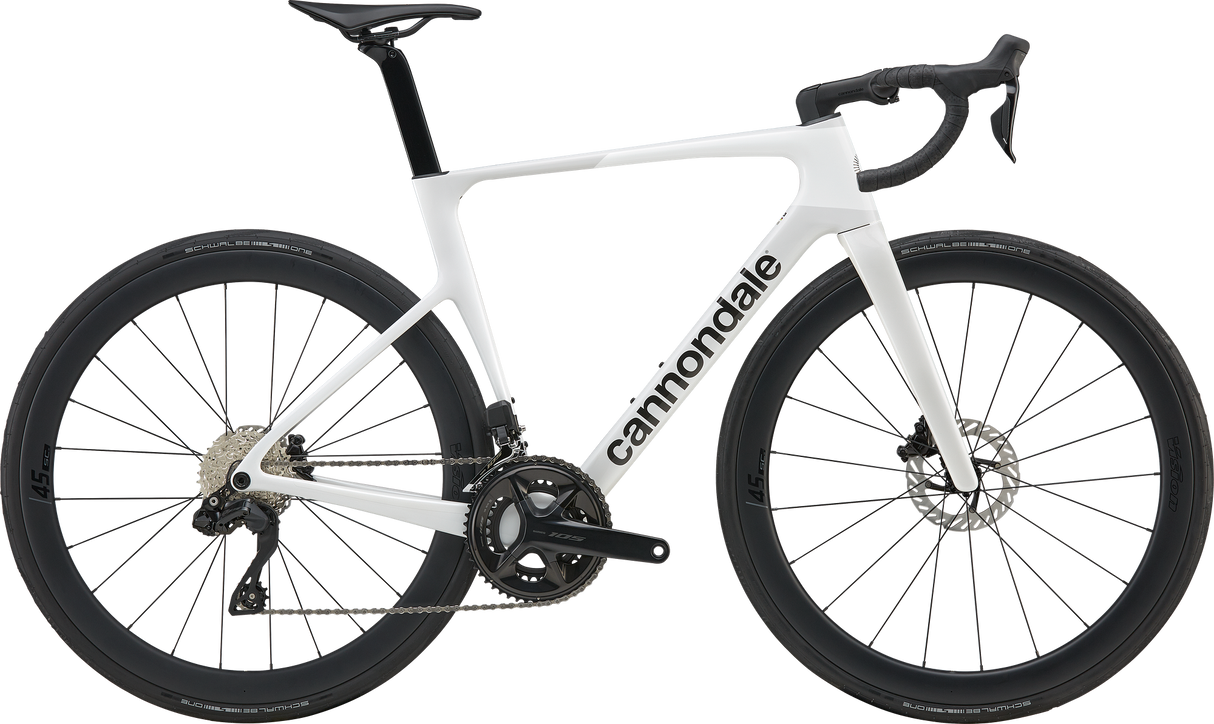

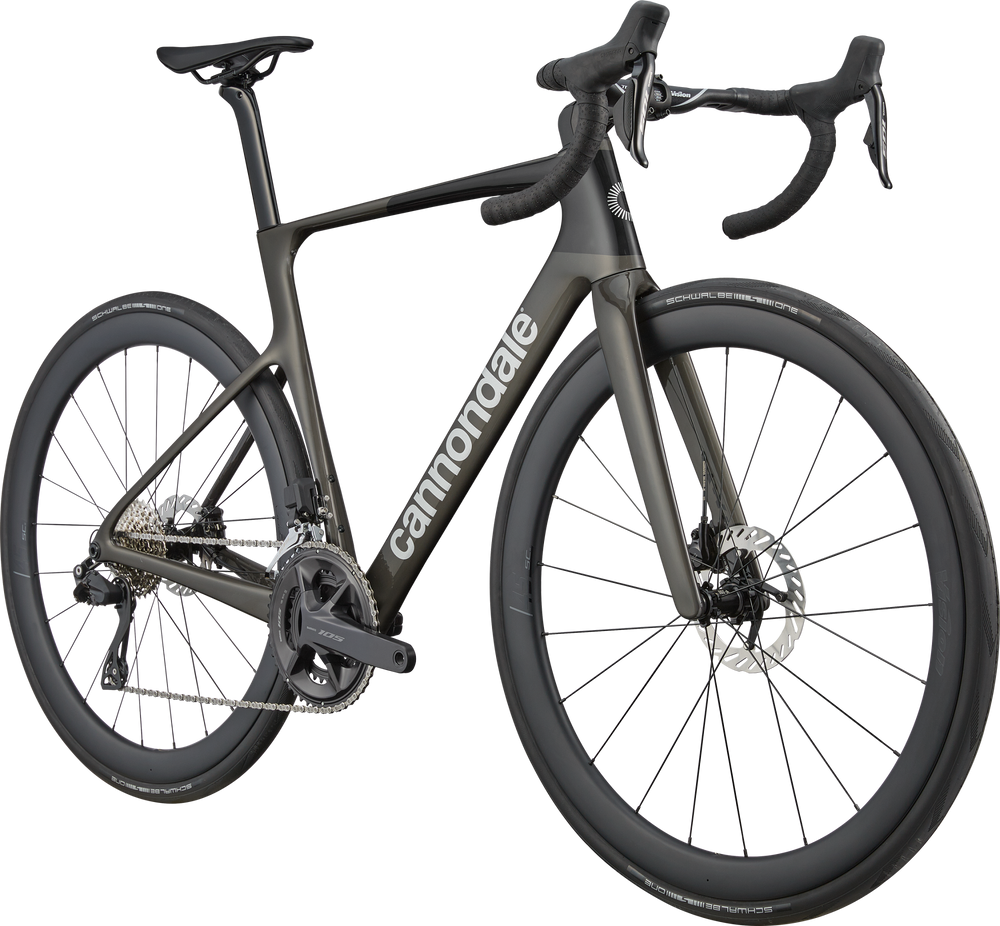

Electronic precision meets proven race geometry. SuperSix EVO 5 combines the lightweight Gen 5 carbon frame with Shimano’s 105 Di2 electronic shifting and Vision’s racy SC45 carbon wheels. Vision Trimax Aero handlebars with our Conceal stem and Delta steerer keep the front end clean. A composed, stunning, and brilliantly fast platform for riders stepping up their game.
What it's for
Breakaways, KOMs, Podiums, and PRs
Highlights
- Lightweight, low-drag Gen 5 SuperSix EVO carbon frameset – the ideal blend of speed, handling and comfort
- Vision SC45 carbon wheelset - 45mm deep, exceptional performance value
- Shimano 105 Di2 12-speed - Shimano's workhorse high-performance electronic shifting road group

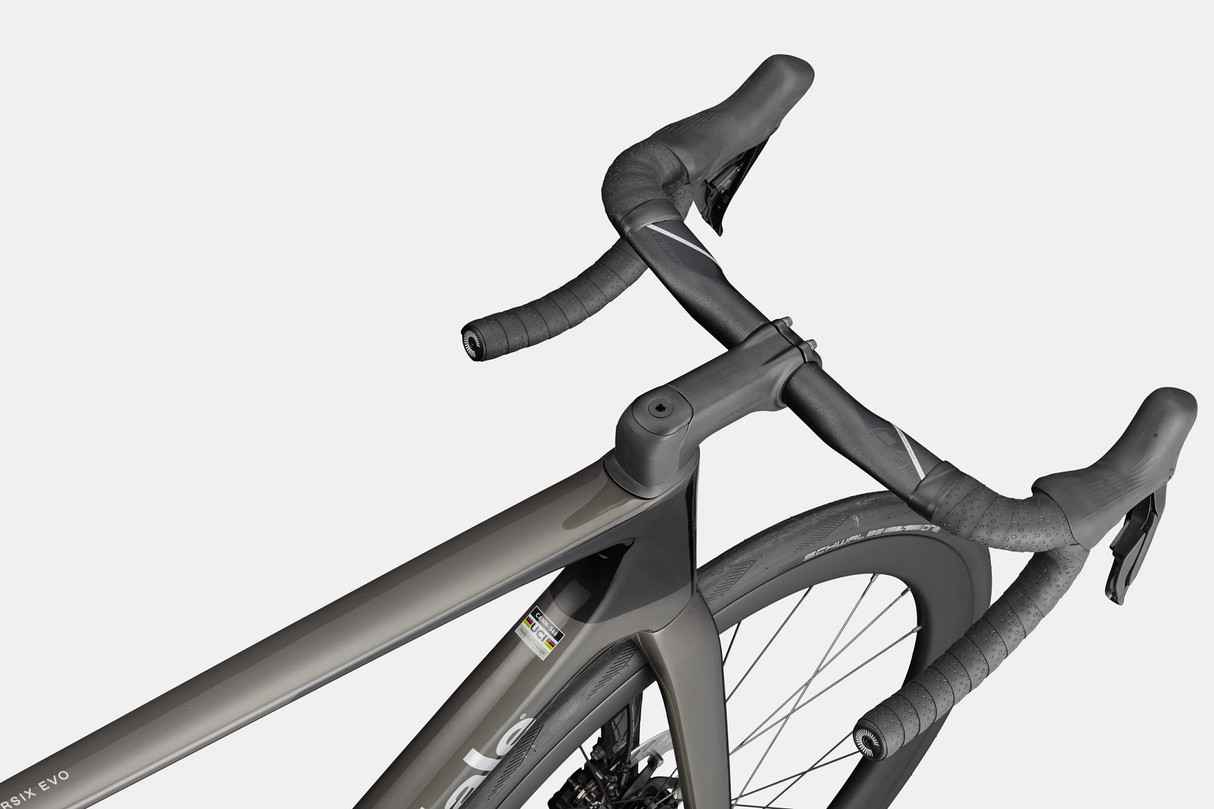

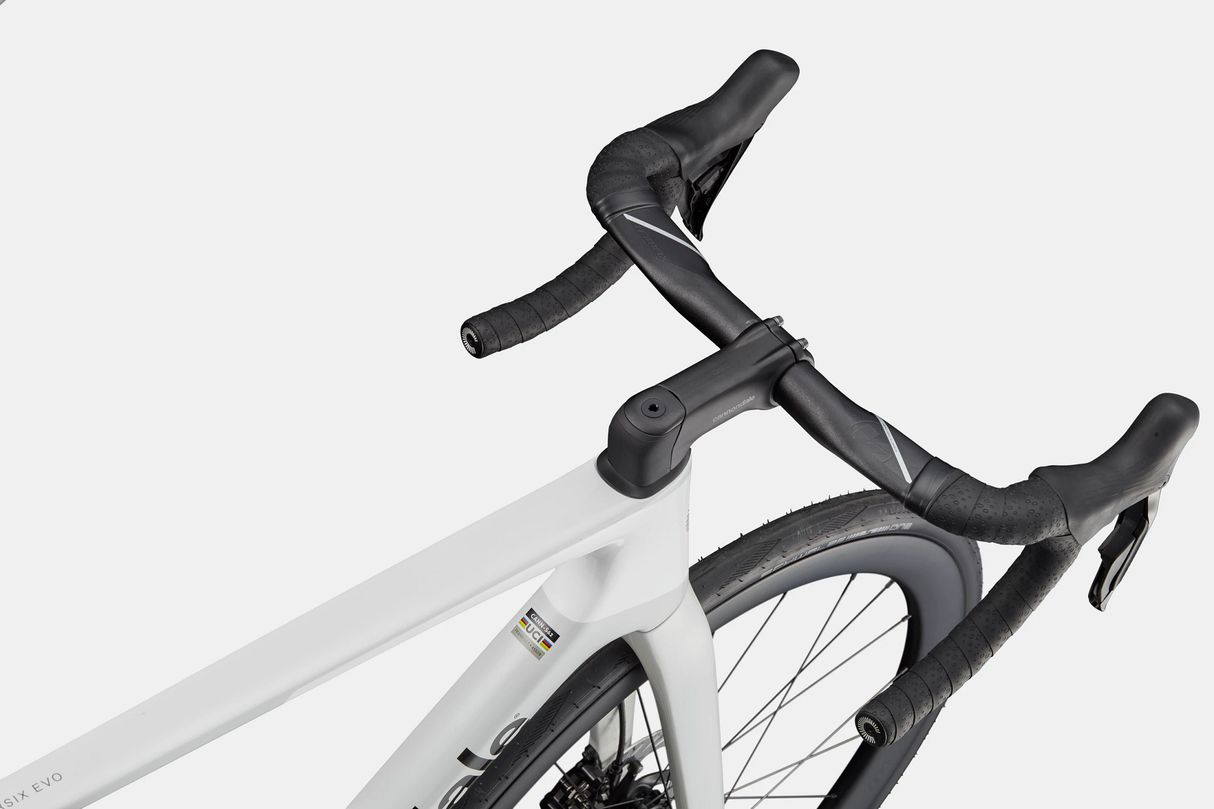

- Vision Trimax Aero handlebars and Cannondale C1 Conceal stem - ergonomic, low-drag cockpit with hidden cables
- Fizik Vento Antares R7 saddle - ergonomic comfort with pressure relieving cutout
Technical Specifications
Technical Specifications
| Platform | SuperSix EVO |
| Model name | SuperSix EVO 5 |
| Model code | C1109GU |
| Frame | SuperSix EVO Carbon, Gen 5, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, UDH |
| Fork | SuperSix EVO Carbon, Gen 5, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm) |
| Headset | Integrated, 1-1/8" - 1-1/4" |

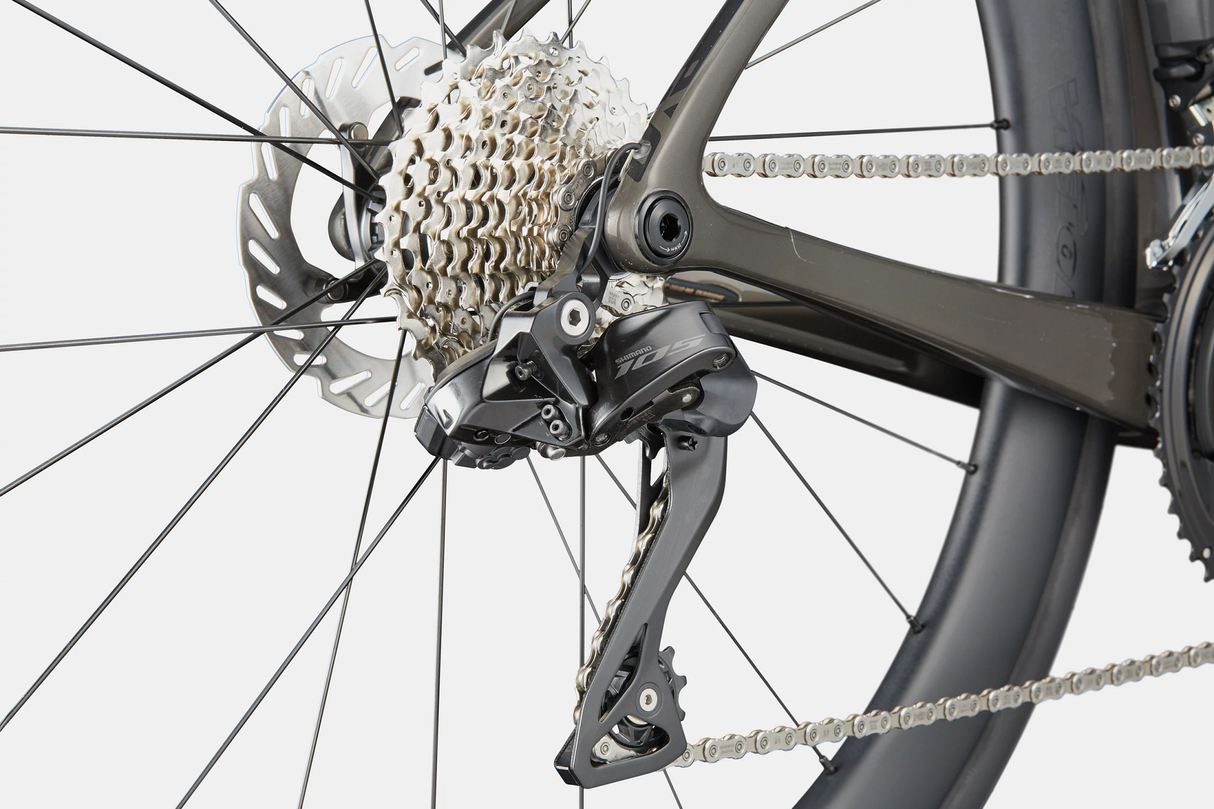

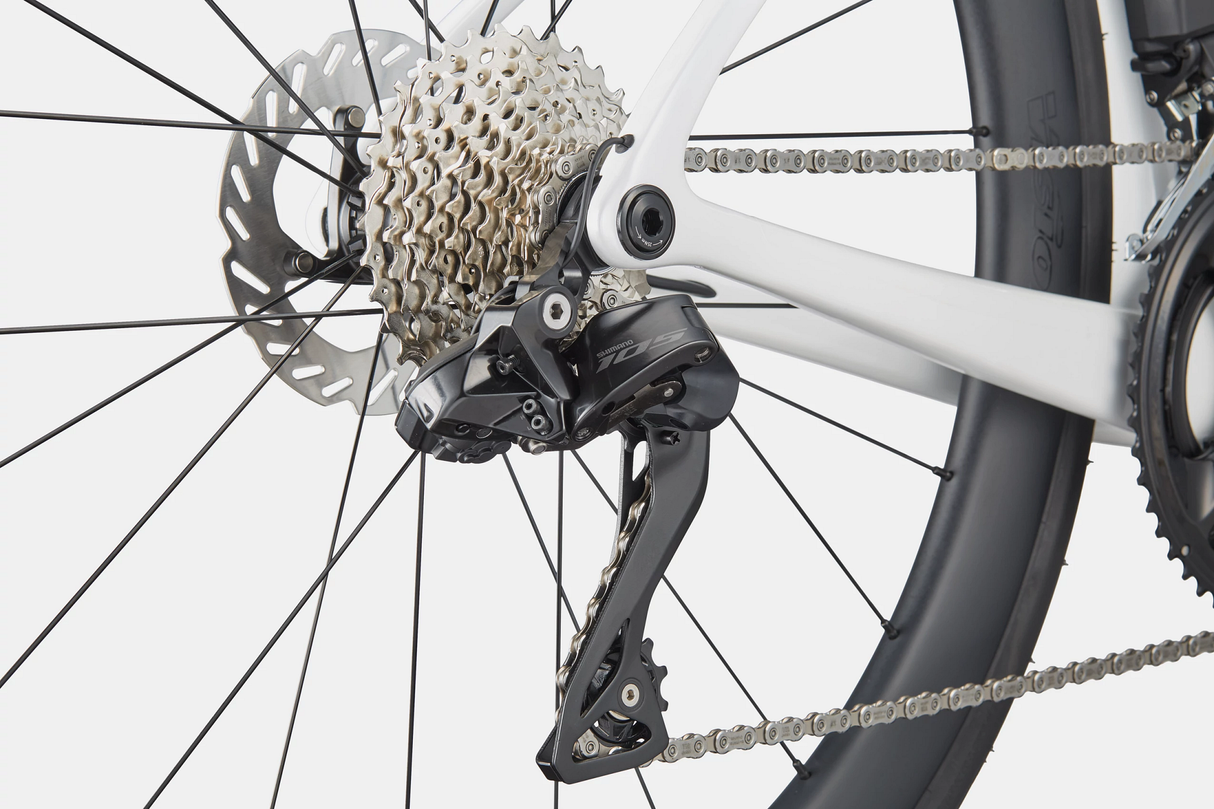

| Rear derailleur | Shimano 105 Di2 R7150, 12-speed |
| Front derailleur | Shimano 105 Di2 R7170 |

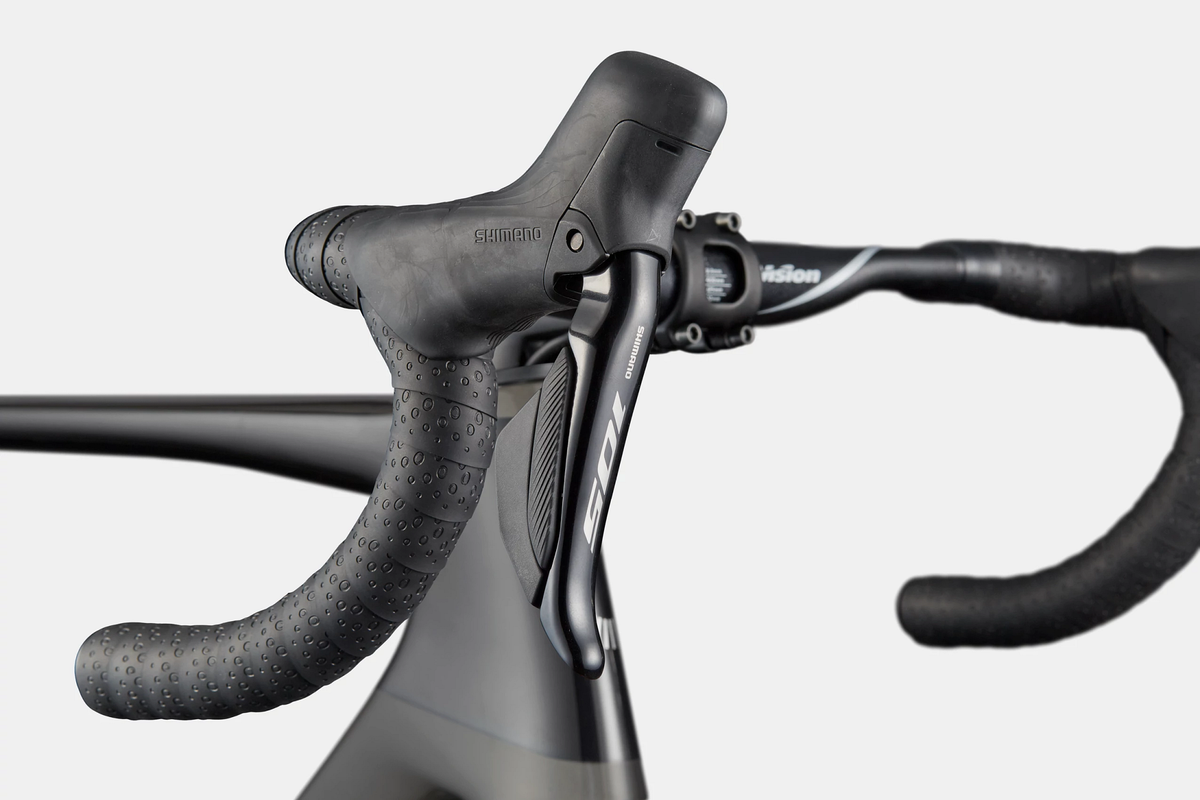

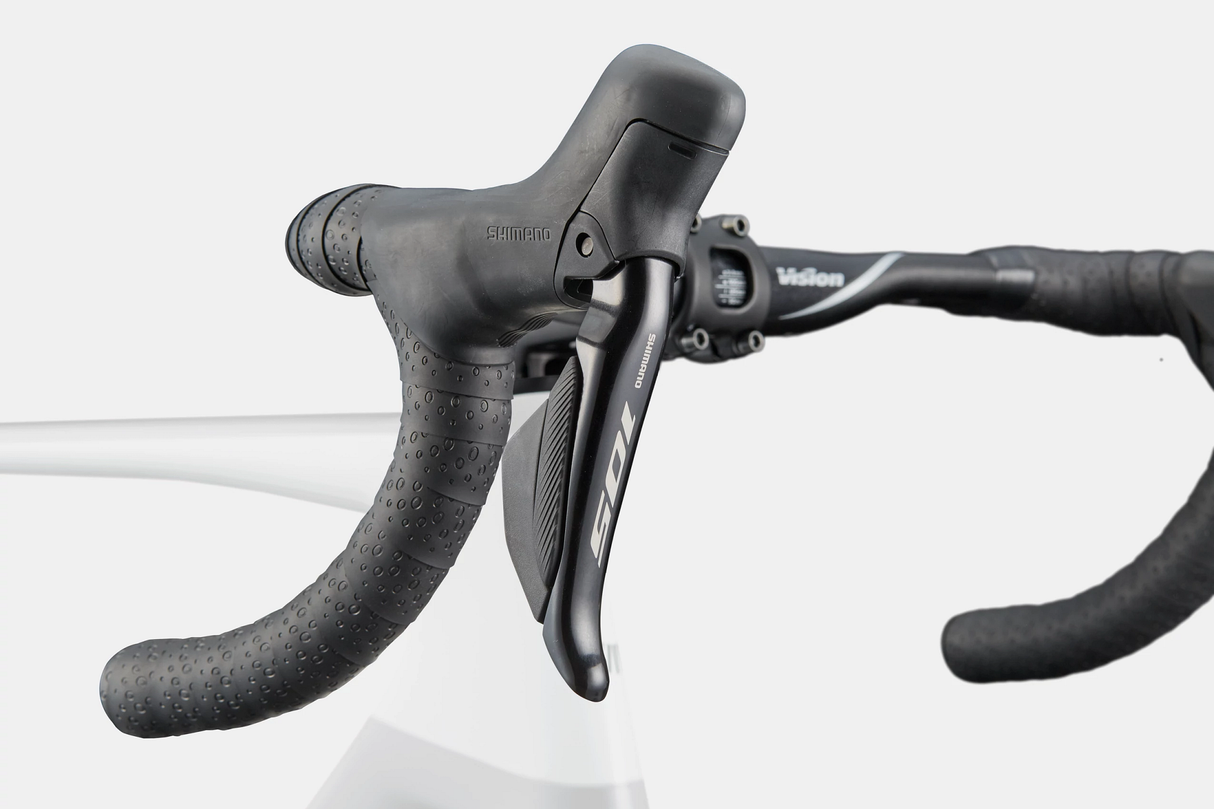

| Shifters | Shimano 105 Di2 R7170, wireless, 2x12-speed |
| Chain | Shimano 105, 12-speed |

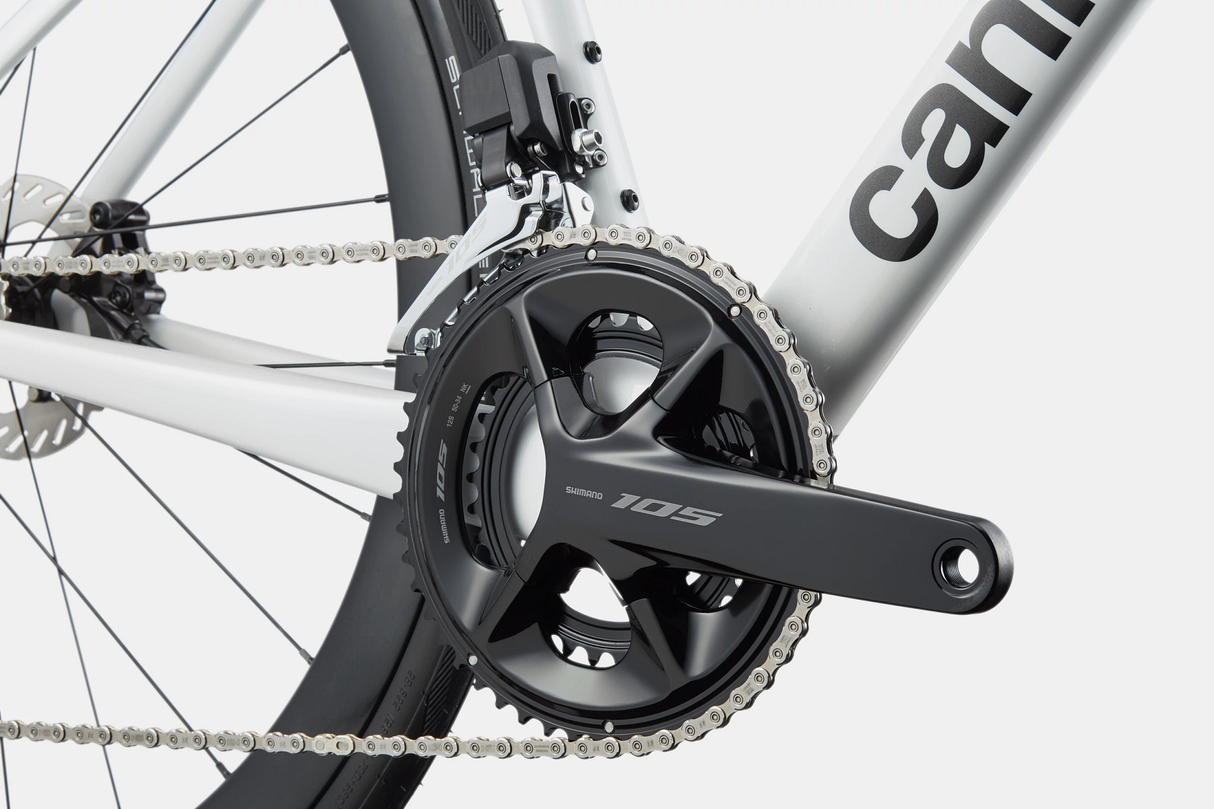

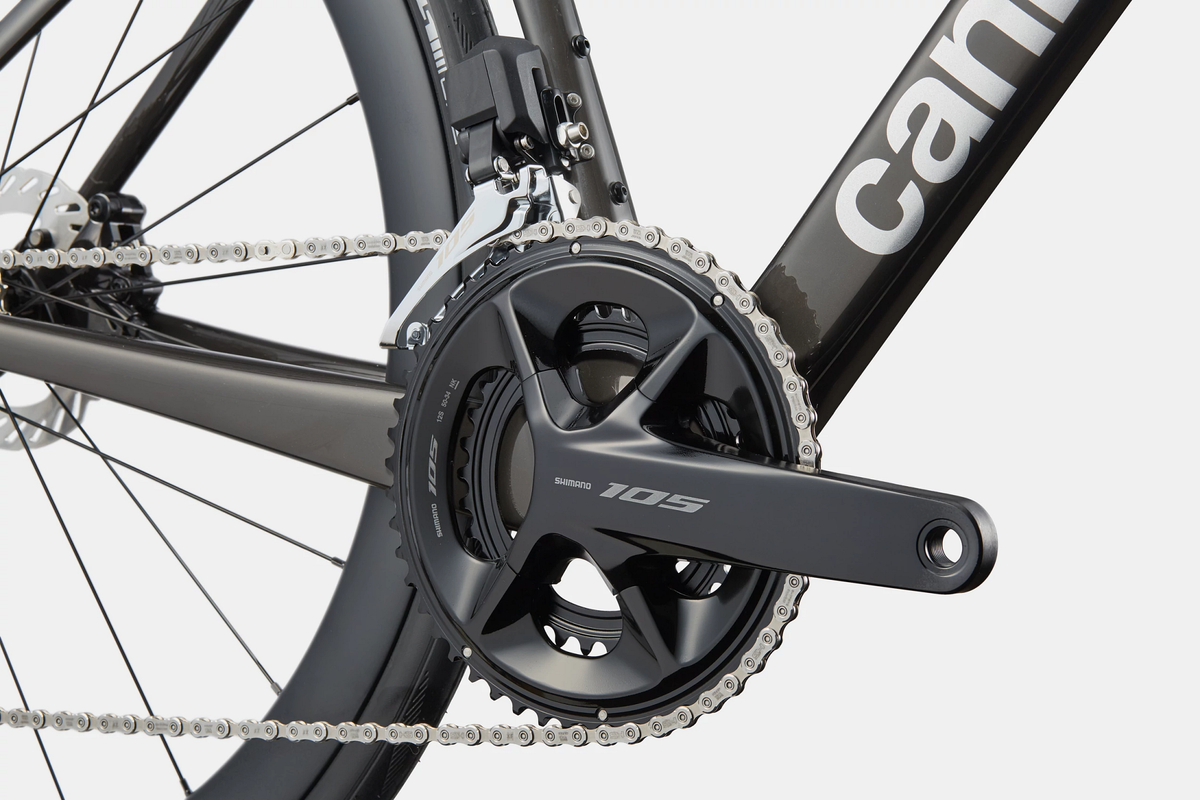

| Crank | Shimano 105 7100, 50/34: 165mm (44-50cm), 170mm (52-56cm), 172.5 (58-61cm) |
| Rear cogs | Shimano 105 R7100, 11-34, 12-speed |
| Bottom bracket | Shimano BB-RS500, BSA 68 |
| Brakes | Shimano 105 R7170 hydraulic disc, 160/160mm CL700 rotors |
| Brake levers | Shimano 105 Di2 R7170 hydraulic disc |
| Rims | Vision SC45 I23, carbon, 23mm inner width, 45mm depth |
| Spokes | 2:1 aero bladed direct pull |
| Tire size | 28 |
| Wheel size | 700c |
| Hubs | Vision, centerlock, (F) 12x100mm, (R) Vision, 12x142mm |
| Tires | Schwalbe One TLR, 700x28c, tubeless ready |
| Handlebar | Vision Trimax Aero: 400mm (44-56), 420mm (58-61) |
| Stem | Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44cm), 90mm (48-52cm), 100mm (54-56cm), 110mm (58-61cm) |
| Grips | Cannondale Bar Tape, 3.5mm |
| Saddle | Fizik Vento Antares R7, 140mm |
| Seatpost | Cannondale C1 Aero 40 Carbon V2, 365mm, 0mm offset (44-54cm), 15mm offset (56-61cm) |
| Extra 1 | Shimano EC300 charging connector, Conceal Stem accessory/computer mount (Garmin/Wahoo) |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
Length measurements converted to mm from Cannondale inch values. Angles in degrees.
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| 44 | 4'9" - 5'1" | 145 - 155 |
| 48 | 5'0" - 5'4" | 152 - 163 |
| 50 | 5'2" - 5'6" | 157 - 168 |
| 52 | 5'5" - 5'9" | 165 - 175 |
| 54 | 5'7" - 5'11" | 170 - 180 |
| 56 | 5'10" - 6'1" | 178 - 185 |
| 58 | 6'0" - 6'4" | 183 - 193 |
| 61 | 6'3" - 6'7" | 191 - 201 |
Sizing to be used as a reference only. Chat with us if you have any questions.
