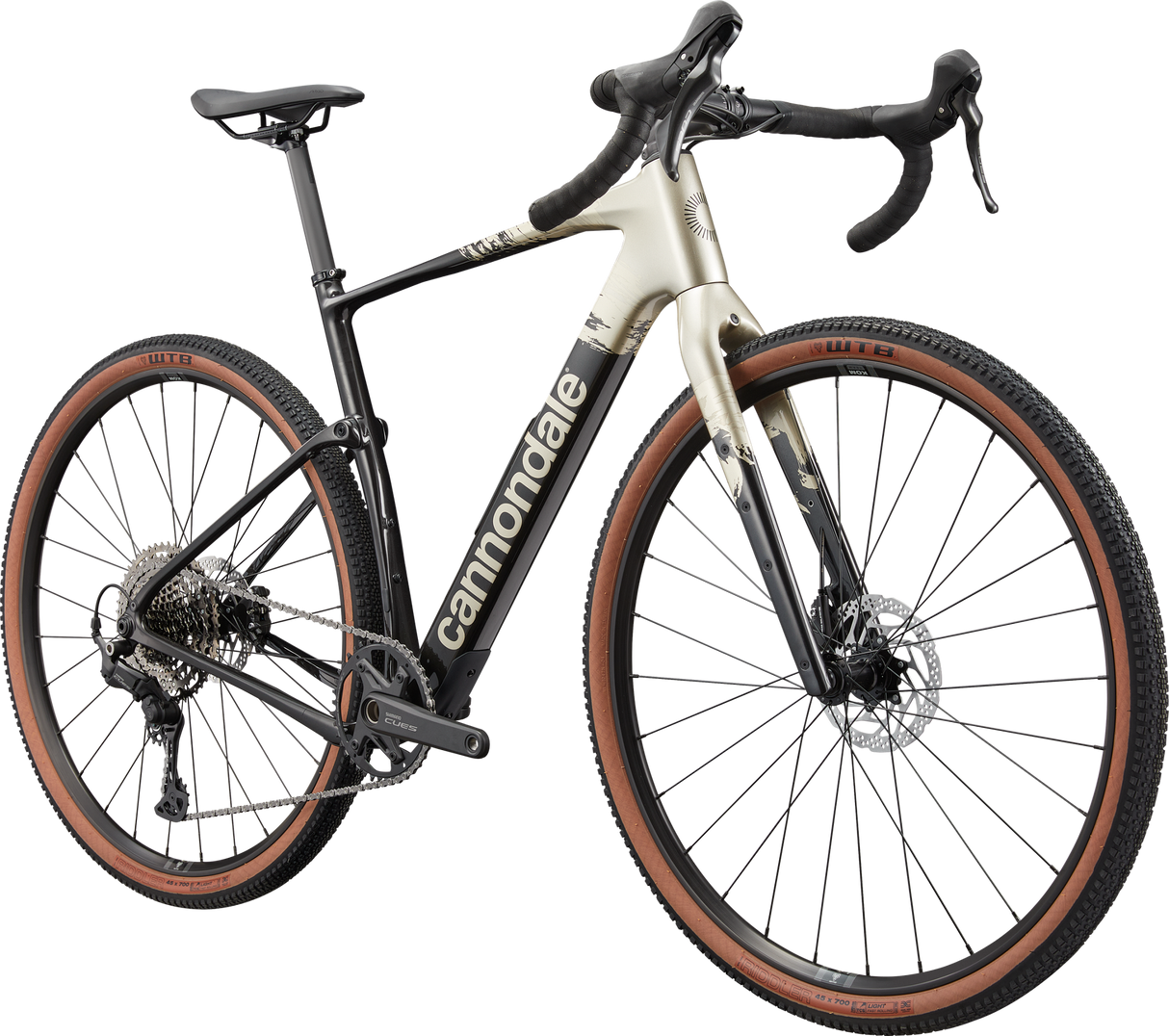

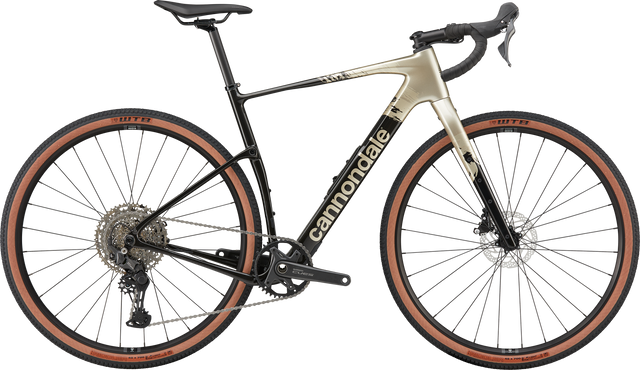

2026 Topstone Carbon 4 CUES 1x Gravel Road Bike
Features
-

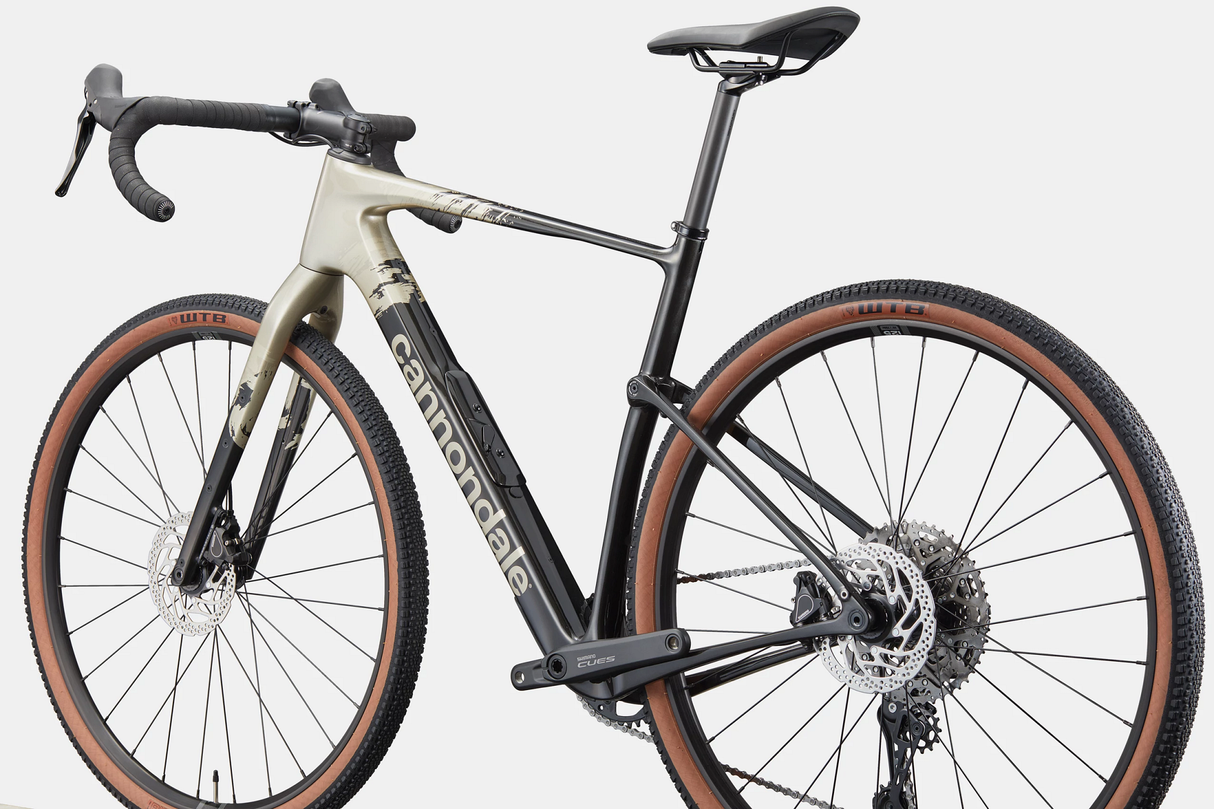

KingPin
Our innovative gravel rear suspension is light, simple, and effective. A thru-axle pivot in the seat tube allows the rear triangle and seatpost of the bike to flex vertically, delivering up to 30mm of bump-smoothing travel.
-

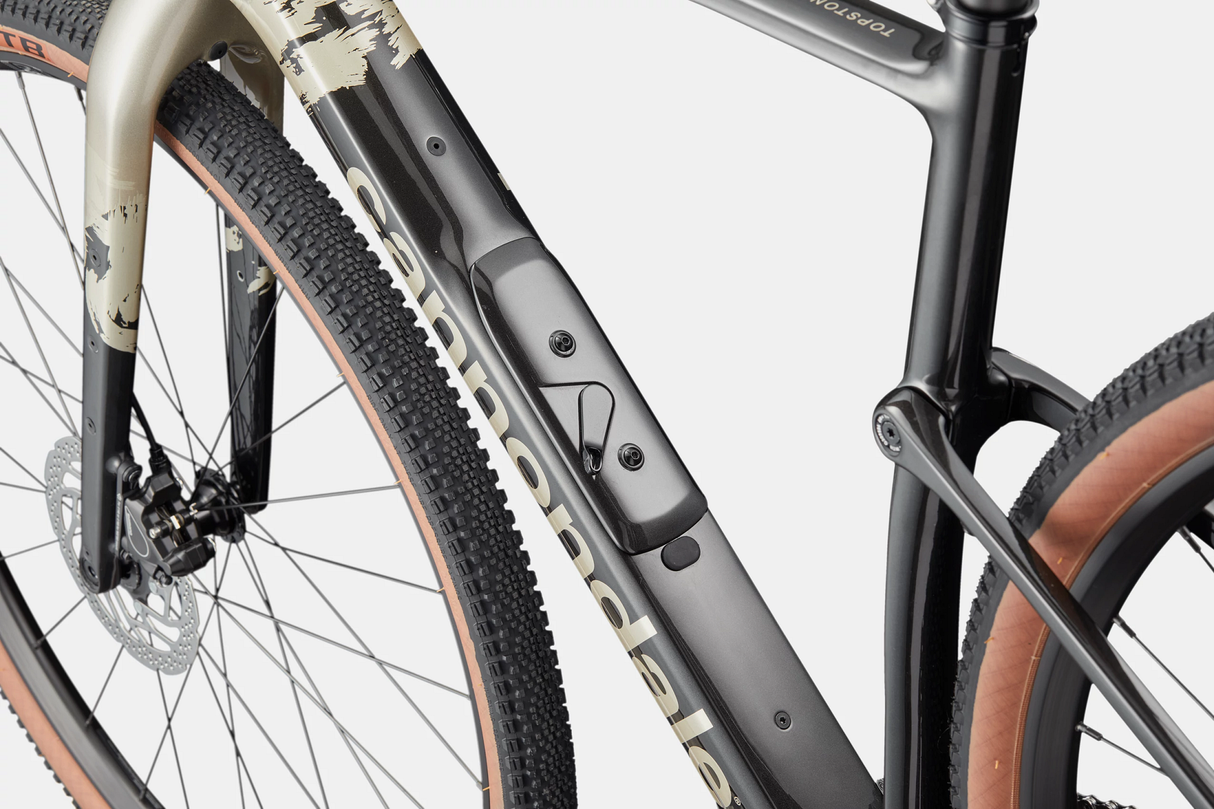

StashPort + StashBag
StashPort is our take on a downtube storage system, accessed beneath the water bottle cage. Every bike includes StashBag, a specially designed bag for your essentials.
-
Tire Clearance
Lots of room for modern gravel rubber. The frame clears tires up to 52mm wide with a single ring setup, or 45mm for a 2x, while the fork fits up to a whopping 56mm wide tire. Measured size, of course.
-
Dropper Ready
Built to accept an internally-routed 27.2mm dropper seatpost, which shouldn´t be a surprise on a bike this capable.
-
Proportional Response
Tuned for the rider, our size-specific construction creates optimal stiffness and compliance for each frame size. So, every rider benefits from the ideal ride feel and comfort of KingPin.
-
OutFront Steering Geometry
Confident stability meets nimble agility. An extra long fork offset paired with a slack head angle keeps the steering light and lively, yet delivers unreal confidence at speed and in the rough stuff.
-
Tidy does it
Internal cable routing throughout the frame, combined with Conceal Stem, delivers a tidy, integrated look.
Always Game
-
Smiles for Miles
Kingpin is our lightweight, go-for-longer rear suspension. Maintenance-free and complexity-free, it gives the Topstone frame legit rear-wheel travel without compromising stiffness for the sprint. Kingpin provides a smoother ride, more traction to push harder, and more give to take on the rough stuff. You’ll hardly know it’s there, but you’ll be very glad you’ve got it.
-
Bring It All
Our all-new StashPort storage system in the downtube is designed to be concealed yet convenient. Paired with the special StashBag, you can bring your essentials along for the ride and know that they’ll be kept safe, whatever you get up to out there. Meanwhile, multiple mounting points on the frame, mean more gear and more adventures.
-
Tuned Ride
A dialed-in ride, just for you. AKA: Proportional Response Construction. Everything from the carbon layup to the geometry on Topstone is individually tuned by frame size. So that the bike – including KingPin suspension – works in harmony to give you the best ride for you and your dimensions.
Overview
Overview
Always Game
Our take on the ultimate all-round gravel bike. Go anywhere, bring everything and then keep on going.
Model Description
Cue up some serious gravel performance. With its bump-smoothing KingPin carbon frame, Shimano CUES U6000 1x11-speed shifting, CUES hydraulic disc brakes, gear mounts and 700x45mm tires, this rig is ready for gravel-riding, bikepacking or backroad exploring. Confidence comes standard.
What it's for
Gravel riding & racing, bikepacking, singletrack exploration, getting after it beyond the pavement’s end
Highlights
- Lightweight full carbon frameset with Kingpin rear suspension, Proportional Response size-specific construction and StashPort downtube storage
- Durable, reliable, wide-range, 1x11-speed shifting from Shimano’s new CUES U6000 group
- Powerful, controllable braking from Shimano’s CUES hydraulic disc brakes
- Durable, dependable WTB ST i25 rims, with Shimano hubs and WTB Riddler 45c tubeless ready gravel tires

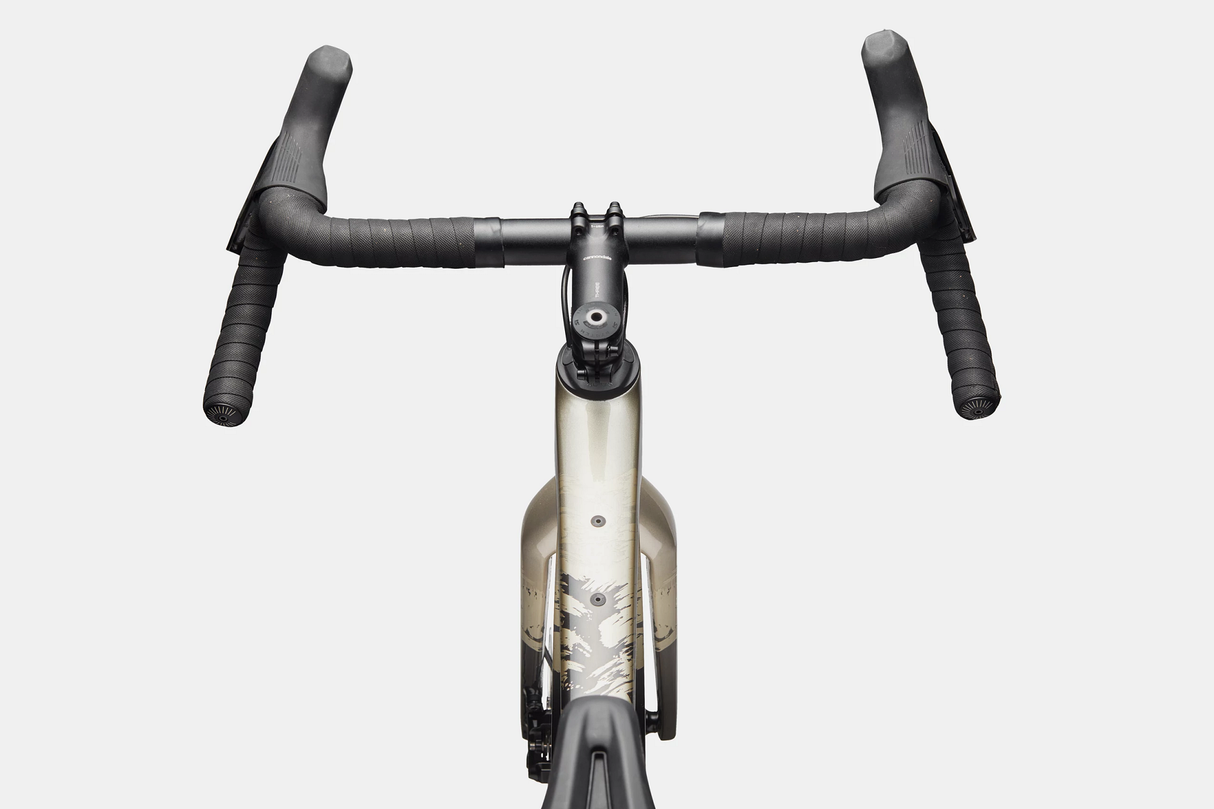

- Cannondale 3 flared handlebars offer comfortable, gravel-friendly hand positions
Technical Specifications
Technical Specifications
| Platform | Topstone Carbon |
| Model name | Topstone Carbon 4 CUES 1x |
| Model code | C1523GU |
| Frame | Topstone Carbon, Kingpin suspension system, Proportional Response construction, downtube StashPort, internal cable routing, 12x142mm thru-axle, 27.2 dropper post ready, UDH, BSA 68mm threaded BB, flat mount disc, removable fender bridge, multiple gear/bottle mounts |
| Fork | Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts |
| Headset | Acros IS52/40 ICR |

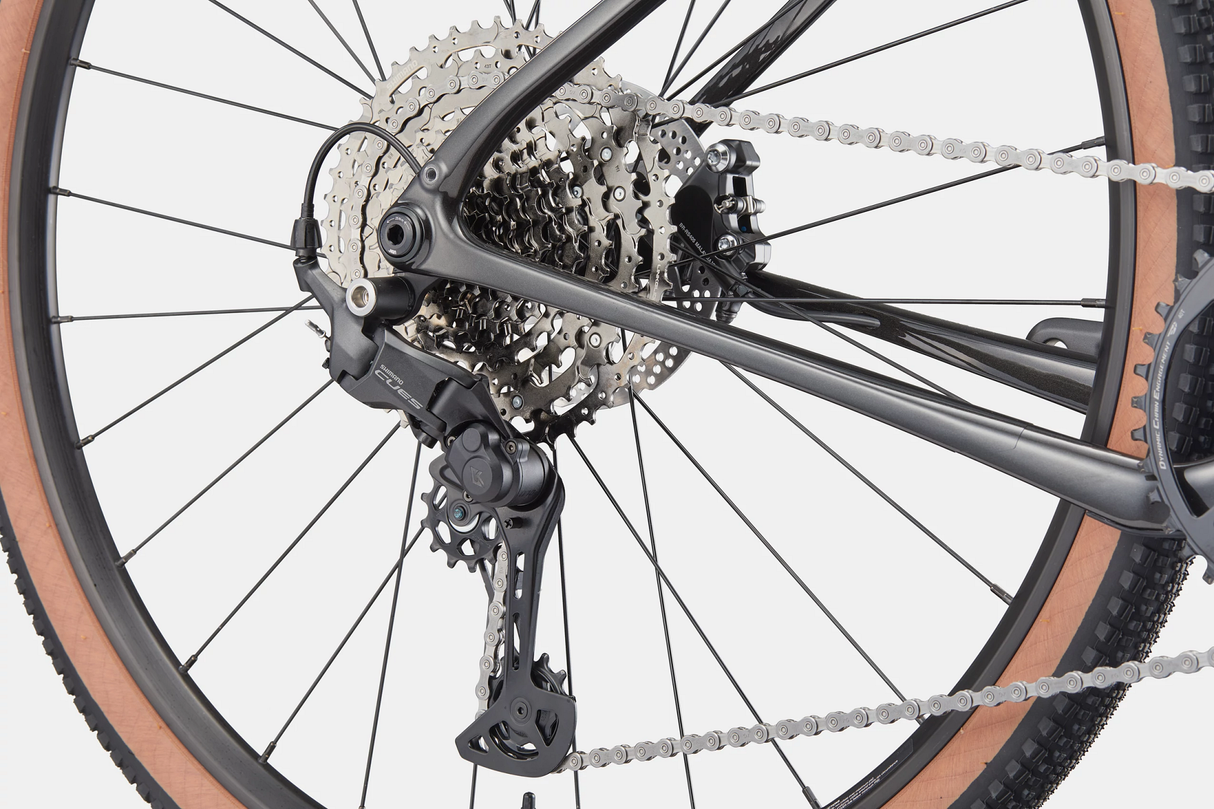

| Rear derailleur | Shimano CUES U6000, Shadow RD+, 11-speed |
| Shifters | Shimano CUES U6030, 11-speed |
| Chain | Shimano LG500, LinkGlide, 11-speed |

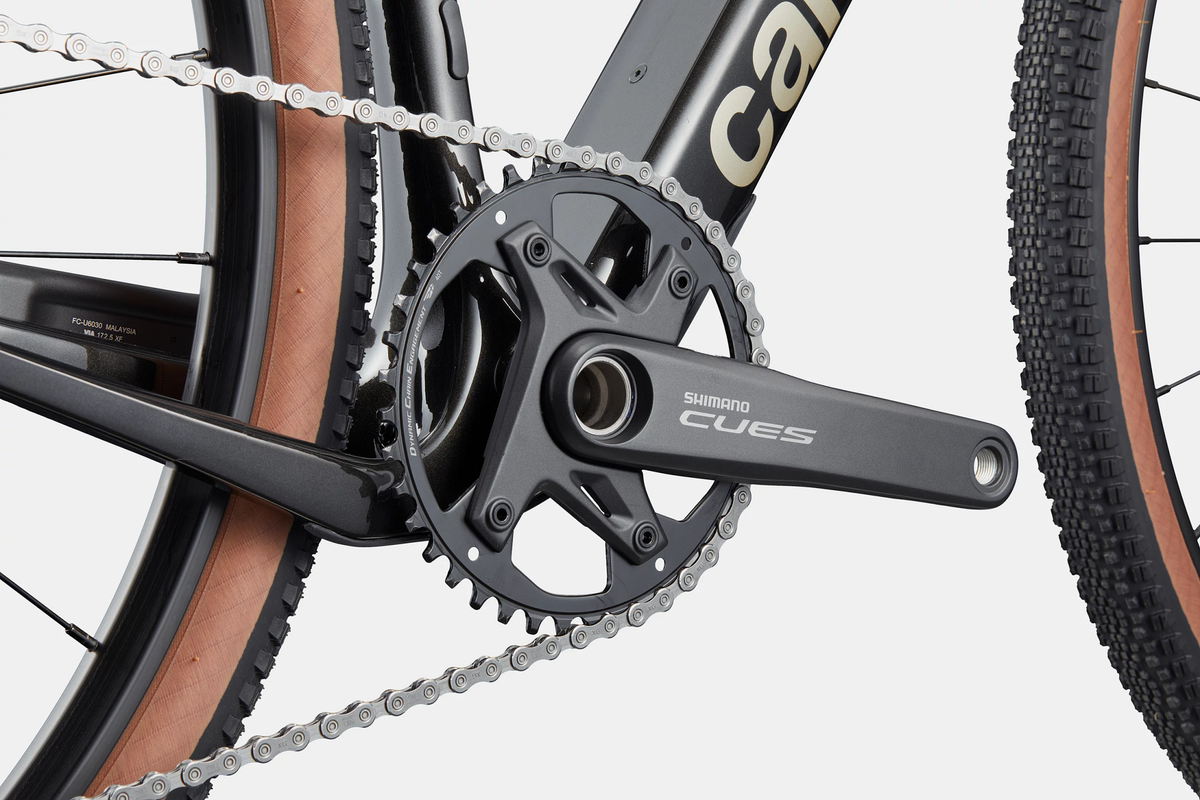

| Crank | Shimano CUES 6030, 40T: 165mm (47cm), 170mm (51cm), 172.5 (54-56cm), 175mm (58-61cm) |
| Rear cogs | Shimano CUES LG400, 11-50, 11-speed |
| Bottom bracket | Shimano BSA 68 |
| Brakes | Shimano CUES RS405 hydraulic disc, 160/160mm RT30 rotors |
| Brake levers | Shimano CUES U6030 hydraulic disc |
| Rims | WTB ST i25 TCS, 28h, tubeless ready |
| Spokes | Stainless Steel, 14g |
| Tire size | 45 |
| Wheel size | 700c |
| Hubs | Shimano TC500, centerlock, (F) 12x100mm, (R) 12x142mm |
| Tires | WTB Riddler TCS Light, 700x45c, tubeless ready |
| Handlebar | Cannondale 3, butted 6061 Alloy, 16 deg flare, 120mm drop: 400mm (47cm), 420mm (51-54), 440mm (56-61cm) |
| Stem | Cannondale 3, 6061 Alloy, 31.8, 7°: 70mm (47-51m), 80mm (54cm), 90mm (56-58cm), 100mm (61cm) |
| Grips | Cannondale KnurlCork, 2.7mm |
| Saddle | Selle Royal SRX Open, 148mm |
| Seatpost | Cannondale 3, 6061 Alloy, 27.2x350mm |
| Extra 1 | Large StashBag downtube storage bag, tubeless valves |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
Length measurements converted to mm from Cannondale inch values. Angles in degrees.
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | inches | cm |
|---|---|---|
| 47 | 4'11" - 5'6" | 150 - 168 |
| 51 | 5'5" - 5'9" | 165 - 175 |
| 54 | 5'8" - 5'11" | 173 - 180 |
| 56 | 5'10" - 6'1" | 178 - 185 |
| 58 | 6'0" - 6'4" | 183 - 193 |
| 61 | 6'3" - 6'7" | 191 - 201 |
Sizing to be used as a reference only. Chat with us if you have any questions.
