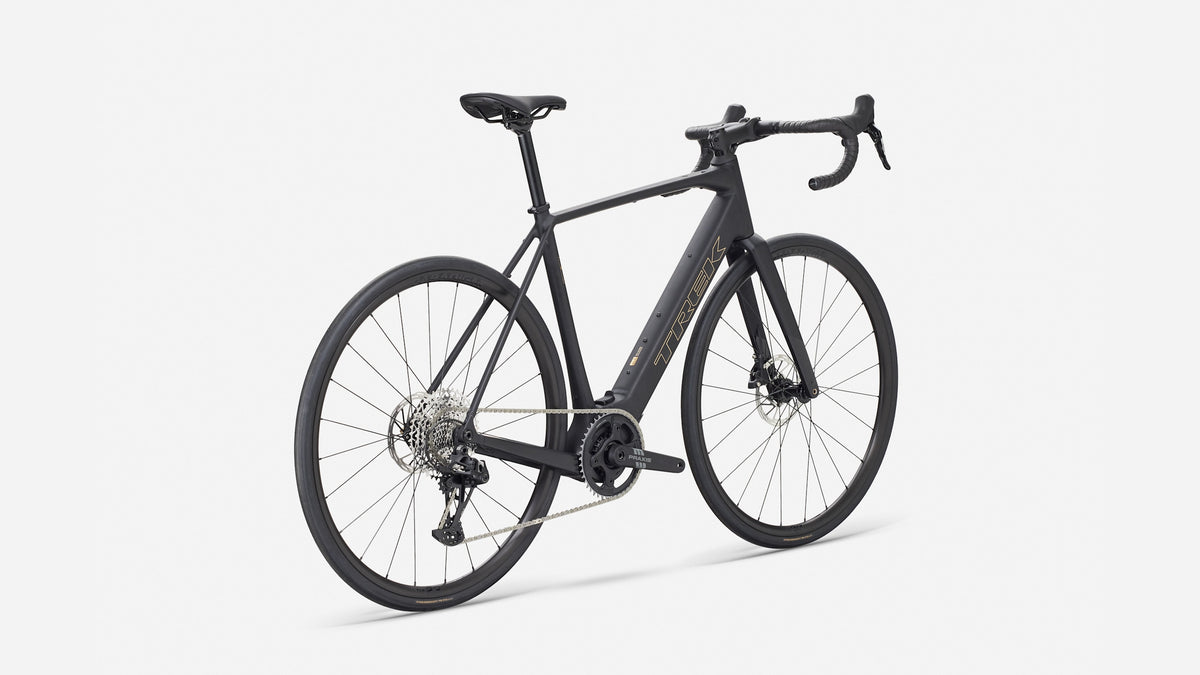

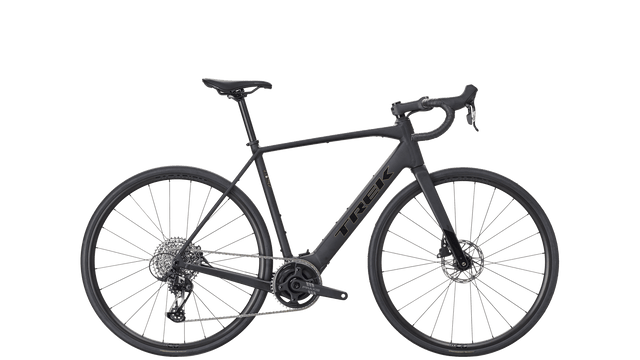

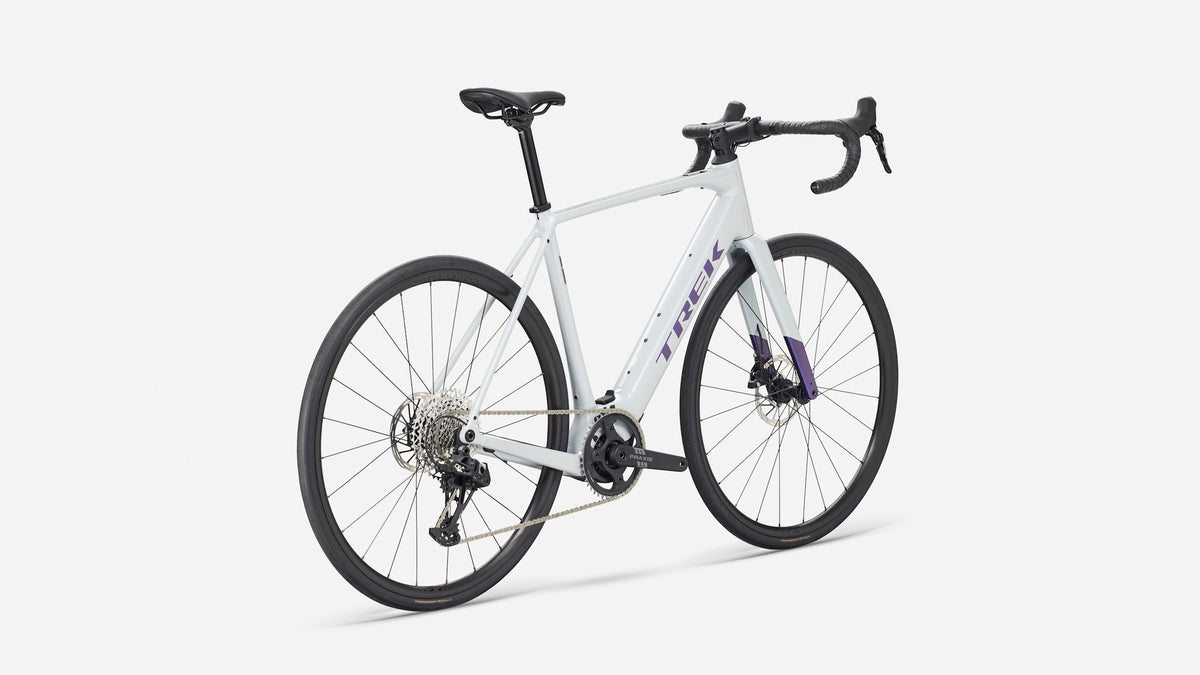

2027 Domane+ ALR 5 Electric Road Bike
Every bike is fully assembled, tuned, and test-ridden before pickup at your chosen DFW Bike Mart location.
Expected to ship within 14 days.
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart - ready to ride right at your doorstep within 10 miles of any DFW location.
Complete your Ride
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.

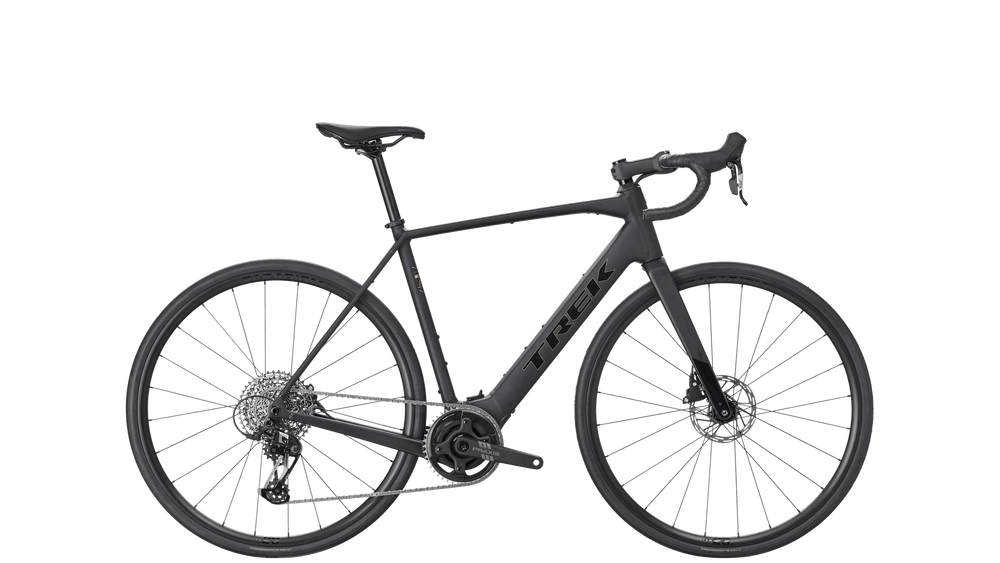

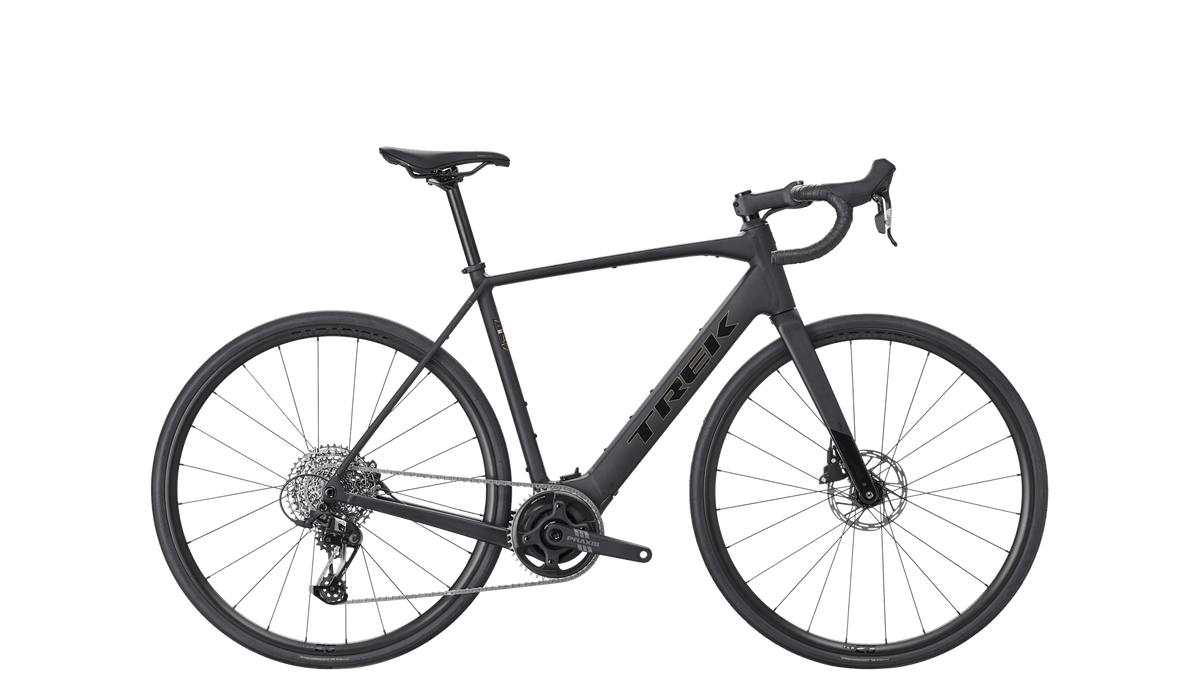

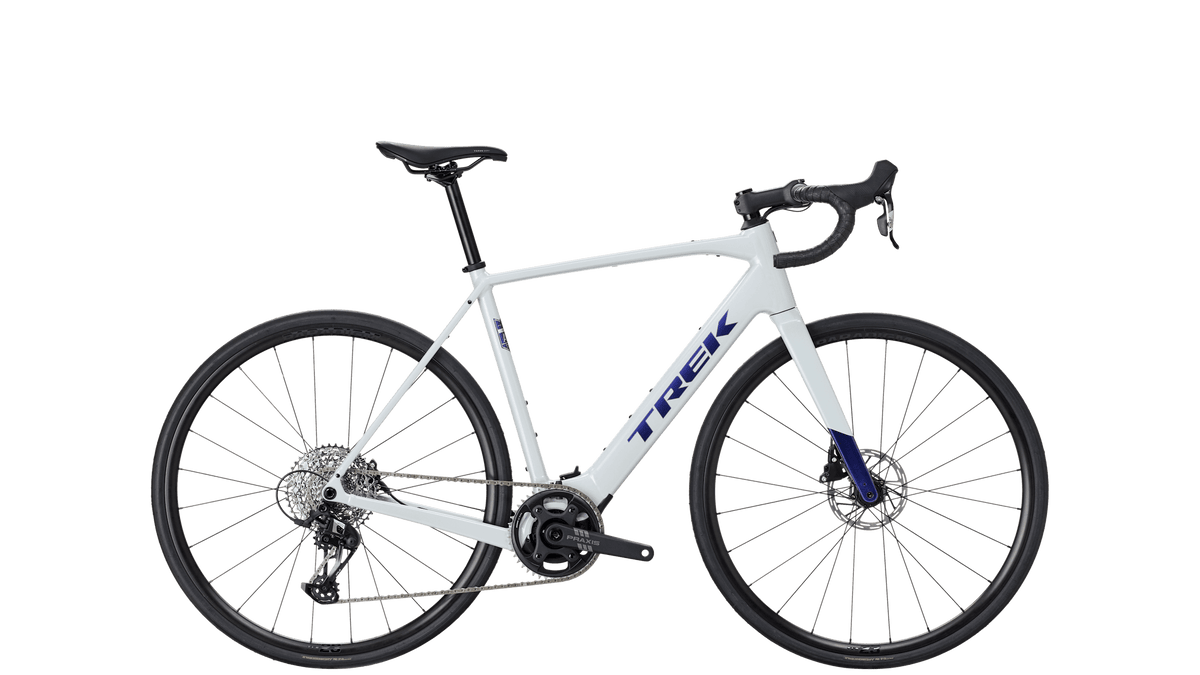

2027 Domane+ ALR 5 Electric Road Bike
-

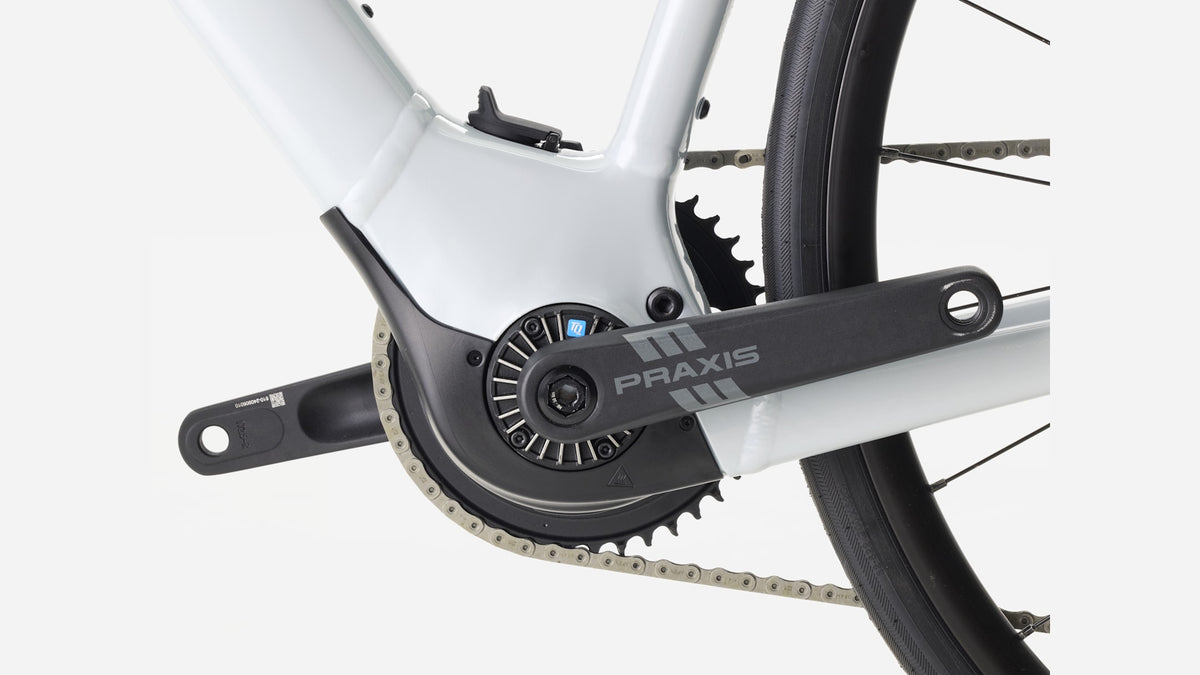

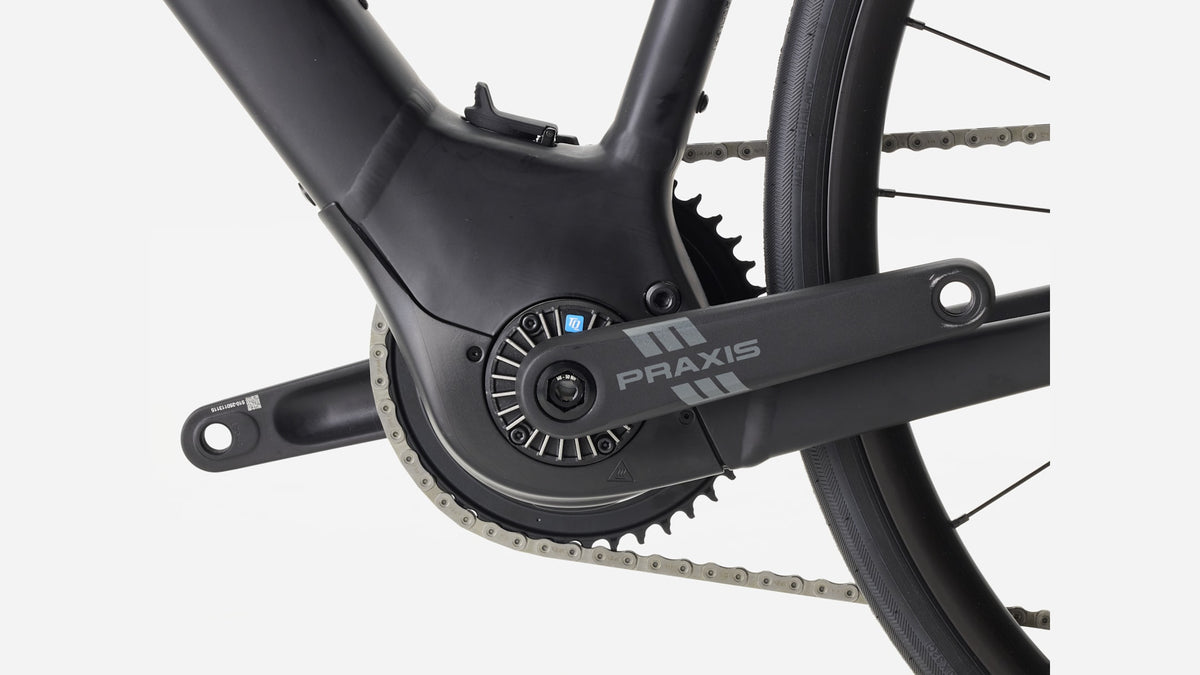

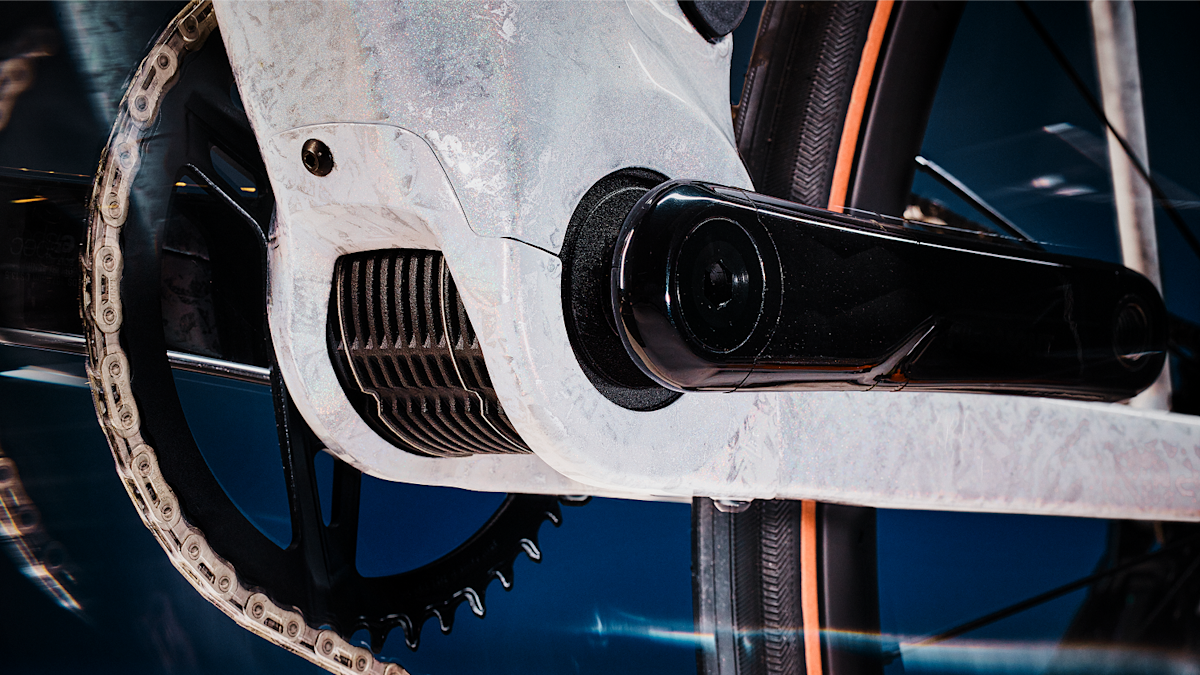

Light, quiet, natural-feeling TQ HPR40 e-system
Domane+ features a TQ HPR40 motor that's lighter, smaller, and quieter to keep the bike light and the ride smooth and natural.
-

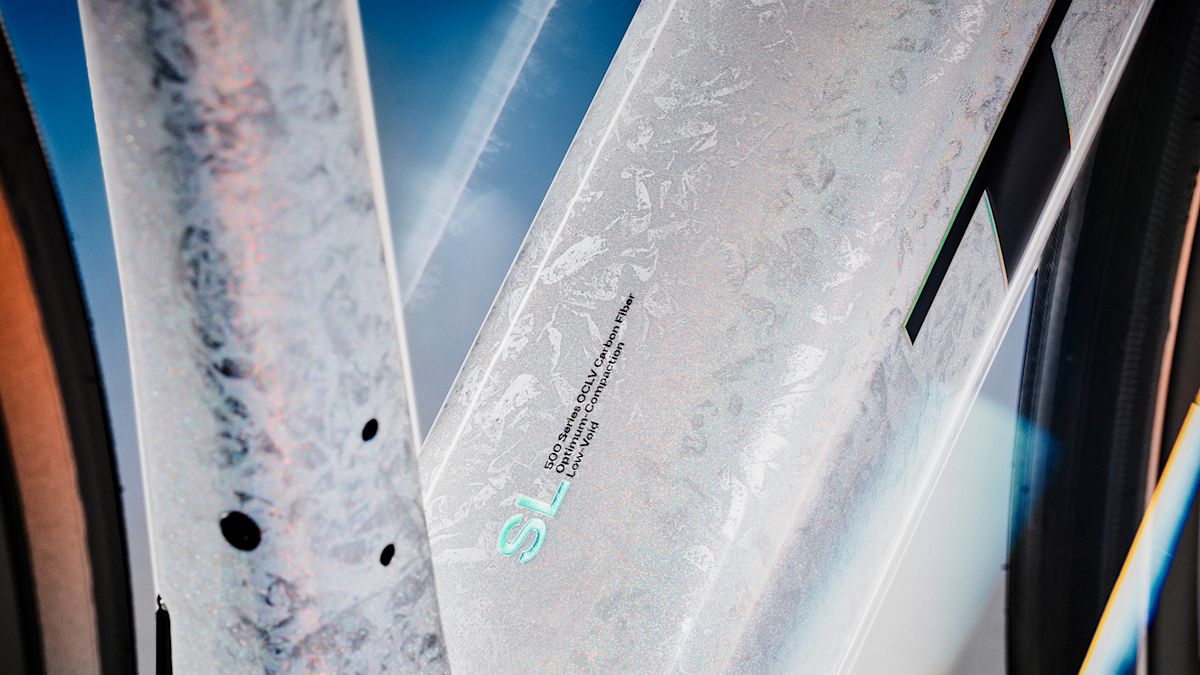

Our lightest e-bike ever
A lightweight and compliant 500 Series OCLV Carbon frame delivers premium Domane ride feel with builds starting at a ridiculously light 24.5 pounds.
-

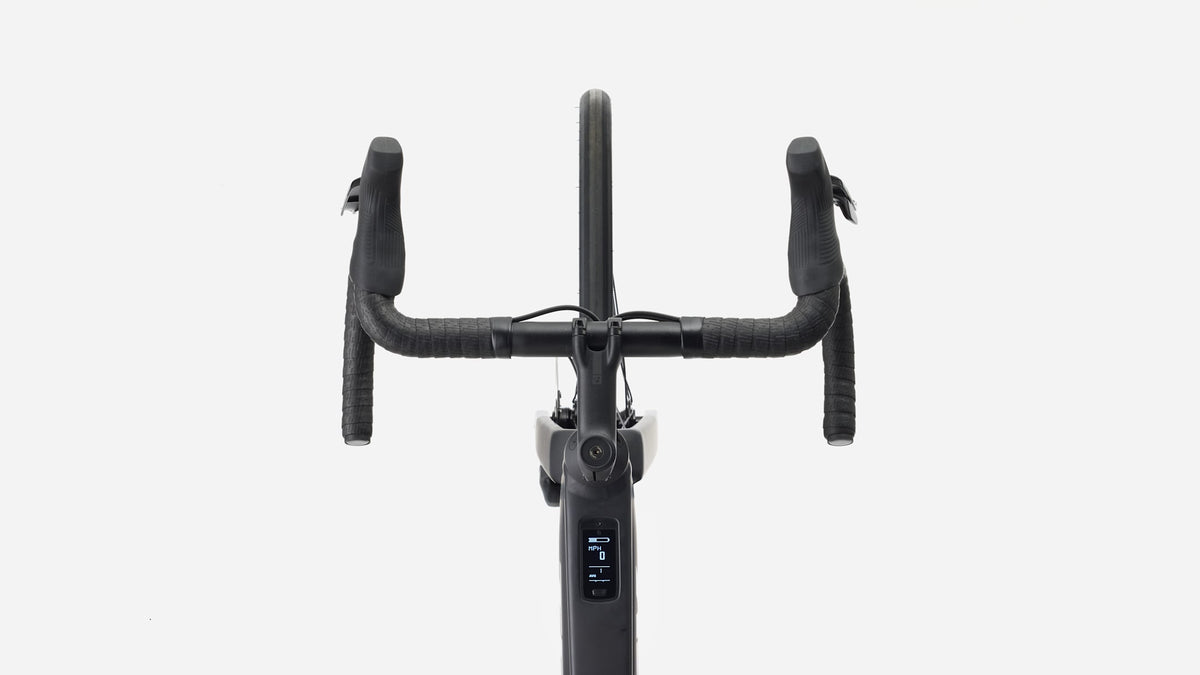

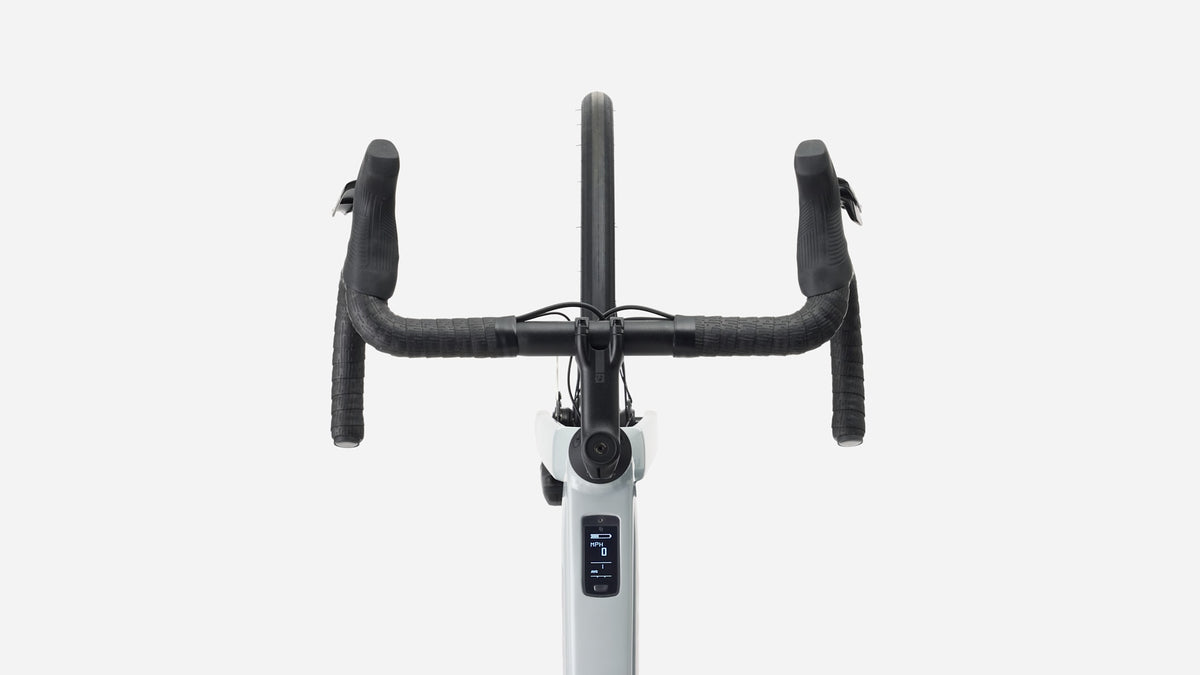

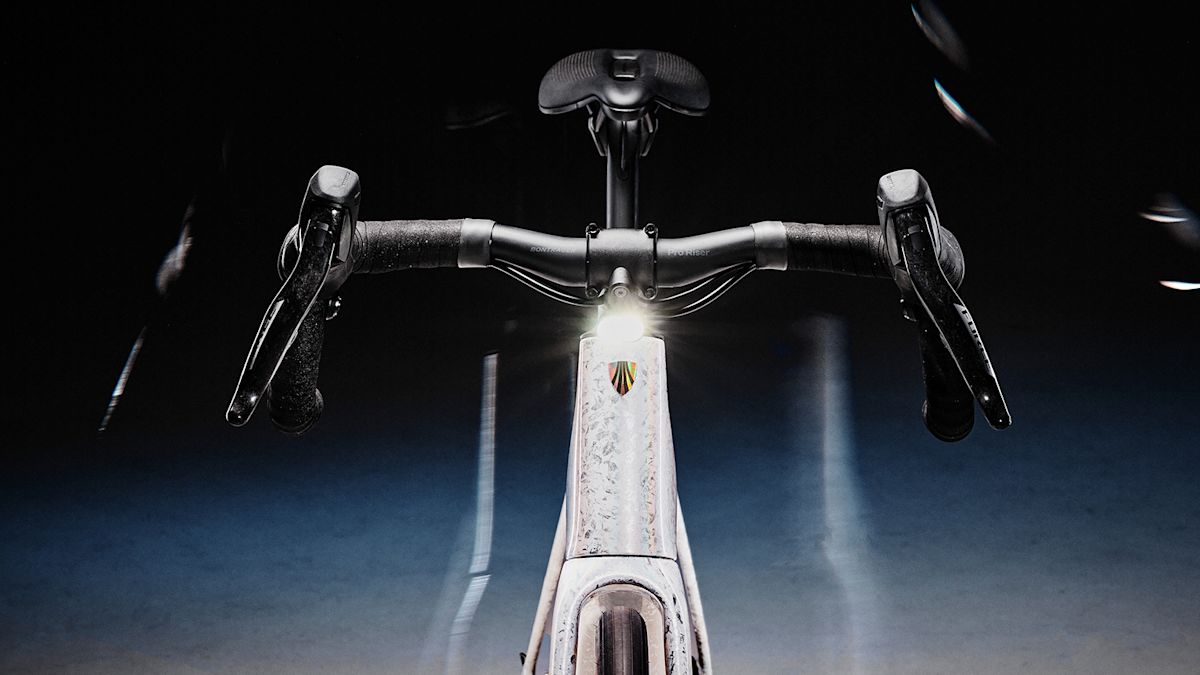

Sleek new riser bar
A new riser bar adds 20mm of rise to keep you more upright and comfortable without cluttering your front end.
-

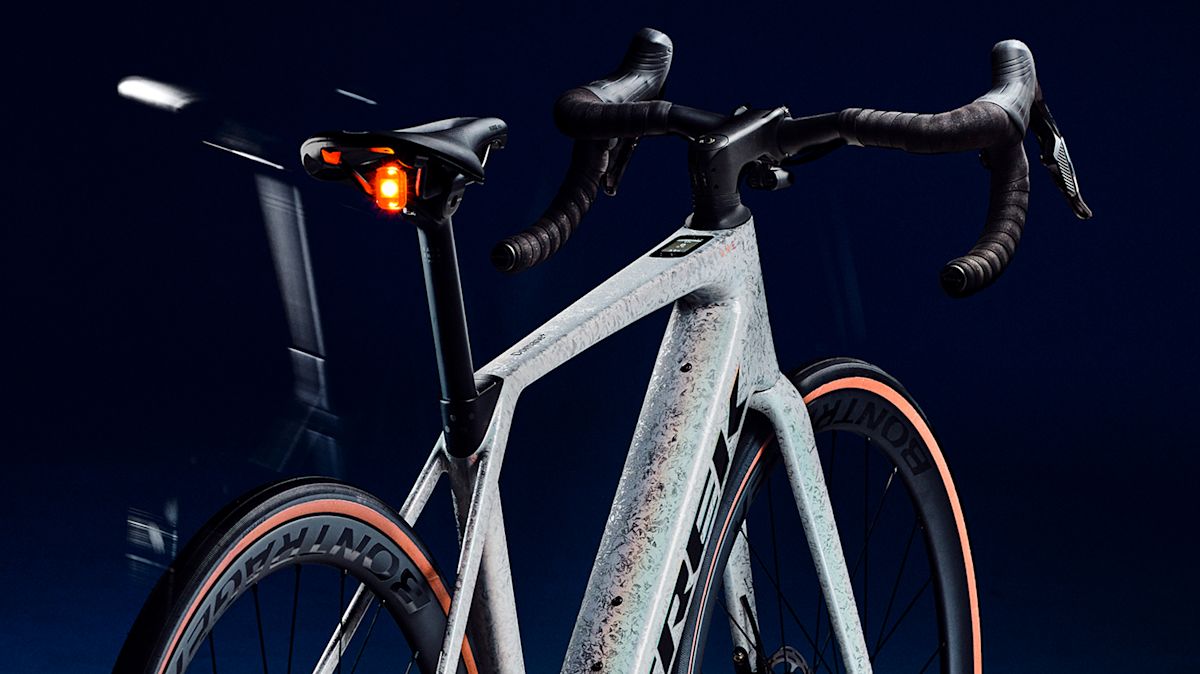

Road-smoothing carbon seatpost
Domane’s new seatpost is designed to flex vertically and absorb road chatter so you can stay comfortable and ride stronger longer.
-

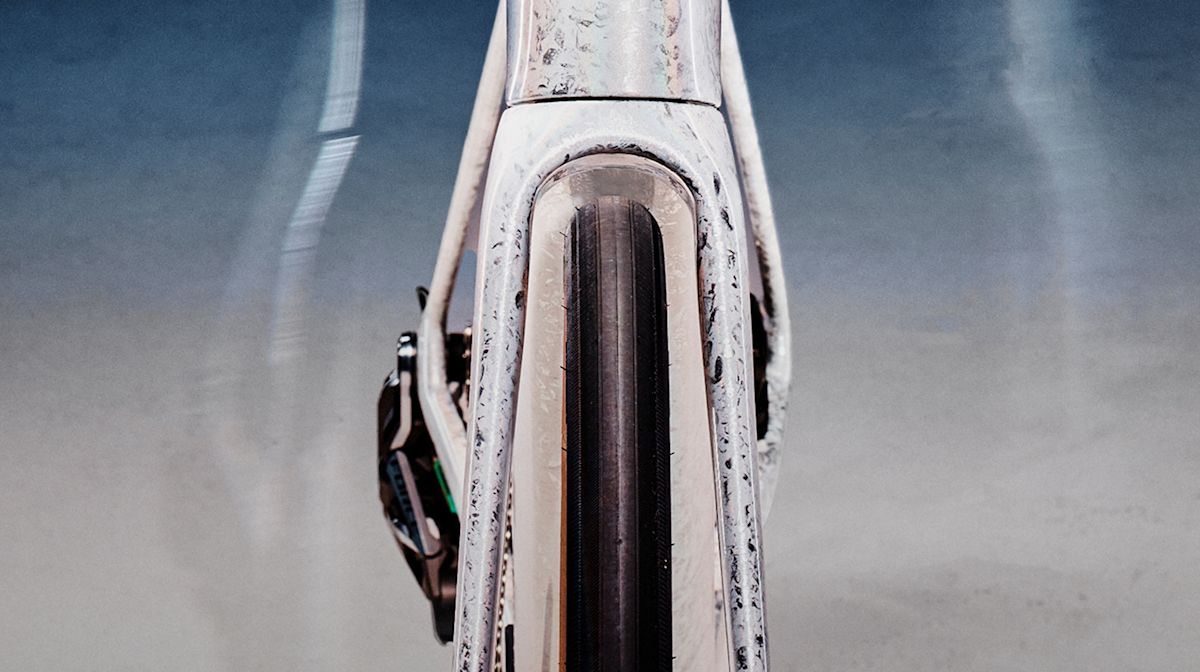

Clearance for up to 40mm tires
More volume means more comfort, grip, and confidence to venture from pavement to crushed gravel.
-
Our longest range e-bike ever
An included 360Wh battery offers up to 70 miles of range. Want to go even farther? Upgrade to a 580Wh battery in Project One for up to 115 miles of range.
-

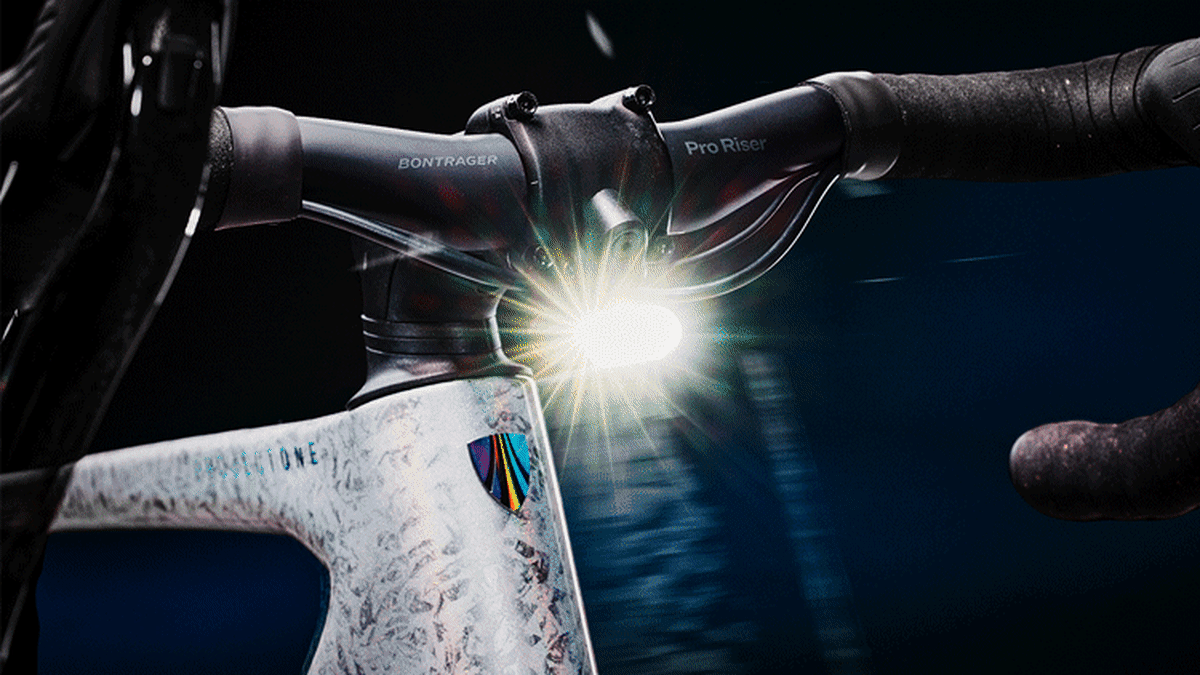

Integrated Daytime Running Lights
Built-in front and rear lights powered by your bike’s main battery make it easy to see and be seen out on the road.
-
Compliant with leading safety regulations
The e-systems on Trek and Electra e-bikes are third-party tested to meet the latest e-bike safety regulations, including the stringent UL 2849 certification — so all you have to worry about is where your e-bike will take you next.
Overview
Overview
Technical Specifications
Technical Specifications
| Frame | 300 Series Alpha Aluminum, TQ drive system, hidden fender mounts, rack mounts, integrated frame bag mounts, internal cable routing, flat mount disc, integrated chainkeeper, UDH, 142x12mm chamfered thru axle |
| Fork | Domane+ carbon, tapered carbon steerer, fender mounts, flat mount disc, 12x100mm thru axle |
| Weight | ML - 14.39 kg / 31.73 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
| Battery | TQ 360Wh |
| Charger | TQ 2A charger |
| Controller | TQ color LED display with Bluetooth & ANT+ connectivity |
| Computer | TQ LED display with Bluetooth & ANT+ connectivity |
| Motor | TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power |
| E-bike classification | Class 3 |
| Max assist speed | 28 mph |

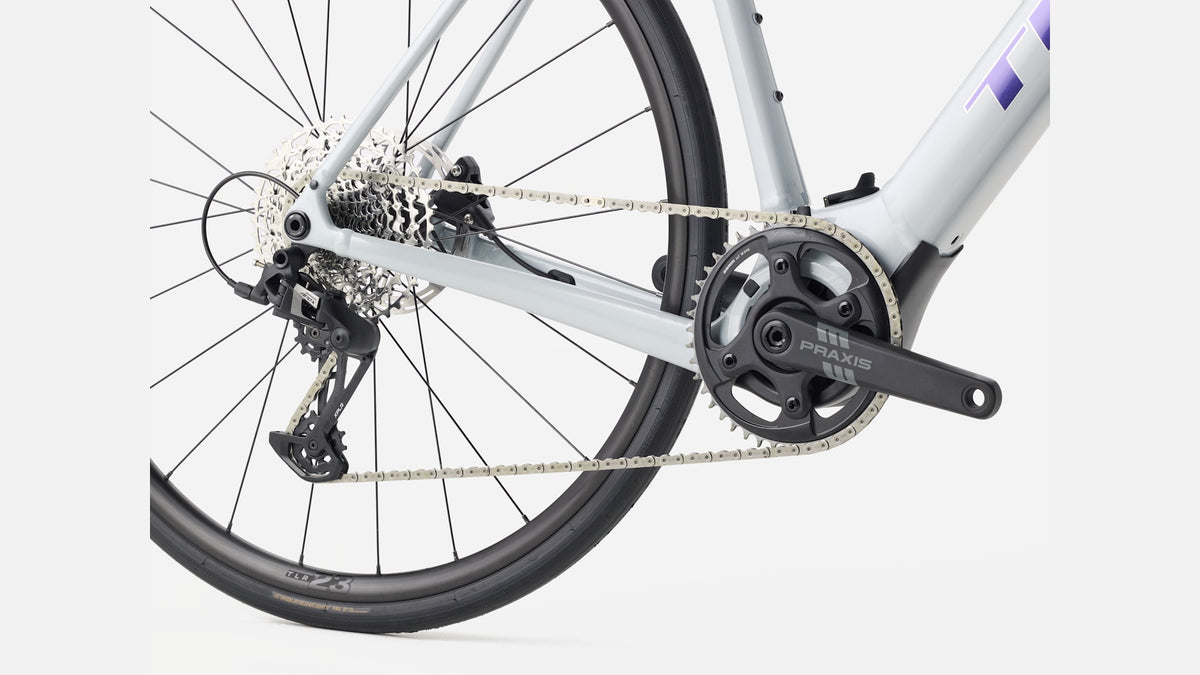

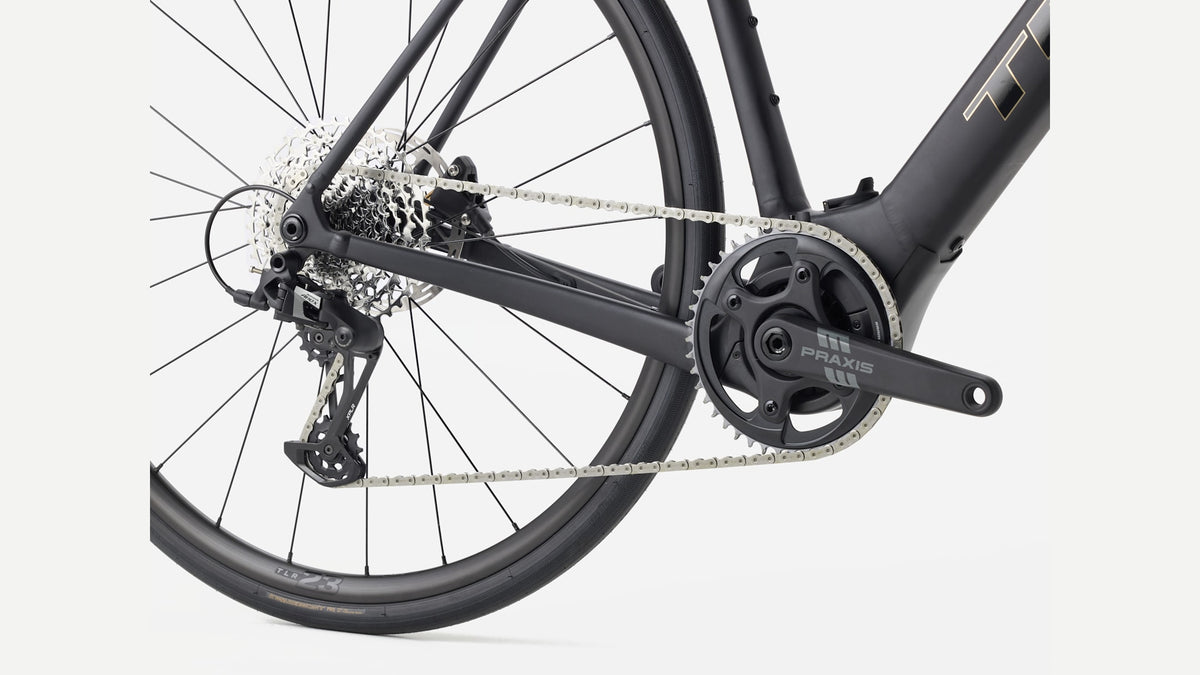

| Shifter | SRAM Apex, 12 speed |
| Rear derailleur | SRAM Apex XPLR, 44T max cog |
| *crank | Size: XS, S Praxis Alloy, 165mm lengthSize: M, ML Praxis Alloy, 170mm lengthSize: L, XL Praxis Alloy, 172.5mm length |
| Cassette | SRAM XPLR PG-1231, 11-44, 12 speed |
| Chain | SRAM Apex, 12 speed |
| Max chainring size | 1x: 46T |
| Hub front | Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle |
| Skewer front | Bontrager Switch chamfered thru axle |
| Hub rear | Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Rim | Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve |
| Spokes | 14g stainless steel, black |
| Tire | Bontrager Kwaremont Pro TLR, tubeless ready, folding bead, Race Dual-Compound, 120 tpi, 700x32mm |
| Max tire size | 40mm without fenders, 35mm with fenders |
| Saddle | Verse Short Comp, steel rails, 145mm width |
| Seatpost | Bontrager alloy, 27.2mm, 12mm offset, 330mm length |
| *handlebar | Size: XS Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop widthSize: S Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop widthSize: M, ML Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop widthSize: L, XL Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width |
| Handlebar tape | Trek EcoTack |
| *stem | Size: XS Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm lengthSize: S Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm lengthSize: M Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm lengthSize: ML, L Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm lengthSize: XL Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length |
| Brake | SRAM Apex D1 hydraulic disc, flat mount |
| Brake rotor | SRAM Paceline, rounded, centerlock, 160mm |
| Brake lever | SRAM Apex, 12 speed |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size letter | XS | S | M | ML | L | XL |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube | 44.4 | 47.6 | 50.0 | 53.3 | 55.3 | 59.3 |
| B — Seat tube angle (degrees) | 73.5° | 73.7° | 73.5° | 73.3° | 73.3° | 73.3° |
| C — Head tube length | 10.6 | 13.9 | 15.9 | 18.0 | 20.2 | 23.6 |
| D — Head angle (degrees) | 71.3° | 71.1° | 71.5° | 71.9° | 72.0° | 72.1° |
| E — Effective top tube | 52.2 | 53.2 | 54.3 | 55.5 | 56.4 | 57.7 |
| G — Bottom bracket drop | 8.0 | 8.0 | 8.0 | 7.8 | 7.8 | 7.5 |
| H — Chainstay length | 43.0 | 43.0 | 43.0 | 43.0 | 43.0 | 43.0 |
| I — Offset | 5.3 | 5.3 | 5.3 | 4.8 | 4.8 | 4.8 |
| J — Trail | 6.4 | 6.6 | 6.3 | 6.6 | 6.5 | 6.4 |
| K — Wheelbase | 99.7 | 101.2 | 101.8 | 102.0 | 102.9 | 104.3 |
| L — Standover | 72.1 | 75.3 | 77.5 | 80.5 | 82.6 | 86.3 |
| M — Frame reach | 36.8 | 37.1 | 37.4 | 37.7 | 38.0 | 38.4 |
| N — Frame stack | 52.4 | 55.5 | 57.5 | 59.6 | 61.8 | 64.8 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| Size | Rider Height | Inseam |
|---|---|---|
| XS (47cm) | 143 - 158 cm / 4'8" - 5'2" | 67 - 74 cm / 26" - 29" |
| S (50cm) | 158 - 162 cm / 5'2" - 5'4" | 74 - 76 cm / 29" - 30" |
| M (52-54cm) | 162 - 173 cm / 5'4" - 5'8" | 76 - 81 cm / 30" - 32" |
| ML (56cm) | 173 - 179 cm / 5'8" - 5'10" | 81 - 84 cm / 32" - 33" |
| L (58cm) | 179 - 188 cm / 5'10" - 6'2" | 84 - 88 cm / 33" - 35" |
| XL (60-62cm) | 188 - 199 cm / 6'2" - 6'6" | 88 - 100 cm / 35" - 39" |
Sizing to be used as a reference only. Chat with us if you have any questions.
