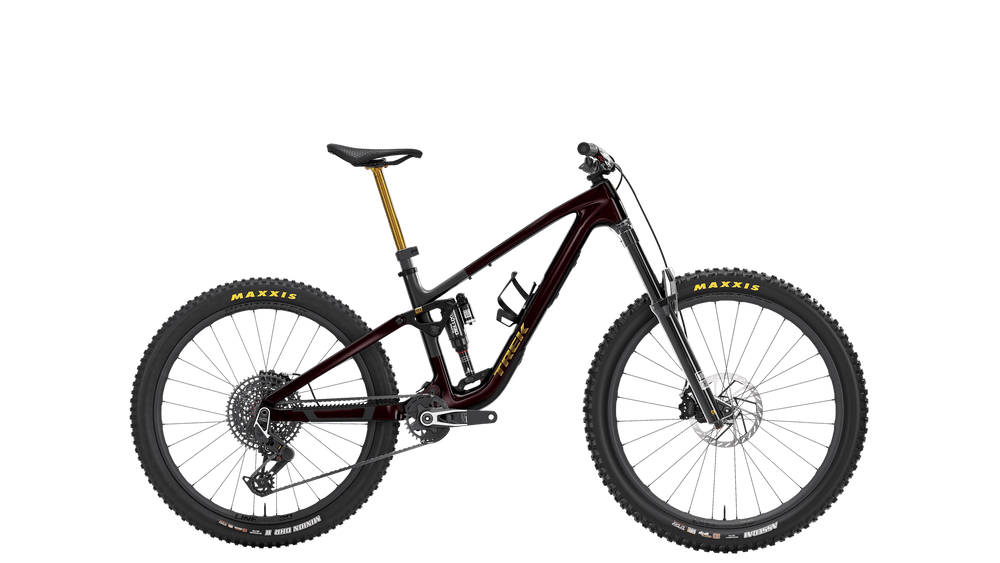

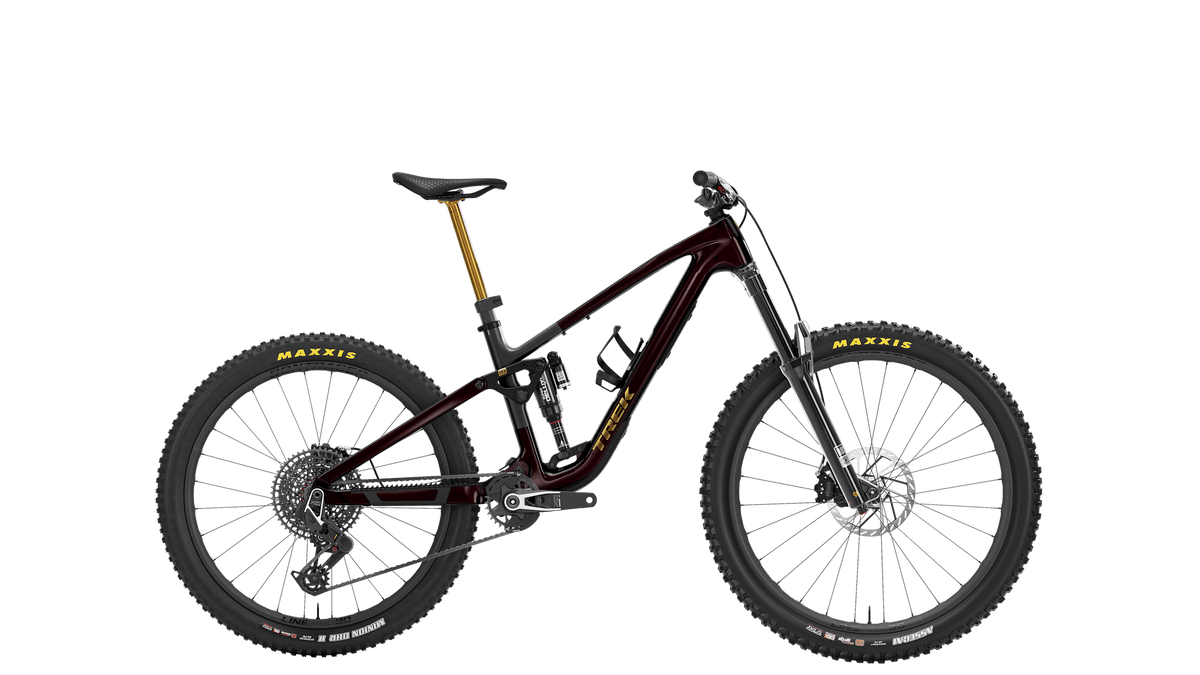

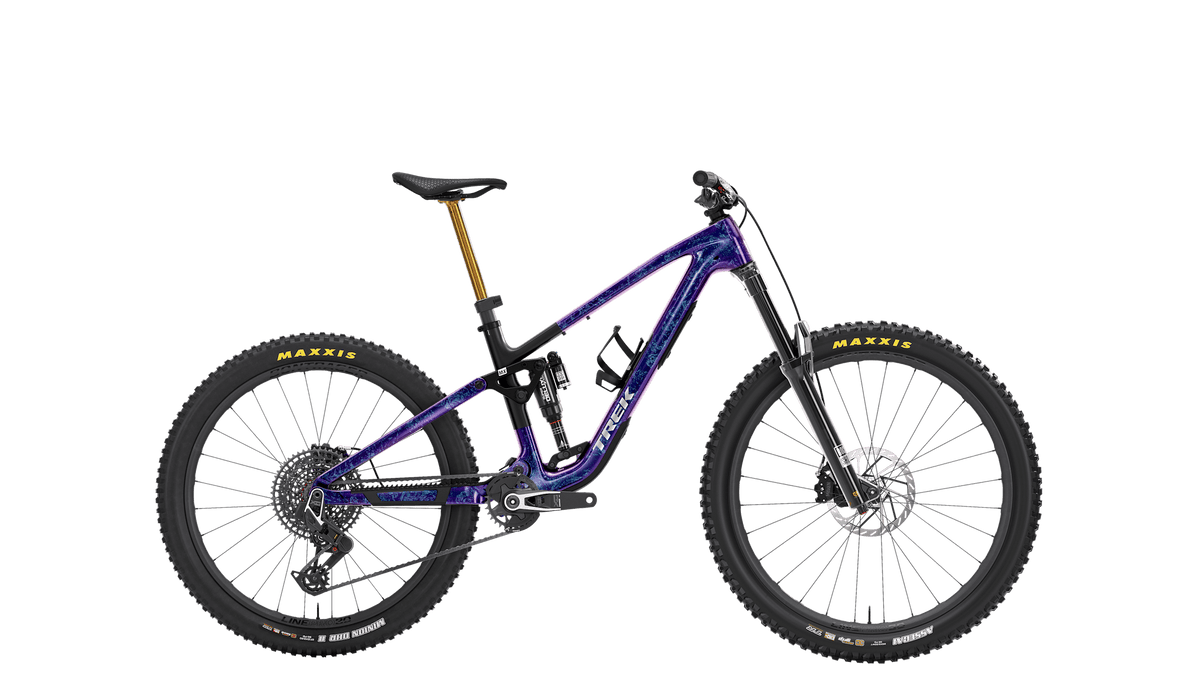

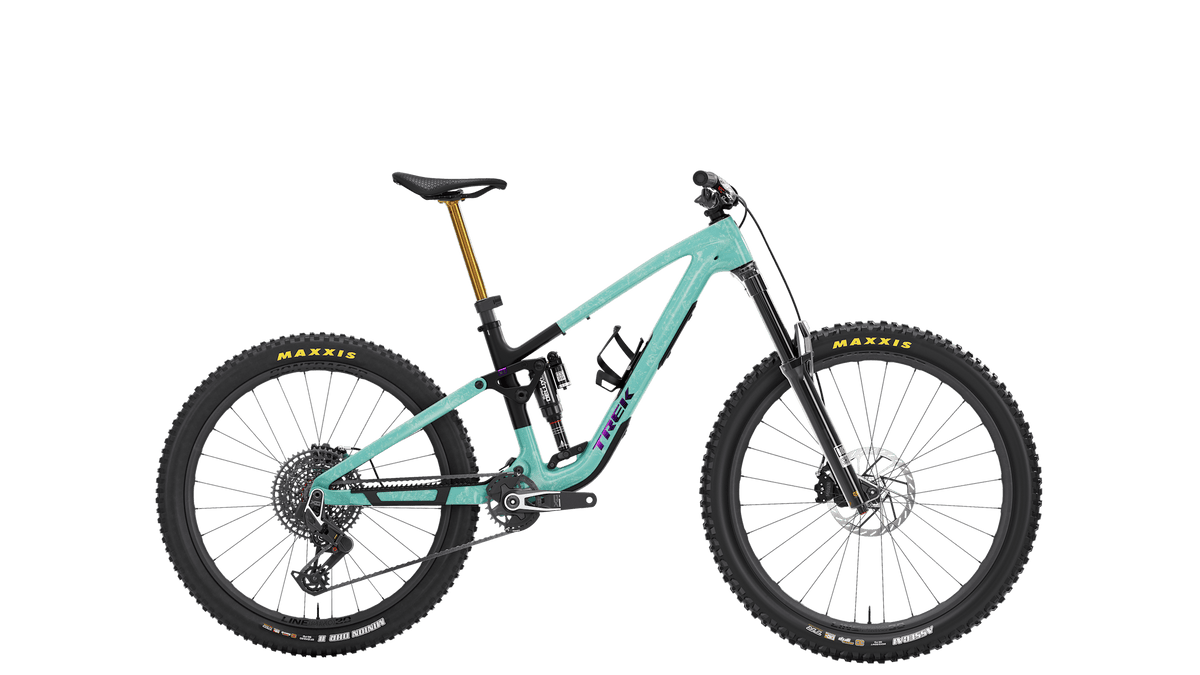

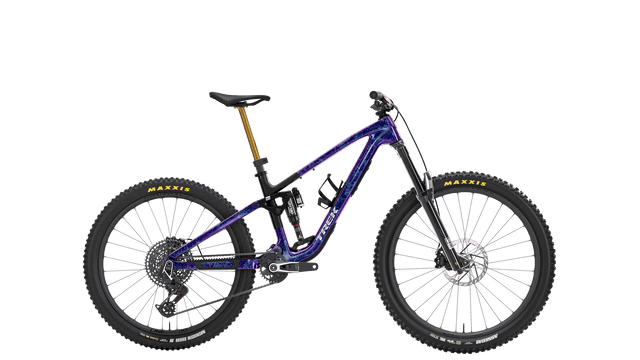

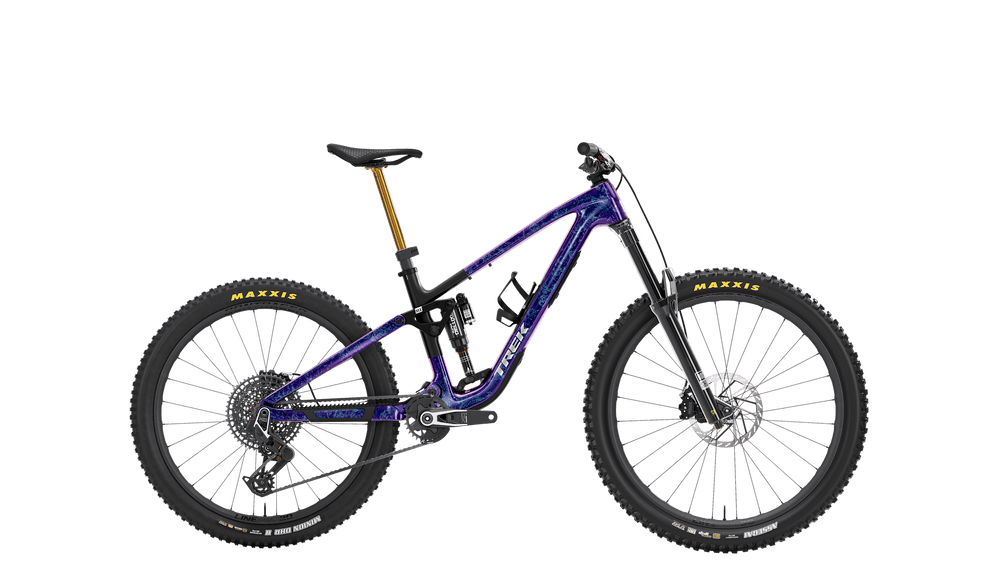

2027 Fuel MX 9.9 X0 AXS Gen 7 Full Suspension Mountain Bike
Every bike is fully assembled, tuned, and test-ridden before pickup at your chosen DFW Bike Mart location.
Expected ship date: {date+3}
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart - ready to ride right at your doorstep within 10 miles of any DFW location.
Complete your Ride
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
-
Adapt, rip, repeat
Only you can define your perfect trail bike — that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX, or charge through it all with LX.
-
Adjustable leverage rate
Want more bottom-out resistance without giving up small-bump sensitivity? Flip the chip in the lower shock mount for a more progressive leverage rate.
-
Zero stack integrated headset
With a ZS standard headset, you've got tons of options for aftermarket upgrades, including angle adjust or anodized colors.
-
Storage and accessory mounts
Stash ride essentials with in-frame storage on all Fuel models — both carbon and alloy. Plus, top tube accessory mounts let you load up even more.
-
Fresh frame design
Fuel's new frame gives you tons of room for long dropper posts, bigger shocks, frame bags, and more.
-
Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
-
Transition to transmission
SRAM Eagle T-Type transmission mounts directly to the frame, skipping that pesky derailleur hanger of yesteryear. This makes for a more robust system that's not only cleaner looking, it's also more precise under load, and easier to set up.
Overview
Overview
Technical Specifications
Technical Specifications
| Frame | OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm |
| Fork | Rockshox ZEB Ultimate B1, Linear XL w/ ButterCups, Charger 3.2 RC2 damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 170mm travel |
| Shock | RockShox Vivid Ultimate D1, 205x65mm |
| Wheel front | Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'' |
| Wheel rear | Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5'' |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| *tire | Size: S, M, L, XL, XXL Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5''Size: S, M, L, XL, XXL Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' |
| Tire part | Bontrager TLR sealant, 6oz |
| Max tire size | Frame: 29x2.50", Fork: See manufacturer |
| Battery | SRAM AXS battery pack (with charger) |
| Shifter | SRAM AXS pod |
| Rear derailleur | SRAM X0 Eagle AXS, T-Type |
| *crank | Size: S, M, L, XL, XXL SRAM X0 Eagle, DUB, 30T, T-Type, 55mm chainline, 165mm lengthSize: S, M, L, XL, XXL SRAM X0 Eagle, DUB, 30T steel, T-Type, 55mm chainline, 170mm length |
| Bottom bracket | SRAM DUB MTB Wide, 73mm, BSA threaded |
| Cassette | SRAM Eagle XS-1295, T-Type, 10-52, 12 speed |
| Chain | SRAM X0 Eagle, T-Type, 12 speed |
| Max chainring size | See service manual |
| Saddle | Trek Aeolus Pro, carbon fiber rails, AirLoom lattice 145mm width |
| *seatpost | Size: S Fox Transfer NEO, 150mm travel, 34.9Size: M Fox Transfer NEO, 175mm travel, 34.9Size: L, XL, XXL Fox Transfer NEO, 200mm travel, 34.9 |
| Handlebar | Race Face ERA, carbon, 35mm, 40mm rise, 800mm width |
| Grips | Trek Line Elite, lock-on |
| Stem | Race Face Turbine R, 35mm, 0 degree, 40mm length |
| Brake | SRAM Maven Silver 4-piston hydraulic disc |
| *brake rotor | Size: S, M, L, XL, XXL SRAM HS2, 6-bolt, 200mmSize: S, M, L, XL, XXL SRAM HS2, 6-bolt, 180mm |
| Rotor size | Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size number | 15.5" | 17.5" | 19.5" | 21.5" | 23" |
| Frame size letter | S | M | L | XL | XXL |
| Wheel size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
| A — Seat tube | 37.0 | 40.0 | 42.0 | 45.5 | 47.5 |
| B — Seat tube angle (degrees) | 72.3° | 72.3° | 72.3° | 72.3° | 72.3° |
| Effective seat tube angle (degrees) | 78.3° | 77.5° | 77.0° | 76.6° | 76.1° |
| C — Head tube length | 9.5 | 11.0 | 12.5 | 14.0 | 15.5 |
| D — Head angle (degrees) | 64.2° | 64.2° | 64.2° | 64.2° | 64.2° |
| E — Effective top tube | 54.9 | 58.4 | 61.8 | 65.2 | 68.2 |
| F — Bottom bracket height | 34.3 | 34.3 | 34.3 | 34.3 | 34.3 |
| G — Bottom bracket drop | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 |
| H — Chainstay length | 43.4 | 43.4 | 43.9 | 44.4 | 44.9 |
| I — Offset | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 |
| J — Trail | 13.2 | 13.2 | 13.2 | 13.2 | 13.2 |
| K — Wheelbase | 119.1 | 122.8 | 126.4 | 130.1 | 133.2 |
| L — Standover | 74.5 | 74.7 | 75.4 | 76.0 | 76.9 |
| M — Frame reach | 42.6 | 45.6 | 48.2 | 50.7 | 52.7 |
| N — Frame stack | 61.3 | 62.7 | 64.1 | 65.4 | 66.8 |
| Front center | 75.8 | 79.5 | 82.6 | 85.7 | 88.4 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| Size | Rider Height | Inseam |
|---|---|---|
| S | 155 - 165 cm / 5'1" - 5'5" | 74 - 78 cm / 29" - 31" |
| M | 165 - 177 cm / 5'5" - 5'10" | 79 - 83 cm / 31" - 33" |
| L | 177 - 188 cm / 5'10" - 6'2" | 84 - 89 cm / 33" - 35" |
| XL | 188 - 195 cm / 6'2" - 6'5" | 89 - 91 cm / 35" - 36" |
| 2XL | 195 - 203 cm / 6'5" - 6'8" | 91 - 97 cm / 36" - 38" |
Sizing to be used as a reference only. Chat with us if you have any questions.
