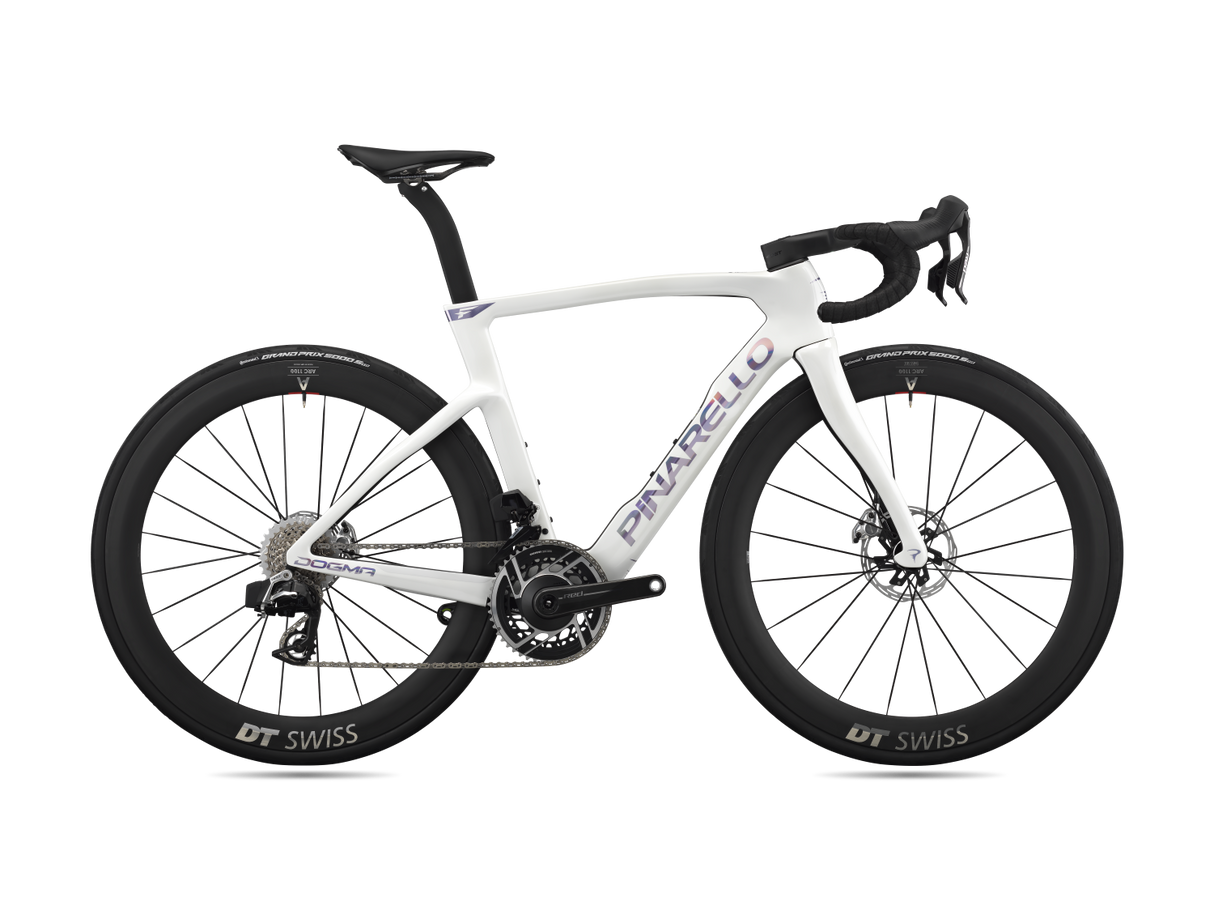

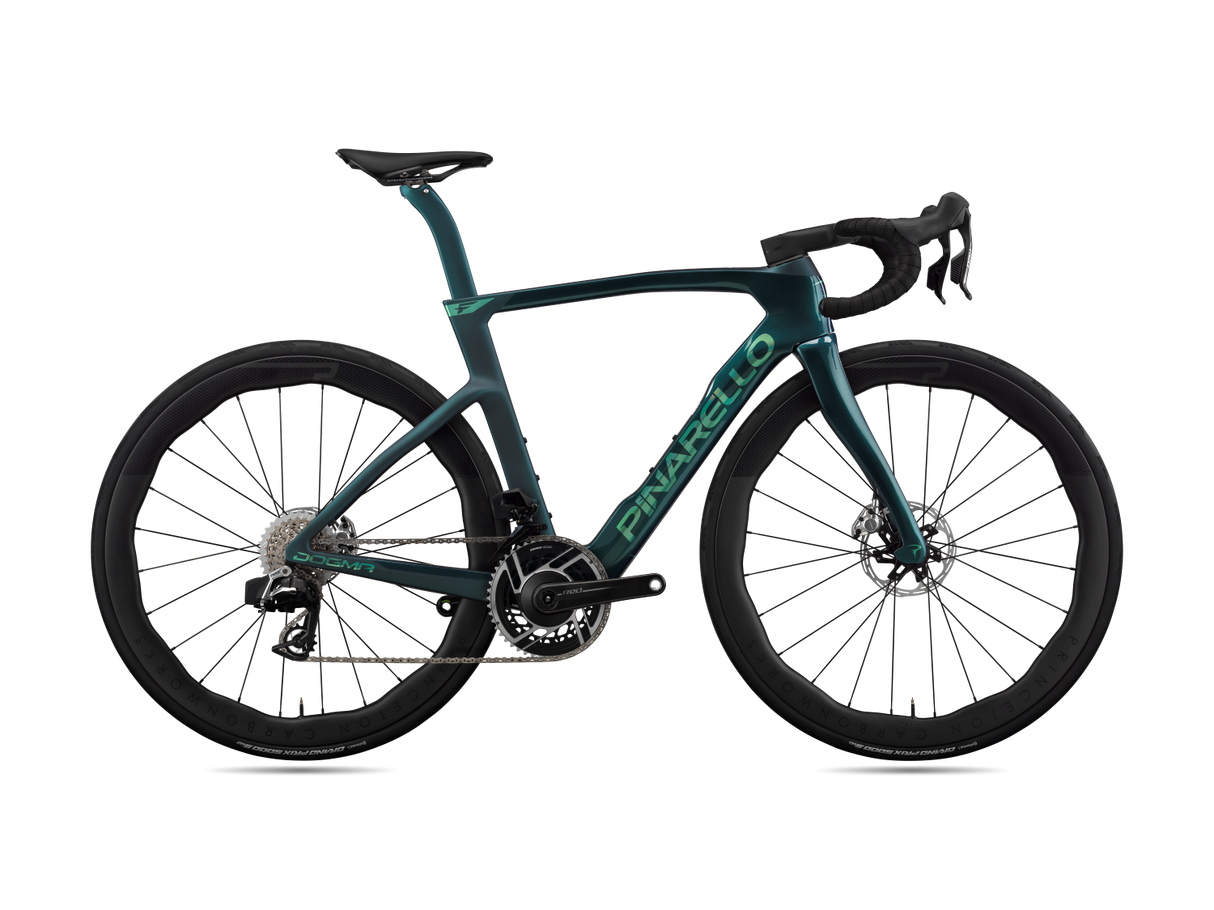

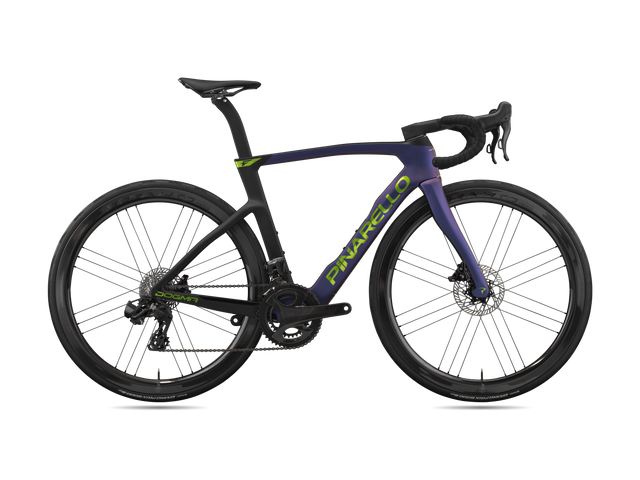

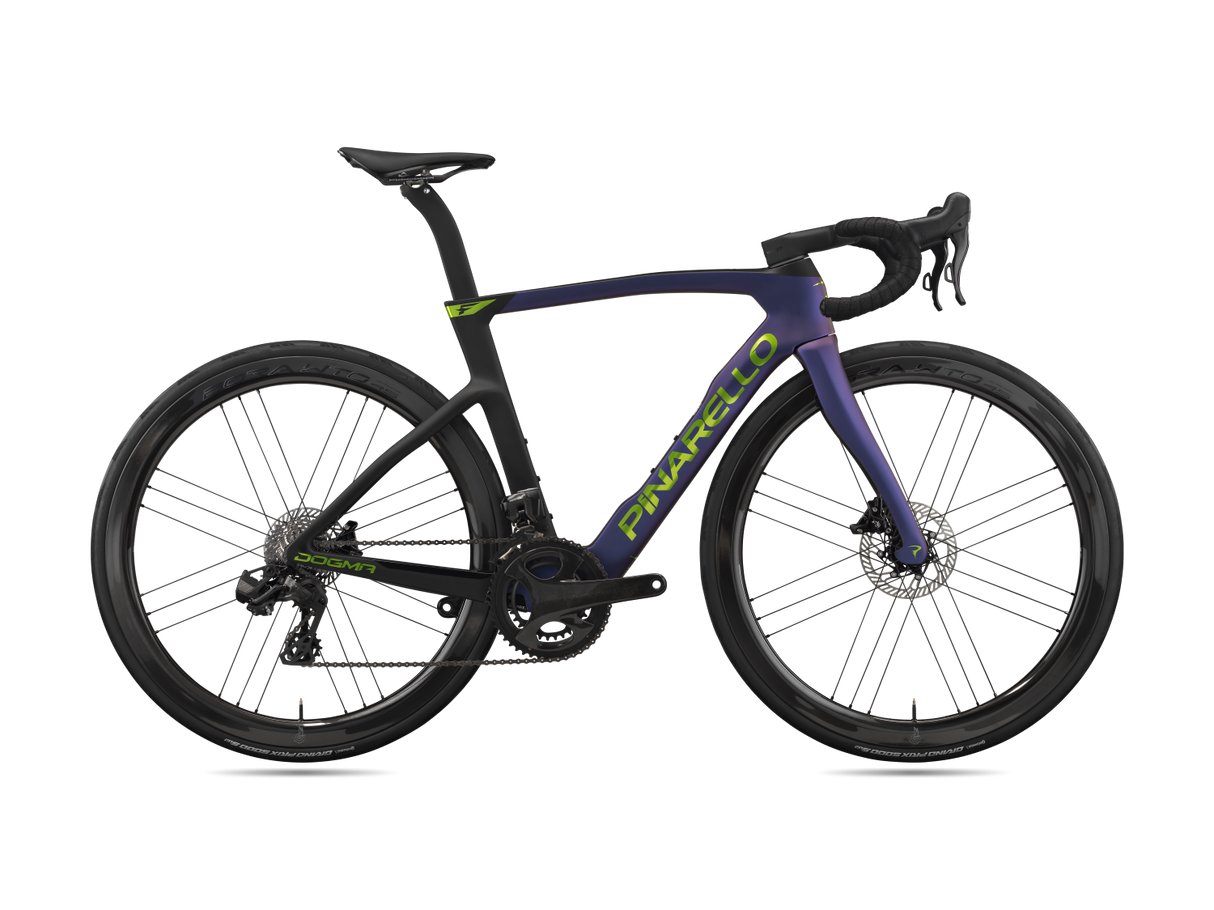

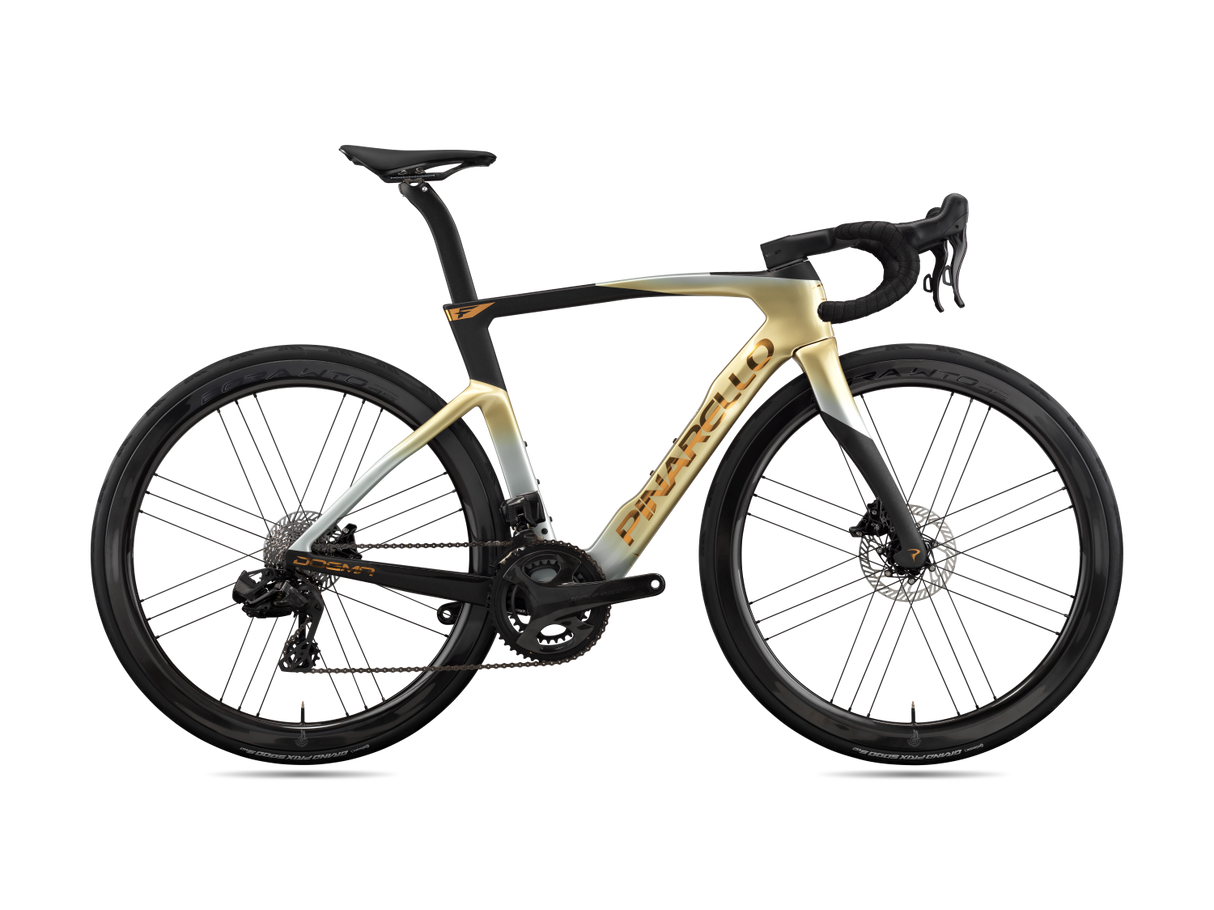

2027 Pinarello Dogma F Red AXS Road Bike
Every bike is fully assembled, tuned, and test-ridden before pickup at your chosen DFW Bike Mart location.
Expected ship date: {date+3}
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart - ready to ride right at your doorstep within 10 miles of any DFW location.
Complete your Ride
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
Overview
Overview
We’ve always stood out from the crowd and created bikes that are totally unique, both in terms of how they look, but more importantly, how they perform. Form over function is a constant source of discussion between our head designers and we believe the DOGMA F achieves the perfect blend of the two.
* groupset/wheelset on the picture might differ from bike specification
Technical Specifications
Technical Specifications
| Bottom bracket | SRAM Red |
| Frame | TorayCa M40X, TiCR™ Cable Routing, Italian BB |
| Fork | NEW eTICR Onda Fork with ForkFlap™, 1.5' upper and lower steerer |
| Wheels | Princeton Peak 4550 DB |
| Tires | Continental Gran Prix 5000S TR28-622 |
| Crankset | SRAM Red ETAP AXS 12S |
| Front derailleur | SRAM Red ETAP AXS 12S |
| Rear derailleur | SRAM Red ETAP AXS 12S |
| Cassette/freewheel | Sram Red XG-1290 |
| Front brake | Sram Red 2 pistons caliper, 160mm rotor |
| Rear brake | Sram Red 2 pistons caliper, 160mm rotor |
| Handlebars | MOST Talon Ultra Fast |
| Tape/grips | most bar tape |
| Seatpost | Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts |
| Saddle | Most Lynx Ultrafast Superflow L Carbon Large 145mm |
| Pedals | Sold Separately |
| Accessories & extras | MOST Ultra Light Custom Axle 12x100 & 12x142, tool free removal; Bottlecage Trap PACF ø 74mm; Fly Bottle Pinarello Bottle 550ml Black |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in mm unless otherwise noted.
| Frame size | 43cm | 46.5cm | 50cm | 51.5cm | 53cm | 54cm | 55cm | 56cm | 57.5cm | 59.5cm | 62cm |
| Seat Tube Center–End (mm) (mm) | 425 | 450 | 465 | 485 | 500 | 510 | 520 | 525 | 540 | 560 | 600 |
| Seat Tube Center–Center (mm) (mm) | 430 | 465 | 500 | 515 | 530 | 540 | 550 | 560 | 575 | 595 | 620 |
| Top Tube Center–Center (mm) (mm) | 500 | 515 | 525 | 535 | 545 | 550 | 557 | 565 | 575 | 587 | 620 |
| Seat Tube Angle (°) (degrees) | 74.4 | 74.4 | 74.0 | 73.7 | 73.7 | 73.4 | 73.4 | 73.0 | 73.0 | 72.4 | 72.0 |
| Head Tube Angle (°) (degrees) | 69.5 | 70.5 | 71.4 | 72.0 | 72.5 | 72.8 | 72.8 | 73.2 | 73.7 | 73.4 | 73.4 |
| Chainstay (mm) (mm) | 407 | 407 | 407 | 407 | 407 | 408 | 408 | 409 | 409 | 409 | 411 |
| Head Tube Length (mm) (mm) | 102 | 109 | 114 | 119 | 128 | 136 | 147 | 154.5 | 168 | 204 | 244 |
| BB Drop (mm) (mm) | 67 | 72 | 72 | 72 | 72 | 72 | 72 | 72 | 72 | 67 | 67 |
| Fork Rake (mm) (mm) | 47 | 47 | 47 | 47 | 47 | 47 | 47 | 47 | 47 | 47 | 47 |
| Fork Height (mm) (mm) | 373 | 373 | 373 | 373 | 373 | 373 | 373 | 373 | 373 | 373 | 373 |
| Reach (mm) (mm) | 351.5 | 365.4 | 372.2 | 378.2 | 383.3 | 385.3 | 389.2 | 390.8 | 396.7 | 393.4 | 410.0 |
| Stack (mm) (mm) | 502.0 | 517.3 | 525.2 | 532.1 | 542.4 | 551.0 | 561.5 | 570.1 | 584.8 | 613.2 | 651.6 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
