Blackthorn 145 C Full Suspension Mountain Frameset
Bike Key Features
-

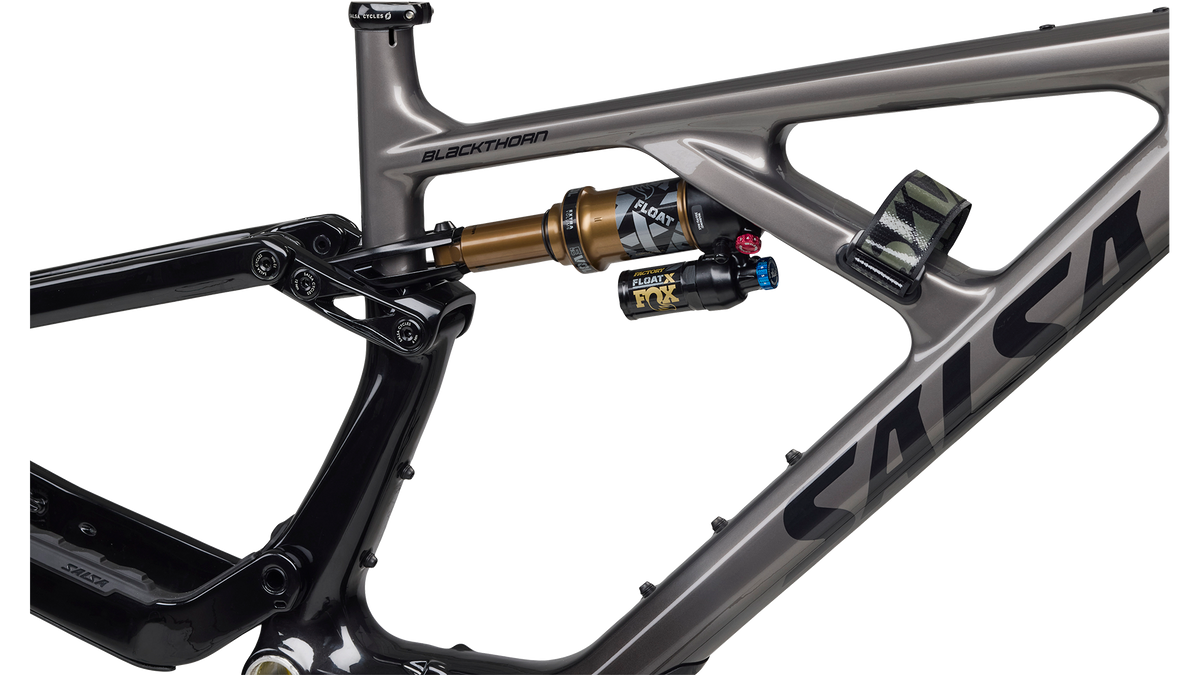

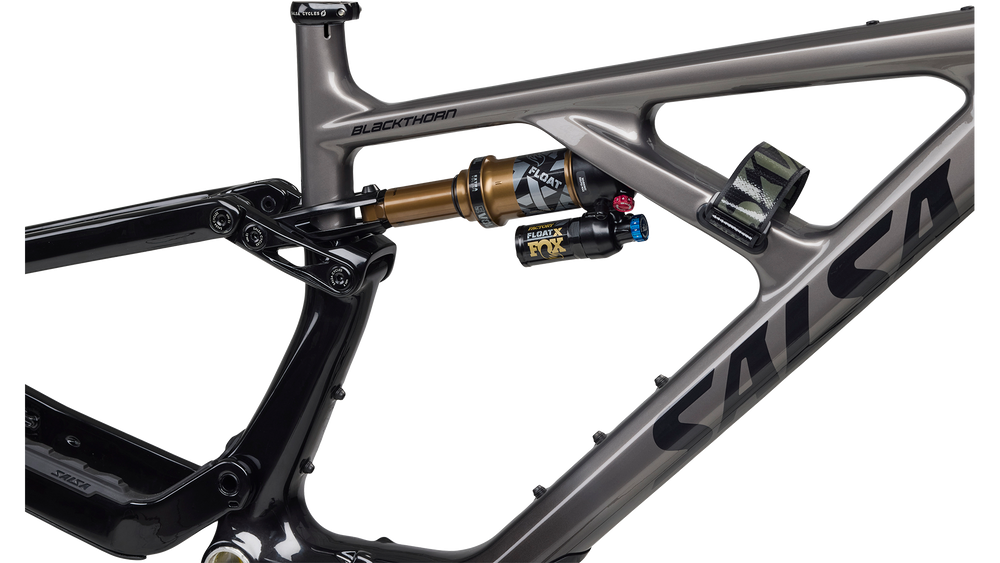

Split Pivot Suspension System
Allows us to tune the pedaling and braking forces independently Maximizes pedaling and braking performance without compromising either Results in optimal pedaling efficiency and traction when braking
-
Split Pivot +
Multiple travel classes in one chassis provides riders with the opportunity to adapt their bikes to various adventures
-
Flip Chip
Provides the ability to alternate wheel and tire sizes Riders can adjust for their terrain, or desired handling characteristics
-
Suspension Kinematics
Lively, responsive ride feel with good bottom-out resistance Free, active, and uniform suspension feel under braking Efficient pedaling, stellar climbing traction, supple small-bump performance Tunable for all riders
-
On-Bike Storage
Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
-
Frame Protection
Our products are built from experience — we’ve been there enough to know that a carbon fork can benefit from added protection just as much as the downtube on a suspension bike.
Overview
Overview

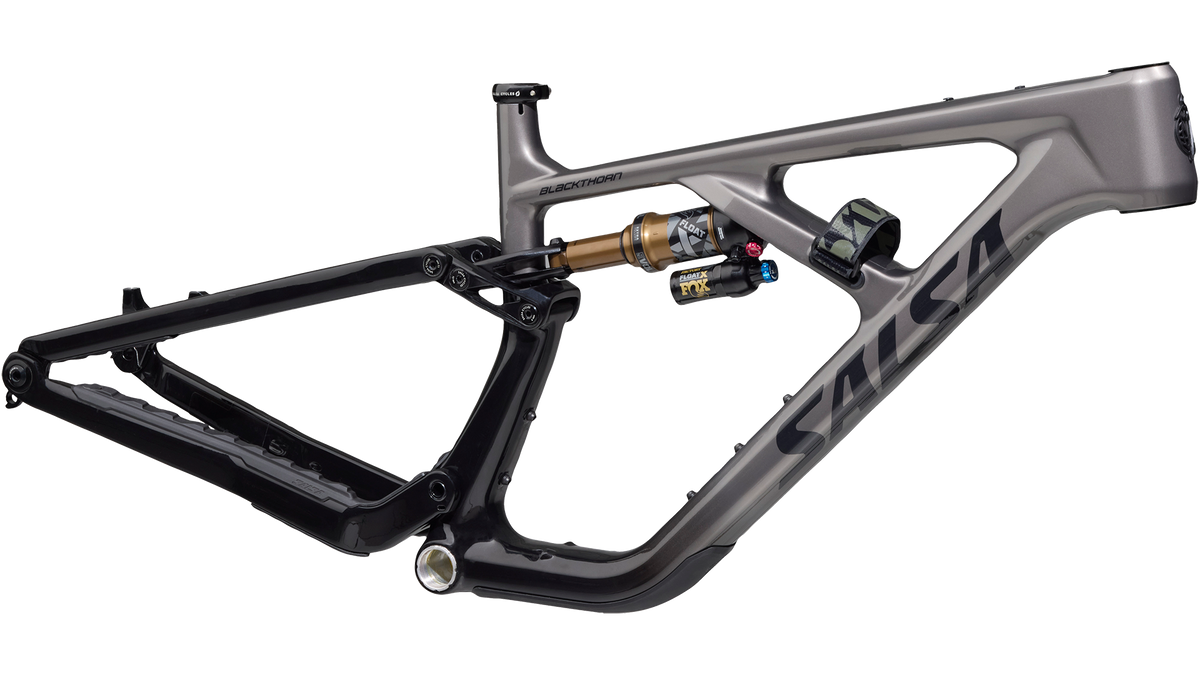

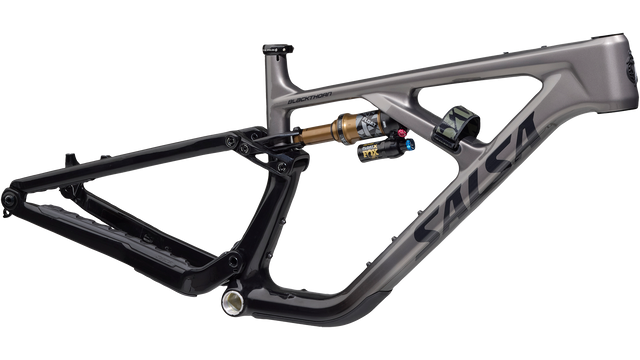

The Blackthorn 145 C frameset is your canvas for a dreamy all-mountain rig. The stiff carbon fiber frame improves your power transfer on flats and climbs, aided by 145mm of Split Pivot rear suspension travel with a supple yet supportive ride with superb pedaling efficiency, well-suited to the huge variety of trails you’ll be tackling. Our all-mountain geometry puts you in a confident position for descents and a comfortable position for the pedaly parts of the trail.
On-bike cargo mounts let you configure your setup with space for two bottles and your repair kit, plus snacks and more via the top tube mounts. Blackthorn carbon all-mountain frame give you plenty to build on — just add your favorite parts and go make an epic day of it.
Technical Specifications
Technical Specifications
| Frame | Blackthorn 145 Carbon |
| Color | Black/Smoke |
| Rear shock | Fox Float X Factory, 210 x 55mm |
| Headset | FSA Orbit 1.5E ZS NO.57E |
| Crankset | MRP 1x SL ISCG-05 bashguard |
| Frame | 6lb 13oz |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in mm unless otherwise noted; head tube angles are in degrees. Measurements based on: an unsprung bike (no sag) a 29 x 2.5" tire measuring 752mm in diameter Standover is measured from vertically from ground to top of top tube 50mm forward of bottom bracket center Note: Where two measurements are listed, the first number is with Flip Chip in default High position; the second number is with Flip Chip in Low position
| Frame size | Small | Medium | Large | X-Large |
| A. Effective Top Tube (mm) | 589.0 mm - 590.0 mm | 611.0 mm - 612.0 mm | 633.0 mm - 634.0 mm | 655.0 mm - 656.0 mm |
| B. Stand Over (mm) | 746.0 mm - 743.0 mm | 746.0 mm - 743.0 mm | 747.0 mm - 743.0 mm | 747.0 mm - 743.0 mm |
| C. Reach (mm) | 452.0 mm - 449.0 mm | 472.0 mm - 469.0 mm | 492.0 mm - 489.0 mm | 512.0 mm - 509.0 mm |
| D. Stack (mm) | 612.0 mm - 615.0 mm | 621.0 mm - 624.0 mm | 630.0 mm - 633.0 mm | 639.0 mm - 642.0 mm |
| E. Total Seat Tube Length (mm) | 405.0 mm | 430.0 mm | 455.0 mm | 480.0 mm |
| F. Headtube Length (mm) | 100.0 mm | 110.0 mm | 120.0 mm | 130.0 mm |
| G. Headtube Angle (degrees) | 63.9 | 63.9 | 63.9 | 63.9 |
| H. Seat Tube Angle (degrees) | 77.4 | 77.4 | 77.4 | 77.4 |
| I. BB Drop (mm) | 25.0 mm - 30.0 mm | 25.0 mm - 30.0 mm | 25.0 mm - 30.0 mm | 25.0 mm - 30.0 mm |
| J. BB Height (mm) | 351.0 mm - 346.0 mm | 351.0 mm - 346.0 mm | 351.0 mm - 346.0 mm | 351.0 mm - 346.0 mm |
| K. Chainstay Length (mm) | 432.0 mm - 433.0 mm | 432.0 mm - 433.0 mm | 432.0 mm - 433.0 mm | 432.0 mm - 433.0 mm |
| L. Fork Length Axle to Crown (mm) | 571.0 mm | 571.0 mm | 571.0 mm | 571.0 mm |
| M. Fork Offset (mm) | 43.0 mm | 43.0 mm | 43.0 mm | 43.0 mm |
| N. Wheelbase (mm) | 1219.0 mm - 1220.0 mm | 1243.0 mm - 1244.0 mm | 1268.0 mm - 1269.0 mm | 1292.0 mm - 1293.0 mm |
| Recommended Rider Height (cm) | 157.0 cm - 170.0 cm | 168.0 cm - 180.0 cm | 178.0 cm - 191.0 cm | 188.0 cm - 201.0 cm |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
