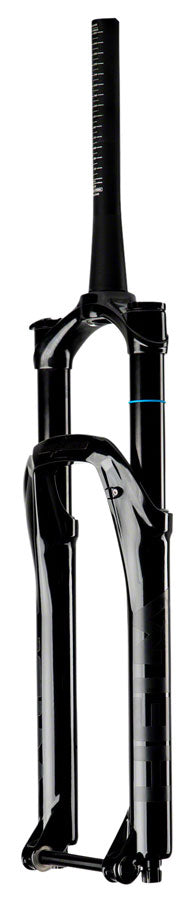

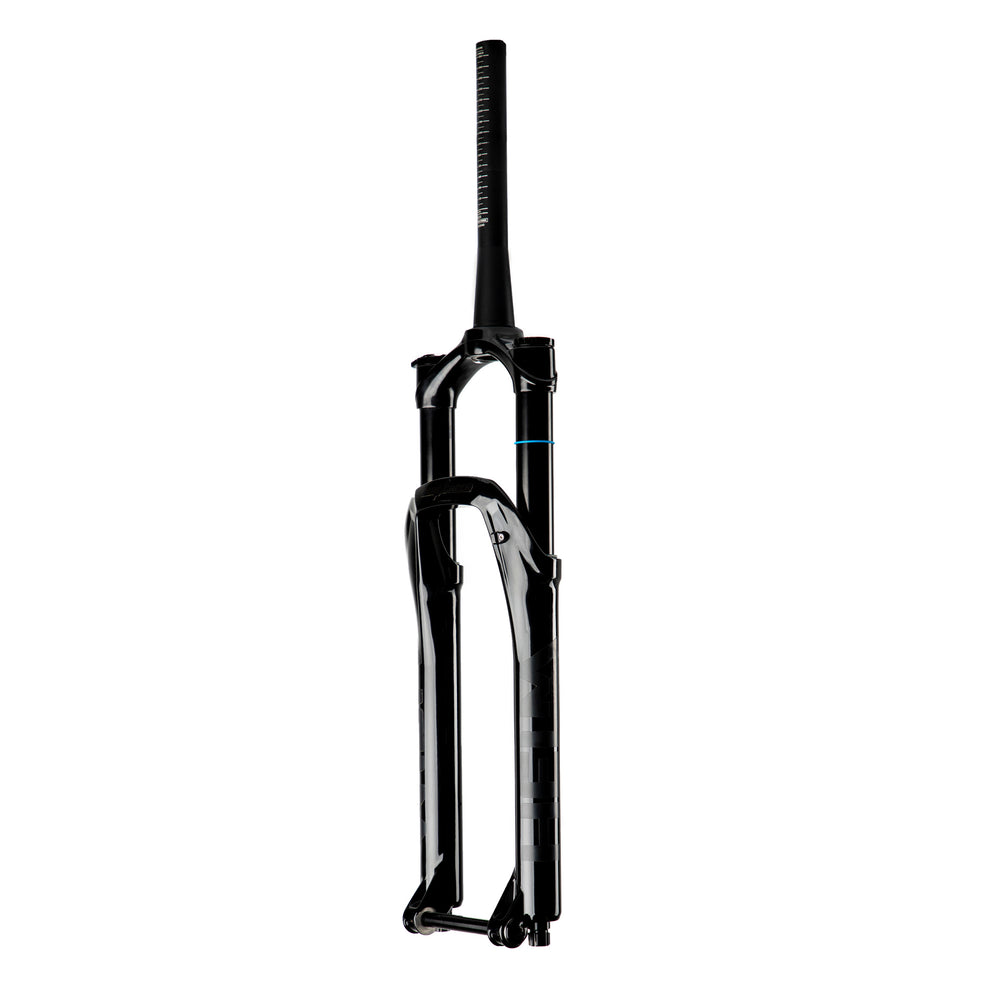

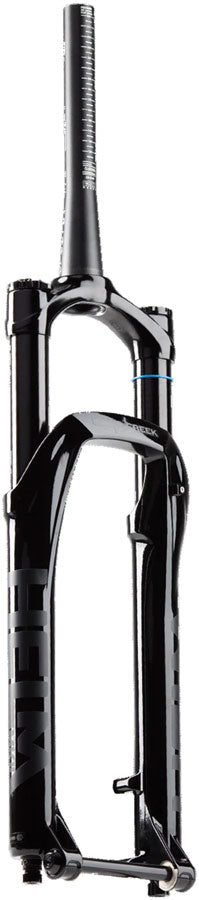

Cane Creek Helm MKII Air 29 Suspension Fork - 15 x 110 mm 44 mm Offset, Gloss Black
Expected to ship within 3 days
Delivered fully assembled and tuned by Bike Mart—ready to ride right at your doorstep within 10 miles of any DFW location.
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
Overview
Overview
- Double air spring system with independent positive and negative chambers
- Adjustable from 130 to 160mm of travel internally
- Redesigned air spring with threadless air seal head for service and travel change ease
- Damper: Low speed rebound in addition to high and low speed compression adjustable; with 2.5wt damper oil and 11% lighter viscosity
- Air volume adjustment with internal indexed system
- Threadless aluminum steerer
- 35mm low friction anodized upper tubes with SKF wiper seals
- Post mount brake: minimum 180mm rotor with 210mm maximum rotor size
- Boost 110: allows for a hub with a wider hub flange that provides the rider with a stiffer wheel for more precise steering
- D-Loc 15mm bolt-on thru-axle
- 27.5"+: 75mm wide by 739mm tall maximum tire size
- 29": 64mm wide by 749mm tall maximum tire size
| Model | Helm MKII Air |
| Wheel Size | 29", 29"/27.5"+ |
| Steerer (Stem/Race) | Tapered (28.6/40mm) |
| Offset | 44, 44mm |
| Travel | 140mm (Internally Adjustable 130-160mm) |
| Spring Type | Air |
| Brake Mount | Disc Only (PM-180) |
| Dropout | 15x110mm Boost |
| Weight | 2080, 2080g |
| Color | Black, Gloss Black |
| Steerer Type | Tapered |
| Lockout Switch | None |
| Brake Type | Post Mount 180 |
| Negative Spring | Air |
| Travel (mm) | 150, 160 |
| Axle to Crown Length | 563, 573 |
| Front Axle | 15mm Thru x 110mm |
| Maximum Tire Width | 64, 65 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Crown Race | 40 |
| External Adjustments | Rebound Damping |
| Defined Color | Black |
| Positive Spring | Air |
| Stanchion Diameter | 35 |
| Steerer Tube Length (mm) | 265 |
